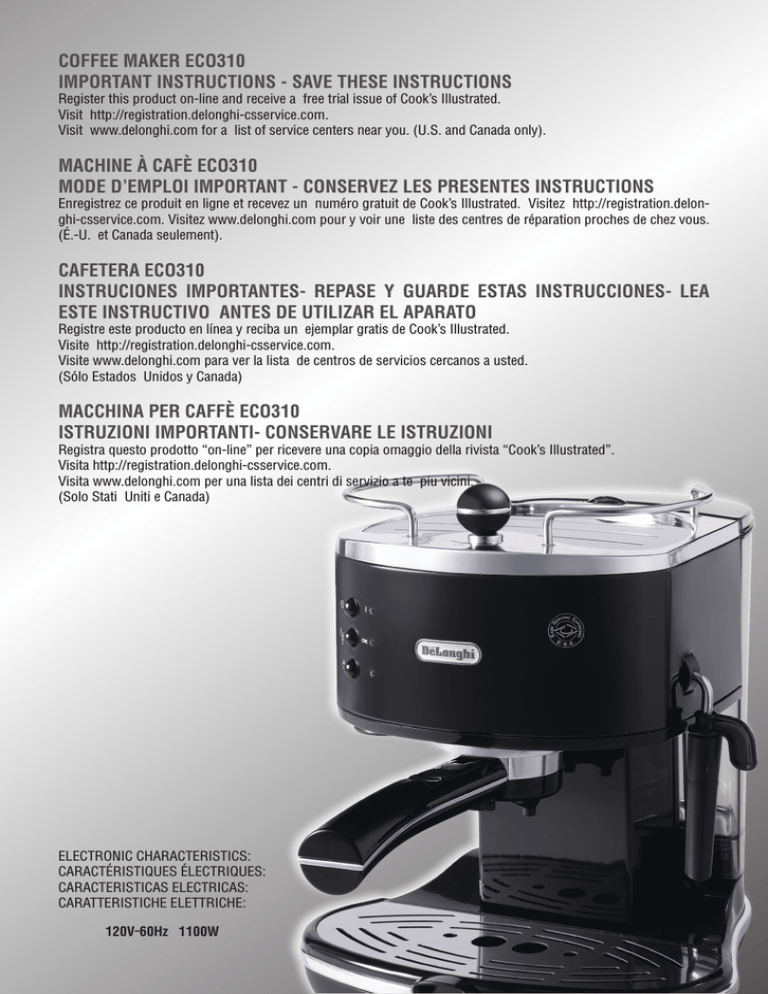

Coffee maker ECO310
important instructions - save these instructions
Register this product on-line and receive a free trial issue of Cook’s Illustrated. Visit
Visit for a list of service centers near you. (U.S. and Canada only).
Machine à cafè ECO310
mode d’emploi important - conservez les presentes instructions
Enregistrez ce produit en ligne et recevez un numéro gratuit de Cook’s Illustrated. Visitez Visitez pour y voir une liste des centres de réparation proches de chez vous.
(É.-U. et Canada seulement).
cafetera ECO310
instruciones importantes- repase y guarde estas instrucciones- LEA
Registre este producto en línea y reciba un ejemplar gratis de Cook’s Illustrated. Visite
Visite para ver la lista de centros de servicios cercanos a usted.
(Sólo Estados Unidos y Canada)
Macchina per caffè ECO310
Istruzioni importanti- conservare le istruzioni
Registra questo prodotto “on-line” per ricevere una copia omaggio della rivista “Cook’s Illustrated”.
Visita per una lista dei centri di servizio a te piu vicini.
(Solo Stati Uniti e Canada)
Electronic Characteristics:
Caractéristiques électriques:
Caratteristiche elettriche:
120V˜60Hz 1100W
When using electrical appliances, basic safety precautions should always be followed, including the following:
• Read all instructions.
• Do not touch hot surfaces. Use handles and knobs.
• To protect against fire, electrical shock and personal injury, do not immerse cord, plug or appliance in
water or other liquid.
• Never allow the appliance to be used by children.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before fitting or taking off
parts, and before cleaning the appliance.
• Do not operate with a damaged cord or plug, or after the appliance malfunctions, or has been damaged
in any manner. Return the appliance to the nearest authorized service facility for examination, repair or
• The use of accessory attachments or spare parts not recommended by the appliance manufacturer may result in fire, electrical shock or personal injury.
• Do not use outdoors.
• Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electrical burner, or in a heated oven.
• Plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall
• Do not use the appliance for other than the intended use. This appliance is to be utilized for domestic
use only. Any other use is to be considered improper and therefore, dangerous.
WARNING: To reduce the risk of fire or electric shock, do not remove the exterior of the unit or the
cover. Don’t attempt to repair or modify the machine, doing so will void the warranty. Repair should
be done by authorized service personnel only!
This product is for household use only
short cord instructions
- A short power cord is provided to reduce risks resulting from becoming entangled in or tripping over
a longer cord.
- Longer, detachable power supply cords or extension cords are available and may be used if care is
exercised in their use.
- If an extension cord is used, the marked electrical rating should be at least as great as the electrical
rating of the appliance. If the appliance is provided with 3- wire, grounding type cord, the extension
should be a GROUNDING TYPE 3 - WIRE CORD. The longer cord should be arranged so that it will not
drape over the counter-top or table top where it can be pulled on by children or tripped over.
- Your product is equipped with a polarized alternating current line plug (a plug having one blade wider
than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you
are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to
fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
polarized plug.
Attention: The appliance is not intended for use
by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been
given supervision or instruction concerning use
of the appliance by a person responsible for their
safety. Children should be supervised to ensure
that they do not play with the appliance.
Thank you for having chosen our coffee machine.
We hope you have fun with your new appliance.
Take a few minutes to read these instructions.
This is the only way to avoid danger and damage to the
Symbols used in these instructions
The important recommendations have these symbols.
These recommendations must be followed.
Scalding hazard! This appliance produces hot
water and steam may form when it is operating.
Pay attention not to come into contact with hot
water sprays or steam.
Do not touch the cup warmer plate when the appliance is on; it is hot.
Danger! Failure to comply can be or is the cause
of injury due to life-threatening electric shocks.
Attention! Failure to comply can be or is cause of
injury or damage to the appliance.
Use in compliance with destination.
This appliance is manufactured for the preparation of
coffee and to heat beverages.
The appliance is designed and produced for domestic
use only. It is not suitable for use in:
- staff kitchens in shops, offices and other workplaces.
- hotels, motels or other holiday accommodation
Any other use must be considered improper and therefore dangerous.
The manufacturer is not liable for damage deriving from
the improper use of the appliance.
Scalding hazard! Failure to comply can be or is
the cause of scalding or burns.
Information: This symbol highlights recommendations and important information for the user.
Fundamental recommendations regarding safety
Danger! This is an electrical appliance and may
therefore cause electric shock.
Instructions for use
Read these instructions carefully before using the appliance .
- Failure to comply with these instructions can lead
to injury and damage to the machine.
The manufacturer is not liable for damage deriving
from the failure to comply with the user instructions.
Follow the safety recommendations given:
• Do not touch the appliance when you have wet
hands or feet.
• Do not touch the plug with wet hands.
• Make sure that the outlet used can always be easily reached, so that the plug can be removed when
• Do not pull on power cable when removing plug as
this could cause damage. Pull plug directly from
the outlet. • Remove the plug from the outlet to disconnect the
appliance completely.
• Do not attempt to repair the appliance if it should
Switch the appliance off, remove the plug from the
socket and contact customer service.
• If the plug or power supply cable are damaged,
have them replaced only by De’Longhi authorized
service centers, in order to prevent risks.
InformationKeep these instructions safe. If the
appliance should be transferred to other persons,
these instructions must accompany it.
1. Control panel
2. Steam knob
3. Water tank
4. Water tank lid
5. Power supply cable
6. Frother tube
7. Cup tray
8. Drip tray
9. Frothing cover
10.Frothing nozzle
11.Boiler outlet
12.Coffee tamper
13.Measure for ground coffee
15.Large filter 2 doses
Attention: Keep the packaging material (plastic
bags, expanded polystyrene) out of the reach of
16.Small 1 dose filter or for pods
17.Steam function selection button
18.Coffee or hot water button
19.On/off button
20.On indicator light
21.OK indicator light
22.Steam function selected indicator light
23.Cup warmer plate
3. Alternately, do not remove the tank, fill by pouring
in water from a jug.
Attention: do not operate the appliance without
water in the tank and always fill it when the water
is a few centimeters from the bottom.
Information: it is normal to find water in the
compartment under the tank; dry using a clean
Preliminary operations
Check after transport
After the packaging has been removed, check the integrity of the appliance and the presence of all accessories.
Do not use the appliance in the presence of obvious
damage. Contact the De’Longhi customer service center..
Installing the appliance
The following safety measures must be complied with
when installing the appliance:
• The appliance could be damaged by the penetration
of water.
Do not position the appliance near sinks or faucets.
• The appliance could be damaged if the water it
contains freezes. Do not install the appliance in a
room where the temperature can fall below freezing
• Position the power supply cable in a way that it cannot be damaged by sharp edges or by contact with
hot surfaces (e.g. electric plates).
Pre-heating the coffee machine
It is advised to pre-heat the coffee machine as follows
in order to obtain an espresso coffee at the right temperature:
1. Press the ON/OFF button (the relative indicator light
switches on) (fig. 4) and attach the empty filterholder to the machine (fig. 5) by fitting filter holder
into place and turning from left to right.
2. Place a cup under the filter-holder. Use the same
cup in which the coffee is to be served so that it can
be pre-heated.
3. Wait until the OK light comes on (fig. 6) and then
press the coffee button (fig. 7). Allow the water to
run until the OK light switches off and then stop the
water by pressing the coffee button again (fig. 7).
4. Empty the cup, wait for the “OK” light to switch on
again and repeat the same operation again.
(It is normal for a small, harmless puff of steam to be
released when the filter-holder is removed).
Connecting the appliance
Attention! Make sure that the electric voltage
corresponds with that indicated on the data plate
on the base of the appliance.
1. After having pre-heated the machine as described
in the previous paragraph, insert the ground coffee filter into the filter-holder, making sure that the
projection is correctly inserted into the relative seat
as indicated in fig. 8. Use the smallest filter for one
coffee or the larger one to make two cups of coffee.
2. To prepare one coffee, fill the filter with a level measuring scoop of ground coffee, about 2 tsp (7g)
(fig. 9). If you wish to prepare two cups of coffee,
fill the filter with two less-than-level measuring
scoops of ground coffee (1 tbsp or 12g). Fill the
filter with small amounts at a time to prevent the
coffee spilling out.
• Only connect the appliance to correctly installed
socket with minimum rating of 12A and efficient
• In the case of incompatibility between the socket
and the plug on the appliance, have the plug replaced by a qualified technician.
• The power supply cable on this appliance must
never be replaced by the user as special tools are
needed for this operation. Contact a De’Longhi
authorized customer service center if the cable is
damaged or must be replaced, in order to avoid all
Filling the water tank
1. Open the water tank lid (fig. 1) and then lift the tank
to remove it (fig. 2).
2. Fill the tank with fresh water but do not pass MAX.
(fig. 3). Re-position the tank by pressing it lightly in place to open the valve situated on the base of the
tank itself.
Attention: for correct use, before filling the filter
with ground coffee always make sure there is no
residual coffee in the filter from the previous infusion.
3. Distribute the ground coffee evenly and press it
lightly using the coffee tamper (fig. 10).
Pressing the ground coffee is very important to ob8
tain a good espresso. If you press too hard, the coffee will run out slowly and the crema will be dark. If
you press too lightly, the coffee will run out too fast
and the crema will be very light.
Remove any excess coffee from the rim of the filterholder and attach it to the machine: turn the grip to
the right (fig. 5) to prevent water from escaping. Position the cup or cups under the filter-holder
spouts (fig. 11). It is recommended to warm the
cups before making the coffee by running them under hot water or leaving them to pre-heat on the
cup warmer for at least 15-20 minutes (fig. 12).
Make sure that the OK light (fig. 6) is on (if it is off,
wait for it to switch on) and press the coffee button
(fig. 7). Once the desired amount of coffee has been
obtained, press the same button again (fig. 7). (It is
recommended not to run the coffee for more than
45 seconds).
Turn the grip from right to left to release the filterholder.
3. Insert the pod, centering it as far as possible on the
filter (fig. 14). Always follow the instructions of the
pod pack for correct positioning of the pod on the
filter. 4. Attach the filter-holder to the machine, by inserting
the filter handle on the left side of the machine and
then turn to the right (fig 5) to prevent water from
escaping. Ensure that handle is tightly attached to
the machine (fig. 5).
5. Proceed as in points 5, 6 and 7 in the previous section.
1. Prepare the espresso coffee as described in the previous paragraphs, using cups that are large enough
to hold both the espresso and frothed milk..
2. Press the steam button (fig. 15).
3. In the meantime, fill a container with about 1/2 cup
of milk for every cappuccino to be prepared. The
milk must be cold and at refrigerator temperature
(not hot!). When choosing the frothing container
consider that the volume of the milk will increase
by 2 or 3 times.
Scalding hazard! To prevent sprays, do not release the filter-holder while the machine is dispensing coffee.
Information: it is recommended to use semiskimmed milk at refrigerator temperature (41°F/
8. To remove the used coffee, lock the filter using the
lever in the grip and let the coffee fall out by knocking the over-turned filter-holder (fig. 13).
9. Turn the machine off by pressing the on/off button
(fig. 4).
4. Position the container with the milk under the frother.
5. Wait for the indicator light next to the steam button
to switch on (fig. 16). This indicates that the boiler
has reached the ideal temperature for the production of steam
6. Open the steam tap (2) for a few seconds to remove
any water present in the circuit. Close the tap.
7. Dip the frother into the milk a few millimeters (fig.
17) making sure not to immerse the raised line on
the cappuccino maker (indicated by the arrow in
fig. 17). Turn the knob counterclockwise (fig. 18)
for at least half a rotation. Steam escapes from the
frother giving the milk a creamy appearance and increasing its volume. To obtain a creamier froth, dip
the frother into the milk and turn the container with
slow movements from the bottom upwards.
8. When the volume of the milk has doubled, dip the
frother far down into the frothing container and
continue to heat the milk. When the desired temperature (ideal value is 140°F / 60°C) and the desired milk froth have been reached, interrupt the
steam by turning the steam knob clockwise and
release the steam button. Use the on/off button to
switch the machine off (fig. 4) (The on/off indicator
light switches off).
9. Pour the frothed milk into the cups containing the
previously-prepared espresso coffee. The cap-
Attention: Before using the machine for the first
time all accessories and internal circuits must be
washed by making at least five cups of coffee without using ground coffee.
1. Pre-heat the machine as described in the “PREHEATING THE COFFEE MACHINE” chapter, making
sure that the filter-holder is attached to the machine. Hotter coffee is obtained in this way.
Information: use pods that comply with the ESE Standard: this
will be indicated on the packaging
by the icon to the right.
The ESE Standard is a system accepted by the leading coffee pod manufacturers
and allows espresso coffee to be made simply
and without making a mess.
2. Place the small filter in the filter-holder, making
sure that the projection is correctly inserted into
the relative seat as indicated in fig. 8.
puccino is ready: add sugar at will and if desired,
sprinkle a little powdered chocolate on top of the
Maximum delivery of 60 seconds is recommended.
• if more than one cappuccino is to be prepared, first
make all of the coffees and then prepare the milk for
all of the cappuccinos;
• if more coffee must be prepared after the milk has
been frothed, allow the boiler to cool first otherwise
the coffee will be burned. To cool it, position a container under the filterholder spouts (fig. 11), press the steam button and
allow water to run out until the steam function light
switches off: then prepare the coffee. Do not deliver steam for more than 60 seconds at
a time or froth more than 3 times consecutively. Danger! Before performing any cleaning operations of the external parts of the appliance, switch
the machine off, remove the plug from the outlet
and let the machine cool down.
Cleaning and maintenance of the filter
Clean the filter-holder and ground coffee filters about
every 300 coffees and when the coffee drips through
the filter-holder and does not flow completely:
• Remove the filter from the filter-holder.
• Unscrew the filter cap (fig. 22) in the direction indicated by the arrow on the cap itself.
• Remove all parts of filter by pushing the black rubber holder and metal disc out of filter. Remove the
metal disc from its backing. (There should be 5
separate pieces to the filter)
• Rinse all components and clean the metal filter disc
thoroughly using hot water and a brush (fig. 23).
Check that the holes in the metal filter disc are not
blocked. If this is not the case, clean them using a
pin (see fig. 24).
• Re-mount the filter by placing the metal disc and
backing inside the black rubber holder as indicated
in figure 25. Make sure that the plastic disc pin is
inserted inside the hole in the black plastic holder
as indicated by the arrow in fig. 25.
• Re-insert the black rubber holder that contains
metal disc and backing into the metal holder (fig.
26), making sure that the pin is inserted into the
hole of the support itself (see arrow fig. 26).
• Finally, tighten the filter cap .
The warranty is not valid if the cleaning operations described above are not performed on a regular basis.
Attention: the frother must always be washed after use to ensure proper functioning and sterility.
Proceed as follows:
1. Discharge a small amount of steam for a few seconds (see points 2,5 and 6 of the previous paragraph) by turning the steam knob (fig. 18). By
doing this, the frother empties any milk left inside.
Switch the machine off by pressing the ON/OFF button.
2. Use one hand to hold the cappuccino tube and the
other to release the frothing cover by turning it
clockwise and pulling it downwards (fig. 19).
Danger! Do not touch stainless steel tube that attaches frother to machine. This will be very hot
after frothing.
3. Remove the frothing nozzle from the tube by pulling it downwards (fig. 20).
4. Wash the frother and nozzle thoroughly in warm
5. Make sure that the two holes indicated by the arrows in fig. 21 are not blocked. Clean using a pin if
necessary. 6. Re-mount the frothing nozzle by inserting it firmly
upwards into the steam tube.
7. Re-mount the frothing cover by inserting it upwards
and turning it counterclockwise .
Cleaning the boiler outlet
About every 300 coffees the espresso boiler outlet must
be cleaned as follows:
• Make sure that the coffee machine is not hot and
the plug is disconnected from the socket;
• Use a screwdriver to remove the screw that fixes
the espresso boiler outlet (fig. 27);
• Remove the boiler outlet;
• Clean the boiler using a damp cloth (fig. 27);
• Clean the boiler outlet disc thoroughly using hot
water and a brush. Check that the holes are not
blocked. If this is not the case, clean them using a
pin (fig. 24).
• Rinse the boiler outlet disc under the tap, rubbing
• Re-mount the boiler outlet, paying attention to position it correctly on the gasket.
The warranty is not valid if the cleaning operations described above are not performed on a regular basis.
1. Switch the machine on by pressing the on/off button
(fig. 4). Wait for the OK light to switch on (fig. 6).
2. Position a container under the cappuccino maker.
3. Press the coffee button (fig. 7) and turn the steam
knob counterclockwise at the same time (fig. 18):
the hot water will escape from the frother.
4. To interrupt the hot water, turn the steam knob
clockwise and press the coffee button again (fig.
Other cleaning operations
1. Do not use solvents or abrasive detergents to clean
the machine. Use a soft, damp cloth.
2. Clean the filter-holder cup, the filters, drip tray and
water tank regularly.
To empty the drip tray, remove the cup warmer
grid, remove the water and clean the tray using a
cloth: then re-assemble the drip tray.
Clean the water tank using a soft bottle-brush in
order to reach the bottom.
Danger! During cleaning, never immerse the machine in water: it is an electric appliance.
It is recommended to descale the machine about every
200 coffees.
We recommend using De’Longhi approved descaler
which is available through customer service.
Follow this procedure:
1. Fill the tank with the descaling solution and dilute
the solution with water, following directions on the
descaling solution package. 2. Press the on/off button and wait for the OK light to
switch on.
3. Make sure that the filter holder is not attached and
position a container under the boiler outlet.
4. Press the coffee button and allow about 1/4 of the
solution contained in the tank to flow out: every
now and again turn the steam knob and allow a
small amount of solution to escape; then interrupt
by pressing the button again and leave the solution
to act for about 5 minutes.
5. Repeat point 4 another 3 times, until the tank is
completely empty.
6. To eliminate residues of the solution and lime scale,
rinse the tank well and fill it with clean water (without descaler).
7. Press the coffee button (fig. 6) and operate the appliance until the tank is completely empty;
8. Repeat operations 6 and 7 again.
Espresso coffee does not flow out
No water in the tank
Fill the water tank
The holes in the filter-holder are blocked
Clean the holes in the filter-holder spouts
The espresso boiler outlet is blocked
Clean the boiler outlet as indicated in the
“Cleaning the boiler outlet” paragraph
The filter-holder is inserted incorrectly
Attach the filter-holder correctly by
placing filter holder on the left side of the
machine and turning towards the right. Filter holder should be tightly locked in
The espresso boiler gasket has lost
Replace the espresso boiler gasket by
calling customer service. •
The holes in the filter-holder spout are
Clean the holes in the spouts.
The espresso OK light is not on when the
coffee button is pressed
Wait for the OK light to switch on
Pre-heating has not been carried out
Pre-heat as indicated in the “preheating
the coffee machine” paragraph
The cups have not been pre-heated
Pre-heat the cups using hot water or
leave them for at least 20 minutes on the
cup warmer plate.
The water tank is empty
Fill the water tank
The tank is inserted incorrectly and the
valve on the bottom is not open
Press the tank lightly to open the valve
on the bottom
The ground coffee has not been
sufficiently pressed
Tamper the ground coffee more (fig. 10))
Not enough ground coffee
Increase the amount of ground coffee
The coffee is not ground finely enough
Only use coffee ground specifically for
espresso coffee machines
Incorrect type of ground coffee
Change the type of the ground coffee. It
is recommended to use a dark espresso
The ground coffee is too tightly pressed
Tamper the coffee less (fig. 6)
Too much ground coffee
Decrease the amount of ground coffee
The espresso boiler outlet is blocked
Clean as indicated in the “Cleaning the
espresso boiler outlet” paragraph.
The filter is blocked
Clean as indicated in the “cleaning the
filter” paragraph.
The coffee is too finely ground
Only use coffee ground specifically for
espresso coffee machines
The ground coffee is too fine or is damp
Only use coffee ground specifically for
espresso coffee machines and it must
not be too damp
Incorrect type of ground coffee
Change the type of the ground coffee. It
is recommended to use a dark espresso
The milk is not cold enough
Always use milk at refrigerator
temperature (41°F/5°C).
The frother is dirty
Carefully clean the holes in the frother in
particular, those indicated in figure 21
Espresso coffee drips from the edges of the filter-holder instead of
through the holes
The espresso coffee is cold
Loud pump noise
The coffee crema is clear (it flows
quickly from the spout)
The coffee crema is dark (it flows
slowly from the spout)
The milk does not froth when making a cappuccino
This warranty applies to all products with De’Longhi or Kenwood brand names.
Limited Warranty
What does the warranty cover?
We warrant each appliance to be free from defects in material and workmanship. Our obligation under this
warranty is limited to repair at our factory or authorized service center of any defective parts or part thereof, other than parts damaged in transit. In the event of a products replacement or return, the unit must be
returned transportation prepaid. The repaired or new model will be returned at the company’s expense.
This warranty shall apply only if the appliance is used in accordance with the factory directions, which
accompany it, and on an Alternating current ( AC ) circuit.
How long does the coverage last?
This warranty runs for one year ( 1 ) from the purchase date found on your receipt and applies only to the
original purchaser for use.
What is not covered by the warranty?
The warranty does not cover defects or damage of the appliance, which result from repairs or alterations
to the appliance outside our factory or authorized service centers, nor shall it apply to any appliance,
which has been subject to abuse, misuse, negligence or accidents. Also, consequential and incidental
damage resulting from the use of this product or arising out of any breach of contract or breach of this
warranty are not recoverable under this warranty. Some states do not allow the exclusion or limitation of
incidental or consequential damage, so the above limitation may not apply to you.
How do you get service?
If repairs become necessary, see contact information below:
U.S. Residents: Please contact our toll free hotline at 1-800-322-3848 or log onto our website at www. For all accessories, spare parts or replacement parts, please contact our parts division
at 1-800-865-6330.
Residents of Canada: Please contact our toll free hotline at 1-888-335-6644 or log onto our website at
Residents of Mexico: Please refer to the Limited Warranty statement for Mexico.
Please refer to the back page of the manual for De’Longhi addresses.
The above warranty is in lieu of all other express warranties and representations. All implied warranties
are limited to the applicable warranty period set forth above. This limitation does not apply if you enter
into an extended warranty with De’Longhi. Some states do not allow limitations on how long an implied
warranty lasts, so the above exclusions may not apply to you. De’Longhi does not authorize any other
person or company to assume for it any liability in connection with the sale or use of its appliance.
How does state law apply?
This warranty gives you specific legal rights, and you may also have other rights, which vary from state
to state.
De’Longhi America, Inc.
Park 80 West, Plaza One
Saddle Brook, NJ 07663
De’Longhi Canada, Inc.
6150 McLaughlin Road
Mississauga, Ontario
L5R 4E1 Canada
Fiducia Italiana S.A de C.V.
Pestalozzi 814
Col. Del Valle
Del. Benito Juarez
México D.F. 03100
tels: 5543 1447 y 5543 6492
Lada sin costo: 01800 711 8805
Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF
