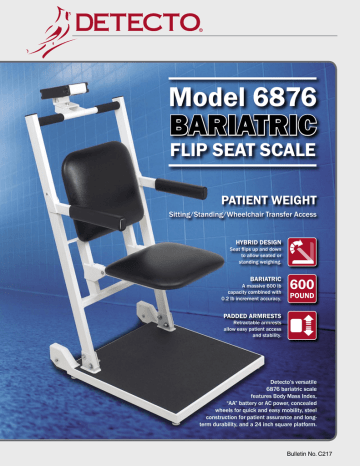

BARIATRIC Model 6876 FLIP SEAT SCALE

BARIATRIC Model 6876 FLIP SEAT SCALE
Model 6876
BARIATRIC
FLIP SEAT SCALE
PATIENT WEIGHT
Sitting/Standing/Wheelchair Transfer Access
HYBRID DESIGN
Seat flips up and down
to allow seated or
standing weighing.
BARIATRIC
A massive 600 lb
capacity combined with
0.2 lb increment accuracy.
600
POUND
PADDED ARMRESTS
Retractable armrests
allow easy patient access
and stability.
Detecto’s versatile
6876 bariatric scale
features Body Mass Index,
“AA” battery or AC power, concealed
wheels for quick and easy mobility, steel
construction for patient assurance and longterm durability, and a 24 inch square platform.
Bulletin No. C217
DETECTO 6876 BARIATRIC SCALE
ONLY
SCALE ON
THE MARKET
The
RETRACTABLE IN

offering all of these
FEATURES.
VITAL SIGN
CAPTURING
STATION
3 POINTS
The seat and armrests flips up
and down to allow weighing in
a standing or sitting position,
while also providing wheelchair
transfer access.


Non-slip rubber
mat platform.
With the patient seated comfortably, the 6876 becomes more
than just a scale - it’s a patient monitoring station for gathering
a range of data from one location. Weight and Body Mass Index
recording only begin the options available from one location. The
seat with padded armrests allows blood pressure to be taken
right after the weight is captured without relocating the patient.
34.2 in
87 cm
The 6876
features concealed
wheels and tips back
for easy transport .
Low profile,
24-inch-square
base with 4 load cells.
The LCD display is powered by "AA"
batteries or an AC adapter. The easy-touse BMI calculator with scroll feature to
input height allows you the ease of BMI
calculation while weighing. The Lock/
Release key allows weight to be viewed
after the patient leaves the scale.
21 in
53 cm
15.5 in
39 cm
SPECIFICATIONS
CAPACITY:
600 lb x 0.2 lb / 270 kg x 0.1 kg
POWER:
6 “AA” size Alkaline, Ni-Cad or NiMH
batteries ( not included ) OR an optional
100 to 240 VAC 50/60Hz 12 VDC 1A wall
plug-in UL/CSA listed AC power supply
LCD DISPLAY:
0.75 inch high digits
SHIPPING WEIGHT:
146 lb / 66 kg
CONSTRUCTION:
Baked-on, powder-painted steel
30.4 in
77 cm
2.1 in
5 cm
Detecto Scale reserves the right to improve, enhance, or modify features and specifications without prior notice.
DETECTO
Sold By:
ISO
REG
ISTE
RED
46.4 in
118 cm
9001:2000
MADE IN USA
®
A Division of Cardinal Scale Manufacturing Co.
203 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-5001
www.Detecto.com
© Copyright 2007 Cardinal Scale Mfg. Co.
• Printed in USA • CAR/00/1007/C217
