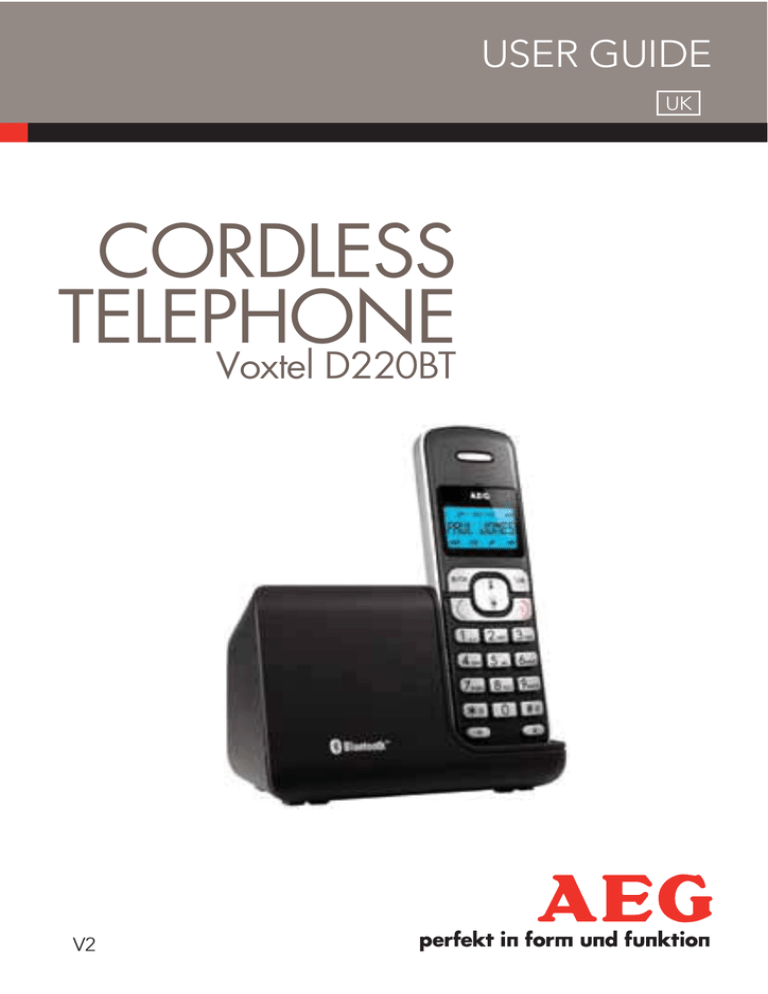

USER GUIDE
UK
CORDLESS
TELEPHONE
Voxtel D220BT
V2
2
P2
P1
1
OK
8
7
2
3
R
1
2 ABC 3 DEF
P3
4
4 GHI 5 JKL 6MNO
7 PQRS 8 TUV 9WXYZ
0
6
P4
MOBILE
5
11
P5
3
BECAUSE WE CARE
Thank you for purchasing this product. This product has been designed
and assembled with utmost care for you and the environment. This is
why we supply this product with a quick installation guide to reduce
the number of paper (pages) and therefor save trees to be cut for
making this paper. A full and detailed user guide with all the features
descripted can be found on our website www.aegtelephones.eu.
Please download the full user guide in case you want to make use of
all the advanced features of your product. To save the environment we
ask you not to print this full user guide. Thank you for supporting us to
protect our environment.
2
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions
should always be followed to reduce the risk of fire, electric shock and
injury, including the
following:
1. Read and understand all the instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
4. Keep your phone away from hot, humid conditions or strong
sunlight, and don‘t let it get wet or use this product near water (for
example, near a bath tub , kitchen sink, swimming pool).
5. Do not overload wall outlets and extension cords as this can result
in the risk of fire or electric shock.
6. Unplug this product from the wall outlet and refer servicing to our
Repair Centre under the following conditions:
tWhen the power supply cord or plug is damaged.
tIf the product does not operate normally by following the
operating instructions.
tIf the product has been dropped and the cabinet has been
damaged.
tIf the product exhibits a distinct change in performance.
UK
1
4
7. NEVER use your phone outdoors during a thunderstorm-unplug
the base from the telephone line and the mains socket when there
are storms in your area. Damage caused by lightning is not covered
by the guarantee.
8. Do not use the telephone to report a gas leak in the vicinity of the
leak.
9. Use only the supplied NiMH (Nickel Metal Hydride) batteries! The
operation periods for the handsets are only applicable with the
default battery capacities
10. The use of other battery types or non-rechargeable batteries/
primary cells can be dangerous. These may cause interference
and/or damage to the unit or surroundings. The manufacturer will
not be held liable for damage arising from such non-compliance.
11. Do not use third party charging bays. Damage may be caused to
the batteries.
12. Please ensure the batteries are inserted in the correct polarity.
13. Dispose of batteries safely. Do not immerse them in water, burn
them, or put them where they could get punctured.
3
INTENDED USE
This telephone is intended to be connected to a public analogue
telephone network or to an analogue extension of a compatible PBX
system.
4
UNPACKING YOUR PHONE
The package contains the following items:
t1 Handset
t1 Base station
t1 Mains power adapter
t1 Telephone line cord
t2 Rechargeable batteries
t1 User manual
5
GETTING TO KNOW YOUR PHONE
5.1
Handset overview (see P1)
#
Meaning
1
Right soft key (clear/back/mute/intercom)
tIn main menu mode: Press to go back to idle screen
tIn sub-menu mode: Press to go back to previous
level
tIn sub-menu mode: Press and hold to go back to
idle screen
tIn editing / predialling mode: Press to clear a
character / digit
tIn editing / predialling mode: Press and hold to
delete all the characters / digits
tDuring a call: Press to mute/unmute the microphone
tIn idle mode:Press to intercom another handset
2
Up
tIn idle mode: Press to access the call list
tIn menu mode: Press to scroll up the menu items
tIn Phonebook list / Redial list / Call List: Press to
scroll up the list
tDuring a call: Press to increase the earpiece volume
tDuring ringing: Press to increase the ringer volume
3
Down
tIn idle mode: Press to access the redial list
tIn menu mode: Press to scroll down the menu items
tIn Phonebook list /Redial list / Call List: Press to
scroll down the list
tDuring a call: Press to decrease the earpiece volume
tDuring ringing: Press to decrease the ringer volume
UK
5
6
4
Off
tDuring a call: Press to end a call and go back to idle
screen
tIn menu / editing mode: Press to go back to
previous menu
tIn idle mode: Press and hold to power off the
handset
tIn idle mode (when the handset is powered off):
Press and hold to power on the handset.
5
Mobile
tIn idle mode: Press to predial with mobile line if only
one mobile connected or show the mobile list if two
mobiles connected.
tIn predial mode: Press to dial to the number with
mobile line or show the mobile list for selection first
MOBILE
if two mobiles connected.
tDuring ringing in mobile line: Press to answer the
mobile line call.
tIn Call List / Redial List: Press to dial the selected
number with mobile line or show the mobile list for
selection first if two mobiles connected.
6
Speakerphone
tDuring a call: Press to turn on / off the speakerphone.
tCall List / Phonebook entry : Press to make a call
with speakerphone
tDuring ringing: Press to answer
a call with
speakerphone
7
Talk/Flash
tIn idle / predialling mode: Press to make a call
tIn Redial list / Call List / Phonebook list: Press to
make a call to the displayed entry.
tDuring ringing: Press to answer a call
tDuring a call: Press to dial a flash
R
8
Left soft key
tIn idle mode: Press to access the main menu
OK tIn sub-menu mode: Press to confirm the selection
tDuring a call: Press to access Intercom/Phonebook/
Redial List/ Call List
5.2
Cordless handset display (see P2)
The LCD display gives you information on the current status of the
telephone.
#
Meaning
Steadily on when the handset is in range of the base.
Flashes when out of range of the base or not
registered to the base.
Steadily on when an intercom is in progress.
Flashes when there is an incoming internal call.
Indicates a home call is in progress. Flashes when a
home call is on hold.
Indicates that hands free are being used.
Indicates that the ringer is switched off.
Steadily on when an alarm is set.
Flashes when the alarm time set before reaches.
Indicates that the keypad is locked.
Indicates when there are received new Voice
Message Waiting (VMWI) not yet read.
Disappears when all the voice messages have been
read.
Indicates when the battery is fully charged.
Whole icon flashes when the battery performs initial
charging.
Internal block icon flashes when the battery is in final
charging stage.
UK
7
8
Indicates when the battery needs charging.
Flashes when low battery power level is detected.
Indicates when a mobile call is in progress.
Flashes when a mobile call is on hold.
Indicates there is (are) Bluetooth device(s) paired.
Flashes when Bluetooth devise is being paired.
Indicates when Bluetooth device #1 or #2 is connected
with the telephone base.
Indicates when more characters are existed before
the text currently displayed.
Indicates when more characters are existed after the
text currently displayed.
Press to select more menu options if applicable.
Press to confirm the current selection if applicable.
Steady when new call list.
Turn off when new call has been read.
Scroll up / down the menu items / Phonebook list /
Redial list / Call List.
Press to conduct Intercom call when idle.
Press to go back to previous menu level or cancel the
current action if applicable.
Press to clear a character or stop the alarm if
applicable, press to mute / unmute during a call.
5.3
Corded Base Station
#
Meaning
11
Paging/Find
Press to page your registered handset(s). Press and
hold to start the registration process.
5.4
Menu Structure
tIn idle mode, press
OK to go to “CALL LIST“, the first option in
the menu list.
tPress / to go to other options in the menu list.
tPress
OK to enter a sub-menu or function.
tPress to go back to the previous level.
tRefer to the following for the menu structure.
5.5
Text and Digit Entry Table
The following table shows you where each letter and punctuation
character can be found, by using repeated presses of the alphanumeric
keypad. This will be helpful when storing a name in the phonebook
and renaming your handset.
In editing mode, a cursor is displayed to indicate the current text entry
position. It is positioned at the right of the last character entered.
Writing Tips:
tOnce a character is selected, the cursor will move to the next position
after a short pause.
tYou can move the cursor within the text with the / keys to amend
the text entry.
tPress to delete the last character.
tPress and hold to delete the entire text string.
UK
9
10
5.5.1
English Character Set
Alphanumeric Editing
(For phonebook name editing and renaming handset)
Key Press
1
2
3
4
5
6
7
8
9
0
*
#
1st
space
A
D
G
J
M
P
T
W
0
*
°
2nd 3rd
B
E
H
K
N
Q
U
X
?
‘
1
C
F
I
L
O
R
V
Y
/
,
4th
2
3
4
5
6
S
8
Z
\
-
5th
6th
7th
8th
1
2
3
4
5
6
7
8
9
0, or P (if press
7
9
(
&
9th 10th
Number
Editing (For
phone number
editing, date/
time editing)
)
and hold)
*
Some other characters are available with some of the alternative
handset language options.
6
INSTALLING YOUR PHONE
6.1
Connecting the base station (see P5)
tPlug the power supply and line cord into the base station.
tPlug the power adapter into a 210 - 240Vac, 50Hz mains socket and
the line cord into your telephone line socket.
tAlways use the cables provided in the box
Warning:
Use only the provided adaptor, using other power supplies may cause
a hazard.
Warning:
Install the base unit in a position where the mains adapter plug will
reach an easily accessible mains socket. Never try to lengthen the
mains power cable.
Note:
The base unit needs mains power for normal operation, not just for
charging the handset batteries.
6.2
Installing and charging the batteries (see P3)
tPlace the 2 supplied batteries into the battery compartment with the
polarity markings as shown. Use only the NiMH rechargeable battery
type provided.
tPosition the battery compartment cover over the batteries and slide
up to click into place.
tPut the handset on the base and charge for 15 hours before using
the handset for the first time. The handset will give a beep when it is
properly placed on the base or charger.
7
USING YOUR PHONE
7.1
Introducing Bluetooth
Your new telephone system with Bluetooth wireless technology has
the following features:
tPairing a Bluetooth enabled mobile phone with the telephone base.
Two Bluetooth devices can be paired up and connected.
tConnecting a Bluetooth enabled mobile phone to make and receive
MOBILE calls. Two mobile phones can be connected but only one of
them can be used at a time.
tMaking and receiving calls using your Bluetooth enabled mobile
phone plan while benefiting from the ease and comfort of your
home telephone system.
Glossary of terms
Below are some terms used in this User’s Guide to help you become
familiar with using your Bluetooth devices and your new telephone
system.
Bluetooth mobile phone - Refers to a Bluetooth enabled mobile
telephone.
MOBILE line - The communications service provided through your
Bluetooth enabled mobile phone.
UK
11
12
HOME line - Your conventional telephone land line.
Pairing - This refers to the process of two Bluetooth devices registering
device information with each other. The telephone base must be
paired with a Bluetooth enabled mobile phone before the Bluetooth
device can be used.
IMPORTANT INFORMATION
tRefer to your mobile phone user’s guide for more information about
its Bluetooth function.
tMake sure that your Bluetooth enabled mobile phone is between
one to 2 m away from the telephone base in order to maintain a clear
and consistent connection between your Bluetooth mobile phone,
telephone base and cell tower.
tMake sure that your Bluetooth enabled mobile phone has sufficient
signal strength. You may need to move the Bluetooth enabled
mobile phone and telephone base to a location where the mobile
signal may be stronger.
tCharge your Bluetooth mobile phone while it is connected to the
telephone base because your mobile phone’s battery will discharge
faster while it is connected wirelessly to the telephone base.
tMonitor your mobile phone’s usage because airtime is deducted
from your mobile plan for the duration of the MOBILE calls.
7.2
Bluetooth Setup
7.2.1
Setup Mobile
To pair and connect a Bluetooth enabled mobile phone:
tPlace your cell phone near the handset and base unit.
tPress
OK and then / to select “MOBILE SETUP“.
tPress
OK and display will show “READY?”.
tPress
OK and display will show “DISCOVERING”. The Bluetooth
feature is activated.
tUsing your Bluetooth enabled mobile phone, turn on the Bluetooth
feature and search for a new device.
tOnce your Bluetooth enabled mobile phone has found the AEG-BT
telephone, select it.
tUsing your Bluetooth enabled mobile phone, enter the PIN code of
the telephone (the default PIN code is 0000) to continue the pairing
process.
tPairing will be confirmed when you hear a tone and the Bluetooth
icon appears on the handset.
Refer to the user’s manual of your Bluetooth enabled mobile phone to
learn how to search for or add new Bluetooth devices.
Notes:
Paired device(s) will be connected automatically and stored into the
Paired Devices list.
>When a device is successfully connected, corresponding device
icon will be displayed on screen and Bluetooth device LED on
base will be on.
>If you would like to pair up another Bluetooth device, please
repeat the steps as above.
7.2.2
Replace a paired device
If you have already paired up two Bluetooth devices, you will need to
replace one of them if you would like to pair up another device. Follow
the below steps to replace and pair up a new device.
tPress
OK and then / to select ”MOBILE SETUP”.
tPress
OK and the display will show the already paired devices
and then you are requested to select the device to be replaced.
tPress / to select the desired device.
tPress
OK to confirm. Display will show “REPLACE?”.
tPress
OK to confirm, and the device will be removed from paired
list.
tYou will be requested to pair up the new Bluetooth device. Refer to
Section 7.2.1 to proceed with the next steps.
Note:
When pairing a new mobile, the connected mobile has to be disabled
temporarily.
7.2.3
Paired Devices
The mobile(s) paired up will be displayed in the paired devices list, no
matter it (they) is (are) connected or not. You can choose to connect,
or remove the mobile from this menu.
tPress
OK and then / to select “PAIRED UNITS“.
UK
13
14
tDisplay will show the mobile name of paired device(s).
Note:
Display will show “EMPTY” if there is no device paired.
tPress
OK and then / to select the desired mobile device.
For the connected mobile device:
tPress
OK to remove the mobile device.
tPress
OK to confirm.
For the mobile phone that is not connected:
tPress
OK and then / to select “CONNECT“ or “REMOVE“.
tPress
OK to confirm. If you select “REMOVE“, press OK again
to confirm.
Notes:
When the connected mobile is removed, corresponding Bluetooth
device icon and LED on base will be off.
>When the disconnected mobile is connected, corresponding
device or will be on.
>When the mobile is removed, the device name will be removed
and “EMPTY“ will be displayed instead in the paired device list.
7.3
Make a Call
7.3.1
Preparatory dialing
Using the home line
Enter the phone number and press
home line.
or
to dial the number with
Using the mobile line
Enter the phone number and press MOBILE to dial the number with
mobile line. If there are two mobile devices connected, you have to
select one device from the list.
Note:
If no mobile device connected, display will show “NO MOBILE” and
then back to idle.
7.3.2
Direct dialling
Using the home line
Press or to take the home line and enter the phone number.
Using the mobile line
tPress MOBILE and
OK, then enter the phone number.
tPress MOBILE to dial with mobile line. If there are two mobile devices
connected, you have to select one device from the list.
Note:
If no mobile device connected, display will show “NO MOBILE” and
then back to idle.
7.3.3
tPress
entry.
Call from the phonebook
OK to access the phonebook to get the desired phonebook
Using the home line
tPress or to dial the selected phonebook entry with home line.
Using the mobile line
tPress MOBILE to dial the selected phonebook entry with mobile line.
7.3.4
Call from the call list
tPress to access the call list and then press / to select the desired
call list entry.
Using the home line
tPress or to dial the selected call list entry with home line.
Using the mobile line
tPress MOBILE to dial the selected call list entry with mobile line.
7.3.5
Call from the redial list
tPress to access the redial list and then press
desired redial number.
/
to select the
Using the home line
tPress or to dial the selected redial list entry with home line.
UK
15
16
Using the mobile line
tPress MOBILE to dial the selected redial list entry with mobile line.
7.3.6
Call timer
Your handset automatically times the duration of every call. The call
timer will display a few seconds after the call ends. It is shown in hours,
minutes and seconds format (HH:MM:SS).
7.4
Answer a call
Answering a home call
If handset is not on the charging cradle:
When the phone rings, press or to answer a call:
Answering a mobile call
If handset is not on the charging cradle.
When the phone rings, press MOBILE or to answer a call.
If the handset is on the charging cradle or the base station, and Auto
Answer is turned on: When the phone rings, pick up the handset to
answer a call.
Note:
Refer to Section 10.5 for the details about setting Auto Answer.
7.5
End a call
tDuring a call press to end the call.
OR
tPut the handset on the base station or charger to end the call.
7.6
Handset speakerphone
to alternate between hands-free
During a call, you can press
speakerphone and normal handset use.
7.7
Adjust volume
There are 5 levels (“VOLUME 1” to “VOLUME 5”) to choose from for
each of the earpiece and speaker volumes.
During a call:
tPress / to select volume 1-5. The current setting is shown.
>When you end the call, the setting will remain at the last selected
level.
7.8
Mute a call
You can talk to someone nearby without letting the caller hear you
during a call.
During a call:
to mute the microphone and “MUTED” will display on the
tPress
LCD. Your caller cannot hear you.
tPress again to unmute the microphone.
7.9
Turn off the handset ringer
In idle, press and hold # to turn off the handset ringer. The
is displayed on the LCD.
icon
Note:
and show “CALL” or the
The display will still flash the call icon
caller display number, when there is an incoming call, even if the ringer
is turned off.
tTo turn the ringer back on, press and hold # again.
7.10
Turn on the keypad lock
You can lock the keypad so that it cannot be used accidentally while
carrying it around.
icon
tIn idle, press and hold * to turn on the keypad lock and the
will display.
Note:
You can still use to answer a call when the handset is ringing.
To turn the keypad lock off, press and hold * again.
7.11
Redial the last number
You can redial any of the 10 last numbers called. If you have stored a
name in phonebook to go with the number, the name will be displayed
instead.
The most recent last number will display at the top of the redial list.
7.11.1
Redial a number from the redial list
to access the redial list.
tIn idle mode, press
UK
17
18
Note:
If the redial list entry shows a name, press # to view the number of
this entry.
tPress / to browse the redial list.
tPress to dial to the selected redial number.
Note:
If there are no numbers in the redial list, the display shows “EMPTY”.
7.11.2
Store a redial number into the phonebook
tFollow Steps 1 and 2 in Section 7.11.1.
tPress
OK and / to select ”ADD TO PB”.
tPress
OK and then enter the name you want to use in the
phonebook.
tPress
OK and then modify the number, if necessary.
tPress
OK to show “MELODY 1“.
tPress / to browse the ringtone list. The respective ringtone will be
played when browsing the ringtone list.
Note
The selected melody will only be played when you receive a call if
you subscribe to Caller Display and the incoming number matches
the stored number.
tPress
OK to confirm, and the entry will be stored.
7.11.3
Delete a redial number
tFollow Steps 1 and 2 in Section 7.11.1.
tPress
OK and / to select “DELETE“.
tPress
OK to confirm, and the entry will be deleted.
7.11.4
Delete all redial list entries
tFollow Steps 1 and 2 in Section 7.11.1.
tPress
OK and / to select “DELETE ALL“.
tPress
OK to display “CONFIRM?“.
tPress
OK to confirm. All entries will be deleted and the display
will show “EMPTY“.
7.12
Find the handset
You can locate the handset by pressing the Find button in the middle
of the front of the base station. All the handsets registered to the base
will produce the paging tone and show “PAGING“ on the display for
60 seconds.
/ on any handset or
You can stop the paging by pressing /
on the base again.
Note:
If there is an incoming call during paging, the phone will ring with the
incoming call instead of paging.
7.13
Make an internal call (Multi-handset versions only)
This feature is only applicable when there are at least two registered
handsets or at least one handset and a headset.
It allows you to make internal calls, transfer external calls from one
handset to another handset / headset and make conference calls. If
the called handset / headset is not answered within 60 seconds, the
called handset / headset will stop ringing and the calling handset will
return to standby mode.
Note:
If only one handset is registered to the base station, when
pressed, it will display “NOT POSSIBLE”.
is
7.13.1
Intercom another handset
tIn idle mode, press and all the other registered handset numbers
will display, along with a “9“.
tEnter the number of the handset that you want to call, or enter 9 to
call all handsets.
tThe called handset rings and must be pressed on that handset to
establish the intercom call.
Note:
If only one other handset is registered to the base station, pressing
will call the other handset immediately.
UK
19
20
Note:
If there is an external call while you are on an intercom call, you‘ll hear
warning beeps, and you have to end the intercom call, before you can
answer the external call.
7.13.2
Call all handsets
and the registered handset numbers will
tIn idle mode, press
display.
tPress the 9 key to ring to all registered handsets.
7.13.3
Transfer an external call to another handset
During an external call:
tPress
OK and / to select “INTERCOM“.
tPress
OK to show all the other registered handset numbers, plus
9. Enter the number for the handset you want to transfer the call to.
tThe external call is put on hold automatically and the called handset
rings.
tPress on the called handset to establish an internal call.
on the calling handset or put the calling handset on the
tPress
charging cradle to end the current call with the external party.
>The external call is transferred to the called handset.
Note:
If the other handset has not answered the intercom call, you can stop
the intercom and return to the external call by pressing .
7.13.4
Make a 3-way conference call
The conference call feature allows one external call to be shared
with two handsets or one handset and a headset (in intercom). The
three parties can share the conversation and no additional network
subscription is required.
During an external call:
tFollow Steps 1 to 4 in Section 7.13.3.
tPress and hold the star key * on the calling handset to establish the
conference call.
Either handset can exit the conference by pressing , leaving the
other handset still connected to the external call.
21
PRIVATE PHONEBOOK
Each handset can store up to 50 private phonebook entries with
names and numbers. Each phonebook entry can have a maximum
of 20 digits for the phone number and 12 characters for the name.
You can also select different ringtones for your phonebook entries.
(Note: the different ringtones only play when you receive a call if you
subscribe to Caller Display and the incoming number matches the
stored number.) Phonebook entries are stored alphabetically by name.
8.1
In idle:
tPress
Add a new phonebook entry
OK and / to select “PHONEBOOK” and then press
OK to access the phonebook.
tPress
OK to show “ADD”.
tPress
OK and then enter the name.
tPress
OK and then enter the number.
tPress
OK and / to select the desired ringtone for your
phonebook entry.
tPress
OK to store the phonebook entry.
8.2
In idle:
tPress
Search for a phonebook entry
OK and / to select “PHONEBOOK” and then press
OK to access the phonebook.
tEnter the first letter of the name using the alphanumeric keys (e.g. if
it begins with C, press the 2 key three times) and then / to scroll
to the entry you want.
8.3
In idle:
tPress
View a phonebook entry
OK and / to select ”PHONEBOOK” and then press
OK to access the phonebook.
tPress / to select the desired phonebook entry.
tPress
OK and / to select ”VIEW”.
tPress
OK and / to review the name, number and ringtone of
the selected phonebook entry.
UK
8
22
Note:
If the number is more than 12 digits, press
remaining digits.
8.4
In idle:
tPress
OK or
to view the
Edit a Phonebook Entry
OK and / to select “PHONEBOOK“ and then press
OK to access the phonebook.
tPress / to select the desired phonebook entry.
tPress
OK and / to select “EDIT“.
tPress
OK to display the current name.
tEdit the name and press
OK.
tEdit the number and press
OK.
tPress / to select the ringtone and press
OK to confirm.
8.5
In idle:
tPress
Delete a Phonebook Entry
OK and / to select “PHONEBOOK“ and then press
OK to access the phonebook.
tPress / to select the desired phonebook entry.
tPress
OK and / to select “DELETE“.
tPress
OK to confirm, and the entry will be deleted.
8.6
tPress
Delete all Phonebook entries
OK and / to select “PHONEBOOK“ and then press
OK to access the phonebook.
tPress
OK and / to select “DELETE ALL“.
tPress
OK to display “CONFIRM?“.
tPress
OK to confirm. All entries will be deleted and the display
will show “EMPTY“.
8.7
Check the Phonebook Usage
You can check how many phonebook entries are stored in your
handset and how many phonebook entries are available for you to
store in the phonebook.
tPress
OK and / to select “PHONEBOOK“ and then press
OK to access the phonebook.
tPress
OK and / to select “PB STATUS“.
tPress
OK to display how much of the phonebook is being used,
for example “14/50“ means 14 entries are stored out of the total 50
available spaces.
9
CALLER DISPLAY (NETWORK DEPENDENT)
This feature is available if you have subscribed to the Calling Line
Identification service with your network service provider. Your phone
can store up to 20 received calls with date/time information in the
Call List. The number will be shown on the handset display when the
phone is ringing. If the number matches with one of the entries in your
Private Phonebook, the caller’s name stored in the private phonebook
will be displayed alternately with the number, and the handset will ring
with the ringtone associated with that phonebook entry.
If the call is from someone who withheld their number, “WITHHELD”
will display.
If the call is from someone whose number is unavailable, e.g. an
international call or from a private exchange, “OUT OF AREA” will
display.
If you’ve got new Caller Display records, the handset will display “X
NEW CALLS” in standby mode. The New Calls indication will remain
until all the new call records have been viewed on that handset.
9.1
View the call list
All received calls are saved in the Call List with the latest call at the
top of the list. When the call list is full, the oldest call will be replaced
by a new call. Anyy unanswered calls which have not been viewed are
marked with a
icon at the centre of the bottom line of the display.
tPress to access the call list.
OR Press
OK and / to show “CALL LIST”, the press OK.
tPress / to select the desired entry.
tPress # to view the caller’s number if applicable.
tPress
OK, / to show “DETAILS”, and then OK to display
the date and time of the call. Press
OK to go back to the previous
screen.
UK
23
24
9.2
Store a call list number into the phonebook
tFollow Steps 1 and 2 in Section 9.1.
tPress
OK and / to show “ADD TO PB“.
tPress
OK and then enter the name.
tPress
OK and the selected call list number is displayed.
tEdit the number if necessary.
tPress
OK and / to select the ringtone.
tPress
OK to store the phonebook entry and return to the calls list.
9.3
Delete an entry in the call list
tFollow Steps 1 and 2 in Section 9.1.
tPress
OK and / to select “DELETE“.
tPress
OK to confirm.
9.4
Delete all call list entries
Follow steps 1 and 2 in Section 9.1.
tPress
OK and / to select “DELETE ALL”.
tPress
OK to display “CONFIRM?”.
tPress
OK to confirm.
>All entries will be deleted and the display will show “EMPTY”.
10
PHONE SETTINGS
Your phone comes with a selection of settings that you can change to
personalise your phone the way you like it to work.
10.1
Date and Time Settings
If you subscribe to Caller Display the time and date settings will be
automatically updated by the network when you receive an incoming
call.
The Caller Display service only sends the month and date, not the year,
so you may need to set the year.
10.1.1
tPress
tPress
tPress
Change the Date Format
OK and / to select “HS SETTINGS“.
OK and / to select “DATE & TIME“.
OK and / to select “DATE FORMAT“.
tPress
OK and / to select your desired date format (“DD-MMYY“ or “MM-DD-YY“ ).
tPress
OK to confirm.
10.1.2
Change the Time Format
tPress
OK and / to select “HS SETTINGS“.
tPress
OK and / to select “DATE & TIME“.
tPress
OK and / to select “TIME FORMAT“.
tPress
OK and / to select your desired time format (“12 HR“
or “24 HR“).
tPress <MENU/OK> to confirm.
10.1.3
tPress
tPress
tPress
tPress
tPress
Set the Time
OK and / to select “HS SETTINGS“.
OK and / to select “DATE & TIME“.
OK and / to select “SET TIME“.
OK and then enter the time information in 24 hour format.
OK to confirm.
Note:
If time has been set before, the current time will display, otherwise,
“HH:MM” will display.
10.1.4
Set the Date
tPress
OK and / to select “HS SETTINGS“.
tPress
OK and / to select “DATE & TIME“.
tPress
OK and / to select “SET DATE“.
tPress
OK and then enter the date information in the format you
set in Section 10.1.1.
tPress
OK to confirm.
Note:
If date has been set before, the current date will display, otherwise,
“DD-MM-YY” will display.
10.2
Alarm settings
You can set an alarm time on this phone. When an alarm is set, the
is shown on the handset display. When the alarm time
alarm icon
and “ALARM ON” flash on the handset
is reached, the alarm icon
UK
25
26
display, and the alarm tone rings for 45 seconds. You can press any key
to disable the alarm.
If the snooze function is activated, the alarm will sound again at the
end of the snooze period of seven minutes. You can also press and
while the alarm is sounding, to stop the alarm and turn off the
hold
snooze function.
Note:
tA key press will still disable the alarm even if the handset keypad is
locked when the alarm rings.
tThe alarm volume level is the same as the settings of the handset
ringer volume. If the handset ringer is set to “VOLUME OFF“, the
alarm still sounds at “VOLUME 1“ level.
tDuring an external call or internal call, if an alarm is set and when
and “ALARM ON” will still flash.
the alarm time is reached, the
An alarm tone will be emitted from the earpiece to alert the user the
alarm time Once the user presses any key or presses and holds. to
disable the alarm, the display will revert to the call duration.
tDuring paging or ringing, the alarm will not sound when the alarm
time isreached. However, if the snooze function is enabled and there
is no paging or ringing, the alarm will sound again at the end of the
snooze period.
10.2.1
tPress
tPress
tPress
tPress
Turn on/off the alarm
OK and / to select “HS SETTINGS“.
OK and / to select “ALARM“.
OK and / to select “ON/OFF“.
OK to confirm.
Note:
If ON is selected, you will be asked to set the alarm time.
10.2.2
Set the alarm time (if alarm time is set to be ON)
tFollow Steps 1 to 4 in Section 10.2.1.
tEnter the alarm time in 24 hour format.
tPress
OK to display “SNOOZE“.
tPress
OK and / to select snooze “ON“ or “OFF“.
tPress
OK to confirm.
27
Handset settings
10.3.1
Set the ringer melody for internal calls
tPress
OK and / to select “HS SETTINGS“.
tPress
OK and / to select “RING SETUP.“
tPress
OK and / to select “INT RING“.
tPress
OK and / to select the melody you want to hear for
internal calls.
Note:
The respective melody will be played while browsing the ringtone list.
tPress
OK to confirm.
10.3.2
tPress
tPress
tPress
tPress
calls.
Set the ringer melody for external calls
OK and / to select “HS SETTINGS“.
OK and / to select “RING SETUP“.
OK and / to select “EXT RING“.
OK and / to select melody you want to hear for external
Note:
The respective melody will be played while browsing the ringtone list.
tPress
OK to confirm.
10.3.3
Set the Ringer Volume
tPress
OK and / to select “HS SETTINGS“.
tPress
OK and / to select “RING SETUP“.
tPress
OK and / to select “RING VOLUME“.
tPress
OK and / to select the desired ringer volume (a total of
6 ringer volume levels including “VOLUME OFF“).
Note:
The respective ringer volume will be played during your selection. If
icon will be displayed.
“VOLUME OFF“ is selected, the
tPress
OK to confirm.
UK
10.3
28
10.3.4
Set Alert Tones
Three different alert tones are set on by default, but can be turned off,
if desired. Key Tone - a single beep is emitted when you press a key.
Low Battery Tone - emitted while you are talking on the phone to alert
you that you need to charge the handset batteries.
Out of Range Tone - emitted while you are talking on the phone to
alert you to move closer to the base unit, before the call is lost.
tPress
OK and / to select “HS SETTINGS“.
tPress
OK and / to select “TONE SETUP“.
tPress
OK and / to select “KEY TONE“ / “BATTERY TONE“ /
“OUT OF RANGE“.
tPress
OK and / to turn on or off these tones.
tPress
OK to confirm.
10.4
tPress
tPress
tPress
tPress
Set the handset language
OK and / to select “HS SETTINGS”.
OK and / to select “LANGUAGE”.
OK and / to select the desired language.
OK to confirm.
10.4.1
Rename the handset
tPress
OK and / to select “HS SETTINGS“.
tPress
OK and / to select “RENAME HS“.
tPress
to
OK and change the name of your handset, using
delete letters and the alphanumeric keys to enter up to 10 letters
for the name.
tPress
OK to confirm.
10.4.2
Choose the information to be displayed in idle
You can choose to display the time or handset name in your idle
screen.
tPress
OK and / to select “HS SETTINGS“.
tPress
OK and / to select “HS DISPLAY“.
tPress
OK and / to select “HANDSET NAME“ or “TIME“.
tPress
OK to confirm.
Note:
If “TIME“ is selected, but no time has been set the display will
show ----------.
10.5
Set the Auto Answer
If you turn on the Auto Answer, you can answer a call automatically
by just lifting the handset off the base or charger, without having to
press any key.
tPress
OK and / to select “HS SETTINGS”.
tPress
OK and / to select “AUTO ANSWER”.
tPress
OK and / to turn on or off the auto answer feature.
tPress
OK to confirm.
10.6
Base Settings
10.6.1
Set the Base Ringer Melody
tPress
OK and / to select “BS SETTINGS“.
tPress
OK and / to select “BS RINGER“.
tPress
OK and / to select the desired melody you want from
a choice of 5.
Note:
The respective ringer melody will be played while browsing the
melody list.
tPress
OK to confirm.
10.6.2
Set the Ringer Volume
tPress
OK and / to select “BS SETTINGS“.
tPress
OK and / to select “RING VOLUME“.
tPress
OK and / to select the desired ringer volume (a total of
6 ringer volume levels including “VOLUME OFF“).
Note:
The respective ringer volume will be played during your selection.
tPress
OK to confirm.
10.6.3
De-register a Handset
This operation should only be necessary if one of your handsets
becomes faulty or lost and needs to be replaced.
You will need to enter the 4-digit system PIN (Default PIN is 0000) in
order to de-register a handset from the base station. A de-registered
handset will have the antenna flashing and “REGISTER“ on the display.
UK
29
30
Note:
You cannot de-register the handset that you are currently using.
tPress
OK and / to select “BS SETTINGS“.
tPress
OK and / to select “DELETE HS“.
tPress
OK and the display shows “PIN?----“.
tEnter the 4-digit system PIN.
tPress
OK and the first handset number is displayed.
tPress / to step through the list of registered handsets, and select
the number of the handset you want to de-register.
tPress
OK to confirm, and the chosen handset will be deregistered.
10.6.4
Change the Flash (Recall) Time
You may need to change the recall (flash) time if your phone is
connected to a PBX. The recall time options are “SHORT“ (the default
value of 100ms), “MEDIUM“ (300ms) or “LONG“ (600ms).
tPress
OK and / to select “BS SETTINGS“.
tPress
OK and / to select “FLASH TIME“.
tPress
OK and / to select your desired flash time (“SHORT“,
“MEDIUM“, “LONG“, with the current setting indicated by an
asterisk.
tPress
OK to confirm.
10.6.5
Change the System PIN Code
A 4-digit system PIN code is used for changing the system settings of
the base station. It is used to protect your phone against unauthorised
use. The default system PIN code is 0000.
tPress
OK and / to select “BS SETTINGS“.
tPress
OK and / to select “CHANGE PIN“.
tPress
OK and the display shows “PIN?------“.
tEnter the old system PIN.
tPress
OK to display “NEW PIN?------“, and enter your new 4-digit
system PIN.
tPress
OK to display “CONFIRM?------“, and enter your new
4-digit system PIN again.
Note:
If the new PIN entered in Step 6 is not the same as the new system PIN
entered in Step 5 you must enter the new system PIN at step 5 again.
tPress
OK to confirm.
10.7
Registration
Important:
When you purchase your phone system, all handsets are already
registered to your base, so you do not need to register them.
Handset registration is only necessary when you buy extra handsets or
if a handset has become faulty.
You can register additional handsets to have up to five handsets per
base unit, with each handset’s number (1 to 5) shown on its display.
(Note: each handset can only be registered to one base.)
To register a new handset to your base:
tPress and hold on the base station for more than five seconds, to
put the base station into registration mode. It will stay in registration
mode for about 1 minute, so the following handset sequence must
be completed within this time.
tPress
OK and / to select “REGISTRATION”.
tPress
OK to display “PIN?------”.
tEnter the 4-digit system PIN (default0000).
tPress
OK to confirm, and the display will show “PLEASE WAIT”.
If the handset registration is successful, you will hear a confirmation
tone and the
will stop flashing.
The handset will automatically be allocated the next available handset
number. This handset number is shown in the handset display
p y in
standby mode. If the handset registration is unsuccessful, the
will
still flash.
10.8
Reset your phone
You can reset your phone to the default settings . After a reset, all your
personal settings, call list entries and redial list entries will be deleted
but your phonebook remains unchanged.
tPress
OK and / to select “DEFAULT“.
tPress
OK to display “PIN?-----“.
tEnter the 4-digit system PIN (default 0000).
tPress
OK to display “CONFIRM?“
tPress
OK to confirm, and the phone will be reset to its default
settings.
UK
31
32
11
TROUBLESHOOTING
Problem
No dialling tone
when pressing key
When connect to
a PBX, no and/or
wrong connection
after dialling.
„SEARCHING“
is displayed.
Causes
t The connection cord
t Check the connections.
of the base station
Unplug and plug back
is not plugged in.
in the mains. Check
t The adapter cord is not
that the telephone cord
plugged in correctly
has been plugged into
in the base station.
the base station and
t Another handset
the phone socket.
is using the base
t Check the base station
to make a call.
plug and the 230V plug
t Wrong telephone
(remove and plug-in).
line cord
t Wait until the line
is unoccupied.
t Use the original
telephone line
cord supplied
Dialling prefix is needed. Insert the dialling prefix.
t Base station out
of range.
t Base station not
connected to mains.
The call does not work. Service not activated or
wrong setting.
No display.
12
Solutions
Empty battery.
Reduce the range.
Connect base
station to mains.
Check your Subscription
with network or change
the dial mode.
Recharge battery.
GUARANTEE AND SERVICE
The phone is guaranteed for 24 months from the date of purchase
shown on your sales receipt. This guarantee does not cover any faults
or defects caused by accidents, misuse, fair wear and tear, neglect,
faults on the telephone line, lightning, tampering with the equipment,
or any attempt at adjustment or repair other than through approved
agents.
Please keep your sales (till) receipt this is your proof of guarantee.
12.1
While the unit is under Guarantee
tDisconnect the base unit from the telephone line and the mains
electricity supply.
tPack up all parts of your phone system, using the original package.
tReturn the unit to the shop where you bought it, making sure you
take your sales receipt.
tRemember to include the mains adapter.
12.2
After the Guarantee has expired
If the unit is no longer under Guarantee, contact us via
www.aegtelephones.eu
This product works with rechargeable batteries only. If you put
nonrechargeable batteries in the handset and place it on the base, the
handset will be damaged and this in NOT covered under the warranty
conditions.
13
TECHNICAL DETAILS
Standard
Digital Enhanced Cordless (DECT)
Frequency range
1.88 to 1.9 GHz (bandwidth = 20 MHz)
Channel bandwidth
1.728 MHz
Operating range
Up to 300m outdoors; Up to 50m indoors
Operating time
Standby: 100 hours, Talking: 10 hours
Battery charge time: 15 hours
Temperature range
Operating 0° C to 40° C, Storage -20° C to
60° C
UK
33
34
Electrical power
Base:
Ten Pao - S004LB0600030 / S004LV0600030
input 100-240VAC 50/60Hz 150mA, output
6VDC 300mA
Charger unit:
Ten Pao - S004LB0600030 / S004LV0600030
input 100-240VAC 50/60Hz 150mA, output
6VDC 300mA
14
CE DECLARATION
This product is in compliance with the essential requirements
and other relevant provisions of the R&TTE directive 1999/5/EC.
The Declaration of conformity can be found on:
www.aegtelephones.eu
15
DISPOSAL OF THE DEVICE
(ENVIRONMENT)
At the end of the product lifecycle, you should not throw this
product into the normal household garbage but bring the product
to a collection point for the recycling of electrical and electronic
equipments. The symbol on the product, user guide and/or box
indicate this. Some of the product materials can be re-used if you bring
them to a recycling point. By reusing some parts or raw materials from
used products you make an important contribution to the protection
of the environment. Please contact your local authorities in case you
need more information on the collection points in your area.
Batteries must be removed before disposing of the device.
Dispose of the batteries in an environmental manner according to
your country regulations.
35
CLEANING AND CARE
Do not clean any part of your phone with benzene, thinners or other
solvent chemicals as this may cause permanent damage which is not
covered by the Guarantee.
When necessary, clean it with a damp cloth.
Keep your phone system away from hot, humid conditions or strong
sunlight, and don‘t let it get wet.
UK
16
© 2012 Binatone Electronics International Limited
All rights reserved
Subject to avaibility. Rights of modification reserved.
AEG is a registered trademark used under license from AB Electrolux (publ)
www.aegtelephones.eu
Download PDF

advertising
