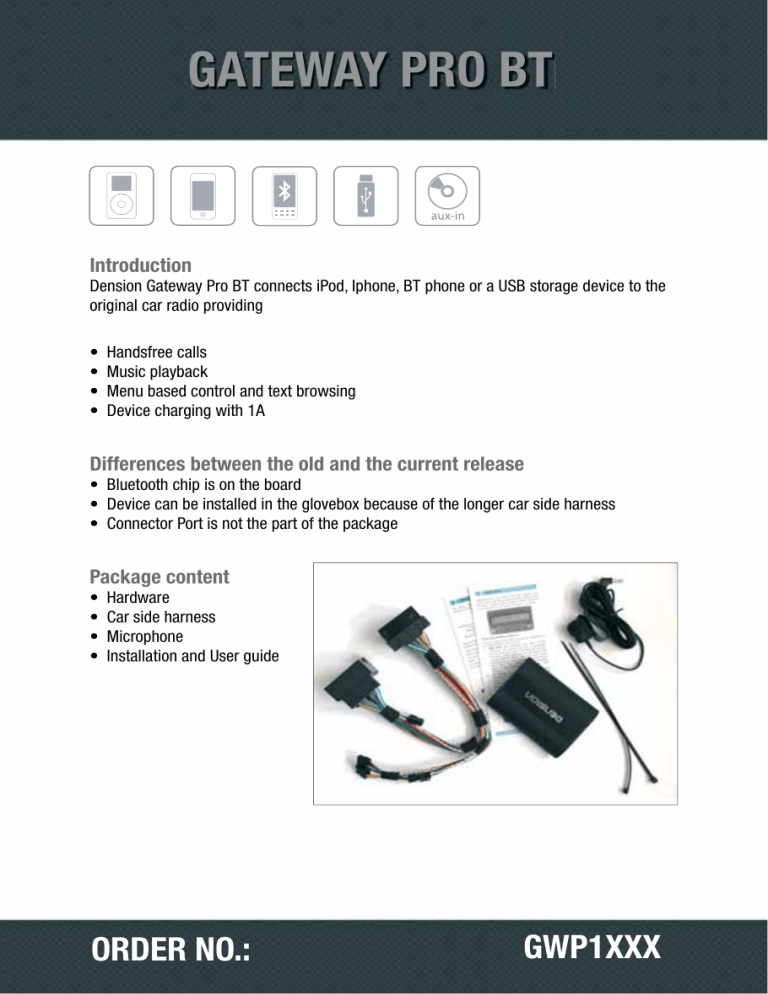

GATEWAY PRO BT
Introduction
Dension Gateway Pro BT connects iPod, Iphone, BT phone or a USB storage device to the
original car radio providing
•
•
•
•
Handsfree calls
Music playback
Menu based control and text browsing
Device charging with 1A
Differences between the old and the current release
• Bluetooth chip is on the board
• Device can be installed in the glovebox because of the longer car side harness
• Connector Port is not the part of the package
Package content
•
•
•
•
Hardware
Car side harness
Microphone
Installation and User guide
ORDER NO.:
GWP1XXX
GATEWAY PRO BT
Supported iPod/iPhone devices
•
•
•
•
•
•
•
•
iPod (4th generation)
iPod nano (1st, 2nd, 3rd, 4th , 5th and 6 th gen.)
iPod mini
iPod Photo 4G
iPod Video 5G
iPod Classic (80/120/160GB)
iPod Touch (1st, 2nd, 3rd and 4th generation)
iPhone, iPhone 3G / 3 Gs & iPhone 4G / 4Gs
For the latest compatibility please visit www.dension.com/support
Supported USB devices
•
•
•
•
Flash Memory and Hard Disk Drive
File system: FAT16 and FAT 32
Storage capacity: up to 320 GB music content
Music format: MP3, WMA, WAV and OGG
Phone compatibility
For the latest compatibility please visit Knowledge Base section or Download section
Optional accessories
• Dock cable (IPO5DC9)
• Connector Port (EXT1CP2)
• AUX cable (CABL-AUX)
• 3G Cradle (IP44CR9)
ORDER NO.:
GWP1XXX
Gateway PRO BT
A2 1999-2005 l A3 1999-2007 l A4 1998-2006 l A6 2001-2004 l A8 1999-2003 l TT 1999-2007
Car Stereo – Full menu text
Chorus II
Concert II
Symphony II
Compatibility notes:
• The vehicle must have steering wheel controls and tuner RDS capable cluster
• Original phone modul must be removed or phone function must be disabled on Pro
• Satellite (SAT) option cannot be used if Gateway fitted (only in US)
HEAD UNIT CONNECTOR:
ORDER NO.:
GWP1AC2
GWPC12B + CABP-AC2-1
Gateway PRO BT
A3/TT 2007-2012 l A4(B7) 2005-2008 l R8 2006-2009
Car Stereo – Full menu text
Chorus II+
Chorus II+
Concert II+
Concert II+
Symphony II+
Symphony II+
Compatibility notes:
RNS-E (supported till 2009)
• The vehicle must have steering wheel controls and tuner RDS capable cluster
• Original phone modul must be removed or phone function must be disabled on Pro
• Satellite (SAT) option cannot be used if Gateway fitted (only in US)
HEAD UNIT CONNECTOR:
ORDER NO.:
GWP1AC1
GWPC12B + CABP-AC1-1
Gateway PRO BT
3 series E46/ Compact 1998-2006 l 5 series E39 2000-2003 l X3 E83 2004-2010
X5 E53 2001-2006 l Z4 E86 2003-2008 l Z8 2002-2003
Car Stereo – Full menu text
Business CD
Professional Navigation
Business
MID
16:9
Compatibility notes:
• Head Units with DSP are not supported
• Manufactured by Becker radios are not compatible (except 16:9 Nav Radio)
HEAD UNIT CONNECTOR:
ORDER NO.:
GWP1BM4
GWPC11B + CABP-BM4-1
Gateway PRO BT
C2 2005-2009 l C3 2005-2009 l C4 2004- l C4 Picasso 2004- l C5 2005- l C6 2006- l C8 2004-
Car Stereo – Full menu text
RD4
Compatibility notes:
• JBL based system is not supported
• Phone functionality requires ‘MODE’
button and 4 lines display
Four lines display
HEAD UNIT CONNECTOR:
ORDER NO.:
GWP1PC1
GWPC12B + CABP-PC1-1
Gateway PRO BT
Insignia 2008- l Astra 2010- l Opel Meriva B 2010-
Car Stereo – Full menu text
CD 300
HEAD UNIT CONNECTOR:
ORDER NO.:
GWP1OC2
GWPC13B + CABP-OC2-1
Gateway PRO BT
207 2006- l 307 2005-2008 l 308 2008- l 3008 2009- l 407 2005-l 5008 2009- 607 2005- l 807 2005-
Car Stereo – Full menu text
RD4
Compatibility notes:
• JBL based system is not supported
• Phone functionality requries ‘MODE’ button and
4 lines display
• Factory USB option (if available) needs to be removed
Four lines display
HEAD UNIT CONNECTOR:
ORDER NO.:
GWP1PC1
GWPC12B + CABP-PC1-1
Gateway PRO BT
Octavia 2008- l Roomster 2008- l Superb 2008- l Yeti 2009- l Fabia 2009-
Car Stereo – Full menu text
*
Swing (RCD 310)
Bolero (RCD 510)
*
Amundsen (RNS 310)
Colombus (RNS 510)
Compatibility notes:
*
Steering wheel control and MFA High Line cluster is required for phone
• Media Player 3 (2E) and telephone (77) options have to be coded
HEAD UNIT CONNECTOR:
ORDER NO.:
GWP1V21
GWPC11B + CABP-V21-1
Gateway PRO BT
EOS 2006-2008 l Golf V 2004-2009 l Jetta 2005-2009 l Passat 2006-2009 l Polo IV 2005-2009
Polo V 2009- l Sharan 2010- l Touran 2003-2009
Car Stereo – Full menu text
RCD 300
RCD 500
RCD 210
Compatibility notes:
• MFA High Line cluster display is required
HEAD UNIT CONNECTOR:
ORDER NO.:
GWP1VC1
GWPC11B + CABP-VC1-1
Gateway PRO BT
Polo V 2009- l EOS 2008- l Golf VI 2009- l Jetta 2008- l Passat 2008- l Passat CC 2008Scirocco 2008- l Sharan 2010- l Tiguan 2008- l Touareg 2008- l Touran 2010- l Transporter 2010-
Car Stereo – Full menu text
*
RCD 310
RCD 510
*
RNS 310
RNS 510
Compatibility notes:
• The following head unit are not supported: 1K0 057 195 AA
1K0 035 195 AA, 1K0 057 195 AB, 1K0 035 195 AB, 1T0 057 680,
1T0 035 680, 1T0 057 680, 1T0 035 680A
• Media Player 3 (2E) and telephone (77) options have to be coded
*Steering wheel control and MFA High Line cluster is required for phone
HEAD UNIT CONNECTOR:
ORDER NO.:
GWP1V21
GWPC11B + CABP-V21-1
iGATEWAY
Functions & Features
• Full iPod / iPhone control through the car radio or steering wheel buttons
• Full menu browsing
• Browse iPod content by Artist, Album, Title
• Song information (ID3-tag) display on Radio or cluster display (radio specific)
• 3.5mm auxiliary input jack
Differences between the old and the current release
• Charging with 1A by default
• iPod dock cable is included in the package
• Device can be installed in the glovebox because of the longer car side harness
• Authentication chip on board
Package content
• Hardware
• Car side harness
• iPod dock cable
• Installation and User guide
ORDER NO.:
GW17XXX
iGATEWAY
Supported iPod/iPhone devices
•
•
•
•
•
•
•
•
iPod (4th generation)
iPod nano (1st, 2nd, 3rd, 4th , 5th and 6 th gen.)
iPod mini
iPod Photo 4G
iPod Video 5G
iPod Classic (80/120/160GB)
iPod Touch (1st, 2nd, 3rd and 4th generation)
iPhone, iPhone 3G / 3 Gs & iPhone 4G / 4Gs
For latest compatibility please visit www.dension.com/support
Car compatibility
iGateway covers all previous text capable Gateway 100 compatibilities
Optional accessories
• 3G Cradle (IP44CR9)
• Bluetooth iPhone holder for Gateway (IPH1GW0)
ORDER NO.:
GW17XXX
iGateway
A2 1999-2005 l A3 1999-2007 l A4 1998-2006 l A6 2001-2004 l A8 1999-2003 l TT 1999-2007
Car Stereo – Full menu text
Chorus II
Concert II
Symphony II
Compatibility notes:
• Tuner RDS capable cluster is required
• Satellite (SAT) option cannot be used if Gateway fitted (only in US)
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17AC2
GW172NB + CABP-AC2-1
iGateway
A3/TT 2007-2012 l A4(B7) 2005-2008 l R8 2006-2009
Car Stereo – Full menu text
Chorus II+
Chorus II+
Concert II+
Concert II+
Symphony II+
Symphony II+
Compatibility notes:
RNS-E (supported till 2009)
• Tuner RDS capable cluster is required
• Satellite (SAT) option cannot be used if Gatewayy
fitted (only in US)
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17AC1
GW172NB + CABP-AC1-1
iGateway
3 series E36/46/ Compact/Z3 1995-2006 l 5 series E39 1996-2000 l 7 series E38 1995-2001
X3 E83 2004-2010 l X5 E53 2001-2006 l K1200LT 2005- l R1200LT 2005- l Z8 2001-2002
Car Stereo – Full menu text
Business CD
Business Navigation
Business Navigation
Professional
Business
Compatibility notes:
• Head Units with DSP are not supported
• Full menu text not supported if:
a) the head unit is manufactured by Becker
b) the head unit has phone module or preparation
* External CD-Changer capability is required which communicates over the i-BUS
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17BM1
GW171NB + CABP-BM1-1
iGateway
3 series E46 / Compact 1998-2006 l 5 series E39 2000-2003 l X3 E83 2004-2010
X5 E53 2001-2006 l Z4 E86 2003-2008 l Z8 2002-2003
Car Stereo – Full menu text
Business CD
Professional Navigation
Business
MID
16:9
Compatibility notes:
• Head Units with DSP are not supported
• Full menu text not supported if:
a) the head unit is manufactured by Becker
b) the head unit has phone module or preparation
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17BM4
GW171NB + CABP-BM4-1
iGateway
R50 2001-2006 l R52 2004-2008 l R53 2001-2006
Car Stereo – Full menu text
Wave
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17BM1
GW171NB + CABP-BM1-1
R50 2001-2006 l R52 2004-2008 l R53 2001-2006
Car Stereo – Full menu text
Boost
Compatibility notes:
Boost
Boost
• Full menu text is visible on non-Navigation Head Unit only
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17BM4
GW171NB + CABP-BM4-1
iGateway
C2 2005-2009 l C3 2005-2009 l C4 2004- l C4 Picasso 2006- l C5 2005- l C6 2006- l C8 2004-
Car Stereo – Full menu text
RD4
RD4
Single line display
Compatibility notes:
• JBL based system is not supported
Four lines display
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17PC1
GW172NB + CABP-PC1-1
iGateway
Opel Antara 2006- l Opel Astra H 2004-2009 l Opel Corsa D 2006-l Opel Combo C 2006Opel Signum 2006-2008 l Opel Tigra 2004-2009 l Opel Vectra C 2006-2008
Opel Zafira B 2005- l Opel Meriva A 2005-2010
Car Stereo – Full menu text
CD 30 MP3
CD 30 MP3
Compatibility notes:
• Head Unit must have auxiliary input, if it does not, please contact with your local dealer about the
possibility of programming the AUX feature
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17OC1
GW173NB + CABP-OC1-1
iGateway
Insignia 2008- l Astra 2010- l Opel Meriva B 2010-
Car Stereo – Full menu text
CD 300
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17OC2
GW173NB + CABP-OC2-1
iGateway
Opel Antara 2006- l Opel Astra H 2004-2009 l Opel Corsa D 2006-l Opel Combo C 2006Opel Signum 2006-2008 l Opel Tigra 2004-2009 l Opel Vectra C 2006-2008
Opel Zafira B 2005- l Opel Meriva A 2005-2010
Car Stereo – Full menu text
CD 70 Navi
DVD 90 Navi
Compatibility notes:
• Head Unit must have auxiliary input, if it does not, please contact with your local dealer about the
possibility of programming the AUX feature
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17OC3
GW173NB + CABP-OC3-1
iGateway
207 2006- l 307 2005-2008 l 308 2008- l 3008 2009- l 407 20055008 2009- l 607 2005- l 807 2005-
Car Stereo – Full menu text
RD4
RT3
RD4
RT4
Single line display
Compatibility notes:
• RT3 & RT4 Radios are non-text capable systems
• JBL based system is not supported
• Factory USB option (if available) needs to be
removed
Four lines display
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17PC1
GW172NB + CABP-PC1-1
iGateway
Altea 2004-2009 l Leon 2004-2009 l Toledo 2004-2009
Car Stereo – Full menu text
SE359/360
Compatibility notes:
• MFA High Line cluster display is required
HEAD UNIT CONNECTOR:
GW17VC1
ORDER NO.:
GW171NB + CABP-VC1-1
Altea 2009- l Ibiza 2008- l Leon 2009-
Car Stereo – Full menu text
SE250/350
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17V21
GW171NB + CABP-V21-1
iGateway
Exeo 2008-
Car Stereo – Full menu text
RNS-E
Concert II+
Compatibility notes:
• The car must have a Tuner RDS capable cluster display (FIS)
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17AC1
GW172NB + CABP-AC1-1
iGateway
Octavia 2008- l Roomster 2008- l Superb 2008- l Yeti 2009- l Fabia 2009-
Car Stereo – Full menu text
Swing (RCD 310)
Bolero (RCD 510)
Amundsen (RNS 310)
Colombus (RNS 510)
Compatibility notes:
• Media player 3 (2E) options has to be coded before or after the GW17V21 installation
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17V21
GW171NB + CABP-V21-1
iGateway
EOS 2006-2008 l Golf V 2004-2009 l Jetta 2005-2009 l Passat 2006-2009 l Polo IV 2005-2009
Polo V 2009- l Sharan 2010- l Touran 2003-2009
Car Stereo – Full menu text
RCD 300
RCD 500
RCD 210
Compatibility notes:
• MFA High Line cluster display is required
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17VC1
GW171NB + CABP-VC1-1
iGateway
Polo V 2009- l EOS 2008- l Golf VI 2009- l Jetta 2008- l Passat 2008- l Passat CC 2008Scirocco 2008- l Sharan 2010- l Tiguan 2008- l Touareg 2008- l Touran 2010- l Transporter 2010-
Car Stereo
RCD 310
RCD 510
RCD 310
RCD 510
Compatibility notes:
• MDI must be removed or disable the MDI functions of the iGateway
• Media Player 3 (2E) option has to be coded before or after the iGateway
installation from Model Year 2011
HEAD UNIT CONNECTOR:
ORDER NO.:
GW17V21
GW171NB + CABP-V21-1
GATEWAY 500S BT
Functions & Features
•
•
•
•
•
•
•
Full iPod control and charging
Connect and play USB music
Song information and browsing on vehicle screen
Control external devices through the original controls
3.5mm auxiliary input jack
Retain original dashboard aesthetic
Both Single and Dual optical versions available
Single FOT - GW52MO1
Dual FOT - GW52MO2
Please note: Dual FOT version is required for retaining the original CD-Changer function
(except Audi with MMI High)
Differences between the old and the current release
• Bluetooth chip is on the board
• Charging with 1A by default
• Improved phone compatibility
Package content
•
•
•
•
•
•
Hardware
Optical harness
Power cable
iPod dock cable
Microphone
Installation and user guide
GATEWAY 500S BT
Supported iPod/iPhone devices
•
•
•
•
•
•
•
•
iPod (4th generation)
iPod nano (1st, 2nd, 3rd, 4th , 5th and 6 th gen.)
iPod mini
iPod Photo 4G
iPod Video 5G
iPod Classic (80/120/160GB)
iPod Touch (1st, 2nd, 3rd and 4th generation)
iPhone, iPhone 3G / 3 Gs & iPhone 4G / 4Gs
For the latest compatibility please visit www.dension.com/support
Supported USB devices
•
•
•
•
Flash Memory and Hard Disk Drive
File system: FAT16 and FAT 32
Storage capacity: up to 320 GB music content
Music format: MP3, WMA, WAV and OGG
Phone compatibility
For the latest compatibility please visit Knowledge Base section or Download section
Optional accessories
• 3G Cradle (IP44CR9)
GATEWAY 500S BT
2. Programming
The Gateway 500s emulates a CD changer and uses CD changer controls to access offboard audio sources
therefore it may be necessary to have the car programmed by your dealer in order to use the GW500s with it.
Programming the car for GW500s
Audi
No programming required
BMW non CIC (non iDrive Professional, M-ASK & CCC Prof.)
Installation in BMW models:
Important note:
- If the SW of the car requires an update or a KMP3 activation, switch the Gateway to bypass/service mode
before you start the procedure. Before converting or retrofitting IPOD option, switch back to GW mode.
1 - E65 means all 7 series model variations (E65/E66)
2 - E60 means all 5 and 6 series model variations (E60/E61/E63/E64)
3 - the car is MP3 capable if the front CD-Slot reads MP3 audio discs and the ID3 tags are visible on the display
Mercedes
Generally no programming is required but in some cases (e.g. no device was connected onto the optical ring) a
CD changer will have to be enabled with the service computer
Porsche
Generally CD changer and Phone option needs to be coded except on US spec. Porsche, where only CD-Changer
needs to be programed.
Gateway 500S BT
A4 2008-2009 l A5 2007-2009 l S5 2007-2009 l A6 2005-2009 l S6 2005-2009 l
A8 2002-2009 l S8 2002-2009 l Q7 2004-2009
Car Stereo – Full menu text
MMI Basic
MMI High
MMI High
Compatibility notes:
• Steering wheel controls are required for proper phone functions at MMI Basic
Gateway 500S BT
1 series E81/E82/E87/E88 2004-2011 l 3 series E90/E91/E92/E93 2005-2011
5 series E60/E61 2003-2010 l 6 Series E63/E64 2003-2010 l X5 E70 2007 -
Car Stereo – Full menu text
Non i-Drive Professional
i-Drive Business
(M-ASK, 6,5” single slot)
i-Drive Professional
(CCC, 8.8” dual slot)
Compatibility notes:
• It may be necessary to have the car programmed by your dealer in order to use the GW500s BT with it
Gateway 500S BT
B Class W245 2005-2007 l C Class W203 2004-2007 l CL Class C216 2005-2006
CLK Class W209 2005-2009 l CLS Class W219 2004-2007 l E Class W211 2003-2007
G Class W463 2005- l GL Class X164 2005-2008 l M Class W164 2005-2009 l R Class V251 2005-2009
S Class W220 2003-2007 l SL Class R230 2005-2007 l SLK Class R171 2006-2009
SLR Class C199 2005- 2009 l Viano W639 2005-2009
Car Stereo – Full menu text
Comand
Compatibility notes:
• Comand radios with SEND/END phone buttons are currently not supported. For further info please
contact our support team
Gateway 500S BT
911 (996 Mk2) 2003-2005 l 911 (997) 2005-2009 l Boxter 2003-2009
Cayman 2003-2009l Cayenne 2003-2009
Car Stereo – Full menu text
supported radios: PCM 2.0 & 2.1
Compatibility notes:
• CD-Changer option needs to be coded if no factory CD-Changer is available
• For Bluetooth phone option the head unit must have a phone button
• In case of Porsche, it may be necessary to have the car programmed by your dealer in
order to accept the phone module
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
