AXIS NPS 630/632 Quick Installation Guide

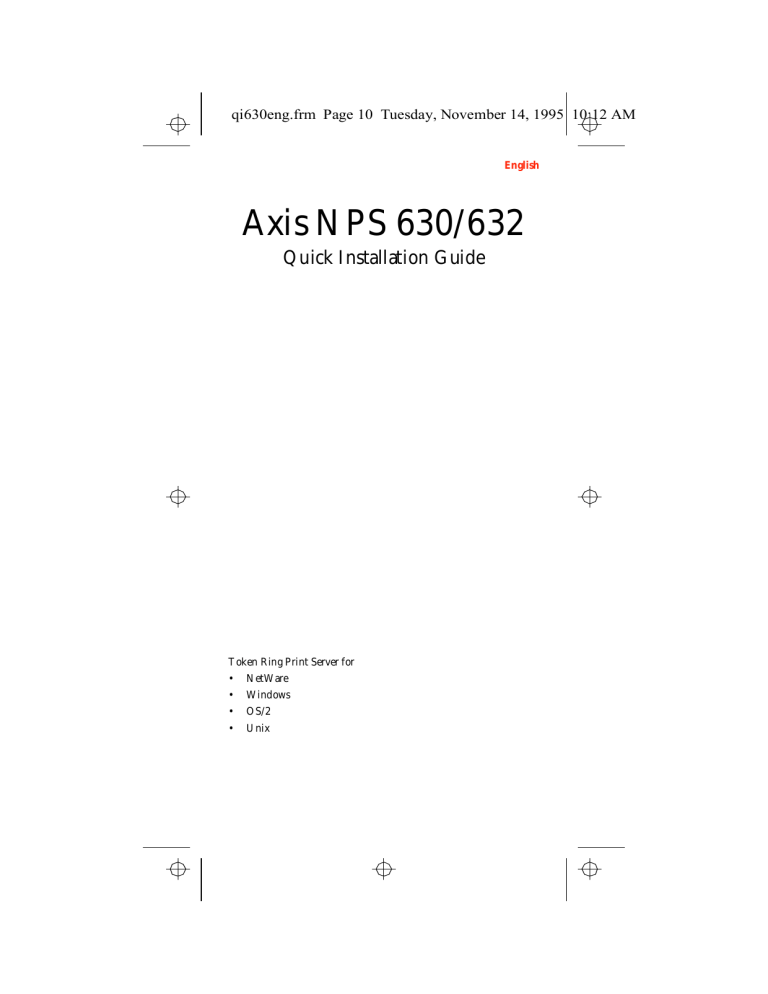

qi630eng.frm Page 10 Tuesday, November 14, 1995 10:12 AM
English
Axis NPS 630/632
Quick Installation Guide
Token Ring Print Server for
•
NetWare
•
Windows
•
OS/2
•
Unix
qi630eng.frm Page 1 Tuesday, November 14, 1995 10:09 AM
Quick Installation Guide
This guide covers the installation and basic configuration procedures
for the NetWare, Windows, OS/2, and Unix environments. For
advanced configuration and further customizing, please consult the
NPS 630/632 User’s Manual.
What is on the disk?
The disk contains installation, configuration and print utilitites for
the different printing environments. Installation instructions are
given for each environment later in this guide.
Installation
TEST Button
POWER Indicator
NETWORK Indicator
RING SPEED Switch
FRONT
TEST
POWER
NETWORK
RING SPEED
Printer Connector
UTP Connector
BACK
External Power
Supply Connector
TOKEN RING
The illustration shows the NPS 630. The NPS 632 has
a Media Type 1/STP Token Ring connector.
1. Record your NPS 630/632 serial number (you will need it during
the configuration).
2. Switch off the printer.
3. Attach your NPS 630/632 to the printer, either directly to the
parallel port, or using the optional printer cable extension.
4. Set the RING SPEED switch to 4 or 16 depending on the ring
speed of your network.
5. Connect your NPS 630/632 to the network using a Media Type
3/UTP (NPS 630) or Media Type 1/STP (NPS 632) cable.
6. Switch on the printer.
7. Connect the external power supply.
8. To print the test page, press and hold the test button until the
NETWORK indicator starts to flash, then release the button.
qi630eng.frm Page 2 Tuesday, November 14, 1995 10:01 AM
NetWare
The procedure below applies to the NPS 630/632 Print Server Mode
only and is recommended only if you have a small network with just a
few file servers. If you prefer to use the Remote Printer Mode or if
you have a larger network, see the NPS 630/632 User’s Manual.
Setup and printing is done using the Novell PCONSOLE and
CAPTURE applications respectively. If you need to configure your
NPS 630/632 beyond the PCONSOLE capabilities, refer to the
User’s Manual.
Add a Print Server:
1. Log in as Supervisor to a file server from a client work station.
2. Start PCONSOLE. Press <F4> for Bindery Mode if you are using
NetWare version 4.xx
3. Select Print Server Information (NetWare 3.xx) or Print Servers
(NetWare 4.xx).
4. Press <Insert> to add a new Print Server.
5. Type the print server name as AXIS<nnnnnn> (<nnnnnn> are
the last six digits of your NPS 630/632 serial number). Press
<Enter>.
6. Press <Escape> to return to PCONSOLE main menu.
Repeat this procedure for each file server using the NPS NPS
630/632.
Link a Print Queue to the Print Server:
1. Select Print Queue Information (NetWare 3.xx) or Print Queues
(NetWare 4.xx) from the PCONSOLE main menu. If you plan
to use an existing queue, skip to step 4.
2. Press <Insert> to add a new print queue.
3. Type a queue name, and press <Enter>
4. Select the queue to be serviced by your NPS 630/632.
5. Select Queue Servers (NetWare 3.xx) or Print Servers (NetWare
4.xx) in the Print Queue Information menu.
6. Press <Insert> to display the Queue Server Candidates.
7. Select AXIS<nnnnnn>.
8. Press <Escape> to return to the main menu.
Restart your NPS 630/632 (power-off/power-on) to connect your
print queues.
qi630eng.frm Page 3 Tuesday, November 14, 1995 10:01 AM
Windows
This section describes how to set up your NPS 630/632 for the
Microsoft Windows printing environment.
The NPS 630/632 setup for Windows comprises installing the NPS
630/632 printer ports as Windows printer ports, and connecting the
ports to a Windows printer driver.
Setup and printing is done using Axis Print Utility for Windows. To
install: Insert the disk included with your delivery, and choose
Run: a:\axpuw\install.exe.
If you need to configure your NPS 630/632, refer to the User’s
Manual.
Peer-to-peer vs. Client-Server printing
The procedures below set up your NPS 630/632 for peer-to-peer
printing, which is the recommended method for smaller networks (no
file server is required). For larger networks, or if central monitoring
and priority management are required, you can set up your NPS
630/632 for client-server printing:
1. Install Axis Print Utility on the file server.
2. Set up your NPS 630/632 as described below, but check the
Share box for your printer.
Your shared printers can now be used by all Windows clients on your
network.
Windows 3.1
Windows 3.1 requires that network support such as LAN Server or
LAN Manager Workstation software is installed. If you have that,
proceed as described under Windows for Workgroups below, otherwise
we strongly recommend upgrading to Windows for Workgroups.
Windows for Workgroups
Follow these steps to install an NPS 630/632 printer port as a
Windows port, and to connect a printer driver:
1. Double-click the Axis Print Utility.
2. In the Port menu, click Add.
3. In the NPS Port list, select the NPS 630/632 port you want to
install.
The port appears as <name>.LP1, where <name> is the NPS
630/632 print server name (AXIS... is abbreviated to AX...).
4. Accept or change the suggested Windows port name, and type any
comments in the Description field. Make a note of the Windows
qi630eng.frm Page 4 Tuesday, November 14, 1995 10:01 AM
port name (you will need it later), then click OK to install the
Windows port.
5. In the Port menu, click Connect to bring up the Windows
Printers dialog.
6. Select a printer driver from the list of Installed Printers (or click
Add>> to install a new driver), then click Connect...
7. Select the Windows port from step 4 (at the bottom of the Ports
list), then click OK.
8. Click OK to close the Connect dialog, and Close to close Printers.
Important: Axis Print Utility must be running when you print
through your NPS 630/632. We strongly recommend that you copy
the Axis Print Utility icon into your Startup folder.
Windows 95
Follow these steps to install an NPS 630/632 printer port as a
Windows port, and to connect a printer driver:
1. Double-click the Axis Print Utility.
2. In the Port menu, click Add.
3. In the NPS Port list, select the NPS 630/632 port you want to
install.
The port appears as <name>.LP1, where <name> is the NPS
630/632 print server name (AXIS... is abbreviated to AX...).
4. Accept or change the suggested Windows port name, and type any
comments in the Description field. Make a note of the Windows
port name (you will need it later), then click OK to install the
Windows port.
5. In the Port menu, click Connect to bring up the Printers folder.
6. Double-click the Add Printer icon. The Add Printer Wizard will
guide you through the insallation. Click Next to proceed.
7. Choose Local Printer, then click Next.
8. Choose Manufacturer and Printer, then click Next.
9. Select the Windows port from step 4, then click Next.
10. Accept or change the suggested Printer name, then click Next.
11. Click Finish to complete the installation.
Important: Axis Print Utility must be running when you print
through your NPS 630/632. We strongly recommend that you copy
the Axis Print Utility icon into your Startup folder.
qi630eng.frm Page 5 Tuesday, November 14, 1995 10:02 AM
Windows NT
Follow these steps to install an NPS 630/632 printer port as a
Windows port, and to connect a printer driver:
1. Double-click the Axis Print Utility.
2. In the Port menu, click Add.
3. In the NPS Port list, select the NPS 630/632 port you want to
install.
The port appears as <name>.LP1, where <name> is the NPS
630/632 print server name (AXIS... is abbreviated to AX...).
4. Accept or change the suggested Windows port name, and type any
comments in the Description field. Make a note of the Windows
port name (you will need it later), then click OK to install the
Windows port.
5. In the Port menu, click Connect to bring up Print Manager.
6. In the Printer menu, click Create Printer.
7. Type a name in the Printer Name field, select a suitable printer
driver from the Driver list, and select Other... in the Print to list.
8. In the Print Destinations dialog, select Local Port, then click OK.
9. In the Port Name field, type: C:\~\<port>
where C:\~ is your spool directory, and <port> is the Windows
port name from step 4. Click OK.
10. Close the Print Manager.
Important: Axis Print Utility must be running when you print
through your NPS 630/632. We strongly recommend that you copy
the Axis Print Utility icon into your Startup folder.
qi630eng.frm Page 6 Tuesday, November 14, 1995 10:02 AM
OS/2
The NetBEUI protocol must be active. If not, use MPTN/LAPS
(LAN Server) or SETUP (LAN Manager) to activate it.
Install the Axis Print Utility and your NPS 630/632:
1. Install the Axis Print Utility for OS/2: Insert the disk included
with your delivery, and execute a:\axpu\install.exe.
2. When Axis Print Utility is running, click Install to install your
NPS 630/632. It will then appear in the print server list as
AX<nnnnnn>.LP1 (<nnnnnn> are the last six digits of your NPS
630/632 serial number).
3. Select the print servers you want to install by clicking the
corresponding entries in the list, then click Install.
Repeat this procedure for each server using the NPS 630/632.
Important: Axis Print Utility must be running when you print
through your NPS 630/632.
Create a Print Queue (OS/2 version 1.x):
1. Double-click the Print Manager icon, click Setup, then select
Printers...
2. Click Add to make a new printer definition, then type a name of
your choice in the Name field.
3. Select \PIPE\AX<nnnnnn>.LP1 from the Device list, and select a
printer driver suitable for your printer.
4. Click Add, then click OK to confirm the printer definition.
5. Click Setup, then select Queues...
6. Click Add to create a print queue, and type a name in the Name
field.
7. Click Add, then click OK to confirm the queue definition.
Create a Print Queue (OS/2 version 2.x):
1. Double-click the Templates folder, then drag the Printer icon out
to the Workplace Shell (or into a folder) while holding the right
mouse button down.
2. Type a name of your choice in the Name field.
3. Select \PIPE\AX<nnnnnn>.LP1 from the Port list, and select a
printer driver suitable for your printer from the Standard printer
list.
4. Click OK to confirm the printer definition.
Print queue sharing:
A print queue must be made a shared resource before it can be
qi630eng.frm Page 7 Tuesday, November 14, 1995 10:02 AM
accessed from other computers (clients or other servers). Open an
OS/2 window and issue the following command:
NET SHARE queue_name /PRINT
Queue_name is the queue created above.
qi630eng.frm Page 8 Tuesday, November 14, 1995 10:02 AM
Unix
You will need root privileges for the configuration.
1. Find an unused Internet address (IP address) and choose a unique
host name for your NPS 630/632.
2. Add the NPS 630/632 IP address and host name to your system
host table by appending the following line to the /etc/hosts file:
<IP address>
<host name>
Example: (Use the IP address and host name from step 1.)
192.36.253.96
salesdept
3. Update your alias name data bases (YP/NIS).
Example: (The commands may be different on your system.)
> cd /var/yp
> make
4. Send the IP address to the print server. The node address is your
NPS 630/632 serial number divided into six groups of two digits
each, using ’:’ to separate the groups. (See the example below.)
arp -s <host name> <node address> temp
ping <host name>
Example: (Use the host name from step 1.)
arp -s salesdept 00:02:31:C8:00:61 temp
ping salesdept
Note: The arp command syntax may differ between Unix
systems. You may also use rarp or bootp to set the IP address, see
the User’s Manual.
5. Log in to the NPS 630/632 and up-load the axinstall script:
> ftp <host name>
Name (salesdept:thomas): root
Password: pass
(not visible)
ftp> get axinstall
ftp> bye
Example: (Use the host name from step 1.)
ftp salesdept
6. Execute the script:
> sh axinstall
The directions on the screen will guide you through the
installation of LPD, FTP or PROS on your Unix system.
qi630eng.frm Page 9 Tuesday, November 14, 1995 10:02 AM
AXIS NPS 630/632 Quick Installation Guide
Part No: 13772
Revision: 2.0, October 1995
Copyright © Axis Communications AB, 1995
AXIS COMMUNICATIONS AB,
Scheelevägen 16, S-223 70 Lund, Sweden.
Phone: +46 46 19 18 00. Fax: +46 46 13 61 30.
Email: info@axis.se URL: http://www.axis.se/
AXIS COMMUNICATIONS INC.,
4 Constitution Way, Woburn, MA 01801-1030, USA.
Phone: (617) 938-1188, 1-(800)-AXIS
Fax: (617) 938-6161 Email: info@axisinc.com.
AXIS COMMUNICATIONS KK,
8th Center Plaza 5 F, 1-10-16 Nihombashi Horidome-cho,
Chuo-ku, Tokyo 103, Japan.
Phone: +81 3 3663 8801. Fax: +81 3 3663 8802.
Email: info@axiscom.co.jp
AXIS COMMUNICATIONS LTD,
Room 602, Asian House, 1 Hennessy Road,
Wanchai, Hong Kong.
Phone: +852 2836 0813. Fax: +852 2573 5935.
Email: info@axis.com.hk
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
