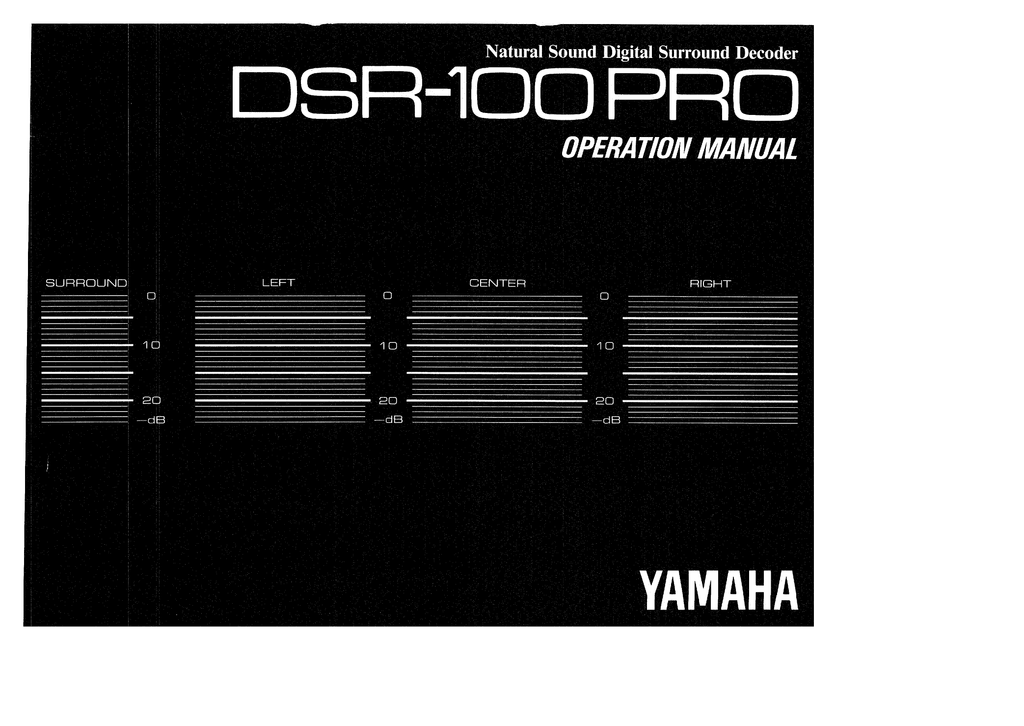

Yamaha DSR-100PRO Owner's manual

 Congratulations
‘You are now the proud owner of a Yamaha DSR-100PRO
Dolby Pro Logic Surround Processor. This sophisticated digital
surround decoder lets you experience the full realism and impact
of Dolby Surround movie theater sound in your own home.
Dolby Pro Logic Surround gets its name from its professional-
grade directional logic circuitry, which provides greater effective:
— channel separation for a much higher degree of realism than
the “passive” Dolby Surround circuits found in today’s typical —
home audio/video equipment. With a suitable complement of
surround amplifiers and speakers, the DSR-100PRO can bring
you the kind of exciting, dramatic listening experience that nor-
mally can only be had at leading movie theaters.
To further extend the range of realistic listening environments
you can create with your system, we recommend the Yamaha
— DSP-series Digital Sound Field Processors. These DSP units
simulate some of the world's most famous music listening en-
vironments, including actual movie theaters, concert halls, cathe-
drals, and jazz clubs. They are also effective with any audio
source, including monophonic program material. Together, the -
DSR-100PRO and a DSP unit such as the DSP-1 or DSP- 3000
form a perfect pair, for the ultimate in listening excitement.
To assure maximum performance and trouble-free operation, ‘
refer to the connection recommendations and operating instruc-
tions in this manual. Be sure to store the manual 1 ina safe place
a for future reference. 1
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
— ELECTRIC SHOCK, DO NOT REMOVE .
- COVER (OR BACK), NO USER-SERAVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
*Explanation of Graphical Symbols
The lightning flash with arrowhead symbol, -
within an equilateral triangle, is intended to
alert you to the presence of uninsulated
“dangerous voltage” within the product's
enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock
to persons.
The exclamation point within an equilateral
triangle is intended to alert you to the pres-
| ence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance,
WARNING
To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
SAFETY INSTRUCTIONS
1 Read Instructions—All the safety and
operating instructions should be read
before the appliance is operated.
2 Retain Instructions— The safety and
operating instructions should be retained
for future reference.
3 Heed Warnings—All warnings on the
appliance and in the operating instructions
should be adhered to.
4 Follow Instructions—All operating and
other instructions should be followed.
5 Water and Moisture—The appliance
should not be used near water—for exam-
ple, near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or
near a swimming pool, etc.
6 Cart and Stands—The appliance
should be used only with a cart or stand
that is recommended by the manufacturer.
6A An appliance and cart combination
should be moved with care. Quick stops,
excessive force, and uneven surfaces may
cause the appliance and cart combination
to overturn.
7 Wall or Ceiling Mounting—The appli-
ance should be mounted to a wall or ceiling
only as recommended by the manufacturer.
8 Ventilation—The appliance should
be situated so that its location or position
does not interfere with its proper ventila-
tion. For example, the appliance should
not be situated on a bed, sofa, rug, or
similar surface that may block the ventila-
tion openings; or cabinet that may impede
the flow of air through the ventilation
openings.
9 Heat—The appliance should be
situated away from heat sources such as
radiators, stoves, or other appliances that
produce heat.
10 Power Sources—The appliance
should be.connected to a power supply
only of the type described in the operating
instructions or as marked on the appliance.
11 Power-Cord Protection—Power-
supply cords should be routed so that they
are not likely to be walked on or pinched
by items placed upon or against them,
paying particular attention to cords at
plugs, convenience receptacles, and the
point where they exit from the appliance.
12 Cleaning—The appliance should be
cleaned only as recommended by the
manufacturer.
13 Ñonuse Periods— The power cord of
the appliance should be unplugged from
the outlet when left unused for a long
period of time.
14 Object and Liguid Entry—Care
should be taken so that objects do not fall
into and liquids are not spilled into the in-
side of the appliance.
15 Damage Requiring Service—The
appliance should be serviced by qualified
service personnel when:
The power-supply cord or the plug
has been damaged; or
spilled into the appliance: or
The appliance has been exposed to
rain; or
The appilance does not appear to
operate normally or exhibits a marked
change in performance; or
E. The appliance has been dropped, or
the cabinet damaged.
о о mw >
16 Servicing— The user should not
attempt to service the appliance beyond
those means described in the operating
instructions. All other servicing should be
referred to qualified service personnel.
17 Power Lines—An outdoor antenna
should be located away from power lines.
18 Grounding or Polarization—
Precautions should be taken so that
the grounding or polarization of an
appliance is not defeated.
Objects have fallen; or liquid has been
19 This equipment generates and uses
radio frequency energy and if not installed
and used properly, that is, in strict accord-
ance with the manufacturer's instructions,
may cause interference to radio and tele-
vision reception. It has been type-tested
and found to comply with the limits for a
Class B computing device in accordance
with the specifications in Subpart J of Part
15 of FCC Rules, which are designed to
provide reasonable protection against such
interference in a residential installation.
However, there is no guarantee that inter-
ference will not occur in a particular in-
stallation. If this equipment does cause
interference to radio or television recep-
tion, which can be determined by turning
the equipment off and on, the user is en-
couraged to try to correct the interference
by one or more of the following measures:
Reorient the receiving antenna
Relocate the DSR-100PRO with respect
to the receiver |
Move the DSR- 100PRO away from the
receiver
— Plug the DSR-100PRO into a different
— outlet so that the DSR-100PRO and
receiver are on different branch
circuits.
If necessary, the user should consult the
. dealer or an experienced radio/television
technician for additional suggestions.
The user may find the following booklet
prepared by the Federal Communications
Commission helpful: “How to Identify
and Resolve Radio-TV interference
Problems”.
This booklet is available from the U.S.
Government Printing Office, Washington,
DC 20402, Stock No. 004-000-00345-4.
IMPORTANT!
- Please record the serial number of your
unit in the space below.
Model: DSR-100PRO
Serial No.:
The serial number is located on the rear
of the unit. |
Retain this Owner's Manual in a safe
place for future reference.
1. AVOID EXCESSIVE HEAT, HUMIDITY, DUST AND
VIBRATION
Keep the unit away from locations where it is likely to be expos-
ed to high temperatures or humidity—such as near radiators,
stoves, etc. Also avoid locations which are subject to excessive
dust accumulation or vibration which could cause mechanical
damage.
2. AVOID PHYSICAL SHOCKS
Strong physical shocks to the unit can cause damage. Handle it
with care.
3. DO NOT OPEN THE UNIT OR ATTEMPT REPAIRS OR
MODIFICATIONS YOURSELF
This product contains no user-serviceable parts. Refer all
maintenance to qualified Yamaha service personnel. Opening
the unit and/or tampering with the internal circuitry will make
servicing difficult and will endanger you and your DSR-100PRO.
4. MAKE SURE POWER IS OFF BEFORE MAKING OR
REMOVING CONNECTIONS
Always turn the power OFF prior to connecting or disconnect- |
Ing cables. This is important to prevent damage to the unit itself
as well as other connected equipment.
5. HANDLE CABLES CAREFULLY
Always plug and unplug cables—including the AC cord— by
gripping the connector not the cord.
6. CLEAN WITH A SOFT DRY CLOTH
Never use solvents such as benzine or thinner to Clean the unit.
~ Wipe clean with a soft, dry cloth.
7. ALWAYS USE THE CORRECT POWER SOURCE
Make sure that the power source voltage specified on the rear
pane matches your local AC mains supply.
PRECAUTIONS 8: SAFETY INSTRUCTIONS .................
SECTION 1—SETUP & ADJUSTMENT.....................
1-1. GETTING STARTED... errr ere
1-2. SYSTEM CONFIGURATIONS... leere
1-8 SETUP eee eeeecssea anne rss eee anse rene re near sas
1-4. CONTROLS & ADJUSTMENTS OUTPUT ee
SECTION 2—PREPARATION...................... ee
2-1. INPUT LEVEL ADJUSTMENT ............... e.
2-2. INPUT BALANCE ADJUSTMENT e...
2-3. MAIN/CENTER/SURROUND
SPEAKER BALANCE ADJUSTMENT creer.
SECTION 3—GENERAL OPERATION .......................
3-1. PLAYBACK WITH DOLBY SURROUND............. …
3-2. ORDINARY STEREO REPRODUCTION .................
3-3. SOURCE SELECTION WITH TAPE LOOP
CONNECTION ...............e
3-4. RECORDING ON A DECK CONNECTED
TO THE DSR-100PRO.. ooo voces
— SECTION 4-—USING DSP-SERIES UNITS .............. … 26
4-1. GENERAL SETTINGS AND — ‘
— RECOMMENDATIONS............... een 26
4-2. CONNECTIONS FOR DSP-SERIES UNITS.............. 28
4-3. INPUT BALANCE ADJUSTMENT ………………………….……. 31
4-4. MAIN/CENTER/SURROUND
SPEAKER BALANCE ADJUSTMENT ............ nn 32
4-5. ADDITIONAL ADJUSTMENTS FOR DSP UNIT...... 33
4-6. OPERATION WITH DSP-SERIES UNITS................. 33
SECTION 5—APPENDIX............................. een 34
5-1. TROUBLESHOOTING...............0.e0000m aero 34
5-2. SPECIFICATIONS........................... eres. BE
1-1. GETTING START ED
Unpacking
Carefully remove the DSR- 100PRO from ts packing
box. With the DSR-100PRO you will find the remote control
unit, connection cables, and a pair of batteries for the
remote.
(2)
Remote contr
(RS-DSR100)
Pin cables (4)
Putting in the Batteries
Since the remote is handy for controlling DSR-100PRO
operations, begin by installing the supplied batteries.
1. The battery compartment cover is on the back of the re-
mote control unit. To open, pull down on the compartment
cover clip while pulling the cover outward.
2. Insert the two batteries (SUM-3 or AA type), being
careful to align their polarity with the markings inside the
compartment.
3. Put the battery compartment cover back on.
* The batteries should last for quite a while, but they
should be replaced if remote control operation seems
erratic or If it no longer works from a reasonable distance.
Always replace with two new batteries. Any SUM-3 or
AA type batteries will do, but they should both be the same.
Infrared
receiver
window
Within
7m
e The remote uses a highly directional infrared beam.
Operate the remote while aiming it directly at the
DSR-100PRO front panel.
The remote may not operate correctly if a strong light
source is shining on the infrared receiver window, if the
direct line from the remote to the DSR-100PRO is obstruct-
ed by furniture or other items, or if you press the keys while
aiming the remote away from the DSR-100PRO.
Amplification and Speaker Arrangements
The Basic System
To achieve the same dynamic sound that the professional
Dolby systems in movie theaters do, the DSR-100PRO “active
circuit configuration breaks the Dolby Surround encoded
stereo signal into several different channels: a center
channel for dialog, the main left and right channels, and
rear surround channels. A typical system setup includes
five speakers with appropriate amplifiers. The center dialog
speaker is placed adjacent to the screen, the main speakers
are placed in their usual positions for stereo listening, and
the surround speakers are placed at the left and right
sides in the rear. a
If for some reason it is not practical to use five speakers,
It IS possible to eliminate the center dialog speaker. The
“phantom” mode is used in this case to route the dialog to
the main speakers. Best results are obtained with the full
five-speaker system, however.
It is also possible to further expand your system with the
addition of a subwoofer and amplifier. The subwoofer
should be placed in the rear of the room in the center.
NOTE: The Yamaha M-35 power amplifier (which provides
four channels of amplification) is recommended to satisfy
your additional amplification system needs.
Dolby Pro Logic Surround Technical Notes
The DSR-100PRO uses an “active” circuit configuration
which is similar to professional Dolby stereo decoders em-
ployed in movie theaters. How is this different from the
“passive” decoders found in typical home equipment?
The Dolby Pro Logic Surround system is distinguished
by logic circuitry that emphasizes “directional” information
by proportionally canceling unwanted crosstalk. Taking the
left and right channel signals as its input, the DSR-100PRO
first- produces two additional signals, a left-plus-right signal
(L+R) for the center channel and a left-minus-right signal
(L-R) for the rear surround channel. It then compares the
levels of these four signals, L, R, L+R, and L-R. Based on
these level differences, the DSR-100PRO emphasizes par-
ticular channels. For example, dialog is characterized by
an increase in L+R signal level. When this is detected, the
DSR-100PRO routes dialog to the center channel. As this
results in a slight drop in the signal level sent to the left and
right speakers, the DSR-100PRO boosts the center channel
slightly to maintain overall volume at a constant level. Simi-
larly, when L-R signal level is high, the DSR-100PRO boosts
the surround channel level and reduces left and right chan-
nel levels.
This results in the high dynamic range and sharp effec-
tive channel separation of 26—40dB. Dolby Pro Logic Sur-
round provides a true center channel, so that there are four
independent channels, unlike passive Dolby Surround
which in effect has only three channels, left right and rear.
In fact, in a passive Dolby Surround system, it is a bad
idea to use a center speaker, because it would reduce the
effective channel separation that you hear between the left
and right speakers. However, with the DSR-100PRO's ac-
tive circuitry, dialog is automatically locked on screen while
maintaining the width and separation of the stereo sound
stage.
[X[ ]| poLeY SURROUND |
PRO - LOGIC
Manufactured under license from Dolby Laboratories
Licensing Corporation. Additionally licensed under one or
more of the following patents: U.S. numbers 3632886,
3746792 and 3959590; Canadian numbers 1004603 and
1037887. “Dolby” and the Double-D symbol are trademarks
of Dolby Laboratories Licensing Corporation.
DSP
DSP |
PROCESSING
FL
FR
RL
RR
MAIN
CHANNELS
EFFECT
CHANNELS
DSR-100PRO
OUTPUT
INPUT THROUGH PASS L
BALANCE
— R
© В МЕТЕЯ| (К) |
ТАРЕ ws
MONITOR * ;
L $ TEST | | @ CENTER o load
INPUT || -е!° [METER] CENTER 3 LEVEL | | | А с
b о © l
se | ° | CENTER
METER| (A) $ mope | í \
таре ее | | | pu © LL wa
à > |
ou | TEST |
TONE |
GENERATOR
L DIGITAL
+4 DELAY
TAPE ll R 20ms— 30ms
DOLBY PRO
LOGIC В
£ A,
FL
FR
—
— A
FE |)
OUTPUT
RL
RR
SURROUND |
REAR
DECODER PF) LEVEL
To VCA
sto
| МИХ 3
a ne
£ MIX
a LU
7gang VCA 7
MASTER
VOLUME
00
/
TE
COTE.
Door P10 LGEC Surround
Precios VGA Master Wo
Kume
YAMAHA uarunar sousm DIGATAL SUARASUNO DECOCER YSA- 100 FAS
| CR FAL DELAY Tre 20 30 ma |
POWER
LEVEL:
С CEE ao]
FAD - LOGIC
MASTER
VOLUME —
ra
5
© ©
Equipped with Center Switch to Match Your System
On the rear panel of the DSR-100PRO you will find a
CENTER MODE switch. This has an important role in
matching DSR-100PRO operation to the capabilities of
- your audio system.
e When this switch is at the ON position, a center channel
- signal is provided to the center output jack. Information
below 100Hz is fed to the left and right main speakers, so
you can use a relatively small speaker system for center
channel reproduction.
e |f not using a center speaker, you should set this switch
to the PHANTOM position. This allocates all center channel
information to the left and right main speakers.
With a Yamaha DSP-Series Sound Field Processor
The DSR-100PRO is equipped with a complete set of
inputs and selection facilities for connection to Yamaha
DSP-Series Digital Sound Field Processors. In this case the
pair of rear speakers used in the basic DSR-100PRO sys-
tem also handles the DSP-Series rear effect signals. DSP-
Series front effect channels can be reproduced indepen-
dently of the main front speakers (in which case you will
need yet another stereo amp and speakers). Or they may
be blended with the conventional main speaker output (by
setting the DSR-100PRO FRONT MIX switch to the ON po-
sition and setting the DSP-Series unit's FRONT MIX switch
to the Gch or OFF position). At a later date you can always
upgrade to a full 6-channel setup.
In either case, the DSR-100PRO's volume control alone
can adjust entire system volume, a real convenience, par-
ticularly with the remote.
DSP: In the following explanations, special notes con-
cerning DSP-Series connections and operations will be
preceded by the “DSP” mark.
Receivers and Integrated Amps versus Separate Pre-
and Power Amps
If your current hi-fi system is built around a receiver or
integrated amp then you can continue to use it for source
- Selection and to drive your main (front) speakers.
However, you may notice that sound quality is better
with a separate preamp and power amp.
For the center channel, you may wish to purchase a
mono power amp. For the rear surround speakers and (if
using a DSP-Series unit) front effect speakers, additional
stereo power amps are the optimum solution. However, if
you already own an extra receiver or integrated amp then
it can be used just as well.
For subwoofer output you may wish to choose the con-
venience and sound quality of a Yamaha Electronic Super
Woofer System which has its own built-in power amp.
Otherwise, you will need another mono amp and a single
subwoofer speaker system.
Before You Start Making Connections Make Sure that the DSR-100PRO and All Related Electronic Components are
Turned Off.
REAR
PANEL
NO
INPUT TAPE CUTFUT INPUT = ад MODEL NO — AC DPTLET =
CENTER Cri TAPE FB TER MODE MAIN — CENTER FROM DSP YA kl AHA DSA-10C PRO UNSWTCHED
O a] © PROCESSING OUT IPO VOLTS 30WATTS 80 Hz
ón YAMAHA CORPORATION
y IN JAPAN
INPUT BAL. FRONT MIX ©
СРВ ON / Y Y A Ei a
20V GOHz
© Z00W MAX.
DSP SYSTEM CONNECTION ONLY
4 53 Ciass 8 computing
S df FCC Rules.
МС то RECUDE THE RISK OF FIRE OR ELECTRIC SHOCK,
DC NOT EXPOSE TH-S APPUANGE TO RAIN C3 MOISTURE.
Main Level Switch Setting
Set the MAIN LEVEL switch to
—10dB if the INPUT jacks are con-
nected to the output jacks of a
separate preamplifier (control ampli-
fier) or to the PRE OUT jacks of an
integrated amplifier.
Set the MAIN LEVEL switch to 0dB
if the INPUT jacks are connected to
the TAPE PB jacks of an integrated
amplifier or receiver.
If you are using an integrated amp
and it is equipped with PRE OUT
and MAIN IN jacks, then it is far
preferable to use these instead of
the TAPE PB and REC jacks.
@ Center Channel Switch
This must be set to the ON position for normal operation.
The OFF position is used only when adjusting the input
balance control.
ATTENTIONIS.SQUE 05 CHOC EX ECTRIQUE NE PAS OUVRIR.
@ Input Balance Control
This adjusts left/right input signal balance (when the center
channel switch is set to the OFF position) to “fine tune” the
operation of the Dolby logic circuitry.
& Main Input Jacks
These accept input from a oreamplier the “PRE OUT”
or “TAPE REC” outputs from an integrated amplifier or
receiver, or direct input from a line-level source such as a
CD player.
DSP: Connect main output jacks to these inputs.
10
© Tape Recording and Playback Jacks
This is the place to connect a tape deck if the tape jacks
of your integrated amp or receiver will be occupied by
connection to the DSR-100PRO.
O Center Mode Switch ‘
Set to the ON position if you will be using a center speaker.
Set to the PHANTOM position if you wish the center chan-
nel information to be reproduced through the conventional
left and right channel front (main) speakers. (In either case,
the center channel switch must also be at the ON position.)
© Main Level Switch
Can be used to reduce MAIN output level by 10dB. For
improved sound quality (higher S/N ratio), this should be
set to —10d8 If the DSR-100PRO is connected to a
separate preamp or to the PRE OUT/MAIN-IN jacks of an
integrated amp or receiver. Set to OdB if using the tape
loop (REC/PLAY or TAPE-IN/TAPE-OUT) jacks of an in-
tegrated amp or receiver
@ Main Output Jacks a
Connect these jacks to the amplifier that drives your main
(front) speakers. If using an integrated amp or receiver,
connect to the TAPE PB jacks or, if your amp has them,
the MAIN IN jacks.
O Center Output Jack
The upper jack provides the Dolby Surround center chan-
nel signal. Use this for output to an amplifier driving a
center speaker. |
A signal is output to this jack only when the front panel
Dolby Surround Mode switch is on.
Both the center channel switch and the center mode
switch must also be on for this to operate.
el нс. pet, Weg
"QUTPUT-————
© Center Subwoofer Output Jack
Use the lower jack (low pass) for output to a Yamaha Elec-
tronic Super Woofer System or to a mono amplifier driving
a subwoofer. This output operates regardless of the posi-
tions of the center channel switch or center mode switch.
Frequencies above 200Hz are filtered out so only the bass
range remains.
{0 Rear Output Jacks
‘These provide the Dolby Surround system's decoded sur-
round sound signals. Connect these outputs to the left and
right channel input jacks of the amp that will drive your rear
speakers.
DSP: DSP-Series rear effect output is also routed to these
output jacks.
DSP: Additional Facilities for DSP System Connection
Only
O) Front Mix Switch
Set to the OFF position if you will be connecting the front
output jacks (at the far right) to an additional stereo amp
and front speakers for independent reproduction of the
DSP front effect channels.
Set to the ON position if DSP front effect channel
signals are to be reproduced through your conventional
main speaker system.
The DSP-Series units own “front mix” switch must be
set to the OFF (or 6¢h) position regardless of the setting
that you choose for this switch.
E Front and Rear Effect Input Jacks
Connect the DSP-Series unit's “processing front and rear”
jacks to these inputs.
® Front Effect Output Jacks
Connect to an additional stereo amp and speakers for
independent reproduction of DSP processed front
channel
signals. The front mix switch should be at the OFF position
in this case.
® Voltage Selector
This will ordinarily have been set to the correct voltage for
the country in which this unit was purchased. The setting
may need to be changed if this unit will be used in a coun-
try having a different AC voltage.
U Auxiliary AC Outlet
You may plug other audio components into this socket
as long as power consumption does not exceed 200
watts.
“Unswitched” means that power is available even when
the DSR-100PRO 1s off.
The outlet is marked to indicate electrical polarity. Plug
in other audio equipment so that the marked (or wide)
prong goes into the marked socket. This may contribute to
improved sound quality.
11
12
Speakers & Speaker Placement
In a full 5-channel system you will use two sets of stereo
speakers: the front MAIN SPEAKERS (your normal stereo
speakers), the rear SURROUND SPEAKERS, and the CEN-
TER SPEAKER. You may also be using a SUBWOOFER.
© |
(
Surround Speaker . /
You Will probably use your present stereo speaker sys-
tem for the MAIN SPEAKER pair. The rear and center
speakers do not need to be of such high quality. But they
should have high enough power handling to accept the
maximum output of the amps that will drive them. The rear
channel output is filtered so that it covers only the frequen-
cles between 100Hz and 7kHz. Therefore, you do not need
to worry about reproduction of the high treble and low
bass tones—they are not present in the surround channel
signal. —
Place the MAIN SPEAKERS in their normal position.
Place the rear SURROUND SPEAKERS beside your
listening position and facing inward. They should be nearly
six feet up from the floor. If your power amp can drive two
sets of speakers, all the better. Place the second pair be-
hind you for even greater effectiveness.
Place the CENTER SPEAKER precisely between the
two MAIN SPEAKERS, (To avoid interference, keep the
speaker away from TV sets, or use a magnetically shielded
speaker) ‘
If using a SUBWOOFER such as a Yamaha Electronic
Super Woofer System, the position of the speaker is not so
critical because low bass tones are not highly directional.
DSP: If using additional FRONT EFFECT SPEAKERS, in-
stall them further apart than the MAIN SPEAKERS. It is
best to move the MAIN SPEAKERS slightly inward and
mount the FRONT EFFECT SPEAKERS on the wall several
feet above and behind them.
The Dolby Surround rear SURROUND SPEAKERS
double as the REAR EFFECT SPEAKERS in the DSP sys-
tem. Adjust their position so that they are at about the
same height and distance apart as the DSP FRONT EF
FECT SPEAKERS. Ideally, the four effect speakers should
be mounted in the corners of the room, all pointing down-
ward and inward toward the listening position.
DSP: If not using additional FRONT EFFECT SPEAKERS
(that is, if the FRONT MIX switch on the DSR-100PRO is
on), then the MAIN SPEAKER pair will also be reproduc-
ing the DSP front effect signals.
Set the MAIN SPEAKERS in the position that gives the
best stereo image. They should be reasonably wide apart
and at equal distances from your listening position.
NOTE: Since most speakers are sold in pairs, one practical
solution is to use one speaker for the center channel and
the other for the surround channel.
In this case you would use only one of the rear speaker
output jacks, either L or R. This is possible because in the
Dolby Surround system the surround channel information is
actually monophonic.
However, this is not recommended if you are using the
DSR-100PRO with a Yamaha DSP series unit.
Room Furnishings
You will get maximum realism from the DSR-100PRO
and DSP-Series units if the listening room is carpeted and
curtained so that it absorbs sound waves. With this kind of
acoustically “dead” room, most of what you hear comes
from the speakers and not from room reflections. However,
these are recommendations for optimization. You will find
the DSR-100PRO to be effective in virtually any listening
area.
General Instructions for Connections
Use the supplied stereo cables or an equivalent high
quality connection cable.
Make sure that you have the left (L) and right (R) chan-
nels correctly connected. That means that the jack marked
“L” on the amp must be connected to the jack marked “L
on the DSR-100PRO. Likewise with the “R” jacks. This Is
easy if you remember to always use the red plugs for the
“R” jacks and use the other plugs for the “1” jacks. By
convention, “R” jacks are located below “L” Jacks.
With speaker connections you must also be sure that
the polarity is correct. For each amplifier and each chan-
nel, connect the plus (+) terminal of the amplifier to the
plus terminal of the speaker, and connect the minus (—)
terminal of the amplifier to the minus terminal of the speak-
er. To keep track of polarity, use speaker cable that has one
of the two wires marked by a stripe or a different color
14
CONNECTING THE MAIN INTEGRATED STEREO
AMPLIFIER, STEREO RECEIVER OR COMPONENT
PREAMPLIFIER AND POWER AMPLIFIER TO THE
DSR-100PRO.
Main Speaker
NG
Center Channel
Speaker
Main Speaker
= (0) *
Tape Play ora Tape Rec (Pre Out)
Tape In (Main In)
Center Mono
Output
e. Integrated Amp
2 lor Receiver or VCR
Main Input
Rear Surround
Speaker
y Input
Co =
=
Mono Power
Amplifier -
Rear Surround
Speaker
Using an Integrated Amplifier or Stereo Receiver equipped
with "PRE OUT” and MAIN IN” Jacks.
Some integrated amplifiers and a few receivers are
equipped with PRE OUT and MAIN IN jacks. These allow
you to use the units preamp and power amp circults
independently of each other.
On some amps or receivers you will need to change a
rear panel switch setting. On others you must remove the
jumper cables that connect the PRE OUT jacks lo the
MAIN IN jacks.
Connect the PRE OUT jacks to the MAIN INPUT jacks
on the DSR-100PRO rear panel.
Connect the DSR-100PRO's MAIN OUTPUT jacks to
the MAIN IN jacks on the integrated amp or receiver —
Connect the MAIN SPEAKERS to the speaker terminals
on the amp or receiver,
ВЕ | | Rear Output
| [ou Mono
ut
Men Output Outpu |
TAPE
TASE PA RFC OUT CENTER MODE MB CENA пен ole FRONT
a PHANTOM
MAIN LEVEL E) FRONT Mix © › © a
«© o Ш. s ©
- vel Taos ws | |
LEE ] = e
Dice aa A OVW Fis ra Colas EJ cartipa ala phew [ora aras? WARNING: RUE DE THERE OF FRED ЕСТ балк
Lar Bolen 100 ed Fp Za ne FCO He rR) te Ea Sa Ae
Main Input
Using an Integrated Amplifier or Stereo Receiver that Does
Not Have “PRE OUT” and "MAIN IN” Jacks
Connect the amp or receiver TAPE REC (or TAPE OUT)
jacks to the MAIN INPUT jacks on the DSR-100PRO rear
panel.
Connect the DSR-100PRO’s MAIN OUTPUT jacks to
the TAPE PLAY (or TAPE IN) jacks on the integrated amp
Or receiver.
Connect the MAIN SPEAKERS to the speaker terminals
on the amp or receiver.
NOTE: If connecting the DSR-100PRO displaces your tape
deck, connect the deck to the DSR-100PRO rear panel
TAPE PB and REC OUT jacks. The DSR-100PRO TAPE
PB jacks connect to your deck’s output or TAPE PLAY
jacks. The REC OUT jacks connect to your deck’s input or
TAPE REC jacks.
INPUT
TAPE
CENTER CH MAIN TAPEPO ACC QUT
omo wi
x» cn im
UN AEE 71 CE. ==
INPUT GAL
ys UUTF
DE No CENTERS HEAR
y y 5 ©
I
чо
1 “эм A
"Co AR
15
16
Main Speaker
Main Speaker
po *
Center Channel e |
Speaker | |
\
Ls CT
== input BH —
| — ин) Input 4 Ta
N N Center Mono | |
— Preamplitier or Control Amplifier Qutput in Output
Tm 7 | Input Rear DSR-100PRO
Front Mix Off
2-Channel Power
Amplifier
Rear Surround —
Speaker
Rear Surround
Speaker
Using a Component Preamplifier and Power Amplifier (or
Direct Connection from a Video Cassette Recorder)
Connect the output jacks of the preamplifier to the
MAIN INPUT jacks on the DSR-100PRO rear panel. (Or
connect the VCR's audio output jacks to the MAIN INPUT
jacks on the DSR-100PRO rear panel.)
Connect the DSR-100PRO's MAIN OUTPUT jacks to
the input jacks on your power amplifier
Connect the MAIN SPEAKERS to the speaker terminals
on the power amplifier.
| | | Rear Output
Center Mono
Output
Main Output
Main Input
CONNECTING THE SURROUND POWER AMPLIFIER
AND SPEAKERS
Connect the DSR-100PRO's REAR OUTPUT jacks to
the input jacks of the power amplifier that will drive the rear
SURROUND SPEAKERS.
Connect the speakers to the amplifier.
NOTE: A 4-channel power amp such as the Yamaha M-35
can be used to drive both the MAIN SPEAKERS and the
rear SURROUND SPEAKERS. With this kind of amp you
would use the first two channels of the power amplifier
(channels “1” and “2” or “A” and “B”) for the MAIN
SPEAKERS, and the second two channels (37 and 4
or “C” and “D”) for the rear SURROUND SPEAKERS.
CAUTION: It is absolutely essential that all connections are
matched according to channel, that is, left-to-left and right-
to-right. In the case of the speaker terminals, you must also
be careful to match the polarity of the terminals as well.
CONNECTING A CENTER AMPLIFIER AND SPEAKER
AND/OR SUBWOOFER SYSTEM
True center channel capability is one of the most impor-
tant features of the Dolby Pro Logic Surround system.
On the rear panel of the DSR-100PRO are two jacks in
the section marked “CENTER” The upper CENTER jack is
for the Dolby Pro Logic Surround center channel output.
Connect this to the input jack on the center channel power
amp. In turn, connect the CENTER SPEAKER to the
speaker terminals on the amplifier
Do the same for the DSR-100PRO subwoofer output
jack (the lower jack marked “low pass fe=200Hz ) if you
Will be using this option. A Yamaha Electronic Super Woof-
er System is highly suited to this purpose since it combines
a mono power amp and subwoofer speaker in a single
cabinet.
NOTE: The signals from these jacks are monophonic so
separate mono amps are recommended to provide inde-
pendent amplification. The use of a stereo power amp to
handle both of these mono signals is another alternative.
built-in amplifier
17
18
1-4. CONTROLS & ADJUSTMENTS
FRONT PANEL
MASTER
; 22
YAMAHA NATURAL SOUND DIGITAL SURROUND DSR-100 PRO VOLUME 24
Ai
8 5
TEST TAPE
O Power Switch O Center Level Control
Sound is muted for a few seconds after the power is | Adjusts Dolby Pro Logic center channel signal level. This
switched on. Previous settings are recalled automatically has no effect in the “phantom” mode.
when the power Is turned on. This does not affect subwoofer output (that Is, the lower
center jack).
@ Delay Time Display |
Indicates your selection of 20ms or 30ms delay time for O Test Button
Dolby Surround operation. Delay time is selectable using When this button is in the ON (depressed) position, the
the remote DSR-100PRO generates a pink noise signal that is sent in
succession to the right, center, left, and surround channels.
O Rear Level Control This function is useful for system calibration when adjusting
Adjusts the rear Dolby Pro Logic Surround channel signal ‘the output level of the amps used to drive the various
level. This does not affect DSP rear effect channel signal speakers.
level.
@ Tape Monitor Switch
Set this to the ON (depressed) position to listen to a tape
deck connected to the DSR-100PRO rear panel TAPE
jacks.
Set to the OFF position for normal operation.
@ Dolby Pro Logic Surround Channel Level Display
Shows signal level in each channel of the Dolby Pro Logic
Surround system when the Dolby Surround Mode Switch IS
turned on.
© DSP Mode Switch
When this switch is on (as confirmed by a lit LED above
the key), the DSR-100PRO accepts input via the rear panel
DSP front and rear effect input jacks
O Dolby Pro Logic Surround Mode Switch
When this switch is on (as confirmed by a lit LED above
the key), the DSR-100PRO's Dolby Pro Logic Surround
System actively decodes the input signal connected to the
MAIN INPUT jacks.
This switch should be off if your listening source is not
Dolby Surround encoded.
M Master Volume Control
This knob simultaneously controls signal level at all
DSR-100PRO outputs: MAIN, CENTER (including sub-
woofer), REAR, and DSP FRONT.
(This does not affect TAPE REC OUT level.)
19
REMOTE CONTROL UNIT
DSP X DOLBY
INTERFACE PRO - LOGIC
ON/ || ONF
OFF || OFF
DELAY TIME
VOLUME
UP
N
20
YAMAHA г
CERES USA
CONTROL
TRANSMITTER
RS-DSH 100 PRO
A
© DSP Interface On/Off Key —
Same as the front panel DSP Mode Switch.
@ Dolby Pro Logic Surround On/Off Key
Same as the front pane Doloy Pro Logic Surround Mode
Key.
O Delay Time Keys (20ms and 30ms)
These let you select the delay time applied to the surround
(rear) signal when Dolby Pro Logic Surround is used. Select
the delay setting that gives the best results with your system
and with the program material being used.
Your setting is confirmed by the DSR-100PRO delay
time display.
O Master Volume Keys (Down and Up)
Press to raise or lower the volume. These Keys let you
adjust the master volume control knob by remote control.
The red LED on the knob lights when you press one of
these keys.
1. Set volume to minimum on the preampifer integrated
amplifier, or receiver
2. Turn on the power to all components in the system.
3. Select your video cassette deck or video disc player (or
other Dolby Surround encoded program source) as the
source on your preamplifier, integrated amplifier, or receiver.
4. Begin playback of Dolby Surround encoded program
material,
5. Increase the setting of the volume control on your
preamplifier, integrated amplifier or receiver to about the
halfway point.
6. Set the DSR-100PRO master volume control ob near
the center position.
7. Adjust the volume on each of the power amps to a com-
fortable listening level.
2-1. INPUT LEVEL ADJUSTMENT
The DSR-100PRO is designed to accept input signal levels
of up to 3 volts. Distortion occurs if input signal level ex-
ceeds this value. On the other hand, noise increases if in-
put level is insufficient.
NOTE: Input level adjustment is not possible or necessary
if the DSR-100PRO is connected directly to a VCR, video
disc player, or to the tape jacks of an | Integrated amplifier or
receiver.
1. Listen to a Dolby Surround encoded source and turn on
the Dolby Surround Mode switch on the DSR-100PRO
front panel.
2. Adjust the preamplifier, integrated amplifier or receiver
volume control to the point where both noise and distortion
“are minimized.
Raise the volume slightly if you hear excessive noise
from the effects speakers.
Lower the volume slightly if your hear distortion from the
effects speakers. It is particularly important to check for dis-
tortion on the highest level music peaks, since these have
the greatest chance of overloading the circuitry.
3. When you are satisfied with the sound quality, make a
note of the volume setting.
NOTE: You will want to return to this volume setting for
optimum sound quality when using the DSR-100PRO.
Final volume adjustment should be performed on the
DSR-100PRO (and on the power amps driving the various
— 21
speakers in the system).
22
2-2. INPUT BALANCE ADJUSTMENT
This adjustment should be performed to assure optimum
performance of the Dolby Pro Logic Surround decoder.
1. Set the rear panel center channel switch to the OFF
position.
2. Begin playback of Dolby Surround encoded program
material.
INPUT —
CENTER CH
ОШО
ON OFF
INPUT BAL.
R L
3. While listening to spoken dialog, adjust the input balance
control so that the dialog volume (heard from the left and
right main and surround speakers) is reduced to the mini-
mum. (During normal operation, this dialog | IS reproduced
over the center channel. )
INPUT ——
CENTER CH
ELMO
. +.
ON OFF
INPUT BAL.
4. When you have completed this adjustment, be sure to
return the rear panel center channel switch to the ON
position.
2-3. MAIN/CENTER/SURROUND SPEAKER
BALANCE ADJUSTMENT
Using the built-in test tone generator, this procedure lets
you adjust the volume balance between the main, center,
and surround speakers. This adjustment is important for -
proper Dolby Pro Logic Surround operation.
1. Turn on the Dolby Surround
Mode switch.
MODE
DJ) DSP INTERFACE IX PRO LOGIC (8
=
2. Turn on the TEST button.
TEST TAFE
MONITOR
— = OFF
3. Turn up the DSR-100PRO's master volume control. You
will hear a test tone (pink noise) from the right main speak-
er, then the center speaker, then the left main speaker, then
the surround speakers, for about two seconds each.
4. Adjust the amplifier volume and balance controls so that
the volume heard at the listening position is the same from
each speaker.
т
«a
Test tone comes /
\гот each speaker /
in sequence, /
e |f not using a center speaker, be sure to set the rear
panel center mode switch to the PHANTOM position. You
Will then hear the center channel test tone from the left and
right main speakers.
| CENTER MODE
* +
ON PHANTOM
X
_
MAIN LEVEL
В
008 -ЮсВ
Adjust the power amplifiers driving the MAIN, CENTER,
and SURROUND speakers so that the volume is approxi-
mately the same from each, as heard from your preferred
listening position.
e You can use the DSR-100PRO front panel REAR and
CENTER LEVEL controls to adjust volume if your center
and surround amps are not equipped with their own level
controls. Otherwise, leave these at their maximum settings.
e If you can not achieve sufficient SURROUND speaker
volume to match the MAIN speaker volume, then you have
two options:
With an integrated amp, try turning down the amplifiers
volume until main/surround balance is achieved.
Set the rear panel MAIN LEVEL switch to the —10dB
position. This will drop the main speaker volume to about
one third of normal.
CENTER MODE.
ON PHANTOM
В
=
, MAIN LEVEL
le
QOd8 = —IOd8B
- After completing this adjustment, tum off the front panel
¡TEST button.
NOTE: Once you have completed these adjustments, use
only the DSR-100PRO master volume control knob to ad-
just listening volume.
Do not change any other volume settings in the system.
23
24
BACK WITH DOLBY SURROUND
1. Turn on the power on all components in the system.
2. Turn on the Dolby Pro Logic Surround Mode switch.
3. Select your input source on the preamplifier, integrated
amplifier, or receiver.
* |f the source is a tape deck connected tothe
DSR-100PRO rear panel tape jacks, then set the front
panel tape monitor switch to the ON position.
4. Adjust the master volume control knob on the
DSR-100PRO front panel.
5. If necessary, use the remote control unit to change the
delay time setting.
6. If necessary, adjust the front panel center and rear level
controls to match your listening source.
NOTE: The Dolby Pro Logic Surround system is designed
to be used with program material (mainly videotaped
movie soundtracks) that is encoded with the Dolby Sur-
round system. The results with material not encoded with
Dolby Surround may be unnatural.
NOTE: Some amplifiers and receivers have built-in sur-
round sound or ambience processing circuitry. If this is the
case in your system, then be sure that the surround or am-
bience circuitry is off on the source amp or receiver while
you are using the DSR-100PRO’s Dolby Pro Logic Surround
decoding function.
3-2. ORDINARY STEREO REPRODUCTION
Set the Dolby Pro Logic Surround Mode switch to the
OFF position. Then operate your system components
as usual.
* Be sure to turn on the power on the DSR-100PRO
e |f the source is a tape deck connected to the
~ DSR-100PRO rear panel tape jacks, then set the front
panel tape monitor switch to the ON position.
3-3. SOURCE SELECTION WITH TAPE
OOP CONNECTION
If your integrated amp or receiver tape jacks are used
for connection to the DSR-100PRO, then the amp or
receiver looks at the DSR-100PRO as if it were a tape
deck. Therefore, you must set the amp or receiver as if
you were going to make a tape recording of your desired
listening source.
If the amp or receiver has a REC SELECTOR, set it to
your desired listening source.
If it does not have a REC SELECTOR, simply select
your listening source using the usual controls.
Turn on the TAPE MONITOR switch on the amp or
receiver.
NOTE: If the DSR-100PRO is connected to the tape jacks
on an integrated amp or receiver, then all of the tape relat-
ed controls (tape monitor switch, tape deck selector, rec
out selector, and tape dubbing selector controls) may affect
operation. It is therefore necessary to pay special attention
to the settings of these controls in order to assure the cor-
rect routes for the signals.
"TO THE DSR-100PRO |
You can make tape recordings at any time, regardless
of switch and control knob settings on the DSR-100PRO.
The DSR-100PRO's rear panel TAPE REC OUT jacks pro-
vide the same signal as is input to its MAIN INPUT jacks.
However, the recorded signal does not include the effect
of the Dolby Pro Logic Surround decoder
35
26
Using DSP Series Sound Field Programs
Note that it is possible to use the Dolby Pro Logic Sur-
round decoding feature of the DSR-100PRO together with
sound field programs on the DSP Series Sound Field
Processors. A certain amount of experimentation will be
required to determine suitable sound field programs for a
given movie scene. Don't use the Dolby Surround preset
program on the sound field processor when you are using
the DSR-100PRO.
Example DSP Presets for use with Dolby Pro o Logic
Surround Decoding
Music video | Club, or Concert | Ш
Adventure/Mystery Theater, Chamber, Pavilion
Musical Concert Hall
Drama Presence, Chamber, Theater
Do not use the Dolby Surround preset on the DSP unit.
— 4-1. GENERAL SETTINGS AND
RECOMMENDATIONS
The DSP unit should be connected between the source
unit (preamp, integrated amp, or receiver) and the
DSR-100PRO.
Set the DSP units MAIN LEVEL switch to 0dB in all
cases. This is essential to assure high sound quality from
the DSR-100PRO.
set the DSP units FRONT MIX switch to “OFF” or “6ch”
in all cases, regardless of how many effects channels you
will be using. a
If you are using an integrated amp or receiver and it is
: equipped with PRE OUT and MAIN IN jacks, then it is
highly recommended that you use them instead of the
TAPE PB and REC jacks.
NOTE: Be sure that the DSP unit's FRONT MIX switch is
OFF. If the DSP unit's FRONT MIX switch is set to “ON” or
“4ch, then the main output going to the DSR-100PRO
main input will contain DSP front effect information. This will
interfere with Dolby Pro Logic Surround decoding.
DSR100PRO+DSP signal paths
CD player if L
Tuner Main speakers
wn
O | Tape deck 1 в
3
Z [| Turntable DSP
eR Г 7 FL
CDV player | „а! | Роме | ©
piay INPUT PROCESSING | > amplifier! Front effect
QUT | --- speakers
| Le > [| FR
- MAIN |
INPUT] OUTPUT | a _
; © Power ! Center
| ro pren
Integrated ı Г amplifier F | © speaker
amplifier FRONT | e
REC OUT MAIN INPUT Y Y YOUTPUT | |
TAPE PB/ | /SEND PROCESSING]/ __ | | RE Rear surround
RECEIVE INPUT PO 0 J Power (effect)
DSR-100 X amplifier AR speakers
PRO REAR \ . .
MAIN OUTPUT CENTER
OUTPUT : OUTEUT
Speaker System Configuration for DSP Units
__ For optimum results when you use a DSP unit with the
DSR-100PRO, you may wish to add one more pair of
speakers to reproduce the DSP front effect output. This
gives you a total of seven individual speakers.
However, without these extra speakers you can con-
figure a 5-speaker system by setting the DSR- 100PRO’s
FRONT MIX switch to the ON position.
For a simple 4-speaker system without a center speaker,
additionally set the DSR-100PROss rear panel CENTER
MODE switch to the PHANTOM position.
* The DSR-100PRO's surround speakers also handle the
DSP units rear effect signals.
* [he DSR-100PRO'S. center channel output does not
reproduce DSP signals.
[he DSR-100PRO'S center subwoofer output does
reproduce | DSP signals.
Speaker Placement for DSP Units
Place DSP front effect speakers above and behind the
main speakers, facing inward toward your listening position.
Place the rear speakers on both sides of your listening
position or behind your listening position. Experiment to
decide which position gives the best results in your listen-
ng room.
System using DSR-100PRO and DSP unit
DSP front presence signal (L+R signal)
Dolby Pro Logic Surround main signal
|
|
O
Ds
Ш (o BE
(te
(ts
(=
O
o “E
DSP rear presence signal or Dolby Pro Logic Surround signal (L-R signal)
“Effect varies with placement of rear surround (presence) speaker.
27
4-2. CONNECTIONS FOR DSP-SERIES UNITS
Front Surround Main Speaker Main speaker Front Surround À. CONNECTING THE MAIN INTEGRATED STEREO
Speaker -@ TOR Speaker AMPLIFIER, STEREO RECEIVER OR COMPONENT
Center Channel | | PREAMPLIFIER TO THE DSP UNIT.
. : ; peaker =
If you already have a DSP unit installed, then leave the
Na, input connections as they are.
E e Using an Integrated Amplifier or Stereo Receiver
equipped with “PRE OUT” and “MAIN IN” Jacks.
| Connect the PRE OUT jacks to the input jacks on the
Г С DSP units rear panel.
] | 7 x Г
4-Channel Power Amplifier Mono Power Amplifier |
[= — = pe Output
— | = = | — | | Center Mono | Front Effect
input To put] © [ManOuput LOSE Output
Rear Output] | Center Mono Output
Front Output
Main Output
DSR-100PRO
Front Mix Off
N n
ie y +
MAIN LEVEL
>
о E Dors
a
с Tubes Fra a dias DI CH MET dern ie}
12 aa E Lite
DEP E E É BL FON ONLY
tennis pursoant WARNING: Sc Bet a SDR =f omeceomag soon
DOUCT EXPÈSE KG SPFÉATE 15 A NOR VO STUFE
Main Input |
Front Input
Front Effect Output
| Je Effect Output
Main =
Front Mix 6ch ог ОН == EB c=
Input &
(Analog Input 1)
| Front Effect
Input Rear Effect
| Input
(Pre Out) Main Input
EE ee ee eee à
integrated Amp | © бб Ой {5 обо =
or Receiver ss
; Bee
(Main in)
Rear Surround —— Rear Surround
Speaker | | Speaker
28
маю Speaker В о оматбреже * Using an Integrated Amplifier or Stereo Receiver that
©) Does Not Have “PRE OUT” and “MAIN IN” Jacks
= Connect the amp or receiver TAPE REC (or TAPE OUT)
Center Channel O | +
= Speaker / jacks to the input jacks on the DSP unit's rear panel.
| Rear Output
A X Center Mono Front Effect
| | Output Output
) Main Output Е E
Integrated Amplifier — `
ог Весемег нот {3
ево соо во @ [| 7 =
Tape Rec A Tape Play or Tape In So e: © e Eje © E |
Input (Analog Input 1) ÿ | © ut on 9 | || оне. x A &
LL IET || - © -©© ©
DSP-x BI es is | | | I Bo
Front Mix 6ch or Off E= —- taa ea Por VA EEE Pas een WARNING ges Besse Foon wo
RE ; I WEE ==
Main Output | ¡Front Effect Output
| Rear Effect Output
| [Front input Front Effect
Main Input y y y Rear Input | Main Input Input Rear Effect
DSR-100PRO | Input
Front Mix On =n ; | |
Rear Output Main Output
Center Mono Output
Input Input y
(Tape Play or Tape In) Mono Power [=== |
(Main In) = Ÿ Amplifier mere —
ET — “e
2-Channel Power
у > Amplifier, Integrated
Amplifier or Receiver
Rear Surround | | | Rear Surround
Speaker Speaker
29
30
Front Surround
Speaker
Main Speaker
Front Surround
Speaker
Main Speaker
© -©
Center Channel
© Speaker ©
à À
>
a. 4-Channel Power Amplifier Mono Power Amplifier
п rere TT DD ›
= FO 7 “= PE rm - m
2-Channei Inputi | Input Input
Power Amplifier |
Main Output | | Center Mono Output
Front Output] [Rear Output
ne ns DSR-100PRO
= 0 5 == = Front Mix Of
Main Input Rear Input |
| Front Input
Front Effect Output
_ Main Output [Rear Effect Output
frs ss ao
=== ‘Front Mix 6ch or Off
Ÿ Input (Analog Input 1) y
Rear Surround
Speaker
Preamplifier or Control Amplifier
Rear Surround
Speaker
* Using a Component Preamplifier and Power Amplifier
Connect the preamplifiers output jacks to the input
jacks on the DSP unit rear panel.
| | Rear Output
Center Mono |
Front Effect
| Output Output
Main Output -
NPY TAPE ® / INPUT curr
CENTER AA TAPE PE RECQUT Le 105P FRONT RLAR FRIENT
Of 1® PAOCCSSING OÙT |
E fr 1 © ©
© WELT RAL - FRONT Max | 2
© °
a AE Oo |
ОВР В EW COMNEC TION MY
a E Е ta reves Du WARNING rg reoace Beers or re pr eecree since
: ‚ 02 SOT ENCE TE Arai TO AN) CARTE
Front Effect
Input
Main Input
Rear Effect
Input
2. CONNECTING THE DSP-SERIES UNIT TO THE
~ DSR-100PRO
Connections from the DSP unit to the DSR- 100PRO are
the same for all configurations, regardless of other aspects
of the system.
-* Connect the DSP main output jacks to the DSR-100PRO
MAIN INPUT jacks.
* Connect the DSP processing front and rear output jacks
to the DSR-100PRO FRONT and REAR input jacks (in the
section on the rear panel that is marked “FROM DSP
PROCESSING OUT”.
3. CONNECTING THE DSR-100PRO TO THE
AMPLIFIERS
Connect the DSR-100PRO MAIN OUTPUT jacks to the
amp or receiver that will drive the MAIN SPEAKERS.
e |f using a receiver or integrated amplifier, then connect
to the amp or receiver TAPE IN or TAPE PLAY jacks, or
preferably to the amp or receiver MAIN IN jacks, if so
equipped.
e Connect the DSR-100PRO's REAR OUTPUT jacks t to the
input jacks of the power amplifier that will drive the REAR
SURROUND speakers. (These also handle the DSP rear
effect sound.)
e Connect the DSR-100PRO's CENTER jacks to the amp
or amps that will be driving the CENTER SPEAKER and/or
SUBWOOFER.
Connect the speakers to the amplifiers.
* |f you will be using separate front effect speakers for DSP
output, first set the DSR-100PRO's FRONT MIX switch to
the OFF position. Then connect the DSR-100PRO'S DSP.
FRONT OUTPUT jacks to the input jacks of the power am-
plifier that will drive the DSP front effect speakers.
® If not using separate front effect speakers, set the
DSR-100PRO's FRONT MIX switch to the ON position. This
blends the front effect signal with the main stereo signal for
reproduction through the MAIN SPEAKERS.
4-3. INPUT BALANCE ADJUSTMENT
1. Turn down the volume on all components in the system.
2. Turn on the power to all components in the system.
* |f the DSP unit has a volume control, it should be set to
the maximum level. This helps provide higher sound
quality.
e Set the DSP units MAIN LEVEL switch to OdB.
* Set the DSP units FRONT MIX switch to the “OFF” or
“och” position.
3. Select your video cassette deck or video disc player (or
other Dolby Surround encoded program source) as the
source on your preamplifier, integrated amplifier, or receiver
Then begin playback of Dolby Surround encoded program
material.
4. Increase the setting of the volume control on your
preamplifier, integrated amplifier or receiver to nearly the
halfway point (between —16dB and —20dB if marked).
31
5, Set the DSR-100PRO master volume control knob near
the center position.
6. Adjust the volume on each of the power amps to a com-
fortable listening level.
7. Set the DSR-100PRO rear panel center channel switch to
the OFF position.
8. While listening to spoken dialog, adjust the input balance
control so that the dialog volume (heard from the left and
— right main speakers) is reduced to the minimum. (During
32
normal operation, this dialog is reproduced over the center
channel.) |
9. Return the rear panel center channel switch to the ON
position.
4-4. MAIN/CENTER/SURROUND SPEAKER
BALANCE ADJUSTMENT —
This procedure optimizes the volume balance between the
main, center, and surround speakers.
1. Turn on the Dolby Mode switch.
3. lurn up the DSR-100PRO's master volume control so
that you hear the test tone. It rotates in a circle, going first to
the right main speaker, then to the center speaker, then to
the left main speaker, then to the surround speakers, for
about two seconds each.
3 Turn on the TEST button.
e |f not using a center speaker, be sure to set the rear
panel center mode switch to the PHANTOM position. You
Will then hear the center channel test tone from the left and
— right main speakers.
4. Adjust the power amplifiers driving the MAIN, CENTER,
and SURROUND speakers so that the volume is approxi-
mately the same from each, as heard from your preferred
listening position.
.9 Use the DSR-100PRO front panel REAR and CENTER
LEVEL controls to adjust volume if the center and surround
amps do not have input level controls.
* If you cannot achieve sufficient SURROUND speaker
volume to match the MAIN speaker volume, then you have
two options:
Turn down the source amp or receiver volume until
main/surround balance is achieved.
Set the rear panel MAIN LEVEL switch to the —10dB
position. This will drop the main speaker volume to about
\ one third of normal.
5. After completing this adjustment, turn off the front panel
TEST button.
Once you have completed the preceding steps, use
only the DSR-100PRO master volume control knob to ad-
just listening volume. If you are using independent front ef-
fect speakers for DSP output, then you may wish to make
additional adjustments as outlined in the steps below.
4-5. ADDITIONAL ADJUSTMENTS FOR
DSP UNIT
1. On the DSR- 100PRO front panel, turn of the Dolby
Mode switch and turn on the DSP Mode switch.
2. Use the DSP units remote control to turn on the “main
mute” function. Adjust the volume of the amp driving the
front effect speakers so that it is at about the same level as
the rear speakers. When finished, turn off the main mute
function.
* Use the DSP units remote control to adjust rearffront.
balance for individual effects.
e Refer to the DSP units operation manual for further
details.
3. If necessary, use the DSR-100PRO’s front panel rear
and center level adjustment controls to make further
‘adjustments.
4-6. OPERATION WITH DSP-SERIES UNITS
1. Turn on the power on all system components.
2. Select the desired listening source on the amplifier or
receiver |
3. Turn on the DSP Mode switch on the front panel of the |
DSR-100PRO if you wish to have DSP effects applied to 7
the reproduced signal. =
4. Adjust the DSR-100PRO master volume knob.
5. Operate the DSP unit as usual. Refer to the DSP unit's
operation manual for details.
es The DSP Mode and Dolby Mode can both be used at
the same time if the source material is Dolby Surround
encoded.
* For normal stereo playback, both the DSP Mode and the
Dolby Mode switches must be turned off.
NOTE: Be sure to turn on the DSP units power even if you
are not using DSP effects.
34
5-1. TROUBLESHOOTING
Most problems can be corrected by making a change
in the connections or control settings. If there is a problem
with your system, please check this chart to find the proba-
ble cause. If trouble persists despite corrective measures,
contact your Yamaha service station.
SYMPTOM
CHECK POINTS
REMEDY
Power does not turn on even when the
power swiich is pressed.
AC cord is not properly plugged in.
Plug in AC cord of DSR-100PRO and other
units.
No sound.
Audio cables are not properly connected.
DSP unit is not turned on.
Wrong source selected on amp or receiver.
DSR-100PRO tape monitor switch is on.
- Connect all cables, olugging them firmly
Into correct jacks.
Turn on power on DSP unit and other units
in system.
Select the desired input source and/or set the
rec selector and tape monitor switch to the
correct setting on the amp or receiver.
Turn off DSR-100PRO tape monitor switch.
No sound from rear speakers.
Front panel rear level control is turned down.
Front panel Dolby Pro Logic Surround mode
switch is not turned on when listening to a
Dolby Pro Logic Surround encoded source.
Source does not have rear channel
information. |
Front panel DSP mode switch is not turned
on when using a DSP unit.
Turn up rear level control.
Turn on Dolby Pro Logic Surround mode
switch when listening to Dolby Pro Logic
Surround encoded sources.
Use a Dolby Pro Logic Surround encoded
source.
Turn on DSP mode switch.
Sound is muffled.
Dolby Pro Logic Surround mode switch is
on but source is mono or not encoded with
Dolby Surround.
Turn off Dolby Pro Logic Surround mode
switch when listening to sources that are not
Dolby Surround encoded.
Sound is “thin”
Rear panel center mode switch is on when
no center speaker is used.
Set center mode switch to “phantom” position
f no center speaker is used.
SYMPTOM
CHECK POINTS
REMEDY
No sound from center speaker.
Rear panel center channel switch is turned of,
Rear panel center mode switch is set to
“phantom” when using a center speaker.
Front panel center level control is turned down.
Center channel output is not produced unless
the Dolby Pro Logic Surround mode switch
Is on.
Set center channel switch to “ON” position.
Set center mode switch to “ON” position.
Turn up center level control knob.
Turn on Dolby Pro Logic Surround mode
switch when listening to Dolby Surround
encoded sources.
Excessive noise when using DSP unit.
DSP unit's main level switch is set to —10dB. *
Set DSP unit's main level switch to 0dB.
DSP front effect sound is heard even
when front panel DSP mode switch is off.
DSP unit's front mix switch (on rear panel) is
set to “4ch” or “ON” position. |
Set DSP unit's front mix switch to “OFF” ог
“och” position.
Remote control unit does not function
correctly.
Batteries are exhausted.
Incorrect angle, excessive distance, or bright
light shining on DSR-100PRO front panel.
‘Replace DSR- 100PRO remote control unit's
batteries.
Operate within seven meters and a 30
degree angle. Avoid exposure of the front
panel to bright light sources.
Interference in TV picture.
Magnetic field from nearby speaker is inter-
fering with electron beam scanning.
Use special shielded speaker system for
center speaker or move TV set away from
speaker position.
Tape recordings from DSR-100PRO do
not include Dolby Pro Logic Surround
effect.
This IS normal.
You can only record the same signal as is
input to the DSR-100PRO.
Unnatural Dolby Pro Logic Surround
effect.
Source amp or receiver has built-in surround
circuitry that is turned on.
DSP units FRONT MIX switch is set to “ON”
or “4ch” position.
Turn off surround effect on source amp or
receiver,
Set DSP unit's FRONT MIX switch to "OFF"
‘or “Gch” position.
35
5.2. SPECIFICATIONS
* Audio Specifications (Dolby Surround Off)
THD: 0003% (1kHz, 1V rms) -
Residual noise: 20 microvolts (IHF A)
Frequency response: 10Hz—50kHz (+0, —3dB)
* Surround Decoder
Digital delay sampling frequency:
49.7kHz, 14-bit floating point.
Input capacity: 2.5V rms
SIN ratio: 90dB
e Input/Output
Input impedance: 47 kohms |
Output impedance: main channel 1 kohm
front/rear/center 470 ohms
subwoofer 5 kohms
input/output gain: 0dB (at maximum volume)
Input sensitivity: 150mV
e Dimensions (W/H/D): 435 x 75 x 3195mm
e Weight: 4.1kg
e Power consumption: 30W
e AC output: 200W maximum, unswitched
(not provided in some areas)
36
YA M Y IT Pe
“YAMAHA CORPORATION
Eo Box1, Hamamatsu Japan
-— VF38600-1 BWggg Printed in JapanEiG

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
