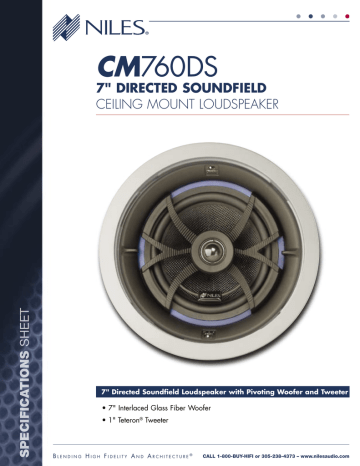

CM760DS
SPECIFICATIONS SHEET
7" DIRECTED SOUNDFIELD
CEILING MOUNT LOUDSPEAKER
7" Directed Soundfield Loudspeaker with Pivoting Woofer and Tweeter
• 7" Interlaced Glass Fiber Woofer
• 1" Teteron® Tweeter
BLENDING HIGH FIDELITY AND ARCHITECTURE®
CALL 1-800-BUY-HIFI or 305-238-4373 – www.nilesaudio.com
7
INCH DIRECTED SOUNDFIELD CEILING MOUNT LOUDSPEAKER
7" Directed Soundfield
Loudspeaker with Pivoting
Woofer and Tweeter
CM760DS
Stock Number
FG01315
Features
■ Fully pivoting, patented woofer assembly focuses the bass and midrange tones directly into the listening
area (pivots up to 20º)
■ Twist & Lock™ baffle and frame mechanism facilitates quick installation and trouble-free upgrades
■ Integrated woofer/baffle design delivers greater low frequency response by employing a 7" woofer where
competitive models employ 6 1/2" woofers
■ Interlaced glass fiber cone is lightweight yet extremely rigid for deep, powerful bass response
■ Butyl rubber surround damps resonance and provides exceptional durability
■ 1" fluid-cooled Teteron® dome tweeter offers ultra-wide dispersion and silky-smooth high-frequency
response
■ Proprietary bridge-mounted tweeter-adjustment mechanism focuses the high frequency sound in any
direction up to 20º without diffraction
■ Includes flush-mount MicroPerf™ aluminum grille for a clean and unobtrusive look
■ 2 position presence and 3 position tweeter level controls provide for precise matching to room acoustics
■ Weather resistant construction reduces installation limitations and provides unique solutions in moist
environments or outdoors under eaves
Specifications
■
■
■
■
■
Frequency Response: 48Hz to 21kHz +/-3dB
Impedance: 8 ohm nominal; 6 ohm minimum
Recommended Amplifier Power: 10 to 150 Watts
Frame Dimensions: 11 inches
Hole cutout dimensions: 9 3/4 inches
■ Depth behind ceiling: 5 7/8 inches
Warranty: Lifetime limited
US Patent: 6,683,963
Pivoting Woofer
and Tweeter
Technology
P RODUCT CONSTRUCTION AND ACCESSORIES
SPECIFICATIONS SHEET
9-3/4"
Hole
Cutout
CES Innovations
Design &
Engineering Award
5-7/8" Depth
9-3/4"
Hole
Cutout
11"
Frame Outer
Diameter
6-3/16" Depth
Loudspeaker Model
Model
Stock Number
CM760DS
FG01315
Works With
Previous Bracket
New Bracket
Metal Enclosure
Hole Cover
DS8 Series
Bracket Kit
CM700DS BKT
CM700 DSCE
CM700DS
Hole Cover
FG01357
FG01397
FG01053
NILES AUDIO CORPORATION 12331 SW 130 Street, Miami, FL 33186 1-800-BUY-HIFI – www.nilesaudio.com
©2007 Niles Audio Corporation. All Rights Reserved. Niles and the Niles logo are registered trademarks of Niles Audio Corporation. CS0061B
FG01318
