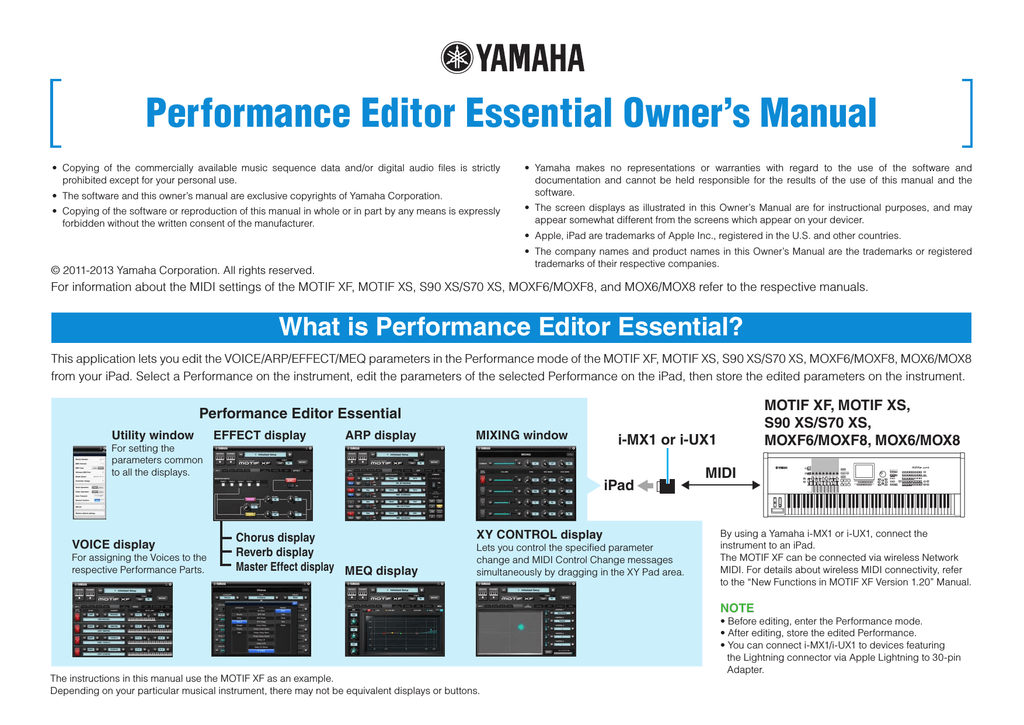

Performance Editor Essential Owner’s Manual
• The software and this owner’s manual are exclusive copyrights of Yamaha Corporation.
• Yamaha makes no representations or warranties with regard to the use of the software and
documentation and cannot be held responsible for the results of the use of this manual and the
software.
• Copying of the software or reproduction of this manual in whole or in part by any means is expressly
forbidden without the written consent of the manufacturer.
• The screen displays as illustrated in this Owner’s Manual are for instructional purposes, and may
appear somewhat different from the screens which appear on your devicer.
• Copying of the commercially available music sequence data and/or digital audio files is strictly
prohibited except for your personal use.
• Apple, iPad are trademarks of Apple Inc., registered in the U.S. and other countries.
• The company names and product names in this Owner’s Manual are the trademarks or registered
trademarks of their respective companies.
© 2011-2013 Yamaha Corporation. All rights reserved.
For information about the MIDI settings of the MOTIF XF, MOTIF XS, S90 XS/S70 XS, MOXF6/MOXF8, and MOX6/MOX8 refer to the respective manuals.
What is Performance Editor Essential?
This application lets you edit the VOICE/ARP/EFFECT/MEQ parameters in the Performance mode of the MOTIF XF, MOTIF XS, S90 XS/S70 XS, MOXF6/MOXF8, MOX6/MOX8
from your iPad. Select a Performance on the instrument, edit the parameters of the selected Performance on the iPad, then store the edited parameters on the instrument.
MOTIF XF, MOTIF XS,
S90 XS/S70 XS,
MOXF6/MOXF8, MOX6/MOX8
Performance Editor Essential
Utility window
For setting the
parameters common
to all the displays.
VOICE display
For assigning the Voices to the
respective Performance Parts.
EFFECT display
ARP display
MIXING window
i-MX1 or i-UX1
iPad
Chorus display
Reverb display
Master Effect display MEQ display
XY CONTROL display
Lets you control the specified parameter
change and MIDI Control Change messages
simultaneously by dragging in the XY Pad area.
MIDI
By using a Yamaha i-MX1 or i-UX1, connect the
instrument to an iPad.
The MOTIF XF can be connected via wireless Network
MIDI. For details about wireless MIDI connectivity, refer
to the “New Functions in MOTIF XF Version 1.20” Manual.
NOTE
The instructions in this manual use the MOTIF XF as an example.
Depending on your particular musical instrument, there may not be equivalent displays or buttons.
• Before editing, enter the Performance mode.
• After editing, store the edited Performance.
• You can connect i-MX1/i-UX1 to devices featuring
the Lightning connector via Apple Lightning to 30-pin
Adapter.
Title bar and Utility window
This window lets you set the parameters common to all the displays.
Each lamp flashes according to the MIDI in/out
messages.
Title bar
Tapping this opens or closes the Utility window.
Utility window
Set this to the same number as that of the instrument.
Sets the MIDI Transmit Channel.
Selects the MIDI port of the instrument in case of
wireless connection.
Selects the connected instrument.
Assigns the MIDI Control Change numbers to each
controller.
Determines the Fader behavior.
jump: The Fader jumps to any tapped location in
the Fader area.
catch: The Fader will be “caught” as you drag on it.
Determines the connection method between the iPad
and MIDI instrument.
cable: Should be selected when connected via the
i-MX1 or i-UX1.
wireless: Should be selected when connected via
wireless Network MIDI.
NOTE
When set to “wireless,” make the Wi-Fi setup in Settings > Wi-Fi in
your iPad.
Determines the knob behavior.
rotary: Dragging around the knob will rotate it in the
same direction.
linear: Dragging vertically upward from the knob
rotates the knob clockwise, and dragging downward
rotates counter-clockwise.
When set to on, selecting a Template* transmits the
corresponding settings via MIDI.
When set to on, tapping [RECEIVE] calls up a
confirmation message.
*What is a Template?
Each of the Templates includes the settings of all the
displays, meaning that you can call up all the Effect
settings just by selecting the desired Template. Each
of the Templates can be renamed, called up and
initialized.
Performance Editor Essential Owner’s Manual
Tapping this calls up the Owner’s Manual.
Tapping here initializes all the settings.
2
MIXING window
Adjust the COMMON VOLUME by
operating the slider. Tapping [-]/[+]
changes the value in single steps.
Allows you to edit the Part 1 parameters.
Likewise, the parameters for the Parts 2
– 4 can be edited in the corresponding
area.
Tapping this closes the MIXING
window.
Adjust the COMMON PAN/
COMMON REV SEND/COMMON
CHO SEND by operating the knob,
or by tapping the value to call up the
slider for adjusting the parameters.
Turns the Part Switch on/off. Red
indicates “ON” while gray indicates
“OFF.” The number corresponds to the
Part Number.
Adjust the PART VOLUME by operating
the slider. Tapping [-]/[+] changes the
value in single steps.
Performance Editor Essential Owner’s Manual
Adjust the PART PAN/PART
REV SEND/PART CHO SEND by
operating the knob, or by tapping
the value to call up the slider for
adjusting the parameters.
3
VOICE display
Tapping [RECEIVE] starts reception of
the settings from the instrument.
NOTE
The Voice name on the iPad may be different from
that of the instrument during Arpeggio playback
with “Voice with ARP”= ON and “Change Timing”=
ON. To remedy this situation, tap [RECEIVE].
Template Name
Selecting a Template calls up all the settings
of all the displays. To change the Template,
tap [+] /[-], or tap the Template Name to call
up the Template list, then tap the desired
Template.
Indicates the Arpeggio tempo. To change
the tempo, tap the Tempo value to call up
the slider then operate the slider, or tap
[TAP] three times at the desired tempo.
Tapping [TRANSMIT] starts transmission
of the current settings to the instrument.
NOTE
Tapping here calls up the MIXING
window.
When the Voice with ARP function is set to on,
tapping [TRANSMIT] will change the current Voice
to the one assigned to the new Arpeggio type.
Tapping here alternately calls up
the XY CONTROL display, VOICE
display, ARP display, EFFECT
display and MEQ display.
Changes the Arpeggio type of the
current Part. This is equivalent to the
[SF1] – [SF5] buttons.
Lets you edit the Part 1 parameters.
Likewise, the parameters for the Parts
2 – 4 can be edited in the corresponding
area.
Determines the Note Limit Low and
Note Limit High. Tapping [-]/[+]
changes the value in single steps.
Tapping the Note name between [-]
and [+] calls up the slider which lets
you set the Limit value.
Turns the Part Switch on/off. The red
color indicates “on” while the gray color
indicates “OFF.” The number on the
button refers to the Part Number.
Determines the Voice Bank. Tapping
[+] /[-] changes the Voice Bank. Tapping
the Bank Name between [+] and [-] calls Indicates the Part Voice Name.
up the Voice List.
Tapping here calls up the Voice List.
Performance Editor Essential Owner’s Manual
Determines the Voice Number.
Tapping [+]/[-] changes the Voice
number. Tapping the Voice name
between [+] and [-] calls up the Voice
List.
Shows the note range specified
via the Note Limit Low and High
parameters.
4
Voice List
This list is called up by tapping the Voice Bank, Voice number or Voice name for each Part. As shown below, the Voice List features two indication types: Bank order and
Category order. Note that User Voices are not shown in the Voice List by Category.
Voice List with the Bank order
Voice List with the Voice Category order
Dragging upward or
downward will scroll
through the Voices.
Tap the desired Bank to call up the
corresponding Voice List, then tap the desired
Voice name. The Voice List can be scrolled.
BANK and CATEGORY tabs
Selects the indication type of the Voice List
from two types: Bank order or Category
order. When a User Voice is selected, the
CATEGORY tab is not available.
Performance Editor Essential Owner’s Manual
Tap the desired Main Category and Sub Category
to call up the corresponding Voice List, then tap the
desired Voice name. The Voice List can be scrolled.
Tapping [DONE] will actually assign the
selected Voice to the current Part, then
close the List. Tapping [CANCEL] will abort
selection then close the List.
5
ARP display
Same as in the VOICE display
Lets you edit the Part 1 parameters.
Likewise, the parameters for the
Parts 2 – 4 can be edited in the
corresponding area.
Turns on/off ARP Common Switch.
Selects ARP Sync Quantize Value.
1
2
3 4 5
6
1 Turns on/off ARP Part Switch. The red color indicates the on status while the
gray color indicates the off status.
2 Turns on/off ARP Hold. The blue color indicates the on status while the gray
color indicates the off status.
3 Sets ARP Hold to Sync Off. The blue color indicates the Sync Off status while
the gray color indicates a different status.
4 Tapping the [-]/[+] changes the Arpeggio Type to the first one of the new Main
Category. Tapping the indication between [-] and [+] calls up the Arpeggio
Type List.
Performance Editor Essential Owner’s Manual
7
8
5 Selects the Arpeggio Type Bank form “Pre” or “User.” The selected Bank lamp
lights.
6 Tapping the [-]/[+] changes the Arpeggio Type to the first one of the new Sub
Category. Tapping the indication between [-] and [+] calls up the Arpeggio
Type List.
7 Indicates the Arpeggio Type Name. Tapping here calls up the Arpeggio Type
List.
8 Tapping the [-]/[+] changes the Arpeggio Type. Tapping the indication
between [-] and [+] calls up the Arpeggio Type List.
6
Arpeggio Type List
Tapping [DONE] actually assigns the selected Arpeggio
Type to the current Part, then closes the List. Tapping
[CANCEL] will abort selection then close the List.
Tap the desired Bank, Main Category and Sub Category,
then tap the desired Arpeggio Type.
Dragging upward or downward scrolls through the
Arpeggio Types.
Performance Editor Essential Owner’s Manual
7
EFFECT display
Same as in the VOICE display
Lets you set the Insertion Switch to
on or off for each Part.
Tapping here calls up the
MASTER EFFECT display.
Sets the Master Effect ON/OFF.
Tapping here calls up
the CHORUS display.
To adjust each value, drag around
the knob or tap the value to call
up the slider then operate the
slider.
Tapping here calls up
the REVERB display.
Performance Editor Essential Owner’s Manual
8
Reverb/Chorus/Master Effect display
From these displays, you can make the Effect settings for the Performance currently selected on the instrument. This section covers the operations on these displays having
the same design.
Tapping here returns the screen to the EFFECT display.
To select an Effect Type:
Tap [+]/[-] in this area. Or tap the indicators in this area to call up the Effect
list, tap the desired Category, tap the desired Type, then tap the desired
Preset setting. After selecting, tap [Done] to close the Effect list.
Effect List
To edit the Effect parameter:
Drag the slider of the desired parameter, or tap [+]/[-].
Dragging upward or downward will scroll through the parameters.
Performance Editor Essential Owner’s Manual
9
MEQ display
Same as in the VOICE display
Select the shape of the HIGH band
from Shelving (left side) and Peaking
(right side).
To adjust the EQ parameters for each
Band, tap the desired band at 1 or
2 to correspondingly change the
Knob color, then operate the Knob, or
tap the value to call up the slider for
adjusting.
To edit the EQ setting, drag the dot
with the color corresponding to that
of the desired band (LOW, LOW MID,
MID, HIGH MID or HIGH).
Gain
Frequency
Select the shape of the LOW band from
Shelving (left side) and Peaking (right side).
Performance Editor Essential Owner’s Manual
10
XY CONTROL display
The Pad area on this display lets you simultaneously control the five parameters specified for CONTROL 1 – 5. This means that you can freely change the sound in real time
during keyboard performance by controlling the Pad area.
Parameter List
Same as in the VOICE display
Sets the Control Parameter.
Tap [+]/[-], or tap the Parameter name
between [-] and [+] to call up the list,
then tap the desired parameter.
Resets the ball position
to the center of the Pad.
Pad
Ball
Indicates the current
position of your control.
Performance Editor Essential Owner’s Manual
Sets how the Control Parameter Value is
determined.
X: The horizontal value of the ball position
will be transmitted as the parameter value.
Y: The vertical value of the ball position will
be transmitted as the parameter value.
Dragging upward or
downward will scroll
through the parameters.
Sets the sensitivity of the ball in
the Pad area.
Move the slider rightward to raise
the sensitivity.
11
Ball position and Parameter value
Moving the ball transmits the values of the parameters specified for CONTROL 1 – 5 from your iPad to the instrument. As shown below, two different value ranges are
available.
When the value range is -64 – +64:
When the value range is 0 – 127:
Y
Y
+63
-64
±0
127
+63 X
127
-64
Parameter Name
Descriptions
127
Parameter Name
AEG Attack
Volume
AEG Decay
Reverb Send
AEG Sustain
Chorus Send
AEG Release
Controls the corresponding Common parameter.
FEG Release
FEG Depth
Controls the corresponding Common parameter.
Controls the parameter set to Foot Controller 1 in the Utility
window.
Foot Controller 2
Controls the parameter set to Foot Controller 2 in the Utility
window.
A.Function 1
Controls the parameter set to A.Function 1 in the Utility window.
A.Function 2
Controls the parameter set to A.Function 2 in the Utility window.
Breath Controller
Controls the parameter set to Breath Controller in the Utility
window.
Cutoff
Resonance
Descriptions
Foot Controller 1
FEG Attack
FEG Decay
127 X
0
Pan
Assign 1
Controls the parameter set to Assign 1 in the Utility window.
Assign 2
Controls the parameter set to Assign 2 in the Utility window.
For details about Parameter Change, refer to the respective manuals of the instruments.
Performance Editor Essential Owner’s Manual
C.S.G., Digital Musical Instruments Division
© 2011-2013 Yamaha Corporation
304MW-C0
12

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
