INSTALLATION INSTRUCTIONS
HORN SPEAKER WITH AMPLIFIER
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
MODEL NUMBERS:
SA-H5-B 8" HORN SPEAKER W/5 WATT AMPLIFIER
SA-H15-B 8" HORN SPEAKER W/15 WATT AMPLIFIER
GENERAL:
Horn speakers with built-in amplifiers are used for one-way voice paging, background music, and tone alerting in large indoor and
outdoor and/or noisy locations. Model SA-H5-B has a built-in 5 watt amplifier, and model SA-H15-B has a built-in 15 watt
amplifier. Both models have a built-in volume control. The horn speakers with built-in amplifier are used in the following manner.
Figure 1 shows a zone paging application used with Wheelock's Zone Page Control Module. The horn speaker can also be used to
provide single-zone paging when connected directly to an unused Central Office (C.O.) line port, which can be programmed to
function as a 600 Ohm Audio Page Port (i.e., does not require Talk Battery). See Figure 2.
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
. All warnings are printed in bold capital letters.
WARNING: READ THESE INSTRUCTIONS CAREFULLY. FAILURE TO COMPLY WITH ANY OF THE
FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION,
INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD
RESULT IN PROPERTY DAMAGE, SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.

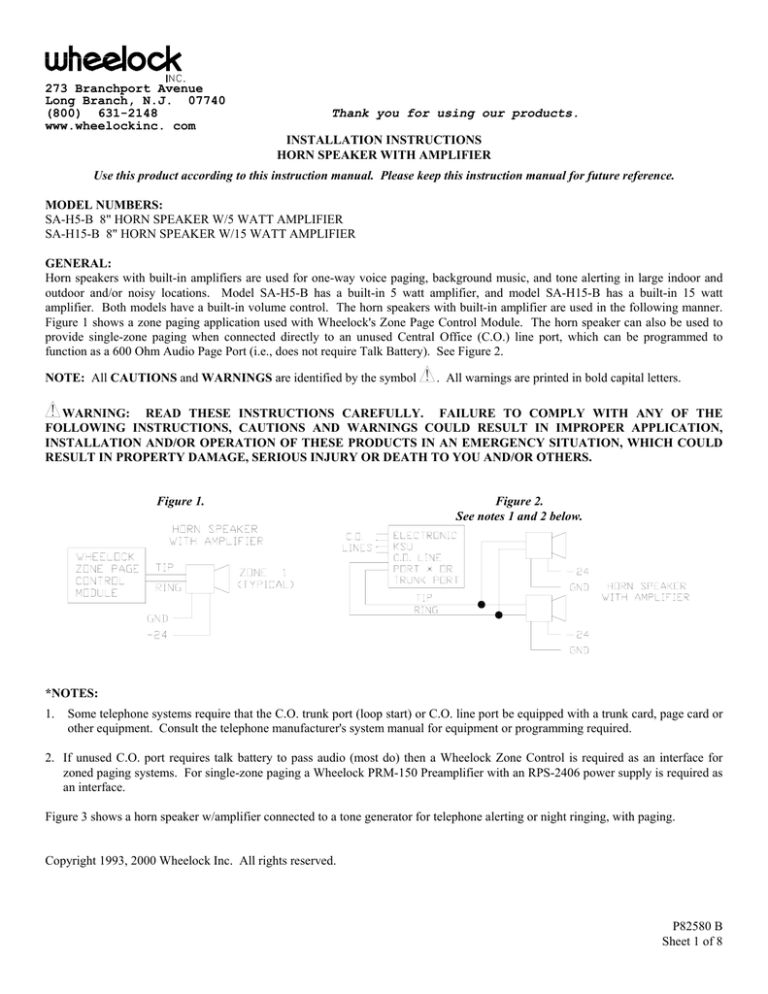

Figure 1.
Figure 2.
See notes 1 and 2 below.
*NOTES:
1.
Some telephone systems require that the C.O. trunk port (loop start) or C.O. line port be equipped with a trunk card, page card or
other equipment. Consult the telephone manufacturer's system manual for equipment or programming required.
2. If unused C.O. port requires talk battery to pass audio (most do) then a Wheelock Zone Control is required as an interface for
zoned paging systems. For single-zone paging a Wheelock PRM-150 Preamplifier with an RPS-2406 power supply is required as
an interface.
Figure 3 shows a horn speaker w/amplifier connected to a tone generator for telephone alerting or night ringing, with paging.
Copyright 1993, 2000 Wheelock Inc. All rights reserved.
P82580 B
Sheet 1 of 8
Figure 3.
Figure 4.
*NOTE:
1. If unused C.O. port requires talk battery to pass audio (most do) then a Wheelock Zone Control is required as an interface for
zoned paging systems. For single-zone paging a Wheelock PRM-150 Preamplifier with an RPS-2406 power supply is required as
an interface.
Figure 4 shows the same tone generator and horn speaker w/amplifier activated by a common audible.
*NOTE:
1. If unused C.O. port requires talk battery to pass audio (most do) then a Wheelock Zone Control is required as an interface for
zoned paging systems. For single-zone paging a Wheelock PRM-150 Preamplifier with an RPS-2406 power supply is required as
an interface.
2. The horn speaker w/amplifier can be used to amplify the tone of a telephone as shown in Figure 5. It can also be used to expand
the capability of 25 or 70 volt paging systems. Up to 125 horn speakers w/amplifiers may be connected to each transformer using
the 1/4W tap.
See Figures 6 and 6A.
Figure 5.
Figure 6.
Figure 6A.
P82580 B
Sheet 2 of 8
Figure 7 shows a horn speaker w/amplifier connected to a PABX or EKSU which provides one or more audio page ports.
Figure 7.
(A) 8 Ohm, Amplified (1-3 Watts) page port: Maximum capacity is 125 horn speakers w/amplifiers.
(B) 600 Ohm, low power page port: Maximum capacity is 10 horn speakers w/amplifiers (See System Capacity below). If a PRM150 preamplifier is used, then maximum capacity is 150 horn speakers w/amplifiers.
SYSTEM CAPACITY:
For applications with a typical 600 Ohm source impedance such as a telephone system audio page port, a maximum of 10 Horn
Speakers may be used. Additional Horn Speakers (up to 150 maximum) will require the PRM-150 Preamplifier for correct level and
impedance matching.
SPECIFICATIONS:
Horn Speaker
Dimensions:
Voice Coil Impedance:
Sound Dispersion:
Frequency Response (@ Full Rated Output)
(-30dB) Ref. 1.1kHz:
Typical Sound Pressure Level (SPL-On Axis,
@ 1 Meter, @ 1.1KHz, @ Full Rated Output):
8-15/16" Dia. X 10" D
8 Ohms
110 Degrees
375 - 14,000Hz
SA-H5-B - 114dB
SA-H15-B - 117dB
Amplifier
Rated Output Power:
SA-H5-B - 5 Watts
SA-H15-B - 15 Watts
Audio Input Impedance:
600 Ohms
Nominal Sensitivity for Full Rated Output:
SA-H5-B - 35mV (± 20mV)
SA-H15-B - 55mV (± 20mV)
Power Input Voltage:
Maximum - 26.4VDC
Nominal - 24VDC
Minimum - 21.6VDC
Maximum Input Current (@ Idle):
SA-H5-B - 100mA (@ 24VDC)
SA-H15-B - 100mA (@ 24VDC)
Maximum Input Current (@ Full Rated Output): SA-H5-B - 450mA (@ 24VDC)
SA-H15-B - 1.4A (@ 24VDC)
P82580 B
Sheet 3 of 8
INSTALLATION INFORMATION:
Horn speakers should be used in large and/or noisy locations. They are weatherproof and may be used indoors or outdoors. The horn
speaker has a built-in amplifier. It's volume controls should be set to provide horn sound pressure level (SPL) of at least 6 to 10dB for
paging, and 3 to 6dB for background music. However, the horn speaker's volume should not be set so high as to cause discomfort to
those closest to the horn. These devices should not be operated at volume levels loud enough to cause audible distortion. Operation
in this manner may result in damage to the unit. In some cases, use of multiple horns set at lower volume provide better sound
coverage, than one horn set at full volume. Horns should be mounted at least 15 feet above the floor, and angled downward.
See Tables 1 & 2 and Figures 8 & 9 as a guide to determine horn spacing, area coverage, and sound pressure level.
Although designed for continuous operation, the use of continuous tone signals at high volume is not recommended. While short tone
bursts should cause no problem, sustained operation in this mode may result in failure of the unit.
Ambient Noise
Level
(dBA)
Quiet To Moderate
50-74
Noisy
75-85
Very Noisy*
85-90 (SA-H5-B)
Area Coverage
Per Horn
(Sq. Ft.)
Table 1.
Effective
Forward Projection
(Ft.)
Side to Side
Front to Rear
5,000
128
40 Ft.
120 Ft.
2,500
64
40 Ft.
60 Ft.
1,250
32
40 Ft.
30 Ft.
85-96 (SA-H15-B)
1,250
32
40 Ft.
30 Ft.
Spacing
* For very noisy locations (above 96dB), consult Wheelock for applications assistance.
NOTES:
1. Mounting Height is 15-20 Feet.
2. Typical Mounting Angle (to Vertical) is 60 degrees.
Figure 8.
SA-H5-B Horn Speaker With 5 Watt Amplifier
Figure 9.
SA-H15-B Horn Speaker With 15 Watt Amplifier
Distance From Horn
(Ft. On Axis)
Distance From Horn
(Ft. On Axis)
CAUTION: The total system wattage requirement should not exceed 85% of the system amplifiers rated output. The total system
wattage requirement is the summation of the wattage tap selections of all system speakers and horns.
P82580 B
Sheet 4 of 8
MOUNTING INFORMATION:
The SA-H5-B and SA-H15-B may be wall mounted by simply using the holes in the swivel base to locate and drill mounting holes.
For ease of mounting, the swivel base may be removed from the horn body. Then mount the base to the surface with appropriate
hardware. Slots are also provided in the base for banding straps, to allow mounting to beams, poles, and girders. The mounting base
is also fully adjustable in both the vertical and horizontal planes. See Figure 10.
CAUTION: These devices are not intended for use in hazardous locations as defined by the National Electrical Code (NEC) and
by the National Fire Protection Association (NFPA).
Mounting Base
Figure 10.
NOTE:
Loosening the wing nut will allow for both pitch and rotation of the unit.
CAUTION:
When adjusting horn position, be careful not to lose adjusting hardware.
An interface adapter (mounted to the horn) permits weatherproof connection. The interface adapter is threaded for standard 1/2" pipe,
and will accommodate BX cable, flexible or rigid conduit and matching connectors. If the interface adapter is not suitable for your
installation, then replace it with the clear plastic shield and 2 short mounting screws packed separately.
Figure 11.
P82580 B
Sheet 5 of 8
WIRING INSTRUCTIONS:
Use "D" type station wire (24 Awg) or other suitable wire, as noted in Tables 2, 3, 4, 5 & 6. Table 2 is a guide to determine the
number of horn speakers per audio pair run.
Table 2: Number of Horn Speakers per Audio Pair*
Wire Run
Number of Horn Speakers *
(Feet)
22 AWG
24 AWG
100
150
120
200
150
120
400
100
60
800
50
30
1600
25
15
* Based upon using Wheelock's PRM-150 Preamplifier
Table 3 is a guide to determine the type of power supply required, and how many amplified horns (@ full power) can be powered by
each type. Use Tables 4, 5 and 6 to determine actual wire gage (Awg).
Power
Supply
RPS-2406
(600 mA)
RPS-2440
(2 Amp Output)
RPS-2440
(4 Amp Output)
Table 3.
Horn - Full Power
SA-H5-B(5W)
SA-H15-B (15W)
1
N/A
(See Table 5)
4
1
(See Table 6)
(See Table 7)
8
3
(See Table 6)
(See Table 7)
Table 4.
Quantity Of SA-H5-B @ Full Power, With RPS-2406 Power Supply
Wire Run
Wire (Awg)
(Feet)
24
22
18
16
14
12
Up to 100
1
1
1
1
1
1
Up to 200
N/A
N/A
1
1
1
1
Up to 400
N/A
N/A
1
1
1
1
Up to 800
N/A
N/A
N/A
N/A
1
1
Up to 1600
N/A
N/A
N/A
N/A
N/A
1
Table 5.
Quantity Of SA-H5-B @ Full Power, With RPS-2440 Power Supply
Wire Run
Wire (Awg) for 2 AMP Output Wire (Awg) for 4 Amp Output
(Ft.)
18
16
14
12
18
16
14
12
Up to 100
4
4
4
4
4
6
8
8
Up to 200
2
3
4
4
2
3
5
8
Up to 400
1
1
2
4
1
1
2
4
Up to 800
N/A
N/A
1
2
N/A
N/A
1
2
Up to 1600 N/A
N/A
N/A
1
N/A
N/A
N/A
1
Table 6.
Quantity Of SA-H15-B @ Full Power, With RPS-2440 Power Supply
Wire Run
Wire (Awg) for 2 Amp Output
Wire (Awg) for 4 Amp Output
(Ft.)
18
16
14
12
18
16
14
12
Up to 100
1
1
1
1
1
2
3
3
Up to 200 N/A
1
1
1
N/A
1
1
3
Up to 400 N/A
N/A
N/A
1
N/A
N/A
N/A
1
P82580 B
Sheet 6 of 8
Connect the audio lines to the wires designated as tip (green) and ring (red). Connect the 24VDC power supply to the wires
designated as (+) GND (black) and (-) 24VDC (white), as shown in Figure 12. Remove interface adapter, or clear plastic shield, and
adjust volume as required. Mount interface adapter or clear plastic shield back on horn.
Figure 12.
TROUBLESHOOTING CHART:
Problem
No Sound
Low Volume
Loud Squeal
(Feed Back)
1)
2)
3)
1)
2)
3)
1)
2)
3)
Table 7.
Possible Cause And Correction
Is the volume control turned up (clockwise).
Check presence and polarity of -24VDC and GND at the speaker.
Check audio level on T & R at speaker, and if necessary also at the audio
source.
Check that volume control is turned up.
Check for the sufficient audio level on T & R at the speaker.
Be sure at least 21.6VDC is present at the speaker during operation.
Lower volume setting of speaker.
Move the phone farther from the speaker.
Install confidencer in phone if necessary.
CAUTION: Excessive bass energy can damage horn voice coils, especially at high power levels. To avoid possible damage, an
amplifier with a bass roll-off filter (horn protect circuit) should be used.
CAUTION: Always operate audio amplifiers and speakers within their specified ratings. Excessive input may distort sound
quality and may damage audio equipment. Do not exceed +130% of speaker input voltage. Improper input voltage can damage
speaker. If distortion is heard, check for clipping of the audio appliance with an oscilloscope and reduce the amplifier input level or
gain level to eliminate any clipping.
CAUTION: Check the installation instructions of the manufacturers of other equipment used in the system for any guidelines or
restrictions on wiring and/or locating Notification Appliance Circuits (NAC) and notification appliances. Some system
communication circuits and/or audio circuits, for example, may require special precautions to assure electrical noise immunity (e.g.
audio crosstalk).
ANY MATERIAL EXTRAPOLATED FROM THIS DOCUMENT OR FROM WHEELOCK MANUALS OR OTHER
DOCUMENTS DESCRIBING THE PRODUCT FOR USE IN PROMOTIONAL OR ADVERTISING CLAIMS, OR FOR
ANY OTHER USE, INCLUDING DESCRIPTION OF THE PRODUCT'S APPLICATION, OPERATION, INSTALLATION
AND TESTING IS USED AT THE SOLE RISK OF THE USER AND WHEELOCK WILL NOT HAVE ANY LIABILITY
FOR SUCH USE.
P82580 B
Sheet 7 of 8
IMPORTANT:
READ SEPARATE "GENERAL INFORMATION" SHEET FOR INFORMATION ON THE
PLACEMENT, LIMITATIONS, INSTALLATION, FINAL CHECKOUT, AND PERIODIC TESTING OF NOTIFICATION
APPLIANCES.
Limited Warranty
Wheelock products must be used within their published specifications and must be PROPERLY specified, applied, installed, operated,
maintained and operationally tested in accordance with these instructions at the time of installation and at least twice a year or more
often and in accordance with local, state and federal codes, regulations and laws. Specification, application, installation, operation,
maintenance and testing must be performed by qualified personnel for proper operation in accordance with all of the latest National
Fire Protection Association (NFPA), Underwriters' Laboratories (UL), Underwriters' Laboratories of Canada (ULC), National
Electrical Code (NEC), Occupational Safety and Health Administration (OSHA), local, state, county, province, district, federal and
other applicable building and fire standards, guidelines, regulations, laws and codes including, but not limited to, all appendices and
amendments and the requirements of the local authority having jurisdiction (AHJ). Wheelock products when properly specified,
applied, installed, operated, maintained and operationally tested as provided above are warranted against mechanical and electrical
defects for a period of three years from date of manufacture (as determined by date code). Correction of defects by repair or
replacement shall be at Wheelock's sole discretion and shall constitute fulfillment of all obligations under this warranty. THE
FOREGOING LIMITED WARRANTY SHALL IMMEDIATELY TERMINATE IN THE EVENT ANY PART NOT FURNISHED
BY WHEELOCK IS INSTALLED IN THE PRODUCT. THE FOREGOING LIMITED WARRANTY SPECIFICALLY
EXCLUDES ANY SOFTWARE REQUIRED FOR THE OPERATION OF OR INCLUDED IN A PRODUCT. WHEELOCK
MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS, IMPLIED OR STATUTORY
WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER.
USERS ARE SOLELY RESPONSIBLE FOR DETERMINING WHETHER A PRODUCT IS SUITABLE FOR THE USER'S
PURPOSES, OR WHETHER IT WILL ACHIEVE THE USER'S INTENDED RESULTS. THERE IS NO WARRANTY AGAINST
DAMAGE RESULTING FROM MISAPPLICATION, IMPROPER SPECIFICATION, ABUSE, ACCIDENT OR OTHER
OPERATING CONDITIONS BEYOND WHEELOCK'S CONTROL.
SOME WHEELOCK PRODUCTS CONTAIN SOFTWARE. WITH RESPECT TO THOSE PRODUCTS, WHEELOCK DOES
NOT WARRANTY THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR-FREE OR
THAT THE SOFTWARE WILL MEET ANY OTHER STANDARD OF PERFORMANCE, OR THAT THE FUNCTIONS OR
PERFORMANCE OF THE SOFTWARE WILL MEET THE USER'S REQUIREMENTS. WHEELOCK SHALL NOT BE LIABLE
FOR ANY DELAYS, BREAKDOWNS, INTERRUPTIONS, LOSS, DESTRUCTION, ALTERATION, OR OTHER PROBLEMS
IN THE USE OF A PRODUCT ARISING OUT OF OR CAUSED BY THE SOFTWARE.
THE LIABILITY OF WHEELOCK ARISING OUT OF THE SUPPLYING OF A PRODUCT, OR ITS USE, WHETHER ON
WARRANTIES, NEGLIGENCE, OR OTHERWISE, SHALL NOT IN ANY CASE EXCEED THE COST OF CORRECTING
DEFECTS AS STATED IN THE LIMITED WARRANTY AND UPON EXPIRATION OF THE WARRANTY PERIOD ALL
SUCH LIABILITY SHALL TERMINATE. WHEELOCK IS NOT LIABLE FOR LABOR COSTS INCURRED IN REMOVAL,
REINSTALLATION OR REPAIR OF THE PRODUCT BY ANYONE OTHER THAN WHEELOCK OR FOR DAMAGE OF ANY
TYPE WHATSOEVER, INCLUDING BUT NOT LIMITED TO, LOSS OF PROFIT OR INCIDENTAL OR CONSEQUENTIAL
DAMAGES. THE FOREGOING SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER AND THE EXCLUSIVE
LIABILITY OF WHEELOCK.
IN NO CASE WILL WHEELOCK'S LIABILITY EXCEED THE PURCHASE PRICE PAID FOR A PRODUCT.
Limitation of Liability
WHEELOCK'S LIABILITY ON ANY CLAIM OF ANY KIND, INCLUDING NEGLIGENCE AND BREACH OF WARRANTY,
FOR ANY LOSS OR DAMAGE RESULTING FROM, ARISING OUT OF, OR CONNECTED WITH THIS CONTRACT, OR
FROM THE MANUFACTURE, SALE, DELIVERY, RESALE, REPAIR OR USE OF ANY PRODUCT COVERED BY THIS
ORDER SHALL BE LIMITED TO THE PRICE APPLICABLE TO THE PRODUCT OR PART THEREOF WHICH GIVES RISE
TO THE CLAIM. WHEELOCK'S LIABILITY ON ANY CLAIM OF ANY KIND SHALL CEASE IMMEDIATELY UPON THE
INSTALLATION IN THE PRODUCT OF ANY PART NOT FURNISHED BY WHEELOCK. IN NO EVENT SHALL
WHEELOCK BE LIABLE FOR ANY CLAIM OF ANY KIND UNLESS IT IS PROVEN THAT OUR PRODUCT WAS A
DIRECT CAUSE OF SUCH CLAIM. FURTHER, IN NO EVENT, INCLUDING IN THE CASE OF A CLAIM OF
NEGLIGENCE, SHALL WHEELOCK BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
PRECEDING LIMITATION MAY NOT APPLY TO ALL PURCHASERS.
2/00
P82580 B
Sheet 8 of 8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
