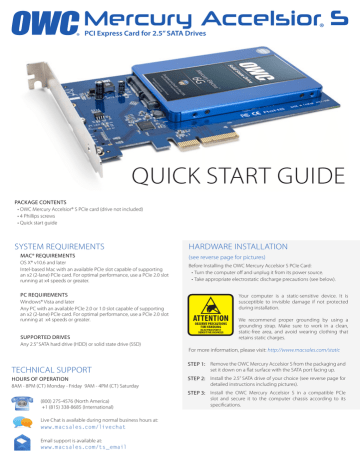

OWC Accelsior S Quick Start Guide
®
® PCI Express Card for 2.5” SATA Drives
QUICK START GUIDE
PACKAGE CONTENTS
• OWC Mercury Accelsior® S PCIe card (drive not included)
• 4 Phillips screws
• Quick start guide
SYSTEM REQUIREMENTS
MAC® REQUIREMENTS
OS X® v10.6 and later
Intel-based Mac with an available PCIe slot capable of supporting
an x2 (2-lane) PCIe card. For optimal performance, use a PCIe 2.0 slot
running at x4 speeds or greater.
PC REQUIREMENTS
Windows® Vista and later
Any PC with an available PCIe 2.0 or 1.0 slot capable of supporting
an x2 (2-lane) PCIe card. For optimal performance, use a PCIe 2.0 slot
running at x4 speeds or greater.
SUPPORTED DRIVES
HARDWARE INSTALLATION
(see reverse page for pictures)
Before Installing the OWC Mercury Accelsior S PCIe Card:
•Turn the computer off and unplug it from its power source.
•Take appropriate electrostatic discharge precautions (see below).
Your computer is a static-sensitive device. It is
susceptible to invisible damage if not protected
during installation.
We recommend proper grounding by using a
grounding strap. Make sure to work in a clean,
static-free area, and avoid wearing clothing that
retains static charges.
Any 2.5” SATA hard drive (HDD) or solid state drive (SSD)
For more information, please visit: http://www.macsales.com/static
TECHNICAL SUPPORT
HOURS OF OPERATION
8AM - 8PM (CT) Monday - Friday 9AM - 4PM (CT) Saturday
STEP 1: Remove the OWC Mercury Accelsior S from the packaging and
set it down on a flat surface with the SATA port facing up.
STEP 2: Install the 2.5” SATA drive of your choice (see reverse page for
detailed instructions including pictures).
STEP 3: Install the OWC Mercury Accelsior S in a compatible PCIe
(800) 275-4576 (North America)
+1 (815) 338-8685 (International)
Live Chat is available during normal business hours at:
www.macsales.com/livechat
Email support is available at:
www.macsales.com/ts_email
slot and secure it to the computer chassis according to its
specifications.
®
® PCI Express Card for 2.5” SATA Drives
DRIVE INSTALLATION INSTRUCTIONS
1
3
Set the OWC Mercury Accelsior S down
on a flat surface. Make sure the black SATA
connector is facing up, as shown.
Holding the drive securely to the OWC
Mercury Accelsior S, turn over the OWC
Mercury Accelsior S, as shown.
2
4
Slide the SATA connector on the drive
into the SATA connector on the OWC
Mercury Accelsior S. Make sure the drive
is fully seated, as shown.
Install the four Phillips screws into the
four screw holes to secure the drive to
the OWC Mercury Accelsior S, as shown.
Warranty Information:
The complete hardware warranty information for your OWC Mercury Accelsior S PCIe SSD can be found at: http://eshop.macsales.com/Service/warranty_info.cfm. These
warranties are expressly subject to the website Terms & Conditions (“Terms”) & Terms of Sale located at http://eshop.macsales.com/service/terms/sale, which are hereby
incorporated herein and made a part hereof by this reference. For OWC’s complete return policies, please visit http://eshop.macsales.com/service/returnpolicy.
Copyrights and Trademarks:
© 2015 Other World Computing. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Other World Computing. Mercury Accelsior, Other World
Computing, and OWC are trademarks of New Concepts Development Corporation, registered in the U.S. Patent and Trademark Office and/or in Canada. The OWC
logo and the Other World Computing logo are trademarks of New Concepts Development Corporation. Apple, Mac, and OS X are trademarks of Apple Inc., registered
in the U.S. and other countries. Windows is a registered trademark of Microsoft Corporation in the U.S. and other countries. Other marks may be the trademark or
registered trademark property of their owners.
R3 05/27/15 DM
OWCMANACS
