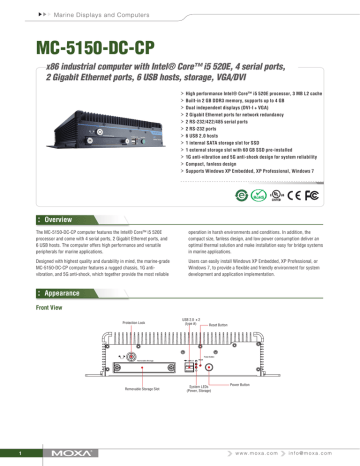

MC 5150 DC CP
Marine Displays and Computers
MC-5150-DC-CP
x86 industrial computer with Intel® Core™ i5 520E, 4 serial ports,
2 Gigabit Ethernet ports, 6 USB hosts, storage, VGA/DVI
››High performance Intel® Core™ i5 520E processor, 3 MB L2 cache
››Built-in 2 GB DDR3 memory, supports up to 4 GB
››Dual independent displays (DVI-I + VGA)
››2 Gigabit Ethernet ports for network redundancy
››2 RS-232/422/485 serial ports
››2 RS-232 ports
››6 USB 2.0 hosts
››1 internal SATA storage slot for SSD
››1 external storage slot with 60 GB SSD pre-installed
››1G anti-vibration and 5G anti-shock design for system reliability
››Compact, fanless design
››Supports Windows XP Embedded, XP Professional, Windows 7
Overview
The MC-5150-DC-CP computer features the Intel® Core™ i5 520E
processor and come with 4 serial ports, 2 Gigabit Ethernet ports, and
6 USB hosts. The computer offers high performance and versatile
peripherals for marine applications.
operation in harsh environments and conditions. In addition, the
compact size, fanless design, and low power consumption deliver an
optimal thermal solution and make installation easy for bridge systems
in marine applications.
Designed with highest quality and durability in mind, the marine-grade
MC-5150-DC-CP computer features a rugged chassis, 1G antivibration, and 5G anti-shock, which together provide the most reliable
Users can easily install Windows XP Embedded, XP Professional, or
Windows 7, to provide a flexible and friendly environment for system
development and application implementation.
Appearance
Front View
Protection Lock
Removable Storage Slot
1
USB 2.0 x 2
(type A)
Reset Button
System LEDs
(Power, Storage)
Power Button
w w w. m o x a . c o m
[email protected]
Marine Displays and Computers
Rear View
Keyboard/Mouse
Power Input Audio Input
(DC 24V)
Output
Gigabit LANs x 2 (RJ45)
DVI-I/VGA
Output
USB 2.0 Ports x 4 (type A)
Serial Ports x 4 (DB9)
Dimensions
Unit: mm (inch)
DC-CP Model
287 (11.30)
44.4 (1.75)
198 (7.80)
99 (3.90)
274 (10.79)
70 (2.76)
2.5 (0.10)
250 (9.84)
302 (11.89)
2
w w w. m o x a . c o m
[email protected]
Marine Displays and Computers
Specifications
Computer
CPU: Intel® Core™ i5 520E (BGA CPU package), 2.4 GHz processor
OS: Windows 7, Windows XP SP3, Windows XP Embedded (must be
installed by the user)
System Chipset: Intel® QM57 Express Chipset
DRAM: 2 GB DDR3 SDRAM onboard
USB: USB 2.0 hosts x 6, Type A connectors
Storage
Storage Support:
• 1 internal SATA storage tray for SSD
• 1 removable SATA storage tray for storage expansion with 60 GB
SSD
Other Peripherals
KB/MS: 2 PS/2 interfaces supporting standard PS/2 keyboard and
mouse
Audio: line-in/out interface
Display
Graphics Controller: Onboard Intel® HD graphics
Display Interface:
• VGA Interface: 15-pin D-Sub connector (female), with resolution up
to 1920 x 1080
• DVI-I Interface: 29-pin DVI-I connector (female)
Ethernet Interface
LAN: 2 auto-sensing 10/100/1000 Mbps ports (RJ45)
Magnetic Isolation Protection: 1.5 KV built in
Serial Interface
Serial Standards:
• 2 RS-232/422/485 ports, software-selectable (DB9 male)
• 2 RS-232 ports (DB9)
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction
control) for RS-485
Baudrate: 50 bps to 230.4 Kbps
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
LEDs
System: Storage, Power
LAN: 100M/Link x 2, 1000M/Link x 2 (on connector)
Physical Characteristics
Housing: Aluminum, sheet metal
Weight: 3.85 kg
Dimensions: 287 x 250 x 70 mm (11.30 x 9.84 x 2.76 in)
Mounting: Wall
Environmental Limits
Operating Temperature: -15 to 55°C (5 to 131°F)
Storage Temperature: -20 to 60°C (-4 to 131°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Anti-vibration:
• 0.7 g @ DNV 2.4 (Class A), sine wave, 2-100 Hz, 1 Oct./min., 1.5 hr
per axis
• 1 grms @ DNV 2.4, random wave, 3-100 Hz, 2.5 hr per axis
• 2.1 g @ DNV 2.4 (Class C), sine wave, 2-50 Hz, 1 Oct./min., 1.5 hr
per axis
Anti-shock: 50 g @ IEC 60068-2-27, half sine wave, 11 ms
Power Requirements
Input Voltage: 24 VDC (with tolerance from 18 to 30 VDC, 2-pin
terminal block)
Power Consumption: Less than 100 W, 2.5 A @ 24 VDC Standards and Certifications
Safety: UL 60950-1, DNV 2.4 (Pending), IEC 60945 (4th) (Pending),
IACS-E10 (Pending)
EMC: EN 55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4,
FCC Part 15 Subpart B Class B
Marine: IEC 60945 4th. (Pending), IACS-E10 (Pending)
Green Product: RoHS, cRoHS, WEEE
Reliability
MTBF (mean time between failures): 220,490 hrs
Warranty
Ordering Information
Available Models
Warranty Period: 3 years
Details: See www.moxa.com/warranty
MC-5150-DC-CP: x86-based industrial computer with Intel® Core™ i5 CPU processor, 4 serial
ports, 2 Gigabit Ethernet ports, 6 USB hosts, storage, VGA/DVI, and DC power input
3
Package Checklist
•
•
•
•
•
•
•
MC-5150 computer
2 removable storage protection keys
Terminal block for power input
Hard disk installation kit
Documentation and driver CD
Quick installation guide (printed)
Warranty card
© Moxa Inc. All Rights Reserved. Updated Feb. 20, 2012. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.
