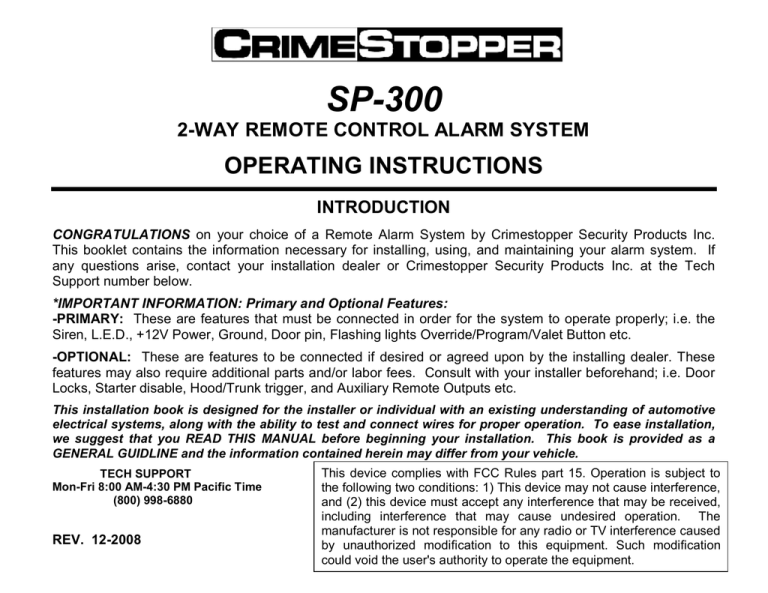

CrimeStopper SP-300 Operating instructions
SP-300
2-WAY REMOTE CONTROL ALARM SYSTEM
OPERATING INSTRUCTIONS
INTRODUCTION
CONGRATULATIONS on your choice of a Remote Alarm System by Crimestopper Security Products Inc.
This booklet contains the information necessary for installing, using, and maintaining your alarm system. If
any questions arise, contact your installation dealer or Crimestopper Security Products Inc. at the Tech
Support number below.
*IMPORTANT INFORMATION: Primary and Optional Features:
-PRIMARY: These are features that must be connected in order for the system to operate properly; i.e. the
Siren, L.E.D., +12V Power, Ground, Door pin, Flashing lights Override/Program/Valet Button etc.
-OPTIONAL: These are features to be connected if desired or agreed upon by the installing dealer. These
features may also require additional parts and/or labor fees. Consult with your installer beforehand; i.e. Door
Locks, Starter disable, Hood/Trunk trigger, and Auxiliary Remote Outputs etc.
This installation book is designed for the installer or individual with an existing understanding of automotive
electrical systems, along with the ability to test and connect wires for proper operation. To ease installation,
we suggest that you READ THIS MANUAL before beginning your installation. This book is provided as a
GENERAL GUIDLINE and the information contained herein may differ from your vehicle.
TECH SUPPORT
Mon-Fri 8:00 AM-4:30 PM Pacific Time
(800) 998-6880
REV. 12-2008
This device complies with FCC Rules part 15. Operation is subject to
the following two conditions: 1) This device may not cause interference,
and (2) this device must accept any interference that may be received,
including interference that may cause undesired operation. The
manufacturer is not responsible for any radio or TV interference caused
by unauthorized modification to this equipment. Such modification
could void the user's authority to operate the equipment.
TABLE OF CONTENTS
Operation Cautions & Warnings……..…………..……………………………………………………………………2
The Remote Controls………………………………...……………………..……………………….…….……..…..3-4
Quick Chart Button Functions…………………………....……………………………………………….…….........5
Operating Instructions………………………..……………….…….………………….…….…………...……....…6-9
Car Jack Protection..…………..…………..……………………………………………...…………………..…….…10
Transmitter Programming.………………………………….…………………………….……………...………..…11
2 Vehicle Programming…………..…………..………………….…………………………….…………….……..…12
Battery Replacement…….…………………………………….....……………………………..……………..………13
Data Port Diagram …………………………………………………………………………………………………..…14
OPERATION CAUTIONS & WARNINGS
CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDORS shall not be liable for any accident
resulting from the use of this equipment. This system is designed to be professionally installed into a car or
vehicle in good running order. Items, such as parking brake, door switches, and all engine safety features,
must be in perfect working condition.
DAMAGE resulting from misuse or negligence is NOT covered under warranty and will be subject to
repair and / or replacement charges.
IT IS ABSOLUTELY THE OWNER’S SOLE RESPONSIBILITY TO: A) Understand the operation of this
system and its safety features. B) Check for proper operation of these safety features prior to accepting
delivery of the vehicle from the installation facility. C) Check and maintain the condition of the vehicle and all
items relative to the proper operation of this system and its safety features.
DO NOT remote start the vehicle in a closed garage. Make sure that the vehicle is outdoors, a garage door
is open, or there is adequate exhaust ventilation. Failure to observe this rule could result in injury or death
from poisonous Carbon Monoxide fumes. This is especially important when using the Timed Self-Start feature
of the unit
2
THE REMOTE CONTROLS
2-WAY - PAGER / REMOTE TRANSCEIVER:
1-WAY - SIDEKICK REMOTE:
DISARM /
UNLOCK
AM
PM
12:00
TRUNK
ARM /
LOCK
SILENT
ARM / DISARM
SILENT
SLT
TRUNK
VEH 1 / VEH 2
CLOCK SET
ARM /
LOCK
VEH 1 / VEH 2
DISARM /
UNLOCK
3
THE REMOTE CONTROLS
1-WAY - SIDEKICK REMOTE:
The 1-Way sidekick remote adds flexibility to your system. You can have the convenience of operating your
system without needing to carry the larger pager remote. The Sidekick remote has less range and offers all of
the same operation features except for page-back confirmation. The 1-Way Sidekick Remote uses two CR2016 Lithium 3 Volt Batteries.
2-WAY - PAGER / REMOTE TRANSCEIVER:
The 2-Way hand-held remote transceiver is used to send and receive information from the vehicle. The
Control Module transmits High Frequency FM signals from the vehicle to your pager over long distances. Your
range will vary depending on location, terrain, and local RF noise/interference. This system is not guaranteed
to page you if you are behind concrete walls, underground, in a large structure, or in an area with high levels
of electronic interference. Handle the pager/remote with care. The LCD display and/or the electronics may be
damaged if subjected to abuse. The AAA Cell 1.5V alkaline battery can easily be replaced by sliding open the
battery access door on the back of the remote. Battery life will vary depending on usage. The LCD screen
will display a low battery icon when the battery is low.
SETTING THE CLOCK (2-WAY- LCD REMOTE)
1.
2.
3.
4.
5.
6.
7.
Press VEH Button on the side of the remote control 5 times.
The remote will beep and the AM or PM display will begin flashing.
Press the Trunk Button to go to the next item – AM - PM - Hour- Minutes.
Press the Lock Button to increase time.
Press the Unlock Button to decrease time.
Press the SLT Button to Disable or Enable Beep.
Press the VEH Button to Exit Setup or wait 7 seconds, the LCD light will turn off.
4
QUICK CHART BUTTON FUNCTIONS
Button
Functions
Button Options
Lock Doors & Arm
System
Press and hold 2
Seconds for Panic Mode
Unlock Doors and
Disarm System
Unlock Doors and
Disarm System
Trunk Release Aux # 1
Press and Release for
Trunk Pop (Aux #1)
SLT
Silent Arm / Disarm Aux
#2
Press and Release for
Silent Arm. Press and
Hold for Aux #2
VEH
Selects between Vehicle
Press 5 times for Clock
#1 / Vehicle #2. Press &
(AM / PM blinking)
hold 2 Sec.
Button
CLOCK SETUP:
Lock = Increase, Unlock = Decrease, Trunk =
Next, SLT = Beep with button press, VEH = Exit
5
OPERATION INSTRUCTIONS
ARMING
To arm the alarm and lock the doors, press the Lock button on the transmitter. You will hear a single siren
chirp and the lights will flash once. The system will arm, the doors will lock and the starter will be disabled if
these optional features are installed. The red LED in the vehicle will start flashing after 5 seconds. After a
short delay to allow vehicle and electronics to stabilize the system will be completely armed.
DISARMING
Press the Unlock button on the transmitter to disarm the alarm. You will hear 2 siren chirps and the lights will
flash twice. The LED stops flashing. Door will unlock and dome light will turn on if the options are installed.
SELECTIVE SILENT ARM/DISARM THROUGH REMOTE CONTROL
This system can be armed and disarmed without siren chirps on an “as needed” basis. Press and release
Button #4 for arm/disarm without siren chirps.
PROGRAMMABLE SILENT ARM / DISARM MODE (CHIRP DEFEAT)
The system can be silently armed and disarmed as normal with Lock/Unlock Buttons, but no siren chirp. See
alarm programming option (#8) to enable or disable this feature.
PASSIVE ARMING / PASSIVE LOCK MODES / PASSIVE CHIRP COUNTDOWN
If programmed, passive (Automatic) Arming will occur 30 Seconds after the ignition is turned off and the last
door has been closed. The LED will begin flashing rapidly while counting down. If a door or hood is
reopened, the system will wait (LED off) for the door or zone to close before arming. The unit will flash the
lights once. Doors will lock if passive locking is selected. May qualify for insurance discounts-check with your
agent or proprietor. When the Unit is programmed for Passive Chirp Countdown, the siren will chirp during
passive countdown, as an audible warning that arming will occur. This siren will emit a chirp every 2 seconds
as soon as the last door is closed until the system arms 30 seconds later.
REMOTE PANIC PROTECTION
To sound the alarm upon command (panic), press and hold the Button #1 (Panic) for at least 2 seconds until
the siren sounds. Press Button #2 (Unlock) to reset panic mode.
6
OPERATING INSTRUCTIONS
ARM / DISARM WITH IGNITION ON (PROGRAM OPTION #15)
This feature allows the system to be armed or disarmed while the ignition is in the ON position or vehicle is
running. The feature is disabled by default and should not be used under normal operating conditions. On an
installation with an add-on remote start module, this option can be enabled to allow the system to be armed or
disarmed when the vehicle has been remote started (Ignition will be ON). Note that you cannot use this
feature if you are also using the Full-time carjack protection. If you add a remote start and the Ignition turns
on, a Carjack trigger will be activated.
ACTIVE RE-ARMING (FAIL-SAFE PROTECTION)
Active Re-arming means that the system will re-arm itself 30 seconds after disarmed with the transmitter if a
door has not yet been opened. This is handy if the vehicle is accidentally disarmed (via the transmitter in your
pocket) without you knowing it. This feature can also be turned off in programming option (6). Active rearm
feature is disabled if you also have dome light illumination installed.
IGNITION-CONTROLLED DOORLOCKS
The doors will automatically lock when the ignition is turned on and will unlock when the ignition is turned off.
This feature can be programmed on, off, or to lock the doors only. Doors will not lock if they are open to
prevent locking the keys in.
TRUNK / HATCH POP (REMOTE AUX. OUTPUT 1, OPTIONAL)
To pop the trunk, press and release the Trunk button on the transmitter. If the system is armed, it may or may
not trip the alarm system when opening the trunk depending on programming option (10). See programming
option chart for more details.
2nd AUX. OUTPUT (REMOTE AUX. OUTPUT 2)
To activate the Second auxiliary output Press and hold the Silent Button for 3 seconds to activate AUX. channel #2.
DOME LIGHT ILLUMINATION (OPTIONAL)
This feature turns on the vehicles dome light upon disarm for 30 seconds or until the key is inserted and
turned on. This will provide illuminated entry to your vehicle at night or in dimly lit areas for added safety and
security. Note that dome light illumination will deactivate the active rearm feature if programmed for active
rearm.
7
OPERATING INSTRUCTIONS
EMERGENCY OVERRIDE / DISARM
If you have lost the transmitter or it stops working for any reason and the Alarm is armed, you will have to
open the door with the key, which will activate the alarm. Turn the ignition on and press the override/program
button for about 5 seconds (until siren stops). The Alarm will disarm. If you continue to hold the button for
additional 7 seconds, the system will enter the Valet mode.
EMERGENCY DISARM WITH CUSTOM OVERRIDE
Custom override allows the user to set a specific number of button presses (2-15) required to perform an
emergency override/disarm of the alarm system. This increases the level of security of the system, but you
MUST MEMORIZE how many button presses you have changed your system to use or the unit will not disarm
in an emergency.
1. Enter programming mode.
2. Turn the Ignition ON and press the Override/Program button 5 times.
3. After a short delay, the parking lights will flash 5 times, Siren 5 times, Horn 5 times and status LED will be
on solid.
4. Press program button three times to go to option #3 “Passive Locks/Custom Override”.
5. Press Button 3 (trunk) on the remote transmitter (3 chirps).
6. Press and release the program again the number of times you desire in order to perform emergency disarm
on this alarm system. Press the program button 2-15 times only. You need to wait for the siren to chirp the
same number of times you pressed the program button to confirm.
To test feature: Trip the alarm system, turn key ON, press the program/valet button 2-15 times as
programmed above then continue to HOLD DOWN valet button on the LAST PRESS for 5 seconds. Alarm
should disarm. If system does not disarm, then disarm with the remote transmitter and try again. If system
still does not disarm or you have forgotten your custom code, then you must use your remote control to disarm
the system.
CAUTIONARY NOTE!
If you set up this feature and forget your special code, there is no way to disarm the system other than the
remote control. If you have programmed your system for Custom Override, follow the same steps above
(Emergency Override) while pressing the valet button 2-15 times as you have programmed. You must
continue to hold the button down on the last press for 5 seconds. The Alarm will disarm and enter the Valet
mode, which allows you to use the vehicle until you can repair/replace the remote transmitter or have the
alarm system checked.
8
OPERATING INSTRUCTIONS
VALET MODE (Solid LED)
To disable the Alarm system for vehicle service or otherwise, turn the ignition on and press the
override/program button 4-5 seconds until the dash LED turns on solid and you hear (1) siren chirp. Repeat
the process to exit VALET mode and the system will chirp (2) times and the LED will turn off. Lock/Unlock and
AUX features will still operate in when in VALET mode. When performing an Emergency Override and you
hold down the override button, the system is also placed into Valet mode.
PRE-WARNING SHOCK PROTECTION & SENSOR ADJUSTMENT
If a low-level shock to the vehicle is detected, pre-warning protection will activate sounding 5 quick siren chirps
and 1 light flash. If a hard impact is detected the shock sensor should trip the alarm system. Once it is
mounted, adjust the sensor as needed by turning the adjustment screws clockwise to increase or counterclockwise to decrease the sensitivity. The sensor is also equipped with 2 small indicator lights to ease the
adjustment process. Blue light = Pre-warning disturbance (5 siren chirps). Red light = A full alarm trip.
ALARM TRIGGERING
If there is an intrusion into the vehicle or hard impact to the body will sound the alarm and flash the lights for
45 seconds. After 45 seconds the system will automatically shut off and re-arm to continue to protect the
vehicle. If a door is left open, the unit will cycle a second time and still continue to protect the other untampered zones.
PRIOR INTRUSION ALERT
If the system was tripped in your absence, the dash LED will be flashing rapidly. When the system is
disarmed you will hear 3 chirps (and 3 light flashes). Carefully inspect your vehicle to see if there is any
damage or a theft has occurred.
OPEN ZONE ALERT/BYPASS
If the system detects a faulty or open zone (Door left open) when the system is ACTIVELY ARMED, the siren
will chirp 5 times along with 5 light flashes. The faulty zone will be automatically bypassed.
9
CARJACK PROTECTION
ACTIVE CARJACK
This feature provides Active Carjack protection and must be enabled before use through Alarm programming option
(14) See page 10. When the Ignition is on (vehicle is running), press and hold button #3 (AUX) for 3 seconds. Parking
lights will flash TWICE to confirm the Carjack countdown sequence. LED begins to flash slowly. 90 Seconds later, the
unit will begin a Carjack Cycle consisting of 20 seconds of pre-warning chirps turning into a full system activation with
siren/flashing light pulses for up to 5 min. To reset Active Carjack, IGNITION MUST BE ON, then press Button #2.
Siren/Horn chirp, LED goes OFF, carjack is reset.
PASSIVE CARJACK
This feature provides Passive Carjack protection and must be enabled before use through Alarm programming options
(13) & (14). See page 10. We recommend this mode should only be used in serious situations. When the Ignition is
on (vehicle is running), and a door is opened and closed, the Carjack countdown sequence will be initiated (lights flash
twice & LED begins to flash). 90 Seconds later, the unit will begin a Carjack Cycle consisting of 20 seconds of prewarning chirps turning into a full system activation with siren/flashing light pulses for up to 5 min. To reset Passive
Carjack, Ignition must be ON, doors must be closed, then press the override/program button (3) times. Siren chirps
once, LED goes out, carjack is reset. NOTE: Active carjack can still be used when the Passive Type carjack is
activated.
FULL-TIME CARJACK
ONLY USE THIS MODE WHEN THERE IS AN EXTREME TREAT OF A CARJACK WITH YOUR VEHICLE.
Full-time Carjack protection must be enabled before use through Alarm programming options (13) & (14). See
page 10. EVERY TIME the Ignition is turned ON or a door is opened and closed with the Ignition ON, a
Carjack countdown sequence will be initiated. 90 Seconds later, the unit will begin a Carjack Cycle consisting
of 20 seconds of pre-warning chirps turning into a full system activation with siren/flashing light pulses for up
to 5 min. You must reset the unit every time the IGNITION is turned on or a door is opened and closed when
the ignition is on. To reset Ignition must be ON, doors must be closed, then press override/program button (3)
times.
NOTE: When FULL TIME CARJACK is in effect, it must be reset every time the key is turned on, Door
is opened, before entering VALET mode, and before Programming options or transmitters! It is always
in effect each time the Ignition is turned on and/or a door is opened with Ignition on! If power
becomes disconnected, then re-connected the Carjack Full-time carjack trigger will be active. Press
the override button 3 times with the Key on the doors closed to reset.
10
TRANSMITTER PROGRAMMING
NOTE: All transmitters must be learned at the time of programming. This system can learn up to 4 remotes.
1. Turn key to the ON position and press program button 4 times.
2. After a short delay, the unit will flash the parking lights 4 times, Siren 4 times, Horn 4 times and status
LED will be on solid.
3. Press the Lock Button on the remote you wish to program.
4. You should get 2 light flashes, 2 siren chirps and 2 horn honks (optional) indicating the unit is waiting for
the second code to learn. Press button #1 and #2 together of a second transmitter, the unit will flash 3
times, 3 siren chirps and 3 horn honks. Press the lock and unlock button on a 3rd or 4th transmitter for up
to 4 total. Note: The unit will not flash the lights when learning the 4th code. Turn key off to exit
programming mode.
IGN
OFF
WAIT FOR
4 FLASHES
PRESS 4X's
IGN
OFF
FLASH 2, 3, or 4 X's
COMPLETE
PRESS LOCK
11
2 VEHICLE OPERATION / PROGRAMMING
2 VEHICLE CONTROL
Your remotes have the ability to control a second vehicle with a Crimestopper system installed.
To set up the 2-Vehicle operation you must first program your remotes to Vehicle #2. Follow the “Transmitter
Programming” steps (Pg. 11) at the second vehicle and learn YOUR remote, along with vehicle #2’s existing
remotes.
2-VEHCLE NOTES:
(1) You do not have to switch between Vehicle “1” and “2” to get pages from each vehicle. Your remote pager
will receive pages from both cars regardless of which vehicle the pager is set to. The “1” or “2” icon will
always display with each page indicate which vehicle the page originated from.
(2) When, all remote/pagers and sidekick remotes for that vehicle must be learned at the time of programming.
When you program your remote at the second vehicle, that vehicle’s original remote must also be
programmed. Your remote should be set in Vehicle “2” and the vehicle’s original remote should be set in
Vehicle “1”.
VEHICLE 1 or 2
VEHICLE 1 = RED LED
VEHICLE 2 = BLUE LED
FUNCTION 1 or 2
2-1
VEH 1 / VEH 2
Push 2 Seconds
to change from
Vehicle 1 to 2.
TRANSMIT ICON
VEH 1 / VEH 2
CLOCK SET
Push 2 Seconds
to change from
Vehicle 1 to 2.
SLT
12
BATTERY REPLACEMENT
LOW BATTERY WARNING
The 2-Way LCD remote has a low battery warning system. When the battery
voltage is low, the LCD Pager Remote will show a low voltage icon. We
recommend replacing the battery for proper operation. To replace the battery:
Simply unlatch and slide open the battery door on the back of the remote.
Carefully insert a new 1½ Volt AAA Battery using the outline on the bottom of the
battery compartment as a guide. Your remote will beep 3 times & vibrate if the
battery was inserted correctly. Otherwise, remove the battery and insert again.
LOW BATTERY
To replace the battery on Sidekick:
The 1-Way Sidekick Remote uses two CR-2016 Lithium 3 Volt Batteries. Simply
remove the two Phillips screws holding the back cover in place. Insert the new
batteries with the (+) end toward the circuit board.
Remove
2 Screws
13
2-Way DATA PORT
Some vehicles require a Databus Module to Bypass the factory Immobilizer and operate the keyless entry
Databus modules are used to communicate with the vehicles computer at the OBD2 Data connector or
Canbus wires. This reduces installation error. Crimestopper Systems with DP Series have a direct Data Port
Plug-In for the Databus bypass module. This eliminates conventional wiring between the Alarm/Remote
Starter and the bypass interface module.
Features Include
•
•
•
•
•
•
•
•
•
•
•
•
•
Transponder Immobilizer.
PassLock Immobilizer.
O.E.M. Alarm Control.
R.A.P. Shutdown.
Power Door Locks.
Priority Unlock.
Trunk Release.
Parking Lights.
Courtesy Lights.
Tachometer.
Heated Seats.
Rear Defrost.
Driver 1 and 2 Memory presets.
The actual features controlled depend on the vehicle and Databus module.
www.crimestopper.com
Phone (800) 998-6880
FAX (805) 581-9500
ONLINE TECHNICAL SUPPORT
www.crimestopper.com
© 2008 Crimestopper Security Products
14
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
