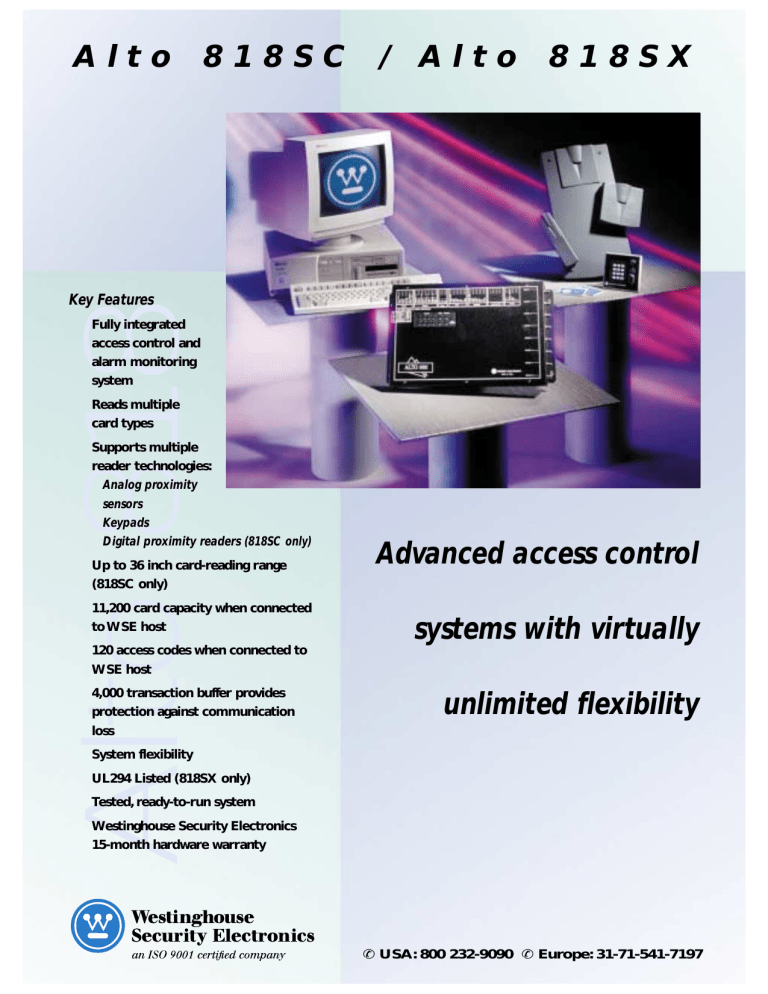

Alto 818SC / Alto 818SX - Honeywell Integrated Security
Alto
818SC
/ Alto
818SX
Alto 818
Key Features
•
Fully integrated
access control and
alarm monitoring
system
•
Reads multiple
card types
•
Supports multiple
reader technologies:
• Analog proximity
sensors
• Keypads
• Digital proximity readers (818SC only)
•
Up to 36 inch card-reading range
(818SC only)
•
11,200 card capacity when connected
to WSE host
•
120 access codes when connected to
WSE host
•
4,000 transaction buffer provides
protection against communication
loss
•
System flexibility
•
UL294 Listed (818SX only)
•
Tested, ready-to-run system
•
Westinghouse Security Electronics
15-month hardware warranty
Advanced access control
systems with virtually
unlimited flexibility
✆ USA: 800 232-9090 ✆ Europe: 31-71-541-7197
Alto
T
818SC
/ Alto
818SX Access
either an SE 5850 or SE 6000 host.The SE
5850 can accommodate up to 32 directly
connected units; the SE 6000 can manage
thousands of ACUs for even the largest
applications.
he Alto 818 is an advanced access
control unit that can manage the
security of a worldwide corporation
as easily as the security system of a single building. When integrated
with a Westinghouse Security Electronics host system, the Alto 818
provides virtually unlimited access control flexibility.
Maximum control
A complete proximity access control
and alarm monitoring system, the Alto 818
controls up to 8 entrances, monitors up to
32 input points, allows up to 11,200 individually numbered command keys, facilitates up to 120 unique access codes, and
stores up to 4,000 event logs.
The Access Control Unit (ACU) monitors and controls up to eight Multiple
Switch Monitors (SE 774A), each monitoring four input points. Power supply options
include a power module developed
exclusively for the Alto 818 (SE 3018), or
one with battery backup capability that
provides continuing operation if power fails
(SE3718S). An eight-point annunciator
device (SE 778A) is also available for
additional relay output or building mode
control.
BASIC
Multiple reader technology
Further enhancing system flexibility,
Alto 818 controllers support multiple
access control and reader technologies.
The Alto 818SX supports analog proximity
sensors and keypads, plus compact,
medium-range, standard, non-incendive and
intrinsically safe sensors.The 818SC is
identical to the 818SX but also adds
support for DigiReader™ and smart card
readers.Though the 818SC does not
support medium-range analog sensors, its
support for digital technologies gives the
818SC a read range from four to 36
inches* when used with the Westinghouse
family of digital readers.
Fully networkable
The Alto 818 is fully functional as a
stand-alone system, or it can be linked with
multiple units from a central location using
Alto 818SC System sample configuration
SE 5850 or
SE 6000 host
Modem
Video
monitor
Video switcher
Public
phone
system
CCTV
camera
Gate arm
Alarm
Main entrance Manufacturing
CCTV
camera
Cafeteria
CCTV
camera
Lock
Lock
Alarm
Alarm
778 Annunciator
Modem
Printer
DigiReader
(DR 4238)
DigiReader Keypad
(DR 4224)
MSM
MSM
DigiReader
(DR 4224)
Keypad
MSM
IN
Sensor loop
Door switch
Door switch
OUT
Sensor loop
Motion sensor
(REX)
Motion sensor
(REX)
Glass break
detector
Glass break
detector
Fire sensor
Fire sensor
3708S Power module
AC input
LEGEND
Coax
RS-232
RS-485
Twisted pair wire
Phone line
15-pin ribbon
DigiReader
(DR 4224)
up to eight doors per Alto 818SC ACU
Parking lot
Remote security center
or alarm central station
F E AT U R E S
Access control
• WSE host compatibility
• Extended protocol
• Clock (time/date/year)
• Group key programming
• Increased transient protection on relay
outputs
• Route trace of specific keys
• Program, clock, building, mode and data
maintained if power fails
• User-defined lock/unlock schedule
• Hard/soft anti-passback with
“forgiveness”
• Adjustable unlock/shunt/relock time
• Manual lock/unlock from host
• Normal and reverse lock operation
• Open/forced door detection
• Interface for printer
• Interface to RS232C and 20mA
• Optional event storage, recall and
centralized database with SE 5850 or
SE 6000 host computer
• Keypad capability
• Supports analog proximity sensors
• SE 2814 and SE 2815A sensors
• Non-incendive and intrinsically safe
sensors
• Recognizes analog proximity cards
(1030/1040/1050/1060 keys)
818SX-specific features
In addition to the above, the 818SX
• is UL-294 Listed
• supports medium range analog sensors
(medium range sensors not available in USA)
818SC-specific features
In addition to the above, the 818SC
• recognizes WSE’s DuraKey™,
QuadraKey™ and other digital
command keys
• supports the complete line of WSE’s
4200 Series DigiReaders for maximum
read ranges from four to 36 inches, as
follows:*
• DR 4204
maximum 4 inches
• DR 4208
"
10 inches
• DR 4226
"
24 inches
• DR 4238
"
36 inches
Alarm monitoring
• Contact names (24 characters)
• Contact assignable to any function
• Provision for remote mode switches
• Contact designation as alarm/non-alarm
event
• Latched master alarm contact (SE778A)
*Maximum read ranges may vary depending on physical
environment of installation and type of Command Key used
Co
and Alarm
Alto 818SC/818SX
System features
Access Control
• Access control locations
8
• Cardholders (Command
Keys) without names
11,200
• Cardholders with names
4,400
• Access codes
120
• Time intervals
128
• Log buffer
4,000
Alarm Monitoring
• Monitored contacts (774A)
• Output zone contacts (778A)
• Output contact (lock relays)
Monitoring
Alto 818SX System sample configuration
Parking lot
Remote security center
or alarm central station
SE 5850 or
SE 6000 host
Modem
Video
monitor
Video switcher
Public
phone
system
778 Annunciator
CCTV
camera
Gate arm
Alarm
SE 2814
sensor
32
8
8
MSM
3718SUL Power module
• 11,200 key capability with WSE host
allows for larger system applications
• Compact sensor is attractive, fits any
decor
• Virtually unlimited flexibility with 120
access codes per ACU when used with
WSE host
• Flexible design allows easy system
expansion — additional units can be
added as the installation grows
Copy center
CCTV
camera
Lock
Lock
Alarm
Alarm
Keypad
SE 2814
sensor
Keypad
SE 2814
sensor
MSM
MSM
Door switch
Door switch
OUT
Sensor loop
Motion sensor
(REX)
Motion sensor
(REX)
Glass break
detector
Glass break
detector
Fire sensor
Fire sensor
AC input
BENEFITS
CCTV
camera
IN
Sensor loop
Battery
818SC-specific features
• Optional power inserter for powering
digital readers and/or smart card readers
Main entrance Manufacturing
Modem
Printer
Hardware features
• Front panel access — internal board
easily accessible
• Transmit/receive indicator lights
• Detachable Phoenix connectors for easy
field installation
• Internal “Goof ” switch
• Disable battery option for longer shelf life
• Internal reset button
• Coax cable for readers and SE 774A
Multiple Switch Monitor allows distances
to 1,000 feet between ACU and reader
• Dual twisted-pair wiring for VIP-2
keypad allows distances to 4,000 feet
Systems
LEGEND
Coax
RS-232
Twisted pair wire
Phone line
15-pin ribbon
• Improves communication speed and
efficiency through enhanced
communications protocol
• Expanded buffer for 4,000 transactions
provides protection against data loss
due to communication failure
• Multiple reader technologies provide
greater user flexibility
• Additional system versatility is available
with the use of keypad-only feature
• Keypad capability provides greater
security when used in conjunction with
card readers
• Increases value and marketability of any
building or property
• Digital reader capabilities provide read
range of up to 36 inches when used
with the WSE DuraKey™ or
QuadraKey™ digital command keys
(818SC only)
SE 2814
sensor
MSM
up to eight doors per Alto 818SC ACU
trol
A P P L I C AT I O N S
• In new and remodeled office buildings,
hospitals, industrial buildings, government
installations or universities where an
integrated access control and alarm
monitoring system is required.
• In organizations that want access control
at multiple locations but not the
expense of hiring additional security
personnel.
• At locations requiring a distributed security system with central management
that allows access to multiple sites using
a single proximity card.
• Where reliable and proven proximity
technology is needed to control access
and to track cardholders.
• Anywhere control and reporting
functions for an access control system
can be used in conjunction with a WSE
host.
• In facilities requiring a multiple
Command Key program
• In facilities where a stand-alone or integrated security management system is
required to reduce overall security costs
• In applications that range over entire
facilities, or within specified floor areas.
• In applications where modular system
design with non-obsolescence is needed.
✆ USA: 800 232-9090 ✆ Europe: +31-71-541-7197
818SC
S P E C I F I C AT I O N S
Alto 818SX ACU
Access Control Unit and alarm
monitoring system with highly flexible
feature set and powerful performance.
Supports multiple access control
technologies and analog sensors.
• Dimensions: 18 x 10.5 x 2.25 in.
(45.72 x 26.67 x 6 cm)
• Weight: 25 lb. (11.25 kg)
• Environmental: 20° to 120° F
(-7° to 49° C)
• Humidity: 10% to 95%, non-condensing
Alto 818SC ACU
Adds support for digital readers.
• Dimensions: Same as Alto 818SX
SE 3018 Supply Module
Input reconnectable for 120/230 VAC,
50/60 Hz. Output of 25 VAC .5AMP, 16
VAC 1 AMP. UL listed.
• Dimensions: 7 x 5.7 x 3.1 in.
(17.8 x 14.5 x 7.9 cm)
• Weight: 3 lb. (1.35 kg)
• Environmental: 20° to 120° F
(-7° to 49° C)
• Humidity: 10% to 95%, non-condensing
3718S Uninterruptible Power
Module
115/230V Input, 16V & 25V Output; 12
VDC or 24 VDC Lock Power. Uses 12V
sealed lead acid battery.
• Dimensions: 18 x 7.2 x 5.2 in.
(45.7 x 18.3 x 13.2 cm)
• Weight: 16 lb. (7.2 kg)
• Environmental: 20° to 120° F
(-7° C to 49° C)
• Humidity: 10% to 95%, non-condensing
/ Alto
SE 778A Remote Annunciator
Control Module
Provides 8 dry contact outputs plus
status and latched alarm outputs.
Max: one (1) per ACU.
• Dimensions: 3 x 11.4 x 1.5 in.
(7.6 x 28.9 x 3.8 cm)
• Weight: 0.88 lb. (0.4 kg)
• Environmental: 20° to 120° F
(-7° to 49° C)
• Humidity: 10% to 95%, non-condensing
SE 774A Multiple Switch Contact
Monitor
Provides four dry contact input points.
Supports higher voltages required for
longer card read ranges. Compatible with
WSE Sensors. Max: 8
• Dimensions: 4.5 x 4.5 x 2.3 in.
(11.4 x 11.4 x 5.8 cm)
• Weight: 1.0 lb. (0.45 kg)
• Environmental: 20° to 120° F
(-7° to 49° C)
• Humidity: 10% to 95%, non-condensing
SE 2804 Compact Sensor
Compact Sensor for mounting on
indoor surfaces. Read range to 3 inches.
See SE 2804 Compact Sensor data sheet.
SE 2814A/2815A Card Reading
Sensors
Lexan-encased vandal-proof and
weather-proof. Mount on surface, behind
glass or concealed in wall. See SE 2814A/
2815A Card Reading Sensor data sheet.
SE 2834/2835 Non-incendive Safe
Sensors
Lexan-encased sensors for use in
hazardous environments where flammable
gases or vapors, or combustible dusts are
present. See SE 2834A/ 2835A Card
Reading Sensor data sheet.
Alto 818
Alto
818SX
SE 1050 or SE 1060 Command Key
Highly durable analog command key for
use with Proximity 2814A/2815A sensors.
See SE 1050 and SE 1060 Command Key
data sheets.
DigiReader™ digital proximity
readers (Alto 818SC only)
Digital readers with award-winning
design have read ranges from 4 to 36 in.
(10.16 to 91.44 C). Read ranges may vary
depending on physical environment of
installation and on Command Key used.
See individual data sheets for DR 4204,
DR 4208 DR 4226 and DR 4238 for read
ranges and other specifications.
QuadraKey™ Digital Command Key
(Alto 818SC only)
The same size and thickness as a credit
card, the QuadraKey™ supports the
following technologies: digital proximity,
magnetic stripe, photo ID with color
imaging on both sides of card, bar code,
and smart card. See QuadraKey™ data
sheet.
DuraKey™ Digital Command Key
(Alto 818SC only)
Highly durable, multiple technology
digital command key. See DuraKey™ data
sheet.
VIP-2 Keypad:
RS-485 connected numeric keypad with
4 or 5 digit PIN.Three (3) LED indicators
for: Present Card, Enter PIN, and Door
Open. Includes one (1) Tamper Input.
Requires separate power source. WSE
Power Inserter is recommended. See VIP-2
Keypad data sheet.
™ DigiReader, QuadraKey, and DuraKey are trademarks of Westinghouse Security Electronics. ©1995. Printed in USA
Westinghouse Security Electronics
5452 Betsy Ross Drive
Santa Clara, CA 95054-1184, USA
Telephone: 408 727-5170 • 800 232-9090
Facsimile: 408 727-6707
Westinghouse Security Electronics
Industrieweg 12
2382NV Zoeterwoude
the Netherlands
Telephone: +31-71-541-7197
Facsimile: +31-71-541-0666
10M1105WP
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
