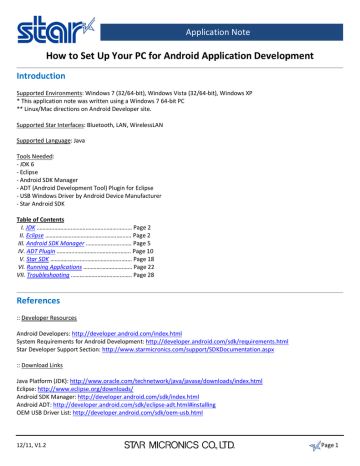

Application Note

How to Set Up Your PC for Android Application Development

Introduction

Supported Environments: Windows 7 (32/64-bit), Windows Vista (32/64-bit), Windows XP

* This application note was written using a Windows 7 64-bit PC

** Linux/Mac directions on Android Developer site.

Supported Star Interfaces: Bluetooth, LAN, WirelessLAN

Supported Language: Java

Tools Needed:

- JDK 6

- Eclipse

- Android SDK Manager

- ADT (Android Development Tool) Plugin for Eclipse

- USB Windows Driver by Android Device Manufacturer

- Star Android SDK

Table of Contents

I. JDK

………………………………………………………. Page 2

II. Eclipse

…………………………………………………. Page 2

III. Android SDK Manager

…………………………. Page 5

IV. ADT Plugin

………………………………………….. Page 10

V. Star SDK

………………………………………………. Page 18

VI. Running Applications

…………………………… Page 22

VII. Troubleshooting

………………………………….. Page 28

References

:: Developer Resources

Android Developers: http://developer.android.com/index.html

System Requirements for Android Development: http://developer.android.com/sdk/requirements.html

Star Developer Support Section: http://www.starmicronics.com/support/SDKDocumentation.aspx

:: Download Links

Java Platform (JDK): http://www.oracle.com/technetwork/java/javase/downloads/index.html

Eclipse: http://www.eclipse.org/downloads/

Android SDK Manager: http://developer.android.com/sdk/index.html

Android ADT: http://developer.android.com/sdk/eclipse-adt.html#installing

OEM USB Driver List: http://developer.android.com/sdk/oem-usb.html

12/11, V1.2

Page 1

I. Download/Install JDK

Application Note

1. Download Java SE 6 JDK here: http://www.oracle.com/technetwork/java/javase/downloads/index.html

Notes:

JRE alone is not enough. To use Android SDK Manager, you must have JDK installed.

At the time of this writing, it is recommended to use the Java SE 6 JDK. Eclipse will not successfully install ADT updates if using Java 7.

II. Download/Run Eclipse

1. Download Eclipse here: http://www.eclipse.org/downloads/

2. Unzip package.

12/11, V1.2

Page 2

Application Note

3. The unzipped folder includes “eclipse.exe”. Eclipse doesn’t need to be installed on PC to run; simply double click the file.

4. OK

12/11, V1.2

Page 3

Application Note

5. If you run Eclipse before installing Android SDK components, you cannot build or run Android applications. You can confirm this point by clicking File > New > Project. “Android Project” will not be listed.

6. Exit Eclipse.

12/11, V1.2

Page 4

Application Note

III. Download/Install Android SDK Manager

Important Notes Before Starting:

A. ALWAYS run Android SDK Manager as administrator in Windows 7/Vista. (If not, some packages might not download.)

B. Android SDK Manager is necessary to download any official Android platforms, SDKs, and samples. You can use this tool to update or install more packages in the future.

1. Download the .exe file for first time installations. (If you want to update an existing file, you only need to download the

.zip.) http://developer.android.com/sdk/index.html

2. Run the Installer.

12/11, V1.2

Page 5

Application Note

3. Next

4. Next (If JDK is not installed, you will be informed here.)

12/11, V1.2

Page 6

Application Note

5. Install in the location of your choice.

Note: r12 and earlier had a known bug where an application would not run if Android SDK packages were installed in a folder with spaces. If you are installing an older version, create a new folder with no spaces and install there, such as

C:\Android; this bug was fixed from r13.

6. Install

12/11, V1.2

Page 7

Application Note

7. Next

8. Uncheck the box to “Start SDK Manager”. Finish.

12/11, V1.2

Page 8

Application Note

9. Start Menu > Android SDK Tools > Right click “Android SDK Manager” > Run as administrator (Very important. If you don’t run as administrator, some packages will not download.)

10. Choose the package(s) you wish to install and click “Install n packages…”.

Note: Star’s Android SDK supports a minimum version of 2.1 (API 7).

12/11, V1.2

Page 9

Application Note

IV. Download/Install ADT Plugin

Note: ADT = Android Development Tools. Installing them enables Eclipse to create/build/etc Android applications.

1. Open Eclipse.

2. Click Help > Install New Software

3. Add

12/11, V1.2

Page 10

Application Note

4. Type “ADT Plugin” as name. Copy/Paste this URL into Location: https://dl-ssl.google.com/android/eclipse/

5. Check “Developer Tools”. You don’t need to modify anything in the orange box. Click Next.

Troubleshooting: If you get an error when you try to download, click here .

12/11, V1.2

Page 11

Application Note

6. Next

12/11, V1.2

Page 12

Application Note

7. Check “I accept”. Finish.

12/11, V1.2

Page 13

Application Note

8. Installation starts.

9. Click “OK”.

10. Click “Restart Now” to restart Eclipse.

12/11, V1.2

Page 14

Application Note

11. Window > Preferences

12/11, V1.2

Page 15

Application Note

12. Click “Android” in left column.

13. Browse to the location of the Android folder where the SDK Manager was installed. (C:\Android\android-sdk).

14. Nothing will appear in the box below until Apply is clicked.

12/11, V1.2

Page 16

Application Note

15. Installed packages appear. Click OK.

12/11, V1.2

Page 17

V. Import Star Android SDK

Application Note

1. File > Import

12/11, V1.2

Page 18

Application Note

2. General > Existing Projects into Workspace

12/11, V1.2

Page 19

Application Note

3. Browse to the location where the Star SDK is saved. Click Finish.

12/11, V1.2

Page 20

Application Note

4. The Application loads. GUI functions are available in src > com.StarMicronics.StarIOSDK package.

MiniPrinterFunctions.java = Star Portable printers

Printer Functions = Star POS Desktop printers

5. Don’t execute the application yet. Section VI covers setting up a run environment.

12/11, V1.2

Page 21

Application Note

VI. Running Applications

Notes:

There are two ways you can run your Android application:

A. Physically on an Android Device with USB port (recommended)

B. Using emulator on PC (Printer connection isn’t supported. GUI support only.)

This document shows how to set up both.

Running Applications: Using a Physical Android Device (Recommended)

You need three things to run applications directly on an Android device:

A. USB Windows driver from the Android device manufacturer

B. Mark application as Debuggable in manifest

C. Set up Android device

1. (Requirement A) Install USB driver for the Android device and connect it to the PC. If the device doesn’t have a driver CD, search Google.. The Android Developer site has a list of drivers, but it may be outdated: http://developer.android.com/sdk/oem-usb.html

2. (Requirement B) In Eclipse, click “AndroidManifest.xml” in left column. Click the “Application” tab at the bottom. Set

Debuggable to “true”. Save.

12/11, V1.2

Page 22

Application Note

3. (Requirement C) On your Android, touch Settings. Put a check mark next to “Unknown sources” (allows you to run apps not found on the Market). Then, touch “Development”. Put check marks next to “USB debugging”, “Stay awake”, and “Allow mock locations”.

4. Done. When you execute an application from Eclipse, it will automatically install and run on your Android device.

Troubleshooting Sample Program Run Problems

If you have trouble running sample application, see below…

1. “Re-installation failed due to different application signatures.”

Problem: If you change PCs in the future and try to install same application on your Android, you may get this error.

Solution: You need to remove the app from the Android. Touch Settings > Applications > Manage Applications > [name of app that will not compile]. Delete it completely. Run the program again from Eclipse.

2. “ERROR: Application requires API version XX. Device API version is X (Android

X.X).”

Problem: Sample application was set to minimum API version. Your Android device is lower than that version.

Solution: You need to change the minimum API version to be compatible with your tablet. This is done in two steps using

Eclipse.

12/11, V1.2

Page 23

Application Note

2a. Right click on project name. Select Properties.

12/11, V1.2

Page 24

Application Note

2b. Click Android. Select the API version compatible with your device. You can see the API version required in the error line.

2c. Open the Manifest.

2d. Click “Manifest” tab on bottom.

2e. Click “Uses Sdk”.

2f. Type API version of your Android device. (Remember: You can see the API version required in error line.)

12/11, V1.2

Page 25

Application Note

Running Applications: Android Emulator

You can run your application on an emulator, but printer communication via Bluetooth will not work.

1. Open Android SDK Manager. Click “Virtual devices” in left column. Then, click “New”.

12/11, V1.2

Page 26

Application Note

2. Type a name and choose target.

3. Create AVD

12/11, V1.2

Page 27

Application Note

4. The virtual device appears.

5. Open Eclipse and execute your application. It will take some time for the emulator to load.

12/11, V1.2

Page 28

Application Note

6. This screen will appear for quite some time.

12/11, V1.2

Page 29

Application Note

7. Finally, click the “Menu” button on the right and the application will appear.

12/11, V1.2

Page 30

Application Note

VII. Troubleshooting

Depending on internet connection, you might have problems installing the ADT Plugin. If you cannot download, try this.

1. Open SDK Manager. Click “Settings” in left column. Then, check “Force https://...”.

If this does not work…

1. Uncheck “Force https://...”.

2. Change repository URL in Eclipse to “http://…” (no ‘s’).

If you still have trouble…

You can download the package on your own here: http://developer.android.com/sdk/eclipse-adt.html#troubleshooting

12/11, V1.2

Page 31
