DEK 2-Way Feed Chipper/Shredder User manual

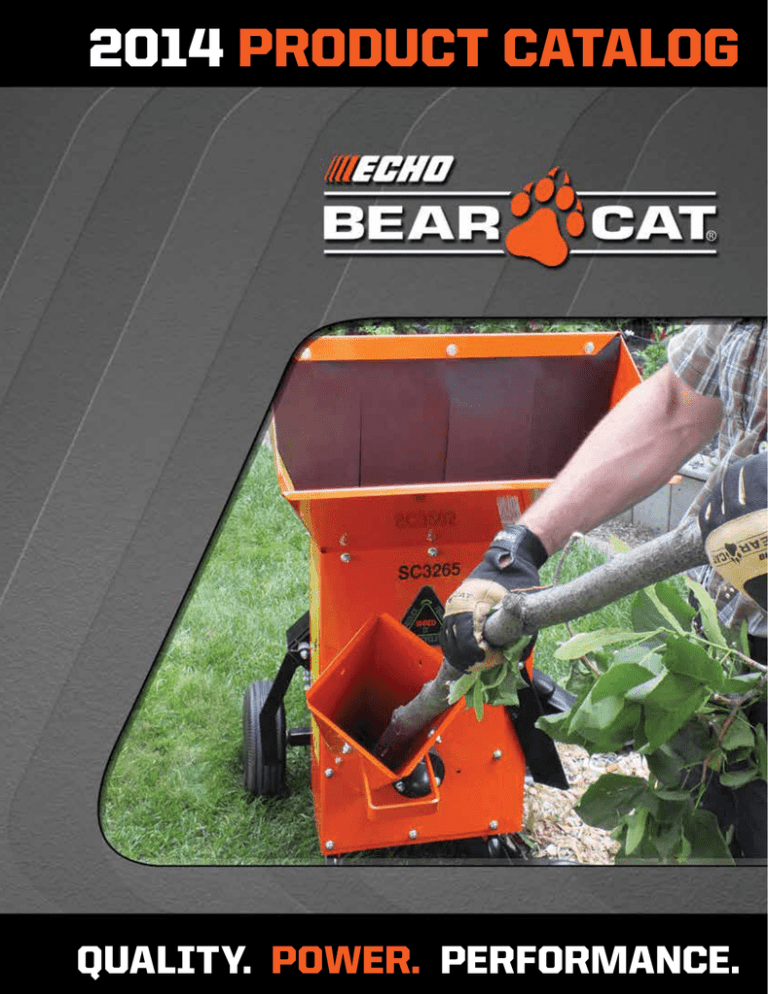

2014 PRODUCT CATALOG QUALITY. POWER. PERFORMANCE. ON THE INSIDE REDUCE, REUSE, RECYCLE ECHO Bear Cat proudly manufactures a vast selection of Outdoor Power Equipment that can handle a variety of wood material and take care of leaf and grass debris with ease. No matter, if you are a home owner, a hobby farmer, a commercial landscaper or just looking for an environmentally friendly way to dispose of wood and yard debris, ECHO Bear Cat machines will be able to fit your exact needs and get the job done. SC3265 TABLE OF CONTENTS Burning yard waste releases high amounts of carbon dioxide and releases heat into the air contributing to pollution. ECHO Bear Cat is aware that providing a clean air option is not only necessary, but is a regulatory requirement in many communities. Municipalities, park and recreation boards and city regulations ban the use of burning yard waste. By utilizing an ECHO Bear Cat machine, biodegradeable material is produced and used for mulch and compost, adding vital nutrients and minerals back to the earth. Stay connected: Chipper/Shredders...............................................3-5 Chipper/Shredder/Blowers.......................................6 Chippers........................................................... 7-11 PTO Chippers................................................. 12-16 Skid Steer Chippers...............................................17 Log Splitters................................................... 18-19 Wheeled Trimmers..........................................20-21 Stump Grinder.....................................................22 Wheeled Vacuums................................................23 Debris Loaders............................................... 24-25 FAQ....................................................................26 ECHO Bear Cat Gear............................................ 27 Specs........................................................... 28-30 Parts & Accessories.............................................. 31 2 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. ECHO BEAR CAT WARRANTY WE’VE GOT YOU COVERED! 3 YEAR CONSUMER*, 1 YEAR COMMERCIAL, 6 MONTH RENTAL NOTE: “Consumer” defined as: complete unit for residential or nonincome producing use. “Commercial” defined as: complete unit for commercial, institutional, agricultural, horticultural or income producing use. “Rental” defined as: complete unit for rental purposes to produce income. *Models SC2170, SC2206 & SC3206 are classified as Consumer grade products and will not qualify for warranty coverage if used for Commercial or Rental purposes. ENGINE WARRANTY: For Engine Warranty information or service needs regarding the engine of your machine, record the serial number of the engine and refer to the Engine Owners Manual for terms and conditions of the manufacturer or see your nearest dealer. *U.S. and Canada only. 888-625-4520 WWW.BEARCATPRODUCTS.COM CHIPPER/SHREDDERS THESE MACHINES ARE BUILT TO LAST ECHO Bear Cat manufactures high quality, reliable Chipper/Shredders that will efficiently reduce yard debris, all while helping you be kind to the environment. ECHO Bear Cat Chippers/Shredders work well for brush and tree pruning, yard clean up, brush and hedge up-keep and creating compost and mulch. l 2" or 3" Chipping Capacity l Up to 3/4" Shredding Capacity l Large Shredder Chute Designs l Choose Your Chip Size With Optional Size Discharge Screens l Easy Maneuverability l Easy Serviceability l Optional Equipment Available For a complete list of parts & accessories, see page 31. VIDEO ONLINE SEE IT IN ACTION! SC3265 888-625-4520 WWW.BEARCATPRODUCTS.COM 3 CHIPPER/SHREDDERS 2" DEBRIS SCREENS SC2170 Wet Debris • Subaru SP 170cc • 2" Chipping Capacity 1.13" Standard • 3/4" Shredding Capacity • 2 Reversible Chipping Blades • 4 Reversible Shredding Knives .75" Fine • 4 Additional Knives Optional • Direct Drive Rotor • 15 lb. Rotor Assembly Operates at 3,800 rpm SC3206 • Briggs & Stratton OHV 206cc • 3" Chipping Capacity • 3/4" Shredding Capacity • 2 Reversible Chipping Blades • 8 Reversible Shredding Knives • Single Belt Driven Rotor • 21 lb. Rotor Assembly Operates at 3,600 rpm 3" DEBRIS SCREENS SC3265 • Subaru EX 265cc Fine .375" • 3" Chipping Capacity • 3/4" Shredding Capacity • 2 Reversible Chipping Blades • 12 Reversible Shredding Knives • Dual Belt Driven Rotor • 27 lb. Rotor Assembly Operates at 3,800 rpm A complete list of PARTS AND ACCESSORIES is on page 31 4 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. Medium .75" Standard Coarse 1.375" Wet Debris 888-625-4520 WWW.BEARCATPRODUCTS.COM CHIPPER/SHREDDERS SC3305 & SC3305E* • Briggs & Stratton OHV 305cc • 3" Chipping Capacity • 3/4" Shredding Capacity • 2 Reversible Chipping Blades • 12 Reversible Shredding Knives • Single Belt Driven Rotor • 27 lb. Rotor Assembly Operates at 3,600 rpm *Refers to electric start model Model SC3342 shown with Road Towable Trailer and Optional Blower SC3265 SC3342 • Briggs & Stratton OHV 342cc • 3" Chipping Capacity • 3/4" Shredding Capacity • 2 Reversible Chipping Blades • 12 Reversible Shredding Knives • Dual Belt Driven Rotor SC3265 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. • 27 lb. Rotor Assembly Weight Operates at 3,600 rpm A complete list of PARTS AND ACCESSORIES is on page 31 888-625-4520 WWW.BEARCATPRODUCTS.COM 5 CHIPPER/SHREDDER/BLOWER SC5720B THE MULTI-TASKER The SC5720B has integrated blower paddles on the rotor for overhead discharge power. It also features a unique screenless shredder system allowing complete control over end product size. l Choose Your Chip Size with 5 Screenless Shredder Settings l 36 Shredding Knives l 4 Reversible Chipper Blades For a complete list of parts & accessories, see page 31. SC5720B • Subaru EH 720cc • 5" Chipping Capacity • 3/4" Shredding Capacity • 4 Reversible Chipping Blades • 36 Shredding Knives • Double-Banded Belt Driven Rotor • 360° Rotating Discharge Chute • 121 lb. Rotor Assembly Operates at 2,200 rpm FEATURING: VIDEO ONLINE SEE IT IN ACTION! SC5720B 6 888-625-4520 WWW.BEARCATPRODUCTS.COM CHIPPERS MATCH THE MACHINE TO THE JOB AT HAND Designed and equipped to handle any job. ECHO Bear Cat provides the broadest selection of chippers in the industry. l 4" to 9" Chipping Capacity l Hydraulic & Gravity Feed Designs l Solid Welded Steel Construction l Powerful Gas & Diesel Engine Options l Models with Cantilevered Rotor Design For a complete list of parts & accessories, see page 31. VIDEO ONLINE SEE IT IN ACTION! CH8993H 888-625-4520 WWW.BEARCATPRODUCTS.COM 7 CHIPPERS CH4400 • Subaru EX 404cc • Recoil Start • 4" Chipping Capacity • 2 Reversible Chipping Blades • Gravity Feed • Double-Banded Belt Driven Rotor • 14" Cantilever Rotor, 49 lbs. • 4-Sided Adjustable Anvil • Collapsible Hitch for Convenient Storage CH4400 CH5653 • Subaru EH 653cc • 5" Chipping Capacity • 4 Reversible Chipping Blades CH5653 • Gravity Feed • Double-Banded Belt Driven Rotor • 20" Rotor, 140 lbs. • 4-Sided Adjustable Anvil FEATURING: 8 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. A complete list of PARTS AND ACCESSORIES is on page 31 888-625-4520 WWW.BEARCATPRODUCTS.COM CHIPPERS TOUGH BLADES! CH6730H • Kohler Command PRO 730cc • 6" Chipping Capacity • 4 Reversible Chipping Blades • Triple-Banded Belt Driven Rotor • 26" Rotor, 165 lbs. • 4-Sided Adjustable Anvil All ECHO Bear Cat chipping blades are made from heat-treated steel to ensure the sharpest, longest lasting edge possible! FEATURING: 13" WIDE Feed Opening CH611DH • Kubota Diesel 1.1 Liter • 6" Chipping Capacity • 4 Reversible Chipping Blades • Triple-Banded Belt Driven Rotor • 26" Rotor, 165 lbs. • 4-Sided Adjustable Anvil FEATURING: *Batteries are not shipped with Chippers and will need to be purchased separately. For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. A complete list of PARTS AND ACCESSORIES is on page 31 888-625-4520 WWW.BEARCATPRODUCTS.COM 9 CHIPPERS CH8720iH • EFI Subaru EH 720cc • 8" Chipping Capacity Hydraulic jack easily raises and lowers the feed roller • 4 Reversible Chipping Blades • Triple-Banded Belt Driven Rotor • 30" Rotor, 275 lbs. • 4-Sided Adjustable Anvil FEATURING: New paddle design for increased performance CH8993H CH8993H • Briggs & Stratton Vanguard 993cc • 8" Chipping Capacity • 4 Reversible Chipping Blades • Triple-Banded Belt Driven Rotor • 30" Rotor, 275 lbs. • 4-Sided Adjustable Anvil FEATURING: A complete list of PARTS AND ACCESSORIES is on page 31 10 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. *Batteries are not shipped with Chippers and will need to be purchased separately. 888-625-4520 WWW.BEARCATPRODUCTS.COM CHIPPERS CH911DH • Kubota Diesel 1.1 Liter • 9" Chipping Capacity • 4 Reversible Chipping Blades • Triple-Banded Belt Driven Rotor • 30" Rotor, 275 lbs. • 4-Sided Adjustable Anvil FEATURING: Convenient foot pedal easily engages belt CH922DH CH922DH • Kubota Diesel 2.2 Liter C channel frame construction for extra strength • 9" Chipping Capacity • 4 Reversible Chipping Blades • Triple-Banded Belt Driven Rotor • 30" Rotor, 275 lbs. • 4-Sided Adjustable Anvil FEATURING: A complete list of PARTS AND ACCESSORIES is on page 31 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. 888-625-4520 WWW.BEARCATPRODUCTS.COM 11 PTO MACHINES TRACTOR VERSATILITY IS YOURS Enhance the usage of your tractor by investing in an ECHO Bear Cat PTO Chipper or Chipper/Shredder. You will benefit from the same rugged, reliable features on the engine powered chippers and chipper/shredders. l 4.5" to 9" Chipping Capacity l Hydraulic & Gravity Feed Designs l Solid Welded Steel Construction l Cat. 1, 3-point Connection From 15-60 h.p. Models l Designed With Professional Grade Standard Features For a complete list of parts & accessories, see page 31. VIDEO ONLINE SEE IT IN ACTION! CH9540H 12 888-625-4520 WWW.BEARCATPRODUCTS.COM PTO MACHINES 3-POINT TRACTOR MOUNT CONVENIENCE Each PTO model features the 3-point hitch mount hook up, which allows for “go anywhere” usability. Tractor owners and operators will be able to take and use any PTO machine more places than a road towable model. CHIPPER/ SHREDDER SC5540 • 5" Chipping Capacity SC5540 • 3/4" Shredding Capacity • 36 Shredding Knives Shown with optional Two-Speed Blower & Vacuum Kit • 4 Reversible Chipping Blades • Double-Banded Belt Driven Rotor • Optional Discharge Screens Available • 19" Rotor, 112 lbs • Recommended 25-45 hp at the PTO Single Speed Blower P/N: 70487 Model: SC5540 SC5540B CHIPPER/ SHREDDER/ BLOWER • 5" Chipping Capacity • 3/4" Shredding Capacity Chipper Blade Kit P/N: 72493 Models: SC5540 & SC5540B • 36 Shredding Knives • 4 Reversible Chipping Blades • Double-Banded Belt Driven Rotor • Screenless Shredder System • 20.6" Rotor, 145 lbs. • Recommended 25-45 hp at the PTO Shredder Knives Kit P/N: 70972 Models: SC5540 & SC5540B For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. A complete list of PARTS AND ACCESSORIES is on page 31 888-625-4520 WWW.BEARCATPRODUCTS.COM 13 PTO MACHINES CH45540 • 4.5" Chipping Capacity • 2 Reversible Chipping Blades • Double-Banded Belt Driven Rotor • Gravity Feed • 14" Rotor, 49 lbs. • 4-Sided Adjustable Anvil • Optional Discharge Chute For Truck Loading Chipper Blade Kit P/N: 76295-00 Model: CH45540 • Recommended 15-28 hp at the PTO CH5540 • 5" Chipping Capacity • 4 Reversible Chipping Blades • Double-Banded Belt Driven Rotor • Gravity Feed • 20" Rotor, 140 lbs. • 4-Sided Adjustable Anvil • Recommended 25-45 hp at the PTO CH5540 A complete list of PARTS AND ACCESSORIES is on page 31 14 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. Now Featuring Double-Banded Belt Drive Chipper Blade Kit P/N: 72493 Models: CH5540 & CH5540H 888-625-4520 WWW.BEARCATPRODUCTS.COM PTO MACHINES CH5540H • 5" Chipping Capacity • 4 Reversible Chipping Blades • Dual Belt Driven Rotor Auto Feed Kit P/N: 73071 Model: CH5540H • 20" Rotor, 140 lbs. • 4-Sided Adjustable Anvil • Recommended 25-45 hp at the PTO FEATURING: 360° rotating discharge chute is easily adjustable CH5540 CH8540 • 8" Chipping Capacity • 4 Reversible Chipping Blades • Triple-Banded Belt Driven Rotor • Gravity Feed • 30" Rotor, 275 lbs. Chipper Blade Kit P/N: 76293-00 Model: CH8540 • 4-Sided Adjustable Anvil • Recommended 35-60 hp at the PTO For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. A complete list of PARTS AND ACCESSORIES is on page 31 888-625-4520 WWW.BEARCATPRODUCTS.COM 15 PTO CHIPPERS CH9540H • 9" Chipping Capacity • 4 Reversible Chipping Blades • Triple-Banded Belt Driven Rotor Chipper Blade Kit P/N: 76293-00 Model: CH9540H • 30" Rotor, 275 lbs. • 4-Sided Adjustable Anvil • Recommended 35-60 hp at the PTO FEATURING: The Orchard Chipper CHF9540H • 9" Chipping Capacity • 16 Reversible Chipping Blades The CHF9540H has 16 blades and is specially designed to produce the smallest end product possible from a large scale chipper. • Triple-Banded Belt Driven Rotor Low Profile Discharge Chute P/N: 74581-00 Model: CH9540H. Standard on CHF9540H • 30" Rotor, 275 lbs. • 4-Sided Adjustable Anvil • Recommended 35-60 hp at the PTO FEATURING: A complete list of PARTS AND ACCESSORIES is on page 31 16 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. Chipper Blade Kit (16 blades) P/N: 74830-00 Model: CHF9540H 888-625-4520 WWW.BEARCATPRODUCTS.COM SKID STEER CHIPPERS A PERFECT PARTNER FOR TRACK & SKID STEER LOADERS ECHO Bear Cat has taken the same robust, hydraulic feed chipper design and given you the ability to use your skid steer hydraulics to power the chipper. Models include a universal attachment platform that can be mounted in two positions giving you the flexibility to operate curb side or forward facing. CH450H • 4.5" Chipping Capacity • 2 Reversible Chipping Blades • Gravity Feed • 14" Cantilever Rotor, 49 lbs. • 4-Sided Adjustable Anvil • Min. 11 gpm, Max. 15 gpm Chipper Blade Kit P/N: 76295-00 Model: CH450H CH500H • 5" Chipping Capacity • 4 Reversible Chipping Blades • 20" Rotor, 140 lbs. • 4-Sided Adjustable Anvil • Universal Attachment System • Min. 15 gpm, Max. 22 gpm FEATURING: Chipper Blade Kit P/N: 72493 Model: CH500H CH800H • 8" Chipping Capacity • 4 Reversible Chipping Blades • 30" Rotor, 275 lbs. • 4-Sided Adjustable Anvil • Universal Attachment System • Min. 25 gpm, Max. 38 gpm FEATURING: For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. Chipper Blade Kit P/N: 76293-00 Model: CH800H A complete list of PARTS AND ACCESSORIES is on page 31 888-625-4520 WWW.BEARCATPRODUCTS.COM 17 LOG SPLITTERS FEATURING THE NEW LS22 LS22 Hard working machines that make quick work of any log up to 24" in length. Subaru SP170 Up to 22 Tons of Splitting Force l 30" Bed Height for Comfort l Vertical or Horizontal Position l Commercial Grade Components l Solid Welded Steel Construction l Industrial Strength I-Beam Design l Road Towable l Collapsible Hitch for Convenient Storage For a complete list of parts & accessories, see page 31. VIDEO ONLINE SEE IT IN ACTION! LS22 18 888-625-4520 WWW.BEARCATPRODUCTS.COM LOG SPLITTERS Up to 24" LS22 & LS27 • Horizontal or Vertical Operation • Log Stripper Plate Standard • Engine Guard Plate Standard • 2-Stage, 14 gpm pump • LS22 12 sec. Cycle Time 4 gal. Hyd. System • LS27 14 sec. Cycle Time 4.5 gal. Hyd. System ECHO Bear Cat Log Splitters use ATF (Dexron III) in the hydraulic system for top performance in all weather conditions A complete list of PARTS AND ACCESSORIES is on page 31 Log Splitter Cradle Kit P/N: 77189-00 LS27 Subaru SP210 Up to 27 Tons of Splitting Force Fenders & Tail Lights Kit P/N: 77510-00 4-Way Wedge Kit P/N: 77514-00 Quick Split Kit P/N: 75896-00 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. LS27 888-625-4520 WWW.BEARCATPRODUCTS.COM 19 WHEELED TRIMMERS YOU CAN DEPEND ON THE POWER & PERFORMANCE! This user-friendly family of wheeled trimmers are customizable to your most demanding trimming needs. l Solid Steel Body Construction l 24" Cutting Width l Oversized Wheels For Easy Operation l Balanced at the Handlebar For Comfort l Adjustable Handlebar For a complete list of parts & accessories, see page 31. WT190 20 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. 888-625-4520 WWW.BEARCATPRODUCTS.COM WHEELED TRIMMERS Off-Set Trim (WT190) 13 degrees of off-set to the left WT190 • Briggs & Stratton 190cc • Push Model FEATURING: Easily Install Trimmer Line Comes standard with .155" cutting line WT190T • Briggs & Stratton 190cc • Push Model • Tilt Body/Cutting Head FEATURING: WT190S • Briggs & Stratton 190cc • 3 Variable Speeds Tilt (WT190T) Tilt – 3 positions, 5 degrees, 10 degrees & 13 degrees 14" Triple Blade Brush Cutter P/N: 32086-00 FEATURING: A complete list of PARTS AND ACCESSORIES is on page 31 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. 14" Sabre Tooth Blade P/N: 74548-00 888-625-4520 WWW.BEARCATPRODUCTS.COM 21 STUMP GRINDER DON’T GET CAUGHT BETWEEN A STUMP & A HARD PLACE The SG340 utilizes twelve hardened carbide tipped cutting teeth rotating at 3,600 rpm for fast grinding, smooth cutting and smaller chips and debris. With the wheel base width at only 23", getting close to buildings or fitting through gate openings to access stumps is quick and easy. l Double-Banded Belt Driven Cutting Head l 12 Carbide-Tipped Cutting Teeth l Large Flat-Free Tires For a complete list of parts & accessories, see page 31. SG340 • Honda GXV 340cc • Double-Banded Belt Driven Cutting Head • Fully Enclosed Housing • Only 195 lbs. • 23" Wheel Base VIDEO ONLINE SEE IT IN ACTION! SG340 22 888-625-4520 WWW.BEARCATPRODUCTS.COM WHEELED VACUUMS CLEANS UP LARGE AREAS QUICKLY An ECHO Bear Cat Wheeled Vacuum is a great way for homeowners, commercial crews or municipalities to quickly and efficiently pick up leaves, grass or other light debris. l 27" Intake Width l 5 Height Settings l Recoil Start l 5 Bushel Capacity Bag l Optional Vacuum Hose Kit For a complete list of parts & accessories, see page 31. WV160 • Honda GCV 160cc • Push Drive WV160S • Briggs & Stratton Professional Series 190cc • 3 Variable Speeds • WV190 • Briggs & Stratton Professional Series 190cc • Push Drive WV190S • Briggs & Stratton Professional Series 190cc • 3 Variable Speeds • WV190 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. Shown with optional Caster Wheels and Vacuum Hose Kit 888-625-4520 WWW.BEARCATPRODUCTS.COM 23 DEBRIS LOADERS CLEAN UP ON-THE-GO An ECHO Bear Cat Debris Loader allows commercial operators and municipalities to quickly pick up leaves, grass or other light debris as efficiently as possible. l Solid Welded Steel Fan Housings l 360° Discharge Tubes l Hitch & Skid Mount Designs l Commercial-Grade Hoses l Optional Trailer for 12" Models With Storage Deck For a complete list of parts & accessories, see page 31. DL12653 24 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. 888-625-4520 WWW.BEARCATPRODUCTS.COM DEBRIS LOADERS DL8390 • Honda GX 390cc • Direct Drive • Recoil Start • 8" Intake Capacity • 4-Blade/16" Fan Swing Away Hitch Mount Kit P/N: 75739-00 Models: DL8390 & DL10570 • 2,300 CFM • Receiver Hitch Mount DL10570 • Briggs & Stratton Vanguard 570cc A complete list of PARTS AND ACCESSORIES is on page 31 • Direct Drive 16" Vertical Chute Extension P/N: 75888-00 Models: All Debris Loaders • Recoil Start • 10" Intake Capacity • 4-Blade/16" Fan • 2,500 CFM • Receiver Hitch Mount DL12653 • Subaru EH 653cc 4' Flexible Horizontal Chute Extension P/N: 74737-00 Models: All Debris Loaders • Direct Drive • 12" Intake Capacity • 4-Blade/20" Fan • 3,400 CFM • Skid Mount FEATURING: 12 Volt Work Light Kit P/N: 77105-00 Models: D12653 & DL12720 DL12720 • Subaru EH 720cc • Double Banded • 12" Intake Capacity • 4-Blade/20" Fan • 3,400 CFM • Skid Mount FEATURING: *Batteries are not shipped with Debris Loaders and will need to be purchased separately. For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. Universal Road Towable Trailer Kit P/N: 77041-00 Models: DL12653 & DL12720 888-625-4520 WWW.BEARCATPRODUCTS.COM 25 FAQ CHIPPER/SHREDDERS CHIPPERS What are these machines designed for? ECHO Bear Cat chipper/shredders are designed to effectively reduce the volume of wood, leaves and other organic material. What are these machines designed for? ECHO Bear Cat chippers are designed to effectively reduce the volume of wood, branches, and other organic material. When should I chip? If you don’t plan on composting the material, material is green and stringy or larger than 3/4" in capacity. What type of chippers are available? ECHO Bear Cat makes chippers with gravity or hydraulic feed, powered by an engine package, a tractor PTO or a skid steer loader. A hydraulic feed machine has a hydraulic driven feed roller to efficiently feed branches to the chipper rotor maximizing efficiency of the machine. When should I shred? If you plan on composting or if the material is smaller than 3/4", use the shredder. Shredding is also an efficient way to reduce the volume of leaves or prunings. How long will the blades last between sharpenings? Depending on the type of wood, age and cleanliness, chipper blades will work well for between 5-15 hours. Dry, dirty wood will dull the blades faster. Alternate dry and wet material to extend blade life. What size material will these machines chip or shred? SC2170 Max. chipping material size up to 2" capacity Max. shredding material size up to 3/4" capacity 3" Chipper/Shredders Max. chipping material size up to 3" capacity Max. shredding material size up to 3/4" capacity 5" Chipper/Shredders Max. chipping material size up to 5" capacity Max. shredding material size up to 3/4" capacity Do not attempt to put material larger than 3/4" capacity into the shredder hopper. Doing so may cause machine failure and will void the warranty. How many debris screens are available? SC2170 - 3 .75", 1.13" (standard) and a wet debris. 3" Chipper/Shredders - 4 .375", .75", 1.375" (standard) and a wet debris. SC5540 - 4 .375", .75", 1.5" (standard) and a wet debris. Are these screens for all chipper/shredder models? No. The SC5540B and SC5720B have five shredder settings that are regulated by an adjustable gate, which controls output. 26 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. When should I buy a gravity feed machine? If you have an infrequent need for a chipper and time is not a factor, a gravity feed machine will fit your needs well. When should I buy a hydraulic feed machine? If time or efficiency is an issue, a hydraulic feed chipper allows you to be more productive. How long will the blades last between sharpenings? Depending on the type of wood, age and cleanliness, chipper blades will work well for between 5-15 hours. Dry, dirty wood will dull the blades faster. Alternate dry and wet material to extend blade life. Hydraulic feed chippers will have longer blade life. How difficult is it to perform maintenance on the machine? ECHO Bear Cat products are designed with ease of maintenance in mind. Proper maintenance is vital and should be preformed routinely with blades, belts and bearings being most important. Online Information For more information on ECHO Bear Cat products or to locate your nearest dealer, scan this QR code with your smartphone’s QR code app. Online Support For more information on ECHO Bear Cat supoort and the latest manuals, scan this QR code with your smartphone’s QR code app. 888-625-4520 WWW.BEARCATPRODUCTS.COM GEAR REUSABLE V INYL E ARPLUGS W ITH CASE The handy carrying case can be worn on your belt when not in use. Cleanup is easy with just warm water. ANSI and OSHA approved. P/N: 31539-00 E AR MUFFS These light-weight ear muffs have an NRR of 29 dB(A) when used as directed and meet ANSI standard 3.19. P/N: 36775-00 SAFET Y GL ASSES HELMET SYSTEM Lightweight and impact resistant. Hard-coated opticalgrade, abrasion resistant lenses. Polycarbonate lenses offer 99.9% protection from the most intense UV rays. Includes helmet, mesh face visor and ear protection. P/N: 36776-00 Tech Glasses P/N: 36773-00 Zone II Glasses P/N: 36774-00 PREMIUM SAFET Y VEST Higly visible vest features 5-point tear away panels for safety. P/N: 36777-00 (large) P/N: 36778-00 (xlarge) P/N: 36779-00 (xxlarge) V IBR AT ION-REDUCING SPOR T/L ANDSCAPE GLOVES Premium, padded-leatherpalm gloves help reduce vibration. Also feature formfitting fingers and Velcro® -type wrist band for tight fit. P/N: 31299-00 (large) P/N: 31300-00 (xlarge) TO FIND A DEALER IN YOUR AREA FOR PURCHASING, SIMPLY LOG ON TO www.bearcatproducts.com For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. 888-625-4520 WWW.BEARCATPRODUCTS.COM 27 SPECS CHIPPER/SHREDDERS Engine SC2170 SC3206 SC3265 SC3305 SC3305E SC3342 SC5720B Subaru SP 170cc B&S OHV 206cc Suabru EX 265cc B&S OHV 305cc B&S OHV 305cc B&S OHV 342cc Subaru EH 720cc Recoil Recoil Recoil Recoil Electric Recoil Electric 2" 3" 3" 3" 3" 3" 5 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 2" x 2" 3" x 3" 3" x 3" 3" x 3" 3" x 3" 3" x 3" 5.25" x 5.25" Starter Type Max. Chipping Capacity Max. Shredding Capacity Chip. Chute Throat Shred. Hopper Opening 16" x 20" 12" x 25" 12" x 25" 12" x 25" 12" x 25" 12" x 25" 13" x 18" Chipping Blades 2 Reversible 2 Reversible 2 Reversible 2 Reversible 2 Reversible 2 Reversible 4 Reversible Shredding Knives 4 Standard (4 Optional) 8 12 12 12 12 36 Direct Single Belt Dual Wrapped Belts Single Belt Single Belt Dual Wrapped Belts Double-Banded Drive Type Rotor Size/Weight Dimensions (LxWxH) 12.8"/15 lbs. 12"/21 lbs. 12"/27 lbs. 12"/27 lbs. 12"/27 lbs. 12"/27 lbs. 20.6"x.75"/121 lbs. 29 x 23 x 50 in. 40 x 25 x 46 in. 40 x 25 x 46 in. 40 x 25 x 46 in. 40 x 25 x 46 in. 40 x 25 x 46 in. 92" x 52" x 92" 120 195 250 228 240 263 930 Weight CHIPPERS Engine CH4400 CH5653 CH611DH CH6730H Subaru EX 404cc Subaru EH 653cc Kubota Diesel 1.1 Liter Kohler Command Pro 730cc Recoil Electric Electric Electric Starter Type Max. Chipping Capacity Chute Opening Chute Throat 4" 5" 6" 6" 13" x 15" 27" x 28" 33" x 37" 33" x 37" 5" x 5" 5.5" x 6" 6.5" x 13" 6.5" x 13" Rotor Size/Weight Cantilever 14" x 1"/49 lbs. 20" x 1.25"/140 lbs. Cantilever 26" x 1"/165 lbs. Cantilever 26" x 1"/165 lbs. Chipping Blades 2 Reversible Heat-treated 4 Reversible Heat-treated 4 Reversible Heat-treated 4 Reversible Heat-treated Double-Banded Double-Banded Triple-Banded Triple-Banded Gravity/Self Feed Gravity/Self Feed Hydraulic Hydraulic Drive Belt Feed System N/A N/A Plus+1 Controller w/Auto Feed Plus+1 Controller w/Auto Feed 75" x 51" x 45" 80" x 57" x 95" 143" x 59" x 93" 126" x 57" x 104" Wheels/Tires 4.8-8 5.3-12 P215-75R15 P205-75R14 Wheel Base 43" 44" 50" 50" Weight 536 lbs. 950 lbs. 2,300 lbs. 1,635 lbs. CH8720iH CH8993H CH911DH CH922DH Engine EFI Subaru EH 720cc B&S Vanguard 993cc Kubota Diesel 1.1 Liter Kubota Diesel 2.2 Liter Electric Electric Electric Electric Hydraulic Controller Machine Dimensions (LxWxH) Starter Type Max. Chipping Capacity Feed Chute Opening ® ® 8" 8" 9" 9" 30" x 31" 30" x 31" 30" x 31" 30" x 31" Feed Chute Throat 9" x 9" 9" x 9" 9" x 9" 9" x 9" Rotor Size/Weight 30" x 1.25"/275 lbs. 30" x 1.25"/275 lbs. 30" x 1.25"/275 lbs. 30" x 1.25"/275 lbs. 4 Reversible Heat-treated 4 Reversible Heat-treated 4 Reversible Heat-treated 4 Reversible Heat-treated Triple-Banded Triple-Banded Triple-Banded Triple-Banded Hydraulic Hydraulic Hydraulic Hydraulic Plus+1 Controller w/Auto Feed Plus+1 Controller w/Auto Feed Plus+1 Controller w/Auto Feed Plus+1 Controller w/Auto Feed 136" x 79" x 95" 136" x 79" x 95" 119" x 79" x 96" 119" x 79" x 96" Wheels/Tires P215-75R15 P215-75R15 P215-75R15 P215-75R15 Wheel Base 69" 69" 69" 69" 2,225 lbs. 2,350 lbs. 2,480 lbs. 2,700 lbs. Chipping Blades Drive Belt Feed System Hydraulic Controller ® Machine Dimensions (LxWxH) Weight 28 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. ® ® ® 888-625-4520 WWW.BEARCATPRODUCTS.COM SPECS PTO CHIPPERS AND CHIPPER/SHREDDERS PTO Input Power Range SC5540 SC5540B CH45540 CH5540 25-45 hp 25-45 hp 15-28 hp 25-45 hp Max. Chipping Capacity 5" 5" 4.5" 5" Max. Shredding Capacity 3/4" 3/4" N/A N/A 9" x 9" 9" x 9" 13" x 14.5" 28" x 28" 5.25" x 5.25" 5.25" x 5.25" 4.5" x 5" 5.5" x 7.5" 20" x 30" 13" x 20" N/A N/A 19" x .75"/112 lbs. 20.6" x .75/145 lbs. Cantilever 14" x 1"/49 lbs. 20" x 1.25"/140 lbs. Chipping Blades 4 Reversible Heat-treated 4 Reversible Heat-treated 2 Reversible Heat-treated 4 Reversible Heat-treated Shredding Knives 36 36 N/A N/A Double-Banded Double-Banded Double-Banded Double-Banded Gravity/Self Feed Gravity/Self Feed Gravity/Self Feed Gravity/Self Feed 44" x 43" x 48" 49" x 50" x 87" 40" x 41" x 44" 50" x 45" x 90" 450 720 361 600 Chipper Chute Opening Chipper Chute Throat Shredder Chute Opening Rotor Size/Weight Drive Belt Feed System Machine Dimensions (LxWxH) Weight CH5540H CH8540 CH9540H CHF9540H PTO Input Power Range 25-45 hp 35-60 hp 35-60 hp 35-60 hp Max. Chipping Capacity 5" 8" 9" 9" Max. Shredding Capacity N/A N/A N/A N/A Chipper Chute Opening 28" x 28" 30" x 31" 30" x 31" 30" x 31" Chipper Chute Throat 5.5" x 7.5" 9" x 9" 9" x 9" 9" x 9" N/A N/A N/A N/A Shredder Chute Opening Rotor Size/Weight 20" x 1.25"/140 lbs. 30" x 1.25"/275 lbs. 30" x 1.25"/275 lbs. 30" x 1.25"/275 lbs. Chipping Blades 4 Reversible Heat-treated 4 Reversible Heat-treated 4 Reversible Heat-treated 4 Reversible Heat-treated Triple-Banded Drive Belt Dual Belts Triple-Banded Triple-Banded Feed System Hydraulic Gravity/Self Feed Hydraulic Hydraulic Hydraulic Controller Machine Dimensions (LxWxH) Weight N/A Plus+1 Controller w/Auto Feed Plus+1 Controller w/Auto Feed Plus+1 Controller w/Auto Feed 68" x 49" x 90" 54" x 47" x 93" 70" x 50" x 93" 70" x 61" x 63" 980 886 1,300 1,300 ® ® ® SKID STEER MOUNT CHIPPERS Max. Chipping Capacity Power Source Rotor Size/Weight Machine Dimensions (LxWxH) Chipping Blades Feed System Chipper Chute Opening Chipper Chute Throat Weight CH450H CH500H CH800H 4.5" 5" 8" Mini Skid Steer 11-15 gpm 15-22 gpm Standard Flow 25-38 gpm High Flow Cantilever, 14" x 1"/49 lbs. rotates at: 2,700 rpm at 11 gpm, 3,700 at 15 gpm 20" x 1.25"/140 lbs., rotates at: 2,700 rpm at 15 gpm, 4,000 rpm at 22 gpm 30" x 1.25"/275 lbs., rotates at: 1,600 rpm at 25 gpm, 2,500 rpm at 38gpm 41" x 28" x 40" 73" x 53" x 93" 74" x 60" x 88" 2 reversible steel blades with 4-sided adjustable anvil 4 reversible steel blades with 4-sided adjustable anvil 4 reversible steel blades with 4-sided adjustable anvil Gravity/Self Feed Hydraulic Feed Hydraulic Feed 12" x 13" 27" x 28" 30" x 31" 4.5" X 4.5" 5.5" x 7" 9" X 9" 359 lbs. 1,145 lbs. 1,525 lbs. For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. 888-625-4520 WWW.BEARCATPRODUCTS.COM 29 SPECS Log Splitters Engine LS27 Subaru SP 170cc Subaru SP 210cc Recoil Recoil Starter Type Tonnage Cylinder (Bore x Stroke) 22 27 4" x 24" 4.5" x 24" 24" 24" 84" x 39" x 40" 84" x 39" x 40" 450 lbs. 455 lbs. 12 Seconds 14 Seconds Max. Log Length Dimensions (LxWxH) Weight Cycle Time Hyd. Tank Capacity Hyd. Pump Wheeled Trimmers LS22 4 gal. 4.5 gal. 2-stage/14 gpm 2-stage/14 gpm WT190 WT190T WT190S Briggs & Stratton Quantum 190cc Briggs & Stratton Quantum 190cc Briggs & Stratton Quantum 190cc Starter Type Recoil Recoil Recoil Drive Push Push 3 Sp. Self-Propelled 1-7/8" & 2-3/4" 1-7/8" & 2-3/4" 1-7/8" & 2-3/4" Off-Set Trim Tilt-n-Trim N/A 50" x 21" x 38" 50" x 21" x 38" 50" x 21" x 38" 77 lbs. 77 lbs. 82 lbs. Engine Cutting Height Trimming Features Dimensions (LxWxH) Weight Stump Grinder Wheeled Vacuums WV160 SG340 Engine Starter Type Engine Honda GXV 340 cc Recoil Honda GCV 160cc WV160S WV190 WV190S Honda GCV 160cc Briggs & Stratton Pro Series 190cc Briggs & Stratton Pro Series 190cc Starter Type Recoil Recoil Recoil Recoil Drive Type Double-banded Belt Drive Push 3 Sp. Self-Propelled Push 3 Sp. Self-Propelled Cutting Teeth 12 - Carbide Tipped Vacuum Height .25" - 4.5" .25" - 4.5" .25" - 4.5" .25" - 4.5" 5 blade steel 5 blade steel 5 blade steel 5 blade steel Cutter Head 7" Dia. Fan Rotor Cutter Head RPM 3,600 Intake Width 27" 27" 27" 27" Bag Capacity 5 bushel 5 bushel 5 bushel 5 bushel 61" x 27" x 46" 61" x 27" x 46" 61" x 27" x 46" 61" x 27" x 46" 108 lbs. 121 lbs. 113 lbs. 126 lbs. Dimensions (LxWxH) 52" x 23" x 44" Weight 195 lbs. Wheels 16" Flat Free Dimensions (LxWxH) Weight Debris Loaders DL8390 DL10570 DL12653 DL12720 Honda GX 390cc B&S Vanguard 570cc Subaru EH 653cc Subaru EH 720cc Starter Type Recoil Recoil Electric Electric Drive Direct Direct Direct Double-Banded Belt 8" 10" 12" 12" Engine Intake Dia. Hose Length 12' 12' 12' 12' Fan Capacity 4-Blade/16" 4-Blade/16" 4-Blade/20" 4-Blade/20" CFM Dimensions (LxWxH) Weight Mount Type 2300 2500 3400 3400 35" x 25" x 58" 35" x 25" x 58" 30" x 50" x 86" 30" x 50" x 86" 280 lbs. 280 lbs. 595 lbs. 675 lbs. Receiver Hitch Receiver Hitch Skid Mount Skid Mount STAY CONNECTED! Keep up with the latest in ECHO Bear Cat News, Demonstrations and Equipment! 30 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. 888-625-4520 WWW.BEARCATPRODUCTS.COM PARTS & ACCESSORIES CHIPPER/SHREDDERS SC2170 SC3206 Standard Screen 1.13" P/N: 76758-35 Fine Screen .75" P/N: 76893-35 Wet Debris Screen P/N: 77639-35 Shredder Knives Kit P/N: 77616-00 Additional Shredder Knives Kit P/N: 77618-00 Chipper Blade Kit P/N: 70738 Screen - Fine .375" P/N: 77382-12 Screen - Medium .75" 77383-12 Screen - Coarse (Standard) 1.375" P/N: 77384-12 Screen - Wet Debris P/N: 77385-12 Shredder Knives Kit P/N: 77589-00 All 3" CHIPPER/SHREDDERS Screen - Fine .375" P/N: 77386-12 Screen - Medium .75" P/N: 77387-12 Screen - Coarse (Standard) 1.375" P/N: 77388-12 Screen - Wet Debris P/N: 77389-12 Blower Attachment P/N: 70251 Shredder Knives Kit P/N: 70973 Two-Wheel Tow Kit P/N: 77000-00 Leaf Tamper P/N: 70089 Debris Bag with Handles P/N: 17854 All Weather Cover P/N: 70093 Chipper Blade Kit P/N: 70738 Road Towable Chipper/Shredder Trailer P/N: 77353-00 Supplemental Adapter Kit for models SC3265, SC3305, SC3305 & SC3305E Serial C03477 & below P/N: 77700-00 Supplemental Adapter Kit for model SC3206 Serial C03477 and below P/N: 77701-00 SC3265, SC3305, SC3305E, SC3342 SC5720B Chipper Blade Kit P/N: 72493 Shredder Knives Kit P/N: 77613-00 Looking for a service part? Find your parts manual online for a complete list www.bearcatproducts.com DEBRIS LOADERS DL8390, DL10570 DL12653, DL12720 Wear Liner Replacement Kit P/N: 75768-00 4' Flexible Horizontal Chute Extension P/N: 74737-00 16" Vertical Chute Extension P/N: 75888-00 Swing Away Hitch Mount Kit P/N: 75739-00 Tailgate Adapter Kit P/N: 75753-00 Wear Liner Replacement Kit P/N: 77073-00 4' Flexible Horizontal Chute Extension P/N: 74737-00 16" Vertical Chute Extension P/N: 75888-00 Universal Road Towable Trailer Kit P/N: 77041-00 12 Volt Work Light Kit P/N: 77105-00 Flexible Hose 12" x 12' P/N: 12778 For more information on ECHO Bear Cat products, scan this QR code with your smartphone's QR code app. CHIPPERS PTO MODELS Blade Kits: CH611DH, CH6730H, CH8720iH, CH8993H CH911DH & CH922DH P/N: 76293-00 CH4400 P/N: 76295-00 CH5653 P/N: 72493 4.5"x 4.5" Discharge Chute CH4400 P/N: 74634-00 Low Profile Discharge Chute CH8720iH, CH8993H, CH911DH, CH922DH & CH9540H P/N: 74581-00 Hour/Tach Kit - Gas All Gas Engines P/N: 31605-00 Hour Meter Kit - Diesel All Diesel Engines P/N: 71921 2 5/16" Coupler CH611DH, CH6730H, CH8720iH, CH8993H, CH911DH, CH8993H, CH911DH, CH922DH P/N: 14519-00 2" Coupler 5,000 lbs. CH911DH, CH922DH P/N: 77232-00 Pintle Hitch CH611DH, CH6730H CH8720iH & CH8993H P/N: 14900-00 Spare Tire Kit CH611DH & CH6730H P/N: 75291-00 Knee Bars CH611DH & CH6730H P/N: 76945-00 CH8720iH, CH8993H, CH911DH & CH922DH P/N: 76195-00 Fine Chip Rotor Kit CH911DH & CH922DH P/N: 76775-00 Adjustable Feed Speed Sensor Kit CH6730H P/N: 76820-00 Electric Brakes CH911DH & CH922DH P/N: 72730 Blade Kits CH45540, CH450H P/N: 76295-00 CH5540, CH5540H, CH500H, SC5540 & SC5540B P/N: 72493 CH8540 & CH9540H P/N: 76293-00 CHF9540H P/N: 74830-00 Auto Feed Replacement Kit CH5540H P/N: 73071 Discharge Chute 4.5" x 4.5" CH45540 P/N: 74634-00 Low Profile Discharge Chute CH8540 & CH9540H P/N: 74581-00 Fine Chip Rotor Kit CH9540H & CHF9540H P/N: 76775-00 Shredder Knife Kit SC5540 & SC5540B P/N: 70972 STUMP GRINDER SG340 12 Tooth Cutter Replacement Kit P/N: 76292-00 SC5540 Vacuum Hose Kit P/N: 71125 (requires P/N: 71110) Two-Speed Blower P/N: 71110 Single-Speed Blower P/N: 70487 Fine Screen .375" P/N: 70703 Medium Screen .75" P/N: 70531 Standard Screen 1.5" P/N: 70332 Wet Debris Screen P/N: 70559 WHEELED VACUUMS WV160, WV160S, WV190 & WV190S Replacement Debris Bag P/N: 31339-00 Caster Wheels Kit P/N: 76967-00 Hose Kit P/N: 73606-00 Vacuum Nozzle Wear Plate Kit P/N: 73640-00 Vacuum Wear Liner P/N: 76466-00 WHEELED TRIMMERS WT190, WT190T & WT190S .130" Diameter Line Round, 10 pack P/N: 72777 Round, 1 lb. Donut P/N: 12388 Square, 10 pk. P/N: 72778 Square, 1 lb. Donut P/N: 12389 .155" Diameter Line Round, 10 pk. P/N: 72780 Round, 1 lb. Donut P/N: 12390 Square, 10 pk. P/N: 72779 Square, 1 lb. Donut P/N: 12391 10 Pack, 20" pre-cut length P/N: 32029-00 CROSSFIRE® LINE .175" Diameter 10 pack 20" pre-cut length P/N: 32031-00 75' Donut P/N: 32033-00 3 lb. Spool P/N: 32035-00 14" Sabre Tooth Blade P/N: 74548-00 14" Triple Blade Brush Cutter P/N: 32086-00 Nylon Blade Kit P/N: 73060 Proline Head P/N: 74891-00 Heat-Treated Mow Ball P/N: 72704-12 LOG SPLITTERS LS22 & LS27 Log Splitter Cradle Kit P/N: 77189-00 Quick Split Kit P/N: 75896-00 Fenders & Tail Lights Kit P/N: 77510-00 4-Way Wedge Kit P/N: 77514-00 888-625-4520 WWW.BEARCATPRODUCTS.COM 31 ECHO Bear Cat • 237 12th St. NW, West Fargo, ND 58078 For customer service or for your nearest ECHO Bear Cat dealer call 888.625.4520 For International call 701.282.5520 Specifications, descriptions and illustrative material in this literature is as accurate as known at the time of publication, but are subject to change without notice. Illustrations may include optional equipment and accessories and may not include all standard equipment ©2014 ECHO Bear Cat, a subsidiary of ECHO Incorporated All Rights Reserved. Printed in the U.S. #31768-00 • 11/13
