Canon IXUS 1100 HS User guide

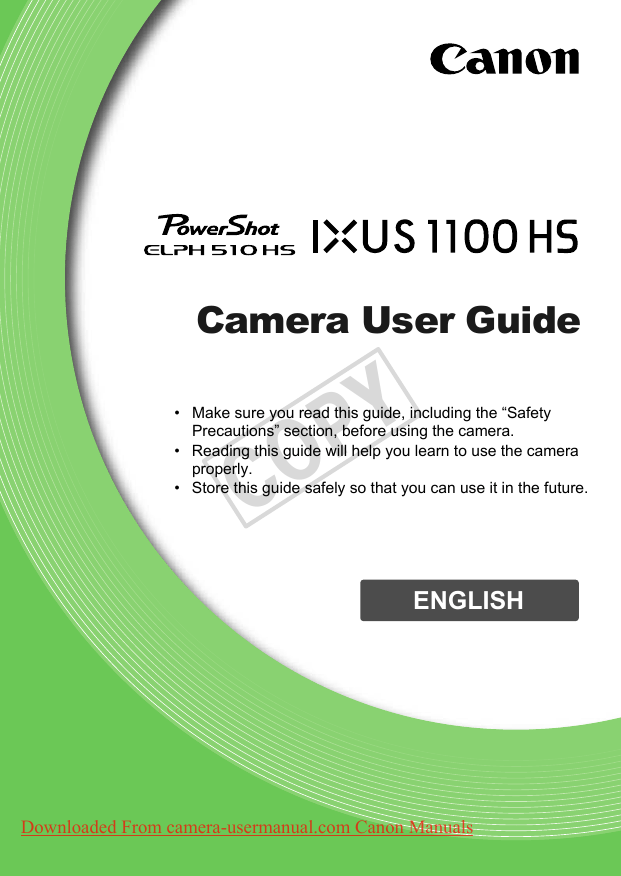

Camera User Guide
Y
P
O
• Make sure you read this guide, including the “Safety
Precautions” section, before using the camera.
• Reading this guide will help you learn to use the camera
properly.
• Store this guide safely so that you can use it in the future.
C
ENGLISH
Downloaded From camera-usermanual.com Canon Manuals
Checking the Package Contents
Check if the following items are included in your camera package.
If anything is missing, contact the retailer where you purchased the camera.
Camera
Battery Pack NB-9L
(with Terminal Cover)
Interface Cable
IFC-400PCU
Getting Started
Battery Charger
CB-2LB/CB-2LBE
Wrist Strap
WS-DC10
Y
P
O
DIGITAL CAMERA
Solution Disk
C
Using the PDF Manuals
Warranty
Card
The following PDF manuals are included in the Readme folder of the CDROM:
When the software is installed on your computer, the PDF manuals will be
copied to the computer and you can refer to them by clicking the shortcuts
on the desktop.
• Camera User Guide (This Guide)
Once you have mastered the basics, use the
camera’s many features to shoot more challenging
photos.
• Software Guide
Read when you want to use the included software.
• A memory card is not included (p. 17).
• Adobe Reader is required to view the PDF manuals.
Downloaded From camera-usermanual.com Canon Manuals
2
Read This First
• Take some initial test shots and play them back to make sure the images
were recorded correctly. Please note that Canon Inc., its subsidiaries and
affiliates, and its distributors are not liable for any consequential damages
arising from any malfunction of a camera or accessory, including memory
cards, that results in the failure of an image to be recorded or to be
recorded in a way that is machine readable.
• The images recorded with this camera are intended for personal use. Do
not record images that infringe upon copyright laws without the prior
permission of the copyright holder. Please be advised that in certain cases
the copying of images from performances, exhibitions, or commercial
properties by means of a camera or other device may contravene copyright
or other legal rights even if the image was shot for personal use.
• This camera’s warranty is only effective in the country of sale. If there is a
problem with the camera while abroad, please return it to the country of
sale before proceeding with a warranty claim to a Canon Customer
Support Help Desk. For Canon Customer Support contacts, please see the
customer support list supplied with your camera.
• The LCD monitor is produced with extremely high-precision manufacturing
techniques. More than 99.99% of the pixels operate to specification, but
occasionally non-performing pixels may appear as bright or dark dots. This
is not a malfunction and has no effect on the recorded image.
• The LCD monitor may be covered with a thin plastic film for protection
against scratches during shipment. If covered, remove the film before
using the camera.
• Please take care when operating the camera for an extended period as the
camera body may become warm. This is not a malfunction.
C
Y
P
O
Conventions Used in This Guide
•
•
•
•
•
•
•
•
•
Icons are used in the text to represent the camera buttons and switches.
Language that displays on the screen appears inside [ ] (square brackets).
: Things you should be careful about
: Troubleshooting tips
: Hints for getting more out of your camera
: Supplemental information
(p. xx): Reference pages (“xx” stands for a page number)
This guide assumes all functions are at their default settings.
The various types of memory cards that can be used in this camera are
collectively referred to as memory cards in this guide.
Downloaded From camera-usermanual.com Canon Manuals
3
What Do You Want to Do?
4 Shoot
z Shoot, leaving it to the camera to make settings .......................... 26
Take good people shots
I
Portraits
(p. 62)
V
Kids and Pets
(p. 63)
w
At the Beach
(p. 63)
Shoot various other scenes
Night Scenes
(p. 63)
O
Low Light
(p. 63)
Foliage
(p. 64)
Shoot with special effects
Vivid Colors (p. 65)
Miniature Effect
(p. 67)
P
Against Snow
(p. 64)
C
Y
P
O
Poster Effect
(p. 65)
Toy Camera Effect
(p. 68)
Facial Expressions
(p. 80)
t
Fireworks
(p. 64)
Fish-eye Effect
(p. 66)
Monochrome
(p. 69)
z Focus on faces ................................................................. 26, 62, 93
z Shoot in places where I cannot use the flash (turn off the flash) .. 52
z Take pictures with me in them too (self-timer)........................ 55, 76
z Insert the date and time into my shots.......................................... 54
z Shoot a movie clip just before taking a picture ............................. 72
Downloaded From camera-usermanual.com Canon Manuals
4
What Do You Want to Do?
1 View
z Look at my pictures ...................................................................... 30
z Automatically play back pictures (slideshow) ............................. 116
z Look at my pictures on a TV....................................................... 170
z Look at my pictures on a computer .............................................. 36
z Quickly search pictures .............................................................. 112
z Erase pictures....................................................................... 32, 127
E Shoot/View Movies
z Shoot movies........................................................................ 33, 103
z View movies ................................................................................. 35
z Shoot fast moving subjects and play them back in slow motion... 106
c
Print
C
Y
P
O
z Print pictures............................................................................... 140
Save
z Save images to a computer.......................................................... 36
3
Other
z Turn off sounds............................................................................. 48
z Use the camera abroad ........................................................ 17, 159
z Understand what is displayed on the screen.............................. 183
Downloaded From camera-usermanual.com Canon Manuals
5
Table of Contents
Checking the Package Contents .......2
Read This First ..................................3
Conventions Used in This Guide .......3
What Do You Want to Do? ................4
Table of Contents ..............................6
Safety Precautions.............................9
Returning the Camera to Default
Settings ......................................... 49
Power Saving Function
(Auto Power Down)....................... 50
1 Getting Started .................13
Turning the Flash Off ...................... 52
Zooming In More Closely on
Subjects (Digital Zoom)................. 53
Inserting the Date and Time............ 54
Using the Self-Timer ....................... 55
Changing the Aspect Ratio ............. 57
Changing the Recording Pixel
Setting (Image Size) ..................... 58
Changing the Compression Ratio
(Image Quality) ............................. 58
Using the Touch Panel ....................14
Charging the Battery........................15
Compatible Memory Cards
(Sold Separately)...........................17
Inserting the Battery.........................18
Inserting the Memory Card ..............19
Setting the Date and Time ...............21
Setting the Display Language..........23
Formatting Memory Cards ...............24
Pressing the Shutter Button.............25
Taking Pictures (Smart Auto)...........26
Viewing Images ...............................30
Active Display ..................................31
Erasing Images................................32
Shooting Movies ..............................33
Viewing Movies................................35
Transferring Images to a Computer
for Viewing.....................................36
C
2 Learning More ..................41
Components Guide..........................42
Screen Display.................................43
Indicator ...........................................44
FUNC. Menu – Basic Operations ....45
MENU – Basic Operations...............46
Adjusting the Screen Brightness......47
Changing the Sound Settings ..........48
3 Shooting with Commonly
Used Functions ................51
Y
P
O
4 Adding Effects and
Shooting in Various
Conditions ........................61
Shooting in Various Conditions ....... 62
Adding Effects and Shooting........... 65
Making Short Movies Automatically
(Movie Digest)............................... 72
Detecting a Face and Shooting
(Smart Shutter) ............................. 74
Shooting Long Exposures ............... 78
High-Speed Continuous Shooting
(High-speed Burst)........................ 79
Capturing the Best Facial
Expressions (Best Image
Selection) ...................................... 80
Downloaded From camera-usermanual.com Canon Manuals
6
Table of Contents
5 Choosing Settings
Yourself.............................81
Shooting in Program AE ................. 82
Adjusting the Brightness
(Exposure Compensation) ............ 83
Turning the Flash On ...................... 83
Adjusting the White Balance ........... 84
Changing the ISO Speed ................ 86
Correcting the Brightness and
Shooting (i-Contrast)..................... 87
Continuous Shooting....................... 88
Changing the Tone of an Image
(My Colors) ................................... 89
Shooting Close-ups (Macro) ........... 91
Shooting Far Away Subjects
(Infinity) ......................................... 91
Changing the AF Frame Mode........ 93
Magnifying the Focal Point.............. 95
Choosing the Subject to Focus On
(Touch AF).................................... 96
Shooting with the AF Lock .............. 97
Shooting with Servo AF .................. 97
Changing the Metering Method....... 98
Shooting with the AE Lock .............. 99
Shooting with the FE Lock .............. 99
Shooting with Slow Synchro ......... 100
Red-Eye Correction ...................... 101
Checking for Shut Eyes ................ 102
C
Shooting Super Slow Motion
Movies......................................... 106
Using the Wind Filter ..................... 107
Changing the Image Quality.......... 108
Other Shooting Functions.............. 109
Editing ........................................... 109
7 Using Various Playback and
Editing Functions...........111
Quickly Searching Images............. 112
Viewing Images in Filtered
Playback...................................... 115
Viewing Slideshows....................... 116
Checking the Focus....................... 118
Magnifying Images ........................ 119
Viewing Each Image in a Group.... 120
Displaying Various Images
(Smart Shuffle) ............................ 122
Changing Image Transitions ......... 123
Easy Operations with Touch
Actions ........................................ 123
Protecting Images ......................... 125
Erasing Images ............................. 127
Tagging Images as Favorites ........ 129
Organizing Images by Category
(My Category) ............................. 131
Rotating Images ............................ 132
Resizing Images............................ 133
Trimming ....................................... 134
Adding Effects with the My Colors
Function ...................................... 136
Correcting the Brightness
(i-Contrast) .................................. 137
Correcting the Red-Eye Effect....... 138
Y
P
O
6 Using Various Functions for
Shooting Movies ............103
Shooting Various Kinds of
Movies ........................................ 104
Shoot Movies That Look Like a
Miniature Model
(Miniature Effect) ........................ 105
Downloaded From camera-usermanual.com Canon Manuals
7
Table of Contents
8 Printing............................139
10 Useful Information .........169
Printing Images..............................140
Choosing Images for Printing
(DPOF) ........................................147
Choosing Images for
a Photobook ................................151
Viewing Images on a TV ............... 170
Using Household Power................ 174
Using an Eye-Fi Card.................... 175
Troubleshooting ............................ 177
List of Messages That Appear
on the Screen.............................. 180
Information Displayed
on the Screen.............................. 183
Functions and Menu Lists ............. 188
Playback Mode FUNC. Menu........ 196
Handling Precautions .................... 197
Specifications ................................ 198
Accessories................................... 202
Separately Sold Accessories ........ 203
Index ............................................. 205
9 Customizing Camera
Settings ...........................153
Changing Camera Settings............154
Changing Shooting Function
Settings........................................162
Changing Playback Function
Settings........................................168
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
8
Safety Precautions
• Before using the product, please ensure that you read the safety precautions described
below. Always ensure that the product is used correctly.
• The safety precautions noted on the following pages are intended to prevent injuries to
yourself and other persons, or damage to the equipment.
• Be sure to also check the guides included with any separately sold accessories you
use.
Warning
Denotes the possibility of serious injury or death.
• Do not trigger the flash in close proximity to people’s eyes.
Exposure to the intense light produced by the flash could damage eyesight. In particular,
remain at least 1 meter (39 inches) away from infants when using the flash.
• Store this equipment out of the reach of children and infants.
Strap: Putting the strap around a child’s neck could result in asphyxiation.
•
•
•
•
Use only recommended power sources.
Do not attempt to disassemble, alter or apply heat to the product.
Avoid dropping or subjecting the product to severe impacts.
To avoid the risk of injury, do not touch the interior of the product if it has been
dropped or otherwise damaged.
• Stop using the product immediately if it emits smoke, a strange smell, or
otherwise behaves abnormally.
• Do not use organic solvents such as alcohol, benzine, or thinner to clean the
product.
• Do not let the product come into contact with water (e.g. sea water) or other
liquids.
• Do not allow liquids or foreign objects to enter the camera.
This could result in electrical shock or fire.
If liquids or foreign objects come into contact with the camera interior, immediately turn
the camera off and remove the battery.
If the battery charger becomes wet, unplug it from the outlet and consult your camera
distributor or a Canon Customer Support Help Desk.
C
Y
P
O
• Use only the recommended battery.
• Do not place the battery near or in direct flame.
• Unplug the power cord periodically, and using a dry cloth, wipe away any dust
and dirt that has collected on the plug, the exterior of the power outlet, and the
surrounding area.
• Do not handle the power cord with wet hands.
• Do not use the equipment in a manner that exceeds the rated capacity of the
electrical outlet or wiring accessories. Do not use if the power cord or plug are
damaged, or not fully plugged into the outlet.
• Do not allow dirt or metal objects (such as pins or keys) to contact the terminals
or plug.
The battery may explode or leak, resulting in electrical shock or fire. This could cause
injury and damage the surroundings. In the event that a battery leaks and the battery
electrolyte contacts eyes, mouth, skin or clothing, immediately flush with water.
Downloaded From camera-usermanual.com Canon Manuals
9
Safety Precautions
• Turn the camera off in places where camera use is prohibited.
The electromagnetic waves emitted by the camera may interfere with the operation of
electronic instruments and other devices. Exercise adequate caution when using the
camera in places where use of electronic devices is restricted, such as inside airplanes
and medical facilities.
• Do not play the supplied CD-ROM(s) in any CD player that does not support data
CD-ROMs.
It is possible to suffer hearing loss from listening with headphones to the loud sounds of
a CD-ROM played on an audio CD player (music player). Additionally, this could damage
the speakers.
Caution
Denotes the possibility of injury.
• When holding the camera by the strap, be careful not to bang it, subject it to
strong impacts or shocks, or let it get caught on other objects.
• Be careful not to bump or push strongly on the lens.
This could lead to injury or damage the camera.
Y
P
O
• When using the flash, be careful not to cover it with your fingers or clothing.
This could result in burns or damage to the flash.
• Avoid using, placing or storing the product in the following places:
- Places subject to strong sunlight
- Places subject to temperatures above 40 °C (104 °F)
- Humid or dusty areas
C
These could cause leakage, overheating or an explosion of the battery, resulting in
electrical shock, fire, burns or other injuries.
High temperatures may cause deformation of the camera or battery charger casing.
• The slideshow transition effects may cause discomfort when viewed for
prolonged periods.
Caution
Denotes the possibility of damage to the equipment.
• Do not aim the camera at bright light sources (such as the sun on a clear day).
Doing so may damage the image sensor.
• When using the camera on a beach or at a windy location, be careful not to allow
dust or sand to enter the camera.
This may cause the product to malfunction.
• In regular use, small amounts of smoke may be emitted from the flash.
This is due to the high intensity of the flash burning dust and foreign materials stuck to the
front of the unit. Please use a cotton swab to remove dirt, dust or other foreign matter from
the flash to prevent heat build-up and damage to the unit.
Downloaded From camera-usermanual.com Canon Manuals
10
Safety Precautions
• Remove and store the battery when you are not using the camera.
If the battery is left inside the camera, damage caused by leakage may occur.
• Before you discard the battery, cover the terminals with tape or other insulators.
Contacting other metal materials may lead to fire or explosions.
• Unplug the battery charger from the power outlet after charging is complete, or
when you are not using it.
• Do not place anything, such as cloth on top of the battery charger while it is
charging.
Leaving the unit plugged in for a long period of time may cause it to overheat and distort,
resulting in fire.
• Do not place the battery near pets.
Pets biting the battery could cause leakage, overheating or explosion, resulting in fire or
damage.
• Do not sit down with the camera in your pocket.
Doing so may cause malfunctions or damage the screen.
• When putting the camera in your bag, ensure that hard objects do not come into
contact with the screen.
• Do not attach any hard objects to the camera.
Doing so may cause malfunctions or damage the screen.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
11
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
12
1
Getting Started
This chapter explains preparations before shooting, how to shoot in
A mode, and then how to view and erase the images you take. The
latter part of this chapter explains how to shoot and view movies and
transfer images to a computer.
Y
P
O
Attaching the Strap/Holding the Camera
• Attach the included strap and wrap it around your wrist to avoid dropping
the camera during use.
• Keep your arms tight against your body while holding the camera firmly by
the sides when shooting. Be sure that your fingers do not block the flash or
touch the screen.
C
Strap
Downloaded From camera-usermanual.com Canon Manuals
13
Using the Touch Panel
This camera has a touch panel screen that allows you to perform operations
with the touch of your finger.
Touch
Briefly touch the screen with your
finger.
z Used for operations such as making
various settings or shooting.
Drag
Touch and drag your finger across
the screen.
Y
P
O
z Used for playback operations such as
switching to the next image, or moving the
displayed location of magnified images.
Since the camera uses a pressure sensitive touch panel, the camera may
not recognize touch operations if you install a screen protector.
C
What if I cannot perform operations well?
When touching with your finger does not work well,
you can use the toggle attached to the strap to
perform operations. Only use the attached toggle to
perform operations. Do not use other objects, such
as pens or pencils.
You can calibrate the touch panel if you are having
difficulty choosing items or buttons (p. 161).
Downloaded From camera-usermanual.com Canon Manuals
14
Charging the Battery
Use the included charger to charge the battery. Be sure to charge the battery
as it is not charged at the time of purchase.
Remove the cover.
Insert the battery.
z Align the S marks on the battery and
charger, then insert the battery by sliding it
in ( ) and down ( ).
Charge the battery.
Y
P
O
z For CB-2LB: Flip out the plug (
CB-2LB
) and
plug the charger into a power outlet ( ).
z For CB-2LBE: Plug the power cord into
the charger, then plug the other end into a
power outlet.
X The CHARGE lamp lights and charging
starts.
X The FULL lamp will light when charging
has finished. Charging takes approx. 1
hour and 50 minutes.
C
CB-2LBE
Remove the battery.
z Unplug the battery charger from the power
outlet, then remove the battery by sliding it
in ( ) and up ( ).
To protect the battery and prolong its life, do not charge it for longer than
24 hours continuously.
Downloaded From camera-usermanual.com Canon Manuals
15
Charging the Battery
Number of Possible Shots/Shooting and Playback Times
Number of Shots*1
Approx. 170
Movie Shooting Time*2
Approx. 30 minutes
Continuous
Shooting*3
Approx. 50 minutes
Approx. 4 hours
Playback Time
*1 The number of shots that can be taken is based on the Camera & Imaging Products
Association (CIPA) measurement standard.
*2 Times are based on default settings, starting and stopping shooting, turning the camera on
and off, and operations such as using the zoom.
*3 Times are based on repeatedly shooting until the maximum clip length is reached or recording
stops automatically.
• Under some shooting conditions, the number of possible shots and shooting time may
be less than mentioned above.
Battery Charge Indicator
An icon or message will appear on the screen indicating the battery’s charge
state.
Display
Y
P
O
Summary
Sufficient charge.
C
Slightly depleted, but sufficient.
(Blinking red)
“Change the battery pack.”
Nearly depleted. Charge the battery.
Depleted. Charge the battery.
What if...
• What if the battery develops a bulge?
This is a normal characteristic of the battery and does not indicate a problem.
However, if the battery bulges to the point where it will no longer fit into the
camera, please contact a Canon Customer Support Help Desk.
• What if the battery is quickly depleted even after charging?
The battery has reached the end of its life span. Purchase a new battery.
Downloaded From camera-usermanual.com Canon Manuals
16
Compatible Memory Cards (Sold Separately)
Using the battery and charger effectively
• Charge the battery on the day, or the day before, it will be used.
Charged batteries continue to discharge naturally even if they are not used.
• How to store the battery for long periods:
Deplete and remove the battery from the camera. Attach the terminal cover and
store the battery. Storing a battery for long periods of time (about a year) without
depleting it may shorten its life span or affect its performance.
• The battery charger can also be used when abroad.
The charger can be used in regions that have 100 – 240 V (50/60 Hz) AC power.
If the plug does not fit the outlet, use a commercially available plug adapter. Do
not use electrical transformers for foreign travel as they will cause damage.
Compatible Memory Cards (Sold
Separately)
Y
P
O
The cards below can be used without restrictions on their capacities.
• SD memory cards*
• SDHC memory cards*
• SDXC memory cards
*
• Eye-Fi cards
C
* This memory card complies with SD standards. Some cards may not operate properly
depending on the brand of card used.
Depending on your computer’s OS version, SDXC memory cards may not
be recognized even when using a commercially available card reader.
Check to make sure that your OS supports SDXC memory cards
beforehand.
About Eye-Fi Cards
This product is not guaranteed to support Eye-Fi card functions (including
wireless transfer). In case of an issue with an Eye-Fi card, please check with
the card manufacturer.
Also note that an approval is required to use Eye-Fi cards in many countries
or regions. Without approval, use of the card is not permitted. If it is unclear
whether the card has been approved for use in the area, please check with
the card manufacturer.
Downloaded From camera-usermanual.com Canon Manuals
17
Inserting the Battery
Insert the included battery.
Open the cover.
z Slide the cover (
) and open it (
).
Insert the battery.
z Press the battery lock in the direction of the
arrow, then insert the battery as shown
until it locks into place with a click.
z Be sure to insert the battery in the correct
direction or it will not properly lock into
place.
Terminals
Battery
Lock
Y
P
O
Close the cover.
C
z Close the cover (
), and press downward
as you slide it until it clicks into place ( ).
Removing the Battery
z Open the cover and press the battery lock
in the direction of the arrow.
X The battery will pop up.
Downloaded From camera-usermanual.com Canon Manuals
18
Inserting the Memory Card
Insert a memory card (sold separately).
Check the card’s write-protect tab.
z If the memory card has a write-protect tab,
you will not be able to record images if the
tab is in the locked position. Slide the tab
up until you hear a click.
Open the cover.
z Slide the cover (
) and open it (
).
Insert the memory card.
Y
P
O
z Insert the memory card as shown until it
locks into place with a click.
z Be sure the memory card is oriented
Terminals
C
correctly. Inserting the memory card in the
wrong direction could damage the camera.
Close the cover.
z Close the cover (
) and press downward
as you slide it until it clicks into place ( ).
Removing the Memory Card
z Open the cover and push the memory card
in until you hear a click, then slowly release
it.
X The memory card will pop up.
Downloaded From camera-usermanual.com Canon Manuals
19
Inserting the Memory Card
What if [Memory card locked] appears on the screen?
If the write-protect tab is in the locked position, [Memory card locked] will appear
on the screen and you will not be able to take or erase images.
Number of Shots per Memory Card
Memory Card
Number of Shots
4 GB
Approx. 1231
16 GB
Approx. 5042
• Values are based on the default settings.
• The number of shots that can be taken will vary depending on camera settings, the
subject and the memory card used.
Can you check the number of shots that can be taken?
You can check the number of shots that can be
taken when the camera is in a Shooting mode
(p. 26).
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
20
Setting the Date and Time
The Date/Time settings screen will appear the first time the camera is turned
on. Since the dates and times recorded into your images are based on these
settings, be sure to set them.
Turn on the camera.
z Press the power button.
X The Date/Time screen will appear.
Set the date and time.
z Touch the option you want to set.
X op will appear.
z Touch op to set a value.
Complete the setting.
z Touch ^.
Y
P
O
X Once the date and time have been set, the
Date/Time screen will close.
z Pressing the power button will turn off the
C
camera.
Reappearing Date/Time screen
Set the correct date and time. If you have not set the date and time, the Date/Time
screen will appear each time you turn on the camera.
Daylight saving time settings
If you touch
in Step 2 and then choose
saving (1 hour ahead).
, you will set the time to daylight
Downloaded From camera-usermanual.com Canon Manuals
21
Setting the Date and Time
Changing the Date and Time
You can change the current date and time settings.
Display the menu.
z Touch H, then touch n.
Y
P
O
Choose [Date/Time].
z Touch the 3 tab.
z Drag up or down the screen to choose
[Date/Time].
z Touch [Date/Time].
C
Change the date and time.
z Follow Steps 2 and 3 on p. 21 to adjust the
settings.
z Touch ^ twice to close the menu.
Date/Time battery
• The camera has a built-in date/time battery (backup battery) that allows the
date/time settings to be retained for about 3 weeks after the battery pack has
been removed.
• By inserting a charged battery or connecting an AC adapter kit (sold separately,
p. 203) the date/time battery can be charged in about 4 hours even if the camera
is not turned on.
• If the date/time battery is depleted, the Date/Time screen will appear when you
turn the camera on. Follow the steps on p. 21 to set the date and time.
Downloaded From camera-usermanual.com Canon Manuals
22
Setting the Display Language
You can change the language that displays on the screen.
Enter Playback mode.
z Press the 1 button.
Display the settings screen.
z Touch and hold n.
X The settings screen will appear.
Set the display language.
z Touch a display language, then touch ^.
X Once the display language has been set,
Y
P
O
the settings screen will close.
What if n does not appear?
C
When there are images on the memory card, touch H on the lower left of the
screen to display n.
You can also change the display language by touching H, then
n. Choose the 3 tab in the screen that appears, then choose the
[Language
] menu item.
Downloaded From camera-usermanual.com Canon Manuals
23
Formatting Memory Cards
Before you use a new memory card or one that has been formatted in other
devices, you should format the card with this camera. Formatting (initializing)
a memory card erases all data on the memory card. As you cannot retrieve
the erased data, exercise adequate caution before formatting the memory
card.
Before formatting an Eye-Fi card (p. 175), be sure to install the software
contained on the card to a computer.
Display the menu.
z Touch H, then touch n.
Y
P
O
Choose [Format].
C
z Touch the 3 tab.
z Drag up or down the screen to choose
[Format].
z Touch [Format].
Choose [OK].
z Touch [OK].
X A confirmation screen will appear.
Format the memory card.
z Touch [OK] to start formatting the memory
card.
z When formatting ends, [Memory card
formatting complete] appears on the
screen. Touch [OK].
Downloaded From camera-usermanual.com Canon Manuals
24
Pressing the Shutter Button
Formatting or erasing data on a memory card merely changes the file
management information on the card and does not ensure its contents are
completely erased. Be careful when transferring or disposing of a memory
card. When disposing of a memory card, take precautions such as
physically destroying the card to prevent personal information leaks.
• The total capacity of the memory card displayed in the formatting screen
may be less than indicated on the memory card.
• Perform a low-level format (p. 155) of the memory card when the camera
does not operate properly, the recording/reading speed of a memory card
has dropped, when continuous shooting speed slows down, or when
movie recording stops suddenly.
Pressing the Shutter Button
To take images that are in focus, be sure to first press the shutter button
lightly (halfway) to focus, then press fully to shoot.
Y
P
O
Press halfway (Press lightly to focus).
z Press lightly until the camera beeps twice
C
and AF frames appear where the camera
focused.
Press fully (Press fully to shoot).
X The camera plays the shutter sound and
takes the shot.
z Since the shot is being taken while the
shutter sound plays, be careful not to move
the camera.
Does the length of the shutter sound change?
• Since the time required to shoot differs depending on the scene you want to
take, the length of the shutter sound may change.
• If the camera or subject moves while the shutter sound is playing, the recorded
image may be blurry.
If you shoot without pressing the shutter button halfway, the image may not
be in focus.
Downloaded From camera-usermanual.com Canon Manuals
25
Taking Pictures (Smart Auto)
Since the camera can determine the subject and shooting conditions, you can
let it automatically select the best settings for the scene and just shoot.
Turn on the camera.
z Press the power button.
X The start-up screen will appear.
Enter A mode.
z Set the mode switch to A.
z When you point the camera toward the
subject, the camera will make a slight
noise as it determines the scene.
X The icon for the determined scene will
appear in the upper left of the screen, while
the icon for image stabilization will appear
in the upper right (pp. 184, 185).
X The camera will focus on detected
subjects and display frames on them.
X Black bars will appear on the sides of the
screen. These areas will not be recorded
when shooting.
C
Y
P
O
Compose the shot.
z Moving the zoom lever toward i
Zoom Bar
(telephoto) will zoom in on your subject,
making it appear larger. Moving the lever
toward j (wide angle) will zoom out from
your subject, making it appear smaller.
(The zoom bar showing the zoom position
appears on the screen.)
Focus.
z Press the shutter button halfway to focus.
Downloaded From camera-usermanual.com Canon Manuals
26
Taking Pictures (Smart Auto)
X When the camera focuses, it will beep
twice and AF frames will appear where the
camera focused.
Several AF frames will appear when the
camera focuses on more than 1 point.
AF Frame
Shoot.
z Press the shutter button fully to shoot.
X The camera will play the shutter sound and
shoot. The flash will automatically fire in
low light conditions.
X The image will appear on the screen for
approximately 2 seconds.
z You can take a second picture even while
an image is displayed by pressing the
shutter button again.
Y
P
O
Touching the Screen to Shoot (Touch Shutter)
C
By simply touching the screen the camera will focus on your subject and
adjust the brightness for easy shooting.
Activate the Touch Shutter
function.
z Touch
, it will change to
.
Choose the subject to focus on.
z Touch and hold your finger on the subject
on the screen.
z When the camera focuses on the subject,
it will beep twice.
A blue frame appears and the focus and
exposure will continuously adjust (Servo
AF).
Downloaded From camera-usermanual.com Canon Manuals
27
Taking Pictures (Smart Auto)
Shoot.
z When you remove your finger from the
screen, the camera plays the shutter
sound and takes the shot.
z To deactivate the Touch Shutter function,
touch
. It will change to
.
• The Touch Shutter function operates in the same way as when pressing
the shutter button.
• You can also make Touch Shutter settings by touching H then
n, to choose [Touch Shutter] in the 4 tab.
• You can take a second picture even while the image you shot is displayed
by touching ^.
Choosing the subject to focus on (Touch AF)
Y
P
O
When the Touch Shutter function is deactivated (
), touch the subject
appearing on the screen to display
. Press and hold the shutter button halfway
to display a blue frame where focus and exposure will be maintained (Servo AF).
Press the shutter button fully to shoot.
What if...
C
• What if the color and brightness of the images do not turn out as
expected?
The scene icon (p. 184) that appears on the screen may not match the actual
scene, and you may not obtain the expected results. If this happens, try
shooting in G mode (p. 81).
• What if white and gray frames appear when you point the camera toward
a subject?
A white frame appears on the face or subject that the camera detected as the
main subject, while gray frames appear on other detected faces. The frames will
follow the subjects within a certain range.
If the subject moves, however, the gray frames will disappear, leaving only the
white frame.
• What if a frame does not appear on the subject you want to shoot?
The subject may not be detected, and frames may appear on the background.
If this happens, try shooting in G mode (p. 81).
Downloaded From camera-usermanual.com Canon Manuals
28
Taking Pictures (Smart Auto)
• What if a blue frame appears when you press the shutter button halfway?
A blue frame appears when a moving subject is detected; the focus and
exposure will continuously adjust (Servo AF).
• What if a flashing
appears?
Attach the camera to a tripod so that the camera does not move and blur the
image.
• What if the image comes out dark even if the flash fired when shooting?
The subject is too far away for the flash to reach. The effective flash range is
approximately 30 cm – 3.1 m (12 in. – 10.2 ft.) at maximum wide angle (j),
and approximately 1.0 – 1.7 m (3.3 – 5.6 ft.) at maximum telephoto (i).
• What if the camera beeps once when the shutter button is pressed
halfway?
Your subject may be too close. When the camera is at maximum wide angle
(j), move about 1 cm (0.4 in.) or more away from your subject and shoot.
Move about 1 m (3.3 ft.) or more away when the camera is at maximum
telephoto (i).
• What if the lamp lights when the shutter button is pressed halfway?
To reduce red-eye and to assist in focusing, the lamp may light when shooting
in low light conditions.
• What if the h icon blinks when you try to shoot?
The flash is charging. You can shoot when recharging ends.
C
Y
P
O
Icons that appear on the screen
The icon for the determined scene, and the IS mode icon will appear on the
screen. For details on the icons that appear, see “Scene Icons” (p. 184) and “IS
Mode Icons” (p. 185).
Downloaded From camera-usermanual.com Canon Manuals
29
Viewing Images
You can view the images you have taken on the screen.
Enter Playback mode.
z Press the 1 button.
X The last image you took will appear.
Choose an image.
z Dragging left to right across the screen will
cycle through the images in the reverse
order they were taken, from the newest
image to the oldest.
z Dragging right to left across the screen will
cycle through images in the order they
were taken, from oldest to newest.
z If you touch the left edge of the screen
(inside frame
on the screen at the left),
q will appear and images will display in the
reverse order they were taken, from the
newest image to the oldest.
z If you touch the right edge of the screen
(inside frame
on the screen at the left),
r will appear and images will display in the
order they were taken, from oldest to
newest.
z The images change more quickly if you
touch and hold qr, but they will appear
coarse.
z The lens will retract after approximately 1
minute elapses.
z Pressing the 1 button again while the
lens is retracted will turn the camera off.
C
Y
P
O
Switching to Shooting mode
Pressing the shutter button halfway while in Playback mode switches the camera
to Shooting mode.
Downloaded From camera-usermanual.com Canon Manuals
30
Active Display
When an image is displayed, lightly tapping the camera as shown below will
switch to the next image.
• Be sure to put the strap around your wrist, and hold the camera firmly to
avoid dropping it.
• Depending on the way you tap the camera, images may not switch.
Switch to next image
Switch to previous image
Tilt the camera to switch images
Y
P
O
If you touch and hold q on the left of the screen and
tilt the camera as shown while switching through
images (p. 30), the images advance quickly. Tilt the
camera in the opposite direction while holding r.
C
When switching images by dragging them, or by touching and holding q or
r, the images will appear coarse.
Downloaded From camera-usermanual.com Canon Manuals
31
Erasing Images
You can choose and erase images one at a time. Please note that erased
images cannot be recovered. Exercise adequate caution before erasing an
image.
Enter Playback mode.
z Press the 1 button.
X The last image you took will appear.
Choose an image to erase.
z Drag across the screen to choose an
image.
Erase the image.
Y
P
O
z After touching H, drag up or down the
screen to choose a, then touch the menu
item again.
C
z When [Erase?] appears on the screen,
touch [Erase].
X The displayed image will be erased.
z To exit instead of erasing, touch [Cancel].
You can also use Touch Actions to erase images (p. 123).
Downloaded From camera-usermanual.com Canon Manuals
32
Shooting Movies
The camera will determine the subject and shooting conditions, and select the
best settings for the scene. The audio will record in stereo.
If you continue shooting for a long time, the camera may become warm. This
is not a malfunction.
Remaining Time
Enter A mode and compose the
shot.
z Follow Steps 1 – 3 on p. 26 to compose the
shot.
z You can check the amount of time you can
shoot on the screen.
Shoot.
z Touch
.
z The display will switch to full-screen, and
Elapsed Time
C
Microphones
Y
P
O
the area displayed on the screen will be
recorded.
X The camera will beep once, recording will
start, and [ Rec] and the elapsed time will
appear on the screen.
z If you change the composition of your shot
during shooting, the focus, brightness and
tone will automatically adjust.
z Do not touch the microphones while shooting.
X It may be difficult to hear recorded sound
during playback if you cover the
microphones when shooting.
z Do not operate the camera other than
touching
while shooting. Operation
sounds will be recorded in the movie.
Stop shooting.
z Touch
.
X The camera will beep twice and stop
shooting the movie.
X Shooting will automatically stop when the
memory card fills.
Downloaded From camera-usermanual.com Canon Manuals
33
Shooting Movies
Zooming while shooting
Moving the zoom lever while shooting will zoom in on or out from the subject.
However, operation sounds will be recorded.
• When the mode switch is set to A, the icon for the determined scene
will appear (p. 184). “When Moving” icons will not appear, however.
Under certain conditions, the icon that appears may not match the actual
scene.
• If you change the composition while shooting and the white balance is not
optimal, touch
to stop recording, then start recording again (only
when the image quality is set to
(p. 108)).
• Movies can be shot by touching
even if the mode switch is set to 4
(p. 103).
Shooting Time
Memory Card
Shooting Time
4 GB
Approx. 14 min. 34 sec.
16 GB
Approx. 59 min. 40 sec.
Y
P
O
• Shooting times are based on default settings.
• Maximum clip length is approx. 10 minutes.
• Recording may stop even if the maximum clip length has not been reached on some
memory cards. SD Speed Class 6 or higher memory cards are recommended.
C
Downloaded From camera-usermanual.com Canon Manuals
34
Viewing Movies
You can view the movies you have shot on the screen.
Enter Playback mode.
z Press the 1 button.
X
appears on movies.
Choose a movie.
z Drag across the screen to choose a movie
to play back.
Play the movie.
z Touch
.
X The movie will play.
Y
P
O
z Drag up or down the screen during
playback to adjust the volume.
z If you touch the screen during playback,
the movie will stop, and the movie control
panel will appear on the screen. Touch
to continue watching the movie.
X After the movie finishes,
appears.
C
How can I play back movies on a computer?
Install the included software (p. 37).
• When watching a movie on a computer, frames may drop, it may not play
smoothly, and the audio may stop suddenly depending on the computer’s
capabilities. Use the supplied software to copy the movie back onto the memory
card, then play back the movie with the camera. If you connect the camera to a
TV, you can view images on the larger screen.
Downloaded From camera-usermanual.com Canon Manuals
35
Transferring Images to a Computer for
Viewing
You can use the included software to transfer images you have shot with the
camera to a computer for viewing. If you are already using software included
with another Canon-brand compact digital camera, install the software from
the included CD-ROM, overwriting your current installation.
System Requirements
Windows
OS
Computer model
CPU
RAM
Interface
Free Hard Disk
Space
Display
Windows 7 (Including SP1)
Windows Vista SP2
Windows XP SP3
The above OS should be pre-installed on computers with built-in
USB ports.
Pentium 1.3 GHz or higher (still images), Core 2 Duo 2.6 GHz or
higher (movies)
Windows 7 (64 bit): 2 GB or more
Windows 7 (32 bit), Windows Vista (64 bit, 32 bit): 1 GB or more (still
images), 2 GB or more (movies)
Windows XP: 512 MB or more (still images), 2 GB or more (movies)
USB
C
420 MB or more*
Y
P
O
1,024 x 768 pixels or higher
* For Windows XP, Microsoft .NET Framework 3.0 or later (max. 500 MB) must be installed.
Installation may take some time depending on your computer’s capabilities.
Macintosh
OS
Computer model
CPU
RAM
Interface
Free Hard Disk
Space
Display
Mac OS X (v10.5 – v10.6)
The above OS should be pre-installed on computers with built-in
USB ports.
Intel Processor (still images), Core 2 Duo 2.6 GHz or higher (movies)
Mac OS X v10.6: 1 GB or more (still images), 2 GB or more (movies)
Mac OS X v10.5: 512 MB or more (still images), 2 GB or more
(movies)
USB
480 MB or more
1,024 x 768 pixels or higher
Downloaded From camera-usermanual.com Canon Manuals
36
Transferring Images to a Computer for Viewing
Installing the Software
Windows Vista and Mac OS X (v10.5) are used for these explanations.
Place the CD-ROM in the
computer’s CD-ROM drive.
z Place the supplied CD-ROM (DIGITAL
CAMERA Solution Disk) (p. 2) into the
computer’s CD-ROM drive.
z When the CD-ROM is placed in a
Macintosh, a CD-ROM icon will appear on
the desktop. Double-click the icon to open
the CD-ROM, then double click
when
it appears.
Install the software.
Y
P
O
z For Windows, click [Easy Installation], and
for Macintosh click [Install], then follow the
on-screen instructions to proceed with the
installation.
z If the [User Account Control] window
appears in Windows, follow the on-screen
instructions to proceed.
C
Complete the installation.
z For Windows, click [Restart] or [Finish],
then remove the CD-ROM when your
desktop screen appears.
z For Macintosh, click [Finish] in the screen
that appears when the installation is
complete, then remove the CD-ROM when
your desktop screen appears.
Downloaded From camera-usermanual.com Canon Manuals
37
Transferring Images to a Computer for Viewing
Transferring and Viewing Images
Connect the camera to the
computer.
z Turn off the camera.
z Open the cover and insert the included
interface cable’s smaller plug (p. 2) firmly
into the camera terminal in the direction
shown.
z Insert the interface cable’s larger plug into
the computer’s USB port. For details on
the computer’s USB port, refer to the user
guide provided with the computer.
Y
P
O
Turn on the camera to open
CameraWindow.
z Press the 1 button to turn on the camera.
C
z For Windows, click [Downloads Images
From Canon Camera using Canon
CameraWindow] when it appears on the
screen. CameraWindow will appear when
a connection is established between the
camera and computer.
z For Macintosh, CameraWindow will
appear when a connection is established
between the camera and computer.
CameraWindow
Transfer Images.
z Click [Import Images from Camera], and
then click [Import Untransferred Images].
X Images will transfer to the computer.
Images will be sorted by date and saved in
separate folders in the Pictures folder.
Downloaded From camera-usermanual.com Canon Manuals
38
Transferring Images to a Computer for Viewing
z When image transfer is complete, close
CameraWindow and press the 1 button
to turn the camera off, then unplug the
cable.
z For details on how to view images using a
computer, refer to the Software Guide.
• If CameraWindow does not appear even after following Step 2 for
Windows, click the [Start] menu and choose [All Programs], followed by
[Canon Utilities], [CameraWindow] and [CameraWindow].
• If CameraWindow does not appear even after following Step 2 for
Macintosh, click the CameraWindow icon on the Dock (the bar which
appears at the bottom of the desktop).
• For Windows 7, use the following steps to display CameraWindow.
Click
on the task bar.
In the screen that appears, click the
link to modify the program.
Choose [Downloads Images From Canon Camera using Canon
CameraWindow] and click [OK].
Double click
.
• You can transfer images even without using the image transfer function
in the included software by simply connecting your camera to a computer.
There are, however, the following limitations.
C
Y
P
O
- It may take a few minutes from when you connect the camera to the computer
until you can transfer images.
- Images shot in the vertical orientation may be transferred in the horizontal
orientation.
- Protection settings for images may be lost when transferred to a computer.
- There may be problems transferring images or image information correctly
depending on the version of the operating system in use, the file size, or the
software in use.
- Some functions in the included software may not be available, such as editing
movies, and transferring images to the camera.
Downloaded From camera-usermanual.com Canon Manuals
39
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
40
2
Learning More
This chapter explains the parts of the camera and what appears on the
screen, as well as the basic operating instructions.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
41
Components Guide
Lamp (pp. 55, 74, 75, 76, 163)
Lens
Speaker
Zoom Lever
Shooting: i (Telephoto) / j (Wide
Angle) (pp. 26, 53)
Playback: k (Magnify) / g (Index)
(pp. 112, 119)
Shutter Button (p. 25)
Power Button (p. 21)
Mode Switch
Microphones (p. 33)
C
Flash (pp. 52, 83, 100)
Battery Cover (p. 18)
DC Coupler Terminal Cover (p. 174)
Tripod Socket
Screen (LCD Monitor) (pp. 43, 183,
186)
Memory Card Slot Cover (p. 19)
1 (Playback) Button (pp. 30, 111)
Indicator (p. 44)
Strap Mount (p. 13)
HDMI™ Terminal (p. 171)
A/V OUT (Audio/Video Output) /
DIGITAL Terminal (pp. 38, 140, 170)
Y
P
O
Mode Switch
Use the mode switch to change the Shooting mode.
You can leave it to the camera to select settings for fully
automatic shooting (p. 26).
You can shoot with the best settings for the scene (p. 62) or
choose settings yourself to take various types of pictures
(p. 81).
Downloaded From camera-usermanual.com Canon Manuals
42
Screen Display
Switching the Display
You can change the screen display by touching l. Refer to p. 183 for
details on information that appears on the screen.
Shooting
Information Display
No Information Display
Playback
Simple Information
Display
Y
P
O
Detailed Information
Display
C
Focus Check
Display (p. 118)
• Touching
while in Playback mode will hide all image information and
icons, but you can still switch images (pp. 30, 31). Touch the screen to
restore the original display.
• You can also switch the display by touching l while the image
displays right after shooting. However, Simple Information Display is not
available, and image information will not display. You can change the first
screen that displays by choosing the 4 tab, then [Review Info] (p. 164).
Downloaded From camera-usermanual.com Canon Manuals
43
Indicator
Screen Display in Low Light Conditions
The display automatically brightens when shooting in dark conditions,
allowing you to check the composition (Night Display function). However, the
brightness of the image on the screen, and the brightness of the actual image
recorded may be different. Screen noise may appear and the movement of
the subject may appear somewhat rough on the screen. This has no effect on
the recorded image.
Overexposure Warning during Playback
In Detailed Information Display (p. 43), overexposed areas of the image flash
on the screen.
Histogram during Playback
High
Low
Dark
Bright
Indicator
z The graph that appears in Detailed
Information Display (p. 186) is called the
histogram. The histogram shows the
distribution of brightness in an image
horizontally, and the amount of brightness
vertically, and in this way you can judge
the exposure.
C
Y
P
O
The indicator on the back of the camera (p. 42) will light or blink depending
on the camera’s status.
Color
Green
Status
Operation Status
Lights
Connected to a computer (p. 38)/Display off (p. 159)
Blinks
During camera start-up, Recording/Reading/Transmitting
image data, or when shooting long exposures (p. 78)
When the indicator blinks green, do not turn off the power, open the
memory card slot cover or battery cover, or shake or jolt the camera. These
actions may corrupt the image data or cause the camera or memory card
to malfunction.
Downloaded From camera-usermanual.com Canon Manuals
44
FUNC. Menu – Basic Operations
Commonly used functions can be set with the FUNC. menu.
The menu items and options differ depending on the Shooting mode (pp. 190
– 191) or Playback mode (p. 196).
Display the FUNC. menu.
z Touch H.
Choose a menu item.
z Drag the menu on the left up or down, or
touch a menu item to choose it.
z You can also choose menu items by
dragging on the screen outside of the
menu.
z Touch the menu item you chose again, or
touch the menu on the right.
Y
P
O
Choose an option.
C
z Drag the menu on the right up or down, or
touch an item to choose it.
z You can also choose menu items by
dragging on the screen outside of the
menu.
z Touch the menu item you chose again, or
touch ^.
X The item will be set, and the original
screen will reappear.
z To choose a different item from the menu
on the left, touch the appropriate item.
z In the screen in Step 2, you can also touch
items to choose them in the menu to the
right.
The options on the right will not appear if you have selected any of the
following items from the FUNC. menu while in Playback mode: \ (p. 132),
c (p. 147), : (p. 125),
(p. 129), a (p. 32),
(p. 114),
(p. 122),
; (p. 131).
Downloaded From camera-usermanual.com Canon Manuals
45
MENU – Basic Operations
Various functions can be set from the menus. The menu items are organized
under tabs, such as for shooting (4) and playback (1). The options differ
depending on the Shooting mode and the Playback mode (pp. 192 – 195).
Display the menu.
z Touch H, then touch n.
Choose a tab.
Y
P
O
z Touch a tab, or move the zoom lever
(p. 42) left or right to choose a tab.
C
Choose an item.
z Drag up or down the screen, or touch an
item to choose it.
z Some items require you to touch the item
to display a submenu in which you change
the setting.
Downloaded From camera-usermanual.com Canon Manuals
46
Adjusting the Screen Brightness
Choose an option.
z For items that display qr to the left and
right, touch qr to change settings.
z For items that display a bar, touch the spot
on the bar where you want to make the
setting.
Complete the setting.
z Touch ^.
X The normal screen will reappear.
Adjusting the Screen Brightness
Display the menu.
Y
P
O
z Touch H, then touch n.
Choose [LCD Brightness].
z Touch the 3 tab.
z Drag up or down the screen to choose
C
[LCD Brightness].
Adjust the brightness.
z Touch the point on the bar where you want
to change the brightness.
Downloaded From camera-usermanual.com Canon Manuals
47
Changing the Sound Settings
You can silence or adjust the volume of camera sounds.
Muting Sounds
Display the menu.
z Touch H, then touch n.
Choose [Mute].
z Touch the 3 tab.
z Drag up or down the screen to choose
[Mute], then touch qr to choose [On].
If you mute camera sounds, the sound will also be muted when playing
back movies (p. 35). If you drag up the screen while viewing a movie, the
sound will turn on. You can then adjust the volume by dragging up or down
the screen.
Adjusting the Volume
Y
P
O
Display the menu.
C
z Touch H, then touch n.
Choose [Volume].
z Touch the 3 tab.
z Drag up or down the screen to touch
[Volume].
Adjust the volume.
z Drag up or down the screen to choose an
item, then touch the point on the bar where
you want to change the volume.
Downloaded From camera-usermanual.com Canon Manuals
48
Returning the Camera to Default Settings
When you have mistakenly changed a setting, you can reset the camera to
the default settings.
Display the menu.
z Touch H, then touch n.
Choose [Reset All].
z Touch the 3 tab.
z Drag up or down the screen to touch
[Reset All].
Reset the settings.
z Touch [OK].
X The camera will reset to the default
settings.
Y
P
O
Are there functions that cannot be reset?
• The [Date/Time] (p. 22), [Language
] (p. 23), the image registered in [Startup Image] (p. 156), [Time Zone] (p. 159), [Calibration] (p. 161), and [Video
System] (p. 171), in the 3 tab.
• The recorded custom white balance data (p. 85).
• Colors that were chosen in Color Accent (p. 70) or Color Swap (p. 71).
• Shooting modes set when the mode switch was set to 4 (pp. 61, 103).
C
Downloaded From camera-usermanual.com Canon Manuals
49
Power Saving Function (Auto Power
Down)
To save battery power, the screen turns off, and the camera turns off
automatically when it is not operated for a certain time.
Power Saving during Shooting
The screen will turn off approximately 1 minute after you stop operating the
camera. After about 2 more minutes, the lens will retract and the camera will
turn off. When the screen has turned off but the lens has not yet retracted,
pressing the shutter button halfway (p. 25) turns on the screen and shooting
can continue.
Power Saving during Playback
The camera will turn off approximately 5 minutes after you stop operating the
camera.
• You can turn off the power saving function (p. 158).
• You can adjust the time before the screen turns off (p. 159).
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
50
3
Shooting with Commonly
Used Functions
This chapter explains how to use common functions, such as the selftimer, and how to turn off the flash.
C
Y
P
O
• This chapter assumes that the camera is set to A mode. When shooting
in another mode, check which functions are available in that mode (pp. 188
– 193).
Downloaded From camera-usermanual.com Canon Manuals
51
Turning the Flash Off
You can shoot with the flash turned off.
Touch
.
Choose !.
z Touch !.
z Touch ! again to make the setting.
X Once set, ! will appear on the screen.
z To turn the flash back on, follow the steps
above to choose
What if a flashing
.
appears?
Y
P
O
When you press the shutter button halfway in low light conditions where camera
shake is likely, a flashing
will appear on the screen. Attach the camera to a
tripod to prevent it from moving.
C
You can also choose items by touching
in Step 2.
Downloaded From camera-usermanual.com Canon Manuals
52
Zooming In More Closely on Subjects
(Digital Zoom)
You can use the digital zoom to zoom up to approximately 48x maximum, and
capture subjects that are too far away for the optical zoom to enlarge.
Move the zoom lever toward i.
z Hold the lever until zooming stops.
X Zooming stops at the largest possible
zoom factor without image deterioration.
The zoom factor will appear on the screen
when you release the zoom lever.
Zoom Factor
Move the zoom lever toward i
again.
X The digital zoom will zoom in even further
Y
P
O
on the subject.
Turning off the digital zoom
C
To turn off the digital zoom, touch H, then touch n to choose the 4 tab,
and choose [Digital Zoom] and the [Off] option.
• The focal lengths when using the optical zoom and digital zoom together
are as follows (all focal lengths are 35mm film equivalent):
28 – 1344 mm (28 – 336 mm when using the optical zoom alone)
• Depending on the recording pixel setting (p. 58) and zoom factor, the
images may appear coarse (the zoom factor will appear in blue).
Downloaded From camera-usermanual.com Canon Manuals
53
Inserting the Date and Time
You can insert the shooting date and time in the lower right corner of an
image. Once inserted, however, they cannot be deleted. Be sure to check
beforehand that the date and time are correctly set (p. 21).
Display the menu.
z Touch H, then touch n.
Choose [Date Stamp].
z Touch the 4 tab.
z Drag up or down the screen to choose
[Date Stamp].
Choose the setting.
z Touch qr to choose [Date] or [Date &
Time].
z Touching ^ restores the settings screen.
Y
P
O
X Once set, [DATE] will appear on the
screen.
Shoot.
C
X The shooting date or time will be recorded
in the image’s lower right corner.
z To restore to the original setting, choose
[Off] in Step 3.
You can insert and print the shooting date in images which do not have an
embedded date and time as follows. However, if you do this for images with
an embedded date and time, the date and time may be printed twice.
• Use the DPOF print settings (p. 147) to print.
• Use the included software to print.
Refer to the Software Guide for details.
• Print using printer functions (p. 140).
Downloaded From camera-usermanual.com Canon Manuals
54
Using the Self-Timer
The self-timer can be used to shoot a group photo that includes the
photographer. The camera will shoot approximately 10 seconds after the
shutter button is pressed.
Choose
.
z Touch H, then drag the menu on the
left up or down to choose
.
Choose ].
z Touch ].
z Touch ] again to make the setting.
X Once set, ] will appear on the screen.
Shoot.
Y
P
O
z Press the shutter button halfway to focus
on the subject, then press it fully.
X When the self-timer starts, the lamp blinks
and the self-timer sound plays.
X Two seconds before the shutter releases,
the lamp and sound speed up (the lamp
remains lit when the flash will fire).
z To cancel shooting with the timer after
countdown has started, touch the screen.
z To restore the original setting, choose
in Step 2.
C
Downloaded From camera-usermanual.com Canon Manuals
55
Using the Self-Timer
Using the Self-Timer to Prevent Camera Shake
The camera will shoot approximately 2 seconds after the shutter button is
pressed, preventing any camera shake that occurs when pressing the shutter
button.
Choose [.
z Follow Steps 1 – 2 on p. 55 to choose [.
X Once set, [ will appear on the screen.
z Follow Step 3 on p. 55 to shoot.
Customizing the Self-Timer
You can set the delay (0 – 30 seconds) and the number of shots (1 – 10
shots).
Y
P
O
Choose $.
z Follow Steps 1 – 2 on p. 55 to choose $.
z Touch
on the right side of the screen.
C
Choose the settings.
z Touch qr to choose a value for the
desired option.
z Touch ^ twice to complete the setting.
X Once set, $ will appear on the screen.
z Follow Step 3 on p. 55 to shoot.
• When 2 or more shots are set, the exposure and white balance settings
are set with the first shot. If the flash fires or you set a high number of
shots, the shooting interval may take longer than usual. Shooting will stop
automatically if the memory card fills.
• When you set the delay for more than 2 seconds, the lamp and self-timer
sound speed up 2 seconds before the shutter releases (the lamp remains
lit when the flash will fire).
Downloaded From camera-usermanual.com Canon Manuals
56
Changing the Aspect Ratio
You can change the width to height ratio of an image.
Choose
.
z Touch H, then drag the menu on the
left up or down to choose
.
Choose an option.
z Touch an item you want to set.
z If you drag the menu on the right up or
down, other items will appear.
z Touch the menu item again to complete
the setting.
X Once set, the aspect ratio of the screen will
change.
z To restore the original setting, choose
in Step 2.
Y
P
O
The same aspect ratio as the screen of this camera, used for displaying on widescreen HD TVs.
The same aspect ratio as 35mm film, used for printing out 5 x 7 in. or postcard
sized images.
C
The same aspect ratio as standard televisions, used for printing images on 3.5 x
5 in. to various A-sized papers.
A square-shaped aspect ratio.
How can I shoot with the display at full screen?
Set the aspect ratio to
. However, shooting at a 16:9 aspect ratio will result in
images whose aspect ratio does not match 5 x 7 in., Postcard size, 3.5 x 5 in., or
various A sizes of paper when printing. White margins may be left in the print, and
some portions of the image may not print.
The digital zoom (p. 53) is only available in the
[Digital Zoom] is fixed to [Off].
aspect ratio since
Downloaded From camera-usermanual.com Canon Manuals
57
Changing the Recording Pixel Setting
(Image Size)
You can choose from 4 recording pixel settings.
Choose the recording pixel setting.
z Touch H, then drag the menu on the
left up or down to choose
.
Choose an option.
z Touch an item you want to set.
z If you drag the menu on the right up or
down, other items will appear.
z Touch the menu item again to complete
the setting.
X The setting will appear on the screen.
z To restore to the original setting, choose
Y
P
O
in Steps 1 – 2.
Changing the Compression Ratio
(Image Quality)
C
You can choose from the following 2 compression ratios (image quality):
(Fine),
(Normal).
Choose the compression ratio
setting.
z Touch H, then drag the menu on the
left up or down to choose
.
Choose an option.
z Touch an item you want to set.
z Touch the menu item again to complete
the setting.
X The setting will appear on the screen.
z To restore the original setting, choose
in Steps 1 – 2.
Downloaded From camera-usermanual.com Canon Manuals
58
Changing the Compression Ratio (Image Quality)
Approximate Values for Recording Pixels and Compression
Ratio (for 4:3 Aspect Ratios)
Recording Pixels
Compression
Ratio
Single Image Data
Size (Approx. KB)
Number of Shots per
Memory Card
(Approx. shots)
4 GB
16 GB
(Large)
12M/4000x3000
3084
1231
5042
1474
2514
10295
(Medium 1)
6M/2816x2112
1620
2320
9503
780
4641
19007
(Medium 2)
2M/1600x1200
558
6352
26010
278
12069
49420
(Small)
0.3M/640x480
150
20116
82367
84
30174
123550
Y
P
O
• The values in the table are measured according to Canon standards and may change
depending on the subject, memory card and camera settings.
• The values in the table are based on 4:3 aspect ratio. If the aspect ratio is changed
(p. 57), more images can be shot because the data size per image will be smaller than
with 4:3 images. However, since
16:9 images have a setting of 1920 x 1080 pixels,
their data size will be larger than 4:3 images.
C
Approximate Values for Paper Size (for 4:3 Aspect Ratios)
A2 (16.5 x 23.4 in.)
z
For sending images as e-mail
attachments.
A3 – A5 (11.7 x
16.5 – 5.8 x 8.3 in.)
5 x 7 in.
Postcard size
3.5 x 5 in.
Downloaded From camera-usermanual.com Canon Manuals
59
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
60
4
Adding Effects and Shooting
in Various Conditions
This chapter explains how to add effects and how to shoot in various
conditions.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
61
Shooting in Various Conditions
The camera will select the necessary settings for the conditions in which you
wish to shoot when you choose the matching mode.
Set the camera to 4 mode.
z Set the mode switch to 4.
Choose a Shooting mode.
z Touch G.
z If you touch qr or quickly drag left or right
across the screen, other Shooting modes
will appear.
z Choose the desired shooting mode.
Y
P
O
X An explanation of the chosen Shooting
C
mode appears on the screen.
z Touch [OK] to complete the setting.
z Touch ^ to restore the Shooting mode
selection screen.
Shoot.
I Take portraits (Portrait)
z Produces a soft effect when
photographing people.
Downloaded From camera-usermanual.com Canon Manuals
62
Shooting in Various Conditions
V Take shots of kids and pets
(Kids&Pets)
z Lets you capture subjects that move
around, such as children and pets, without
missing photo opportunities.
z At maximum wide angle, move
approximately 1 m (3.3 ft.) or more away
from your subject. At maximum telephoto,
move approximately 3 m (9.8 ft.) or more
away from your subject and shoot.
Take nightscapes without using a
tripod (Handheld NightScene)
z Lets you take beautiful snapshots of city
nightscenes by combining several
continuous shots to reduce camera shake
and noise.
z When using a tripod, you should shoot in
A mode (p. 26).
C
Y
P
O
Take shots in low light conditions
(Low Light)
z Lets you take shots in dark places with
reduced camera shake and subject blur.
w At the beach (Beach)
z Lets you take shots of brightly lit people on
sandy beaches where the reflected
sunlight is strong.
Downloaded From camera-usermanual.com Canon Manuals
63
Shooting in Various Conditions
O Take shots of foliage (Foliage)
z Lets you shoot trees and leaves, such as
new growth, autumn leaves or blossoms,
in vivid colors.
P Take shots of people in snow
(Snow)
z Lets you take bright, natural-colored shots
of people against snowy backgrounds.
t Take shots of fireworks
(Fireworks)
Y
P
O
z Lets you take shots of fireworks in vivid
colors.
C
• In
mode, hold the camera firmly while shooting as multiple images
are captured in succession.
• In t mode, attach the camera to a tripod to prevent the camera from
moving and blurring the image. Additionally, you should set [IS Mode] to
[Off] when shooting with a tripod (p. 165).
• In V or
mode, images may appear coarse because the ISO speed
(p. 86) is increased to match the shooting conditions.
• If camera shake is too strong while shooting in
mode, the camera
may not be able to combine images or you may not obtain the expected
result depending on shooting conditions.
• In
mode, the recording pixel setting will be fixed at
(1984 x 1488
pixels).
Downloaded From camera-usermanual.com Canon Manuals
64
Adding Effects and Shooting
You can add various effects to images when shooting.
Choose a Shooting mode.
z Follow Steps 1 – 2 on p. 62 to choose a
Shooting mode.
Shoot.
Since you may not achieve the expected results with images shot in
,
,
and
modes, try taking some test shots first.
,
Shoot images with vivid colors
(Super Vivid)
z Lets you take shots with vivid, intense
colors.
Y
P
O
Take posterized shots
(Poster Effect)
C
z Lets you take shots that look like an old
poster or illustration.
Downloaded From camera-usermanual.com Canon Manuals
65
Adding Effects and Shooting
Shooting with the Effects of a Fish-Eye Lens
(Fish-eye Effect)
Lets you shoot with the distorting effect of a fish-eye lens.
Choose
.
z Follow Steps 1 – 2 on p. 62 to choose
Choose an effect level.
z If you touch
, [Effect Level] will appear
on the screen.
z Touch qr to choose an effect level, then
touch ^.
Y
P
O
X You can check the effect on the screen.
Shoot.
C
Downloaded From camera-usermanual.com Canon Manuals
66
.
Adding Effects and Shooting
Taking Shots That Look Like a Miniature Model
(Miniature Effect)
Blurs chosen portions in the top and bottom of an image to produce the effect
of a miniature model.
Choose
.
z Follow Steps 1 – 2 on p. 62 to choose
.
X A white frame (the area that will not be
blurred) appears on the screen.
Choose the area to keep in focus.
z Touch the screen or drag the white frame
up or down to change the area to keep in
focus.
Y
P
O
z Touch
C
, then touch
,
or
to
change the size of the focused area and
touch ^.
Shoot.
• If you touch
in Step 2, the frame will switch to vertical orientation. You
can change the area to keep in focus by touching the screen or dragging
the white frame left or right. Touch
again to return the frame
orientation to horizontal.
• Holding the camera vertically will change the orientation of the frame.
• Be sure to set
before shooting a Miniature Effect movie (p. 105).
Downloaded From camera-usermanual.com Canon Manuals
67
Adding Effects and Shooting
Shooting with the Effects of a Toy Camera (Toy
Camera Effect)
This effect darkens and blurs the corners of the image, and changes the
overall color so that it looks like an image shot with a toy camera.
Choose
.
z Follow Steps 1 – 2 on p. 62 to choose
.
Choose a color tone.
z If you touch
, [Color Tone] will appear
on the screen.
z Touch qr to choose an effect, then touch
^.
Y
P
O
X You can check the color tone on the
screen.
C
Shoot.
Standard
Images will look like they were shot with a toy camera.
Warm
Gives images a warmer tone than [Standard].
Gives images a cooler tone than [Standard].
Cool
Downloaded From camera-usermanual.com Canon Manuals
68
Adding Effects and Shooting
Shooting in Monochrome
You can shoot images in black and white, sepia or blue and white.
Choose
.
z Follow Steps 1 – 2 on p. 62 to choose
.
Choose a color tone.
z If you touch
, [Color Tone] will appear
on the screen.
z Touch qr to choose an effect, then touch
^.
X You can check the color tone on the
screen.
Y
P
O
Shoot.
C
B/W
Shoots in black and white.
Sepia
Shoots with sepia tones.
Shoots in blue and white.
Blue
Downloaded From camera-usermanual.com Canon Manuals
69
Adding Effects and Shooting
Shooting with Color Accent
You can choose to retain a single color and change the rest to black and white
in a composition.
Choose T.
z Follow Steps 1 – 2 on p. 62 to choose T.
Touch
.
X The unchanged image and the Color
Accent image will alternately display.
X The color for default settings is green.
Specify the color.
z Position the center frame so it is filled with
the color you want and touch the frame on
the lower part of the screen.
X The specified color will be recorded.
Recorded color
Y
P
O
Specify the range of colors.
C
z Touch op to change the range of colors
to be retained.
z Choose a negative value to limit the range
of colors. Choose a positive value to
extend the range of colors to similar colors.
z Touching ^ restores the shooting screen.
• Using the flash may cause unexpected results in this mode.
• Depending on shooting conditions, the image may become coarse, or the
colors may not come out as expected.
Downloaded From camera-usermanual.com Canon Manuals
70
Adding Effects and Shooting
Shooting with Color Swap
You can swap one color in an image for another when recording it. You can
only swap one color.
Choose Y.
z Follow Steps 1 – 2 on p. 62 to choose Y.
Touch
.
X The unchanged image and the Color Swap
image will alternately display.
X The default setting is to change green to
gray.
Y
P
O
Specify the color to be swapped.
z Position the center frame so it is filled with
the color you want and touch the left frame
that appears in the lower left of the screen.
X The specified color will be recorded.
C
Specify the target color.
z Position the center frame so it is filled with
the color you want and touch the right
frame that appears in the lower left of the
screen.
X The specified color will be recorded.
Specify the range of colors to be
swapped.
z Touch op to change the range of colors
to be retained.
z Choose a negative value to limit the range
of colors. Choose a positive value to
extend the range of colors to similar colors.
z Touching ^ restores the shooting screen.
Downloaded From camera-usermanual.com Canon Manuals
71
Making Short Movies Automatically (Movie Digest)
• Using the flash may cause unexpected results in this mode.
• Depending on shooting conditions, the image may become coarse, or the
colors may not come out as expected.
Making Short Movies Automatically
(Movie Digest)
You can make a short movie of a day just by taking still images.
Each time you take a picture, the scene just before taking your shot will be
recorded as a movie. All the movies recorded that day will be saved as a
single file.
Choose
.
z Follow Steps 1 – 2 on p. 62 to choose
Y
P
O
.
Shoot.
z Press the shutter button fully to shoot a still
image.
X A movie of approx. 2 – 4 sec. will be
recorded just before the image is taken.
C
What if a movie is not recorded?
If you take a picture just after turning on the camera, selecting
otherwise operating the camera, a movie may not be recorded.
mode or
Viewing movies made with Movie Digest mode
You can select movies made in
mode by date for viewing (p. 114).
Downloaded From camera-usermanual.com Canon Manuals
72
Making Short Movies Automatically (Movie Digest)
• Since you are also shooting movies when you shoot still images, the
battery will be depleted more quickly than in A mode.
• The image quality will be fixed at
for movies made in
mode.
• In the following cases, movies will be saved as separate files even if they
were made on the same day with
mode.
- If the clip file size reaches 4 GB or the recording time reaches approximately
1 hour
- If the movie is protected (p. 125)
- If the Time Zone setting is changed (p. 159)
- If a new folder is created (p. 158)
• If you operate the camera while shooting a movie, the sounds made will
be recorded in the movie.
• The camera will not play sounds, such as when pressing the shutter
button halfway, using the controls or the self-timer (p. 154).
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
73
Detecting a Face and Shooting
(Smart Shutter)
Detecting a Smile and Shooting
The camera will shoot, even without pressing the shutter button, when it
detects a smile.
Choose
.
z Choose
touch
z Touch
in Steps 1 – 2 on p. 62, then
.
, then touch ^.
Point the camera at a person.
z Each time the camera detects a smile it will
shoot after the lamp lights.
will pause smile detection.
Touch
to resume smile detection.
Y
P
O
z Touching
Smile detection:
On/Off
Number of shots, switching
modes (pp. 75, 76)
C
What if a smile is not detected?
Smiles are easier to detect if the subject faces the camera, and opens their mouth
enough to show some teeth when smiling.
Changing the number of shots
Touch
, then touch op to choose the number of shots. Touch ^ to change
the setting.
• You should switch to another mode when you finish shooting, or the
camera will continue taking shots each time the camera detects a smile.
• You can also shoot by pressing the shutter button.
Downloaded From camera-usermanual.com Canon Manuals
74
Detecting a Face and Shooting (Smart Shutter)
Using the Wink Self-Timer
Point the camera at a person and press the shutter button fully. The camera
will shoot approximately 2 seconds after it detects a wink.
Choose
.
z Choose
touch
z Touch
in Steps 1 – 2 on p. 62, then
.
, then touch ^.
Compose the shot and press the
shutter button halfway.
z Touch a face displayed on the screen to
choose a person to wink (Touch AF).
z Confirm that a green frame appears
Y
P
O
around the face of the person who will
wink.
Press the shutter button fully.
X The camera will enter shooting stand-by,
C
and [Wink to take picture] will appear on
the screen.
X The lamp will blink and the self-timer
sound will play.
Face the camera and wink.
X The shutter will release approximately 2
seconds after a wink is detected from the
person inside the frame.
z To cancel shooting with the timer after
countdown has started, touch the screen.
What if a wink is not detected?
• Wink a bit slowly.
• A wink may not be detected if eyes are covered by hair or a hat, or when wearing
glasses.
Downloaded From camera-usermanual.com Canon Manuals
75
Detecting a Face and Shooting (Smart Shutter)
Changing the number of shots
After touching
on the screen in Step 1, touch op to change the number of
shots. Touch ^ to complete the setting.
• Shutting both eyes will also be detected as a wink.
• If a wink is not detected, the shutter will release approximately 15
seconds later.
• If there are no people in the shot when the shutter button is pressed fully,
the camera will shoot after a person enters the shot and winks.
Using the Face Self-Timer
The shutter will release approximately 2 seconds after the camera detects a
new face (p. 93). You can use this when the photographer wants to be in the
image, such as a group photo.
Y
P
O
Choose
.
z Choose
touch
z Touch
C
in Steps 1 – 2 on p. 62, then
.
, then touch ^.
Compose the shot and press the
shutter button halfway.
z Make sure a green frame appears on the
face focused on and white frames appear
on other faces.
Press the shutter button fully.
X The camera will enter shooting stand-by,
and [Look straight at camera to start count
down] will appear on the screen.
X The lamp will blink and the self-timer
sound will play.
Downloaded From camera-usermanual.com Canon Manuals
76
Detecting a Face and Shooting (Smart Shutter)
Join the subjects and look at the
camera.
X When the camera detects a new face, the
lamp and self-timer sound will speed up
(the lamp remains lit when the flash will
fire), and approximately 2 seconds later
the shutter will release.
z To cancel shooting with the timer after
countdown has started, touch the screen.
Changing the number of shots
After touching
in the screen in Step 1, touch op to change the number of
shots, then touch ^ to complete the setting.
Even if your face is not detected after joining the subjects, the shutter will
release approximately 15 seconds later.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
77
Shooting Long Exposures
You can set the shutter speed to a range between 1 and 15 seconds to shoot
long exposures. However, you should attach the camera to a tripod to prevent
the camera from moving and blurring the image.
Choose N.
z Follow Steps 1 – 2 on p. 62 to choose N.
Choose the shutter speed.
z Touch ).
z Touch the bar, or drag it left or right, to
choose the shutter speed, then touch ^.
Confirm the exposure.
Y
P
O
z When you press the shutter button
halfway, the exposure for the chosen
shutter speed will appear on the screen.
Shoot.
C
• The brightness of the recorded image may differ from the brightness of
the screen in Step 3 when the shutter button was pressed halfway.
• When shutter speeds of 1.3 seconds or slower are used, images are
processed to reduce noise after being taken. A certain amount of
processing time may be needed before you can take the next shot.
• You should set the [IS Mode] to [Off] when shooting with a tripod (p. 165).
• If the flash fires, the image may be overexposed. If this happens, set the
flash to ! and shoot.
• You can also make settings in the FUNC. menu that appears when you
touch H.
Downloaded From camera-usermanual.com Canon Manuals
78
High-Speed Continuous Shooting
(High-speed Burst)
You can shoot continuously at a maximum speed of approximately
7.8 images/second while the shutter button is pressed fully and held.
Choose
.
z Follow Steps 1 – 2 on p. 62 to choose
.
Shoot.
X As long as you hold the shutter button
down, the camera will shoot successive
images.
• The recording pixel setting will be fixed at
(1984 x 1488 pixels).
• The focus, brightness and white balance will be set with the first shot.
• Depending on the shooting conditions, camera settings and the zoom
position, the camera may stop shooting momentarily, or the shooting
speed may slow down.
• As the number of images increases, the shooting speed may slow down.
Y
P
O
Images Displayed During Playback
C
Since each set of continuous images will become a single group, only the first
image captured in that group will be displayed. To indicate that the image is
part of a group,
will appear on the screen.
If you erase a grouped image (p. 127), all the images in the group will also
be erased. Be sure to exercise adequate caution.
• You can play back images individually (p. 120), and cancel grouping
(p. 121).
• Protecting (p. 125) a grouped image will protect all of the images in the
group.
• If you play back grouped images using Filtered Playback (p. 115) or
Smart Shuffle (p. 122), grouping is temporarily canceled and images are
played back individually.
• Grouped images cannot use certain touch actions (p. 123), be tagged as
favorites (p. 129), edited (pp. 132 – 138), categorized (p. 131), printed
(p. 140), have print settings (p. 149) or photobook settings (p. 151)
applied. Play back grouped images individually (p. 120), or cancel
grouping (p. 121) before trying the above.
Downloaded From camera-usermanual.com Canon Manuals
79
Capturing the Best Facial Expressions
(Best Image Selection)
The camera takes 5 continuous shots, then detects various aspects of the
shot such as facial expressions, and saves only one picture detected as the
best.
Choose
.
z Follow Steps 1 – 2 on p. 62 to choose
.
Shoot.
X When the shutter button is pressed fully,
the camera takes 5 continuous shots, and
saves one picture only.
• The recording pixel setting will be fixed at
(1984 x 1488 pixels).
• The focus, brightness and white balance will be set with the first shot.
• Depending on the shooting conditions, you may not obtain the expected
results.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
80
5
Choosing Settings Yourself
In this chapter you will learn how to use the various functions in G
mode to progressively advance your shooting skills.
C
Y
P
O
• This chapter assumes that you have set the mode switch to 4 and the
camera is in G mode.
• G stands for Program AE.
• Before attempting to shoot using a function explained in this chapter in
modes other than G mode, check if the function is available in those modes
(pp. 188 – 193).
Downloaded From camera-usermanual.com Canon Manuals
81
Shooting in Program AE
You can choose the settings for various functions to suit your preferences.
AE stands for Auto Exposure.
The focusing range is approximately 5 cm (2.0 in.) – infinity at maximum wide
angle (j), and approximately 1 m (3.3 ft.) – infinity at maximum telephoto
(i).
Enter G mode.
z Follow Steps 1 – 2 on p. 62 to choose G.
Adjust the settings according to
your purposes (pp. 83 – 102).
Shoot.
What if the shutter speed and aperture value appear in
orange?
Y
P
O
If a correct exposure cannot be obtained when pressing the shutter button
halfway, the shutter speed and aperture value appear in orange. Try the following
settings to obtain the correct exposure.
• Turn on the flash (p. 83)
• Choose a higher ISO speed (p. 86)
C
Downloaded From camera-usermanual.com Canon Manuals
82
Adjusting the Brightness
(Exposure Compensation)
You can adjust the standard exposure set by the camera in 1/3-stop
increments in the range of -2 to +2.
Enter Exposure Compensation
mode.
z Touch #.
Adjust the brightness.
z While looking at the screen, touch the bar,
or drag it left or right, to adjust the
brightness, then touch ^.
X The exposure compensation amount will
appear on the screen.
Y
P
O
You can also make settings in the FUNC. menu that appears when you
touch H.
C
Turning the Flash On
You can make the flash fire every time you shoot.
The effective flash range is approximately 30 cm – 3.1 m (12 in. – 10.2 ft.) at
maximum wide angle (j), and approximately 1.0 – 1.7 m (3.3 – 5.6 ft.) at
maximum telephoto (i).
Choose h.
z Touch
, then touch h.
z Touch h again to make the setting.
X Once set, h will appear on the screen.
You can also choose items by touching
.
Downloaded From camera-usermanual.com Canon Manuals
83
Adjusting the White Balance
The white balance (WB) function sets the optimal white balance for natural
looking colors to match the shooting conditions.
Choose the white balance
function.
z Touch H, then drag the menu on the
left up or down to choose
.
Choose an option.
z Touch an item you want to set.
z If you drag the menu on the right up or
down, other items will appear.
z Touch the menu item again to complete
the setting.
X The setting will appear on the screen.
Auto
Y
P
O
Automatically sets the optimal white balance for the shooting
conditions.
Day Light
For shooting outdoors, in fine weather conditions.
Cloudy
For shooting in cloudy, shady or twilight conditions.
Tungsten
For shooting under tungsten and bulb-type (3-wavelength)
fluorescent lighting.
Fluorescent
For shooting under warm-white fluorescent, cool-white
fluorescent and warm-white-type (3-wavelength) fluorescent
lighting.
Fluorescent H
For shooting under daylight fluorescent and daylight-type (3wavelength) fluorescent lighting.
Custom
For manually setting a custom white balance (p. 85).
C
Downloaded From camera-usermanual.com Canon Manuals
84
Adjusting the White Balance
Custom White Balance
You can adjust the white balance to match the light source at the shooting
location. Make sure that you set the white balance under the light source of
the actual scene you will shoot.
z Follow Step 2 on p. 84 to choose
.
z Make sure the entire screen is filled with a
plain, white colored subject, then touch
on the right.
X The tint on the screen will change when
white balance data is set.
If you change camera settings after recording white balance data, the tone
may not turn out properly.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
85
Changing the ISO Speed
Choose the ISO speed.
z Touch H, then drag the menu on the
left up or down to choose
.
Choose an option.
z Touch an item you want to set.
z If you drag the menu on the right up or
down, other items will appear.
z Touch the menu item again to complete
the setting.
X The setting will appear on the screen.
Automatically adjusts the ISO speed to the Shooting mode and shooting
conditions.
Low
For shooting outdoors, in fine weather conditions.
For shooting in cloudy or twilight conditions.
High
Y
P
O
For shooting nightscapes or in dark interiors.
Changing the ISO speed
C
• Lowering the ISO speed results in sharper images, but there may be an
increased chance of image blurring in certain shooting conditions.
• Raising the ISO speed results in a faster shutter speed, reducing image blurring
and letting the flash reach greater distances to the subject. The images,
however, will appear coarse.
When the camera is set to
, you can press the shutter button halfway to
display the automatically set ISO speed.
Downloaded From camera-usermanual.com Canon Manuals
86
Correcting the Brightness and Shooting
(i-Contrast)
The camera can detect areas in the scene, such as faces or backgrounds,
that are too bright or dark and automatically adjust them to the optimum
brightness when shooting. Also, when the overall image is lacking in contrast,
the camera will automatically correct the image for a sharper impression
when shooting.
Choose [i-Contrast].
z Touch H, then n to choose the
4 tab. Touch [i-Contrast], then touch qr
to choose [Auto].
X Once set, @ will appear on the screen.
• Under some conditions, the image may appear coarse or may not be
corrected properly.
• You can correct recorded images (p. 137).
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
87
Continuous Shooting
As long as you hold the shutter button down, the camera will shoot
continuously.
Choose a Drive mode.
z Touch H, then drag the menu on the
left up or down to choose
.
Choose an option.
z Touch W.
z Touch W again to make the setting.
X Once set, W will appear on the screen.
Shoot.
X As long as you hold the shutter button
Y
P
O
down, the camera will shoot successive
images.
Mode
W Continuous
Maximum
Speed
(Approx.
images/sec.)
3.3
C
Description
The camera shoots continuously with the focus
and exposure set when the shutter button is
pressed halfway.
Continuous
Shooting AF
0.8
The camera shoots continuously and focuses.
The [AF Frame] is set to [Fixed frame].
Continuous
Shooting LV*
0.9
The camera shoots continuously with the focus
fixed to the position set in manual focus. In t
mode, the focus is locked on the first shot.
* When in t mode (p. 64) or AF lock (p. 97),
will change to
.
• Cannot be used with the self-timer (pp. 55, 56).
• Continuous shooting speed increases in
mode (p. 63).
• Depending on the shooting conditions, camera settings and the zoom
position, the camera may stop shooting momentarily, or the shooting
speed may slow down.
• As the number of images increases, the shooting speed may slow down.
• If the flash fires, the shooting speed may slow down.
Downloaded From camera-usermanual.com Canon Manuals
88
Changing the Tone of an Image (My
Colors)
You can change the tone of an image, for example to sepia or black and
white, when shooting.
Choose My Colors.
z Touch H, then drag the menu on the
left up or down to choose
.
Choose an option.
z Touch an item you want to set.
z If you drag the menu on the right up or
down, other items will appear.
z Touch the menu item again to complete
the setting.
X The setting will appear on the screen.
Y
P
O
My Colors Off
—
Vivid
Emphasizes the contrast and color saturation for a vivid
impression.
Neutral
Tones down the contrast and color saturation for neutral
hues.
Sepia
Changes the image to sepia tones.
B/W
Changes the image to black and white.
Positive Film
Combines the effects of Vivid Red, Vivid Green and Vivid
Blue to produce intense natural appearing colors like those
obtained with positive film.
C
Lighter Skin Tone
Makes skin tones lighter.
Darker Skin Tone
Makes skin tones darker.
Vivid Blue
Emphasizes blue tints. Makes the sky, ocean and other
blue subjects more vivid.
Vivid Green
Emphasizes green tints. Makes mountains, foliage and
other green subjects more vivid.
Vivid Red
Emphasizes red tints. Makes red subjects more vivid.
Custom Color
You can adjust contrast, sharpness, and color saturation
etc. to your preference (p. 90).
Downloaded From camera-usermanual.com Canon Manuals
89
Changing the Tone of an Image (My Colors)
• The white balance cannot be set in
and
(p. 84).
• In
and
, colors other than people’s skin color may change. You
may not obtain the expected results with some skin colors.
Custom Color
The contrast, sharpness, color saturation, red, green, blue, and skin tones in
an image can be chosen and set at 5 different levels.
z Follow Step 2 on p. 89 to choose
.
z Touch
on the right side of the screen.
z Touch qr to choose an item, then touch
the point on the bar where you want to
make a setting.
z The more to the right, the stronger/darker
(skin tone) the effect gets, the more to the
left, the weaker/lighter (skin tone) the
effect gets.
z Touch ^ to make the setting.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
90
Shooting Close-ups (Macro)
If you set the camera to e, it focuses on close subjects only. The focusing
range is approximately 1 – 50 cm (0.4 in. – 1.6 ft.) from the end of the lens at
maximum wide angle (j).
Choose e.
z Touch H, then drag the menu on the
left up or down to choose
.
z Touch e, then touch e again to complete
the setting.
X Once set, e will appear on the screen.
How can I take better close-ups?
Try attaching the camera to a tripod and shooting in [ to prevent the camera from
moving and blurring the image (p. 56).
e will turn gray in the area that displays in the yellow bar underneath the
zoom bar, and the camera will not focus.
Y
P
O
Shooting Far Away Subjects (Infinity)
C
If you set the camera to u, it focuses on far-away subjects only. Set the
camera to u to focus more reliably on far away subjects (3 m (9.8 ft.) or more
away from the camera).
Choose u.
z Touch H, then drag the menu on the
left up or down to choose
.
z Touch u, then touch u again to
complete the setting.
X Once set, u will appear on the screen.
Downloaded From camera-usermanual.com Canon Manuals
91
Using the Digital Tele-Converter
The focal length of the lens can be increased by 1.5x or 2.0x. This enables a
faster shutter speed and less chance of camera shake than the zoom
(including digital zoom) used by itself at the same zoom factor.
Choose [Digital Zoom].
z Touch H, then n to choose the
4 tab. Touch [Digital Zoom], then touch
qr to choose an option.
X The view will be enlarged and the zoom
factor will appear on the screen.
• The respective focal lengths when using [1.5x] and [2.0x] are 42.0 –
504 mm and 56.0 – 672 mm (35mm film equivalent).
• A recording pixel setting (p. 58) of
or
will cause images to appear
coarse (the zoom factor will appear in blue).
• The digital tele-converter cannot be used together with the digital zoom
(p. 53).
• The digital-teleconverter can only be used with the
aspect ratio.
• The shutter speeds may be the same when at maximum telephoto i,
and when zoomed in on the subject using Step 2 on p. 53.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
92
Changing the AF Frame Mode
You can change the AF (Auto Focus) frame mode to match the scene you
want to shoot.
Choose [AF Frame].
z Touch H, then n to choose the
4 tab. Touch [AF Frame], then touch qr
to choose an option.
Face Detect
• Detects people’s faces and sets the focus, exposure (evaluative metering
only) and white balance (
only).
• When the camera is pointed at subjects, a white frame appears on the face
the camera judges to be the main subject, and gray frames (max. 2) will
appear on other faces.
• A frame will follow a moving subject within a certain range.
• When the shutter button is pressed halfway, up to 9 green frames will
appear on faces that the camera focuses on.
C
Y
P
O
• If a face is not detected or only gray frames (no white frame) appear, an
AF frame will appear in the center of the screen when you press the
shutter button halfway.
• If a face is not detected when Servo AF (p. 97) is set to [On], the AF frame
will appear in the center of the screen when you press the shutter button
halfway.
• Examples of faces that cannot be detected:
- Subjects that are far away or extremely close
- Subjects that are dark or light
- Faces turned to the side or at an angle, or faces with a portion hidden
• The camera may mistakenly identify non-human subjects as a face.
• If the camera cannot focus when you press the shutter button halfway,
the AF frame will not appear.
Downloaded From camera-usermanual.com Canon Manuals
93
Changing the AF Frame Mode
Fixed Frame
A single AF frame will be used. This is effective for focusing on a specific
point.
You can reduce the AF frame size
• Touch H, then n to choose the 4 tab, then touch [AF Frame Size]
and choose [Small].
• The AF frame is set to [Normal] when using the digital zoom (p. 53) or digital
tele-converter (p. 92).
If the camera cannot focus when you press the shutter button halfway, the
AF frame will turn yellow and
will appear.
Changing the Composition with the Focus Lock
While you keep the shutter button pressed halfway, the focus and exposure
are locked. You can now recompose and shoot. This is called Focus Lock.
Y
P
O
Focus.
z Center the subject you want in focus, and
C
press the shutter button halfway.
z Confirm that the AF frame on the subject is
green.
Recompose.
z Keep the shutter button pressed halfway
and move the camera to recompose the
scene.
Shoot.
z Press the shutter button fully.
Downloaded From camera-usermanual.com Canon Manuals
94
Magnifying the Focal Point
If you press the shutter button halfway, the AF frame will magnify and you can
check the focus.
Choose [AF-Point Zoom].
z Touch H, then n to choose the
4 tab. Touch [AF-Point Zoom], then
touch qr to choose [On].
Check the focus.
z Press the shutter button halfway.
X In [Face Detect] (p. 93), the face detected
as the main subject will appear magnified.
X In [Fixed frame] (p. 94), the contents of the
AF frame will appear magnified.
Y
P
O
What if the display does not magnify?
The display will not appear magnified in [Face Detect] if a face cannot be detected
or is too big in relation to the screen. In [Fixed frame], it will not appear magnified
if the camera cannot focus.
C
The magnified display will not appear when using the digital zoom (p. 53),
digital tele-converter (p. 92) or Servo AF (p. 97).
Downloaded From camera-usermanual.com Canon Manuals
95
Choosing the Subject to Focus On
(Touch AF)
You can choose a specific subject or person's face, or a location on the
screen, to focus on and shoot.
Choose the subject, face or
location to focus on.
z Touch the subject or person shown on the
screen.
X When the AF frame mode is set to [Face
Detect], the camera will beep and display
when it detects the subject. The
camera will continue to focus even if the
subject moves.
X When the AF frame mode is set to [Fixed
frame], an AF frame will appear at the
location where you touch the screen.
z To cancel, touch ^.
C
Y
P
O
Shoot.
z Press the shutter button halfway. The
frame where the camera focused will
change into a green
.
z Press the shutter button fully to shoot.
What if Touch AF is not available?
You can activate Touch AF by touching
on the screen to change it to
(p. 27). You can also touch H, then n to choose [Touch Shutter] in the
4 tab and choose [Off].
A border appeared around the screen when it was touched
Touch operations on faces or subjects appearing outside the border will not work.
They will work if the face or subject move inside the border.
Downloaded From camera-usermanual.com Canon Manuals
96
Shooting with the AF Lock
• The camera may not be able to track the subject if the subject is too small,
moves too quickly or if the contrast between the subject and the
background is too low.
• When shooting in e or u (p. 91) with the AF frame mode set to [Face
Detect], choosing a location to focus on returns the camera to
.
Shooting with the AF Lock
The focus can be locked. After locking the focus, the focal distance will not
change even when you release your finger from the shutter button.
Lock the focus.
z Keep the shutter button pressed halfway
and touch inside the area shown on the left.
X The focus locks and % appears on the
Y
P
O
screen.
z If you release your finger from the shutter
C
button and touch the screen again, AF lock
will cancel, and % will disappear.
Compose the scene and shoot.
Shooting with Servo AF
While the shutter button is pressed halfway, the focus and exposure will
continue to adjust, allowing you to take pictures of moving subjects without
missing a shot.
Choose [Servo AF].
z Touch H, then n and choose the
4 tab and touch [Servo AF], then touch
qr to choose [On].
Focus.
z The focus and exposure will be maintained
where the blue AF frame appears while
you press the shutter button halfway.
Downloaded From camera-usermanual.com Canon Manuals
97
Changing the Metering Method
• The camera may not be able to focus in some conditions.
• In low light conditions, AF frames may not turn blue even after pressing
the shutter button halfway. In this case, you can set the focus and
exposure with the AF frame setting.
• If a correct exposure cannot be obtained, the shutter speed and aperture
value appear in orange. Release your finger from the shutter button, then
press it again halfway.
• You cannot shoot with the AF lock in this mode.
• The [AF-Point Zoom] option in the 4 tab is not available in Servo AF
mode.
• Not available when using the self-timer (p. 55).
Changing the Metering Method
You can change the metering method (brightness measuring function) to
match the shooting conditions.
Y
P
O
Choose the metering method.
z Touch H, then drag the menu on the
C
left up or down to choose
.
Choose an option.
z Touch an item you want to set.
z Touch the menu item again to complete
the setting.
X The setting will appear on the screen.
Evaluative
For standard shooting conditions, including back lit shots.
Automatically adjusts the exposure to match the shooting
conditions.
Center
Averages the light metered from the entire frame, but gives greater
Weighted Avg. weight to the center.
Spot
Only meters within the
(Spot AE Point frame) that appears at
the center of the screen. When the AF frame mode is set to [Fixed
frame], the Spot AE Point frame will be linked to the AF frame.
Downloaded From camera-usermanual.com Canon Manuals
98
Shooting with the AE Lock
You can lock the exposure and shoot, or set the focus and exposure
separately to shoot. AE stands for “Auto Exposure”.
Lock the exposure.
z Point the camera toward the subject and
touch the lower part of the screen (inside
the frame shown on the left) while pressing
the shutter button halfway.
X When & appears, the exposure will be
locked.
z If you release your finger from the shutter
button and touch the screen again, AE lock
will cancel, and & will disappear.
Compose the scene and shoot.
Y
P
O
Shooting with the FE Lock
Just as with the AE lock, you can lock the exposure for shooting with the flash.
FE stands for “Flash Exposure”.
C
Choose h (p. 83).
Lock the flash exposure.
z Point the camera toward the subject and
touch the lower part of the screen (inside
the frame shown on the left) while pressing
the shutter button halfway.
X The flash will fire and when ( appears,
the flash output will be retained.
z If you release your finger from the shutter
button and touch the screen again, FE lock
will cancel, and ( will disappear.
Compose the scene and shoot.
Downloaded From camera-usermanual.com Canon Manuals
99
Shooting with Slow Synchro
You can make the main subject, such as people, appear bright by having the
camera provide the appropriate illumination with the flash. At the same time,
you can use a slow shutter speed to brighten the background that the light
from the flash cannot reach.
Choose Z.
z Touch
, then touch Z.
z Touch Z again to make the setting.
X Once set, Z will appear on the screen.
Shoot.
z Even if the flash fires, ensure that the main
subject does not move until the shutter
sound ends.
Attach the camera to a tripod to prevent the camera from moving and
blurring the image. Additionally, you should set the [IS Mode] to [Off] when
shooting with a tripod (p. 165).
Y
P
O
You can also choose items by touching
C
.
Downloaded From camera-usermanual.com Canon Manuals
100
Red-Eye Correction
You can automatically correct red-eye that occurs in images taken with the
flash.
Choose [Flash Settings].
z Touch H, then n and choose the
4 tab and touch [Flash Settings].
Choose the setting.
z Touch [Red-Eye Corr.], then touch qr to
choose [On].
X Once set, R will appear on the screen.
Red-eye correction may be applied to areas other than red eyes. For
example, when red make-up has been used around eyes.
Y
P
O
You can also correct recorded images (p. 138).
C
Downloaded From camera-usermanual.com Canon Manuals
101
Checking for Shut Eyes
When the camera detects the possibility that people have their eyes shut,
appears on the screen.
Choose [Blink Detection].
z Touch H, then n to choose the
4 tab. Touch [Blink Detection], then touch
qr to choose [On].
Shoot.
X When a person with shut eyes is detected,
a frame and
appear on the screen.
• This function is only available for the last image shot when you have set
the camera to 2 or more shots in
or $ mode.
• Not available in W,
, or
mode.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
102
6
Using Various Functions for
Shooting Movies
This chapter serves as a more advanced version of the “Shooting
Movies” and “Viewing Movies” sections in Chapter 1, and explains how
Y
P
O
to use various functions for shooting and viewing movies.
C
• This chapter assumes that you have set the mode switch to 4.
• The latter half of the chapter explaining movie playback and editing
assumes that you have pressed the 1 button to enter Playback mode.
Downloaded From camera-usermanual.com Canon Manuals
103
Shooting Various Kinds of Movies
Just as with still images, you can let the camera select the best settings for
the scene or add various effects while shooting movies.
Choose a Shooting mode.
z Follow Steps 1 – 2 on p. 62 to choose a
Shooting mode.
Shoot.
z Touch
.
X Depending on the Shooting mode or movie
image quality (p. 108) you choose, black
bars may appear on the sides of the
screen. These areas will not be recorded
when shooting.
z To stop shooting the movie, touch
.
I
Portrait
p. 62
Miniature Effect
p. 105
Monochrome
p. 69
Super Vivid
p. 65
Poster Effect
p. 65
T Color Accent
p. 70
Other Shooting Modes
C
Y
P
O
Y Color Swap
p. 71
w Beach
p. 63
O Foliage
p. 64
P Snow
p. 64
t Fireworks
p. 64
You can shoot the following kinds of movies in
and
modes.
iFrame Movie
Shoots movies that can be edited with iFrame*1 compatible
software*2 or devices.
Recording pixels are fixed to
(p. 108).
Super Slow
Motion Movie
Shoots fast moving subjects and plays them back in slow motion
(p. 106).
*1 Video type advocated by Apple.
*2 You can quickly edit and save iFrame movies if you use the included software.
• You can also record movies in other Shooting modes by touching
.
• Certain settings made in the FUNC. and Shooting menus will
automatically change to match settings for shooting movies.
• Even in
or
mode, you can shoot still images when you press the
shutter button. However, this is not possible while shooting a movie.
Downloaded From camera-usermanual.com Canon Manuals
104
Shoot Movies That Look Like a Miniature
Model (Miniature Effect)
You can shoot movies that look like moving miniature models. You create the
miniature model effect by choosing the upper and lower portions of the scene
that will be blurred, and the playback speed, which makes people and objects
in the scene move quickly during playback. Audio will not be recorded.
Choose
.
z Follow Steps 1 – 2 on p. 62 to choose
.
X A white frame (the area that will not be
blurred) appears on the screen.
Choose the area to keep in focus.
z Touch the screen to change the area to
keep in focus.
Y
P
O
z Touch
, then touch
,
or
to
change the size of the focused area and
touch ^.
C
Choose a playback speed.
z Touch
, then touch
,
or
to
choose a playback speed and touch ^.
Shoot.
z Touch
.
z To stop shooting the movie, touch
Downloaded From camera-usermanual.com Canon Manuals
.
105
Shooting Super Slow Motion Movies
Playback Speeds and Estimated Playback Times (for 1 Min.
Clips)
Speed
Playback Time
Approx. 12 sec.
Approx. 6 sec.
Approx. 3 sec.
• The image quality will be fixed at
when an aspect ratio of
is
chosen, and
when an aspect ratio of
is chosen (p. 57).
• If you touch
in Step 2, the frame will switch to vertical orientation and
you can change the area to keep in focus by touching the screen. Touch
again to return the frame orientation to horizontal.
• Holding the camera vertically will change the orientation of the frame.
• Since you may not achieve the expected results depending on the
shooting conditions, try taking some test shots first.
Y
P
O
Shooting Super Slow Motion Movies
You can shoot fast moving subjects and play them back in slow motion. Audio
will not be recorded.
C
Choose
.
z Follow Steps 1 – 2 on p. 62 to choose
Choose a frame rate.
z Touch H, then drag the menu on the
left up or down to choose
.
z Touch an item to choose it.
Downloaded From camera-usermanual.com Canon Manuals
106
.
Using the Wind Filter
Shoot.
z Touch
.
X The bar showing the shooting time will
appear. Maximum clip length is approx.
30 sec.
z To stop shooting the movie, touch
.
Frame Rates and Playback Times (for 30 Sec. Clips)
Frame Rate
Playback Time
240 fps
Approx. 4 min.
120 fps
Approx. 2 min.
Viewing super slow motion movies
• The movie will play back in slow motion when you follow Steps 1 – 3 on p. 35.
• You can use the included software to change the playback speed of movies shot
in
mode. Refer to the Software Guide for details.
Y
P
O
• The recording pixel setting will be fixed at
when shooting in
(320 x 240 pixels), and
when shooting in
.
• Even if you move the zoom lever, the zoom will not operate while
shooting.
• The focus, exposure and white balance will be set when you touch
C
.
Using the Wind Filter
Wind Filter suppresses noise when the wind is strong. However, unnatural
sound may result when used to record in locations with no wind.
z Touch H, then n to choose the
4 tab. Touch [Wind Filter], then touch qr
to choose [On].
Downloaded From camera-usermanual.com Canon Manuals
107
Changing the Image Quality
You can choose among 3 different image quality settings.
Choose the image quality setting.
z Touch H, then drag the menu on the
left up or down to choose
.
Choose an option.
z Touch an item you want to set.
z Touch the menu item again to complete
the setting.
X The option you set will appear on the
screen.
Image Quality and Shooting Time per Memory Card
Image Recording Pixels,
Quality
Frame Rate
Content
Y
P
O
1920 x 1080 pixels, For shooting Full HD
24 frames/sec.
movies.
1280 x 720 pixels, For shooting high30 frames/sec.
definition (HD) movies.
640 x 480 pixels,
30 frames/sec.
C
Memory Card Capacity
For shooting standard
definition (SD) movies.
4 GB
16 GB
Approx.
Approx.
14 min. 34 sec. 59 min. 40 sec.
Approx.
20 min.
43 sec.*1
Approx.
1 hr. 24 min.
54 sec.*2
Approx.
43 min. 43 sec.
Approx.
2 hr. 59 min.
3 sec.
*1 Approx. 13 min. 35 sec. for iFrame movies (p. 104).
*2 Approx. 55 min. 38 sec. for iFrame movies (p. 104).
• Based on Canon’s testing standards.
• Recording will automatically stop when the clip file size reaches 4 GB, or when the
recording time reaches approximately 10 minutes when shooting in
or
, and
approximately 1 hour when shooting in
.
• Recording may stop even if the maximum clip length has not been reached on some
memory cards. SD Speed Class 6 or higher memory cards are recommended.
Black bars will appear on the sides of the screen in
not be recorded when shooting.
. These areas will
Downloaded From camera-usermanual.com Canon Manuals
108
Other Shooting Functions
The following functions can be used in the same way as for still images. Some
functions, however, may not be available or may not have an effect
depending on the Shooting mode.
• Zooming in More Closely On Subjects
The sound of zoom operations will be recorded.
• Using the Self-Timer (p. 55)
The number of shots cannot be set.
• Adjusting the Brightness
Adjust the brightness using the operations in “Adjusting the Brightness (Exposure
Compensation)” (p. 83), then use AE lock to lock the exposure (p. 99) and touch
.
• Adjusting the White Balance (p. 84)
• Changing the Tone of an Image (My Colors) (p. 89)
• Shooting Close-ups (Macro) (p. 91)
• Shooting Far Away Subjects (Infinity) (p. 91)
• Shooting with the AF Lock (p. 97)
• Shooting with the AE Lock (p. 99)
• Turning Off the AF Assist Beam (p. 163)
• Displaying Grid Lines (p. 164)
• Changing the IS-Mode Settings (p. 165)
• Changing Icon Order (Icon Layout) (p. 166)
Editing
C
Y
P
O
You can trim the beginnings and ends of recorded movies.
Set the editing range.
z Touch the screen during movie playback to
display the movie control panel.
,
or the scroll bar to change
the displayed frame (frames are the basic
units that make up a movie).
X
will change to
at points where you
can edit the movie.
z Touch
Downloaded From camera-usermanual.com Canon Manuals
109
Editing
Touch
or
.
X [Delete section of movie] will appear on the
screen.
z Even if you touch
when it appears, only
the portion from the nearest
to the left
will be trimmed when [Cut Beginning] is
chosen. Only the portion from the nearest
to the right will be trimmed when [Cut
End] is chosen.
Choose a portion to delete.
z Touch [Cut Beginning] or [Cut End].
z [Cut Beginning] will delete from the
beginning of the movie to the currently
displayed scene.
z [Cut End] will delete from the currently
displayed scene to the end of the movie.
Y
P
O
Save the edited movie.
z Touch [New File].
C
X The movie will be saved as a new file.
z To cancel editing, touch [Cancel].
z To reset the editing range, touch ^.
• When [Overwrite] is chosen in Step 4, the unedited movie is overwritten
with the edited movie, erasing the original.
• When there is not enough space left on the memory card, only [Overwrite]
can be chosen.
• If the battery is depleted partway through saving, the edited movie clips
may not be saved.
• When editing movies, you should use a fully charged battery, or an AC
adapter kit (sold separately) (p. 203).
Downloaded From camera-usermanual.com Canon Manuals
110
7
Using Various Playback and
Editing Functions
This chapter explains various ways to play back and edit images.
Y
P
O
• Press the 1 button to enter Playback mode before operating the camera.
• It may not be possible to play back or edit images that have been edited
on a computer, have had their file names changed, or have been taken
on a different camera.
• The edit function (pp. 133 – 138) cannot be used if the memory card does
not have enough free space available.
C
Downloaded From camera-usermanual.com Canon Manuals
111
Quickly Searching Images
Searching Images Using Index Display
Displaying multiple images at the same time lets you quickly find the image
you want.
Display images in an index.
z Touch
, then touch the number of
images you want to display.
Y
P
O
X Images will display in an index.
z The number of images increases each
time you move the lever toward g.
z The number of images decreases each
C
time you move the lever toward k.
Switch the displayed images.
z If you drag up or down the screen, images
will switch with the movement of your
finger.
Choose an image.
z Touch an image to chose it, then touch it
again to display it in single image
playback.
z You can also drag across the screen to
move the orange frame, then move the
zoom lever toward k to display an image
by itself.
Downloaded From camera-usermanual.com Canon Manuals
112
Quickly Searching Images
Searching Images by Scrolling
Dragging across the screen will display images in a line letting you quickly
search them. You can also jump by the shooting date (Scroll Display).
Choose an image.
z You can switch between images in single
image playback by dragging across the
screen.
Continuously dragging quickly across the
screen will display the screen on the left
(Scroll Display).
In this display, drag across the screen to
choose images.
z Touching the center image restores single
image playback.
z While in Scroll Display, if you quickly drag
up or down the screen, you can search
images by the shooting date.
C
Y
P
O
To turn off this effect, touch H and then n. Choose [Scroll
Display] in the 1 tab, then touch qr to choose [Off].
Downloaded From camera-usermanual.com Canon Manuals
113
Quickly Searching Images
Viewing Movies Made with Movie Digest
You can select movies made in
mode (p. 72) by date for viewing.
Choose
.
z Touch H, then drag the menu on the
left up or down to choose
.
Choose a movie date.
z Touch a date to choose it.
Play the movie.
z Touch the date chosen in Step 2.
X The movie will play.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
114
Viewing Images in Filtered Playback
When there are many images on the memory card, you can filter and display
them by a specified filter. You can also protect (p. 125) or erase (p. 127)
images at once while filtered.
Choose s.
z Touch H, then drag the menu on the
left up or down to choose s.
Choose a filter.
z Touch an item you want to set.
z If you drag the menu on the right up or
down, other items will appear.
z Touch the item you chose again to
complete the setting.
View the filtered images.
Y
P
O
z Touch the desired filter, then touch it again
(except for
).
X Filtered playback starts and a yellow frame
C
appears.
z If you drag across the screen, only the
chosen target images will display.
in Step 2, filtered
playback will be canceled.
z If you choose
Search filters
Favorites
Shot Date
; My Category
Still image/Movie
Displays the images tagged as favorites (p. 129)
Displays the images shot on a specified date
Displays the images of a specified category (p. 131)
Displays still images, movies or movies made in
mode.
What if you cannot choose a filter?
Filters that do not have any corresponding images cannot be chosen.
Downloaded From camera-usermanual.com Canon Manuals
115
Viewing Slideshows
Filtered playback
In filtered playback (Step 3), you can view filtered images with “Quickly Searching
Images” (p. 112), “Viewing Slideshows” (p. 116), and “Magnifying Images”
(p. 119). You can process all filtered images at once while performing operations
in “Protecting Images” (p. 125), “Erasing Images” (p. 127), “Choosing Images for
Printing (DPOF)” (p. 147), or “Choosing Images for a Photobook” (p. 151), by
choosing all of the filtered images.
However, if you change the category (p. 131), or edit an image and save it as a
new image (p. 133), a message will appear, and filtered playback will cancel.
Viewing Slideshows
You can automatically play back images recorded to a memory card. Each
image displays for approximately 3 seconds.
Y
P
O
Choose ..
z Touch H, then drag the menu on the
left up or down to choose ..
C
Choose a transition effect.
z Touch an effect to choose it.
z Touch the menu item again to complete
the setting.
X The slideshow will start a few seconds
after [Loading image...] appears on the
screen.
z In filtered playback (p. 115), only images
matching a filter play back.
z Touch the screen to stop the slideshow.
• You can switch images if you lightly tap the camera (p. 31) during a
slideshow (Active Display).
• The power saving function (p. 50) does not work during slideshows.
• You can also use Touch Actions to start a slideshow (p. 123).
Downloaded From camera-usermanual.com Canon Manuals
116
Viewing Slideshows
Changing Settings
You can set a slideshow to repeat, or change transition effects and the time
that slideshow images are displayed. You can choose from 6 transition
effects when switching between images.
Choose [Slideshow].
z Touch H, then n to choose the
1 tab, and touch [Slideshow].
Choose a setting.
z Touch an item, then touch qr to make the
setting.
z If you touch [Start], the slideshow starts
with your settings.
z Touching the screen during playback will
Y
P
O
restore the menu screen.
You cannot change [Play Time] if [Bubble] is chosen in [Effect].
C
Downloaded From camera-usermanual.com Canon Manuals
117
Checking the Focus
You can magnify the area of a recorded image that was inside the AF Frame
to check the focus.
Touch l to switch the focus
check display (p. 43).
X A white frame will appear where the AF
frame was when the focus was set.
X A gray frame will appear on a face
detected during playback.
X The area within the orange frame appears
magnified.
Switch frames.
z Touch the lower right image, or move the
zoom lever toward k once.
X The screen shown on the left will appear.
Y
P
O
z Touch
to move to a different frame
when multiple frames appear.
Change the magnification level or
location.
C
z Moving the zoom lever, or touching the
magnified image on the lower right of the
screen, or
will change the displayed
magnification rate.
z If you drag across the image on the lower
right, you can move the location of the
displayed area.
z Touching ^, or the image in the upper left
resets the display to Step 1.
The focus check display is not available for movies.
Downloaded From camera-usermanual.com Canon Manuals
118
Magnifying Images
Magnify an image.
z When you touch the screen, the image will
magnify and
and
will appear.
z Everytime you touch the screen, the
Approximate Location of
Displayed Area
camera will center and maginfy that area
up to approximately 10x.
z You can also zoom in or out on images by
touching
or
.
If you touch and hold
or
, the
display will continue zoom in or out on the
image.
z If you drag across the screen, you can
move the location of the displayed area.
z Touch ^ to restore single image playback.
z You can also tap the side of the camera
gently (p. 31) to switch between images at
the same zoom factor (Active Display).
Y
P
O
• If you move the zoom lever toward k, the display will zoom in on the
image and, if you continue to hold the zoom lever, it will continue to zoom
in up to a maximum factor of 10x. To zoom out, move the zoom lever
toward g, or continue to hold it to return to single image playback.
• Movies cannot be magnified.
C
Downloaded From camera-usermanual.com Canon Manuals
119
Viewing Each Image in a Group
Grouped images taken in
mode (p. 79) can also be viewed individually.
Choose an image group.
z Drag across the screen to choose an
image that displays
, then touch
.
View each image in the group.
z If you drag across the screen, only the
images in the group will be displayed.
z Touch ^ to exit group playback.
Group playback
In group playback (Step 2), you can use the FUNC. menu functions that appear
when you touch H, as well as search (p. 112) and magnify (p. 119) images.
You can process all the images in a group at once while in “Protecting Images”
(p. 125), “Erasing Images” (p. 127), “Choosing Images for Printing (DPOF)”
(p. 147), or “Choosing Images for a Photobook” (p. 151), by choosing a set of
grouped images.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
120
Viewing Each Image in a Group
Ungrouping Images
Grouped images taken in
individually.
mode can be ungrouped and viewed
Choose [Group Images].
z Touch H, then n to choose the
1 tab, and touch [Group Images].
Choose a setting.
z Touch qr to choose [Off].
z Touch ^ to complete the setting and
restore single image playback.
mode are
ungrouped and appear individually.
z To regroup the images, follow the steps
above to choose [On].
X Grouped images taken in
C
Y
P
O
Grouping cannot be canceled while viewing images individually (p. 120).
Downloaded From camera-usermanual.com Canon Manuals
121
Displaying Various Images (Smart
Shuffle)
The camera will choose 4 images based on the displayed image.
If you choose one of those images, the camera will select 4 more images
letting you enjoy playing back images in an unexpected order. This will work
best if you take many shots of various scenes.
Choose
.
z Touch H, then drag up or down the
screen to choose
.
X Four images will appear as possibilities.
Choose an image.
z Touch the image you want to view next.
X The chosen image will be displayed in the
center, and the next 4 possibilities will
appear.
z If you touch the image in the center of the
screen, it will display full-screen. Touch the
screen to restore the original display.
z Touch ^ to return to single image
playback.
C
Y
P
O
• Only still images shot with this camera will play back in Smart Shuffle.
•
is not available in the following situations:
- If there are less than 50 images taken with this camera on the memory card
- If you play back images not supported by Smart Shuffle
- During filtered playback
Downloaded From camera-usermanual.com Canon Manuals
122
Changing Image Transitions
You can choose from 3 transition effects when switching between images in
single image playback.
Choose [Transition].
z Touch H and then n to choose
[Transition] in the 1 tab, then touch qr to
choose an effect.
Easy Operations with Touch Actions
In single image playback, you can quickly and easily call up functions that
have been registered to each of four set dragging patterns (Touch Actions).
Use a Function Registered to
Y
P
O
z Drag across the screen as shown.
X The function registered to
will be called
up.
C
z By dragging across the screen as shown,
you can also call up the functions
registered to
,
and
.
z You can change the functions registered to
Touch Actions.
Downloaded From camera-usermanual.com Canon Manuals
123
Easy Operations with Touch Actions
Changing Touch Actions Registered Functions
You can register the functions you want to use easily to each of the drag
patterns.
Choose [Set Touch Actions].
z Touch H, then n to choose the
1 tab, and touch [Set Touch Actions].
Register a function to a drag
pattern.
z Drag up or down the screen to choose a
drag pattern.
z Touch qr to choose the function to
register.
Y
P
O
Functions that Can be Registered
Favorites
Tag or untag images as favorites.
Next Favorite
Switch to the next image tagged as a favorite
Previous Favorite
Switch to the previous image tagged as a favorite.
C
Next Date
Switch to first image with the next shooting date.
Previous Date
Switch to first image with the previous shooting date.
Smart Shuffle
Start Smart Shuffle playback.
Slideshow
View a slideshow.
Erase
Erase an image.
Protect
Protect or unlock images.
Rotate
Rotate an image.
Downloaded From camera-usermanual.com Canon Manuals
124
Protecting Images
You can protect important images so that they cannot be accidentally erased
with the camera (pp. 32, 127).
Protect the image.
z Touch H, then drag the menu on the
left up or down to choose :.
X
will appear on the screen.
z To unlock an image, touch H again,
then drag up or down the screen to choose
:.
If you format the memory card (pp. 24, 155), protected images will also be
erased.
Y
P
O
Protected images cannot be erased with the camera’s erase function. To
erase an image, cancel protection settings first.
Using the Menu
C
Choose [Protect].
z Touch H, then n to choose the
1 tab, and touch [Protect].
Choose a selection method.
z Touch a selection method.
z Touch ^ to return to the menu screen.
Downloaded From camera-usermanual.com Canon Manuals
125
Protecting Images
Choosing Images Individually
Choose [Select].
z Follow Step 2 on p. 125 to touch [Select].
Choose images.
z Drag across the screen to choose an
image, then touch the screen.
will appear on the screen.
z Touching the screen again deselects the
image, and
disappears.
z To choose multiple images, repeat the
above operation.
X
Protect the image.
Y
P
O
z If you touch ^, a confirmation screen will
appear.
z Touch [OK].
X The images will be protected.
C
If you switch to Shooting mode or turn off the camera before performing the
operations in Step 3, images will not be protected.
To choose multiple images, touch
touch the images you want.
in the upper left of the screen and
Downloaded From camera-usermanual.com Canon Manuals
126
Erasing Images
Choosing All Images
Choose [All Images].
z Follow Step 2 on p. 125 to touch [All
Images].
Protect images.
z Touch [Protect].
You can unlock groups of protected images if you choose [Unlock] in
Step 2.
Erasing Images
Y
P
O
You can choose images and then erase them in groups. Since erased images
cannot be recovered, exercise adequate caution before erasing. Protected
images (p. 125) cannot be erased.
C
Choosing a Selection Method
Choose [Erase].
z Touch H, then n to choose the
1 tab, and touch [Erase].
Choose a selection method.
z Touch a selection method.
z Touch ^ to return to the menu screen.
Downloaded From camera-usermanual.com Canon Manuals
127
Erasing Images
Choosing Images Individually
Choose [Select].
z Follow Step 2 on p. 127, touch [Select].
Choose an image.
z Drag across the screen to choose an
image, then touch the screen.
will appear on the screen.
z Touching the screen again deselects the
image, and
disappears.
z To choose multiple images, repeat the
above operation.
X
Erase.
Y
P
O
z If you touch ^, a confirmation screen will
appear.
z Touch [OK].
C
To choose multiple images, touch
touch the images you want.
in the upper left of the screen and
Choosing All Images
Choose [All Images].
z Follow Step 2 on p. 127, touch [All
Images].
Erase.
z Touch [OK].
Downloaded From camera-usermanual.com Canon Manuals
128
Tagging Images as Favorites
When you tag images as favorites, you can easily categorize just those
images. You can also filter out just those images for viewing, protecting or
erasing (p. 115).
Make the setting.
z Touch H, then drag the menu on the
left up or down to choose
X
.
will appear on the screen.
z To unlock an image, touch H again,
then drag the menu on the left up or down
to choose
.
Using the Menu
Y
P
O
Choose [Favorites].
z Touch H, then n to choose the
C
1 tab, and touch [Favorites].
Choose an image.
z Drag across the screen to choose an
image, then touch the screen.
will appear on the screen.
z Touching the screen again deselects the
image and
disappears.
z To choose multiple images, repeat the
above operation.
X
Downloaded From camera-usermanual.com Canon Manuals
129
Tagging Images as Favorites
Complete the setting.
z If you touch ^, a confirmation screen will
appear.
z Touch [OK].
If you switch to Shooting mode or turn off the camera before completing the
setting in Step 3, images will not be tagged as favorites.
• If you use Windows 7 or Windows Vista and transfer tagged images to
the computer, they will be given a star rating of 3 (
) (except
for movies).
• You can also use Touch Actions to tag images as favorites (p. 123).
• To choose multiple images, touch
in the upper left of the screen and
touch the images you want.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
130
Organizing Images by Category
(My Category)
You can organize images into categories. You can display the images in a
category in filtered playback (p. 115) and process all images at once by using
the functions below.
• “Viewing Slideshows” (p. 116), “Protecting Images” (p. 125), “Erasing
Images” (p. 127), “Choosing Images for Printing (DPOF)” (p. 147),
“Choosing Images for a Photobook” (p. 151)
• Images are automatically categorized by shooting condition as they are
shot.
-
: Images with detected faces, or images shot in I or V.
: Images detected as
,
or
in A mode, or images shot in
or O.
: Images shot in w, P or t.
• You can also display categories by touching H and then n in
Step 2, then choosing the 1 tab, and [My Category].
Y
P
O
Choose ;.
z Touch H, then drag the menu on the
left up or down to choose ;.
C
Choose images.
z Drag across the screen to choose an
image.
z Touch the desired category.
X The chosen category will appear in
orange.
z Touch the category again to cancel, and it
will turn white.
z To choose multiple images, repeat the
above operation.
Complete the setting.
z If you touch ^, a confirmation screen will
appear.
z Touch [OK].
Downloaded From camera-usermanual.com Canon Manuals
131
Rotating Images
If you switch to Shooting mode or turn off the camera before completing the
setting in Step 3, images will not be tagged as My Category.
Rotating Images
You can change the orientation of an image and save it.
Choose \.
z Touch H, then drag the menu on the
left up or down to choose \.
Rotate the image.
z Touch
or
and the image will rotate
in the chosen direction in 90° increments.
z Touch ^ to complete the setting.
Y
P
O
• Movies with an image quality setting of
or
cannot be rotated.
• In the screen in Step 2, if you touch H then n, you can also
change the orientation of an image by choosing the 1 tab and [Rotate].
• Images cannot be rotated (p. 168) if [Auto Rotate] is set to [Off].
C
Downloaded From camera-usermanual.com Canon Manuals
132
Resizing Images
You can resize images to a lower pixel setting and save the resized image as
a separate file.
Choose [Resize].
z Touch H, then n to choose the
1 tab, and touch [Resize].
Choose an image.
z Drag across the screen to choose an
image, then touch [OK].
Choose an image size.
z Touch
,
or
, then touch [OK].
X [Save new image?] will appear on the
Y
P
O
screen.
Save the new image.
z Touch [OK].
C
X The image will be saved as a new file.
Display the new image.
z If you touch ^, [Display new image?] will
appear.
z Touch [Yes].
X The saved image will be displayed.
• You cannot resize an image to a larger size.
• Images saved as
in Step 3 cannot be edited.
• Movies cannot be edited.
Downloaded From camera-usermanual.com Canon Manuals
133
Trimming
You can cut out a portion of a recorded image and save it as a new image file.
Choose [Trimming].
z Touch H, then n to choose the
1 tab, and touch [Trimming].
Choose an image.
z Drag across the screen to choose an
image, then touch [OK].
Trimming Area
Adjust the trimming area.
X A frame will appear around the portion of
the image to be trimmed.
X The original image will display in the upper
Trimming Area Display
Recorded pixels
after trimming
Y
P
O
left and the trimmed image will display in
the lower right.
z If you move the zoom lever, touch
or the image on the lower right of the
screen, you can change the frame size.
z If you drag on the image at the upper left or
the image on the lower right, you can move
the frame.
z If you touch , you can change the frame
orientation.
z In an image with detected faces, gray
frames appear around the faces located in
the upper left image. The frames can be
used for trimming. You can switch between
frames by touching
.
z Touch [New File].
X The [Save new image?] screen will
appear.
C
Save as a new image and display.
z Follow Steps 4 and 5 on p. 133.
Downloaded From camera-usermanual.com Canon Manuals
134
Trimming
• Images recorded at a pixel setting of
(p. 59), or images resized to
(p. 133) cannot be edited.
• Images that can be trimmed will have the same width and height ratio
after trimming.
• The number of recorded pixels in a trimmed image will be smaller than
before trimming.
• Movies cannot be edited.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
135
Adding Effects with the My Colors
Function
You can change the color of an image and save it as a separate image. Refer
to p. 89 for details on each menu item.
Choose [My Colors].
z Touch H, then n to choose the
1 tab, and touch [My Colors].
Choose an image.
z Drag across the screen to choose an
image, then touch [OK].
Choose an option.
z Touch an option.
z Touch qr to display other available
Y
P
O
options.
z Touch [OK].
X The [Save new image?] screen will
appear.
C
Save as a new image and display.
z Follow Steps 4 and 5 on p. 133.
If you repeatedly change the color of the same image, the quality will
gradually deteriorate and you may not achieve the expected color.
• The color of images changed with this function may vary from those
recorded with the My Colors function (p. 89).
• My Colors settings cannot be applied to movies.
Downloaded From camera-usermanual.com Canon Manuals
136
Correcting the Brightness (i-Contrast)
The camera can detect areas in an image, such as faces or backgrounds, that
are too dark and automatically adjust them to the optimum brightness. Also,
when the overall image is lacking in contrast, the camera will automatically
correct the image for a sharper impression. You can choose from 4 levels of
correction, and save the image as a new file.
Choose [i-Contrast].
z Touch H, then n to choose the
1 tab, and touch [i-Contrast].
Choose an image.
z Drag across the screen to choose an
image, then touch [OK].
Choose an option.
z Touch qr to choose an item, and touch
Y
P
O
[OK].
X The [Save new image?] screen will
appear.
Save as a new image and display.
C
z Follow Steps 4 and 5 on p. 133.
• Under some conditions, the image may appear coarse or may not be
corrected properly.
• Repeatedly adjusting the same image may cause it to appear coarse.
What if the image wasn’t corrected by the [Auto] option as
well as you would like?
Choose [Low], [Medium] or [High] and adjust the image.
Movies cannot be corrected.
Downloaded From camera-usermanual.com Canon Manuals
137
Correcting the Red-Eye Effect
You can automatically correct red eyes in images and save them as new files.
Choose [Red-Eye Correction].
z Touch H, then n to choose the
1 tab, and touch [Red-Eye Correction].
Choose and correct the image.
z Drag across the screen to choose an
image, then touch [OK].
X Red-eye detected by the camera will be
corrected and a frame will appear around
the corrected portion.
z You can magnify or reduce the size of the
image using the procedures in “Magnifying
Images” (p. 119).
Y
P
O
Save as a new image and display.
z Touch [New File].
X The image will be saved as a new file.
z Follow Step 5 on p. 133.
C
• Some images may not be corrected properly.
• When [Overwrite] in Step 3 is chosen, the uncorrected image is
overwritten with the corrected data, erasing the original image.
• Protected images cannot be overwritten.
Movies cannot be corrected.
Downloaded From camera-usermanual.com Canon Manuals
138
8
Printing
This chapter explains how to choose images for printing, and print
using a Canon-brand PictBridge compliant printer (sold separately).
Canon-Brand PictBridge Compliant Printers
C
Y
P
O
• This chapter uses Canon-brand SELPHY CP series printers in the
explanations. The displayed screens and available functions will differ
depending on the printer. Please also refer to the Printer User Guide.
Downloaded From camera-usermanual.com Canon Manuals
139
Printing Images
Easy Print
You can easily print the pictures you take by connecting the camera to a
PictBridge compliant printer (sold separately) using the supplied interface
cable (p. 2).
Turn off the camera and printer.
Connect the camera to the printer.
z Open the cover and insert the cable’s
small plug firmly into the camera terminal
in the direction shown.
z Insert the cable’s large plug into the
printer. For connection details, refer to the
user guide provided with the printer.
Y
P
O
Turn on the printer.
C
Turn on the camera.
z Press the 1 button to turn on the camera.
Choose an image.
z Drag across the screen to choose an
image.
Choose c.
z Touch H, then drag the menu on the
left up or down to choose c.
Downloaded From camera-usermanual.com Canon Manuals
140
Printing Images
Print images.
z Touch [Print].
X Printing will start.
z If you want to print additional images,
repeat Steps 5 and 6 after printing has
completed.
z After printing has completed, turn off the
camera and printer, and unplug the
interface cable.
• Refer to p. 204 for Canon-brand PictBridge compliant printers (sold
separately).
• Index printing is not available on certain Canon-brand PictBridge
compliant printers (sold separately).
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
141
Printing Images
Making Print Settings
Connect the camera to the printer.
z Follow Steps 1 – 6 on p. 140 to display the
screen on the left.
Choose a menu option.
z Touch an item to choose it.
Choose the option settings.
z Touch qr to choose the option setting.
—
No. of Copies Choose the number of copies.
Default
Date
File No.
Both
Off
Default
Follows the printer’s settings.
Prints the date.
Y
P
O
Prints the file number.
Prints both the date and file number.
—
Follows the printer’s settings.
C
Off
—
On
Uses shooting information to optimize print settings.
Red-Eye1
Corrects red-eye.
Trimming
—
Choose the area for printing.
Paper Settings
—
Sets the paper size and layout.
Downloaded From camera-usermanual.com Canon Manuals
142
Printing Images
Trimming and Printing (Trimming)
You can cut out a portion of an image for printing.
Choose [Trimming].
z Follow Steps 1 – 2 on p. 142 to choose
[Trimming].
X A frame will appear around the portion of
the image to be trimmed.
Choose the trimming area.
z Move the zoom lever to change the frame
size.
z Drag the frame to change its position.
z Touch
to rotate the frame.
z Touch [OK] to complete the setting.
Y
P
O
Print images.
z Follow Step 7 on p. 141 to print.
• You may not be able to trim images depending on the aspect ratio, or if
they are too small.
• Trimming photos with embedded dates may not show the dates properly.
C
Downloaded From camera-usermanual.com Canon Manuals
143
Printing Images
Choosing the Paper Size and Layout for Printing
Choose [Paper Settings].
z Follow Steps 1 – 2 on p. 142 to choose
[Paper Settings].
Choose a paper size.
z Touch an option to choose it, then touch
[Next].
Choose the paper type.
z Touch an option to choose it, then touch
[Next].
Y
P
O
Choose the layout.
C
z Drag up or down the screen to choose a
layout.
z Touch qr to set the number of prints when
[N-up] is chosen.
z Touch [OK].
Print images.
Downloaded From camera-usermanual.com Canon Manuals
144
Printing Images
Available Layout Options
Default
Follows the printer’s settings.
Bordered
Prints with a border.
Borderless
Prints without a border.
N-up
Selects how many copies of an image are printed on a sheet.
ID Photo
Prints ID photos.
Only images with a recording pixel setting of
of 4:3 can be chosen.
Fixed Size
Choose the print size.
Choose from 3.5 x 5 in., postcard and wide sized prints.
and an aspect ratio
Printing ID Photos
Choose [ID Photo].
z Follow Steps 1 – 4 on p. 144 to choose [ID
Photo], then touch [Next].
Y
P
O
Choose the length of the long side
and short side.
z Touch an item to choose it.
z Touch qr to choose a length, then touch
C
[Trimming].
Choose the printing area.
z Follow Step 2 on p. 143 to choose the
printing area.
Print images.
Downloaded From camera-usermanual.com Canon Manuals
145
Printing Images
Printing Movies
Connect the camera to the printer.
z Follow Steps 1 – 6 on p. 140 to choose a
movie and display the screen on the left.
Choose a printing method.
, then touch qr to choose a
printing method.
z Touch
Print images.
Printing Options for Movies
Single
Prints currently displayed scene as a still image.
Sequence
Prints a sequence of images from a specified scene on a single sheet of
paper. If [Caption] is set to [On], you can print the folder number, file
number, and the elapsed time for the frame at the same time.
Y
P
O
• Touching [Stop] during printing will cancel printing.
• [ID Photo] and [Sequence] cannot be chosen on Canon brand PictBridge
compliant printers from CP720/CP730 and earlier models.
C
Downloaded From camera-usermanual.com Canon Manuals
146
Choosing Images for Printing (DPOF)
You can choose up to 998 images on a memory card for printing and specify
settings such as the number of copies so that they can be printed as a batch
(p. 150) or processed at a photo developer service. These selection methods
comply with the DPOF (Digital Print Order Format) standards.
Movies cannot be chosen.
Adding Images to a Print List with the FUNC.
Menu
You can add images to the print list (DPOF) directly after shooting or during
playback in the FUNC. menu.
Choose an image.
z Drag across the screen to choose an
image.
Y
P
O
Choose c (movies will be
excluded).
z Touch H, then drag the menu on the
C
left up or down to choose c.
Add images to the print list.
z Touch op to choose the number of
prints, then touch [Add].
Downloaded From camera-usermanual.com Canon Manuals
147
Choosing Images for Printing (DPOF)
Print Settings
You can set the print type, date and file number. These settings apply to all
images chosen for printing.
Choose [Print Settings].
z Touch H, then n to choose the
2 tab, and touch [Print Settings].
Choose a setting.
z Touch op to choose and set an option.
z Touch ^ to complete the setting and
return to the menu screen.
Standard
Print Type
Date
File No.
Clear DPOF
data
Prints 1 image per page.
Index
Prints several reduced size images per page.
Both
Prints both standard and index formats.
On
Y
P
O
Prints the shooting date.
Off
—
On
Prints the file number.
C
Off
—
On
Removes all print settings after printing.
Off
—
• Some printers or photo developer services may not be able to reflect all
of the settings in the prints.
•
may appear when using a memory card with print settings set by a
different camera. If you change the settings using this camera, all the
previous settings may be overwritten.
• If [Date] is set to [On], some printers may print the date twice.
Downloaded From camera-usermanual.com Canon Manuals
148
Choosing Images for Printing (DPOF)
• With [Index] chosen, the [Date] and [File No.] options cannot be set to
[On] at the same time.
• The date will be printed in the style set in the [Date/Time] function in the
3 tab (p. 21).
Choosing the Number of Copies
Choose [Select Images & Qty.].
z Touch H, then n to choose the
2 tab, and touch [Select Images & Qty.].
Choose an image.
z Drag across the screen to choose an
image.
X You will be able to set the number of print
Y
P
O
copies.
z For [Index], touch the screen. Once
C
chosen,
will appear. If you touch inside
the frame again,
will disappear.
Set the number of prints.
z Touch op to set the number of prints
(maximum 99).
z Repeat Steps 2 and 3 to choose other
images and the number of prints for each.
z You cannot set the number of copies for
index prints. You can only choose which
images to print (as shown in Step 2).
z Touch ^ to complete the setting and
return to the menu screen.
Downloaded From camera-usermanual.com Canon Manuals
149
Choosing Images for Printing (DPOF)
Setting All Images to Print Once
Choose [Select All Images].
z Follow Step 1 on p. 149 to touch [Select All
Images].
Make print settings.
z Touch [OK].
Clearing All Selections
Choose [Clear All Selections].
z Follow Step 1 on p. 149 to touch [Clear All
Selections].
Y
P
O
All selections will be cleared.
z Touch [OK].
Printing chosen images (DPOF)
C
• When there are images added to the print list
(pp. 147 – 150), the screen on the left will appear
when you connect the camera to a PictBridge
compliant printer. Touch [Print now] to easily print
images added to the print list.
• If you stop the printer during printing and start
again, it will start from the next print.
Downloaded From camera-usermanual.com Canon Manuals
150
Choosing Images for a Photobook
When you choose images on a memory card to use in Photobooks (max.998
images) and use the included software to transfer them to a computer, the
chosen images will be copied into a dedicated folder. This function is useful
for ordering Photobooks online and for printing Photobooks on a printer.
Choosing a Selection Method
Choose [Photobook Set-up].
z Touch H, then n to choose the
1 tab, and touch [Photobook Set-up].
Choose a selection method.
z Drag up or down the screen to choose a
selection method, then touch the menu
item again.
z Touch ^ to return to the menu screen.
Y
P
O
may appear when using a memory card with print settings set by a
different camera. If you change the settings using this camera, all the
previous settings may be overwritten.
C
For details on printing images downloaded to a computer, refer to the
Software Guide or the user guide included with your printer.
Choosing Images Individually
Choose [Select].
z Follow Step 2 above to choose [Select].
Downloaded From camera-usermanual.com Canon Manuals
151
Choosing Images for a Photobook
Choose an image.
z Drag across the screen to choose an
image, then touch the screen.
will appear on the screen.
z Touching the screen again deselects the
image, and
disappears.
z To choose additional images, repeat the
above procedure.
z Touch ^ to complete the setting and
return to the menu screen.
X
To choose multiple images, touch g in the upper left of the screen and
touch the images you want.
Setting All Images to Print Once
Y
P
O
Choose [Select All Images].
z Follow Step 2 on p. 151 to touch [Select All
Images].
C
Make print settings.
z Touch [OK].
Clearing All Selections
Choose [Clear All Selections].
z Follow Step 2 on p. 151 to touch [Clear All
Selections].
All selections will be cleared.
z Touch [OK].
Downloaded From camera-usermanual.com Canon Manuals
152
9
Customizing Camera
Settings
You can customize various settings to suit your shooting preferences.
The first part of this chapter explains convenient and commonly used
Y
P
O
functions. The latter part explains how to change shooting and
playback settings to suit your purposes.
C
Downloaded From camera-usermanual.com Canon Manuals
153
Changing Camera Settings
You can customize convenient and commonly used functions in the 3 tab
(p. 46).
Changing Sounds
You can change each of the camera’s operation sounds.
z Touch [Sound Options].
z Drag up or down the screen to choose an
option, then touch qr to choose a setting.
1
Preset sounds
(cannot be modified)
2
Preset sounds
You can use the included software to
change the sounds (p. 2).
Even if you change the [Shutter Sound], it will not be reflected in the shutter
sound option in
mode (p. 79).
Y
P
O
Turning Off Hints & Tips
C
You can turn off this function. However, hints and tips for menus (p. 46) will
always display.
z Choose [Hints & Tips], then touch qr to
choose [Off].
Downloaded From camera-usermanual.com Canon Manuals
154
Changing Camera Settings
Low Level Memory Card Formatting
Perform low level formatting when [Memory card error] appears, the camera
does not operate properly, you think that the recording/reading speed of a
memory card has dropped, the continuous shooting speed slows down, or
recording suddenly stops while shooting a movie. As you cannot retrieve the
erased data, exercise adequate caution before formatting the memory card.
Display the [Format] screen.
z Follow Steps 1 and 2 on p. 24.
Start the low level format.
z Touch the frame to the left of [Low Level
Format] to display a
.
z Touch [OK].
X A confirmation screen will appear.
Y
P
O
z Touch [OK].
X Low level formatting starts.
X When low level formatting ends, [Memory
card formatting complete] will appear on
the screen.
z Touch [OK].
C
• Low level formatting may take longer than standard formatting (p. 24),
since all recorded data is erased.
• You can stop a low level format of a memory card by touching [Stop].
When stopping low level formatting, the data will be erased but the
memory card can be used without problem.
Downloaded From camera-usermanual.com Canon Manuals
155
Changing Camera Settings
Changing the Start-up Screen
You can change the start-up screen that appears when you turn on the
camera.
z Touch [Start-up Image].
z Touch an option.
No start-up image
1
Preset images
(cannot be modified)
2
Preset images
You can set recorded images, and use the
included software to change the images.
Registering Recorded Images as the Start-up Screen
Y
P
O
Enter Playback mode.
z Press the 1 button.
Choose [Start-up Image].
C
z Touch [Start-up Image].
z Touch [2], then touch
.
Choose an image.
z Drag across the screen to choose an
image, then touch [OK].
X The [Register?] screen will appear.
z Touch [OK].
Any previously registered start-up image will be overwritten when
registering a new start-up image.
Downloaded From camera-usermanual.com Canon Manuals
156
Changing Camera Settings
Register the start-up image or sounds with the included
software
The dedicated operation sounds and start-up images on the included software
can be registered to the camera. Refer to the Software Guide for details.
Changing the Screen Color
z Choose [Color Option], then touch qr to
choose an option.
Changing the File Number Assignment
Y
P
O
Images you shoot are automatically assigned file numbers in the order they
were taken, from 0001 – 9999, and saved to folders of up to 2,000 images.
You can change the file number assignment.
z Choose [File Numbering], then touch qr
C
to choose an option.
Continuous
Even if you shoot using a new
memory card, the file numbers are
assigned consecutively until an
image with the number 9999 is
taken/saved.
Auto Reset
If you replace the memory card
with a new one, or a new folder is
created, file numbering begins
with 0001 again.
• If you use a memory card already containing images, the newly assigned
file numbers may continue the existing numbering for both [Continuous]
and [Auto Reset]. If you want to start over with file number 0001, format
the memory card before use (p. 24).
• Refer to the Software Guide for information regarding folder structure or
image types.
Downloaded From camera-usermanual.com Canon Manuals
157
Changing Camera Settings
Creating Folders by Shooting Date
Images are saved into folders created each month, however, you can also
create folders by shooting date.
z Choose [Create Folder], then touch qr to
choose [Daily].
z Images will be saved into folders created
on each shooting date.
Changing the Lens Retract Time
For safety reasons, the lens retracts about 1 minute after pressing the 1
button when in a Shooting mode (p. 30). If you want the lens to retract
immediately when you press the 1 button, set the retract time to [0 sec.].
Y
P
O
z Choose [Lens Retract], then touch qr to
choose [0 sec.].
C
Turning Off the Power Saving Function
You can set the power saving function (p. 50) to [Off]. Setting it to [On] is
recommended to save battery power.
z Touch [Power Saving].
z Drag up or down the screen to choose
[Auto Power Down], then touch qr to
choose [Off].
z If you set the power saving function to
[Off], be sure to turn the camera off after
use.
Downloaded From camera-usermanual.com Canon Manuals
158
Changing Camera Settings
Setting the Screen Shut-Off Time
You can adjust the time the screen takes to shut off automatically (p. 50). This
also works when [Auto Power Down] is set to [Off].
z Touch [Power Saving].
z Drag up or down the screen to choose
[Display Off], then touch qr to choose a
time.
z In order to save battery power, you should
choose less than [1 min.].
Using the World Clock
When traveling abroad, you can record images with local dates and times
simply by switching the time zone setting. If you pre-register the destination
time zones, you can enjoy the convenience of not having to switch the Date/
Time settings.
Y
P
O
Set the home time zone.
C
z Touch [Time Zone].
z When setting this for the first time, check
the information that displays on the screen
on the left, then touch [Time Zone].
z Touch qr to choose the home time zone.
Touch
to set daylight saving time
(adds 1 hour).
z Touch ^.
Downloaded From camera-usermanual.com Canon Manuals
159
Changing Camera Settings
Set the world time zone.
z Touch [ World], then touch [Time Zone].
z Touch qr to choose the destination time
zone.
z You can also set the daylight saving time
as in Step 1.
z Touch ^.
Choose the world time zone.
World], then touch ^.
will appear in the [Time Zone] or
shooting screen (p. 183).
z Touch [
X
If you change the date or time in the
setting (p. 22), your [
time and date will automatically change.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
160
Home]
Changing Camera Settings
Calibrating the Touch Panel
You can calibrate the touch panel if you are having difficulty choosing items
or buttons. Be sure to use the toggle attached to the strap to calibrate the
touch panel accurately.
z Touch [Calibration].
z Use the toggle attached to the strap to
touch
that appears on the screen
(p. 14).
z Follow the on-screen instructions and
touch the screen four times in the following
order: in the upper left, lower left, lower
right and upper right parts of the screen.
Y
P
O
Only use the attached toggle to perform operations. Do not use other
objects, such as pens or pencils.
C
Downloaded From camera-usermanual.com Canon Manuals
161
Changing Shooting Function Settings
If you set the mode switch to 4, and the mode to G, you can change the
settings in the 4 tab (p. 46).
Before attempting to shoot using a function explained in this section in
modes other than G, check if the function is available in those modes
(pp. 192 – 193).
Switching the Focus Setting
The camera focuses on whatever it is aimed at even when you do not press
the shutter button. However, you can set it so that the camera only focuses
when the shutter button is pressed halfway.
z Choose [Continuous AF], then touch qr
to choose [Off].
On
Since the camera focuses continuously
until you press the shutter button
halfway, it allows you to shoot without
missing photo opportunities.
Off
The camera does not focus
continuously, thereby conserving
battery power.
C
Y
P
O
Using the Touch Shutter Function
You can activate the Touch Shutter function so you can shoot by touching the
screen.
z Choose [Touch Shutter], then touch qr to
choose [On].
z Follow Steps 2 – 3 on p. 27 to shoot.
• The Touch Shutter function operates in the same way as when pressing
the shutter button, but cannot be used with the following functions:
AF lock (p. 97), AE lock (p. 99), FE lock (p. 99)
• When shooting in e or u (p. 91) with the AF frame mode set to [Face
Detect], using the Touch Shutter function returns the camera to
.
• Only one shot will be taken when Touch Shutter is set to [On] in
mode
(p. 79) or when W has been selected (p. 88).
Downloaded From camera-usermanual.com Canon Manuals
162
Changing Shooting Function Settings
Turning Off the AF Assist Beam
The lamp will automatically light to assist focusing in low light conditions when
you press the shutter button halfway. You can turn off the lamp.
z Choose [AF-assist Beam], then touch qr
to choose [Off].
Turning Off the Red-Eye Reduction Function
The red-eye reduction lamp lights in order to reduce the red-eye effect that
occurs when shooting in dark conditions with the flash. You can turn off this
function.
Y
P
O
z Touch [Flash Settings].
z Drag up or down the screen to choose
C
[Red-Eye Lamp], then touch qr to choose
[Off].
Changing the Image Display Time Right After
Shooting
You can change the length of time the images display right after shooting.
z Choose [Review], then touch qr to
choose an option.
2 – 10 sec.
Displays images for the set time.
Hold
The image displays until you press
the shutter button halfway.
Off
Images will not display.
Downloaded From camera-usermanual.com Canon Manuals
163
Changing Shooting Function Settings
Changing the Way the Image Displays Right
After Shooting
You can change the way the image displays right after shooting.
z Choose [Review Info], then touch qr to
choose an option.
Off
Displays the image only.
Displays detailed information
(p. 186).
The area inside the AF frame is
magnified, allowing you to check
Focus Check the focus. The procedure is the
same as in “Checking the Focus”
(p. 118).
Detailed
Displaying Grid Lines
Y
P
O
You can display grid lines on the screen for vertical and horizontal guidance
while shooting.
C
z Choose [Grid Lines], then touch qr to
choose [On].
Grid lines will not be recorded on the image.
Downloaded From camera-usermanual.com Canon Manuals
164
Changing Shooting Function Settings
Changing the IS-Mode Settings
z Choose [IS Settings], then touch the menu
item again.
z Drag up or down the screen to choose
[IS Mode], then touch qr to choose [Off].
Continuous
Automatically sets the optimal
image stabilization for the scene
(Intelligent IS) (p. 185).
Shoot Only*
Image stabilization is only active
at the moment of shooting.
Off
Turns off image stabilization.
* Setting changes to [Continuous] when shooting
movies.
If camera shake is too strong, attach the camera to a tripod. Additionally,
you should set [IS Mode] to [Off] when shooting with a tripod.
Y
P
O
Turning Off the Powered IS Function
Powered IS reduces subtle camera shake when shooting movies at max
telephoto. However, shooting a moving subject while walking, or such things
as severe camera movement may cause unexpected results in the movie. In
such cases, set Powered IS to [Off].
C
z Choose [IS Settings], then touch the menu
item again.
z Drag up or down the screen to choose
[Powered IS], then touch qr to choose
[Off].
[Powered IS] settings will be disabled if [IS Mode] is set to [Off].
Downloaded From camera-usermanual.com Canon Manuals
165
Changing Shooting Function Settings
Changing Icon Order (Icon Layout)
You can add icons to the shooting screen, or change their arrangement.
Adding Icons
Display the settings screen.
z In a shooting screen, touch and hold one of
the icons.
z When [Changes which icons appear and
their positions] appears, lift your finger off
the screen once, then touch the center of
the screen.
X The setting screen shown to the left will
appear.
Y
P
O
Add an icon.
C
z Drag the desired icon that appears in the
center of the screen in Step 1 to the
position you want.
z When you drag the icon near a position
where it can be placed, an orange frame
appears. Lift your finger off the screen to
add the icon there. The icon will exchange
places with any existing icon in that
position.
z Positions with grayed out icons are
unavailable.
Complete the setting.
z Touch [Exit].
If you have placed an icon in the upper right corner of the screen and then
touch and hold that icon in Step 1,
will appear and the layout screen will
not be displayed. Choose a different icon instead.
Downloaded From camera-usermanual.com Canon Manuals
166
Changing Shooting Function Settings
Rearranging Icons
z Drag the desired icon that appears in the
layout screen in Step 1 on p. 166 to the
position you want.
X The icon will exchange places with any
existing icon in that position.
Removing Icons
z When in the layout screen that appears in
Step 1 on p. 166, drag the icon you want to
remove to the center and then to
that
will appear on the lower part of the screen.
z If you drag an icon that cannot be
removed,
will not appear.
Preset Layouts
Y
P
O
You can choose from 3 preset icon layouts. Only default icons will be
displayed. Added icons will not appear.
C
z Touch [Preset Layouts] in the layout
screen in Step 1 on p. 166.
z Touch the desired icon arrangement, then
touch [OK].
z If you touch [Cancel], the layout will not
change, and the settings screen will
reappear.
You can also display the layout screen if you touch H then n, and
choose [Icon Layout] in the 4 tab.
Downloaded From camera-usermanual.com Canon Manuals
167
Changing Playback Function Settings
You can adjust the settings in the 1 tab by pressing the 1 button (p. 46).
Turning Off Active Display
You can turn off Active Display (pp. 31, 119) so that gently tapping the side
of the camera or tilting the camera does not cause images to switch.
z Choose [Active Display], then touch qr to
choose [Off].
Turning Off the Auto Rotate Function
When you play back images on the camera, images shot in vertical
orientation automatically rotate and display vertically. You can turn off this
function.
Y
P
O
z Select [Auto Rotate], then touch qr to
select [Off].
C
• Images cannot be rotated (p. 132) if you have set [Auto Rotate] to [Off].
Rotated images will also appear in their original orientation.
• In Smart Shuffle (p. 122), even if [Auto Rotate] is set to [Off], images
taken vertically will be displayed vertically, while rotated images will
appear in their rotated orientation.
Choosing the Image that First Displays in
Playback
z Choose [Resume], then touch qr to
choose an option.
Last seen
Resumes with the image last
viewed.
Last shot
Resumes with the most recently
shot image.
Downloaded From camera-usermanual.com Canon Manuals
168
10
Useful Information
This chapter introduces how to use the separately sold accessories
and Eye-Fi card (also sold separately), troubleshooting tips, and
contains lists of functions and items that appear on the screen.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
169
Viewing Images on a TV
You can connect the camera to a TV to view images you have shot.
The following functions are available when you perform operations with the
camera:
• Switching images
Drag across the screen, or tap the camera lightly with your finger (pp. 30, 31).
• Movie playback (p. 35)
• Magnification (p. 119)
Move the zoom lever toward k.
• Group playback (p. 120)
• Touch Actions (p. 123)
Smart Shuffle and image erase cannot be called up.
Since nothing will appear on the camera’s screen, look at the TV while
using the camera screen to perform operations.
Using the Stereo AV Cable (Sold Separately)
with a TV
Y
P
O
Using Stereo AV Cable AVC-DC400ST (sold separately) (p. 204), you can
connect the camera to a TV to view images you have shot.
Turn off the camera and TV.
C
Connect the camera to the TV.
z Open the camera’s terminal cover and fully
insert the cable plug into the camera’s
terminal.
Yellow
Yellow
White Red
z Insert the cable plug fully into the video
input terminals as shown in the illustration.
Red
White
Turn on the TV and switch it to the
input the cable is connected to.
Downloaded From camera-usermanual.com Canon Manuals
170
Viewing Images on a TV
Turn on the camera.
z Press the 1 button to turn on the camera.
X The image will appear on the TV (nothing
will appear on the screen of the camera).
z Use the camera screen to perform
operations.
z After you finish, turn off the camera and
TV, and unplug the cable.
What if the images don’t display correctly on the TV?
Images will not display correctly if the camera’s video output setting (NTSC/PAL)
does not match the TV system. Touch H then n to choose the 3 tab,
then choose [Video System] to switch to the correct video system.
Using the HDMI Cable (Sold Separately) with an
HD TV
Y
P
O
Using the separately sold HDMI Cable HTC-100 (p. 204), you can connect
the camera to an HD TV to view images you have shot.
C
Turn off the camera and TV.
Connect the camera to the TV.
z Open the camera’s terminal cover and fully
insert the cable plug into the camera’s
terminal.
z Fully insert the cable plug into the TV’s
HDMI terminal as shown.
Downloaded From camera-usermanual.com Canon Manuals
171
Viewing Images on a TV
Display images.
z Follow Steps 3 and 4 on p. 170 to display
the images.
The supplied interface cable and the separately sold Stereo AV Cable
(p. 204), and HDMI Cable HTC-100 cannot be plugged into the camera at
the same time. Doing so could cause the camera to malfunction.
Operation sounds will not play when connected to an HD TV.
Using a TV Remote to Control the Camera
When you connect the camera to an HDMI CEC compatible TV, you can use
the TV’s remote control to operate the camera and play back images or view
slideshows.
You may need to make settings on some TVs. For details, refer to the user
guide supplied with the TV.
Y
P
O
Choose [Ctrl via HDMI].
z Touch H and then n to choose
C
[Ctrl via HDMI] in the 3 tab, then touch
qr to choose [Enable].
Connect the camera to the TV.
z Follow Steps 1 – 2 on p. 171 to connect the
camera to the TV.
Display images.
z Turn on the TV and press the camera’s 1
button.
X The image will appear on the TV (nothing
will appear on the screen of the camera).
Downloaded From camera-usermanual.com Canon Manuals
172
Viewing Images on a TV
Use the TV’s remote control.
z Press the remote control’s qr buttons to
choose an image.
z Press the OK/Select button to display the
camera control panel. Press the qr
buttons to choose an item, then press the
OK/Select button again.
Summary of the Camera Control Panel Displayed on the TV
.
Return
Closes the menu.
Group playback
Displays groups of High-speed Burst images (only appears
when grouped images are chosen).
Play movie
Plays a movie (only appears when a movie is chosen).
Slideshow
Plays back images automatically. During playback, you can
press the remote control’s qr buttons to switch images.
Index playback
Displays images in an index.
Y
P
O
• If you move the zoom lever and change the display, you will not be able
to control the camera with the TV’s remote control unit you return to single
image playback.
• Some TVs may not be able to control the camera properly even though
they are HDMI CEC compatible.
C
Downloaded From camera-usermanual.com Canon Manuals
173
Using Household Power
If you use AC Adapter Kit ACK-DC70 (sold separately), you can use the
camera without worrying about how much charge is left in the battery.
Turn off the camera.
Terminals
Insert the coupler.
z Follow Step 1 on p. 18 to open the cover.
z The coupler can be inserted in the same
way as the battery. Insert the coupler as
shown in Step 2 on p. 18.
z Follow Step 3 on p. 18 to close the cover.
Plug the cord into the coupler.
z Open the cover and fully insert the plug
into the coupler.
Y
P
O
Connect the power cord.
C
z Connect the power cord to the compact
power adapter, then plug the other end into
a power outlet.
z Turn the camera on to use it.
z After you finish, turn off the camera and
unplug the power cord from the power
outlet.
Do not unplug the plug or power cord with the camera turned on. This could
erase images you have taken or damage the camera.
Downloaded From camera-usermanual.com Canon Manuals
174
Using an Eye-Fi Card
Before using an Eye-Fi card, be sure to check whether Eye-Fi card use is
authorized in the country or territory of use (p. 17).
When you put a prepared Eye-Fi card into the camera, you can automatically
transfer your images wirelessly to a computer, or upload them to a web
service.
Image transfer is a function of the Eye-Fi card. For details on how to setup
and use the card, and concerning problems transferring images, please refer
to the Eye-Fi card user guide, or contact the manufacturer.
Please keep the following things in mind when using an Eye-Fi card.
• Even if you set [Eye-Fi trans.] to [Disable] (p. 176), the Eye-Fi card may transmit
radio waves. Be sure to remove the Eye-Fi card from the camera before
entering areas that prevent unauthorized transmission of radio waves, such as
hospitals and airplanes.
• If you have trouble transferring images, check the card or computer settings.
For details, refer to the user guide supplied with the card.
• Depending on the connection status of the wireless network, it may take time to
transfer images, or image transfer may be interrupted.
• Due to its transfer function, the Eye-Fi card may become hot.
• Battery consumption will be quicker than in normal use.
• Camera operations will be slower than in normal use. This may be resolved by
setting [Eye-Fi trans.] to [Disable].
C
Y
P
O
If you put an Eye-Fi card into the camera, the connection status can be
checked in the shooting screen (information display) and playback screen
(simple information display).
(Gray)
Not connected
(Flashing white)
Connecting
(White)
Connected
(Animated)
Transferring
Interrupted
Error retrieving Eye-Fi card info (Turn the camera off and on
again. If this continues to appear, there may be a problem with
the card.)
will appear on transferred images.
Downloaded From camera-usermanual.com Canon Manuals
175
Using an Eye-Fi Card
• The power saving function does not work while transferring images
(p. 50).
• Choosing
mode will interrupt the Eye-Fi connection. Choosing
another Shooting mode or entering Playback mode will reopen the EyeFi connection, but movies made with
mode may be transferred again.
Checking Connection Information
You can check the Eye-Fi card’s access point SSID, or connection status.
Choose [Connection info].
z Touch H, then n to choose the
3 tab, and touch [Eye-Fi Settings].
z Touch [Connection info], then touch
[Connection info] again.
X The connection info screen will appear.
Y
P
O
Disabling Eye-Fi Transfer
You can set the card to disable Eye-Fi transfer.
C
Choose [Disable] in [Eye-Fi trans.].
z Touch H, then n to choose the
3 tab, and touch [Eye-Fi Settings].
z Choose [Eye-Fi trans.], then touch qr to
choose [Disable].
What if [Eye-Fi Settings] does not appear?
[Eye-Fi Settings] will not appear when an Eye-Fi card is not inserted in the
camera, and when an Eye-Fi card’s write-protect tab is in the locked position. For
this reason, settings cannot be changed for Eye-Fi cards equipped with a writeprotect tab when the tab is in the locked position.
Downloaded From camera-usermanual.com Canon Manuals
176
Troubleshooting
If you think there is a problem with the camera, first check the following. If the
items below do not solve your problem, contact a Canon Customer Support
Help Desk.
Power
You pressed the power button, but nothing happened.
•
•
•
•
Confirm that the battery is the correct type, and is not depleted (p. 16).
Confirm that the battery is properly inserted (p. 18).
Confirm that the memory card slot cover or battery cover is securely closed (pp. 18, 19).
If the battery terminals are dirty, battery performance will decrease. Clean the terminals
with a cotton swab and re-insert the battery several times.
Battery is consumed quickly.
• Battery performance decreases at low temperatures. Warm the battery, for example, by
placing it in your pocket with the terminal cover on.
Lens will not retract.
• Do not open the memory card slot cover or battery cover while the power is on. After
closing the memory card slot cover or battery cover, turn the power on then back off
(pp. 18, 19).
TV Output
Y
P
O
Image is distorted or not showing on TV (p. 171).
Shooting
Cannot shoot.
C
• When in Playback mode (p. 23), press the shutter button halfway (p. 25).
Screen does not display properly in dark places (p. 44).
Screen does not display properly while shooting.
Please note, the following will not be recorded in still images, but will be recorded in
movies.
• When shooting under fluorescent or LED lighting, the screen may flicker, and a
horizontal bar may appear.
A flashing h appears on the screen and the shot cannot be taken even
though the shutter button was pressed fully (p. 29).
appears when the shutter button is pressed halfway (p. 52).
•
•
•
•
Set [IS Mode] to [Continuous] (p. 165).
Set the flash to h (p. 83).
Increase the ISO speed (p. 86).
Attach the camera to a tripod. Additionally, you should set [IS Mode] to [Off] when
shooting with a tripod (p. 165).
Downloaded From camera-usermanual.com Canon Manuals
177
Troubleshooting
Image is blurred.
• Press the shutter button halfway to focus on the subject, then press fully to shoot
(p. 25).
• Shoot the subject within the focusing distance (p. 198).
• Set the [AF-assist Beam] to [On] (p. 163).
• Confirm that functions which you do not intend to use (macro, etc.) are not set.
• Shoot using the focus lock or AF lock (pp. 94, 97).
Camera shake has blurred the image.
• Depending on the shooting conditions, image blurring when using the Touch Shutter
function may occur. Be sure to hold the camera firmly when shooting.
Even when you press the shutter button halfway, the AF frame does not
appear, and the camera does not focus.
• If you center on the light and dark contrasting area of the subject and push the shutter
button halfway, or repeatedly push the shutter button halfway, the AF frame will appear
and the camera will focus.
Subject is too dark.
•
•
•
•
Set the flash to h (p. 83).
Correct the brightness with exposure compensation (p. 83).
Adjust the image with i-Contrast (pp. 87, 137).
Use spot metering or AE Lock to shoot (pp. 98, 99).
Subject is too bright (overexposed).
•
•
•
•
Y
P
O
Set the flash to ! (p. 52).
Correct the brightness with exposure compensation (p. 83).
Use spot metering or AE Lock to shoot (pp. 98, 99).
Reduce the light illuminating the subject.
C
Image is dark even though the flash fired (p. 29).
• Shoot within an appropriate distance for flash photography (p. 83).
• Increase the ISO speed (p. 86).
Image taken using the flash is too bright (overexposed).
• Shoot within an appropriate distance for flash photography (p. 83).
• Set the flash to ! (p. 52).
White dots appear on the image when shooting with the flash.
• Light from the flash has reflected off dust particles or other objects in the air.
Image appears rough or grainy.
• Shoot with the ISO speed on a lower setting (p. 86).
• Depending on the Shooting mode, when shooting in a high ISO speed the image may
appear rough or grainy (p. 64).
Downloaded From camera-usermanual.com Canon Manuals
178
Troubleshooting
Eyes appear red (p. 101).
• Set the [Red-Eye Lamp] to [On] (p. 163). When shooting with the flash, the lamp lights
(p. 42), and for approximately 1 second while the camera is reducing red-eye, it is not
possible to shoot. It is more effective if the subject is looking directly at the lamp. Even
better results can be obtained by increasing the lighting in indoor settings or
approaching closer to the subject.
• Correct images with red-eye correction (p. 138).
Recording images to the memory card takes a long time, or continuous
shooting slows down.
• Perform a low-level format of the memory card in the camera (p. 155).
Cannot make settings for shooting functions or FUNC. menu.
• The items in which settings can be made differ depending on the shooting mode. Refer
to “Functions Available in Each Shooting Mode”, “FUNC. Menu”, and “Shooting Menu”
(pp. 188 – 193).
Shooting Movies
Correct shooting time does not display, or stops.
Y
P
O
• Format the memory card in the camera, or use a memory card capable of recording at
high speeds. Even when the shooting time does not display properly, the recorded
video will be the length that it was actually shot (pp. 24, 34).
appeared on the screen and shooting ended automatically.
The camera’s internal memory was insufficient. Try one of the following:
• Perform a low-level format of the memory card in the camera (p. 155).
• Change the image quality setting (p. 108).
• Use a memory card capable of recording at high speeds (p. 108).
Subject appears distorted.
C
• The subject may appear distorted if it passes quickly in front of the camera while
shooting. This is not a malfunction.
Playback
Cannot play back images or movies.
• If the file name or folder structure is changed on a computer, you may not be able to
play back images or movies. Refer to the Software Guide for information regarding
folder structure or file names.
Playback stops, or audio cuts out.
• Use a memory card that has had a low-level format performed on it with this camera
(p. 155).
• If you copy a movie to a memory card that reads slowly, playback may interrupt
momentarily.
• Depending on its capabilities, when playing movies on a computer, frames may drop or
the audio may cut out.
Downloaded From camera-usermanual.com Canon Manuals
179
List of Messages That Appear on the Screen
Screen
Touch operations do not work as expected.
• Since the camera uses a pressure sensitive touch panel, try touching the screen slightly
harder or use the toggle attached to the strap (p. 14).
• Calibrate the touch panel (p. 161).
appears on the upper right of the screen.
• You are touching the upper right part of the screen. Take your finger off the screen.
Computer
Cannot transfer images to a computer.
It may be possible to solve the problem when the camera is connected to a computer via
cable by reducing the transfer speed.
• Turn off the camera. Keep the shutter button pressed fully and move the zoom lever
toward i, then press the 1 button. Now move the zoom lever toward j. Touch [B]
in the screen that appears, then touch it again.
Eye-Fi Card
Cannot transfer images (p. 175).
Y
P
O
List of Messages That Appear on the
Screen
C
If error messages appear on the screen, try one of the following solutions.
No memory card
• The memory card is not installed in the correct direction. Install the memory card in the
correct direction (p. 19).
Memory card locked
• The SD memory card, SDHC memory card, SDXC memory card or Eye-Fi card’s write
protect tab is set to “LOCK”. Unlock the write protect tab (p. 19).
Cannot record!
• You attempted to shoot an image without a memory card. Insert the memory card in the
correct direction to shoot (p. 19).
Memory card error (p. 155)
• If the same message appears even when a formatted memory card is inserted in the
correct direction, contact a Canon Customer Support Help Desk (p. 19).
Downloaded From camera-usermanual.com Canon Manuals
180
List of Messages That Appear on the Screen
Insufficient space on card
• There is not enough free space on the memory card to shoot (pp. 26, 33, 51, 61, 81,
103) or edit images (pp. 133 – 138). Erase the images (pp. 32, 127) to open space for
new images, or insert an empty memory card (p. 19).
Touch Shutter unavailable/Touch AF unavailable
• You are touching the upper right part of the screen (p. 180).
• Touch AF cannot be used in your current Shooting mode (p. 188).
Touch AF canceled
• The camera could no longer recognize the subject you selected using Touch AF (p. 96).
Change the battery pack. (p. 18)
No Image.
• There are no images recorded on the memory card that can be displayed.
Protected! (p. 125)
Unidentified Image/Incompatible JPEG/Image too large./Cannot play back
AVI/RAW
Y
P
O
• Unsupported images, or images with corrupted data cannot be displayed.
• Images manipulated on a computer, that have had their file name changed, or have
been taken with a different camera may not display.
Cannot magnify!/Cannot play back this content in Smart Shuffle/Cannot
rotate/Cannot modify image/Cannot register this image!/Cannot modify/
Cannot assign to category/Unselectable image.
C
• Incompatible images cannot be magnified (p. 119), played back in Smart Shuffle
(p. 122), tagged as favorites (p. 129), categorized (p. 131), rotated (p. 132), edited
(pp. 133 – 138), added to a print list (p. 147), chosen for a Photobook (p. 151), or
registered to the start-up screen (p. 156).
• Images manipulated on a computer, that have had their file name changed, or have
been taken with a different camera may not be magnified, played back in Smart Shuffle,
tagged as favorites, categorized, rotated, edited, added to a print list, chosen for a
Photobook, or registered to the start-up screen.
• Movies cannot be magnified (p. 119), played back in Smart Shuffle (p. 122), edited
(pp. 133 – 138), added to a print list (p. 147), chosen for a Photobook (p. 151), or
registered to the start-up screen (p. 156).
Exceeded selection limit
• You chose more than 998 images in print settings (p. 147) or photobook settings
(p. 151). Choose 998 or less images.
• Print settings (p. 147) or photobook settings (p. 151) could not be saved correctly.
Reduce the number of selected images and try again.
• You chose 501 or more images in Protect (p. 125), Erase (p. 127), Favorites (p. 129),
My Category (p. 131), Print Settings (p. 147) or Photobook Set-up (p. 151).
Downloaded From camera-usermanual.com Canon Manuals
181
List of Messages That Appear on the Screen
Communication error
• Images could not be transferred to the computer or printed due to the large amount of
images (approx. 1000) stored on the memory card. Use a commercially available USB
card reader to transfer the images. Insert the memory card into the printer’s card slot to
print.
Naming error!
• The folder or image could not be created because there is an image with the same file
name as the folder or image that the camera is attempting to create, or the highest
possible file number has already been reached. In the 3 menu, change [File
Numbering] to [Auto Reset] (p. 157) or format the memory card (p. 24).
Lens Error
• This error can occur if you hold the lens while it is in motion or when using it in a location
with excessive dust or sand in the air.
• If this error message continues to appear, contact a Canon Customer Support Help
Desk as there may be a problem with the lens.
A camera error was detected (Error number)
Y
P
O
• If an error code appears directly after taking a picture, the shot may not have been
recorded. Check the image in Playback mode.
• If this error code reappears, note the Error number (Exx) and contact a Canon
Customer Support Help Desk as there may be a problem with the camera.
File Error
C
• Photos from other cameras or images that have been altered using computer software
may not be printable.
Print error
• Check the paper size settings. If this message appears when the settings are correct,
turn the printer off and back on, then make the settings again.
Ink absorber full
• Contact a Canon Customer Support Help Desk for an ink absorber replacement.
Downloaded From camera-usermanual.com Canon Manuals
182
Information Displayed on the Screen
Shooting (Information Display)
Shooting Mode (p. 188),
Scene Icon (p. 184)
Camera Orientation*
White Balance (p. 84)
My Colors (p. 89)
Drive Mode (p. 88)
Exposure Compensation
Amount (p. 83)
Camera Shake Warning
(p. 29)
FUNC. (Function) (p. 45)
Battery Charge Indicator
(p. 16)
Compression (Image
Quality) (p. 58) /
Recording Pixels (pp. 58,
108)
Eye-Fi Connection
Status (p. 175)
Recordable Shots (p. 59)
*
Y
P
O
Image Quality (Movies)
(p. 108)
AF Frame (p. 93)
Remaining Time (p. 108)
Spot AE Point Frame
(p. 98)
Focusing Range (p. 91),
AF Lock (p. 97)
Digital Zoom
Magnification (p. 53) /
Digital Tele-converter
(p. 92)
Shooting Movies (p. 33)
Flash Mode (pp. 52, 83)
Red-Eye Correction
(p. 101)
Touch Shutter (pp. 27,
162)
Date Stamp (p. 54)
DISP. (Display) (p. 43)
C
Grid Lines (p. 164)
Self-Timer (pp. 55, 56)
AE Lock (p. 99), FE Lock
(p. 99)
Shutter Speed
Aperture Value
Metering Method (p. 98)
i-Contrast (p. 87)
ISO Speed (p. 86)
Super Slow Motion Movie
Shooting Time (p. 106)
Zoom Bar (p. 26)
Blink Detection (p. 102)
IS Mode Icon (p. 185)
IS Mode (p. 165)
Time Zone (p. 159)
Wind Filter (p. 107)
Exposure Compensation
Bar (p. 83)
: Standard,
: Held vertically
When shooting, the camera detects if it is held vertically or horizontally, and adjusts settings
accordingly for the best shot. It also detects orientation during playback, so you can hold the
camera in either orientation and it will automatically rotate images for correct viewing.
This function may not operate correctly when the camera is pointed straight up or down.
Downloaded From camera-usermanual.com Canon Manuals
183
Information Displayed on the Screen
Scene Icons
In A mode, the camera displays an icon for the scene it has determined
and then automatically focuses and selects the optimum settings for subject
brightness and color.
Subject
People
Non-Human Subjects
With
Strong
When
Facial
Moving
Shadows
Background
When
Moving
When
Close
Icon
Background
Color
Bright
Gray
Backlit
—
Including Blue
Skies
Backlit
—
Sunsets
—
Spotlights
Dark
When Using
Tripod
*
C
—
Y
P
O
Light Blue
—
Orange
Dark Blue
*
—
* Appears when the scene is dark and the camera is attached to a tripod.
Downloaded From camera-usermanual.com Canon Manuals
184
Information Displayed on the Screen
IS Mode Icons
Automatically sets the optimal image stabilization for the scene (Intelligent
IS). In addition, the following icons appear in A mode.
Reduces camera shake when
shooting still images.
Reduces camera shake when
shooting movies, as well as,
strong camera shake while
walking (Dynamic mode).
Reduces camera shake during
panning shots.*
Reduces subtle camera shake
when shooting movies at max
telephoto (Powered IS).
Reduces camera shake for
macro photography (Hybrid IS).
Disables image stabilization
when the camera is attached to a
tripod and image stabilization is
unnecessary.
* Appears on the screen when following the motion of a subject while shooting (panning). While
following a subject moving horizontally, only vertical camera shake will be reduced (horizontal
image stabilization will be disabled). Additionally, when shooting subjects moving vertically,
only horizontal camera shake will be reduced.
Y
P
O
If you set IS Mode to [Off] (p. 165), camera shake will not be stabilized and
the icons will not appear.
C
Downloaded From camera-usermanual.com Canon Manuals
185
Information Displayed on the Screen
Playback (Detailed Information Display)
Index Display (p. 112)
My Category (p. 131)
Movies (p. 35), Highspeed Burst (p. 79),
Shooting Mode (p. 188)
ISO Speed (p. 86),
Playback Speed (p. 106)
White Balance (p. 84)
Histogram (p. 44)
Recording Pixels (pp. 58,
108), MOV (Movies)
FUNC. (Function) (p. 45)
Print List (p. 147)
Eye-Fi Transfer
Complete (p. 175)
Battery Charge Indicator
(p. 16)
Y
P
O
Metering Method (p. 98)
Folder Number – File
Number (p. 157)
Displayed image
number / Total number of
images
No Information Display
(p. 43)
Shutter Speed (Still
Images), Image Quality /
Frame Rate (Movies)
(p. 108)
Aperture Value
Exposure Compensation
Amount (p. 83)
Flash (p. 83)
Focusing Range (p. 91)
i-Contrast (pp. 87, 137)
C
File Size (pp. 59, 108)
DISP. (Display) (p. 43)
Compression (Image
Quality) (p. 58)
Group Playback (p. 120),
Image Editing (pp. 133 –
138)
Protect (p. 125)
Favorites (p. 129)
My Colors (pp. 89, 136)
Red-Eye Correction
(p. 138)
Shooting Date and Time
(p. 21)
Still Images: Recording
Pixels (p. 59)
Movies: Movie Length
(p. 108)
Downloaded From camera-usermanual.com Canon Manuals
186
Information Displayed on the Screen
Summary of Movie Control Panel in “Viewing Movies”
(p. 35)
Exit
Touch to display the volume panel, then touch op to adjust the volume.
When the volume is set to 0,
will appear.
Play
Skip Backward* (Continues to skip backward if you keep touching the screen.)
Previous Frame (Slow rewind if you touch and hold the icon.)
Next Frame (Slow advance if you touch and hold the icon.)
Skip Forward* (Continues to skip forward if you keep touching the screen.)
*
Edit (p. 109)
* Displays the frame approx. 4 sec. before or after the current frame.
• You can skip forward or backward if you lightly tap the camera (p. 31)
while viewing a movie (Active Display).
• Touch the scroll bar, or drag it left or right to change the displayed frame.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
187
Functions and Menu Lists
Functions Available in Each Shooting Mode
4
Shooting Modes
A
Function
Exposure Compensation (p. 83)
G
I
V
—
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
*1
{
{
—
—
—
—
—
{
{
{
{
{
{
{
{
{
{
{
—
{
—
{
—
AE Lock/FE Lock*4 (p. 99)
—
{
{
—
—
—
—
—
AF Lock (p. 97)
Touch AF (p. 96)
—
{
{
{
{
—
—
{
—
{
—
*5
—
*5
—
*5
{
{
{
{
{
{
{
{
Flash (pp. 52, 83)
Touch Shutter (p. 27)
Screen Display (p. 43)
h
Z
!
/
Information/No Information
Y
P
O
*1 Not selectable but switches to Z depending on the circumstances.
*2 Not selectable but switches to Z when the flash fires.
*3 Can only shoot. Subjects cannot be chosen.
*4 FE Lock not available when set to !.
*5 Only available when a face is detected.
C
Downloaded From camera-usermanual.com Canon Manuals
188
Functions and Menu Lists
4
w
O
P
t
N
—
{
{
{
{
{
{
{
{
—
—
—
{
—
—
—
{
—
{
{
—
—
—
—
{
{
{
{
{
{
{
{
{
{
—
{
—
—
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
*2
{
—
—
—
—
{
{
{
{
{
{
{
{
{
{
—
{
TY
—
—
—
—
{
*3
*3
{
*3
—
{
{
{
{
{
{
{
{
*3
{
{
{
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
{
—
—
—
—
—
{
—
—
—
—
—
—
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
—
{
{
—
—
—
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
Y
P
O
{ Selectable, or set automatically. – Not selectable.
C
Downloaded From camera-usermanual.com Canon Manuals
189
Functions and Menu Lists
FUNC. Menu
4
Shooting Modes
A
Function
Metering Method (p. 98)
G
I
V
{
{
{
{
{
{
{
{
—
{
{
{
{
{
—
{
—
{
—
{
—
{
—
{
—
{
{
—
—
{
{
{
*1
My Colors (p. 89)
*1
*2
White Balance (p. 84)
ISO Speed (p. 86)
Exposure Compensation (p. 83)
Self-Timer (pp. 55, 56)
Self-Timer Settings (p. 56)
Focusing Range (p. 91)
Drive Mode (p. 88)
] [ $
Delay*3
Shots*4
e u
W
*5
Still Image Aspect Ratio
(p. 57)
Recording Pixels (p. 58)
Compression Ratio (p. 58)
Movie Quality (pp. 106, 108)
C
{
{
{
{
{
{
{
{
—
{
{
{
{
{
—
{
—
{
{
{
{
{
{
{
—
{
{
—
—
—
—
—
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
—
—
{
{
{
{
{
—
—
—
{
{
{
{
—
{
{
{
{
{
—
{
—
{
—
{
—
{
{
{
—
—
—
—
{
—
{
{
{
—
{
{
{
{
{
—
{
—
{
—
—
{
—
{
{
—
—
—
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
Y
P
O
*1 White balance is not selectable.
*2 Contrast, sharpness, color saturation, red, green, blue, and skin tone can be set in 5 levels.
*3 Cannot be set to 0 seconds when in modes where the number of shots cannot be set.
*4 Fixed to 1 shot when in modes where the number of shots cannot be set.
*5
is set when in AF Lock or t.
Downloaded From camera-usermanual.com Canon Manuals
190
Functions and Menu Lists
4
TY
w
O
P
t
N
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
{
{
{
{
—
{
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
—
{
{
{
{
{
{
{
{
{
—
{
—
{
—
{
—
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
—
—
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
C
Y
P
O
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
—
—
—
—
—
—
{
{
{
{
{
{
{
{
{
{
{
{
—
—
—
—
—
—
—
—
*6
—
{
{
{
{
{
{
{
{
{
—
—
—
—
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
—
{
—
—
—
{
—
—
—
—
—
—
—
—
—
—
—
—
—
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
—
—
—
—
—
—
—
—
—
—
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
—
{
{
{
{
{
*7
{
{
{
{
{
{
{
{
{
{
{
—
{
—
{
—
{
—
{
—
{
—
*7
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
{
—
—
—
—
{
*6 Only
and
are available.
*7 Linked to aspect ratio and automatically set (p. 106).
{ Selectable, or set automatically. – Not selectable.
Downloaded From camera-usermanual.com Canon Manuals
191
Functions and Menu Lists
4 Shooting Menu
4
Shooting Modes
A
Function
AF Frame (p. 93)
AF Frame Size*2 (p. 94)
Digital Zoom (p. 53)
AF-Point Zoom (p. 95)
Servo AF (p. 97)
Continuous AF (p. 162)
Touch Shutter (p. 162)
AF-assist Beam (p. 163)
Flash Settings (pp. 101,
163)
i-Contrast (p. 87)
Wind Filter (p. 107)
Review (p. 163)
Review Info (p. 164)
Blink Detection (p. 102)
Grid Lines (p. 164)
Icon Layout (p. 166)
I
V
{
{
{
{
{
{
{
—
—
—
{
{
{
—
—
—
{
{
{
—
—
—
{
{
Face Detect*1
Fixed frame
Normal
Small
Standard
Off
{
—
—
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
Digital Tele-converter
(1.5x/2.0x)
—
{
—
—
—
—
—
—
{
{
—
{
{
—
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
—
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
—
—
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
—
—
{
—
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
—
—
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
—
—
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
On
Off
On
Off*3
On
Off
On/Off
On
Off
C
Y
P
O
On
Red-Eye Corr.
Off
Red-Eye Lamp On/Off
Auto
Off
On/Off
Off/2 – 10 sec./Hold
Off/Detailed/Focus Check
On
Off
On/Off
IS Mode
IS Settings (p. 165)
Powered IS
Date Stamp (p. 54)
G
Off
Continuous
Shoot Only
On
Off
Off
Date/Date & Time
*1 Operation differs depending on the shooting mode when faces are not detected.
*2 Available when the AF frame is set to [Fixed frame].
*3 [On] when moving people are detected in the A mode.
*4 Can only shoot. Subjects cannot be chosen.
Downloaded From camera-usermanual.com Canon Manuals
192
Functions and Menu Lists
4
TY
w
O
P
t
N
{
{
{
{
—
{
{
—
—
—
—
{
{
—
—
—
—
{
{
{
{
{
—
{
—
{
{
—
—
{
—
—
—
—
—
{
{
{
{
{
—
{
{
{
{
{
—
{
{
{
{
{
—
{
{
{
{
{
—
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
{
{
—
{
{
—
{
{
{
—
—
—
{
—
{
{
{
—
{
{
{
{
{
{
{
{
{
—
{
{
—
{
{
—
*4
{
{
—
—
—
{
—
{
{
{
—
{
{
{
{
{
{
{
{
{
—
—
{
—
{
{
{
*4
{
{
—
—
—
—
{
{
{
{
—
{
{
{
—
{
—
{
—
{
—
{
{
{
{
—
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
—
—
{
—
{
{
{
*4
{
{
—
{
{
—
{
{
{
{
—
{
{
{
{
{
{
{
{
{
—
—
{
—
{
{
{
—
{
{
—
{
{
—
{
—
{
{
—
{
{
{
{
{
{
{
{
{
—
—
{
—
{
{
{
{
{
{
—
{
{
—
{
{
{
{
—
{
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
—
{
{
—
{
{
{
{
—
{
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
—
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
—
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
—
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
—
{
—
{
—
{
*4
—
{
—
—
—
—
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
{
{
—
{
{
{
{
{
{
{
{
{
—
{
{
{
{
—
{
{
{
{
{
{
{
{
{
{
—
{
—
{
{
—
{
{
{
—
—
—
—
{
{
—
—
—
{
{
{
{
{
—
{
{
{
—
—
{
—
{
{
—
{
{
{
—
—
—
—
{
—
—
—
—
{
{
{
{
{
—
{
{
{
—
C
Y
P
O
{ Selectable, or set automatically. – Not selectable.
Downloaded From camera-usermanual.com Canon Manuals
193
Functions and Menu Lists
3 Set up Menu
Item
Content
Ref. Page
Mute
On/Off*
Volume
Set all operation sounds (5 levels).
p. 48
p. 48
Sound Options
Set the sounds for each camera operation.
p. 154
Hints & Tips
On*/Off
p. 154
LCD Brightness
Sets screen brightness (5 levels).
p. 47
Start-up Image
Add an image as a start-up image.
p. 156
Color Option
Orange*/Blue Gray/Khaki/Pink
Format
Formats memory card, erasing all data
File Numbering
Continuous*/Auto Reset
p. 157
Create Folder
Monthly*/Daily
p. 158
Lens Retract
1 min.*/0 sec.
Power Saving
Auto Power Down: On*/Off
Display Off: 10, 20 or 30 sec./1*, 2 or 3 min.
p. 157
pp. 24, 155
p. 158
Y
P
O
pp. 50, 158,
159
Time Zone
Home*/World
Date/Time
Date and time settings
p. 22
Video System
NTSC/PAL
p. 171
Ctrl via HDMI
Enable/Disable*
p. 172
Calibration
Calibrates the touch panel.
p. 161
Eye-Fi Settings
Eye-Fi connection settings (only appears when
Eye-Fi card is inserted)
p. 175
C
p. 159
Language
Choose display language.
p. 23
Reset All
Returns camera to default settings.
p. 49
* Default setting
Downloaded From camera-usermanual.com Canon Manuals
194
Functions and Menu Lists
1 Playback Menu
Item
Content
Ref. Page
Slideshow
Plays back images automatically.
p. 116
Erase
Erases images (Select, All Images).
p. 127
Protect
Protects images (Select, All Images).
p. 125
Rotate
Rotates images.
p. 132
Favorites
Tags or untags images as favorites.
p. 129
My Category
Categorizes images.
p. 131
Photobook Set-up
Chooses or clears photobook settings for
images.
p. 151
i-Contrast
Corrects dark portions and contrast in still
images.
p. 137
Red-Eye Correction
Corrects red eyes in still images.
p. 138
Trimming
Trims portions of still images.
p. 134
Resize
Resizes and saves still images.
p. 133
My Colors
Adjusts colors in still images.
p. 136
Active Display
On*/Off
p. 168
Scroll Display
On*/Off
Group Images
On*/Off
Auto Rotate
On*/Off
Resume
Last seen*/Last shot
Transition
Fade*/Scroll/Slide/Off
p. 123
Set Touch Actions
Register a playback function to a drag pattern.
p. 124
C
Y
P
O
p. 113
p. 121
p. 168
p. 168
* Default setting
2 Print Menu
Item
Content
Ref. Page
Print
Displays printing screen (When connected to a
printer).
Select Images & Qty.
Chooses individual images for printing.
p. 149
Select All Images
Chooses all images for printing.
p. 150
Clear All Selections
Cancels all settings for printing.
p. 150
Print Settings
Sets the printing style.
p. 148
Downloaded From camera-usermanual.com Canon Manuals
—
195
Playback Mode FUNC. Menu
Item
Content
Ref. Page
Rotate
Rotates displayed image.
p. 132
Print List
Selects or clears settings for printing displayed
image ([Print] appears when the camera is
connected to the printer).
p. 147
Protect
Protects/unlocks displayed image.
p. 125
Favorites
Tags/untags displayed image as favorites.
p. 129
Erase
Erases displayed image.
p. 32
Movie Digest Playback
Plays back movies made in the Movie Digest
mode.
p. 114
Smart Shuffle
Starts Smart Shuffle.
p. 122
Filtered Playback
Filters/cancels filter for displayed image.
p. 115
Slideshow
Plays back images automatically.
p. 116
My Category
Categorizes images.
p. 131
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
196
Handling Precautions
• This camera is a high-precision electronic device. Do not drop it or subject
it to strong impacts.
• Never place the camera close to magnets, motors or other devices that
generate strong electromagnetic fields. Exposure to strong magnetic fields
may cause malfunctions or corrupt image data.
• If water droplets or dirt become stuck on the camera or screen, wipe with
a dry soft cloth or eyeglass wiper. Do not rub or apply force.
• Never use cleaners containing organic solvents to wipe the camera or
screen.
• Use a commercially available blower brush to remove dust from the lens.
For stubborn dirt contact a Canon Customer Support Help Desk.
• When you move the camera rapidly from cold to hot temperatures,
condensation may form on the internal or external surfaces of the camera.
To avoid condensation, put the camera in an airtight, resealable plastic bag
and let it adjust to temperature changes slowly before removing it from the
bag.
• If condensation has formed on the camera, stop using it immediately, as
continued use may damage the camera. Remove the battery and memory
card, and wait until the moisture has completely evaporated before
resuming use.
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
197
Specifications
Image Sensor
Camera Effective Pixels .................. Approx. 12.1 million pixels
Lens
Focal Length ................................... 5.0 (W) – 60.0 (T) mm
(35mm film equivalent: 28 (W) – 336 (T) mm)
Zoom Magnification......................... 12x
Focusing Range.............................. 1 cm (0.4 in.) – infinity (W), 1 m (3.3 ft.) – infinity (T)
• Macro 1 – 50 cm (W) (0.4 in. – 1.6 ft. (W))
Image Stabilizer System ................. Lens-shift type
Imaging Processor ............................. DIGIC 4
LCD Monitor
Type ................................................ TFT color (wide viewing angle type)
Size ................................................. 3.2 type
Effective Pixels................................ Approx. 461,000 dots
Aspect Ratio.................................... 16:9
Features.......................................... Touch panel
Brightness adjustment (5 levels)
Y
P
O
Focus
Control System ............................... Autofocus: Single (Continuous in Auto mode)/
Continuous, Servo AF/Servo AE, Touch AF
AF Frame ........................................ Face detect, Fixed frame
C
Metering System ................................. Evaluative, Center-weighted average, Spot
Exposure Compensation
(Still Images) /
Exposure Shift (Movies) ...................... ±2 stops in 1/3-stop increments
ISO Speed
(Standard Output Sensitivity,
Recommended Exposure Index)......... Auto, ISO 100/200/400/800/1600/3200 (In P mode)
White Balance ..................................... Auto, Day Light, Cloudy, Tungsten, Fluorescent,
Fluorescent H, Custom
Shutter Speed ..................................... 1 – 1/4000 sec.
15 – 1/4000 sec. (Total shutter speed range)
Aperture
Type ................................................ 2 blade
f/number.......................................... f/3.4 – f/6.3 (W), f/5.9 – f/10.0 (T)
Flash
Modes ............................................. Auto, on, Slow Synchro, off
Range ............................................. 30 cm – 3.1 m (W), 1.0 – 1.7 m (T)
(12 in. – 10.2 ft. (W), 3.3 – 5.6 ft. (T))
Downloaded From camera-usermanual.com Canon Manuals
198
Specifications
Shooting Modes...................................Auto*1, P, Movie Digest, Portrait, Kids&Pets, Smart
Shutter*2, High-speed Burst, Best Image Selection,
Handheld Night Scene, Low Light, Fish-eye Effect,
Miniature Effect, Toy Camera Effect, Monochrome, Super
Vivid, Poster Effect, Color Accent, Color Swap, Beach,
Foliage, Snow, Fireworks, Long Shutter, iFrame Movie,
Super Slow Motion Movie
*1 Scenes are automatically determined (Smart Auto)
*2 Smile, Wink Self-timer, Face Self-timer
Digital Zoom ........................................Still images/Movies: Approx. 4.0x
(up to approx. 48x in combination with the optical zoom)
Safety Zoom, Digital tele-converter
Continuous Shooting
Mode Selection ...............................Continuous/Continuous Shooting AF
Speed..............................................Approx. 3.3 shots/sec. (In P mode)
Approx. 7.8 shots/sec. (In High-speed Burst mode)
Number of Shots
(CIPA compliant) .................................Approx. 170
Y
P
O
Recording Media .................................SD memory card, SDHC memory card, SDXC memory
card
File Format ..........................................Design rule for Camera File system, DPOF (Version 1.1)
compliant
C
Data Type
Still Images......................................Exif 2.3 (JPEG)
Movies.............................................MOV (Image data: H.264; Audio data: Linear PCM
(stereo))
Downloaded From camera-usermanual.com Canon Manuals
199
Specifications
Number of Recording Pixels
Still Images ..................................... 16:9
Large: 4000 x 2248, Medium 1: 2816 x 1584, Medium 2:
1920 x 1080, Small: 640 x 360
3:2
Large: 4000 x 2664, Medium 1: 2816 x 1880, Medium 2:
1600 x 1064, Small: 640 x 424
4:3
Large: 4000 x 3000, Medium 1: 2816 x 2112, Medium 2:
1600 x 1200, Small: 640 x 480
1:1
Large: 2992 x 2992, Medium 1: 2112 x 2112, Medium 2:
1200 x 1200, Small: 480 x 480
Movies............................................. iFrame Movie:
1280 x 720 (30 fps*1)
Super Slow Motion Movie:
640 x 480 (120 fps*2 when shooting, 30 fps*1 during
playback), 320 x 240 (240 fps*3 when shooting, 30 fps*1
during playback)
Miniature Effect:
1280 x 720*4, 640 x 480*4
Other than the above:
1920 x 1080 (24 fps*5), 1280 x 720 (30 fps*1), 640 x 480
(30 fps*1)
*1 Actual frame rate is 29.97 fps.
*2 Actual frame rate is 119.88 fps.
*3 Actual frame rate is 239.76 fps.
*4 Shooting: 6 fps/3 fps/1.5 fps, Playback: 30 fps*1
*5 Actual frame rate is 23.976 fps.
C
Y
P
O
Interface .............................................. Hi-Speed USB
HDMI output
Analog audio output (stereo)
Analog video output (NTSC/PAL)
Direct Print Standard ........................... PictBridge
Power Source...................................... Battery Pack NB-9L
Compact Power Adapter CA-DC10 (included with AC
Adapter Kit ACK-DC70)
Dimensions (CIPA compliant) ............. 99.0 x 58.9 x 21.9 mm (3.90 x 2.32 x 0.86 in.)
Weight (CIPA compliant) ..................... Approx. 206 g (7.27 oz.) (Including the battery and
memory card)
Approx. 183 g (6.46 oz.) (camera body only)
Downloaded From camera-usermanual.com Canon Manuals
200
Specifications
Battery Pack NB-9L
Type.....................................................Rechargeable lithium-ion battery
Nominal Voltage ..................................3.5 V DC
Nominal Capacity ................................870 mAh
Charge Cycles.....................................Approx. 300 times
Operating Temperatures .....................0 – 40 °C (32 – 104 °F)
Dimensions..........................................14.6 x 43.1 x 15.3 mm (0.57 x 1.70 x 0.60 in.)
Weight .................................................Approx. 21 g (Approx. 0.74 oz.)
Battery Charger CB-2LB/CB-2LBE
Rated Input ..........................................100 V – 240 V AC (50/60 Hz)
8.5 VA (100 V) – 12 VA (240 V)
0.085 A (100 V) – 0.05 A (240 V)
Rated Output .......................................4.2 V DC, 0.7 A
Charging Time .....................................Approx. 1 hour and 50 min. (when using NB-9L)
Charge Indicator ..................................Charging: Orange, Fully charged: Green
(Two indicator system)
Operating Temperatures .....................0 – 40 °C (32 – 104 °F)
Dimensions..........................................59.0 x 82.0 x 24.5 mm (2.32 x 3.23 x 0.96 in.)
Weight .................................................CB-2LB: Approx. 73 g (Approx. 2.57 oz.)
CB-2LBE: Approx. 67 g (Approx. 2.36 oz.) (excluding
power cord)
C
Y
P
O
• All data is based on tests by Canon.
• Camera specifications or appearance are subject to change without notice.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO LOCAL REGULATION.
Downloaded From camera-usermanual.com Canon Manuals
201
Accessories
Supplied with Camera
Wrist Strap WS-DC10
Battery Pack NB-9L with
Terminal Cover*
Battery Charger
CB-2LB/CB-2LBE*
DIGITAL CAMERA
Solution Disk
Interface Cable
IFC-400PCU*
*Also available for purchase separately.
Memory Card
C
Y
P
O
USB card reader
Windows/
Macintosh
Canon-Brand PictBridge Compliant Printers
Stereo AV Cable AVC-DC400ST
TV
HDMI Cable HTC-100
Downloaded From camera-usermanual.com Canon Manuals
202
Separately Sold Accessories
The following camera accessories are sold separately. Some accessories are
not sold in some regions, or may no longer be available.
Power Supplies
Battery Pack NB-9L
z Rechargeable lithium-ion battery.
Battery Charger CB-2LB/CB-2LBE
z A charger for charging Battery Pack NB-9L.
AC Adapter Kit ACK-DC70
z This kit lets you power the camera using
household power. Recommended for
powering the camera for an extended
period of time or when connecting to a
computer or printer. Cannot be used to
charge the camera battery.
Y
P
O
Using accessories abroad
The battery charger and the AC adapter kit can be used in regions that have 100 –
240 V (50/60 Hz) AC power.
If the plug does not fit the outlet, use a commercially available plug adapter. Do
not use electrical transformers for foreign travel as they will cause damage.
C
Flash
High-Power Flash HF-DC2
z This externally mounted flash can be used
to capture photographic subjects that are
too distant for the built-in flash to
illuminate.
High-Power Flash HF-DC1 can also be
used.
Downloaded From camera-usermanual.com Canon Manuals
203
Separately Sold Accessories
Other Accessories
Stereo AV Cable AVC-DC400ST
z Use this cable to connect to a TV for
shooting and viewing images.
HDMI Cable HTC-100
z Use this cable to connect the camera to
the HDMI terminal on a high-definition TV
set.
Printers
SELPHY
Series
PIXMA
Series
Canon-Brand PictBridge Compliant
Printers
z By connecting your camera to a Canonbrand PictBridge compliant printer, you
can print your images without having to
use a computer.
For more information, visit your nearest
Canon retailer.
C
Y
P
O
Use of genuine Canon accessories is recommended.
This product is designed to achieve excellent performance when used with genuine
Canon accessories. Canon shall not be liable for any damage to this product and/or
accidents such as fire, etc., caused by the malfunction of non-genuine Canon
accessories (e.g., a leakage and/or explosion of a battery pack). Please note that this
warranty does not apply to repairs arising out of the malfunction of non-genuine Canon
accessories, although you may request such repairs on a chargeable basis.
Downloaded From camera-usermanual.com Canon Manuals
204
Index
A
D
AC Adapter Kit................................. 174, 203
Accessories ............................................. 203
Active Display .................................... 31, 168
AE Lock ..................................................... 99
AF Frames........................................... 27, 93
AF J Focus
AF Lock ............................................. 97, 183
AF-Point Zoom .......................................... 95
Aspect Ratio .............................................. 57
AUTO Mode (Shooting Mode) ................... 26
Date/Time
Adding to Image..................................54
Changing ............................................22
Setting.................................................21
World Clock ......................................159
Date and Time J Date/Time
Default Settings .........................................49
DIGITAL CAMERA Solution Disk ................ 2
Digital Tele-Converter................................92
Digital Zoom ..............................................53
Display Language......................................23
DPOF....................................................... 147
Drag...........................................................14
Drive Mode ................................................88
B
Battery
Charge Indicator ................................. 16
Charging ............................................. 15
Power Saving...................... 50, 158, 159
Battery Charger ................................... 2, 203
Beach (Shooting Mode)............................. 63
Best Image Selection (Shooting Mode) ..... 80
Black and White Images............................ 89
Blink Detection......................................... 102
C
C
E
Editing
i-Contrast .......................................... 137
My Colors.......................................... 136
Red-Eye Correction .......................... 138
Resizing (Making Images Smaller) ... 133
Trimming...........................................134
Erasing Images..................................32, 127
Error Messages .......................................180
Exposure
AE Lock ..............................................99
Correction ...........................................83
FE Lock...............................................99
Eye-Fi Card ............................................. 175
Y
P
O
Calibration ............................................... 161
Camera
Default Settings .................................. 49
Holding the Camera............................ 13
Camera Shake............................. 29, 52, 165
Color Accent (Shooting Mode) .................. 70
Color Swap (Shooting Mode) .................... 71
Components Guide.................................... 42
Compression (Image Quality).................... 58
Continuous Shooting ................................. 88
Continuous Shooting
Best Image Selection
(Shooting Mode) ................................. 80
High-speed Burst
(Shooting Mode) ................................. 79
Custom White Balance .............................. 85
F
Face Detect (AF Frame Mode)..................93
Face Self-Timer (Shooting Mode) .............76
Factory Settings J Default Settings
FE Lock .....................................................99
File Numbering ........................................ 157
Fireworks (Shooting Mode) .......................64
Fish-eye Effect (Shooting Mode) ...............66
Fixed Frame (AF Frame Mode) .................94
Flash
Off .......................................................52
On .......................................................83
Slow Synchro.................................... 100
Downloaded From camera-usermanual.com Canon Manuals
205
Index
Focus
AF Frames.................................... 27, 93
AF Lock .............................................. 97
AF-Point Zoom ................................... 95
Servo AF............................................. 97
Touch AF ............................................ 96
Focus Check ........................................... 118
Focusing Range
Infinity ................................................. 91
Macro.................................................. 91
Focus Lock ................................................ 94
Foliage (Shooting Mode) ........................... 64
Format J Memory Cards, Formatting
Formatting (Memory Card) ................ 24, 155
FUNC. Menu
Basic Operations ................................ 45
List ............................................ 188, 196
G
Grid Lines ........................................ 164, 183
H
Handheld NightScene
(Shooting Mode)........................................ 63
High-speed Burst (Shooting Mode) ........... 79
Household Power .................................... 174
Hybrid IS.................................................. 185
C
I
Icon Layout.............................................. 166
i-Contrast........................................... 87, 137
iFrame Movie (Shooting Mode) ............... 104
Image Quality J Compression Ratio
Images
Display Time..................................... 163
Editing J Editing
Erasing Images........................... 32, 127
Playback J Viewing
Protect .............................................. 125
Included Items ............................................. 2
Indicator............................................... 42, 44
Infinity (Focus Mode)................................. 91
Intelligent IS..................................... 165, 185
Interface Cable .............................. 2, 38, 140
ISO Speed......................................... 86, 183
K
Kids&Pets (Shooting Mode) ...................... 63
L
Lamp ................................................. 42, 163
LCD Monitor J Screen
Long Shutter (Shooting Mode) .................. 78
Low Light (Shooting Mode) ....................... 63
M
Macro (Focus Mode) ................................. 91
Magnified Display .................................... 119
Memory Cards........................................... 17
Available Shots............................. 20, 59
Formatting .................................. 24, 155
Shooting Time .................................... 34
Menu
Basic Operations ................................ 46
Metering Method ....................................... 98
Miniature Effect (Shooting Mode)...... 67, 105
Monochrome (Shooting Mode).................. 69
Movie Digest (Shooting Mode) .................. 72
Movies
Editing............................................... 109
Image Quality (Recording Pixels/
Frame Rate) ..................................... 108
Shooting Time ............................ 34, 108
Viewing (Playback) ............................. 35
My Category ............................................ 131
My Colors (Playback) .............................. 136
My Colors (Shooting)................................. 89
Y
P
O
P
P (Shooting Mode) .................................... 82
Photobook Set-up.................................... 151
PictBridge ........................................ 140, 204
Playback J Viewing
Playback With Transition Effects............. 123
Portrait (Shooting Mode) ........................... 62
Poster Effect (Shooting Mode) .................. 65
Powered IS.............................................. 165
Power J Battery, AC Adapter Kit
Power Saving ............................ 50, 158, 159
Printing .................................................... 140
Program AE............................................... 82
Downloaded From camera-usermanual.com Canon Manuals
206
Index
T
Protect ..................................................... 125
R
Recording Pixels (Image Size) .................. 58
Red-Eye Correction ......................... 101, 138
Resizing (Making Images Smaller).......... 133
Rotate ...................................................... 132
S
Screen
Display Language ............................... 23
Information Display................... 183, 186
Menu J FUNC. Menu, Menu
Switching the Display.......................... 43
Scroll Display........................................... 113
SD/SDHC/SDXC Memory Card J Memory
Cards
Self-Timer .................................................. 55
Changing Delay and Number of
Shots .................................................. 56
Face Self-Timer (Shooting Mode)....... 76
Two Second Self-Timer ...................... 56
Wink Self-Timer (Shooting Mode)....... 75
Sepia Tones .............................................. 89
Servo AF.................................................... 97
Shooting
Number of Shots..................... 16, 20, 59
Shooting Date and Time J Date/Time
Shooting Info .................................... 183
Shooting Time............................. 34, 108
Slideshow ................................................ 116
Smart Shuffle (Shooting Mode) ............... 122
Smart Shutter (Shooting Mode)................. 74
Smile (Shooting Mode) .............................. 74
Snow (Shooting Mode) .............................. 64
Software
DIGITAL CAMERA Solution Disk ......... 2
Installation........................................... 37
Software Guide ..................................... 2
Transferring Images to a Computer
for Viewing .......................................... 36
Sound Settings .......................................... 48
Strap ................................................ 2, 13, 14
Super Slow Motion (Movie Mode) ........... 106
Super Vivid (Shooting Mode)..................... 65
C
Tag Images as Favorites .........................129
Terminal.....................38, 140, 170, 171, 174
Toggle........................................................14
Touch.........................................................14
Touch Actions..................................123, 124
Touch AF ............................................. 28, 96
Touch Panel ..............................................14
Touch Shutter ....................................27, 162
Toy Camera Effect (Shooting Mode) .........68
Travel Abroad ............................ 17, 159, 203
Trimming.................................................. 134
Troubleshooting.......................................177
V
Video J Movies
Viewing
Filtered Playback ..............................115
Images on a TV ................................ 170
Index Display .................................... 112
Magnified Display .............................119
Scroll Display .................................... 113
Single Image Playback .......................30
Slideshow ......................................... 116
Smart Shuffle .................................... 122
Viewing Images on a TV.......................... 170
Y
P
O
W
White Balance ...........................................84
Wind Filter ............................................... 107
Wink Self-Timer (Shooting Mode) .............75
World Clock ............................................. 159
Wrist Strap J Strap
Z
Zoom ................................................... 26, 53
Downloaded From camera-usermanual.com Canon Manuals
207
MEMO
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
208
MEMO
C
Y
P
O
Downloaded From camera-usermanual.com Canon Manuals
209
USA and Canada only:
The Lithium ion/polymer battery that powers the product is
recyclable.
Please call 1-800-8-BATTERY for information on how to recycle
this battery.
For CA, USA only
Included lithium battery contains Perchlorate Material - special handling may
apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate/ for details.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO LOCAL REGULATION.
Trademark Acknowledgments
Y
P
O
• The SDXC logo is a trademark of SD-3C, LLC.
• This device incorporates exFAT technology licensed from Microsoft.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
• The iFrame logo and the iFrame symbol are trademarks of Apple Inc.
C
About MPEG-4 Licensing
This product is licensed under AT&T patents for the MPEG-4 standard and
may be used for encoding MPEG-4 compliant video and/or decoding
MPEG-4 compliant video that was encoded only (1) for a personal and
non-commercial purpose or (2) by a video provider licensed under the AT&T
patents to provide MPEG-4 compliant video.
No license is granted or implied for any other use for MPEG-4 standard.
* Notice displayed in English as required.
Downloaded From camera-usermanual.com Canon Manuals
210
FCC Notice
(Digital Camera, Model PC1679 systems)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions;
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for Class B
digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
C
Y
P
O
The cable with the ferrite core provided with the digital camera must be used with this
equipment in order to comply with Class B limits in Subpart B of Part 15 of the FCC rules.
Do not make any changes or modifications to the equipment unless otherwise specified
in the manual. If such changes or modifications should be made, you could be required
to stop operation of the equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516) 328-5600
Canadian Radio Interference Regulations
This Class B digital apparatus complies with Canadian ICES-003.
To ensure proper operation of this product, use of genuine Canon
accessories is recommended.
Downloaded From camera-usermanual.com Canon Manuals
211
Battery Charger CB-2LB
IMPORTANT SAFETY INSTRUCTIONSSAVE THESE INSTRUCTIONS.
DANGER-TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE
INSTRUCTIONS.
For connection to a supply not in the U.S.A., use an attachment plug
adapter of the proper configuration for the power outlet, if needed.
Battery Charger CB-2LBE
The adapter can be used with a power supply between 100 and 240 V
AC.
Contact your Canon dealer for information about plug adapter for
overseas use.
For U.S.A. customers only: For areas where 120 V AC power is not
used, you will need a special plug adapter.
For only United States
Use a UL listed, 1.8-3m(6-10ft), Type SPT-2 or NTSPT-2, AWG no.18
power supply cord, rated for 125V 7A, with a non-polarized NEMA
1-15P plug rated for 125V 15A.
C
Y
P
O
Disclaimer
• Reprinting, transmitting, or storing in a retrieval system any part of this
guide without the permission of Canon is prohibited.
• Canon reserves the right to change the contents of this guide at any
time without prior notice.
• Illustrations and screenshots in this guide may differ slightly from the
actual equipment.
• The above items notwithstanding, Canon accepts no liability for
damages due to mistaken operation of the products.
CDD-E455-010
© CANON INC. 2011
Downloaded
From camera-usermanual.com Canon Manuals
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
