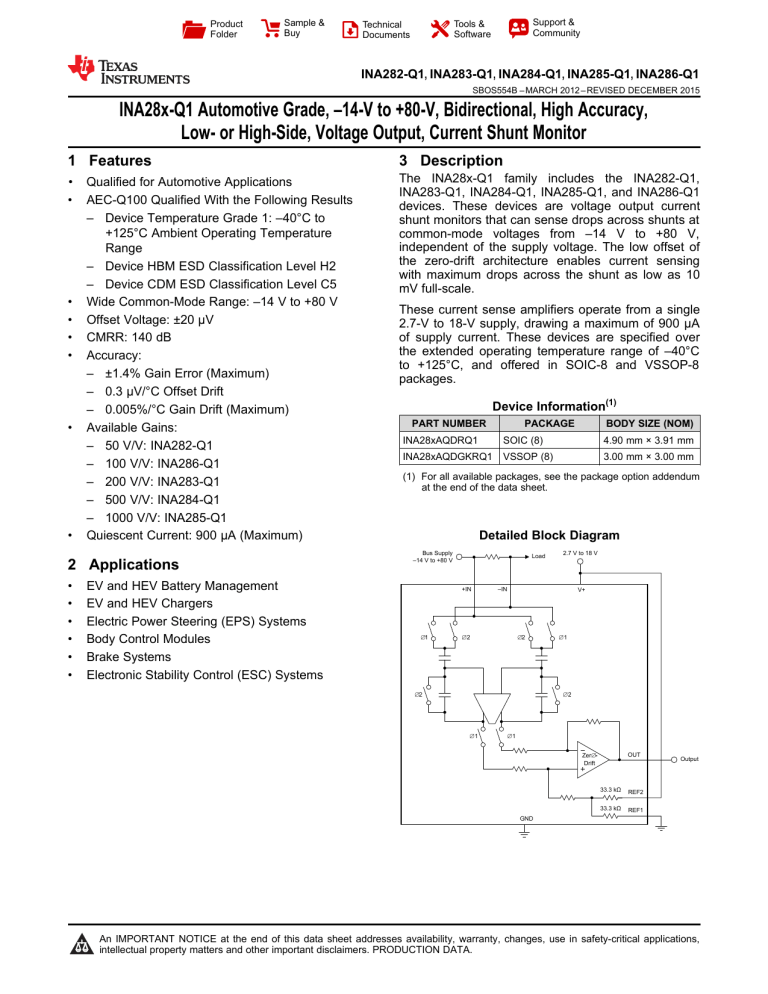

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

INA28x-Q1 Automotive Grade, –14-V to +80-V, Bidirectional, High Accuracy,

Low- or High-Side, Voltage Output, Current Shunt Monitor

1 Features

1

• Qualified for Automotive Applications

• AEC-Q100 Qualified With the Following Results

– Device Temperature Grade 1: –40°C to

+125°C Ambient Operating Temperature

Range

– Device HBM ESD Classification Level H2

– Device CDM ESD Classification Level C5

• Wide Common-Mode Range: –14 V to +80 V

• Offset Voltage: ±20 μ V

• CMRR: 140 dB

• Accuracy:

– ±1.4% Gain Error (Maximum)

– 0.3

μ

V/°C Offset Drift

– 0.005%/°C Gain Drift (Maximum)

• Available Gains:

– 50 V/V: INA282-Q1

– 100 V/V: INA286-Q1

– 200 V/V: INA283-Q1

– 500 V/V: INA284-Q1

– 1000 V/V: INA285-Q1

• Quiescent Current: 900 μ A (Maximum)

2 Applications

• EV and HEV Battery Management

• EV and HEV Chargers

• Electric Power Steering (EPS) Systems

• Body Control Modules

• Brake Systems

• Electronic Stability Control (ESC) Systems

3 Description

The INA28x-Q1 family includes the INA282-Q1,

INA283-Q1, INA284-Q1, INA285-Q1, and INA286-Q1 devices. These devices are voltage output current shunt monitors that can sense drops across shunts at common-mode voltages from –14 V to +80 V, independent of the supply voltage. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10 mV full-scale.

These current sense amplifiers operate from a single

2.7-V to 18-V supply, drawing a maximum of 900 μ A of supply current. These devices are specified over the extended operating temperature range of –40°C to +125°C, and offered in SOIC-8 and VSSOP-8 packages.

PART NUMBER

Device Information

(1)

PACKAGE BODY SIZE (NOM)

INA28xAQDRQ1 SOIC (8)

INA28xAQDGKRQ1 VSSOP (8)

4.90 mm × 3.91 mm

3.00 mm × 3.00 mm

(1) For all available packages, see the package option addendum at the end of the data sheet.

Bus Supply

±

14 V to +80 V

‡ 1

+IN

‡ 2

Detailed Block Diagram

2.7 V to 18 V

Load

±

IN

‡ 2 ‡ 1

V+

‡ 2 ‡ 2

‡ 1 ‡ 1

OUT

Drift

33.3 k

REF2

33.3 k

REF1

Output

GND

1

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA.

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

www.ti.com

1 Features

..................................................................

1

2 Applications

...........................................................

1

3 Description

.............................................................

1

4 Revision History

.....................................................

2

5 Pin Configuration and Functions

.........................

3

6 Specifications

.........................................................

4

6.1

Absolute Maximum Ratings ......................................

4

6.2

ESD Ratings..............................................................

4

6.3

Recommended Operating Conditions .......................

4

6.4

Thermal Information ..................................................

4

6.5

Electrical Characteristics...........................................

5

6.6

Typical Characteristics ..............................................

7

7 Detailed Description

............................................

13

7.1

Overview .................................................................

13

7.2

Functional Block Diagram .......................................

13

7.3

Feature Description.................................................

14

Table of Contents

7.4

Device Functional Modes........................................

15

8 Application and Implementation

........................

20

8.1

Application Information............................................

20

8.2

Typical Applications ................................................

21

9 Power Supply Recommendations

......................

25

10 Layout

...................................................................

25

10.1

Layout Guidelines .................................................

25

10.2

Layout Example ....................................................

25

11 Device and Documentation Support

.................

26

11.1

Related Links ........................................................

26

11.2

Community Resources..........................................

26

11.3

Trademarks ...........................................................

26

11.4

Electrostatic Discharge Caution ............................

26

11.5

Glossary ................................................................

26

12 Mechanical, Packaging, and Orderable

Information

...........................................................

26

4 Revision History

Changes from Revision A (July 2015) to Revision B Page

• Changed VSSOP package from product preview to production data ....................................................................................

1

Changes from Original (March 2012) to Revision A Page

• Changed data sheet title from

High-Accuracy, Wide Common-Mode Range, Bi-Directional CURRENT SHUNT

MONITOR Zerø-Drift Series

to

INA28x-Q1 Automotive Grade, –14-V to 80-V, Bidirectional, High Accuracy, Low- or

High-Side, Voltage Output Current Shunt Monitor

.................................................................................................................

1

• Added DGK (VSSOP) package to data sheet ........................................................................................................................

1

• Changed

Applications

.............................................................................................................................................................

1

• Changed front page diagram..................................................................................................................................................

1

• Added

ESD Ratings

table,

Feature Description

section,

Device Functional Modes

,

Application and Implementation

section,

Power Supply Recommendations

section,

Layout

section,

Device and Documentation Support

section, and

Mechanical, Packaging, and Orderable Information

section .................................................................................................

3

• Added RVRR as symbol for reference rejection ratio ...........................................................................................................

5

• Changed order of figures in

Typical Characteristics

section ..................................................................................................

7

• Changed

Figure 16

.................................................................................................................................................................

9

• Changed V

DRIVE condition in

Figure 20

and

Figure 21

.........................................................................................................

10

• Added functional block diagram ...........................................................................................................................................

13

• Changed

Figure 32

and

Figure 33

.......................................................................................................................................

15

• Changed

Figure 34

and

Figure 35

.......................................................................................................................................

16

• Changed

Figure 36

and

Figure 37

.......................................................................................................................................

17

• Changed

Figure 38

...............................................................................................................................................................

17

• Changed

Reference Common-Mode Rejection

to

Reference Voltage Rejection Ratio

.......................................................

18

• Changed R

CMR to RVRR in

Table 1

and

Table 2

.................................................................................................................

19

• Changed

Figure 39

..............................................................................................................................................................

20

• Changed

Figure 40

..............................................................................................................................................................

21

• Changed

Figure 42

..............................................................................................................................................................

23

2

Submit Documentation Feedback

Copyright © 2012–2015, Texas Instruments Incorporated

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

www.ti.com

5 Pin Configuration and Functions

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

D and DGK Package

8-Pin SOIC and VSSOP

Top View

-

IN

GND

REF2

NC

(1)

3

4

1

2

8

7

6

5

+IN

REF1

V+

OUT

4

5

6

7

8

NO.

1

2

3

(1) NC: This pin is not internally connected. The NC pin should either be left floating or connected to GND.

PIN

NAME

–IN

GND

REF2

NC

OUT

V+

REF1

+IN

Pin Functions

I/O DESCRIPTION

Analog input Connection to negative side of shunt resistor.

Analog Ground

Analog input

Reference voltage, 0 V to V+. See

Reference Pin Connection Options

section for connection options.

This pin is not internally connected. The NC pin should either be left floating or connected to

GND.

Analog output Output voltage

Analog Power supply, 2.7 V to 18 V

Analog input

Reference voltage, 0 V to V+. See

Reference Pin Connection Options

section for connection options.

Analog input Connection to positive side of shunt resistor.

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

3

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

6 Specifications

www.ti.com

6.1 Absolute Maximum Ratings

over operating free-air temperature range, unless otherwise noted.

(1)

Supply voltage, V+

Analog inputs,

V

+IN

, V

–IN

(2)

Differential (V

+IN

) – (V

–IN

)

(3)

Common-Mode

REF1, REF2, OUT

Input current into any pin

Junction temperature

Storage temperature, T stg

MIN

–5

–14

GND–0.3

–65

MAX

18

5

80

(V+) + 0.3

5

150

150

UNIT

V

V

V

V mA

°C

°C

(1) Stresses beyond those listed under

Absolute Maximum Ratings

may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under

Recommended

Operating Conditions

. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

(2) V

+IN and V

–IN are the voltages at the +IN and –IN pins, respectively.

(3) Input voltages must not exceed common-mode rating.

6.2 ESD Ratings

V

(ESD)

Electrostatic discharge

Human body model (HBM), per AEC Q100-002

(1)

Charged device model (CDM), per AEC Q100-011

(1) AEC Q100-002 indicates HBM stressing is done in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

VALUE

±2000

±750

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)

V

CM

V+

T

A

Common-mode input voltage

Operating supply voltage

Operating free-air temperature

MIN

–40

NOM

12

5

MAX

125

UNIT

V

UNIT

V

V

°C

6.4 Thermal Information

R

θ

JA

R

θ JC(top)

R

θ JB

ψ

JT

ψ

JB

R

θ

JC(bot)

THERMAL METRIC

Junction-to-ambient thermal resistance

Junction-to-case (top) thermal resistance

Junction-to-board thermal resistance

(1)

Junction-to-top characterization parameter

Junction-to-board characterization parameter

Junction-to-case (bottom) thermal resistance

INA28x-Q1

D (SOIC) DGK (VSSOP)

8 PINS

134.9

8 PINS

164.1

72.9

61.3

18.9

54.3

n/a

56.4

85.0

6.5

83.3

n/a

UNIT

°C/W

°C/W

°C/W

°C/W

°C/W

°C/W

(1) For more information about traditional and new thermal metrics, see the

Semiconductor and IC Package Thermal Metrics

application report, SPRA953 .

4

Submit Documentation Feedback

Copyright © 2012–2015, Texas Instruments Incorporated

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

www.ti.com

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

6.5 Electrical Characteristics

at T

A noted.

= 25°C, V+ = 5 V, V

+IN

= 12 V, V

REF1

= V

REF2

= 2.048 V referenced to GND, and V

SENSE

= V

+IN

– V

–IN

, unless otherwise

TEST CONDITIONS MIN TYP MAX UNIT

V

CM

PARAMETER

INPUT

V

OS

PSRR

Offset Voltage, RTI dV

OS

/dT vs Temperature vs Power Supply

(1)

Common-Mode Input Range

CMRR Common-Mode Rejection

I

I

B

OS

Input Bias Current per Pin

(2)

Input Offset Current

Differential Input Impedance

REFERENCE INPUTS

Reference Input Gain

Reference Input Voltage Range

(3)

Divider Accuracy

(4)

V

SENSE

= 0 mV

T

A

= –40°C to 125°C

V

S

= 2.7 V to 18 V, V

SENSE

= 0 mV

T

A

= –40°C to 125°C

V

+IN

T

A

= –14 V to 80 V, V

= –40°C to 125°C

SENSE

= 0 mV

V

SENSE

= 0 mV

V

SENSE

= 0 mV

–14

120

0

±20

±0.3

3

140

25

1

6

1

±70

±1.5

+80

V

GND

+ 9

±0.5%

±75

μ V

μ V/°C

μ V/V

V dB

μ A

μ A k Ω

V/V

V

RVRR

Reference Voltage Rejection Ratio

(V

REF

1 = V

REF

2 = 40 mV to 9 V,

V+ = 18 V)

INA282-Q1

INA283-Q1

INA284-Q1

INA285-Q1

T

A

= –40°C to 125°C

T

A

= –40°C to 125°C

T

A

= –40°C to 125°C

T

A

= –40°C to 125°C

±0.2%

±25

0.055

±13

0.040

±6

0.015

±4

0.010

±17

0.040

±30

±25

±10

±45

μ V/V

μ

V/V/°C

μ V/V

μ V/V/°C

μ V/V

μ V/V/°C

μ

V/V

μ V/V/°C

μ V/V

μ V/V/°C

INA286-Q1

T

A

= –40°C to 125°C

GAIN

(5)

(GND + 0.5 V ≤ V

OUT

≤ (V+) – 0.5 V; V

REF1

= V

REF2

= (V+) / 2 for all devices)

INA282-Q1, V+ = 5 V

INA283-Q1, V+ = 5 V

G Gain INA284-Q1, V+ = 5 V

INA285-Q1, V+ = 5 V

Gain Error

INA286-Q1, V+ = 5 V

INA282-Q1, INA283-Q1, INA286-Q1

INA284-Q1, INA285-Q1

T

A

= –40°C to 125°C

50

200

500

1000

100

±0.4%

±0.4%

0.0008

±1.4%

±1.6%

0.005

V/V

V/V

V/V

V/V

V/V

%/°C

(1) RTI = referred-to-input.

(2) See typical characteristic graph

Figure 7

.

(3) The average of the voltage on pins REF1 and REF2 must be between V

GND and the lesser of (V

GND

+9 V) and V+.

(4) Reference divider accuracy specifies the match between the reference divider resistors using the configuration in

Figure 36 .

(5) See typical characteristic graph

Figure 12 .

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

5

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

www.ti.com

Electrical Characteristics (continued)

at T

A noted.

= 25°C, V+ = 5 V, V

+IN

= 12 V, V

REF1

= V

REF2

= 2.048 V referenced to GND, and V

SENSE

= V

+IN

– V

–IN

, unless otherwise

TEST CONDITIONS MIN TYP MAX UNIT PARAMETER

OUTPUT

Nonlinearity Error

Output Impedance

Maximum Capacitive Load

VOLTAGE OUTPUT

(6)

No sustained oscillation

±0.01%

1.5

1

Ω nF

Swing to V+ Power-Supply Rail

Swing to GND

FREQUENCY RESPONSE

V+ = 5 V, R

LOAD

T

A

= 10 k

= –40°C to 125°C

Ω to GND

T

A

= –40°C to 125°C

(V+)–0.17

(V+)–0.4

GND+0.015 GND+0.04

V

V

BW Effective Bandwidth

(7)

INA282-Q1

INA283-Q1

INA284-Q1

INA285-Q1

INA286-Q1

10

10

4

2

10 kHz

NOISE, RTI

(1)

Voltage Noise Density

POWER SUPPLY

V

S

Specified Voltage Range

I

Q

Quiescent Current

TEMPERATURE RANGE

Specified Range

1 kHz

T

A

= –40°C to 125°C 2.7

–40

110

600

18

900

125 nV/ √ Hz

V

μ

A

°C

(6) See typical characteristic graphs

Figure 16

through

Figure 18

.

(7) See typical characteristic graph

Figure 1

and the

Effective Bandwidth

section in the Applications Information.

6

Submit Documentation Feedback

Copyright © 2012–2015, Texas Instruments Incorporated

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

www.ti.com

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

6.6 Typical Characteristics

At T

A noted.

= 25°C, V+ = 5 V, V

+IN

= 12 V, V

REF1

= V

REF2

= 2.048 V referenced to GND, and V

SENSE

= V

+IN

– V

–IN

, unless otherwise

60

50

40

30

20

10

0

-10

-20

10

INA282-Q1 (50V/V)

INA285Q1 (1kV/V)

INA284 -Q1

INA283 -Q1

INA286 -Q1

(500V/V)

(200V/V)

(100V/V)

100

1k 10k

Frequency (Hz)

100k 1M

80

70

60

50

120

110

100

90

40

30

20

100 1k 10k

Frequency (Hz)

100k 1M

Figure 1. Gain vs Frequency

150

140

130

120

110

100

90

80

70

1

Figure 3. INA284-Q1 Common-Mode Rejection Ratio (RTI)

1k

100

10

1

0.1

10

10

100

100 1k

Frequency (Hz)

1k 10k

Frequency (Hz)

10k

100k

100k

1M

Figure 5. INA286-Q1 Output Impedance vs Frequency

0.1

Figure 2. INA282-Q1 PSRR (RTI) vs Frequency

0.01

0.001

0.0001

0.00001

0.000001

1k 10k 100k

V

CM

Slew Rate (V/sec)

1M

Figure 4. INA282-Q1 Common-Mode Slew Rate Induced

Offset

0.06

V

SENSE

0.04

0.02

0

-

0.02

-

0.04

V+ = 3.5V

-

0.06

0 3 6 9

V

OUT

(V)

12

V+ = 18V

15 18

Figure 6. INA282-Q1 Typical Nonlinearity vs Output Voltage

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

7

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

www.ti.com

Typical Characteristics (continued)

At T

A noted.

= 25°C, V+ = 5 V, V

+IN

= 12 V, V

REF1

= V

REF2

= 2.048 V referenced to GND, and V

SENSE

= V

+IN

– V

–IN

, unless otherwise

30 900

850

20

10

V+ = 2.7V

V+ = 5V

800

750

V+ = 18V

V+ = 18V

0

700

650

-

10

-

20

600

550

V+ = 5V

500

-

30

-

40

-

20

-

10 0 10 20 30 40 50 60 70 80

Common-Mode Voltage (V)

450

400

-

20

V+ = 2.7V

0 20 40

Common-Mode Voltage (V)

60 80

Figure 7. INA283-Q1 +IN BIAS Current vs Common-Mode

Voltage

900

800

700

600

500

400

300

200

100

0

2 4 6 8 10 12

Supply Voltage (V)

14 16 18

Figure 9. Quiescent Current vs Supply Voltage

980

880

780

680

580

480

V+ = 18V

380

280

V+ = 2.7V

180

80

75

-

50

-

25 0 25 50

V+ = 5V

75 100 125 150

Figure 8. INA283-Q1 Quiescent Current vs Common-Mode

Voltage

170

160

V+ = 12V

150

140

130

120

110

V+ = 5V

100

90

80

75 50 25 0 25 50 75 100 125 150

Figure 10. Common-Mode Rejection Ratio vs Temperature

1.0

0.8

0.6

0.4

0.2

V+ = 5V

0

-

0.2

0.4

V+ = 12V

0.6

0.8

1.0

75

-

50

-

25 0 25 50 75 100 125 150

Figure 11. Quiescent Current vs Temperature Figure 12. Deviation in Gain vs Temperature

8

Submit Documentation Feedback

Copyright © 2012–2015, Texas Instruments Incorporated

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

www.ti.com

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

Typical Characteristics (continued)

At T

A noted.

= 25°C, V+ = 5 V, V

+IN

= 12 V, V

REF1

= V

REF2

= 2.048 V referenced to GND, and V

SENSE

= V

+IN

– V

–IN

, unless otherwise

0

5

10

15

-

20

-

25

V+ = 2.7V

V+ = 5V

V+ = 18V

30

35

V

CM

= 0V

40

-

75

50 25 0 25 50

75

100 125 150

Time (1s/div)

6.0

5.5

5.0

4.5

4.0

3.5

3.0

100

Figure 13. +IN BIAS Current vs Temperature

0.12

1k

Frequency (Hz)

10k

0.11

0.10

0.09

0.08

0.07

100k

0.06

Figure 15. INA282-Q1 Voltage Noise vs Frequency

800

700

600

500

400

40 C

300

200

100

2.7V Swing

5V Swing

0

0 0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

2.0

I

OUT

, Sourcing (mA)

Figure 17. INA283-Q1 Swing to Rail vs Output Current

Figure 14. INA282-Q1 0.1-Hz to 10-Hz Voltage Noise, RTI

V+

( V+) – 2

( V+) – 4

18V

5V

2.7V

( V+) – 6

( V+) – 8

GND + 8

GND + 6

GND + 4

GND + 2

GND

0 1 2 3 4 5

I

OUT

(mA)

6 7 8 9 10

Figure 16. INA284-Q1 Output Voltage Swing vs Output

Current

400

350

300

250

200

150

100

50

0

0 0.5

40 C

1.0

1.5

I

OUT

, Sinking (mA)

2.7V Swing

5V Swing

18V Swing

2.0

2.5

Figure 18. INA283-Q1 Swing to Ground vs Output Current

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

9

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

www.ti.com

Typical Characteristics (continued)

At T

A noted.

= 25°C, V+ = 5 V, V

+IN

= 12 V, V

REF1

= V

REF2

= 2.048 V referenced to GND, and V

SENSE

= V

+IN

– V

–IN

, unless otherwise

V

REF

= GND, V

SENSE

= 50mV, R

LOAD

V

OUT

LOAD

= 10pF

V

OUT

V+

C

LOAD

= 10pF

V

REF

= GND

V

SENSE

= 50mV

R

LOAD

= 10k W

V+

Figure 19. Start-Up Transient Response

Figure 20. Start-Up Transient Response

V

OUT

V

CM

V

OUT

V

CM

Figure 22. 12-V Common-Mode Step Response Figure 21. 12-V Common-Mode Step Response

V

OUT

V

CM

V

OUT

Figure 23. 12-V Common-Mode Step Response

V

CM

Figure 24. 12-V Common-Mode Step Response

10

Submit Documentation Feedback

Copyright © 2012–2015, Texas Instruments Incorporated

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

www.ti.com

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

Typical Characteristics (continued)

At T

A noted.

= 25°C, V+ = 5 V, V

+IN

= 12 V, V

REF1

= V

REF2

= 2.048 V referenced to GND, and V

SENSE

= V

+IN

– V

–IN

, unless otherwise

V

OUT

V

CM

V

OUT

V

CM

Figure 25. 50-V Common-Mode Step Response Figure 26. 50-V Common-Mode Step Response

Figure 27. 100-mV Step Response Figure 28. 500-mV Step Response

Figure 29. 4-V Step Response Figure 30. 17-V Step Response

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

11

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

www.ti.com

Typical Characteristics (continued)

At T

A noted.

= 25°C, V+ = 5 V, V

+IN

= 12 V, V

REF1

= V

REF2

= 2.048 V referenced to GND, and V

SENSE

= V

+IN

– V

–IN

, unless otherwise

Input Drive (1V to 0V)

V

OUT

(5V to midsupply)

Figure 31. Input Overload

12

Submit Documentation Feedback

Copyright © 2012–2015, Texas Instruments Incorporated

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

www.ti.com

7 Detailed Description

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

7.1 Overview

The INA28x-Q1 family of voltage output current-sensing amplifiers are specifically designed to accurately measure voltages developed across current-sensing resistors on common-mode voltages that far exceed the supply voltage powering the devices. This family features a common-mode range that extends 14 V less than the negative supply rail, as well as up to 80 V, allowing for either low-side or high-side current sensing while the device is powered from supply voltages as low as 2.7 V.

The zero-drift topology enables high-precision measurements with maximum input offset voltages as low as 70

µV with a maximum temperature contribution of 1.5 µV/°C over the full temperature range of –40°C to 125°C.

7.2 Functional Block Diagram

V+

±

IN

+IN

±

+

±

+

OUT

REF2

REF1

GND

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

13

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

7.3 Feature Description

www.ti.com

7.3.1 Selecting R

S

The zero-drift offset performance of the INA28x-Q1 family offers several benefits. Most often, the primary advantage of the low offset characteristic enables lower full-scale drops across the shunt. For example, nonzerodrift, current-shunt monitors typically require a full-scale range of 100 mV. The INA28x-Q1 family gives equivalent accuracy at a full-scale range on the order of 10 mV. This accuracy reduces shunt dissipation by an order of magnitude, with many additional benefits. Alternatively, applications that must measure current over a wide dynamic range can take advantage of the low offset on the low end of the measurement. Most often, these applications can use the lower gains of the INA282-Q1, INA286-Q1, or INA283-Q1 to accommodate larger shunt drops on the upper end of the scale. For instance, an INA282-Q1 operating on a 3.3-V supply can easily handle a full-scale shunt drop of 55 mV, with only 70 μ V of offset.

7.3.2 Effective Bandwidth

The extremely high DC CMRR of the INA28x-Q1 results from the switched capacitor input structure. Because of this architecture, the INA28x-Q1 exhibits discrete time system behaviors as illustrated in the gain versus frequency graph of

Figure 3

and the step response curves of

Figure 21

through

Figure 28

. The response to a step input depends somewhat on the phase of the internal INA28x-Q1 clock when the input step occurs. It is possible to overload the input amplifier with a rapid change in input common-mode voltage (see

Figure 4 ). Errors

as a result of common-mode voltage steps and/or overload situations typically disappear within 15

μ s after the disturbance is removed.

7.3.3 Transient Protection

The –14-V to 80-V common-mode range of the INA28x-Q1 is ideal for withstanding automotive fault conditions that range from 12-V battery reversal up to 80-V transients; no additional protective components are needed up to those levels. In the event that the INA28x-Q1 is exposed to transients on the inputs in excess of its ratings, then external transient absorption with semiconductor transient absorbers (Zener or

Transzorbs

) will be necessary. Use of MOVs or VDRs is not recommended except when they are used in addition to a semiconductor transient absorber. Select the transient absorber such that it cannot allow the INA28x-Q1 to be exposed to transients greater than 80 V (that is, allow for transient absorber tolerance, as well as additional voltage as a result of transient absorber dynamic impedance). Despite the use of internal zener-type electrostatic discharge (ESD) protection, the INA28x-Q1 does not lend itself to using external resistors in series with the inputs without degrading gain accuracy.

14

Submit Documentation Feedback

Copyright © 2012–2015, Texas Instruments Incorporated

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

www.ti.com

7.4 Device Functional Modes

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

7.4.1 Reference Pin Connection Options

Figure 32

illustrates a test circuit for reference divider accuracy. The output of the INA28x-Q1 can be connected for unidirectional or bidirectional operation. Neither the REF1 pin nor the REF2 pin may be connected to any voltage source lower than GND or higher than V+, and that the effective reference voltage (REF1 + REF2)/2 must be 9 V or less. This parameter means that the V+ reference output connection shown in

Figure 34

is not allowed for V+ greater than 9 V. However, the split-supply reference connection shown in

Figure 36

is allowed for all values of V+ up to 18 V.

V+

+IN

±

IN

Input Stage

±

+

V+

OUT

REF2

REF1

See Note (1)

GND

(1) Reference divider accuracy is determined by measuring the output with the reference voltage applied to alternate reference resistors, and calculating a result such that the amplifier offset is cancelled in the final measurement.

Figure 32. Test Circuit for Reference Divider Accuracy

7.4.1.1 Unidirectional Operation

Unidirectional operation allows the INA28x-Q1 to measure currents through a resistive shunt in one direction. In the case of unidirectional operation, the output could be set at the negative rail (near ground, and the most common connection) or at the positive rail (near V+) when the differential input is 0V. The output moves to the opposite rail when a correct polarity differential input voltage is applied.

The required polarity of the differential input depends on the output voltage setting. If the output is set at the positive rail, the input polarity must be negative to move the output down. If the output is set at ground, the polarity is positive to move the output up.

The following sections describe how to configure the output for unidirectional operation.

7.4.1.1.1

Ground Referenced Output

When using the INA28x-Q1 in this mode, both reference inputs are connected to ground; this configuration takes the output to the negative rail when there is 0V differential at the input (as

Figure 33

shows).

V+

V+

+IN ± IN

Input Stage

±

+

OUT

REF2

REF1

GND

Figure 33. Ground Referenced Output

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

15

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

www.ti.com

Device Functional Modes (continued)

7.4.1.1.2

V+ Referenced Output

This mode is set when both reference pins are connected to the positive supply. It is typically used when a diagnostic scheme requires detection of the amplifier and the wiring before power is applied to the load (as shown in

Figure 34 ).

V+

+IN

±

IN V+

Input Stage

±

+

OUT

REF2

REF1

GND

Figure 34. V+ Referenced Output

7.4.1.2 Bidirectional Operation

Bidirectional operation allows the INA28x-Q1 to measure currents through a resistive shunt in two directions. In this case, the output can be set anywhere within the limits of what the reference inputs allow (that is, from 0 V to

9 V, but never to exceed the supply voltage). Typically, it is set at half-scale for equal range in both directions. In some cases, however, it is set at a voltage other than half-scale when the bidirectional current is nonsymmetrical.

The quiescent output voltage is set by applying voltage(s) to the reference inputs. REF1 and REF2 are connected to internal resistors that connect to an internal offset node. There is no operational difference between the pins.

7.4.1.2.1

External Reference Output

Connecting both pins together and to a reference produces an output at the reference voltage when there is no differential input; this configuration is illustrated in

Figure 35

. The output moves down from the reference voltage when the input is negative relative to the –IN pin and up when the input is positive relative to the –IN pin. This technique is the most accurate way to bias the output to a precise voltage.

V+

+IN

±

IN V+

Input Stage

±

+

OUT

REF2

REF1

GND

Figure 35. External Reference Output

REF3020

2.048-V

Reference

16

Submit Documentation Feedback

Copyright © 2012–2015, Texas Instruments Incorporated

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

www.ti.com

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

Device Functional Modes (continued)

7.4.1.2.2

Splitting the Supply

By connecting one reference pin to V+ and the other to the ground pin, the output is set at half of the supply when there is no differential input, as shown in

Figure 36 . This method creates a midscale offset that is

ratiometric to the supply voltage; thus, if the supply increases or decreases, the output remains at half the supply.

V+

+IN

±

IN V+

Input Stage

±

+

OUT

REF2

REF1

Output

GND

Figure 36. Split-Supply Output

7.4.1.2.3

Splitting an External Reference

In this case, an external reference is divided by 2 with an accuracy of approximately 0.5% by connecting one

REF pin to ground and the other REF pin to the reference (as

Figure 37

illustrates).

V+

+IN

±

IN V+

Input Stage

±

+

OUT

REF2

REF1

REF02

5-V

Reference

GND

Figure 37. Split Reference Output

7.4.2 Shutdown

While the INA28x-Q1 family does not provide a shutdown pin, the quiescent current of 600 μ A enables the device to be powered from the output of a logic gate. Take the gate low to shut down the INA28x-Q1 family devices.

7.4.3 Extended Negative Common-Mode Range

Using a negative power supply can extend the common-mode range 14 V more negative than the supply used.

For instance, a –10 V supply allows up to –24-V negative common-mode. Remember to keep the total voltage between the GND pin and V+ pin to less than 18 V. The positive common-mode decreases by the same amount.

The reference input simplifies this type of operation because the output quiescent bias point is always based on the reference connections.

Figure 38

shows a circuit configuration for common-mode ranges from –24 V to 70 V.

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

17

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

Device Functional Modes (continued)

Bus Supply

±

24 V to +70 V

Load

+IN

±

IN

V+ = 5 V

V+

www.ti.com

Input Stage

±

+

OUT

REF2

REF1

Output

See Note (1)

GND

Connect to

±

10 V

(1) Connect the REF pins as desired; however, they cannot exceed 9 V greater than the GND pin voltage.

Figure 38. Circuit Configuration for Common-Mode Ranges from –24 V to 70 V

7.4.4 Calculating Total Error

The electrical specifications for the INA28x-Q1 family of devices include the typical individual errors terms such as gain error, offset error, and nonlinearity error. Total error including all of these individual error components is not specified in the

Electrical Characteristics

table. To accurately calculate the expected error of the device, the operating conditions of the device must first be known. Some current shunt monitors specify a total error in the product data sheet. However, this total error term is accurate under only one particular set of operating conditions. Specifying the total error at this one point has little practical value because any deviation from these specific operating conditions no longer yields the same total error value. This section discusses the individual error sources, with information on how to apply them to calculate the total error value for the device under any normal operating conditions.

The typical error sources that have the largest impact on the total error of the device are input offset voltage, common-mode rejection ratio, gain error, and nonlinearity error. For the INA28x-Q1, an additional error source referred to as

reference voltage rejection ratio

is also included in the total error value.

The nonlinearity error of the INA28x-Q1 is relatively low compared to the gain error specification. This low error results in a gain error that can be expected to be relatively constant throughout the linear input range of the device. While the gain error remains constant across the linear input range of the device, the error associated with the input offset voltage does not. As the differential input voltage developed across a shunt resistor at the input of the INA28x-Q1 decreases, the inherent input offset voltage of the device becomes a larger percentage of the measured input signal resulting in an increase in error in the measurement. This varying error is present among all current shunt monitors, given the input offset voltage ratio to the voltage being sensed by the device.

The relatively low input offset voltages present in the INA28x-Q1 devices limit the amount of contribution the offset voltage has on the total error term.

The term

reference voltage rejection ratio

refers to the amount of error induced by applying a reference voltage to the INA28x-Q1 device that deviates from the inherent bias voltage present at the output of the first stage of the device. The output of the switched-capacitor network and first-stage amplifier has an inherent bias voltage of approximately 2.048 V. Applying a reference voltage of 2.048 V to the INA28x-Q1 reference pins results in no additional error term contribution. Applying a voltage to the reference pins that differs from 2.048 V creates a voltage potential in the internal difference amplifier, resulting in additional current flowing through the resistor network. As a result of resistor tolerances, this additional current flow causes additional error at the output because of resistor mismatches. Additionally, as a result of resistor tolerances, this additional current flow causes additional error at the output based on the common-mode rejection ratio of the output stage amplifier. This error term is referred back to the input of the device as additional input offset voltage. Increasing the difference between the 2.048-V internal bias and the external reference voltage results in a higher input offset voltage. Also, as the error at the output is referred back to the input, there is a larger impact on the input-referred offset, V

OS

, for the lower-gain versions of the device.

18

Submit Documentation Feedback

Copyright © 2012–2015, Texas Instruments Incorporated

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

www.ti.com

Device Functional Modes (continued)

Two examples are provided that detail how different operating conditions can affect the total error calculations.

Typical and maximum calculations are shown as well, to provide the user more information on how much error variance is present from device to device.

7.4.4.1 Example 1 INA282-Q1

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

TERM

Initial input offset voltage

Added input offset voltage because of common-mode voltage

Added input offset voltage because of reference voltage

Total input offset voltage

Table 1. V+ = 5 V; V

CM

= 12 V; V

REF1

= V

REF2

= 2.048 V; V

SENSE

= 10 mV

SYMBOL EQUATION TYPICAL VALUE MAXIMUM VALUE

V

OS

— 20 μ V 70 μ V

V

OS_CM

1

10

(

CMRR_dB

20

(

´

(V

CM

-

12V)

0

μ

V 0

μ

V

V

OS_REF

RVRR u

2.048 V

±

V

REF

0 μ V 0 μ V

V

OS_Total

20 μ V 70 μ V

Error from input offset voltage

Gain error

Nonlinearity error

Total error

Error_V

OS

Error_Gain

Error_Lin

(V ) + (V

OS_CM

) + (V

OS_REF

)

2

V

OS_Total

V

SENSE

´

100

2

0.20%

0.40%

0.01%

0.45%

0.70%

1.40%

0.01%

1.56%

7.4.4.2 Example 2 INA286-Q1

TERM

Initial input offset voltage

Added input offset voltage because of common-mode voltage

Added input offset voltage because of reference voltage

Total input offset voltage

Error from input offset voltage

Gain error

Nonlinearity error

Total error

Table 2. V+ = 5 V; V

CM

= 24 V; V

REF1

= V

REF2

= 0 V; V

SENSE

= 10 mV

SYMBOL EQUATION TYPICAL VALUE

V

OS

— 20 μ V

V

OS_CM

1

10

(

CMRR_dB

20

(

´

(V

CM

-

12V)

1.2

μ V

V

OS_REF

V

OS_Total

Error_V

OS

Error_Gain

Error_Lin

RVRR u 2.048 V

±

V

REF

(V ) + (V

OS_CM

) + (V

OS_REF

)

2

V

OS_Total

V

SENSE

´

100

2

34.8

μ V

40.2

μ V

0.40%

0.40%

0.01%

0.57%

MAXIMUM VALUE

70 μ V

12 μ V

92.2

μ V

116.4

μ V

1.16%

1.40%

0.01%

1.82%

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

19

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

8 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

www.ti.com

8.1 Application Information

The INA28x-Q1 family of devices measure the voltage developed across a current-sensing resistor when current passes through it. The ability to drive the reference pins to adjust the functionality of the output signal is shown in multiple configurations.

8.1.1 Basic Connections

Figure 39

shows the basic connection of an INA28x-Q1 family device. Connect the input pins, +IN and –IN, as close as possible to the shunt resistor to minimize any resistance in series with the shunt resistance.

Device Supply

2.7 V to 18 V

C

BYPASS

0.1 F

Bus Supply

±

14 V to +80 V

Load

V+

+IN

±

IN

Input Stage

±

+

OUT

REF2

REF1

Output

GND

Figure 39. Basic Connections

Power-supply bypass capacitors are required for stability. Applications with noisy or high-impedance power supplies may require additional decoupling capacitors to reject power-supply noise. Connect bypass capacitors close to the device pins.

20

Submit Documentation Feedback

Copyright © 2012–2015, Texas Instruments Incorporated

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

www.ti.com

8.2 Typical Applications

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

8.2.1 Current Summing

The outputs of multiple INA28x-Q1 family devices are easily summed by connecting the output of one INA28x-Q1 family device to the reference input of a second INA28x-Q1 family device. The circuit configuration shown in

Figure 39

is an easy way to achieve current summing.

First Circuit Second Circuit

+IN

±

IN +IN

±

IN

Input Stage Input Stage

+

±

+

±

OUT OUT

V

REF

Output Output

Summed

Output

GND

V+

GND

V+

V+

NOTE: The voltage applied to the reference inputs must not exceed 9 V.

V+

Figure 40. Summing the Outputs of Multiple INA28x-Q1 Family Devices

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

21

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

www.ti.com

Typical Applications (continued)

8.2.1.1 Design Requirements

In order to sum multiple load currents, multiple INA28x-Q1 devices must be connected.

Figure 40

shows summing for two devices. Summing beyond two devices is possible by repeating this connection. The reference input of the first INA28x-Q1 family device sets the output quiescent level for all the devices in the string.

8.2.1.2 Detailed Design Procedures

Connect the output of one INA28x-Q1 family device to the reference input of the next INA28x-Q1 family device in the chain. Use the reference input of the first circuit to set the reference of the final summed output. The currents sensed at each circuit in the chain are summed at the output of the last device in the chain.

8.2.1.3 Application Curve

Figure 41

shows an example output response of a summing configuration. The reference pins of the first circuit are connected to ground, and sine waves at different frequencies are applied to the two circuits to produce a summed output as shown. The sine wave voltage input for the first circuit is offset so that the whole wave is above GND.

Output

Inputs

Time (4 ms/div)

V

REF

= 0 V

Figure 41. Current Summing Application Output Response

22

Submit Documentation Feedback

Copyright © 2012–2015, Texas Instruments Incorporated

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

www.ti.com

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

Typical Applications (continued)

8.2.2 Current Differencing

Occasionally, the need arises to confirm that the current into a load is identical to the current out of a load, usually as part of diagnostic testing or fault detection. This situation requires precision current differencing, which is the same as summing except that the two amplifiers have the inputs connected opposite of each other.

First Circuit Second Circuit

Bus Supply

Load

+IN

Input Stage

±

IN +IN

Input Stage

±

IN

+

±

+

±

OUT OUT

Output Output

V

REF

GND

V+

GND

V+

V+

NOTE: The voltage applied to the reference inputs must not exceed 9 V.

V+

Figure 42. Current Differencing Using an INA28x-Q1 Device

Difference

Output

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

23

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

www.ti.com

Typical Applications (continued)

8.2.2.1 Design Requirements

For current differencing, connect two INA28x-Q1 devices, and connect the inputs opposite to each other, as shown in

Figure 42

. The reference input of the first INA28x-Q1 family device sets the output quiescent level for all the devices in the string.

8.2.2.2 Detailed Design Procedure

Connect the output of one INA28x-Q1 family device to the reference input of the second INA28x-Q1 family device. The reference input of the first circuit sets the reference at the output. This circuit example is identical to the current summing example, except that the two shunt inputs are reversed in polarity. Under normal operating conditions, the final output is very close to the reference value and proportional to any current difference. This current differencing circuit is useful in detecting when current into and out of a load do not match.

8.2.2.3 Application Curves

Figure 43

shows an example output response of a difference configuration. The reference pins of the first circuit are connected to a reference voltage of 2.048 V. The inputs to each circuit is a 100-Hz sine wave, 180° out of phase with each other, resulting in a zero output as shown. The sine wave input to the first circuit is offset so that the input wave is completely above GND.

Output

Inputs

Time (4 ms/div)

V

REF

= 2.048 V

Figure 43. Current Differencing Application Output Response

24

Submit Documentation Feedback

Copyright © 2012–2015, Texas Instruments Incorporated

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

www.ti.com

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

9 Power Supply Recommendations

The INA28x-Q1 can make accurate measurements well outside of its own power-supply voltage, V+, because its inputs (+IN and –IN) may operate anywhere from –14 V to 80 V independent of V+. For example, the V+ power supply can be 5 V while the common-mode voltage being monitored by the shunt may be as high as 80 V. Of course, the output voltage range of the INA28x-Q1 is constrained by the supply voltage that powers it on V+.

When the power to the INA28x-Q1 is off (that is, no voltage is supplied to the V+ pin), the input pins (+IN and

–IN) are high impedance with respect to ground and typically leak less than ±1 μ A over the full common-mode range of –14 V to 80 V.

10 Layout

10.1 Layout Guidelines

Connect the input pins to the sensing resistor using a Kelvin or 4-wire connection. This connection technique makes sure that only the current-sensing resistor impedance is detected between the input pins. Poor routing of the current-sensing resistor commonly results in additional resistance present between the input pins. Given the very low ohmic value of the current resistor, any additional high-current carrying impedance causes significant measurement errors.

Place the power-supply bypass capacitor as close as possible to the supply and ground pins. TI recommends a bypass capacitor with a value of 0.1 uF. Add additional decoupling capacitance to compensate for noisy or highimpedance power supplies.

10.2 Layout Example

±

IN

GND

REF2

NC

+IN

REF1

V+

OUT

Supply Voltage

Output Signal Trace

VIA to Power Plane

Supply Bypass

Capacitor

VIA to Ground Plane

Figure 44. Layout Example

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

25

INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1

SBOS554B – MARCH 2012 – REVISED DECEMBER 2015

11 Device and Documentation Support

www.ti.com

11.1 Related Links

The table below lists quick access links. Categories include technical documents, support and community resources, tools and software, and quick access to sample or buy.

PARTS

INA282-Q1

INA283-Q1

INA284-Q1

INA285-Q1

INA286-Q1

PRODUCT FOLDER

Click here

Click here

Click here

Click here

Click here

Table 3. Related Links

SAMPLE & BUY

Click here

Click here

Click here

Click here

Click here

TECHNICAL

DOCUMENTS

Click here

Click here

Click here

Click here

Click here

TOOLS &

SOFTWARE

Click here

Click here

Click here

Click here

Click here

SUPPORT &

COMMUNITY

Click here

Click here

Click here

Click here

Click here

11.2 Community Resources

The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of

Use .

TI E2E™ Online Community

TI's Engineer-to-Engineer (E2E) Community.

Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers.

Design Support

TI's Design Support

Quickly find helpful E2E forums along with design support tools and contact information for technical support.

11.3 Trademarks

E2E is a trademark of Texas Instruments.

All other trademarks are the property of their respective owners.

11.4 Electrostatic Discharge Caution

These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

11.5 Glossary

SLYZ022 —

TI Glossary

.

This glossary lists and explains terms, acronyms, and definitions.

12 Mechanical, Packaging, and Orderable Information

The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation.

26

Submit Documentation Feedback

Copyright © 2012–2015, Texas Instruments Incorporated

Product Folder Links:

INA282-Q1 INA283-Q1 INA284-Q1 INA285-Q1 INA286-Q1

PACKAGE OPTION ADDENDUM

www.ti.com

10-Dec-2015

PACKAGING INFORMATION

Orderable Device

INA282AQDGKRQ1

INA282AQDRQ1

INA283AQDGKRQ1

INA283AQDRQ1

INA284AQDGKRQ1

INA284AQDRQ1

Status

(1)

PREVIEW

Package Type Package

Drawing

Pins Package

Qty

VSSOP DGK 8

ACTIVE SOIC D 8

Eco Plan

(2)

Green (RoHS

& no Sb/Br)

2500 Green (RoHS

& no Sb/Br)

PREVIEW VSSOP DGK 8

ACTIVE

PREVIEW

ACTIVE

SOIC

VSSOP

SOIC

D

DGK

D

8

8

8

Green (RoHS

& no Sb/Br)

2500 Green (RoHS

& no Sb/Br)

Green (RoHS

& no Sb/Br)

2500 Green (RoHS

& no Sb/Br)

Lead/Ball Finish

(6)

CU NIPDAUAG

CU NIPDAU

CU NIPDAUAG

CU NIPDAU

CU NIPDAUAG

CU NIPDAU

MSL Peak Temp

(3)

Op Temp (°C)

Level-2-260C-1 YEAR -40 to 125

Level-2-260C-1 YEAR -40 to 125

Level-2-260C-1 YEAR -40 to 125

Level-2-260C-1 YEAR -40 to 125

Level-2-260C-1 YEAR -40 to 125

Level-2-260C-1 YEAR -40 to 125

11GF

282Q1

11FF

283Q1

11HF

284Q1

Device Marking

(4/5)

INA285AQDGKRQ1

INA285AQDRQ1

INA286AQDGKRQ1

PREVIEW

ACTIVE

PREVIEW

VSSOP

SOIC

VSSOP

DGK

D

DGK

8

8

8

Green (RoHS

& no Sb/Br)

2500 Green (RoHS

& no Sb/Br)

Green (RoHS

& no Sb/Br)

CU NIPDAUAG

CU NIPDAU

CU NIPDAUAG

Level-2-260C-1 YEAR -40 to 125

Level-2-260C-1 YEAR -40 to 125

Level-2-260C-1 YEAR -40 to 125

11IF

285Q1

11JF

INA286AQDRQ1 ACTIVE SOIC D 8 2500 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.

LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.

NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.

OBSOLETE: TI has discontinued the production of the device.

-40 to 125 286Q1

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined.

Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.

Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.

Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

Addendum-Page 1

Samples

PACKAGE OPTION ADDENDUM

www.ti.com

10-Dec-2015

(3)

MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4)

There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.

(5)

Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation of the previous line and the two combined represent the entire Device Marking for that device.

(6)

Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish value exceeds the maximum column width.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.

TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

OTHER QUALIFIED VERSIONS OF INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, INA286-Q1 :

Catalog: INA282 , INA283 , INA284 , INA285 , INA286

NOTE: Qualified Version Definitions:

Catalog - TI's standard catalog product

Addendum-Page 2

www.ti.com

TAPE AND REEL INFORMATION

PACKAGE MATERIALS INFORMATION

10-Dec-2015

*All dimensions are nominal

Device

INA282AQDRQ1

INA283AQDRQ1

INA284AQDRQ1

INA285AQDRQ1

INA286AQDRQ1

Package

Type

Package

Drawing

SOIC

SOIC

SOIC

SOIC

SOIC

D

D

D

D

D

Pins

8

8

8

8

8

SPQ

2500

2500

2500

2500

2500

Reel

Diameter

(mm)

Reel

Width

W1 (mm)

330.0

12.4

330.0

330.0

12.4

12.4

A0

(mm)

6.4

6.4

6.4

330.0

330.0

12.4

12.4

6.4

6.4

B0

(mm)

5.2

5.2

5.2

5.2

5.2

K0

(mm)

P1

(mm)

W

(mm)

Pin1

Quadrant

2.1

2.1

2.1

2.1

2.1

8.0

8.0

12.0

8.0

12.0

8.0

8.0

12.0

12.0

12.0

Q1

Q1

Q1

Q1

Q1

Pack Materials-Page 1

www.ti.com

PACKAGE MATERIALS INFORMATION

10-Dec-2015

*All dimensions are nominal

Device

INA282AQDRQ1

INA283AQDRQ1

INA284AQDRQ1

INA285AQDRQ1

INA286AQDRQ1

Package Type Package Drawing Pins

SOIC

SOIC

SOIC

SOIC

SOIC

D

D

D

D

D

8

8

8

8

8

SPQ

2500

2500

2500

2500

2500

Length (mm) Width (mm) Height (mm)

367.0

367.0

367.0

367.0

367.0

367.0

367.0

367.0

367.0

367.0

35.0

35.0

35.0

35.0

35.0

Pack Materials-Page 2

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily performed.

TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.

Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.

TI is not responsible or liable for any such statements.

Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use of any TI components in safety-critical applications.

In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and requirements. Nonetheless, such components are subject to these terms.

No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties have executed a special agreement specifically governing such use.

Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components which have

not

been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.

Products

Audio

Amplifiers

Data Converters

DLP® Products

DSP

Clocks and Timers

Interface

Logic

Power Mgmt

Microcontrollers

RFID

OMAP Applications Processors

Wireless Connectivity www.ti.com/audio amplifier.ti.com

dataconverter.ti.com

www.dlp.com

dsp.ti.com

www.ti.com/clocks interface.ti.com

logic.ti.com

power.ti.com

microcontroller.ti.com

Applications

Automotive and Transportation

Communications and Telecom

Computers and Peripherals

Consumer Electronics

Energy and Lighting

Industrial

Medical

Security

Space, Avionics and Defense

Video and Imaging www.ti-rfid.com

www.ti.com/omap

TI E2E Community

www.ti.com/wirelessconnectivity www.ti.com/automotive www.ti.com/communications www.ti.com/computers www.ti.com/consumer-apps www.ti.com/energy www.ti.com/industrial www.ti.com/medical www.ti.com/security www.ti.com/space-avionics-defense www.ti.com/video e2e.ti.com

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Copyright © 2015, Texas Instruments Incorporated

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Texas Instruments

:

INA284AQDRQ1 INA284AQDGKRQ1

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
