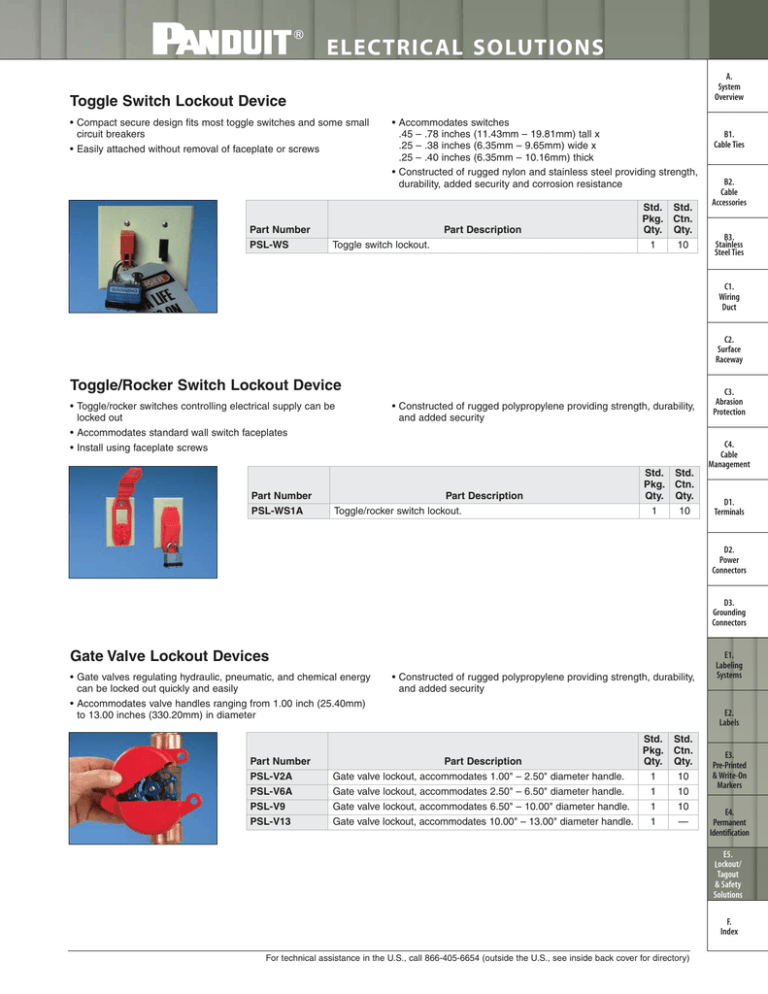

ELECTRICAL SOLUTIONS Toggle Switch Lockout Device

ELECTRICAL SOLUTIONS Toggle Switch Lockout Device
ELECTRICAL SOLUTIONS
A.
System
Overview
Toggle Switch Lockout Device
• Compact secure design fits most toggle switches and some small
circuit breakers
• Easily attached without removal of faceplate or screws
Part Number
PSL-WS
• Accommodates switches
.45 – .78 inches (11.43mm – 19.81mm) tall x
.25 – .38 inches (6.35mm – 9.65mm) wide x
.25 – .40 inches (6.35mm – 10.16mm) thick
• Constructed of rugged nylon and stainless steel providing strength,
durability, added security and corrosion resistance
Part Description
Toggle switch lockout.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
Toggle/Rocker Switch Lockout Device
• Toggle/rocker switches controlling electrical supply can be
locked out
• Accommodates standard wall switch faceplates
• Install using faceplate screws
Part Number
PSL-WS1A
• Constructed of rugged polypropylene providing strength, durability,
and added security
C3.
Abrasion
Protection
C4.
Cable
Management
Part Description
Toggle/rocker switch lockout.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
Gate Valve Lockout Devices
• Gate valves regulating hydraulic, pneumatic, and chemical energy
can be locked out quickly and easily
• Accommodates valve handles ranging from 1.00 inch (25.40mm)
to 13.00 inches (330.20mm) in diameter
• Constructed of rugged polypropylene providing strength, durability,
and added security
E1.
Labeling
Systems
E2.
Labels
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
Part Number
PSL-V2A
Part Description
Gate valve lockout, accommodates 1.00" – 2.50" diameter handle.
PSL-V6A
PSL-V9
Gate valve lockout, accommodates 2.50" – 6.50" diameter handle.
Gate valve lockout, accommodates 6.50" – 10.00" diameter handle.
1
1
10
10
PSL-V13
Gate valve lockout, accommodates 10.00" – 13.00" diameter handle.
1
—
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
