i2c bus specification 2

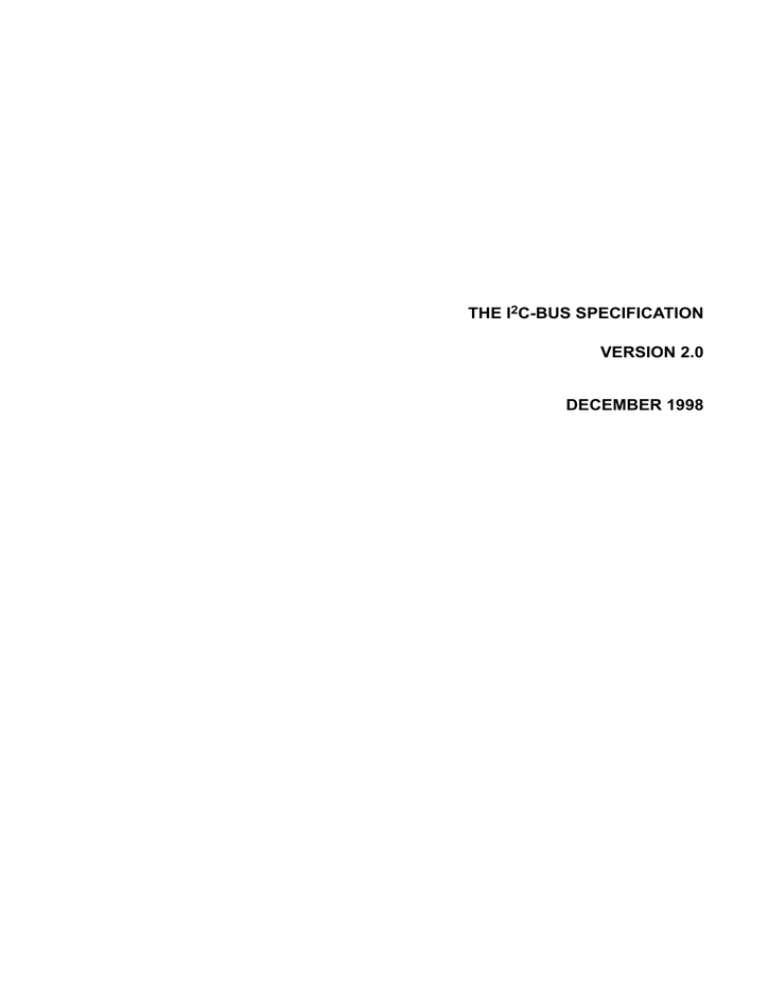

THE I

2

C-BUS SPECIFICATION

VERSION 2.0

DECEMBER 1998

Philips Semiconductors

The I

2

C-bus specification

CONTENTS

1

1.1

1.2

1.3

2

PREFACE

Version 1.0- 1992

Version 2.0- 1998

Purchase of Philips I

2

C-bus components

THE I

2

C-BUS BENEFITS DESIGNERS

AND MANUFACTURERS

2.1

2.2

3

4

5

6

6.1

6.2

7

Designer benefits

Manufacturer benefits

INTRODUCTION TO THE I

2

C-BUS

SPECIFICATION

THE I

2

C-BUS CONCEPT

GENERAL CHARACTERISTICS

BIT TRANSFER

Data validity

START and STOP conditions

TRANSFERRING DATA

8

9

10

7.1

7.2

8

Byte format

Acknowledge

ARBITRATION AND CLOCK

GENERATION

10

10

8.1

8.2

8.3

9

10

Synchronization

Arbitration

Use of the clock synchronizing mechanism as a handshake

FORMATS WITH 7-BIT ADDRESSES

7-BIT ADDRESSING

11

11

12

13

13

10.1

Definition of bits in the first byte

10.1.1

General call address

10.1.2

START byte

10.1.3

CBUS compatibility

11 EXTENSIONS TO THE STANDARD-

MODE I

2

C-BUS SPECIFICATION

12

13

FAST-MODE

Hs-MODE

19

19

20

13.1

High speed transfer

13.2

Serial data transfer format in Hs-mode

20

21

13.3

Switching from F/S- to Hs-mode and back 23

13.4Hs-mode devices at lower speed modes24

13.5

Mixed speed modes on one serial bus system 24

15

15

16

17

18

4

4

6

8

8

6

6

3

3

3

3

13.5.1

F/S-mode transfer in a mixed-speed bus system

13.5.2

Hs-mode transfer in a mixed-speed bus system

13.5.3

Timing requirements for the bridge in a mixed-speed bus system

14 10-BIT ADDRESSING

14.1

Definition of bits in the first two bytes

14.2

Formats with 10-bit addresses

14.3

General call address and start byte with 10-bit addressing

15 ELECTRICAL SPECIFICATIONS

AND TIMING FOR I/O STAGES

AND BUS LINES

15.1

Standard- and Fast-mode devices

15.2

Hs-mode devices

16 ELECTRICAL CONNECTIONS OF

I

2

C-BUS DEVICES TO THE BUS LINES

16.1

Maximum and minimum values of resistors R p

and R s

for Standard-mode

I

2

C-bus devices

17 APPLICATION INFORMATION

17.1

Slope-controlled output stages of

Fast-mode I

2

C-bus devices

17.2

Switched pull-up circuit for Fastmode I

2

C-bus devices

17.3

Wiring pattern of the bus lines

17.4

Maximum and minimum values of resistors R p

and R s

for Fast-mode

I

2

C-bus devices

17.5

Maximum and minimum values of resistors R p

and R s

for Hs-mode

I

2

C-bus devices

18

18.1

Connecting devices with different logic levels

18.1.1

Operation of level shifter

19

BI-DIRECTIONAL LEVEL SHIFTER

FOR F/S-MODE I

2

C-BUS SYSTEMS

20

DEVELOPMENT TOOLS AVAILABLE

FROM PHILIPS

SUPPORT LITERATURE

25

25

27

27

27

27

30

42

30

30

34

37

39

41

41

41

42

42

42

43

44

45

46

2

Philips Semiconductors

The I

2

C-bus specification

1 PREFACE

1.1

Version 1.0 - 1992

This version of the 1992 I

2

C-bus specification includes the following modifications:

Programming of a slave address by software has been omitted. The realization of this feature is rather complicated and has not been used.

The “low-speed mode” has been omitted. This mode is, in fact, a subset of the total I

2

C-bus specification and need not be specified explicitly.

The Fast-mode is added. This allows a fourfold increase of the bit rate up to 400 kbit/s. Fast-mode devices are downwards compatible i.e. they can be used in a 0 to

100 kbit/s I

2

C-bus system.

10-bit addressing is added. This allows 1024 additional slave addresses.

Slope control and input filtering for Fast-mode devices is specified to improve the EMC behaviour.

NOTE: Neither the 100 kbit/s I

2

C-bus system nor the

100 kbit/s devices have been changed.

1.2

Version 2.0 - 1998

The I

2

C-bus has become a de facto world standard that is now implemented in over 1000 different ICs and licensed to more than 50 companies. Many of today’s applications, however, require higher bus speeds and lower supply voltages. This updated version of the I

2

C-bus specification meets those requirements and includes the following modifications:

The High-speed mode (Hs-mode) is added. This allows an increase in the bit rate up to 3.4 Mbit/s. Hs-mode devices can be mixed with Fast- and Standard-mode devices on the one I

2

C-bus system with bit rates from 0 to 3.4 Mbit/s.

The low output level and hysteresis of devices with a supply voltage of 2 V and below has been adapted to meet the required noise margins and to remain compatible with higher supply voltage devices.

The 0.6 V at 6 mA requirement for the output stages of

Fast-mode devices has been omitted.

The fixed input levels for new devices are replaced by bus voltage-related levels.

Application information for bi-directional level shifter is added.

1.3

Purchase of Philips I

2

C-bus components

Purchase of Philips I

2

C components conveys a license under the Philips’ I

2

C patent to use the components in the I

2

C system provided the system conforms to the I

2

C specification defined by

Philips.

3

Philips Semiconductors

The I

2

C-bus specification

2 THE I

2

C-BUS BENEFITS DESIGNERS AND

MANUFACTURERS

In consumer electronics, telecommunications and industrial electronics, there are often many similarities between seemingly unrelated designs. For example, nearly every system includes:

Some intelligent control, usually a single-chip microcontroller

General-purpose circuits like LCD drivers, remote I/O ports, RAM, EEPROM, or data converters

Application-oriented circuits such as digital tuning and signal processing circuits for radio and video systems, or DTMF generators for telephones with tone dialling.

To exploit these similarities to the benefit of both systems designers and equipment manufacturers, as well as to maximize hardware efficiency and circuit simplicity, Philips developed a simple bi-directional 2-wire bus for efficient inter-IC control. This bus is called the Inter IC or I

2

C-bus.

At present, Philips’ IC range includes more than 150

CMOS and bipolar I

2

C-bus compatible types for performing functions in all three of the previously mentioned categories. All I

2

C-bus compatible devices incorporate an on-chip interface which allows them to communicate directly with each other via the I

2

C-bus. This design concept solves the many interfacing problems encountered when designing digital control circuits.

Here are some of the features of the I

2

C-bus:

Only two bus lines are required; a serial data line (SDA) and a serial clock line (SCL)

Each device connected to the bus is software addressable by a unique address and simple master/slave relationships exist at all times; masters can operate as master-transmitters or as master-receivers

It’s a true multi-master bus including collision detection and arbitration to prevent data corruption if two or more masters simultaneously initiate data transfer

Serial, 8-bit oriented, bi-directional data transfers can be made at up to 100 kbit/s in the Standard-mode, up to

400 kbit/s in the Fast-mode, or up to 3.4 Mbit/s in the

High-speed mode

On-chip filtering rejects spikes on the bus data line to preserve data integrity

The number of ICs that can be connected to the same bus is limited only by a maximum bus capacitance of

400 pF.

Figure 1 shows two examples of I

2

C-bus applications.

2.1

Designer benefits

I

2

C-bus compatible ICs allow a system design to rapidly progress directly from a functional block diagram to a prototype. Moreover, since they ‘clip’ directly onto the

I

2

C-bus without any additional external interfacing, they allow a prototype system to be modified or upgraded simply by ‘clipping’ or ‘unclipping’ ICs to or from the bus.

Here are some of the features of I

2

C-bus compatible ICs which are particularly attractive to designers:

Functional blocks on the block diagram correspond with the actual ICs; designs proceed rapidly from block diagram to final schematic.

No need to design bus interfaces because the I

2

C-bus interface is already integrated on-chip.

Integrated addressing and data-transfer protocol allow systems to be completely software-defined

The same IC types can often be used in many different applications

Design-time reduces as designers quickly become familiar with the frequently used functional blocks represented by I

2

C-bus compatible ICs

ICs can be added to or removed from a system without affecting any other circuits on the bus

Fault diagnosis and debugging are simple; malfunctions can be immediately traced

Software development time can be reduced by assembling a library of reusable software modules.

In addition to these advantages, the CMOS ICs in the

I

2

C-bus compatible range offer designers special features which are particularly attractive for portable equipment and battery-backed systems.

They all have:

Extremely low current consumption

High noise immunity

Wide supply voltage range

Wide operating temperature range.

4

Philips Semiconductors

The I

2

C-bus specification handbook, full pagewidth

MICRO-

CONTROLLER

PCB83C528

SDA SCL

PLL

SYNTHESIZER

TSA5512

NON-VOLATILE

MEMORY

PCF8582E

M/S COLOUR

DECODER

TDA9160A

STEREO / DUAL

SOUND

DECODER

TDA9840


SIGNAL

IMPROVEMENT

TDA4670

DTMF

GENERATOR

PCD3311

SDA SCL

HI-FI

AUDIO

PROCESSOR

TDA9860

VIDEO

PROCESSOR

TDA4685

ADPCM

PCD5032

LINE

INTERFACE

PCA1070

SINGLE-CHIP

TEXT

SAA52XX

BURST MODE

CONTROLLER

PCD5042

ON-SCREEN

DISPLAY

PCA8510

MICRO-

CONTROLLER

P80CLXXX

MSB575

(a) (b)

Fig.1 Two examples of I

2

C-bus applications: (a) a high performance highly-integrated TV set

(b) DECT cordless phone base-station.

5

Philips Semiconductors

The I

2

C-bus specification

2.2

Manufacturer benefits

I

2

C-bus compatible ICs don’t only assist designers, they also give a wide range of benefits to equipment manufacturers because:

The simple 2-wire serial I

2

C-bus minimizes interconnections so ICs have fewer pins and there are not so many PCB tracks; result - smaller and less expensive PCBs

The completely integrated I

2

C-bus protocol eliminates the need for address decoders and other ‘glue logic’

The multi-master capability of the I

2

C-bus allows rapid testing and alignment of end-user equipment via external connections to an assembly-line

The availability of I

2

C-bus compatible ICs in SO (small outline), VSO (very small outline) as well as DIL packages reduces space requirements even more.

These are just some of the benefits. In addition, I

2

C-bus compatible ICs increase system design flexibility by allowing simple construction of equipment variants and easy upgrading to keep designs up-to-date. In this way, an entire family of equipment can be developed around a basic model. Upgrades for new equipment, or enhanced-feature models (i.e. extended memory, remote control, etc.) can then be produced simply by clipping the appropriate ICs onto the bus. If a larger ROM is needed, it’s simply a matter of selecting a micro-controller with a larger ROM from our comprehensive range. As new ICs supersede older ones, it’s easy to add new features to equipment or to increase its performance by simply unclipping the outdated IC from the bus and clipping on its successor.

3 INTRODUCTION TO THE I

2

C-BUS SPECIFICATION

For 8-bit oriented digital control applications, such as those requiring microcontrollers, certain design criteria can be established:

A complete system usually consists of at least one microcontroller and other peripheral devices such as memories and I/O expanders

The cost of connecting the various devices within the system must be minimized

A system that performs a control function doesn’t require high-speed data transfer

Overall efficiency depends on the devices chosen and the nature of the interconnecting bus structure.

To produce a system to satisfy these criteria, a serial bus structure is needed. Although serial buses don’t have the throughput capability of parallel buses, they do require less wiring and fewer IC connecting pins. However, a bus is not merely an interconnecting wire, it embodies all the formats and procedures for communication within the system.

Devices communicating with each other on a serial bus must have some form of protocol which avoids all possibilities of confusion, data loss and blockage of information. Fast devices must be able to communicate with slow devices. The system must not be dependent on the devices connected to it, otherwise modifications or improvements would be impossible. A procedure has also to be devised to decide which device will be in control of the bus and when. And, if different devices with different clock speeds are connected to the bus, the bus clock source must be defined. All these criteria are involved in the specification of the I

2

C-bus.

4 THE I

2

C-BUS CONCEPT

The I

2

C-bus supports any IC fabrication process (NMOS,

CMOS, bipolar). Two wires, serial data (SDA) and serial clock (SCL), carry information between the devices connected to the bus. Each device is recognized by a unique address (whether it’s a microcontroller, LCD driver, memory or keyboard interface) and can operate as either a transmitter or receiver, depending on the function of the device. Obviously an LCD driver is only a receiver, whereas a memory can both receive and transmit data. In addition to transmitters and receivers, devices can also be considered as masters or slaves when performing data transfers (see Table 1). A master is the device which initiates a data transfer on the bus and generates the clock signals to permit that transfer. At that time, any device addressed is considered a slave.

6

Philips Semiconductors

The I

2

C-bus specification

Table 1

Definition of I

TERM

Transmitter

Receiver

2

C-bus terminology

DESCRIPTION

The device which sends data to the bus

The device which receives data from the bus

Master The device which initiates a transfer, generates clock signals and terminates a transfer

The device addressed by a master Slave

Multi-master

Arbitration

More than one master can attempt to control the bus at the same time without corrupting the message

Procedure to ensure that, if more than one master simultaneously tries to control the bus, only one is allowed to do so and the winning message is not corrupted

Synchronization Procedure to synchronize the clock signals of two or more devices

The I

2

C-bus is a multi-master bus. This means that more than one device capable of controlling the bus can be connected to it. As masters are usually micro-controllers, let’s consider the case of a data transfer between two microcontrollers connected to the I

2

C-bus (see Fig.2).

This highlights the master-slave and receiver-transmitter relationships to be found on the I

2

C-bus. It should be noted that these relationships are not permanent, but only depend on the direction of data transfer at that time. The transfer of data would proceed as follows:

1) Suppose microcontroller A wants to send information to microcontroller B:

• microcontroller A (master), addresses microcontroller B

(slave)

• microcontroller A (master-transmitter), sends data to microcontroller B (slave- receiver)

• microcontroller A terminates the transfer

2) If microcontroller A wants to receive information from microcontroller B:

• microcontroller A (master) addresses microcontroller B

(slave)

• microcontroller A (master- receiver) receives data from microcontroller B (slave- transmitter)

• microcontroller A terminates the transfer.

Even in this case, the master (microcontroller A) generates the timing and terminates the transfer.

The possibility of connecting more than one microcontroller to the I

2

C-bus means that more than one master could try to initiate a data transfer at the same time.

To avoid the chaos that might ensue from such an event an arbitration procedure has been developed. This procedure relies on the wired-AND connection of all I

2

C interfaces to the I

2

C-bus.

If two or more masters try to put information onto the bus, the first to produce a ‘one’ when the other produces a

‘zero’ will lose the arbitration. The clock signals during arbitration are a synchronized combination of the clocks generated by the masters using the wired-AND connection to the SCL line (for more detailed information concerning arbitration see Section 8).

MICRO -

CONTROLLER

A

LCD

DRIVER

STATIC

RAM OR

EEPROM

SDA

SCL

GATE

ARRAY ADC

MBC645

MICRO -

CONTROLLER

B

Fig.2 Example of an I

2

C-bus configuration using two microcontrollers.

7

Philips Semiconductors

The I

2

C-bus specification

Generation of clock signals on the I

2

C-bus is always the responsibility of master devices; each master generates its own clock signals when transferring data on the bus. Bus clock signals from a master can only be altered when they are stretched by a slow-slave device holding-down the clock line, or by another master when arbitration occurs.

5 GENERAL CHARACTERISTICS

Both SDA and SCL are bi-directional lines, connected to a positive supply voltage via a current-source or pull-up resistor (see Fig.3). When the bus is free, both lines are

HIGH. The output stages of devices connected to the bus must have an open-drain or open-collector to perform the wired-AND function. Data on the I

2

C-bus can be transferred at rates of up to 100 kbit/s in the

Standard-mode, up to 400 kbit/s in the Fast-mode, or up to

3.4 Mbit/s in the High-speed mode. The number of interfaces connected to the bus is solely dependent on the bus capacitance limit of 400 pF. For information on

High-speed mode master devices, see Section 13.

6 BIT TRANSFER

Due to the variety of different technology devices (CMOS,

NMOS, bipolar) which can be connected to the I

2

C-bus, the levels of the logical ‘0’ (LOW) and ‘1’ (HIGH) are not fixed and depend on the associated level of V

DD

(see

Section 15 for electrical specifications). One clock pulse is generated for each data bit transferred.

6.1

Data validity

The data on the SDA line must be stable during the HIGH period of the clock. The HIGH or LOW state of the data line can only change when the clock signal on the SCL line is

LOW (see Fig.4).

VDD

SDA (Serial Data Line)

SCL (Serial Clock Line) pull-up resistors

R p R p

SCLKN1

OUT

SCLK

DATAN1

OUT

SCLKN2

OUT

SCLK

DATAN2

OUT

SCLK

IN

DATA

IN

SCLK

IN

DATA

IN

DEVICE 1 DEVICE 2

MBC631

Fig.3 Connection of Standard- and Fast-mode devices to the I

2

C-bus.

8

Philips Semiconductors

The I

2

C-bus specification handbook, full pagewidth

SDA

SCL data line stable; data valid change of data allowed

Fig.4 Bit transfer on the I

2

C-bus.

MBC621

6.2

START and STOP conditions

Within the procedure of the I

2

C-bus, unique situations arise which are defined as START (S) and STOP (P) conditions (see Fig.5).

A HIGH to LOW transition on the SDA line while SCL is

HIGH is one such unique case. This situation indicates a

START condition.

A LOW to HIGH transition on the SDA line while SCL is

HIGH defines a STOP condition.

START and STOP conditions are always generated by the master. The bus is considered to be busy after the START condition. The bus is considered to be free again a certain time after the STOP condition. This bus free situation is specified in Section 15.

The bus stays busy if a repeated START (Sr) is generated instead of a STOP condition. In this respect, the START

(S) and repeated START (Sr) conditions are functionally identical (see Fig.6). For the remainder of this document, therefore, the S symbol will be used as a generic term to represent both the START and repeated START conditions, unless Sr is particularly relevant.

Detection of START and STOP conditions by devices connected to the bus is easy if they incorporate the necessary interfacing hardware. However, microcontrollers with no such interface have to sample the

SDA line at least twice per clock period to sense the transition.

handbook, full pagewidth

SDA SDA

SCL

S

START condition

Fig.5 START and STOP conditions.

SCL

P

STOP condition

MBC622

9

Philips Semiconductors

The I

2

C-bus specification

7 TRANSFERRING DATA

7.1

Byte format

Every byte put on the SDA line must be 8-bits long. The number of bytes that can be transmitted per transfer is unrestricted. Each byte has to be followed by an acknowledge bit. Data is transferred with the most significant bit (MSB) first (see Fig.6). If a slave can’t receive or transmit another complete byte of data until it has performed some other function, for example servicing an internal interrupt, it can hold the clock line SCL LOW to force the master into a wait state. Data transfer then continues when the slave is ready for another byte of data and releases clock line SCL.

In some cases, it’s permitted to use a different format from the I

2

C-bus format (for CBUS compatible devices for example). A message which starts with such an address can be terminated by generation of a STOP condition, even during the transmission of a byte. In this case, no acknowledge is generated (see Section 10.1.3).

7.2

Acknowledge

Data transfer with acknowledge is obligatory. The acknowledge-related clock pulse is generated by the master. The transmitter releases the SDA line (HIGH) during the acknowledge clock pulse.

The receiver must pull down the SDA line during the acknowledge clock pulse so that it remains stable LOW during the HIGH period of this clock pulse (see Fig.7). Of course, set-up and hold times (specified in Section 15) must also be taken into account.

Usually, a receiver which has been addressed is obliged to generate an acknowledge after each byte has been received, except when the message starts with a CBUS address (see Section 10.1.3).

When a slave doesn’t acknowledge the slave address (for example, it’s unable to receive or transmit because it’s performing some real-time function), the data line must be left HIGH by the slave. The master can then generate either a STOP condition to abort the transfer, or a repeated

START condition to start a new transfer.

If a slave-receiver does acknowledge the slave address but, some time later in the transfer cannot receive any more data bytes, the master must again abort the transfer.

This is indicated by the slave generating the not-acknowledge on the first byte to follow. The slave leaves the data line HIGH and the master generates a

STOP or a repeated START condition.

If a master-receiver is involved in a transfer, it must signal the end of data to the slave- transmitter by not generating an acknowledge on the last byte that was clocked out of the slave. The slave-transmitter must release the data line to allow the master to generate a STOP or repeated

START condition.

handbook, full pagewidth

SDA

MSB

SCL

S

or

Sr

START or repeated START condition

1 2

P

7 acknowledgement signal from slave byte complete, interrupt within slave clock line held low while interrupts are serviced

8 9

ACK

1 2 acknowledgement signal from receiver

3 - 8 9

ACK

Sr

Sr

or

P

STOP or repeated START condition

MSC608

Fig.6 Data transfer on the I

2

C-bus.

10

Philips Semiconductors

The I

2

C-bus specification handbook, full pagewidth

DATA OUTPUT

BY TRANSMITTER not acknowledge

DATA OUTPUT

BY RECEIVER

SCL FROM

MASTER

S

START condition

1 2

Fig.7 Acknowledge on the I

2

C-bus.

acknowledge

8 9 clock pulse for acknowledgement

MBC602

8 ARBITRATION AND CLOCK GENERATION

8.1

Synchronization

All masters generate their own clock on the SCL line to transfer messages on the I

2

C-bus. Data is only valid during the HIGH period of the clock. A defined clock is therefore needed for the bit-by-bit arbitration procedure to take place.

Clock synchronization is performed using the wired-AND connection of I

2

C interfaces to the SCL line. This means that a HIGH to LOW transition on the SCL line will cause the devices concerned to start counting off their LOW period and, once a device clock has gone LOW, it will hold the SCL line in that state until the clock HIGH state is reached (see Fig.8). However, the LOW to HIGH transition of this clock may not change the state of the SCL line if another clock is still within its LOW period. The SCL line will therefore be held LOW by the device with the longest

LOW period. Devices with shorter LOW periods enter a

HIGH wait-state during this time.

wait state start counting

HIGH period

CLK

1

CLK

2 counter reset

SCL

MBC632

Fig.8 Clock synchronization during the arbitration procedure.

11

Philips Semiconductors

The I

2

C-bus specification

When all devices concerned have counted off their LOW period, the clock line will be released and go HIGH. There will then be no difference between the device clocks and the state of the SCL line, and all the devices will start counting their HIGH periods. The first device to complete its HIGH period will again pull the SCL line LOW.

In this way, a synchronized SCL clock is generated with its

LOW period determined by the device with the longest clock LOW period, and its HIGH period determined by the one with the shortest clock HIGH period.

8.2

Arbitration

A master may start a transfer only if the bus is free. Two or more masters may generate a START condition within the minimum hold time (t

HD;STA

) of the START condition which results in a defined START condition to the bus.

Arbitration takes place on the SDA line, while the SCL line is at the HIGH level, in such a way that the master which transmits a HIGH level, while another master is transmitting a LOW level will switch off its DATA output stage because the level on the bus doesn’t correspond to its own level.

Arbitration can continue for many bits. Its first stage is comparison of the address bits (addressing information is given in Sections 10 and 14). If the masters are each trying to address the same device, arbitration continues with comparison of the data-bits if they are master-transmitter, or acknowledge-bits if they are master-receiver. Because address and data information on the I

2

C-bus is determined by the winning master, no information is lost during the arbitration process.

A master that loses the arbitration can generate clock pulses until the end of the byte in which it loses the arbitration.

As an Hs-mode master has a unique 8-bit master code, it will always finish the arbitration during the first byte (see

Section 13).

If a master also incorporates a slave function and it loses arbitration during the addressing stage, it’s possible that the winning master is trying to address it. The losing master must therefore switch over immediately to its slave mode.

Figure 9 shows the arbitration procedure for two masters.

Of course, more may be involved (depending on how many masters are connected to the bus). The moment there is a difference between the internal data level of the master generating DATA 1 and the actual level on the SDA line, its data output is switched off, which means that a

HIGH output level is then connected to the bus. This will not affect the data transfer initiated by the winning master.

handbook, full pagewidth

DATA

1

DATA

2

SDA

SCL

S

master 1 loses arbitration

DATA 1 SDA

Fig.9 Arbitration procedure of two masters.

12

MSC609

Philips Semiconductors

The I

2

C-bus specification

Since control of the I

2

C-bus is decided solely on the address or master code and data sent by competing masters, there is no central master, nor any order of priority on the bus.

Special attention must be paid if, during a serial transfer, the arbitration procedure is still in progress at the moment when a repeated START condition or a STOP condition is transmitted to the I

2

C-bus. If it’s possible for such a situation to occur, the masters involved must send this repeated START condition or STOP condition at the same position in the format frame. In other words, arbitration isn’t allowed between:

A repeated START condition and a data bit

A STOP condition and a data bit

A repeated START condition and a STOP condition.

Slaves are not involved in the arbitration procedure.

8.3

Use of the clock synchronizing mechanism as a handshake

In addition to being used during the arbitration procedure, the clock synchronization mechanism can be used to enable receivers to cope with fast data transfers, on either a byte level or a bit level.

On the byte level, a device may be able to receive bytes of data at a fast rate, but needs more time to store a received byte or prepare another byte to be transmitted. Slaves can then hold the SCL line LOW after reception and acknowledgment of a byte to force the master into a wait state until the slave is ready for the next byte transfer in a type of handshake procedure (see Fig.6).

On the bit level, a device such as a microcontroller with or without limited hardware for the I

2

C-bus, can slow down the bus clock by extending each clock LOW period. The speed of any master is thereby adapted to the internal operating rate of this device.

In Hs-mode, this handshake feature can only be used on byte level (see Section 13).

9 FORMATS WITH 7-BIT ADDRESSES

Data transfers follow the format shown in Fig.10. After the

START condition (S), a slave address is sent. This address is 7 bits long followed by an eighth bit which is a data direction bit (R/W) - a ‘zero’ indicates a transmission

(WRITE), a ‘one’ indicates a request for data (READ). A data transfer is always terminated by a STOP condition (P) generated by the master. However, if a master still wishes to communicate on the bus, it can generate a repeated

START condition (Sr) and address another slave without first generating a STOP condition. Various combinations of read/write formats are then possible within such a transfer.

handbook, full pagewidth

SDA

SCL

1 – 7

S

START condition

ADDRESS

8 9

R/W ACK

1 – 7 8 9

DATA ACK

Fig.10 A complete data transfer.

1 – 7

DATA

8 9

ACK

P

STOP condition

MBC604

13

Philips Semiconductors

The I

2

C-bus specification

Possible data transfer formats are:

Master-transmitter transmits to slave-receiver. The transfer direction is not changed (see Fig.11).

Master reads slave immediately after first byte (see

Fig.12). At the moment of the first acknowledge, the master- transmitter becomes a master- receiver and the slave-receiver becomes a slave-transmitter. This first acknowledge is still generated by the slave. The STOP condition is generated by the master, which has previously sent a not-acknowledge (A).

Combined format (see Fig.13). During a change of direction within a transfer, the START condition and the slave address are both repeated, but with the R/W bit reversed. If a master receiver sends a repeated START condition, it has previously sent a not-acknowledge (A).

NOTES:

1. Combined formats can be used, for example, to control a serial memory. During the first data byte, the internal memory location has to be written. After the

START condition and slave address is repeated, data can be transferred.

2. All decisions on auto-increment or decrement of previously accessed memory locations etc. are taken by the designer of the device.

3. Each byte is followed by an acknowledgment bit as indicated by the A or A blocks in the sequence.

4. I

2

C-bus compatible devices must reset their bus logic on receipt of a START or repeated START condition such that they all anticipate the sending of a slave address, even if these START conditions are not positioned according to the proper format.

5. A START condition immediately followed by a STOP condition (void message) is an illegal format.

handbook, full pagewidth

S SLAVE ADDRESS R/W A DATA A DATA

A/A

P

'0' (write) data transferred

(n bytes + acknowledge) from master to slave

,,

MBC605 from slave to master

A = acknowledge (SDA LOW)

A = not acknowledge (SDA HIGH)

S = START condition

P = STOP condition

Fig.11 A master-transmitter addressing a slave receiver with a 7-bit address.

The transfer direction is not changed.

handbook, full pagewidth

1

S SLAVE ADDRESS R/W A

,,,,,,

(read)

DATA A DATA A P

,, ,, data transferred

(n bytes + acknowledge)

,, ,,

Fig.12 A master reads a slave immediately after the first byte.

14

Philips Semiconductors

The I

2

C-bus specification handbook, full pagewidth

S SLAVE ADDRESS R/W

,,,,,

A

* not shaded because transfer direction of read or write data and acknowledge bits depends on R/W bits.

DATA A/A Sr SLAVE ADDRESS R/W A DATA

A/A

P

(n bytes

+ ack.)

*

,,,,,

(n bytes

+ ack.) *

, read or write

Sr = repeated START condition direction of transfer may change at this point.

MBC607

Fig.13 Combined format.

10 7-BIT ADDRESSING

The addressing procedure for the I

2

C-bus is such that the first byte after the START condition usually determines which slave will be selected by the master. The exception is the ‘general call’ address which can address all devices.

When this address is used, all devices should, in theory, respond with an acknowledge. However, devices can be made to ignore this address. The second byte of the general call address then defines the action to be taken.

This procedure is explained in more detail in

Section 10.1.1. For information on 10-bit addressing, see

Section 14

10.1

Definition of bits in the first byte

The first seven bits of the first byte make up the slave address (see Fig.14). The eighth bit is the LSB (least significant bit). It determines the direction of the message.

A ‘zero’ in the least significant position of the first byte means that the master will write information to a selected slave. A ‘one’ in this position means that the master will read information from the slave.

When an address is sent, each device in a system compares the first seven bits after the START condition with its address. If they match, the device considers itself addressed by the master as a slave-receiver or slave-transmitter, depending on the R/W bit.

LSB

R/W slave address

MBC608

Fig.14 The first byte after the START procedure.

A slave address can be made-up of a fixed and a programmable part. Since it’s likely that there will be several identical devices in a system, the programmable part of the slave address enables the maximum possible number of such devices to be connected to the I

2

C-bus.

The number of programmable address bits of a device depends on the number of pins available. For example, if a device has 4 fixed and 3 programmable address bits, a total of 8 identical devices can be connected to the same bus.

The I

2

C-bus committee coordinates allocation of I

2

C addresses. Further information can be obtained from the

Philips representatives listed on the back cover. Two groups of eight addresses (0000XXX and 1111XXX) are reserved for the purposes shown in Table 2. The bit combination 11110XX of the slave address is reserved for

10-bit addressing (see Section 14).

15

Philips Semiconductors

The I

2

C-bus specification

Table 2

Definition of bits in the first byte

SLAVE

ADDRESS

R/W BIT

0000 000

0000 000

0000 001

0000 010

0

1

X

X

0000 011

0000 1XX

1111 1XX

1111 0XX

X

X

X

X

DESCRIPTION

General call address

START byte

(1)

CBUS address

(2)

Reserved for different bus format

(3)

Reserved for future purposes

Hs-mode master code

Reserved for future purposes

10-bit slave addressing

Notes

1. No device is allowed to acknowledge at the reception of the START byte.

2. The CBUS address has been reserved to enable the inter-mixing of CBUS compatible and I

2

C-bus compatible devices in the same system. I

2

C-bus compatible devices are not allowed to respond on reception of this address.

3. The address reserved for a different bus format is included to enable I

2

C and other protocols to be mixed.

Only I

2

C-bus compatible devices that can work with such formats and protocols are allowed to respond to this address.

10.1.1

G

ENERAL CALL ADDRESS

The general call address is for addressing every device connected to the I

2

C-bus. However, if a device doesn’t need any of the data supplied within the general call structure, it can ignore this address by not issuing an acknowledgment. If a device does require data from a general call address, it will acknowledge this address and behave as a slave- receiver. The second and following bytes will be acknowledged by every slave- receiver capable of handling this data. A slave which cannot process one of these bytes must ignore it by not-acknowledging. The meaning of the general call address is always specified in the second byte (see

Fig.15).

There are two cases to consider:

When the least significant bit B is a ‘zero’.

When the least significant bit B is a ‘one’.

LSB

0 0 0 0 0 0 0 0 A X X X X X X X B A first byte

(general call address) second byte

MBC623

Fig.15 General call address format.

When bit B is a ‘zero’; the second byte has the following definition:

00000110 (H‘06’). Reset and write programmable part of slave address by hardware. On receiving this 2-byte sequence, all devices designed to respond to the general call address will reset and take in the programmable part of their address. Pre-cautions have to be taken to ensure that a device is not pulling down the SDA or SCL line after applying the supply voltage, since these low levels would block the bus.

00000100 (H‘04’). Write programmable part of slave address by hardware. All devices which define the programmable part of their address by hardware (and which respond to the general call address) will latch this programmable part at the reception of this two byte sequence. The device will not reset.

00000000 (H‘00’). This code is not allowed to be used as the second byte.

Sequences of programming procedure are published in the appropriate device data sheets.

The remaining codes have not been fixed and devices must ignore them.

When bit B is a ‘one’; the 2-byte sequence is a ‘hardware general call’. This means that the sequence is transmitted by a hardware master device, such as a keyboard scanner, which cannot be programmed to transmit a desired slave address. Since a hardware master doesn’t know in advance to which device the message has to be transferred, it can only generate this hardware general call and its own address - identifying itself to the system (see

Fig.16).

The seven bits remaining in the second byte contain the address of the hardware master. This address is recognized by an intelligent device (e.g. a microcontroller) connected to the bus which will then direct the information from the hardware master. If the hardware master can also act as a slave, the slave address is identical to the master address.

16

Philips Semiconductors

The I

2

C-bus specification handbook, full pagewidth

S 00000000 A MASTER ADDRESS 1 A DATA A DATA A P

(B) general call address second byte

(n bytes + ack.)

MBC624

Fig.16 Data transfer from a hardware master-transmitter.

In some systems, an alternative could be that the hardware master transmitter is set in the slave-receiver mode after the system reset. In this way, a system configuring master can tell the hardware mastertransmitter (which is now in slave-receiver mode) to which address data must be sent (see Fig.17). After this programming procedure, the hardware master remains in the master-transmitter mode.

10.1.2

START

BYTE

Microcontrollers can be connected to the I

2

C-bus in two ways. A microcontroller with an on-chip hardware I

2

C-bus interface can be programmed to be only interrupted by requests from the bus. When the device doesn’t have such an interface, it must constantly monitor the bus via software. Obviously, the more times the microcontroller monitors, or polls the bus, the less time it can spend carrying out its intended function.

There is therefore a speed difference between fast hardware devices and a relatively slow microcontroller which relies on software polling.

In this case, data transfer can be preceded by a start procedure which is much longer than normal (see Fig.18).

The start procedure consists of:

A START condition (S)

A START byte (00000001)

An acknowledge clock pulse (ACK)

A repeated START condition (Sr).

handbook, full pagewidth

,,,,,,

S SLAVE ADDR. H/W MASTER R/W A DUMP ADDR. FOR H/W MASTER X A P write

,,,,,,

(a)

S DUMP ADDR. FROM H/W MASTER R/W A DATA A DATA A/A P write

(b)

(n bytes + ack.)

MBC609

Fig.17 Data transfer by a hardware-transmitter capable of dumping data directly to slave devices.

(a) Configuring master sends dump address to hardware master

(b) Hardware master dumps data to selected slave.

17

Philips Semiconductors

The I

2

C-bus specification

SDA

SCL

S

1 2 7 start byte 00000001

8 dummy acknowledge

(HIGH)

9

ACK

Sr

MBC633

Fig.18 START byte procedure.

After the START condition S has been transmitted by a master which requires bus access, the START byte

(00000001) is transmitted. Another microcontroller can therefore sample the SDA line at a low sampling rate until one of the seven zeros in the START byte is detected.

After detection of this LOW level on the SDA line, the microcontroller can switch to a higher sampling rate to find the repeated START condition Sr which is then used for synchronization.

A hardware receiver will reset on receipt of the repeated

START condition Sr and will therefore ignore the START byte.

An acknowledge-related clock pulse is generated after the

START byte. This is present only to conform with the byte handling format used on the bus. No device is allowed to acknowledge the START byte.

10.1.3

CBUS

COMPATIBILITY

CBUS receivers can be connected to the Standard-mode

I

2

C-bus. However, a third bus line called DLEN must then be connected and the acknowledge bit omitted. Normally,

I

2

C transmissions are sequences of 8-bit bytes; CBUS compatible devices have different formats.

In a mixed bus structure, I

2

C-bus devices must not respond to the CBUS message. For this reason, a special

CBUS address (0000001X) to which no I

2

C-bus compatible device will respond, has been reserved. After transmission of the CBUS address, the DLEN line can be made active and a CBUS-format transmission sent (see

Fig.19). After the STOP condition, all devices are again ready to accept data.

Master-transmitters can send CBUS formats after sending the CBUS address. The transmission is ended by a STOP condition, recognized by all devices.

NOTE: If the CBUS configuration is known, and expansion with CBUS compatible devices isn’t foreseen, the designer is allowed to adapt the hold time to the specific requirements of the device(s) used.

18

Philips Semiconductors

The I

2

C-bus specification

SDA

SCL

DLEN

S

START condition

CBUS address

R/W bit

ACK related clock pulse n - data bits

Fig.19 Data format of transmissions with CBUS transmitter/receiver.

CBUS load pulse

P

STOP condition

MBC634

11 EXTENSIONS TO THE STANDARD-MODE I

2

C-BUS

SPECIFICATION

The Standard-mode I

2

C-bus specification, with its data transfer rate of up to 100 kbit/s and 7-bit addressing, has been in existence since the beginning of the 1980’s. This concept rapidly grew in popularity and is today accepted worldwide as a de facto standard with several hundred different compatible ICs on offer from Philips

Semiconductors and other suppliers. To meet the demands for higher speeds, as well as make available more slave address for the growing number of new devices, the Standard-mode I

2

C-bus specification was upgraded over the years and today is available with the following extensions:

Fast-mode, with a bit rate up to 400 kbit/s.

High-speed mode (Hs-mode), with a bit rate up to

3.4 Mbit/s.

10-bit addressing, which allows the use of up to 1024

additional slave addresses.

There are two main reasons for extending the regular

I

2

C-bus specification:

Many of today’s applications need to transfer large amounts of serial data and require bit rates far in excess of 100 kbit/s (Standard-mode), or even 400 kbit/s

(Fast-mode). As a result of continuing improvements in semiconductor technologies, I

2

C-bus devices are now available with bit rates of up to 3.4 Mbit/s (Hs-mode) without any noticeable increases in the manufacturing cost of the interface circuitry.

As most of the 112 addresses available with the 7-bit addressing scheme were soon allocated, it became apparent that more address combinations were required to prevent problems with the allocation of slave addresses for new devices. This problem was resolved with the new 10-bit addressing scheme, which allowed about a tenfold increase in available addresses.

New slave devices with a Fast- or Hs-mode I

2

C-bus interface can have a 7- or a 10-bit slave address. If possible, a 7-bit address is preferred as it is the cheapest hardware solution and results in the shortest message length. Devices with 7- and 10-bit addresses can be mixed in the same I

2

C-bus system regardless of whether it is an

F/S- or Hs-mode system. Both existing and future masters can generate either 7- or 10-bit addresses.

12 FAST-MODE

With the Fast-mode I

2

C-bus specification, the protocol, format, logic levels and maximum capacitive load for the

SDA and SCL lines quoted in the Standard-mode I

2

C-bus specification are unchanged. New devices with an I

2

C-bus interface must meet at least the minimum requirements of the Fast- or Hs-mode specification (see Section 13).

Fast-mode devices can receive and transmit at up to

400 kbit/s. The minimum requirement is that they can synchronize with a 400 kbit/s transfer; they can then prolong the LOW period of the SCL signal to slow down the transfer. Fast-mode devices are downward-compatible and can communicate with Standard-mode devices in a

0 to 100 kbit/s I

2

C-bus system. As Standard-mode devices, however, are not upward compatible, they should not be incorporated in a Fast-mode I

2

C-bus system as they cannot follow the higher transfer rate and unpredictable states would occur.

19

Philips Semiconductors

The I

2

C-bus specification

The Fast-mode I

2

C-bus specification has the following additional features compared with the Standard-mode:

The maximum bit rate is increased to 400 kbit/s.

Timing of the serial data (SDA) and serial clock (SCL) signals has been adapted. There is no need for compatibility with other bus systems such as CBUS because they cannot operate at the increased bit rate.

The inputs of Fast-mode devices incorporate spike suppression and a Schmitt trigger at the SDA and SCL inputs.

The output buffers of Fast-mode devices incorporate slope control of the falling edges of the SDA and SCL signals.

If the power supply to a Fast-mode device is switched off, the SDA and SCL I/O pins must be floating so that they don’t obstruct the bus lines.

The external pull-up devices connected to the bus lines must be adapted to accommodate the shorter maximum permissible rise time for the Fast-mode I

2

C-bus. For bus loads up to 200 pF, the pull-up device for each bus line can be a resistor; for bus loads between 200 pF and

400 pF, the pull-up device can be a current source

(3 mA max.) or a switched resistor circuit (see Fig.43).

13 Hs-MODE

High-speed mode (Hs-mode) devices offer a quantum leap in I

2

C-bus transfer speeds. Hs-mode devices can transfer information at bit rates of up to 3.4 Mbit/s, yet they remain fully downward compatible with Fast- or

Standard-mode (F/S-mode) devices for bi-directional communication in a mixed-speed bus system. With the exception that arbitration and clock synchronization is not performed during the Hs-mode transfer, the same serial bus protocol and data format is maintained as with the

F/S-mode system. Depending on the application, new devices may have a Fast or Hs-mode I

2

C-bus interface, although Hs-mode devices are preferred as they can be designed-in to a greater number of applications.

13.1

High speed transfer

To achieve a bit transfer of up to 3.4 Mbit/s the following improvements have been made to the regular I

2

C-bus specification:

Hs-mode master devices have an open-drain output buffer for the SDAH signal and a combination of an open-drain pull-down and current-source pull-up circuit on the SCLH output

(1)

. This current-source circuit shortens the rise time of the SCLH signal. Only the

20 current-source of one master is enabled at any one time, and only during Hs-mode.

No arbitration or clock synchronization is performed during Hs-mode transfer in multi-master systems, which speeds-up bit handling capabilities. The arbitration procedure always finishes after a preceding master code transmission in F/S-mode.

Hs-mode master devices generate a serial clock signal with a HIGH to LOW ratio of 1 to 2. This relieves the timing requirements for set-up and hold times.

As an option, Hs-mode master devices can have a built-in bridge

(1)

. During Hs-mode transfer, the high speed data (SDAH) and high-speed serial clock (SCLH) lines of Hs-mode devices are separated by this bridge from the SDA and SCL lines of F/S-mode devices. This reduces the capacitive load of the SDAH and SCLH lines resulting in faster rise and fall times.

The only difference between Hs-mode slave devices and F/S-mode slave devices is the speed at which they operate. Hs-mode slaves have open-drain output buffers on the SCLH and SDAH outputs. Optional pull-down transistors on the SCLH pin can be used to stretch the

LOW level of the SCLH signal, although this is only allowed after the acknowledge bit in Hs-mode transfers.

The inputs of Hs-mode devices incorporate spike suppression and a Schmitt trigger at the SDAH and

SCLH inputs.

The output buffers of Hs-mode devices incorporate slope control of the falling edges of the SDAH and SCLH signals.

Figure 20 shows the physical I

2

C-bus configuration in a system with only Hs-mode devices. Pins SDA and SCL on the master devices are only used in mixed-speed bus systems and are not connected in an Hs-mode only system. In such cases, these pins can be used for other functions.

Optional series resistors R s

protect the I/O stages of the

I

2

C-bus devices from high-voltage spikes on the bus lines and minimize ringing and interference.

Pull-up resistors R p

maintain the SDAH and SCLH lines at a HIGH level when the bus is free and ensure the signals are pulled up from a LOW to a HIGH level within the required rise time. For higher capacitive bus-line loads

(>100 pF), the resistor R p

can be replaced by external current source pull-ups to meet the rise time requirements.

Unless proceeded by an acknowledge bit, the rise time of the SCLH clock pulses in Hs-mode transfers is shortened by the internal current-source pull-up circuit MCS of the active master.

(1) Patent application pending.

Philips Semiconductors

The I

2

C-bus specification handbook, full pagewidth

VDD

Rp Rp

SDAH

SCLH

Rs

SDAH SCLH

Rs Rs

SDAH SCLH

Rs Rs Rs

(1)

SDAH SCLH SDA SCL

(1)

Rs Rs

(1)

SDAH SCLH SDA SCL

(1)

(2) (2) (2) (2) (2) (2) (2) (2)

(4) (4)

MCS

(3)

VDD

MCS

(3)

VDD

VSS

SLAVE

VSS

SLAVE

VSS VSS

MASTER/SLAVE MASTER/SLAVE

MSC612

(1) SDA and SCL are not used here but may be used for other functions.

(2) To input filter.

(3) Only the active master can enable its current-source pull-up circuit

(4) Dotted transistors are optional open-drain outputs which can stretch the serial clock signal SCLH.

Fig.20 I

2

C-bus configuration with Hs-mode devices only.

13.2

Serial data transfer format in Hs-mode

Serial data transfer format in Hs-mode meets the

Standard-mode I

2

C-bus specification. Hs-mode can only commence after the following conditions (all of which are in F/S-mode):

1. START condition (S)

2. 8-bit master code (00001XXX)

3. not-acknowledge bit (A)

Figures 21 and 22 show this in more detail. This master code has two main functions:

It allows arbitration and synchronization between competing masters at F/S-mode speeds, resulting in one winning master.

It indicates the beginning of an Hs-mode transfer.

Hs-mode master codes are reserved 8-bit codes, which are not used for slave addressing or other purposes.

Furthermore, as each master has its own unique master code, up to eight Hs-mode masters can be present on the one I

2

C-bus system (although master code 0000 1000 should be reserved for test and diagnostic purposes). The master code for an Hs-mode master device is software programmable and is chosen by the System Designer.

Arbitration and clock synchronization only take place during the transmission of the master code and not-acknowledge bit (A), after which one winning master remains active. The master code indicates to other devices that an Hs-mode transfer is to begin and the connected devices must meet the Hs-mode specification.

As no device is allowed to acknowledge the master code, the master code is followed by a not-acknowledge (A).

After the not-acknowledge bit (A), and the SCLH line has been pulled-up to a HIGH level, the active master switches to Hs-mode and enables (at time t

H

, see Fig.22) the current-source pull-up circuit for the SCLH signal. As other devices can delay the serial transfer before t

H

by stretching the LOW period of the SCLH signal, the active master will enable its current-source pull-up circuit when all devices have released the SCLH line and the SCLH signal has reached a HIGH level, thus speeding up the last part of the rise time of the SCLH signal.

The active master then sends a repeated START condition

(Sr) followed by a 7-bit slave address (or 10-bit slave

21

Philips Semiconductors

The I

2

C-bus specification address, see Section 14) with a R/W bit address, and receives an acknowledge bit (A) from the selected slave.

After each acknowledge bit (A) or not-acknowledge bit (A) the active master disables its current-source pull-up circuit. This enables other devices to delay the serial transfer by stretching the LOW period of the SCLH signal.

The active master re-enables its current-source pull-up circuit again when all devices have released and the

SCLH signal reaches a HIGH level, and so speeds up the last part of the SCLH signal’s rise time.

Data transfer continues in Hs-mode after the next repeated START (Sr), and only switches back to

F/S-mode after a STOP condition (P). To reduce the overhead of the master code, it’s possible that a master links a number of Hs-mode transfers, separated by repeated START conditions (Sr).

handbook, full pagewidth

S

F/S-mode

MASTER CODE A

Hs-mode (current-source for SCLH enabled)

Sr SLAVE ADD.

R/W A

F/S-mode

DATA

,,

A/A P

(n bytes

+

ack.)

,,

Hs-mode continues

Fig.21 Data transfer format in Hs-mode.

,,,, Sr SLAVE ADD.

MSC616

,,,, handbook, full pagewidth

S

SDAH

8-bit Master code 00001xxx

A t1 tH

SCLH

1 2 to 5 6

F/S mode

7 8 9

Sr

7-bit SLA R/W A n

×

(8-bit DATA

+

A/A)

Sr P

SDAH

SCLH

1 2 to 5 6 7 8 9 1

Hs-mode

2 to 5 6 7 8 9 tH

= MCS current source pull-up

= Rp resistor pull-up

Fig.22 A complete Hs-mode transfer.

tFS

If P then

F/S mode

If Sr (dotted lines) then Hs-mode

MSC618

22

Philips Semiconductors

The I

2

C-bus specification

13.3

Switching from F/S- to Hs-mode and back

After reset and initialization, Hs-mode devices must be in

Fast-mode (which is in effect F/S-mode as Fast-mode is downward compatible with Standard-mode). Each

Hs-mode device can switch from Fast- to Hs-mode and back and is controlled by the serial transfer on the I

2

C-bus.

Before time t

1

in Fig.22, each connected device operates in Fast-mode. Between times t

1

and t

H

(this time interval can be stretched by any device) each connected device must recognized the “S 00001XXX A” sequence and has to switch its internal circuit from the Fast-mode setting to the Hs-mode setting. Between times t

1

and t

H the connected master and slave devices perform this switching by the following actions.

The active (winning) master:

1. Adapts its SDAH and SCLH input filters according to the spike suppression requirement in Hs-mode.

2. Adapts the set-up and hold times according to the

Hs-mode requirements.

3. Adapts the slope control of its SDAH and SCLH output stages according to the Hs-mode requirement.

4. Switches to the Hs-mode bit-rate, which is required after time t

H

.

5. Enables the current source pull-up circuit of its SCLH output stage at time t

H

.

The non-active, or loosing masters:

1. Adapt their SDAH and SCLH input filters according to the spike suppression requirement in Hs-mode.

2. Wait for a STOP condition to detect when the bus is free again.

All slaves:

1. Adapt their SDAH and SCLH input filters according to the spike suppression requirement in Hs-mode.

2. Adapt the set-up and hold times according to the

Hs-mode requirements. This requirement may already be fulfilled by the adaptation of the input filters.

3. Adapt the slope control of their SDAH output stages, if necessary. For slave devices, slope control is applicable for the SDAH output stage only and, depending on circuit tolerances, both the Fast- and

Hs-mode requirements may be fulfilled without switching its internal circuit.

At time t

FS

in Fig.22, each connected device must recognize the STOP condition (P) and switch its internal circuit from the Hs-mode setting back to the Fast-mode setting as present before time t

1

. This must be completed within the minimum bus free time as specified in Table 5 according to the Fast-mode specification.

23

Philips Semiconductors

The I

2

C-bus specification

13.4

Hs-mode devices at lower speed modes

Hs-mode devices are fully downwards compatible, and can be connected to an F/S-mode I

2

C-bus system (see

Fig.23). As no master code will be transmitted in such a configuration, all Hs-mode master devices stay in

F/S-mode and communicate at F/S-mode speeds with their current-source disabled. The SDAH and SCLH pins are used to connect to the F/S-mode bus system, allowing the SDA and SCL pins (if present) on the Hs-mode master device to be used for other functions.

handbook, full pagewidth

VDD

Rp

Rp

SDA

SCL

Rs

SDAH SCLH

Rs

SDAH

Rs

SCLH

Rs Rs Rs

(1)

SDAH SCLH SDA SCL

(1)

Rs

SDA SCL

Rs Rs

SDA SCL

Rs

(2) (2) (2) (2) (2) (2) (2) (2)

(4) (4)

(3)

VDD

VSS VSS VSS VSS

Hs-mode

SLAVE

Hs-mode

SLAVE

Hs-mode

MASTER/SLAVE

F/S-mode

MASTER/SLAVE

(1) Bridge not used. SDA and SCL may have an alternative function.

(2) To input filter.

(3) The current-source pull-up circuit stays disabled.

(4) Dotted transistors are optional open-drain outputs which can stretch the serial clock signal SCL.

Fig.23 Hs-mode devices at F/S-mode speed.

(2) (2)

(4)

VSS

F/S-mode

SLAVE

MSC613

13.5

Mixed speed modes on one serial bus system

If a system has a combination of Hs-, Fast- and/or

Standard-mode devices, it’s possible, by using an interconnection bridge, to have different bit rates between different devices (see Figs 24 and 25).

One bridge is required to connect/disconnect an Hs-mode section to/from an F/S-mode section at the appropriate time. This bridge includes a level shift function that allows devices with different supply voltages to be connected. For example F/S-mode devices with a V

DD2

of 5 V can be connected to Hs-mode devices with a V

DD1

(i.e. where V

DD2

V

DD1

of 3 V or less

), provided SDA and SCL pins are

5 V tolerant. This bridge is incorporated in Hs-mode master devices and is completely controlled by the serial signals SDAH, SCLH, SDA and SCL. Such a bridge can be implemented in any IC as an autonomous circuit.

TR1, TR2 and TR3 are N-channel transistors. TR1 and

TR2 have a transfer gate function, and TR3 is an opendrain pull-down stage. If TR1 or TR2 are switched on they transfer a LOW level in both directions, otherwise when both the drain and source rise to a HIGH level there will be a high impedance between the drain and source of each switched on transistor. In the latter case, the transistors will act as a level shifter as SDAH and SCLH will be pulled-up to V

DD1

and SDA and SCL will be pulled-up to V

DD2

During F/S-mode speed, a bridge on one of the Hs-mode masters connects the SDAH and SCLH lines to the corresponding SDA and SCL lines thus permitting

Hs-mode devices to communicate with F/S-mode devices at slower speeds. Arbitration and synchronization is possible during the total F/S-mode transfer between all connected devices as described in Section 8. During

Hs-mode transfer, however, the bridge opens to separate the two bus sections and allows Hs-mode devices to communicate with each other at 3.4 Mbit/s. Arbitration between Hs-mode devices and F/S-mode devices is only performed during the master code (00001XXX), and normally won by one Hs-mode master as no slave address has four leading zeros. Other masters can win the arbitration only if they send a reserved 8-bit code

(00000XXX). In such cases, the bridge remains closed and the transfer proceeds in F/S-mode. Table 3 gives the possible communication speeds in such a system.

24

Philips Semiconductors

The I

2

C-bus specification

VDD1

VDD2

SDAH

Rp Rp

Rs

SDAH

BRIDGE

TR1

SDA

Rp Rp

SCLH

Rs

SCLH

Rs

SDAH SCLH

Rs

SDAH

Rs

SCLH

Rs Rs Rs

(1)

SDAH SCLH SDA SCL

(1)

TR2

VSS

TR3

SCL

Rs

SDA SCL

Rs Rs

SDA SCL

Rs

(2) (2) (2) (2) (2) (2) (2) (2) (2) (2)

(4) (4)

MCS

(3)

VDD

MCS

(3)

VDD

VSS

Hs-mode

SLAVE

VSS

Hs-mode

SLAVE

VSS

Hs-mode

MASTER/SLAVE

VSS

Hs-mode

MASTER/SLAVE

VSS

F/S-mode

MASTER/SLAVE

(1) Bridge not used. SDA and SCL may have an alternative function.

(2) To input filter.

(3) Only the active master can enable its current-source pull-up circuit.

(4) Dotted transistors are optional open-drain outputs which can stretch the serial clock signal SCL or SCLH.

Fig.24 Bus system with transfer at Hs- and F/S-mode speeds.

(2) (2)

(4)

VSS

F/S-mode

SLAVE

MSC614

Table 3

Communication bit-rates in a mixed speed bus system

SERIAL BUS SYSTEM CONFIGURATION

TRANSFER

BETWEEN

Hs + FAST Hs + STANDARD

Hs <–> Hs

Hs <–> Fast

Hs <–> Standard

Fast <–> Standard

Fast <–> Fast

Standard <–> Standard

Hs + FAST +

STANDARD

0 to 3.4 Mbit/s

0 to 100 kbit/s

0 to 100 kbit/s

0 to 100 kbit/s

0 to 100 kbit/s

0 to 100 kbit/s

0 to 3.4 Mbit/s

0 to 400 kbit/s

0 to 400 kbit/s

0 to 3.4 Mbit/s

0 to 100 kbit/s

0 to 100 kbit/s

FAST +

STANDARD

0 to 100 kbit/s

0 to 100 kbit/s

0 to 100 kbit/s

13.5.1

F/S-

MODE TRANSFER IN A MIXED

-

SPEED BUS

SYSTEM

The bridge shown in Fig.24 interconnects corresponding serial bus lines, forming one serial bus system. As no master code (00001XXX) is transmitted, the current-source pull-up circuits stay disabled and all output stages are open-drain. All devices, including Hs-mode devices, communicate with each other according the protocol, format and speed of the F/S-mode I

2

C-bus specification.

13.5.2

H

S

-

MODE TRANSFER IN A MIXED

-

SPEED BUS

SYSTEM

Figure 25 shows the timing diagram of a complete

Hs-mode transfer, which is invoked by a START condition, a master code, and a not-acknowledge A (at F/S-mode speed). Although this timing diagram is split in two parts, it should be viewed as one timing diagram were time point t

H is a common point for both parts.

25

Philips Semiconductors

The I

2

C-bus specification handbook, full pagewidth

S

SDAH

8-bit Master code 00001xxx

A t1 tH

SCLH

1 2 to 5 6 7 8 9

SDA

SCL

Sr

1

7-bit SLA

2 to 5

R/W A

6

F/S mode

7 8 9 n

×

(8-bit DATA

+

A/A)

Sr P

SDAH

SCLH

SDA

1 2 to 5 6 7 8 9 1 2 to 5 6 7 8 9

P t2

SCL

Hs-mode tH

= MCS current source pull-up

= Rp resistor pull-up

Fig.25 A complete Hs-mode transfer in a mixed-speed bus system.

tFS

If P then

F/S mode

If Sr (dotted lines) then Hs-mode

MSC611

The master code is recognized by the bridge in the active or non-active master (see Fig.24). The bridge performs the following actions:

1. Between t

1

and t

H

(see Fig.25), transistor TR1 opens to separate the SDAH and SDA lines, after which transistor TR3 closes to pull-down the SDA line to V

SS

.

2. When both SCLH and SCL become HIGH (t

H

in

Fig.25), transistor TR2 opens to separate the SCLH and SCL lines. TR2 must be opened before SCLH goes LOW after Sr.

Hs-mode transfer starts after t

H

with a repeated START condition (Sr). During Hs-mode transfer, the SCL line stays at a HIGH and the SDA line at a LOW steady-state level, and so is prepared for the transfer of a STOP condition (P).

26

Philips Semiconductors

The I

2

C-bus specification

After each acknowledge (A) or not-acknowledge bit (A) the active master disables its current-source pull-up circuit.

This enables other devices to delay the serial transfer by stretching the LOW period of the SCLH signal. The active master re-enables its current-source pull-up circuit again when all devices are released and the SCLH signal reaches a HIGH level, and so speeds up the last part of the

SCLH signal’s rise time. In irregular situations, F/S-mode devices can close the bridge (TR1 and TR2 closed, TR3 open) at any time by pulling down the SCL line for at least

1

µ s, e.g. to recover from a bus hang-up.

Hs-mode finishes with a STOP condition and brings the bus system back into the F/S-mode. The active master disables its current-source MCS when the STOP condition

(P) at SDAH is detected (t

FS

in Fig.25). The bridge also recognizes this STOP condition and takes the following actions:

1. Transistor TR2 closes after t

FS

to connect SCLH with

SCL; both of which are HIGH at this time. Transistor

TR3 opens after t

FS

, which releases the SDA line and allows it to be pulled HIGH by the pull-up resister R p

.

This is the STOP condition for the F/S-mode devices.

TR3 must open fast enough to ensure the bus free time between the STOP condition and the earliest next

START condition is according to the Fast-mode specification (see t

BUF

in Table 5).

2. When SDA reaches a HIGH (t

2

in Fig.25) transistor

TR1 closes to connect SDAH with SDA. (Note: interconnections are made when all lines are HIGH, thus preventing spikes on the bus lines). TR1 and TR2 must be closed within the minimum bus free time according to the Fast-mode specification (see t

BUF

in

Table 5).

13.5.3

T

IMING REQUIREMENTS FOR THE BRIDGE IN A

MIXED

-

SPEED BUS SYSTEM

It can be seen from Fig.25 that the actions of the bridge at t

1

, t

H

and t

FS

must be so fast that it does not affect the

SDAH and SCLH lines. Furthermore the bridge must meet the related timing requirements of the Fast-mode specification for the SDA and SCL lines.

14 10-BIT ADDRESSING

This section describes 10-bit addressing and can be disregarded if only 7-bit addressing is used.

10-bit addressing is compatible with, and can be combined with, 7-bit addressing. Using 10 bits for addressing exploits the reserved combination 1111XXX for the first seven bits of the first byte following a START (S) or repeated START (Sr) condition as explained in Section

10.1. The 10-bit addressing does not affect the existing

7-bit addressing. Devices with 7-bit and 10-bit addresses can be connected to the same I

2

C-bus, and both 7-bit and

10-bit addressing can be used in F/S-mode and Hs-mode systems.

Although there are eight possible combinations of the reserved address bits 1111XXX, only the four combinations 11110XX are used for 10-bit addressing.

The remaining four combinations 11111XX are reserved for future I

2

C-bus enhancements.

14.1

Definition of bits in the first two bytes

The 10-bit slave address is formed from the first two bytes following a START condition (S) or a repeated START condition (Sr).

The first seven bits of the first byte are the combination

11110XX of which the last two bits (XX) are the two most-significant bits (MSBs) of the 10-bit address; the eighth bit of the first byte is the R/W bit that determines the direction of the message. A ‘zero’ in the least significant position of the first byte means that the master will write information to a selected slave. A ‘one’ in this position means that the master will read information from the slave.

If the R/W bit is ‘zero’, then the second byte contains the remaining 8 bits (XXXXXXXX) of the 10-bit address. If the

R/W bit is ‘one’, then the next byte contains data transmitted from a slave to a master.

14.2

Formats with 10-bit addresses

Various combinations of read/write formats are possible within a transfer that includes 10-bit addressing. Possible data transfer formats are:

Master-transmitter transmits to slave-receiver with a

10-bit slave address.

The transfer direction is not changed (see Fig.26). When a 10-bit address follows a START condition, each slave compares the first seven bits of the first byte of the slave address (11110XX) with its own address and tests if the eighth bit (R/W direction bit) is 0. It is possible that more than one device will find a match and generate an acknowledge (A1). All slaves that found a match will compare the eight bits of the second byte of the slave address (XXXXXXXX) with their own addresses, but only one slave will find a match and generate an acknowledge (A2). The matching slave will remain addressed by the master until it receives a STOP

27

Philips Semiconductors

The I

2

C-bus specification condition (P) or a repeated START condition (Sr) followed by a different slave address.

Master-receiver reads slave- transmitter with a 10-bit slave address.

The transfer direction is changed after the second R/W bit (Fig.27). Up to and including acknowledge bit A2, the procedure is the same as that described for a master-transmitter addressing a slave-receiver. After the repeated START condition (Sr), a matching slave remembers that it was addressed before. This slave then checks if the first seven bits of the first byte of the slave address following Sr are the same as they were after the START condition (S), and tests if the eighth

(R/W) bit is 1. If there is a match, the slave considers that it has been addressed as a transmitter and generates acknowledge A3. The slave-transmitter remains addressed until it receives a STOP condition

(P) or until it receives another repeated START condition (Sr) followed by a different slave address.

After a repeated START condition (Sr), all the other slave devices will also compare the first seven bits of the first byte of the slave address (11110XX) with their own addresses and test the eighth (R/W) bit. However, none of them will be addressed because R/W = 1 (for 10-bit devices), or the 11110XX slave address (for 7-bit devices) does not match.

Combined format. A master transmits data to a slave and then reads data from the same slave (Fig.28). The same master occupies the bus all the time. The transfer direction is changed after the second R/W bit.

Combined format. A master transmits data to one slave and then transmits data to another slave (Fig.29). The same master occupies the bus all the time.

Combined format. 10-bit and 7-bit addressing combined in one serial transfer (Fig.30). After each START condition (S), or each repeated START condition (Sr), a

10-bit or 7-bit slave address can be transmitted.

Figure 27 shows how a master-transmits data to a slave with a 7-bit address and then transmits data to a second slave with a 10-bit address. The same master occupies the bus all the time.

NOTES:

1. Combined formats can be used, for example, to control a serial memory. During the first data byte, the internal memory location has to be written. After the

START condition and slave address is repeated, data can be transferred.

2. All decisions on auto-increment or decrement of previously accessed memory locations etc. are taken by the designer of the device.

3. Each byte is followed by an acknowledgment bit as indicated by the A or blocks in the sequence.

4. I

2

C-bus compatible devices must reset their bus logic on receipt of a START or repeated START condition such that they all anticipate the sending of a slave address.

handbook, full pagewidth

S

1 1 1 1 0 X X 0

SLAVE ADDRESS

1st 7 BITS

R/W A1

SLAVE ADDRESS

2nd BYTE

A2

DATA A

(write)

DATA

A/A

P

MBC613

Fig.26 A master-transmitter addresses a slave-receiver with a 10-bit address.

handbook, full pagewidth

1 1 1 1 0 X X

S

0

SLAVE ADDRESS

1st 7 BITS

R/W A1

SLAVE ADDRESS

2nd BYTE

A2 Sr

1 1 1 1 0 X X 1

SLAVE ADDRESS

1st 7 BITS

R/W A3 DATA A

,

(write) (read)

DATA A P

,,

MBC614

Fig.27 A master-receiver addresses a slave-transmitter with a 10-bit address.

28

Philips Semiconductors

The I

2

C-bus specification

0

,,,,,

S

SLAVE ADDRESS

1st 7 BITS

R/W A

SLAVE ADDRESS

2nd BYTE

A

DATA A

,,

DATA

A/A

,,,,,

(write)

,,

1 1 1 1 0 X X 1

,,,,,

Sr

SLAVE ADDRESS

1st 7 BITS

R/W

A

,,

DATA A

,,

DATA A P

,,,,, ,,

(read)

,,

MBC615

Fig.28 Combined format. A master addresses a slave with a 10-bit address, then transmits data to this slave and reads data from this slave.

handbook, full pagewidth

1 1 1 1 0 X X

S

1st 7 BITS

0

R/W

A

SLAVE ADDRESS

2nd BYTE

A

DATA A

,,

DATA

A/A

,,,,,

(write)

,,,, ,,

Sr

1 1 1 1 0 X X

0

SLAVE ADDRESS

1st 7 BITS

R/W A

SLAVE ADDRESS

2nd BYTE

A

,, ,,

DATA A DATA

A/A

P

(write)

,, ,,

MBC616

Fig.29 Combined format. A master transmits data to two slaves, both with 10-bit addresses.

dbook, full pagewidth

S

0

7 - BIT

SLAVE ADDRESS

R/W A

DATA A

,,

DATA

A/A

,,

(write)

1 1 1 1 0 X X 0

Sr

1st 7 BITS OF 10-BIT

SLAVE ADDRESS

R/W A

2nd BYTE OF 10-BIT

SLAVE ADDRESS

A DATA A

(write)

DATA A/A P

,, ,

MBC617

,, ,

Fig.30 Combined format. A master transmits data to two slaves, one with a 7-bit address, and one with a 10-bit address.

29

Philips Semiconductors

The I

2

C-bus specification

14.3

General call address and start byte with 10-bit addressing

The 10-bit addressing procedure for the I

2

C-bus is such that the first two bytes after the START condition (S) usually determine which slave will be selected by the master. The exception is the “general call” address

00000000 (H‘00’). Slave devices with 10-bit addressing will react to a “general call” in the same way as slave devices with 7-bit addressing (see Section 10.1.1).

Hardware masters can transmit their 10-bit address after a

‘general call’. In this case, the ‘general call’ address byte is followed by two successive bytes containing the 10-bit address of the master-transmitter. The format is as shown in Fig.16 where the first DATA byte contains the eight least-significant bits of the master address.

The START byte 00000001 (H‘01’) can precede the 10-bit addressing in the same way as for 7-bit addressing (see

Section 10.1.2).

15 ELECTRICAL SPECIFICATIONS AND TIMING FOR

I/O STAGES AND BUS LINES

15.1

Standard- and Fast-mode devices

The I/O levels, I/O current, spike suppression, output slope control and pin capacitance for F/S-mode I

2

C-bus devices are given in Table 4. The I

2

C-bus timing characteristics, bus-line capacitance and noise margin are given in

Table 5. Figure 31 shows the timing definitions for the

I

2

C-bus.

The minimum HIGH and LOW periods of the SCL clock specified in Table 5 determine the maximum bit transfer rates of 100 kbit/s for Standard-mode devices and

400 kbit/s for Fast-mode devices. Standard-mode and

Fast-mode I

2

C-bus devices must be able to follow transfers at their own maximum bit rates, either by being able to transmit or receive at that speed or by applying the clock synchronization procedure described in Section 8 which will force the master into a wait state and stretch the

LOW period of the SCL signal. Of course, in the latter case the bit transfer rate is reduced.

30

Philips Semiconductors

The I

2

C-bus specification

Table 4

Characteristics of the SDA and SCL I/O stages for F/S-mode I

2

C-bus devices

PARAMETER SYMBOL

STANDARD-MODE

MIN.

MAX.

FAST-MODE

MIN.

MAX.

UNIT

LOW level input voltage: fixed input levels

V

DD

-related input levels

HIGH level input voltage: fixed input levels

V

DD

-related input levels

Hysteresis of Schmitt trigger inputs:

V

DD

> 2 V

V

DD

< 2 V

V

V

V

IL

IH hys

LOW level output voltage (open drain or open collector) at 3 mA sink current:

V

DD

> 2 V

V

DD

< 2 V

V

OL1

V

OL3

Output fall time from V

IHmin

to V

ILmax

with a bus capacitance from 10 pF to 400 pF t of

Pulse width of spikes which must be suppressed by the input filter t

SP

Input current each I/O pin with an input voltage between 0.1V

DD

and 0.9V

DDmax

Capacitance for each I/O pin

I i

C i

3.0

0.7V

n/a n/a

0 n/a

– n/a

0.5

0.5

10

DD

1.5

0.3V

(2)

(2) n/a n/a

0.4

n/a

250 n/a

10

10

DD

(4) n/a

0.5

n/a

0.7V

DD

(1)

0.05V

0.1V

0

0

DD

DD

20 + 0.1C

0

10

(5) b

(3) n/a

0.3V

n/a

(2)

0.4

0.2V

250

50

10

10

(4)

(5)

DD

DD

(1)

V

V

V

V

V

V

V

V ns ns

µ

A pF

Notes

1. Devices that use non-standard supply voltages which do not conform to the intended I

2

C-bus system levels must relate their input levels to the V

DD

voltage to which the pull-up resistors R p

are connected.

2. Maximum V

IH

= V

DDmax

+ 0.5 V.

3. C b

= capacitance of one bus line in pF.

4. The maximum t f

for the SDA and SCL bus lines quoted in Table 5 (300 ns) is longer than the specified maximum t of for the output stages (250 ns). This allows series protection resistors (R s

) to be connected between the SDA/SCL pins and the SDA/SCL bus lines as shown in Fig.36 without exceeding the maximum specified t f

.

5. I/O pins of Fast-mode devices must not obstruct the SDA and SCL lines if V

DD

is switched off.

n/a = not applicable

31

Philips Semiconductors

The I

2

C-bus specification

Table 5

Characteristics of the SDA and SCL bus lines for F/S-mode I

2

C-bus devices

(1)

PARAMETER

SCL clock frequency

Hold time (repeated) START condition.

After this period, the first clock pulse is generated

LOW period of the SCL clock

HIGH period of the SCL clock

Set-up time for a repeated START condition

Data hold time: for CBUS compatible masters (see NOTE,

Section 10.1.3) for I

2

C-bus devices

Data set-up time

Rise time of both SDA and SCL signals

Fall time of both SDA and SCL signals

Set-up time for STOP condition

Bus free time between a STOP and

START condition

Capacitive load for each bus line

Noise margin at the LOW level for each connected device (including hysteresis)

Noise margin at the HIGH level for each connected device (including hysteresis) f t

SYMBOL

SCL

HD;STA t

LOW t

HIGH t

SU;STA t

HD;DAT t

SU;DAT t r t f t

SU;STO t

BUF

C b

V nL

V nH

4.7

4.0

4.7

5.0

0

(2)

250

4.0

4.7

STANDARD-MODE

0

4.0

MIN.

0.1V

0.2V

DD

DD

100

3.45

(3)

1000

300

400

MAX.

0

0.6

1.3

0.6

0.6

0

(2)

FAST-MODE

MIN.

MAX.

400

100

(4)

20 + 0.1C

b

(5)

20 + 0.1C

b

(5)

0.6

1.3

0.1V

0.2V

DD

DD

0.9

(3)

300

300

400

– kHz

µ

µ

µ

µ

UNIT

µ s

µ s ns ns ns

µ s

µ s pF

V

V s s s s

Notes

1. All values referred to V

IHmin

and V

ILmax

levels (see Table 4).

2. A device must internally provide a hold time of at least 300 ns for the SDA signal (referred to the V

IHmin

of the SCL signal) to bridge the undefined region of the falling edge of SCL.

3. The maximum t

HD;DAT

has only to be met if the device does not stretch the LOW period (t

LOW

) of the SCL signal.

4. A Fast-mode I

2

C-bus device can be used in a Standard-mode I

2

C-bus system, but the requirement t

SU;DAT

250 ns must then be met. This will automatically be the case if the device does not stretch the LOW period of the SCL signal.

If such a device does stretch the LOW period of the SCL signal, it must output the next data bit to the SDA line t r max

+ t

SU;DAT

= 1000 + 250 = 1250 ns (according to the Standard-mode I

2

C-bus specification) before the SCL line is released.

5. C b

= total capacitance of one bus line in pF. If mixed with Hs-mode devices, faster fall-times according to Table 6 are allowed.

n/a = not applicable

32

Philips Semiconductors

The I

2

C-bus specification handbook, full pagewidth

SDA

SCL tf tLOW tHD;STA

S

tr tSU;DAT tHD;DAT tHIGH tf tSU;STA

Sr

tHD;STA tSP tr tBUF tSU;STO

P

S

MSC610

Fig.31 Definition of timing for F/S-mode devices on the I

2

C-bus.

33

Philips Semiconductors

The I

2

C-bus specification

15.2

Hs-mode devices

The I/O levels, I/O current, spike suppression, output slope control and pin capacitance for I

2

C-bus Hs-mode devices are given in Table 6. The noise margin for HIGH and LOW levels on the bus lines are the same as specified for

F/S-mode I

2

C-bus devices.

Figure 32 shows all timing parameters for the Hs-mode timing.The “normal” START condition S does not exist in

Hs-mode. Timing parameters for Address bits, R/W bit,

Acknowledge bit and DATA bits are all the same. Only the rising edge of the first SCLH clock signal after an acknowledge bit has an larger value because the external

R p

has to pull-up SCLH without the help of the internal current-source.

The Hs-mode timing parameters for the bus lines are specified in Table 7. The minimum HIGH and LOW periods and the maximum rise and fall times of the SCLH clock signal determine the highest bit rate.

With an internally generated SCLH signal with LOW and

HIGH level periods of 200 ns and 100 ns respectively, an

Hs-mode master can fulfil the timing requirements for the external SCLH clock pulses (taking the rise and fall times into account) for the maximum bit rate of 3.4 Mbit/s. So a basic frequency of 10 MHz, or a multiple of 10 MHz, can be used by an Hs-mode master to generate the SCLH signal. There are no limits for maximum HIGH and LOW periods of the SCLH clock, and there is no limit for a lowest bit rate.

Timing parameters are independent for capacitive load up to 100 pF for each bus line allowing the maximum possible bit rate of 3.4 Mbit/s. At a higher capacitive load on the bus lines, the bit rate decreases gradually. The timing parameters for a capacitive bus load of 400 pF are specified in Table 7, allowing a maximum bit rate of

1.7 Mbit/s. For capacitive bus loads between 100 pF and

400 pF, the timing parameters must be interpolated linearly. Rise and fall times are in accordance with the maximum propagation time of the transmission lines

SDAH and SCLH to prevent reflections of the open ends.

34

Philips Semiconductors

The I

2

C-bus specification

Table 6

Characteristics of the SDAH, SCLH, SDA and SCL I/O stages for Hs-mode I

2

C-bus devices

PARAMETER

LOW level input voltage

HIGH level input voltage

Hysteresis of Schmitt trigger inputs

LOW level output voltage (open drain) at 3 mA sink current at SDAH, SDA and SCLH for:

V

DD

> 2 V

V

DD

< 2 V

On resistance of the transfer gate, for both current directions at V

OL

level between SDA and SDAH or

SCL and SCLH at 3 mA

On resistance of the transfer gate between SDA and

SDAH or SCL and SCLH if both are at V

DD

level

Pull-up current of the SCLH current-source. Applies for

SCLH output levels between 0.3V

DD and 0.7V

DD

Output rise time (current-source enabled) and fall time at SCLH with a capacitive load from 10 to 100 pF

Output rise time (current-source enabled) and fall time at SCLH with an external pull-up current source of 3 mA and a capacitive load of 400 pF

Output fall time at SDAH with a capacitive load from 10 to 100 pF

Output fall time at SDAH with a capacitive load of

400 pF

Pulse width of spikes at SDAH and SCLH that must be suppressed by the input filters

Input current each I/O pin with an input voltage between

0.1V

DD

and 0.9V

DD

Capacitance for each I/O pin

V

V

V

V

OL

R onL

R onH

(2)

I

CS t rCL

, t fCL t rCL

(3)

, t fCL

(3) t fDA t fDA

(3) t

SP

I i

(4)

C i

SYMBOL

IL

IH hys

MIN.

0.5

0.7V

DD

(1)

0.1V

DD

(1)

Hs-MODE

MAX.

0.3V

DD

(1)

V

DD

+ 0.5

(2)

0

0

50

3

10

20

20

40

0

0.4

0.2V

50

12

40

80

80

160

10

10

10

DD

V

V

V

V

V

Ω k

µ

UNIT

Ω mA ns ns ns ns ns

A pF

Notes

1. Devices that use non-standard supply voltages which do not conform to the intended I

2

C-bus system levels must relate their input levels to the V

DD

voltage to which the pull-up resistors R p

are connected.

2. Devices that offer the level shift function must tolerate a maximum input voltage of 5.5 V at SDA and SCL.

3. For capacitive bus loads between 100 and 400 pF, the rise and fall time values must be linearly interpolated.

4. SDAH and SCLH I/O stages of Hs-mode slave devices must have floating outputs if their supply voltage has been switched off. Due to the current-source output circuit, which normally has a clipping diode to V

DD

, this requirement is not mandatory for the SCLH or the SDAH I/O stage of Hs-mode master devices. This means that the supply voltage of Hs-mode master devices cannot be switched off without affecting the SDAH and SCLH lines.

35

Philips Semiconductors

The I

2

C-bus specification

Table 7

Characteristics of the SDAH, SCLH, SDA and SCL bus lines for Hs-mode I

2

C-bus devices

(1)

PARAMETER

SCLH clock frequency f

SCLH

Set-up time (repeated) START condition t

SU;STA

Hold time (repeated) START condition t

HD;STA

LOW period of the SCLH clock

HIGH period of the SCLH clock t

LOW t

HIGH

Data set-up time

Data hold time

Rise time of SCLH signal

Rise time of SCLH signal after acknowledge bit t

SU;DAT t

HD;DAT t rCL t rCL1

Fall time of SCLH signal

Rise time of SDAH signal t fCL t rDA

Fall time of SDAH signal t fDA

Set-up time for STOP condition t

SU;STO

Capacitive load for SDAH and SCLH lines C b

(2)

Capacitive load for SDAH + SDA line and

SCLH + SCL line

C b

V nL

Noise margin at the LOW level for each connected device (including hysteresis)

Noise margin at the HIGH level for each connected device (including hysteresis)

V nH

SYMBOL

60

10

0

(3)

10

20

0

160

160

160

MIN.

C

b

= 100 pF MAX.

3.4

70

40

80

MAX.

10

20

20

160

0.1V

0.2V

DD

DD

40

80

80

100

400

0

320

320

320

120

10

0

(3)

20

40

C

b

= 400 pF

(2)

MIN.

MAX.

1.7

150

80

160

20

40

40

320

0.1V

0.2V

DD

DD

80

160

160

400

400

UNIT

V

V

Notes

1. All values referred to V

IHmin

and V

ILmax

levels (see Table 6).

2. For bus line loads C b

between 100 and 400 pF the timing parameters must be linearly interpolated.

3. A device must internally provide a Data hold time to bridge the undefined part between V

IH

and V

IL of the falling edge of the SCLH signal. An input circuit with a threshold as low as possible for the falling edge of the SCLH signal minimizes this hold time.

ns ns ns ns ns

MHz ns ns ns ns ns ns ns pF pF

36

Philips Semiconductors

The I

2

C-bus specification handbook, full pagewidth tfDA

Sr

SDAH trDA

Sr P tSU;STA tHD;DAT tHD;STA tSU;DAT tSU;STO

SCLH tfCL trCL tHIGH tLOW

= MCS current source pull-up

= Rp resistor pull-up

(1) Rising edge of the first SCLH clock pulse after an acknowledge bit.

trCL1

(1) tLOW tHIGH trCL1

(1)

Fig.32 Definition of timing for Hs-mode devices on the I

2

C-bus.

MGK871

16 ELECTRICAL CONNECTIONS OF I

2

C-BUS

DEVICES TO THE BUS LINES

The electrical specifications for the I/Os of I

2

C-bus devices and the characteristics of the bus lines connected to them are given in Section 15.

I

2

C-bus devices with fixed input levels of 1.5 V and 3 V can each have their own appropriate supply voltage. Pull-up resistors must be connected to a 5 V

±

10% supply

(Fig.33). I

2

C-bus devices with input levels related to V

DD must have one common supply line to which the pull-up resistor is also connected (Fig.34).

When devices with fixed input levels are mixed with devices with input levels related to V

DD

, the latter devices must be connected to one common supply line of

5 V

±

10% and must have pull-up resistors connected to their SDA and SCL pins as shown in Fig.35.

New Fast- and Hs-mode devices must have supply voltage related input levels as specified in Tables 4 and 6.

Input levels are defined in such a way that:

The noise margin on the LOW level is 0.1V

DD

The noise margin on the HIGH level is 0.2V

DD

As shown in Fig.36, series resistors (R

S

) of e.g. 300

Ω can be used for protection against high-voltage spikes on the SDA and SCL lines (resulting from the flash-over of a TV picture tube, for example).

37

Philips Semiconductors

The I

2

C-bus specification handbook, full pagewidth

VDD1 = 5 V 10 %

V

DD2 - 4 are device dependent (e.g. 12 V)

VDD2 VDD3 VDD4

SDA

SCL

R p R p

NMOS BiCMOS CMOS BIPOLAR

Fig.33 Fixed input level devices connected to the I

2

C-bus.

MBC610 handbook, full pagewidth

SDA

SCL

R p R p

CMOS

V DD = e.g. 3 V

CMOS CMOS CMOS

MBC625

Fig.34 Devices with wide supply voltage range connected to the I

2

C-bus.

handbook, full pagewidth

VDD1 =

5 V 10 %

VDD2,3 are device dependent (e.g. 12 V)

V DD2 VDD3

SDA

SCL

R p R p

CMOS CMOS NMOS BIPOLAR

MBC626

Fig.35 Devices with input levels related to V

DD

(supply V

DD1

) mixed with fixed input level devices

(supply V

DD2,3

) on the I

2

C-bus.

38

Philips Semiconductors

The I

2

C-bus specification handbook, full pagewidth

V DD V DD

DEVICE DEVICE

Rp Rp

SDA

SCL

Rs Rs Rs Rs

MBC627

Fig.36 Series resistors (R s

) for protection against high-voltage spikes.

16.1

Maximum and minimum values of resistors R

p

and R

s

for Standard-mode I

2

C-bus devices

For Standard-mode I

2

C-bus systems, the values of resistors R p

and R s

in Fig.35 depend on the following parameters:

Supply voltage

Bus capacitance

Number of connected devices (input current + leakage current).

The supply voltage limits the minimum value of resistor R p due to the specified minimum sink current of 3 mA at

V

OLmax

= 0.4 V for the output stages. V

DD

as a function of

R p min

is shown in Fig.37. The required noise margin of

0.1V

DD

for the LOW level, limits the maximum value of R s

.

R s max

as a function of R p

is shown in Fig.38.

The bus capacitance is the total capacitance of wire, connections and pins. This capacitance limits the maximum value of R p

due to the specified rise time. Fig.39

shows R p max

as a function of bus capacitance.

The maximum HIGH level input current of each input/output connection has a specified maximum value of

10

µ

A. Due to the required noise margin of 0.2 V

DD

for the

HIGH level, this input current limits the maximum value of

R p

. This limit depends on V

DD

. The total HIGH level input current is shown as a function of R p max

in Fig.40.

39

Philips Semiconductors

The I

2

C-bus specification

MBC628 value R p

(k )

5

4

3

2

1

0

0 max. R S

4 8 12 16

Fig.37 Minimum value of R p

as a function of supply voltage with the value os R s as a parameter.

MBC635

20 maximum value R

(k

) p

16

12

8

4 max. R

S

@ VDD= 5 V

0

0 100 200 300 bus capacitance (pF)

400

Fig.39 Maximum value of R p

as a function of bus capacitance for a Standard-mode I

2

C-bus.

R p

10

8

MBC629

5 V

6

15 V

4

10 V

2

0

0 400 800 1200 1600 maximum value R (

)

Fig.38 Maximum value of R s

as a function of the value of R p

with supply voltage as a parameter.

MBC630

20 maximum value R p

16

12

8

4

0

0 40

10 V

5 V

2.5 V

80 120 160 200 total high level input current (

µ

A)

Fig.40 Total HIGH level input current as a function of the maximum value of R p with supply voltage as a parameter.

40

Philips Semiconductors

The I

2

C-bus specification

17 APPLICATION INFORMATION

17.1

Slope-controlled output stages of Fast-mode

I

2

C-bus devices

The electrical specifications for the I/Os of I

2

C-bus devices and the characteristics of the bus lines connected to them are given in Section 15.

Figures 41 and 42 show examples of output stages with slope control in CMOS and bipolar technology. The slope of the falling edge is defined by a Miller capacitor (C1) and a resistor (R1). The typical values for C1 and R1 are indicated on the diagrams. The wide tolerance for output fall time t of given in Table 4 means that the design is not critical. The fall time is only slightly influenced by the external bus load (C b

) and external pull-up resistor (R p

).

However, the rise time (t r

) specified in Table 5 is mainly determined by the bus load capacitance and the value of the pull-up resistor.

P1

N1

VDD

VDD

R1

50 k

C1 to input circuit

2 pF

N2

I/O

VSS

R p

SDA or SCL bus line

C b

MBC618

VSS

17.2

Switched pull-up circuit for Fast-mode I

2

C-bus devices

The supply voltage (V

DD

) and the maximum output LOW level determine the minimum value of pull-up resistor R p

(see Section 16.1). For example, with a supply voltage of

V

DD

= 5 V

±

10% and V

OLmax

= 0.4 V at 3 mA, R p min

=

(5.5

0.4)/0.003 = 1.7 k

. As shown in Fig.43, this value of R p

limits the maximum bus capacitance to about 200 pF to meet the maximum t r

requirement of 300 ns. If the bus has a higher capacitance than this, a switched pull-up circuit as shown in Fig.43 can be used.

The switched pull-up circuit in Fig.43 is for a supply voltage of V

DD

= 5 V

±

10% and a maximum capacitive load of

400 pF. Since it is controlled by the bus levels, it needs no additional switching control signals. During the rising/falling edges, the bilateral switch in the HCT4066 switches pull-up resistor R p2

on/off at bus levels between

0.8 V and 2.0 V. Combined resistors R p1

and R p2

can pull-up the bus line within the maximum specified rise time

(t r

) of 300 ns.

Series resistors R s

are optional. They protect the I/O stages of the I

2

C-bus devices from high-voltage spikes on the bus lines, and minimize crosstalk and undershoot of the bus line signals. The maximum value of R s

is determined by the maximum permitted voltage drop across this resistor when the bus line is switched to the

LOW level in order to switch off R p2

.

Fig.41 Slope-controlled output stage in CMOS technology.

R1

20 k

C1

5 pF

T1

Vp

VDD to input circuit

T2

I/O

GND

R p

SDA or SCL bus line

C b

MBC619

VSS

Fig.42 Slope-controlled output stage in bipolar technology.

nE

MBC620

1/4 HCT4066 nY

VCC

VDD

5V 10 %

P N

100

R s

I/O

1.3 k

Ω nZ

Rp2

100

R s

I/O

GND

1.7 k

R p1

SDA or SCL bus line

Cb

400 pF max.

N N

VSS

Fig.43 Switched pull-up circuit.

41

Philips Semiconductors

The I

2

C-bus specification

17.3

Wiring pattern of the bus lines

In general, the wiring must be so chosen that crosstalk and interference to/from the bus lines is minimized. The bus lines are most susceptible to crosstalk and interference at the HIGH level because of the relatively high impedance of the pull-up devices.

If the length of the bus lines on a PCB or ribbon cable exceeds 10 cm and includes the V

DD

and V

SS

lines, the wiring pattern must be:

SDA

V

DD

V

SS

SCL

If only the V

SS

line is included, the wiring pattern must be:

SDA

V

SS

SCL

These wiring patterns also result in identical capacitive loads for the SDA and SCL lines. The V

SS

and V

DD

lines can be omitted if a PCB with a V

SS

and/or V

DD

layer is used.

If the bus lines are twisted-pairs, each bus line must be twisted with a V

SS

return. Alternatively, the SCL line can be twisted with a V

SS

return, and the SDA line twisted with a

V

DD

return. In the latter case, capacitors must be used to decouple the V

DD

line to the V

SS

line at both ends of the twisted pairs.

If the bus lines are shielded (shield connected to V

SS

), interference will be minimized. However, the shielded cable must have low capacitive coupling between the SDA and SCL lines to minimize crosstalk.

17.4

Maximum and minimum values of resistors R and R

s

for Fast-mode I

2

C-bus devices

showing the maximum value of R p

as a function of bus capacitance (C b

) for a Fast-mode I

2

C-bus is given in

Fig.44.

p

The maximum and minimum values for resistors R p

and R s connected to a Fast-mode I

2

C-bus can be determined from Figs 37, 38 and 40 in Section 16.1. Because a

Fast-mode I

2

C-bus has faster rise times (t r

) the maximum value of R p

as a function of bus capacitance is less than that shown in Fig.39 The replacement graph for Fig.39

7.5

handbook, halfpage maximum value R

(k

) p

6.0

4.5

3.0

1.5

0

0 max. R

S

@ VDD= 5 V

100 200 300 bus capacitance (pF)

400

Fig.44 Maximum value of R p a Fast-mode I

2

as a function of bus capacitance for meeting the t r max

requirement for

C-bus.

MBC612

17.5

Maximum and minimum values of resistors R

p

and R

s

for Hs-mode I

2

C-bus devices

The maximum and minimum values for resistors R p

and R s connected to an Hs-mode I

2

C-bus can be calculated from the data in Tables 6 and 7. Many combinations of these values are possible, owing to different rise and fall times, bus line loads, supply voltages, mixed speed systems and level shifting. Because of this, no further graphs are included in this specification.

18 BI-DIRECTIONAL LEVEL SHIFTER FOR

F/S-MODE I

2

C-BUS SYSTEMS

Present technology processes for integrated circuits with clearances of 0.5

µ m and less, limit the maximum supply voltage and consequently the logic levels for the digital I/O signals. To interface these lower voltage circuits with existing 5 V devices a level shifter is needed. For bi-directional bus systems as like the I

2

C-bus, such a level shifter must also be bi-directional, without the need of a direction control signal

(1)

. The simplest way to solve this problem is by connecting a discrete MOS-FET to each bus line.

(1) US 5,689,196 granted; corresponding patent applications pending.

42

Philips Semiconductors

The I

2

C-bus specification

In spite of its surprising simplicity, such a solution not only fulfils the requirement of bi-directional level shifting without a direction control signal, it also:

• isolates a powered-down bus section from the rest of the bus system

• protects the “lower voltage” side against high voltage spikes from the “higher-voltage” side.

The bi-directional level shifter can be used for both

Standard-mode (up to100 kbit/s) or in Fast-mode (up to

400 kbit/s) I

2

C-bus systems. It is not intended for Hs-mode systems, which may have a bridge with a level shifting possibility (see Section 13.5)

18.1

Connecting devices with different logic levels

Section 16 described how different voltage devices could be connected to the same bus by using pull-up resistors to the supply voltage line. Although this is the simplest solution, the lower voltage devices must be 5 V tolerant, which can make them more expensive to manufacture. By using a bi-directional level shifter, however, it’s possible to interconnect two sections of an I

2

C-bus system, with each section having a different supply voltage and different logic levels. Such a configuration is shown in Fig.45. The left

“low-voltage” section has pull-up resistors and devices connected to a 3.3 V supply voltage, the right

“high-voltage” section has pull-up resistors and devices connected to a 5 V supply voltage. The devices of each section have I/Os with supply voltage related logic input levels and an open drain output configuration.

The level shifter for each bus line is identical and consists of one discrete N-channel enhancement MOS-FET; TR1 for the serial data line SDA and TR2 for the serial clock line

SCL. The gates (g) have to be connected to the lowest supply voltage V

DD1

, the sources (s) to the bus lines of the

“lower-voltage” section, and the drains (d) to the bus lines of the “higher-voltage” section. Many MOS-FETs have the substrate internally connected with its source, if this is not the case, an external connection should be made. Each

MOS-FET has an integral diode (n-p junction) between the drain and substrate.

SDA1

SCL1

Rp Rp s g

TR1 s d g

TR2 d

Rp Rp

VDD2 = 5 V

SDA2

SCL2

3.3 V DEVICE 3.3 V DEVICE 5 V DEVICE 5 V DEVICE

MGK879

Fig.45 Bi-directional level shifter circuit connecting two different voltage sections in an I

2

C-bus system.

43

Philips Semiconductors

The I

2

C-bus specification

18.1.1

O

PERATION OF THE LEVEL SHIFTER

The following three states should be considered during the operation of the level shifter:

1. No device is pulling down the bus line.

The bus line of the “lower-voltage” section is pulled up by its pull-up resistors R p

to 3.3 V. The gate and the source of the MOS-FET are both at 3.3 V, so its V

GS

is below the threshold voltage and the MOS-FET is not conducting. This allows the bus line at the

“higher-voltage” section to be pulled up by its pull-up resistor R p

to 5 V. So the bus lines of both sections are

HIGH, but at a different voltage level.

2. A 3.3 V device pulls down the bus line to a LOW level.

The source of the MOS-FET also becomes LOW, while the gate stay at 3.3 V. V

GS

rises above the threshold and the MOS-FET starts to conduct. The bus line of the “higher-voltage” section is then also pulled down to a LOW level by the 3.3 V device via the conducting MOS-FET. So the bus lines of both sections go LOW to the same voltage level.

3. A 5 V device pulls down the bus line to a LOW level.

The drain-substrate diode of the MOS-FET the

“lower-voltage” section is pulled down until V

GS passes the threshold and the MOS-FET starts to conduct. The bus line of the “lower-voltage” section is then further pulled down to a LOW level by the 5 V device via the conducting MOS-FET. So the bus lines of both sections go LOW to the same voltage level.

The three states show that the logic levels are transferred in both directions of the bus system, independent of the driving section. State 1 performs the level shift function.

States 2 and 3 perform a “wired AND” function between the bus lines of both sections as required by the I

2

C-bus specification.

Supply voltages other than 3.3 V for V

DD1

and 5 V for V

DD2 can also be applied, e.g. 2 V for V

DD1

and 10 V for V

DD2 is feasible. In normal operation V

DD2

must be equal to or higher than V

DD1

(V

DD2

is allowed to fall below V

DD1

during switching power on/off).

44

Philips Semiconductors

The I

2

C-bus specification

19 DEVELOPMENT TOOLS AVAILABLE FROM PHILIPS

Table 8

I

2

C evaluation boards

PRODUCT

OM4151/

S87C00KSD

OM5027

OM5500

DESCRIPTION

I

2

C-bus evaluation board with microcontroller, LCD, LED, Par. I/O, SRAM, EEPROM, Clock, DTMF generator, AD/DA conversion.

I

2

C-bus evaluation board for low-voltage, low-power ICs & software

Demo kit for the PCF2166 LCD driver and PCD3756A telecom microcontroller

Table 9

Development tools for 80C51-based systems

PRODUCT

PDS51

DESCRIPTION

A board-level, full featured, in-circuit emulator:

RS232 interface to PC, universal motherboard, controlled via terminal emulation

Table 10 Development tools for 68000-based systems

PRODUCT

OM4160/2

OM4160/4

OM4160/5

DESCRIPTION

Microcore-2 demonstration/evaluation board with SCC68070

Microcore-4 demonstration/evaluation board with 90CE201

Microcore-5 demonstration/evaluation board with 90CE301

Table 11 I

2

C analyzers

PRODUCT

OM1022

OM4777

PF8681

DESCRIPTION

PC I

2

C-bus analyzer with multi-master capability. Hardware and software (runs on IBM or compatible PC) to experiment with and analyze the behaviour of the I

2

C-bus (includes documentation)

Similar to OM1022 but for single-master systems only

I

2

C-bus analyzer support package for the PM3580 logic analyzer family

45

Philips Semiconductors

The I

2

C-bus specification

20 SUPPORT LITERATURE

Table 12 Data handbooks

TITLE ORDERING CODE

IC01: Semiconductors for Radio, Audio and CD/DVD Systems

IC02: Semiconductors for Television and Video Systems

IC03: Semiconductors for Wired Telecom Systems (parts a & b)

IC12: I

2

C Peripherals

IC14: 8048-based 8-bit microcontrollers

IC17: Semiconductors for wireless communications

IC18: Semiconductors for in-car electronics

IC19: ICs for data communications

9397 750 02453

9397 750 01989

9397 750 00839,

9397 750 00811

9397 750 01647

9398 652 40011

9397 750 01002

9397 750 00418

9397 750 00138

IC20: 80C51-based 8-bit microcontrollers + Application notes and Development tools 9397 750 00963

IC22: Multimedia ICs 9397 750 02183

Table 13 Brochures/leaflets/lab. reports/books etc.

TITLE ORDERING CODE

Can you make the distance... with I

2

C-bus (information about the P82B715 I

2

C-bus extender IC)

I

2

C-bus multi-master & single-master controller kits

Desktop video (CD-ROM)

80C51 core instructions quick reference

9397 750 00008

9397 750 00953

9397 750 00644

9398 510 76011

80C51 microcontroller selection guide

OM5027 I

2

C-bus evaluation board for low-voltage, low-power ICs & software

P90CL301 I

2

C driver routines

User manual of Microsoft Pascal I

2

C-bus driver (MICDRV4.OBJ)

C routines for the PCF8584

9397 750 01587

9398 706 98011

AN94078

ETV/IR8833

AN95068

Using the PCF8584 with non-specified timings and other frequently asked questions AN96040

User's guide to I

2

C-bus control programs ETV8835

The I

2

C-bus from theory to practice (book and disk) Author: D. Paret

Publisher: Wiley

ISBN: 0-471-96268-6

Bi-directional level shifter for I

2

C-bus and other systems AN97055

OM5500 demo kit for the PCF2166 LCD driver and PCD3756A telecom microcontroller 9397 750 00954

For more information about Philips Semiconductors and how we can help in your I

2

C-bus design, contact your nearest

Philips Semiconductors national organization from the address list of the back of this book, or visit our worldwide web site at http://www.semiconductors.philips.com

46

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
