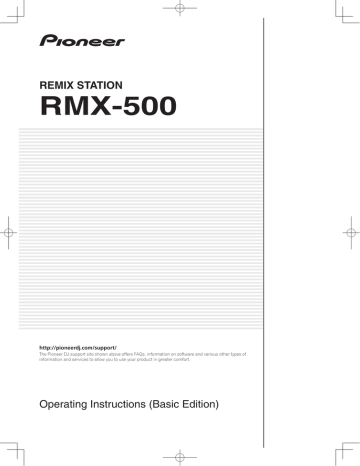

Pioneer DJ Equipment Remix station
REMIX STATION
RMX-500
http://pioneerdj.com/support/
The Pioneer DJ support site shown above offers FAQs, information on software and various other types of
information and services to allow you to use your product in greater comfort.
Operating Instructions (Basic Edition)
IMPORTANT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
D3-4-2-1-1b_A1_En
1)
2)
3)
4)
5)
6)
7)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s
instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9) Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified by
the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms
or when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
D3-7-13-69_En
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
D8-10-1-2_A1_En
2
En
FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Product Name: REMIX STATION
Model Number: RMX-500
Responsible Party Name: PIONEER ELECTRONICS (USA) INC.
SERVICE SUPPORT DIVISION
Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810-1003, U.S.A.
Phone: 1-800-421-1404
URL: http://www.pioneerelectronics.com
D8-10-4*_C1_En
WARNING
This equipment is not waterproof. To prevent a fire or
shock hazard, do not place any container filled with
liquid near this equipment (such as a vase or flower
pot) or expose it to dripping, splashing, rain or
moisture.
D3-4-2-1-3_A1_En
WARNING
To prevent a fire hazard, do not place any naked flame
sources (such as a lighted candle) on the equipment.
D3-4-2-1-7a_A1_En
Operating Environment
Operating environment temperature and humidity:
+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH
(cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in
locations exposed to high humidity or direct sunlight (or
strong artificial light).
D3-4-2-1-7c*_A2_En
CAUTION
The ON, STANDBY switch on this unit will not
completely shut off all power from the AC outlet.
Since the power cord serves as the main disconnect
device for the unit, you will need to unplug it from the
AC outlet to shut down all power. Therefore, make
sure the unit has been installed so that the power
cord can be easily unplugged from the AC outlet in
case of an accident. To avoid fire hazard, the power
cord should also be unplugged from the AC outlet
when left unused for a long period of time (for
example, when on vacation).
D3-4-2-2-2a*_A1_En
When using this product, confirm the safety
information shown on the bottom of the unit.
D3-4-2-2-4_B1_En
Information to User
Alterations or modifications carried out without
appropriate authorization may invalidate the user’s
right to operate the equipment.
D8-10-2_A1_En
CAUTION
This product satisfies FCC regulations when shielded
cables (with Ferrite-cores attached) and connectors
are used to connect the unit to other equipment. To
prevent electromagnetic interference with electric
appliances such as radios and televisions, use
shielded cables (with Ferrite-cores attached) and
connectors for connections.
D8-10-3b_A1_En
IMPORTANT NOTICE
THE MODEL NUMBER AND SERIAL NUMBER OF
THIS EQUIPMENT ARE ON THE REAR OR BOTTOM.
RECORD THESE NUMBERS ON PAGE 19 FOR
FUTURE REFERENCE.
D36-AP9-3*_A1_En
WARNING: Handling the cord on this product or
cords associated with accessories sold with the
product may expose you to chemicals listed on
proposition 65 known to the State of California and
other governmental entities to cause cancer and
birth defect or other reproductive harm.
D36-P5_B1_En
This product is for general household purposes. Any
failure due to use for other than household purposes
(such as long-term use for business purposes in a
restaurant or use in a car or ship) and which requires
repair will be charged for even during the warranty
period.
K041_A1_En
En
3
The Safety of Your Ears is in Your Hands
Get the most out of your equipment by playing it at a
safe level – a level that lets the sound come through
clearly without annoying blaring or distortion and, most
importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time, your hearing
“comfort level” adapts to higher volumes of sound, so
what sounds “normal” can actually be loud and
harmful to your hearing. Guard against this by setting
your equipment at a safe level BEFORE your hearing
adapts.
ESTABLISH A SAFE LEVEL:
• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
• Once you have established a comfortable sound
level, set the dial and leave it there.
BE SURE TO OBSERVE THE FOLLOWING
GUIDELINES:
• Do not turn up the volume so high that you can’t
hear what’s around you.
• Use caution or temporarily discontinue use in
potentially hazardous situations.
• Do not use headphones while operating a motorized
vehicle; the use of headphones may create a traffic
hazard and is illegal in many areas.
S001a_A1_En
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power
cord when your hands are wet as this could cause a
short circuit or electric shock. Do not place the unit, a
piece of furniture, etc., on the power cord, or pinch the
cord. Never make a knot in the cord or tie it with other
cords. The power cords should be routed such that they
are not likely to be stepped on. A damaged power cord
can cause a fire or give you an electrical shock. Check
the power cord once in a while. When you find it
damaged, ask your nearest PIONEER authorized
service center or your dealer for a replacement.
S002*_A1_En
4
En
Contents
How to read this manual
! Thank you for buying this Pioneer product.
Be sure to read this booklet and the “Operating Instructions” provided on the Pioneer DJ support site. Both include important information that should be fully understood before using this product.
After you have finished reading the instructions, put them away in a
safe place for future reference.
! In this manual, names of channels and buttons indicated on the
product, names of menus in the software, etc., are indicated within
square brackets ([ ]). (e.g. [MASTER] channel, [ON/OFF], [File]
menu)
Before start
Features........................................................................................................ 6
What’s in the box......................................................................................... 6
Acquiring this unit’s Operating Instructions............................................ 6
Connecting the input/output terminals..................................................... 7
Starting up and preparing this unit............................................................ 9
Operation
Setting the BPM......................................................................................... 10
RHYTHM FX section.................................................................................. 11
SCENE FX section...................................................................................... 12
RELEASE FX section.................................................................................. 13
Switching the audio signal path............................................................... 13
Customizing the effect parameters......................................................... 13
Additional information
Troubleshooting......................................................................................... 14
About trademarks and registered trademarks....................................... 14
Cautions on copyrights............................................................................. 14
General Disclaimer.................................................................................... 14
Specifications............................................................................................ 15
En
5
Before start
Features
What’s in the box
This unit is a remix station for DJs consisting of three effect sections.
The [PRESSURE] controllers newly adopted for the RHYTHM FX and
SCENE FX sections allow effects to be adjusted not only by turning the
controller as before, but also according to the strength with which the
controller is pressed in.
Furthermore, the internal effect type can be switched to achieve highly
individualistic DJ remixing performances with more intuitive operation
than ever before.
The “RMX-500 Plug-in“ Plug-in software allows this unit to be operated
on music creation applications. In addition, by connecting this unit to a
computer, this unit can be used as a controller to create music with the
same feeling as when conducting a DJ performance.
!
!
!
!
!
RHYTHM FX
New rhythms can be created by cutting up the currently playing track or
adding internal sound sources.
Effects and internal drum sound sources can be used for loop playback
with a variety of rhythms.
SCENE FX
The currently playing track can be emphasized or breaks can be created
at any position to produce new developments for tracks.
Effects and echoes can be combined to achieve unique renderings.
RELEASE FX
Effect sounds can be blended smoothly with the currently playing track.
QUANTIZE
The beat positions of tracks are analyzed in real time and the effects
and the timing for producing the sound are adjusted automatically. The
sound is played in tempo with the track, even when buttons are operated
roughly.
RMX-500 Plug-in
A VST/AU/RTAS Plug-in letting you launch the functions of this unit on a
computer is provided. With it, the RMX-500 can be used as a controller.
SOUND CARD
This unit is equipped with “sound card/USB audio interface”.
6
En
USB cable
AC adapter
Power cord
Warranty card (page 19 of this manual)
Operating Instructions (Basic Edition) (this document)
Acquiring this unit’s Operating
Instructions
The various instructions are sometimes provided as files in PDF format. Adobe® Reader® must be installed in order to view files in PDF
format.
1 Launch a web browser on the computer and access
the Pioneer DJ support site below.
http://pioneerdj.com/support/
2 On the Pioneer DJ support site, click “Manuals” under
“RMX-500”.
3 Click on the required language on the download
page.
Downloading of the operating instructions begins.
Before start
Connecting the input/output terminals
Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
Connect the power cord after all the connections between devices have been completed.
Be sure to use the power cord, AC adapter and USB cable included with this product.
Refer to the operating instructions for the component to be connected.
Power to this unit is supplied by the AC adapter or by USB bus power.
This unit can be used by connecting it to a computer using a USB cable, even without connecting the AC adapter.
! Connect this unit and the computer directly using the included USB cable.
! Do not connect via a USB hub.
! Connect the computer to which this unit is to be connected to an AC power supply.
! The brightness of the buttons that light is dimmer when using on USB bus power.
! When running on USB bus power, the unit may not operate in the following cases:
— When the power supply capacity of the computer’s USB port is insufficient.
— When other USB devices are connected to the computer.
— When headphones with an impedance of less than 32 W are connected.
— When a monaural jack is connected to the [PHONES] terminal.
! This unit may restart if the AC adapter or USB cable is disconnected during operation.
Example of connections
To connect to the DJ mixer’s [MASTER OUT] terminals
To power outlet
Powered speakers, etc.
To [MASTER OUT] terminal
[SIGNAL LEVEL] switch
[+4 dB] or [+0 dB]
To audio
input
terminals
DJ player
DJ Mixer
DJ player
Computer
Headphones
R
L
R
L
To connect to the DJ controller’s [MASTER OUT] terminals
To power outlet
Powered speakers, etc.
To [MASTER OUT] terminal
[SIGNAL LEVEL] switch
To audio
input
terminals
DJ controller
Computer
Headphones
R
L
R
L
En
7
To connect to the [SEND] and [RETURN] terminals on the DJ mixer
To power outlet
Powered speakers, etc.
DJ Mixer
DJ player
[SIGNAL LEVEL] switch
DJ player
Computer
To [RETURN] terminal
To [SEND] terminal
Headphones
1
L
R
2
3
Rear panel
4
5
6
L
R
7
8
9
a
Side panel
1Cord hook
4USB port
Hook the AC adapters’ power cord here.
! The sound will be interrupted if the AC adapter’s power cord is
disconnected from the unit during playback.
Using the cord hook
Hook the AC adapter’s power cord onto the cord hook to fasten it in
place. This prevents the power cord from being accidentally pulled, causing the plug to get disconnected from the terminal.
1 As shown on the diagram below, extend the tip of the power cord to
side of this unit and hook the power cord onto the cord hook.
Connect to a computer.
! Connect this unit and the computer directly using the included
USB cable.
! A USB hub cannot be used.
5ON, STANDBY switch
This switches this unit’s power between on and standby.
6INPUT terminals
Connect to the external output terminals of a DJ mixer, DJ controller,
DJ player, etc.
7SIGNAL LEVEL switch
This switches this unit’s input/output gain.
Set as shown below, according to the devices connected to this unit.
—[+4 dB]: Select this when connecting to a DJ mixer’s [MASTER
OUT] terminals.
—[+0 dB]: Select this when connected to the [MASTER OUT]
terminals of a DJ mixer or DJ controller.
—[–10 dB]: Select this when connected to a DJ mixer’s [SEND] and
[RETURN] terminals.
8OUTPUT terminals
Connect these to the external input terminals of powered speakers,
a DJ mixer, etc.
KI
C
CAUTION
RO
L
INSTRUMENT
LEVEL
EXIT
OVER
DUB
4-BEAT
SEQUENCER
K
L
2 Turn the tip of the power cord so that it is facing towards you, then
turn it back to create a ring as shown in the diagram and insert it into
the [5V DC] terminal of this unit.
Interconnect the equipment in such a way that the flow of the audio
signals does not loop. If looped connections are made, the circuitry
could produce oscillations that may damage the speakers, etc.
Examples of looped connections to be avoided
! Connecting a DJ mixer’s output to this unit’s input terminals then
inputting this unit’s output to the same DJ mixer’s input terminals.
! Connecting the output from a DJ mixer’s [SEND] terminals to this
unit’s input terminals then inputting this unit’s output to input terminals other than the [RETURN] terminals on the same DJ mixer.
9PHONES terminals
2Kensington security slot
35V DC terminal
Connect the included AC adapter’s DC plug here. Wait until all connections of the equipment are completed before connecting the
power cord.
Be sure to use the power cord and AC adapter included with this
product.
8
En
Connect headphones here.
! Connect headphones with an impedance of 32 W or more.
Headphones with an impedance of less than 32 W are not
supported.
aHEADPHONES VOL control
Adjusts the audio level output from the [PHONES] terminal.
Before start
Starting up and preparing this unit
1 Connect following the instructions at Connecting the
input/output terminals on page 7.
2 Slide the [ON, STANDBY] switch on the rear panel of
this unit to the [ON] position.
3 Check the audio level of the sound that is being input
and output using the peak level indicators.
The brightness and color of the peak level indicators change according
to the audio level of the sound that is being input and output.
2
1
IN
PEAK
BPM
OUT
TAP
AUTO
NUDGE
1 INPUT peak level indicator
2 OUTPUT peak level indicator
Green: Permissible level
Orange: Appropriate level
Red: Excessive level
! If the peak level indicator lights red, the audio level of the input
sound is too high. Switch the [SIGNAL LEVEL] switch or lower the
output level of the connected device.
! This unit does not have a function for adjusting the input/output
audio level. To adjust the input/output audio level, operate the
devices connected to this unit.
En
9
Operation
1
RHYTHM FX
PEAK
IN
TAP
NOISE
LEVEL
AUTO
RE
DEL V
AY
HO
EC
NUDGE
O
F
M
O
D
NOISE
SPI
RA
UP L
RE
RB
VE P
U
IO EFFECT
AUD
ET
FS
RO
L
S
AN
TR
L
ADD
SCENE FX
OUT
BPM
BUILD UP
CUSTOMIZE SHIFT
2
OVER
DUB
SHORT
1/8
ECHO +
SIGNAL FLOW
DELETE
4-BEAT
SEQUENCER
ECHO+BEAT
E
CL A P
A
HI H
BACK
SPIN
BREA K D O W N
F
CY
T
V
O ERB
W
N
C
AR
1/1
HP
KI
SN
ECHO
MB
AL
VINYL
BRAKE
IN S T R U M E N T
K
1/2
3/4
RELEASE FX
EXIT
3
1/4
LP
F
Z IP
RE
L
RA
SPI
WN
DO
D
REMIX STATION
INSTRUMENT
LEVEL
RMX-500
65
4
1Setting the BPM (page 10)
2RHYTHM FX section (page 11)
3SCENE FX section (page 12)
4RELEASE FX section (page 13)
5Switching the audio signal path (page 13)
6Customizing the effect parameters (page 13)
Setting the BPM
IN
PEAK
BPM
1
2
OUT
TAP
3
AUTO
NUDGE
ET
FS
M
O
OF
D
4
1AUTO button
Switches the BPM measurement mode.
—[AUTO]: The BPM is measured automatically from the audio signal that is being input. The [AUTO] mode is set when this unit’s
power is turned on.
—[TAP]: The BPM is input manually by tapping the [TAP] button
with a finger.
! The [AUTO] BPM measurement range is BPM = 70 to 180. With
some tracks it may not be possible to measure the BPM correctly. If the BPM cannot be measured, the BPM value on the
display flashes. In such cases, use the [TAP] button to input the
BPM manually.
2BPM display
When the BPM measurement mode is set to auto, this displays the
automatically detected BPM value. If the value cannot be detected,
the previously detected BPM value flashes.
When the BPM measurement mode is set to manual, this displays
the manually input BPM value.
3TAP button
Tap the button with a finger to input the BPM manually.
4NUDGE (+, –) button
These fine-adjust the cycle and the timing for producing the sound of
internal sound sources, etc.
10
En
Inputting the BPM manually
Tap the [TAP] button at least 2 times in rhythm with the
beat (in quarter notes) of the sound being played.
The interval at which the [TAP] button was tapped is set as the BPM.
! The BPM can be set manually in units of 1 by pressing a
[NUDGE (+, –)] button while pressing the [TAP] button.
! The BPM can be set manually in units of 0.1 by pressing the
[AUTO] button while pressing the [TAP] button, then pressing a
[NUDGE (+, –)] button while pressing the two buttons.
RHYTHM FX section
1
23
A sound processing or sound adding effect is applied, depending on the
type of effect that is selected.
! The sound processing or sound adding effect changes according to
the strength with which the control is pressed in.
! When the selected [RHYTHM FX] button is pressed again, the effect
turns off.
BPM
ADD
L
AUTO
RE
DEL V
AY
IO EFFECT
AUD
OF
ET
FS
RO
L
S
AN
TR
Operation
3 Press the [RHYTHM FX] control.
RHYTHM FX
Using the 4-BEAT SEQUENCER function
OVER
DUB
DELETE
4-BEAT
SEQUENCER
The order and timing at which the [RHYTHM FX] buttons are pressed
are recorded and the sound is played in a loop.
EXIT
AL
V
BR
C
SN
AR
E
CL A P
MB
KI
IN S T R U M E N T
K
CY
HI H
AT
INSTRUMENT
LEVEL
7 6
5
1
2
4
1RHYTHM FX buttons
These turn the RHYTHM FX effects on and off.
2RHYTHM FX indicator
This flashes when an effect is on.
3RHYTHM FX control
This adjusts the selected RHYTHM FX effect.
4DELETE button
This button can be used to delete the operations of the
[RHYTHM FX] buttons that were recorded using the 4-BEAT
SEQUENCER function, one button at a time.
5Internal sound source volume adjustment buttons
These adjust the volume of the internal sound sources.
1 Press the [OVERDUB] button.
When the [OVERDUB] button is pressed, the 4-BEAT SEQUENCER function turns on and the [OVERDUB] button flashes brightly.
While the [OVERDUB] button is flashing brightly, the operations of the
[RHYTHM FX] buttons are recorded and loop playback continues.
When the [OVERDUB] button is pressed again, it starts flashing
dimly and loop playback continues, but additional operations of the
[RHYTHM FX] buttons are not recorded.
! When the 4-BEAT SEQUENCER function is on, RHYTHM FX effects
are only applied while the corresponding [RHYTHM FX] button is
being pressed.
2 While pressing the [DELETE] button, press the
[RHYTHM FX] button whose recorded operation you
want to delete.
When the [DELETE] button is pressed, the [RHYTHM FX] buttons whose
operations are recorded light. When a lit button is pressed, the button
turns off and the operation of that [RHYTHM FX] button which was
recorded is deleted.
3 Press the [EXIT] button.
When the [EXIT] button is pressed, all the operations of the
[RHYTHM FX] buttons that were recorded with the 4-BEAT SEQUENCER
function are deleted. The 4-BEAT SEQUENCER function turns off and
loop playback stops.
6EXIT button
This lights when the 4-BEAT SEQUENCER function is on.
When the button is pressed, the 4-BEAT SEQUENCER function turns
off.
7OVERDUB button
The 4-BEAT SEQUENCER function turns on.
The operations of the [RHYTHM FX] buttons are recorded and the
sound is played in a loop.
Using the RHYTHM FX function
1 Press one of the [RHYTHM FX] buttons.
Select the RHYTHM FX effect type.
The button that was pressed flashes.
! Internal sound sources are preset at each of the [KICK], [SNARE],
[CLAP], [HI HAT] and [CYMBAL] buttons.
! For details on the types of effects, see the Pioneer DJ support site
below.
http://pioneerdj.com/support/
2 Turn the [RHYTHM FX] control.
The effect is applied to the sound.
— The strength of the effect increases when the control is turned
clockwise. The strength of the effect is maximum when the control is turned fully clockwise.
— The strength of the effect decreases when the control is turned
counterclockwise. When turned fully counterclockwise, the
original sound is output, with no effect applied.
En
11
SCENE FX section
12
3
4
Using the ECHO + function
SCENE FX
An [ECHO] effect can be applied over the SCENE FX effect and output.
TAP
NOISE
LEVEL
NOISE
D
SPI
RA
UP L
1 Use the [BEAT (a, b)] buttons to select the multiple
for synchronizing the [ECHO] effect.
RE
2 Press the [ECHO +] button.
RB
VE P
U
M
O
HO
EC
BUILD UP
SHORT
1/8
ECHO +
ECHO+BEAT
1/4
1/2
5
3/4
1/1
V
O ERB
W
N
K
HP
B REA K D O W N
F
LP
F
Z IP
RE
L
RA
S PI
WN
DO
6
D
REMIX STATION
RMX-500
72
3
1SCENE FX control
This adjusts the selected SCENE FX effect.
2SCENE FX indicator
This flashes when an effect is on.
3SCENE FX buttons
These turn the SCENE FX effects on and off.
4NOISE volume adjustment buttons
These adjust the volume of the [NOISE] effect applied to the input
sound or the output sound.
5ECHO + beat select indicators
The indicator for the beat for which the ECHO + function synchronizes lights.
6BEAT (a, b) button
Selects the beat multiple for synchronizing the ECHO + function.
7ECHO + button
This turns the ECHO + function on and off.
Using the SCENE FX function
1 Press one of the [SCENE FX] buttons.
Select the SCENE FX effect type.
The button that was pressed flashes.
! For details on the types of effects, see the Pioneer DJ support site
below.
http://pioneerdj.com/support/
2 Turn the [SCENE FX] control.
The effect is applied to the sound.
— The strength of the effect increases when the control is turned
clockwise. The strength of the effect is maximum when the control is turned fully clockwise.
— The strength of the effect decreases when the control is turned
counterclockwise. When turned fully counterclockwise, the
original sound is output, with no effect applied.
3 Press the [SCENE FX] control.
An additional effect is applied to the sound.
! The additional effect changes according to the strength with which
the control is pressed in.
! When the selected [SCENE FX] button is pressed again, the effect
turns off.
12
En
The ECHO + function turns on.
The [ECHO] effect is applied over the selected effect and output.
! When the [ECHO +] button is pressed again, the ECHO + function
turns off.
RELEASE FX section
Switching the audio signal path
VINYL
BRAKE
ECHO
BACK
SPIN
1
2
The audio signals input to this unit’s [INPUT] terminals pass through
the effect circuitry inside this unit and are then output from this unit’s
[OUTPUT] terminals.
This unit’s effect circuitry includes three sections, positioned in the
following order: the RHYTHM FX section, the SCENE FX section, and the
RELEASE FX section.
Of these three effect sections, the order of the RHYTHM FX and SCENE
FX sections can be inverted.
Operation
RELEASE FX
1
SIGNAL FLOW
1RELEASE FX type selection button
This switches the type of RELEASE FX effect.
2RELEASE FX button
3
These turn the RELEASE FX effects on and off.
2
Using the RELEASE FX function
1 Press the [RELEASE FX] type selection button.
Select the RELEASE FX effect type.
! For details on the types of effects, see the Pioneer DJ support site
below.
http://pioneerdj.com/support/
2 Press the [RELEASE FX] button.
This turns the effect on.
The effect is applied to the sound.
! When you release your finger from the button, the effect turns off.
The RHYTHM FX and SCENE FX effects that were on up to this point
also turn off.
Press the [SIGNAL FLOW] (1) button.
The audio signal path switches as shown on the diagram below each
time the button is pressed.
— When the right indicator (2) is lit
INPUT
RHYTHM FX
SCENE FX
OUTPUT
RELEASE FX
SCENE FX
RHYTHM FX
— When the left indicator (3) is lit
INPUT
RHYTHM FX
SCENE FX
OUTPUT
RELEASE FX
SCENE FX
RHYTHM FX
Customizing the effect parameters
The [CUSTOMIZE SHIFT] button can be used to customize the parameters of this unit’s effects.
The customized parameters are immediately reflected in this unit’s
operation.
CUSTOMIZE SHIFT
1
While pressing the [CUSTOMIZE SHIFT] button (1), press
the button of the effect you want to customize.
The type and beat of the respective effect switches.
! The effect type and beat can only be customized while the
[CUSTOMIZE SHIFT] button is being pressed.
! Buttons that are not lit cannot be customized.
! For the RELEASE FX function, the selected effect’s beat switches
each time the [RELEASE FX] button is pressed.
En
13
Additional information
Troubleshooting
! Incorrect operation is often mistaken for trouble or malfunction. If you think that there is something wrong with this component, check the points
below and the [FAQ] for the [RMX-500] on the Pioneer DJ support site.
http://pioneerdj.com/support/
Sometimes the problem may lie in another component. Inspect the other components and electrical appliances being used. If the problem cannot
be rectified, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.
! The player may not operate properly due to static electricity or other external influences. In such cases, normal operation may be restored by
unplugging the power cord then plugging it back in.
Problem
Check
Remedy
The power is not turned on.
Are the included power cord and AC adapter
properly connected?
Properly connect the included power cord to a power outlet.
Properly connect the power cord to the included AC adapter. (page 7)
Connect the included AC adapter’s DC plug properly to this unit.
No sound or small sound.
Distorted sound.
Is the [ON, STANDBY] switch for power supply
set to [ON]?
Set the [ON, STANDBY] switch for power supply to [ON].
When power is being supplied by USB bus, is the
included USB cable properly connected?
Are you using a USB hub?
Connect the included USB cable properly. (page 7)
Are the connection cables properly connected?
Connect the connection cables properly. (page 7)
Are the terminals and plugs dirty?
Clean the terminals and plugs before making connections.
Is the [INPUT] peak level indicator lit?
Adjust the output level of the connected device.
Is the [INPUT] peak level indicator or the
[OUTPUT] peak level indicator lit red?
Switch the [SIGNAL LEVEL] selector switch according to the output level of the
connected device. (page 8)
Adjust the output level of the connected device.
Tempo (BPM) cannot be measured or Is the audio input level too high or too low?
measurement value of tempo (BPM) is
implausible.
Adjust the output level of the connected device and switch the [SIGNAL LEVEL]
selector switch according to the output level of the connected device so that the
[INPUT] peak level indicator lights at an appropriate level.
For some tracks, it may not be possible to measure the tempo (BPM). Use the
[TAP] button to input the tempo manually. (page 10)
Customized settings are not stored.
Did you turn the power off immediately after
customizing the settings?
Wait at least 10 seconds after customizing settings before turning the power off.
Value of the measured tempo (BPM)
differs from value recorded on CD, or
tempo (BPM) values displayed on DJ
player, DJ mixer, DJ software and this
unit differ.
—
The values may differ slightly due to the different ways in which the BPM is
measured.
This unit is not recognized after it has
been connected to a computer.
Is the included USB cable properly connected?
Connect this unit and computer directly, not via a USB hub.
About trademarks and registered
trademarks
!
!
!
!
Pioneer is a registered trademark of PIONEER CORPORATION.
VST is a trademark of Steinberg Media Technologies GmbH.
The Audio Units logo is a trademark of Apple Inc.
RTAS is a registered trademark of Avid Technology, Inc. or its subsidiaries in the United States and/or other countries.
The names of companies and products mentioned herein are the trademarks of their respective owners.
Cautions on copyrights
Recordings you have made are for your personal enjoyment and according to copyright laws may not be used without the consent of the copyright holder.
! Music recorded from CDs, etc., is protected by the copyright laws of
individual countries and by international treaties. It is the full responsibility of the person who has recorded the music to ensure that it is
used legally.
! When handling music downloaded from the Internet, etc., it is the
full responsibility of the person who has downloaded the music to
ensure that it is used in accordance with the contract concluded
with the download site.
14
En
General Disclaimer
Please note that Pioneer will accept no responsibility whatsoever concerning legality, morality, operation stability, etc., when using software
that was downloaded by the user. Problems may occur in operation of
downloaded software, depending on the operating environment of the
computer being used and the downloaded software or compatibility with
other software.
Please note that Pioneer will accept no responsibility whatsoever for
loss of information the user has registered using downloaded software.
Write down the information you have registered in a note, etc., for safe
keeping.
Specifications
AC adapter
Additional information
Power............................................................. AC 100 V to 240 V, 50 Hz/60 Hz
Rated current.......................................................................................... 0.4 A
Rated output.................................................................................. DC 5 V, 2 A
General – Main Unit
Power consumption (when using AC adapter)................................. 600 mA
Power consumption (when using USB bus power).......................... 500 mA
Main unit weight......................................................................0.93 kg (2.1 lb)
Max. dimensions.......................... 306 mm (W) × 67 mm (H) × 132 mm (D)
(12 in. (W) × 2.6 in. (H) × 5.2 in. (D))
Tolerable operating temperature.......... +5 °C to +35 °C (+41 °F to +95 °F)
Tolerable operating humidity....................... 5 % to 85 % (no condensation)
Audio Section
Sampling rate........................................................................................48 kHz
A/D, D/A converter................................................................................24 bits
Frequency response.............................................................. 20 Hz to 20 kHz
S/N ratio (OUTPUT, rated output, A-WEIGHTED)................................ 96 dB
Total harmonic distortion (OUTPUT, 20 Hz – 20 kHz BW)...............0.006 %
Headroom............................................................................................... 15 dB
Standard input level/standard output level (10 kW load)
SIGNAL LEVEL switch (+4 dB)....................................................+4 dBu
SIGNAL LEVEL switch (+0 dB)....................................................+0 dBu
SIGNAL LEVEL switch (-10 dB)..................................................... -10 dBV
Input impedance
INPUT............................................................................................... 30 kW
Output impedance
OUTPUT................................................................................. 1 kW or less
PHONES................................................................................. 10 W or less
Input / Output terminals
INPUT input terminals
RCA pin jacks..................................................................................... 1 set
OUTPUT output terminal
RCA pin jacks..................................................................................... 1 set
PHONES output terminal
Stereo phone jack (Ø 6.3 mm).......................................................... 1 set
USB terminal
B type (stereo 1 in/1 out)................................................................... 1 set
! The specifications and design of this product are subject to change
without notice.
En
15
16
En
Additional information
17
En
18
En
PIONEER ELECTRONICS (USA) INC.
WARRANTY
Pioneer Electronics (USA) Inc. (PUSA) warrants that products distributed by PUSA in the U.S.A. and Canada that fail to function properly under normal use due to a manufacturing
defect when installed and operated according to the owner ’s manual enclosed with the unit will be repaired or replaced with a unit of comparable value, at the option of PUSA,
without charge to you for parts or actual repair work. Parts supplied under this warranty may be new or rebuilt at the option of PUSA.
THIS LIMITED WARRANTY APPLIES TO THE ORIGINAL OR ANY SUBSEQUENT OWNER OF THIS PIONEER PRODUCT DURING THE WARRANTY PERIOD PROVIDED THE
PRODUCT WAS PURCHASED FROM AN AUTHORIZED PIONEER DISTRIBUTOR/DEALER IN THE U.S.A. OR CANADA. YOU WILL BE REQUIRED TO PROVIDE A SALES
RECEIPT OR OTHER VALID PROOF OF PURCHASE SHOWING THE DATE OF ORIGINAL PURCHASE OR, IF RENTED, YOUR RENTAL CONTRACT SHOWING THE PLACE
AND DATE OF FIRST RENTAL. IN THE EVENT SERVICE IS REQUIRED, THE PRODUCT MUST BE DELIVERED WITHIN THE WARRANTY PERIOD, TRANSPORTATION
PREPAID, ONLY FROM WITHIN THE U.S.A. AS EXPLAINED IN THIS DOCUMENT. YOU WILL BE RESPONSIBLE FOR REMOVAL AND INSTALLATION OF THE PRODUCT.
PUSA WILL PAY TO RETURN THE REPAIRED OR REPLACEMENT PRODUCT TOYOU WITHIN THE U.S.A.
PRODUCT WARRANTY PERIOD
DJ Audio and Video
...................................................................................................................................................................................
Parts
Labor
1 Year
1 Year
Additional information
LIMITED WARRANTY
WARRANTY VALID ONLY IN THE U.S.A. AND CANADA
The warranty period for retail customers who rent the product commences upon the date product is first put into use (a) during the rental period or (b) retail sale, whichever occurs first.
WHAT IS NOT COVERED
IF THIS PRODUCT WAS PURCHASED FROM AN UNAUTHORIZED DISTRIBUTOR, THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND THIS PRODUCT IS SOLD STRICTLY “AS IS” AND “WITH ALL FAULTS".
PIONEER SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL AND/OR INCIDENTAL DAMAGES.
THIS WARRANTY DOES NOT APPLY IF THE PRODUCT HAS BEEN SUBJECTED TO POWER IN EXCESS OF ITS PUBLISHED POWER RATING.
THIS WARRANTY DOES NOT COVERTHE CABINET OR ANY APPEARANCE ITEM, USER ATTACHED ANTENNA, ANY DAMAGETO RECORDS OR RECORDINGTAPES OR DISCS, ANY
DAMAGE TO THE PRODUCT RESULTING FROM ALTERATIONS, MODIFICATIONS NOT AUTHORIZED IN WRITING BY PIONEER, ACCIDENT, MISUSE OR ABUSE, DAMAGE DUE TO
LIGHTNING ORTO POWER SURGES, SUBSEQUENT DAMAGE FROM LEAKING, DAMAGE FROM INOPERATIVE BATTERIES, ORTHE USE OF BATTERIES NOT CONFORMINGTOTHOSE
SPECIFIED INTHE OWNER’S MANUAL.
THIS WARRANTY DOES NOT COVER THE COST OF PARTS OR LABOR WHICH WOULD BE OTHERWISE PROVIDED WITHOUT CHARGE UNDER THIS WARRANTY OBTAINED FROM
ANY SOURCE OTHERTHAN A PIONEER AUTHORIZED SERVICE COMPANY OR OTHER DESIGNATED LOCATION. THISWARRANTY DOES NOT COVER DEFECTS OR DAMAGE CAUSED
BYTHE USE OF UNAUTHORIZED PARTS OR LABOR OR FROM IMPROPER MAINTENANCE.
ALTERED, DEFACED, OR REMOVED SERIAL NUMBERS VOID THIS ENTIRE WARRANTY
NO OTHER WARRANTIES
PIONEER LIMITS ITS OBLIGATIONS UNDER ANY IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, TO A PERIOD NOT TO EXCEED THE WARRANTY PERIOD. NO WARRANTIES SHALL APPLY AFTER THE WARRANTY PERIOD.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND SOME STATES DO NOT ALLOW THE EXCLUSIONS OR LIMITATIONS
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS AND YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.
TO OBTAIN SERVICE
PUSA has appointed a number of Authorized Service Companies throughout the U.S.A. and Canada should your product require service. To receive warranty service you
need to present your sales receipt or, if rented, your rental contract showing place and date of original owner’s transaction. If shipping the unit you will need to package it
carefully and send it, transportation prepaid by a traceable, insured method, to an Authorized Service Company. Package the product using adequate padding material to
prevent damage in transit. The original container is ideal for this purpose. Include your name, address and telephone number where you can be reached during business
hours.
On all complaints and concerns in the U.S.A. and Canada call Customer Support at 1-800-872-4159.
For hook-up and operation of your unit or to locate an
Authorized Service Company, please call or write:
CUSTOMER SUPPORT
PIONEER ELECTRONICS (USA) INC.
P.O. BOX 1720
LONG BEACH, CALIFORNIA 90801
1-800-872-4159
http://www.pioneerelectronics.com
DISPUTE RESOLUTION
Following our response to any initial request to Customer Support, should a dispute arise between you and Pioneer, Pioneer makes available its Complaint Resolution Program
to resolve the dispute. The Complaint Resolution Program is available to you without charge. You are required to use the Complaint Resolution Program before you exercise
any rights under, or seek any remedies, created by Title I of the Magnuson-Moss Warranty-Federal Trade Commission Improvement Act, 15 U.S.C. 2301 et seq.
To use the Complaint Resolution Program call 1-800-872-4159 and explain to the customer service representative the problem you are experiencing, steps you have taken
to have the product repaired during the warranty period and the name of the authorized Distributor/Dealer from whom the Pioneer product was purchased. After the complaint
has been explained to the representative, a resolution number will be issued. Within 40 days of receiving your complaint, Pioneer will investigate the dispute and will either:
(1) respond to your complaint in writing informing you what action Pioneer will take, and in what time period, to resolve the dispute; or (2) respond to your complaint in writing
informing you why it will not take any action.
RECORD THE PLACE AND DATE OF PURCHASE FOR FUTURE REFERENCE
Model No. ____________________________________________ Serial No. _________________________________________ Purchase Date ______________________
Purchased From _____________________________________________________________________________________________________________________________
KEEP THIS INFORMATION AND YOUR SALES RECEIPT IN A SAFE PLACE
UCP0212
En
19
To register your product, find the nearest authorized service location, to
purchase replacement parts, operating instructions, or accessories,
please go to one of following URLs :
Pour enregistrer votre produit, trouver le service après-vente agréé le plus
proche et pour acheter des pièces de rechange, des modes d’emploi ou
des accessoires, reportez-vous aux URL suivantes :
In the USA & Canada/Aux Etats-Unis & Canada
http://www.pioneerelectronics.com
S018_B1_EnFr_PSV
© 2013 PIONEER CORPORATION.
All rights reserved.
PIONEER CORPORATION
1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan
PIONEER ELECTRONICS (USA) INC.
P.O. BOX 1720, Long Beach, California 90801-1720, U.S.A. TEL: (800) 421-1404
K002_PSV_CU
Printed in
<DRH1252-A>
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
