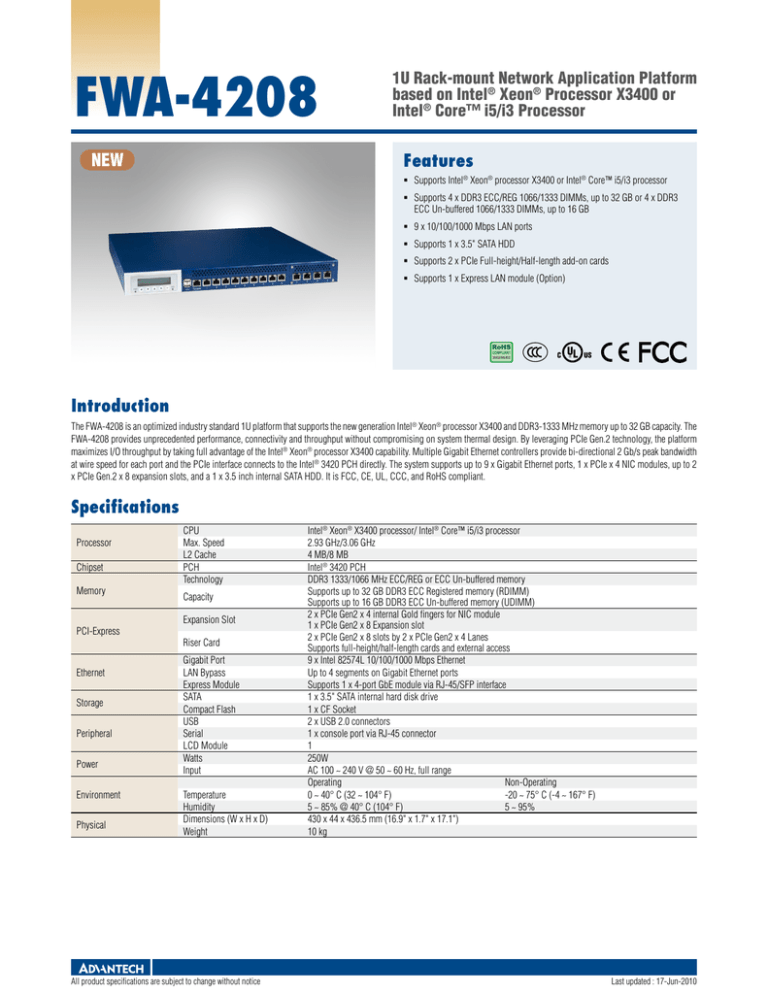

FWA-4208
FWA-4208
1U Rack-mount Network Application Platform
based on Intel® Xeon® Processor X3400 or
Intel® Core™ i5/i3 Processor
Features
NEW
 Supports Intel® Xeon® processor X3400 or Intel® Core™ i5/i3 processor
 Supports 4 x DDR3 ECC/REG 1066/1333 DIMMs, up to 32 GB or 4 x DDR3
ECC Un-buffered 1066/1333 DIMMs, up to 16 GB
 9 x 10/100/1000 Mbps LAN ports
 Supports 1 x 3.5" SATA HDD
 Supports 2 x PCIe Full-height/Half-length add-on cards
 Supports 1 x Express LAN module (Option)
RoHS
COMPLIANT
2002/95/EC
Introduction
The FWA-4208 is an optimized industry standard 1U platform that supports the new generation Intel® Xeon® processor X3400 and DDR3-1333 MHz memory up to 32 GB capacity. The
FWA-4208 provides unprecedented performance, connectivity and throughput without compromising on system thermal design. By leveraging PCIe Gen.2 technology, the platform
maximizes I/O throughput by taking full advantage of the Intel® Xeon® processor X3400 capability. Multiple Gigabit Ethernet controllers provide bi-directional 2 Gb/s peak bandwidth
at wire speed for each port and the PCIe interface connects to the Intel® 3420 PCH directly. The system supports up to 9 x Gigabit Ethernet ports, 1 x PCIe x 4 NIC modules, up to 2
x PCIe Gen.2 x 8 expansion slots, and a 1 x 3.5 inch internal SATA HDD. It is FCC, CE, UL, CCC, and RoHS compliant.
Specifications
Processor
Chipset
Memory
PCI-Express
Ethernet
Storage
Peripheral
Power
Environment
Physical
CPU
Max. Speed
L2 Cache
PCH
Technology
Capacity
Expansion Slot
Riser Card
Gigabit Port
LAN Bypass
Express Module
SATA
Compact Flash
USB
Serial
LCD Module
Watts
Input
Temperature
Humidity
Dimensions (W x H x D)
Weight
All product specifications are subject to change without notice
Intel® Xeon® X3400 processor/ Intel® Core™ i5/i3 processor
2.93 GHz/3.06 GHz
4 MB/8 MB
Intel® 3420 PCH
DDR3 1333/1066 MHz ECC/REG or ECC Un-buffered memory
Supports up to 32 GB DDR3 ECC Registered memory (RDIMM)
Supports up to 16 GB DDR3 ECC Un-buffered memory (UDIMM)
2 x PCIe Gen2 x 4 internal Gold fingers for NIC module
1 x PCIe Gen2 x 8 Expansion slot
2 x PCIe Gen2 x 8 slots by 2 x PCIe Gen2 x 4 Lanes
Supports full-height/half-length cards and external access
9 x Intel 82574L 10/100/1000 Mbps Ethernet
Up to 4 segments on Gigabit Ethernet ports
Supports 1 x 4-port GbE module via RJ-45/SFP interface
1 x 3.5" SATA internal hard disk drive
1 x CF Socket
2 x USB 2.0 connectors
1 x console port via RJ-45 connector
1
250W
AC 100 ~ 240 V @ 50 ~ 60 Hz, full range
Operating
Non-Operating
0 ~ 40° C (32 ~ 104° F)
-20 ~ 75° C (-4 ~ 167° F)
5 ~ 85% @ 40° C (104° F)
5 ~ 95%
430 x 44 x 436.5 mm (16.9" x 1.7" x 17.1")
10 kg
Last updated : 17-Jun-2010
FWA-4208
Dimensions
436.50
Unit: mm (inch)
464.80
430.00
44.20
480.00
LCD Module
(16 characters, 2 Lines) Console Ports by RJ45
2 x USB 2.0 Ports 9 ports GbE by RJ45
Ordering Information
Part Number
FWA-4208E
Configuration
FWA-4208 1U barebone
Accessories
P/N
1702002600
1702002605
1702031801
1700000237
2 x PCIe Gen. 2 x 8 expansion
slots by riser card
PCIe NIC
Module(Option)
250W AC PSU
3 x Swappable System FANs
Packing List
P/N
Description
1700002463
Cable RJ-45 to console 9P 220 cm T
* Advantech may make changes to specification and product descriptions at any time,
without notice.
Description
3P 180 cm, USA
3P 180 cm, Europe
3P 180 cm, UK
3P 180 cm, JP
Online Download www.advantech.com/products
