MODEL No:
AMERICAN SPECIALTIES, INC.
ISSUED:
441 Saw Mill River Road, Yonkers, NY 10701 (914) 476-9000
REVISED:
GLAZINGS
1-87
10-04

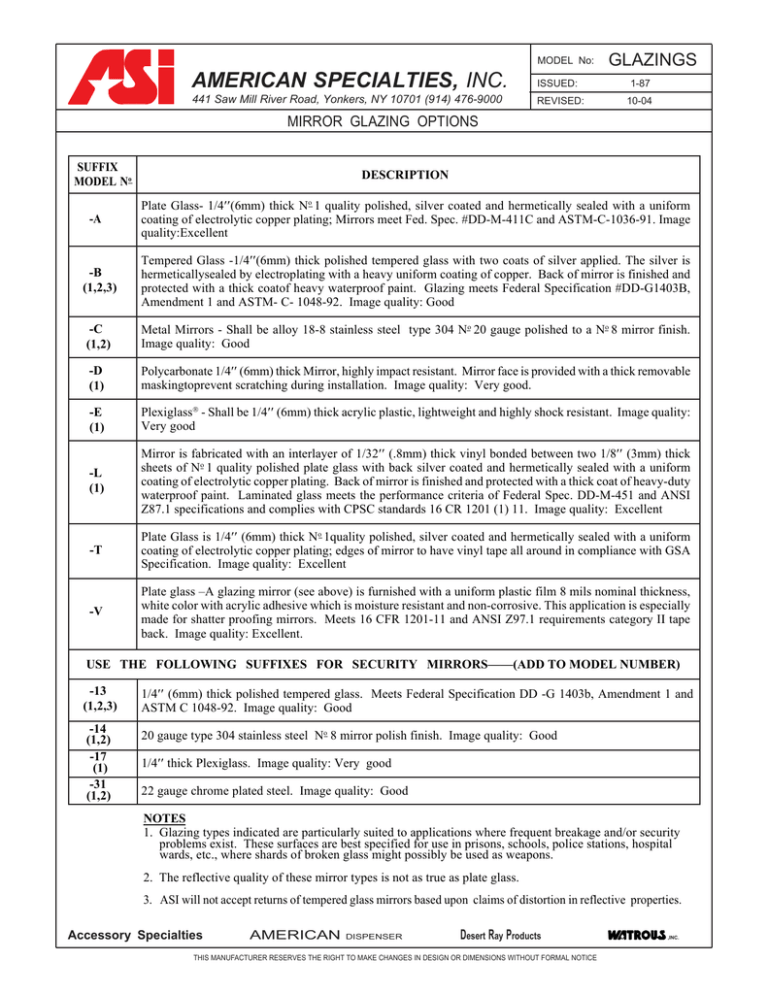

MIRROR GLAZING OPTIONS
SUFFIX
MODEL No
-A
DESCRIPTION
Plate Glass- 1/4′′(6mm) thick No 1 quality polished, silver coated and hermetically sealed with a uniform
coating of electrolytic copper plating; Mirrors meet Fed. Spec. #DD-M-411C and ASTM-C-1036-91. Image
quality:Excellent
-B
(1,2,3)
Tempered Glass -1/4′′(6mm) thick polished tempered glass with two coats of silver applied. The silver is
hermeticallysealed by electroplating with a heavy uniform coating of copper. Back of mirror is finished and
protected with a thick coatof heavy waterproof paint. Glazing meets Federal Specification #DD-G1403B,
Amendment 1 and ASTM- C- 1048-92. Image quality: Good
-C
(1,2)
Metal Mirrors - Shall be alloy 18-8 stainless steel type 304 No 20 gauge polished to a No 8 mirror finish.
Image quality: Good
-D
(1)
Polycarbonate 1/4′′ (6mm) thick Mirror, highly impact resistant. Mirror face is provided with a thick removable
maskingtoprevent scratching during installation. Image quality: Very good.
-E
(1)
Plexiglass - Shall be 1/4′′ (6mm) thick acrylic plastic, lightweight and highly shock resistant. Image quality:
Very good
-L
(1)
Mirror is fabricated with an interlayer of 1/32′′ (.8mm) thick vinyl bonded between two 1/8′′ (3mm) thick
sheets of No 1 quality polished plate glass with back silver coated and hermetically sealed with a uniform
coating of electrolytic copper plating. Back of mirror is finished and protected with a thick coat of heavy-duty
waterproof paint. Laminated glass meets the performance criteria of Federal Spec. DD-M-451 and ANSI
Z87.1 specifications and complies with CPSC standards 16 CR 1201 (1) 11. Image quality: Excellent
-T
Plate Glass is 1/4′′ (6mm) thick No 1quality polished, silver coated and hermetically sealed with a uniform
coating of electrolytic copper plating; edges of mirror to have vinyl tape all around in compliance with GSA
Specification. Image quality: Excellent
-V
Plate glass –A glazing mirror (see above) is furnished with a uniform plastic film 8 mils nominal thickness,
white color with acrylic adhesive which is moisture resistant and non-corrosive. This application is especially
made for shatter proofing mirrors. Meets 16 CFR 1201-11 and ANSI Z97.1 requirements category II tape
back. Image quality: Excellent.
USE THE FOLLOWING SUFFIXES FOR SECURITY MIRRORS——(ADD TO MODEL NUMBER)
-13
(1,2,3)
1/4′′ (6mm) thick polished tempered glass. Meets Federal Specification DD -G 1403b, Amendment 1 and
ASTM C 1048-92. Image quality: Good
-14
(1,2)
-17
(1)
-31
(1,2)
20 gauge type 304 stainless steel No 8 mirror polish finish. Image quality: Good
1/4′′ thick Plexiglass. Image quality: Very good
22 gauge chrome plated steel. Image quality: Good
NOTES
1. Glazing types indicated are particularly suited to applications where frequent breakage and/or security
problems exist. These surfaces are best specified for use in prisons, schools, police stations, hospital
wards, etc., where shards of broken glass might possibly be used as weapons.
2. The reflective quality of these mirror types is not as true as plate glass.
3. ASI will not accept returns of tempered glass mirrors based upon claims of distortion in reflective properties.
Accessory Specialties
AMERICAN
DISPENSER
Desert Ray Products
THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE
,INC.
