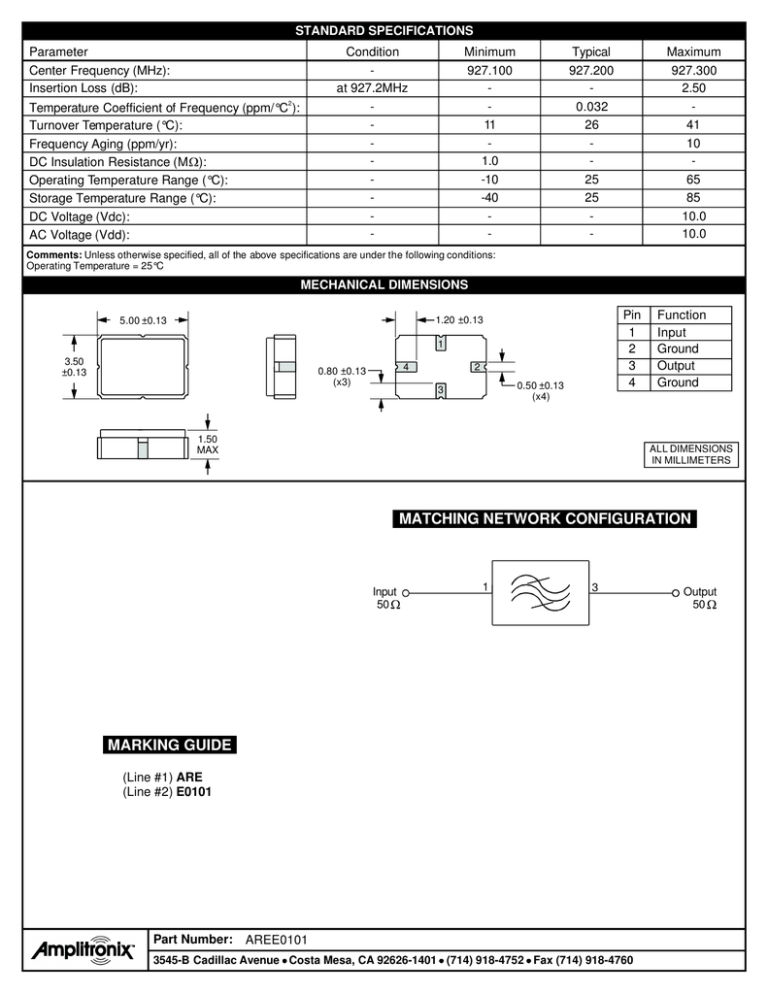

STANDARD SPECIFICATIONS
Parameter
Center Frequency (MHz):
Insertion Loss (dB):
Condition
at 927.2MHz
-
2
Temperature Coefficient of Frequency (ppm/°C ):
Turnover Temperature (°C):
Frequency Aging (ppm/yr):
DC Insulation Resistance (M ):
Operating Temperature Range (°C):
Storage Temperature Range (°C):
DC Voltage (Vdc):
AC Voltage (Vdd):
Minimum
927.100
11
1.0
-10
-40
-
Typical
927.200
0.032
26
25
25
-
Maximum
927.300
2.50
41
10
65
85
10.0
10.0
Comments: Unless otherwise specified, all of the above specifications are under the following conditions:
Operating Temperature = 25°C
MECHANICAL DIMENSIONS
Pin
1
2
3
4
1.20 ±0.13
5.00 ±0.13
1
3.50
±0.13
4
0.80 ±0.13
(x3)
2
0.50 ±0.13
(x4)
3
1.50
MAX
Function
Input
Ground
Output
Ground
ALL DIMENSIONS
IN MILLIMETERS
MATCHING NETWORK CONFIGURATION
Input
50
1
3
MARKING GUIDE
(Line #1) ARE
(Line #2) E0101
Part Number:
AREE0101
3545-B Cadillac Avenue Costa Mesa, CA 92626-1401 (714) 918-4752 Fax (714) 918-4760
Output
50
