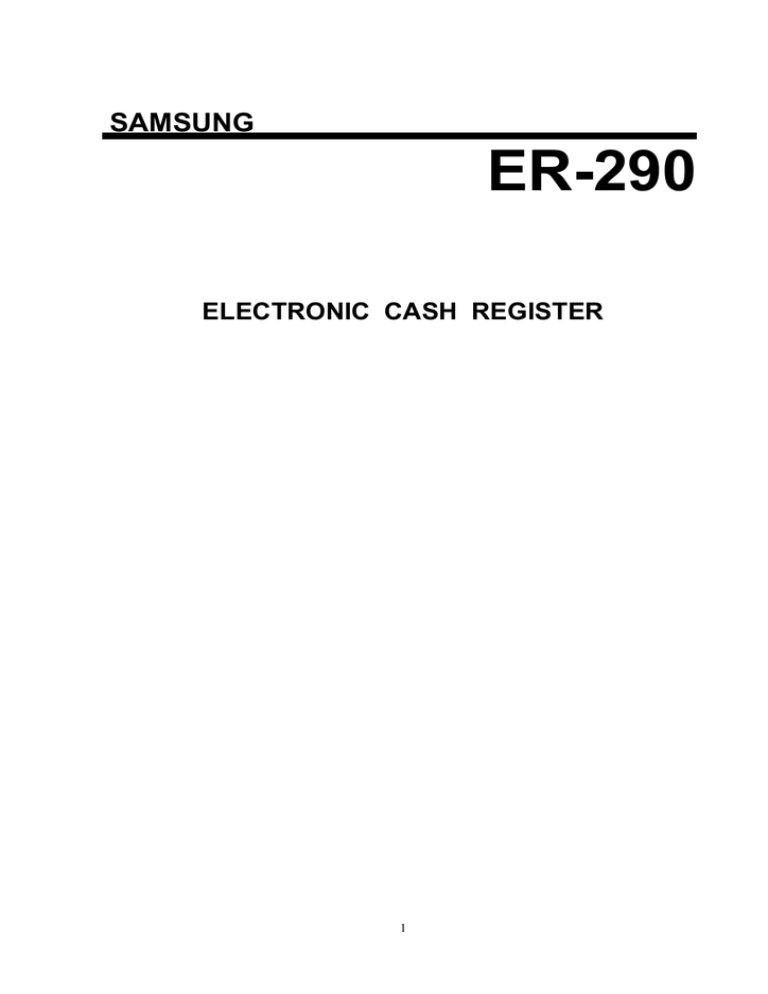

ER 290
SAMSUNG
ER-290
ELECTRONIC CASH REGISTER
1
1-2. CLEAR RANDOM ACCESS MEMORY(RAM) & INITIALIZE REGISTER ................................... 5
2
4-4-1. PERCENT ON A DEPARTMENT OR PLU ITEM FOR THE PRESET RATE.......................... 32
4-4-2. PERCENT ON A DEPARTMENT OR PLU FOR THE MANUAL RATE ................................... 33
3
INTRODUCTION
This Electronic Cash Register is designed for general retail applications requiring efficient management control and simplicity of operation.
How to use this manual :
This manual is divided into eight sections -
1. INITIAL SET-UP INSTRUCTION
- which guides the user through the initializing of this model,
changing the paper and ink ribbon.
2. BASIC FEATURES AND FUNCTIONS
- which shows keyboard layout, function key descriptions, control lock,
display, symbol indicators, error messages and battery system.
3. PROGRAMMING
- which lists programming options for Departments, PLUs, Function keys,
and system options.
This section is recommended for use by store owners and managers,
since programming can be somewhat complicated.
4. OPERATIONS
5. VOID OPERATIONS
- which guides the user through the basic operation of the ER-290.
The use of the function keys are included in this section.
6. REPORTS
- which lists financial reports, time report, PLU report, Clerk report,
Cash-in-drawer report, and Check-in-drawer report.
7. SYSTEM BALANCING
- which gathers Department sales total, Net total, Gross total and Grand total.
8. SPECIFICATION
- which lists the specification of ECR.
SAFETY NOTICE : The socket-outlet shall be installed near the equipment and shall be easily accessible.
4
INITIAL SET-UP INSTRUCTION
The following instructions describe how to unpack and start up the cash register.
1-1. UNPACK THE CASH REGISTER
1-1-1. Unpack and unwrap cash register.
1-1-2. Locate in the packing the following items.
· 1 roll of paper
· 1 ink ribbon
· 1 rewind spindle
· 1 set of control keys
1-1-3. Remove cardboard protectors from the cash drawer.
1-2. CLEAR RANDOM ACCESS MEMORY(RAM) & INITIALIZE REGISTER
1-2-1. Unplug the register.
1-2-2. Turn the control lock to MC position with control key.
1-2-3. Connect the AC plug into a power outlet while pressing
the C key.
1-2-4. When RAM is cleared of all memory, the register prints a line.
" . . . . . . . . . . C S "
NOTE!!. Do this once only.
Don't clear the RAM after the machine has been set up.
To do so would cause all programs and totals to be lost.
5
INITIAL SET-UP INSTRUCTION
1-3. INSTALL PAPER IN THE PRINTER
1-3-1. Remove the printer cover and cut or tear the end of
the paper roll evenly for the straight, even edge,
for proper feeding through the printhead.
1-3-2. Place paper roll in the paper holder so that paper
will feed from the bottom of the roll.
1-3-3. Insert the end of the paper into the paper slot of printer.
1-3-4. Depress the FEED key until the paper comes out about 20 from
the printer.
6
INITIAL SET-UP INSTRUCTION
1-3-5. For journal use: Insert the leading end of the paper into the paper
take-up spool, wind the paper two or three turns around the spool
shaft and install the spool in the mount.
1-3-6. For ticket use: Pass the outside plain tape through the window of the
printer cover and replace the printer cover.
CAUTION : When the printer cover is opened to change the paper, press the key carefully to avoid to be injured by the printer gear.
7
1-4. CHANGING RIBBON
1-4-1. Remove the printer cover.
1-4-2. Lift up ink ribbon.
1-4-3. Insert the new ink ribbon.
1-4-4. Replace the printer cover.
INITIAL SET-UP INSTRUCTION
8
BASIC FEATURES AND FUNCTIONS
2-1. KEYBOARD LAYOUT
FEED
CLER
K X/TM
+% -%
CAN
CEL RF VD
7
4
1
8
5
2
9
6
3
4
3
2
8
7
6
12
11
10
PLU RA
CHAR
GE PO
SUB
TOTA
L
CHEC
K
#/NS TAX C 0 00 .
1 5 9 CASH/TEND
FUNCTION KEY NUMERIC KEY DEPARTMENT, PLU, FUNCTION AND
TENDER KEY
2-2. FUNCTION KEY DESCRIPTIONS
FEED
00,0-9
- Used to advance printer paper.
- For all numeric entries in REG, X, Z, VOID, and PGM mode.
C
DPT(1-12) - These DEPARTMENT keys input possible in VOID, REG, and PGM mode.
Used to enter the classified commodities.
Unit price, HDLO, single item, TAX status can be programmed on each
department in PGM mode.
#/NS
- CLEAR key is used to clear errors made on keybord prior to pressing
the registration key. Also used to stop the error alarm when
incorrect entries are made.
X/TM
- #/NO SALE key inputs possible in PGM and REG mode.
Used to print the reference number and open the cash drawer in REG
mode.
Used to set up the machine number in PGM mode.
- X/TIME key is used to set up the time in PGM mode.
Used for multiplication of items entries in REG and VOID mode.
Used to read the TIME report in X mode.
Used to read and reset the TIME report in Z mode.
9
VD
RF
BASIC FEATURES AND FUNCTIONS
- VOID key is used for item void operation in REG and VOID mode.
- RETURN MERCHANDISE key is used for refund operation in REG mode.
Used to set up the decimal and tax information in PGM mode.
-
PLU
- MINUS key is used to register a negative amount in REG and VOID
mode.
Used to set up the TAX calculation status in PGM mode.
-% , +%
- PERCENT key is used to subtract or surcharge a percentage
from an item, or the subtotal in REG and VOID mode.
Used to set up the percent rate and TAX calculation status
in PGM mode.
- Used to register a Price Look Up(PLU) in REG and VOID mode.
Used to read the PLU report in X mode.
Used to read and reset the PLU report in Z mode.
Used to program the PLU in PGM mode.
RA
PO
- RECEIVED ON ACCOUNT key is used for received on account operation
outside of a sale in REG and VOID mode.
Used to set up system option with PAID OUT key in PGM mode.
- PAID OUT key is used for paid out operation outside of sale
in REG and VOID mode.
Used to set up function of the receipt buffer in REG and VOID mode.
Used to set up system option with RECEIVED ON ACCOUNT key
in PGM mode.
TAX - Used to set up the tax rate in PGM mode.
.
-0 DECIMAL key is used for numeric entries in REG, VOID, and PGM mode.
SUBTOTAL
- Used to obtain the subtotal of a sale in REG and VOID mode.
Used for the Cash-In-Drawer Declaration in X mode.
Used to set up the date and program the open department in PGM mode.
CHARGE
- CHARGE key is used to finalize the transaction in charge sales
in REG and VOID mode.
Used to read the P-T-D report in X mode.
Used to read and reset the P-T-D report in Z mode.
10
BASIC FEATURES AND FUNCTIONS
CHECK - Used to finalize the transaction in cheque sales in REG and VOID
mode.
Used to convert check into cash in REG mode.
CASH/TEND - Used to finalize cash sales in REG and VOID mode.
Used to calculate the change in REG and VOID mode.
Used to read the Daily financial report in X mode.
Used to read and reset Daily financial report in Z mode.
Used to read the programming report in PGM mode.
CLERK - The register will operate without any clerk signing on operation
in default status. However, all entries made on the register
will report to one of the 4 clerk totals.
Used to sign on and sign off in REG and VOID mode.
Used to set up clerk's secret code in PGM mode.
Used to read the Clerk Report in X mode.
Used to read and reset Clerk Report in Z mode.
CANCEL - Used to cancel transactions in REG and VOID mode.
11
BASIC FEATURES AND FUNCTIONS
2-3. CONTROL LOCK
The Keylock has 7 positions.
OFF
VOID REG
X
Z
PGM
Key locks are :
2-3-1.
2-3-2.
2-3-3.
2-3-4.
2-3-5.
2-3-6.
2-3-7.
'VOID' - Used for void operations outside of a sale.
'OFF'
'REG'
- The system is inoperable.
- Used for normal operations.
'X'
'Z'
'PGM'
'MC'
- Used to read the reports.
- Used to read the reports and reset totals to zero.
- Used for all register programming and to read
the programming report.
- Used for manager control operations.
NOTE !! All keys are removable in the OFF position or REG positions.
2-4. KEYS
The Keylock has 7 positions, accessed with 5 keys. Each ECR is shipped with
two full sets of keys.
2-4-1.
2-4-2.
2-4-3.
2-4-4.
2-4-5.
'REG'
'VD'
'Z'
'P'
'C'
- travels from 'OFF' to 'REG'.
- travels from 'VOID' to 'X'.
- travels from 'VOID' to 'Z'.
- travels from 'VOID' to 'PGM'.
- travels from 'VOID' to 'MC'.
12
BASIC FEATURES AND FUNCTIONS
2-5. DISPLAY
DPT RPT A M O U N T
1 2 3 4
CLERK
D P T
R P T
: Indicates the Department number of the last item entered.
: Indicates the number of times an item has been repeated or multiplied.
AMOU
NT
: Indicates the number of times an item has been repeated or multiplied
CLERK : Shows the current Clerk.
2-6. SYMBOL INDICATORS
* SYMBOL INDICATORS (1st digit)
CHANGE ERROR NEGATIVE TOTAL
2-7. ERROR MESSAGES
E0 : MEMORY FULL
- This message indicates that the Z report should be taken immediately
because sold data is too big.
Depress the key in Z mode.
E1 : KEY INPUT ERROR
- This message indicates an error condition.
Press the key to clear this error condition.
E9 : DISCONNECTION OF PRINTER, PAPER JAM
- Please turn the power off and fix the printer connector,
turn the power on again.
- Please turn the power off and remove the paper in the printer,
turn the power on again.
2-8. BATTERY SYSTEM
This model is equipped with a battery system that provides back up power to the register memory if the power cord is accidentally disconnected or if a power
interruption occurs.
The register program, the transaction totals, and the grand total will be retained
in the machine because of the memory protection feature. The average span of life
is approximately 60 days after a power interruption.
These batteries recharge automatically when the machine is plugged in.
13
PROGRAMMING
Setting up features before use.
When you finish with this program, make it a rule to depress the CASH/TEND
key.
*TURN CONTROL LOCK POSITION TO PGM MODE.
3-1. SYSTEM OPTION
System option is provided for your selections of this model's functions
according to the your requirements.
It is provided for 22 varieties and its default status is mostly zero.
You can set it up according to your preference with the RA key and
the PO key.
System option has its own number beteen 1 and 22.
See the example below:
n1 n2 - RA - n3 - PO
└─┘ └ Status
System option No.
NOTE !! Refer to STATUS TABLE about status.
Example. Now, let's set up system option.
Set up allowing Post tender, Check cashing, Clerk and Receipt Buffer function.
1 7 RA 1 PO
1 8 RA 1 PO
1 9 RA 1 PO
2 1 RA 1 PO
@ 1 7 1 S O
@ 1 8 1 S O
@ 1 9 1 S O
@ 2 1 1 S O
14
STATUS TABLE
No.
1
S Y S T E M O P T I O N
Print GRAND TOTAL in X,Z report.
2 Print GROSS TOTAL in X,Z report.
3
4
Select printing DATE & TIME on all report.
- Print DATE & TIME all.
- Print only DATE.
- Print only TIME.
- Not print DATE & TIME all.
Reset CONSECUTIVE NUMBER after Z report.
5 Reset COUNTER after Z report.
6 ZERO SKIP on X,Z report
7 Reset GRAND TOTAL after Z report
8 Print SUBTOTAL.
9 Select DRAWER COMPULSORY.
10 Select Cash-In-Drawer COMPULSORY.
11 Select X REPORT ALLOWED.
PROGRAMMING
STATUS
YES = 0
NO = 1
YES = 0
NO = 1
NO = 0
YES = 1
NO = 0
YES = 1
NO = 0
YES = 1
NO = 0
YES = 1
0
1
2
3
NO = 0
YES = 1
NO = 0
YES = 1
NO = 0
YES = 1
YES = 0
NO = 1
15
No.
S Y S T E M O P T I O N
12 Print data of VOID position in report
Select information of TAX
13 - Not print Taxable Total.
- Print Taxable Total.
14
TAX and % calculation.
15
Decimal multiplication and split pricing calculation.
Select information of rounding
- NONE Rounding.
- EUROPEAN Rounding.
- Print separately TAX Amount.
- Print TAX Amount Total.
- Not Print TAX Amount.
- Print separately TAX Amount.
- Print TAX Amount Total.
- Not Print TAX Amount.
Raised / Discarded.
Discarded.
Round up.
Raised / Discarded.
Discarded.
Round up.
PROGRAMMING
STATUS
YES = 0
NO = 1
0
1
0
1
2
0
1
2
0
1
2
3
4
5
16
- SWEDEN Rounding.
- DENMARK Rounding.
- FINLAND Rounding.
0.00 - 0.02 = 0.00
0.03 - 0.07 = 0.05
0.08 - 0.09 = 0.10
0.00 - 0.24 = 0.00
0.25 - 0.74 = 0.50
0.75 - 0.99 = 1.00
0.00 - 0.12 = 0.00
0.13 - 0.37 = 0.25
0.38 - 0.62 = 0.50
0.63 - 0.87 = 0.75
0.88 - 0.99 = 1.00
0.00 - 0.04 = 0.00
0.05 - 0.09 = 0.10
2
3
4
17 Allow Post Tender.
18 Allow Check Cashing.
NO = 1
YES = 0
NO = 1
YES = 0
16
No.
S Y S T E M O P T I O N
Select Information of Clerk
19 - Not allow function of Clerk
- Allow function of Clerk as Stay down mode.
- Allow function of Clerk as Pop up mode.
Select the DATE sequence.
20 Day - Month - Year
Month - Day - Year
Year - Month - Day
19 Allow function of Receipt Buffer.
20 Printing the SALE ITEM COUNTER in Receipt.
PROGRAMMING
STATUS
0
1
2
0
1
2
NO = 1
YES = 0
NO = 1
YES = 0
=> INITIAL STATUS
17
PROGRAMMING
3-2. DECIMAL POINT & TAX INFORMATION
This programming is for setting up the decimal point and tax information.
Decimal point information comes in four varieties - from 0 to 3 and tax information comes in two varieties - VAT, ADD ON TAX.
If you want to set up this information, do it as below.
n1 n2 - RF
│ └────────────────── Tax information
Decimal point information - 0 -> 2 Decimal point 0 -> VAT (Value Added Tax)
1 -> 0 Decimal point 1 -> ADD ON TAX
2 -> 1 Decimal point
3 -> 3 Decimal point
Example. 2 Decimal point and VAT version
0 0 - RF * . . . . . . . . 0 0 T D
3-3.TAX RATE
As previously stated this model has two separate tax rates.
These rates are set up and calculated between 0.001% and 99.999%.
Each tax has a number which is classified by item.
n1 - RA
── Select Tax No.(1 - 4)
n2 n3 . n4 n5 n6 - TAX
└───────-──┘
tax rate(0.000%- 99.999%)
Example. Tax rate of VAT 1 is 8.000% or tax rate of ADD ON TAX 1 is 8.000%.
1
── Select Tax 1
8
· 0 0 0 ── Rate
* . . . . . 8 . 0 0 0 T 1
3-4. PERCENT(%)
Percent(%) key is programmed either positive or negative, as an open or preset amount of percentage.
This is set up and calculated between 0.001% and 99.999%.
The status of Percent key has two options.
One is that tax calculated before percent rate is applied, and the other is that tax calculated after percent rate is applied.
n1 - RA
── Select Status
└─── STATUS : 0 -> Tax calculated before percent rate is applied.
1 -> Tax calculated after percent rate is applied.
┌ -%
n2 n3 . n4 n5 n6 - |
└ +%
└────────┘
Percent rate(0.000%-99.999%)
Example. -% is 10.000% and Tax calculated before percent rate is applied.
0 RA
── Select the Status
* . . . . 1 0 . 0 0 0 - %
18
1 0
· 0 0 0 -%
PROGRAMMING
3-5. MINUS(-)
This is for a discount and it can use amount of discount.
The status has two varieties as the percent key.
n1 - -
└ STATUS : 0 -> Tax calculated before discount is applied.
1 -> Tax calculated after discount is applied.
Example. Tax calculated after discount is applied.
1 -
3-6. CLERK
You can use the Clerk function as standard.
Or you can set up the System option to allow.
You can input a secret code for each clerk.
The secret code is made up of 3 figures, which are numbers
between 100 and 999.
Each clerk has his own number between 1 and 4.
To operate 4 clerks.
Refer to the System option No.19, please.
Clerk of System option is divided three modes.
One is not setting up the Clerk function, another is setting up clerk function
Stay down mode, and the other is Pop up mode.
Stay down mode is typically used in supermarkets where only one operator
uses the register in a time period.
Pop up mode signs off the operator automatically after each receipt.
This mode is used in restaurants or similar types of stores where servers
one after the other are using the register during the same period.
* . . . . . . . . . 1 -
NOTE !! Refer to 3-1. SYSTEM OPTION about Clerk.
3-6-1. SETTING UP SECRET CODE OF CLERK
The method of setting up secret code numbers for clerks is as follows.
CLERK - n1 n2 n3 n4 - CLERK
└────┘ └ Clerk No.
Secret code
Example. Set up the secret code of clerk1, 123.
Set up the secret code of clerk2, 222.
CLERK 1 2 3 1 CLERK
CLERK 2 2 2 2 CLERK
* 1 # S
* 2 # S
19
PROGRAMMING
3-6-2. CHANGING THE SECRET CLERK CODE
You can change the existing secret code of a clerk.
By inputting the old secret No. followed by the new secret No. of the clerk.
CLERK - n1 n2 n3 n4 n5 n6 n7 n8 - CLERK
└─────┘ │ └─────┘ │
Old secret No.
│ New secret No. │
│ │
└ Same clerk No. ┘
Example. Change the secret code of clerk1 123 to 111.
CLERK 1 2 3 1 1 1 1 1 CLERK
* 1 . . . . . . . . . # S
3-6-3. CONFIRMING THE CLERK
If you want to confirm, do the follows.
Press the numeric key 9 and then the CLERK key.
9 - CLERK
* 1 1 1 1
* 2 2 2 2
* 3 0 0 0
* 4 0 0 0
0 0 0 0 0 1
1 5 . 2 6 0 0
3-6-4. CANCEL THE CLERK INFORMATION
To cancel the secret code of all clerks.
Press the numeric key 0 and then the CLERK key .
* . . . . . . . . . . C L
0 0 0 0 0 2
1 5 . 2 6 0 0
20
PROGRAMMING
3-7. DEPARTMENT
This programming consists of two parts.
One is OPEN DEPARTMENT, and the other is PRESET PRICE DEPARTMENT.
Each department can be programmed as OPEN or PRESET PRICE.
3-7-1. OPEN DEPARTMENT
This is consist of HDLO(High Digit Lock Out) and status.
HDLO means entries above a limit are not allowed.
How to alter status.
Status is whether the department is single item or not and what its tax is.
SUBTOAL - n1 n2 - DEPARTMENT
NOTE !! The expression of DEPARTMENT key is alternated with DPT key from now on.
n1 : number of HDLO n2 : number of single item and tax status
4
5
2
3
6
7
NO L I M I T
0 no HDLO (same as 7)
1 0.01 - 0.09
0.01 - 0.99
0.01 - 9.99
0.01 - 99.99
0.01 - 999.99
0.01 - 9999.99
0.01 - 99999.99
3
4
1
2
NO
NOT SINGLE ITEM
TAXBLE BY...
0 Non-taxable
TAX 1
TAX 2
TAX 3
TAX 4
8
9
6
7
NO
SINGLE ITEM
TAXBLE BY...
5 Non-taxable
TAX 1
TAX 2
TAX 3
TAX 4
Example. Department3 : 4 HDLO, Not single item, Non-taxable
Department4 : 5 HDLO, Single item, Taxable by TAX1
SUBTOTAL 4 0 DPT3
SUBTOTAL 5 6 DPT4
3-7-2. PRESET PRICE DEPARTMENT
Preset price department consists of preset price and status.
Preset price can be programmed up to seven digits.
Status is equal to open department's.
The sequence of inputting is as follows.
3 . . . . . . . . . 4
4 . . . . . . . . . 5 T 1
n1 n2 n3 n4 n5 n6 n7 n8 - DPT
└─────────────────┘ └ Status(same as open department)
Preset price
Example. Department1 : Price is 10.00, Not single item, Taxable by TAX1
Department2 : Price is 20.00, Not single item, Taxable by TAX2
1 0 0 0 1 DTP1
2 0 0 0 2 DPT2
1 . . . . . 1 0 . 0 0 T 1
2 . . . . . 2 0 . 0 0 T 2
21
PROGRAMMING
3-8. PLU (Price Look Up)
PLU programming is similar to department programming.
Each PLU can be programmed as OPEN or PRESET PRICE.
The difference is that PLU numbers must be between 1 and 300 and that
PLU's are linked to each department.
The PLU numbers are between 1 and 300.
3-8-1. OPEN PLU
n1 n2 n3 - PLU - SUBTOTAL - n4 n5 - DPT
└─────┘ │ └ Status (same as open department)
PLU No.(1 - 300) HDLO(same as open department)
Example. PLU25, 4 HDLO, Not single item, Non-taxable, Linked department1
2 5 PLU
── PLU No.
SUBTOTAL 4 0 DPT1
── Open
Department
* 0 2 5
1 . . . . . . . . . 4
NOTE !! Refer to 3-7-1. OPEN DEPARTMENT about HDLO and status.
3-8-2. PRESET PRICE PLU
n1 n2 n3 - PLU - n4 n5 n6 n7 n8 n9 n10 n11 - DPT
└────┘ └────────────┘ └ Status
PLU No.(1 - 300) Preset price (same as open department)
Eaxmple. PLU12, Price is 2.50, Not single item, Taxable by TAX1, Linked department1
1 2 PLU
── PLU No.
2 5 0 1 DPT1
── Preset price
Department
* 0 1 2
1 . . . . . . 2 . 5 0 T 1
NOTE !! Refer to 3-7-1. OPEN DEPARTMENT about status information.
22
PROGRAMMING
3-9. DATE
This is related to date sequence.
You have to program according to following date sequence.
n1 n2 n3 n4 n5 n6 - SUBTOTAL
NOTE !! Day is allowed 1 to 31, month is allowed 1 to 12, year is consist of a number of two figures.
Refer to SYSTEM OPTION 20 DATE SEQUENCE .
Example. To set December 25,1997
2 5 1 2 9 7 SUBTOTAL
Day - Month - Year
1 2 2 5 9 7 SUBTOTAL
Month - Day - Year
9 7 1 2 2 5 SUBTOTAL
Year - Month – Day
2 5 - 1 2 - 1 9 9 7
1 2 - 2 5 - 1 9 9 7
1 9 9 7 - 1 2 - 2 5
3-10. TIME
Enter the hour and minutes using the 24 hour clock and
press the X/M key.
n1 n2 n3 n4 - X/M
└──┘ └──┘
Hour Minute
Example. Current time is 3:25 p.m.
1 5 2 5 X/M 1 5 . 2 5
3-11. REGISTER NUMBER
You can set up a register number which consists of 2 figures.
n1 n2 - #/NS
Example. Set up this register number as 30.
3 0 #/NX
NOTE !! After depressing the CASH/TEND key,
you can finish setting up function in PGM mode.
* . . . . . . . . 3 0 #
0 0 0 0 0 3
1 5 . 2 5 3 0
3-12. RECEIPT/JOURNAL
The default state of this program is the RECEIPT status.
This means that the receipt is issued with stamp.
If you select the JOURNAL status, the stamp is not operational.
It works by toggle with the PO key in X mode.
See the follows.
9 9 9 9 PO
23
PROGRAMMING
3-13. READ THE PROGRAMMING REPORT
You can confirm what you have set up to now.
By pressing the CASH/TEND key without any other key in PGM mode.
* TURN CONTROL LOCK POSITION TO PGM MODE.
Now, you are ready to operate the register.
PROGRAMMING CONTENTS
YOUR RECEIPT
THANK YOU
2 5 - 1 2 - 1 9 9 7
7 1
1 . . . . . 1 0 . 0 0 T 1
7 2
2 . . . . . 2 0 . 0 0 T 2
4 0
3 . . . . . . 0 . 0 0
5 6
4 . . . . . . 0 . 0 0 T 1
7 0
5 . . . . . . 0 . 0 0
7 0
6 . . . . . . 0 . 0 0
7 0
7 . . . . . . 0 . 0 0
7 0
8 . . . . . . 0 . 0 0
7 0
9 . . . . . . 0 . 0 0
7 0
1 0 . . . . . 0 . 0 0
7 0
1 1 . . . . . 0 . 0 0
7 0
1 2 . . . . . 0 . 0 0
* . . . . . 8 . 0 0 0 T 1
* . . . . . 0 . 0 0 0 T 2
* . . . . . 0 . 0 0 0 T 3
* . . . . . 0 . 0 0 0 T 4
- STAMP
- HDLO, SINGLE ITEM and VAT STATUS
- DEPT. NO., UNIT PRICE, TAX SYMBOL
- TAX 1 RATE
- TAX 2 RATE
- TAX 3 RATE
24
- TAX 4 RATE
* . . . . . . . . . 0 - %
* . . . . 1 0 . 0 0 0 - %
* . . . . . . . . . 0 + %
* . . . . . 0 . 0 0 0 + %
* . . . . . . . . . 1 -
* . . . . . . . . 0 0 T D
- -% TAX CALCULATION STATUS
- -% RATE
- +% TAX CALCULATION STATUS
- +% RATE
- (-) TAX CALCULATION STATUS
- DECIMAL POINT & TAX INFORMATION
@ 0 1 0 S 0
@ 0 2 0 S 0
@ 0 3 0 S 0
@ 0 4 0 S 0
@ 0 5 0 S 0
@ 0 6 0 S 0
@ 0 7 0 S 0
@ 0 8 0 S 0
@ 0 9 0 S 0
@ 1 0 0 S 0
@ 1 1 0 S 0
@ 1 2 0 S 0
@ 1 3 0 S 0
@ 1 4 0 S 0
@ 1 5 0 S 0
@ 1 6 0 S 0
@ 1 7 1 S 0
@ 1 8 1 S 0
@ 1 9 1 S 0
@ 2 0 0 S 0
- SYSTEM OPTION
4. OPERATIONS
@ 2 2 0 S 0
Now, you can operate this model.
- PLU NO., HDLO, TAX/SINGLE ITEM
- LINKED DEPARTMENT NO., PRESET PRICE, TAX
REG mode
.
1 . . . . . . 0 . 0 0
* TURN CONTROL LOCK POSITION TO REG MODE.
1 5 . 2 6 3 0 - RECEIPT NO.
25
OPERATION
4-1-1. CLERK SIGN ON
You have to program the System option about Clerk and set up the
secret code of the Clerk before operating the Clerk function.
The system option has three types.
One is used without the Clerk function, another is the Stay down mode,
and the other is the Pop up mode.
You have to operate according to how the System option was programmed.
Two ways of operation are be available
- Stay down operation
- Pop up operation
Stay down operation requires a manual sign off.
This mode is typically used in Supermarkets where only one operator uses
the register in a time period.
Pop up operation signs off the operator automatically after each receipt.
Therefore you have to sign on the operator before operating this model.
This mode is used in restaurants or similar types of stores where servers
one after the other are using the register during the same period.
NOTE !! Refer to 3-1. SYSTEM OPTION and 3-6. CLERK.
4-1-1. CLERK SIGN ON
If the System option about Clerk is set up, operate as follows:
Then the end of display is showed the comma.
n1 n2 n3 n4 -
└─────┘ └ Clerk No.
Secret code
Example. The Secret code of Clerk 1 is 111.
You operate Clerk 1 in Stay down mode.
1 1 1 1 CLERK
* 1 C O
* 1 0 0 0 0 0 5
1 5 . 2 6 3 0
4-1-2. CLERK SIGN OFF
When you sign off current Clerk, depress the O key and the CLERK key
in order. Then the end of display is not showed the comma.
26
4-2. DEPARTMENT
This operation is when you enter a sales item using the department key.
Watch the display when you are operating this key.
One digit of the display indicate department No. and items.
4-2-1. OPEN DEPARTMENT
OPERATION
You will probably have programmed the department before using this model.
Do you remember the word, "HDLO(High Digit Lock Out)"?
HDLO is means that entries above a limit are not allowed.
If you did not set up HDLO of department, it is set up default status - 7.
Let's operate the follows.
Example. Sale price 1.00 of the department1, price 2.00 of the department2,
price 3.00 of the department3.
1 0 0 DPT1
2 0 0 DPT2
2 5 - 1 2 - 1 9 9 7
3 0 0 DPT3
CASH/TEND
4-2-2. PRESET PRICE DEPARTMENT
1 . . . . . . 1 . 0 0 T 1
2 . . . . . . 2 . 0 0 T 2
3 . . . . . . 3 . 0 0
* . . . . . . 6 . 0 0 C A
* . . . . . . 0 . 0 7 T 1
* 1 0 0 0 0 0 6
1 5 . 2 6 3 0
You have programmed preset price of department before.
You can operate the department without numeric key because of
presetting of the department key.
See as follows.
2 5 - 1 2 - 1 9 9 7
DPT2
── Preset Department
CASH/TEND
── Tender
2 . . . . . 2 0 . 0 0 T 2
* . . . . . 2 0 . 0 0 C A
* 1 0 0 0 0 0 7
1 5 . 2 6 3 0
4-2-3. DEPARTMENT REPEAT ENTRY
2 5 - 1 2 - 1 9 9 7
This is applied to either open or preset price department.
Depress again the department key used for the item just
entered and repeat as many times as required.
This also applies to PLU.
4 0 0 DPT2 DPT2
── Overriding
department
DPT1 DPT1
── Preset price
department
CASH/TEND
── Tender
2 . . . . . . 4 . 0 0 T 2
2 . . . . . . 4 . 0 0 T 2
1 . . . . . 1 0 . 0 0 T 1
1 . . . . . 1 0 . 0 0 T 1
* . . . . . 2 8 . 0 0 C A
* . . . . . . 1 . 4 8 T 1
* 1 0 0 0 0 0 8
1 5 . 2 6 3 0
27
OPERATION
4-2-4. DEPARTMENT MULTIPLICATION
When more than three items are to be entered with the same Department
and price, the Mulplication is quicker than the Repeat Entry.
Quantity is consists of 4 figures(1 to 9999) using the X/TM key.
2 5 - 1 2 - 1 9 9 7
This is also applied to PLU.
It is as follows.
* . . . . . . . . . 2 X
2 X/TM
─── Quantity
@ . . . . . . 5 . 0 0
1 . . . . . 1 0 . 0 0 T 1
5 0 0 DPT1
─── In case of Open Department
3 X/TM
─── Quantity
* . . . . . . . . . 3 X
@ . . . . . 2 0 . 0 0
DPT2
─── In case of Preset
Price Department
CASH/TEND
─── Tender
2 . . . . . 6 0 . 0 0 T 2
* . . . . . 7 0 . 0 0 C A
* . . . . . . 0 . 7 4 T 1
* 1 0 0 0 0 0 9
1 5 . 2 6 3 0
4-2-5. DEPARTMENT MULTIPLICATION WITH DECIMAL POINT
1
· 2 X/TM ── Multiple Department with decimal point
2 5 - 1 2 - 1 9 9 7
1 0 0 DPT5
── Sale Department item
CASH/TEND
── Tender
* . . . . . 1 . 2 0 0 X
@ . . . . . . 1 . 0 0
5 . . . . . . 1 . 2 0
* . . . . . . 1 . 2 0 C A
* 1 0 0 0 0 1 0
1 5 . 2 6 3 0
4-2-6. SPLIT PRICING
2 X/TM
── Sale item
3 X/TM
── Set item
1 0 0 DPT6
── Price of set item
CASH/TEND
── Tender
2 5 - 1 2 - 1 9 9 7
* . . . . . . . . . 2 X
* . . . . . . . . . 3 X
@ . . . . . . 1 . 0 0
6 . . . . . . 0 . 6 7
* . . . . . . 0 . 6 7 C A
* 1 0 0 0 0 1 1
1 5 . 2 7 3 0
28
OPERATION
4-2-7. SINGLE ITEM DEPARTMENT
For example if Department 4 is programmed as a single item, Department 4
will not operate as a single sale if another department has already
been used.
And this is applies to open or preset price departments.
2 5 - 1 2 - 1 9 9 7
4 0 0 0 DPT4
4-3. PLU (Price Look Up)
4 . . . . . 4 0 . 0 0 T 1
* . . . . . 4 0 . 0 0 C A
* . . . . . . 2 . 9 6 T 1
* 1 0 0 0 0 1 2
1 5 . 2 7 3 0
This operation is similar to Department.
Only difference is that PLU is programmed before.
4-3-1. OPEN PLU
2 5 - 1 2 - 1 9 9 7
2 5 PLU
── PLU No.
5 0 0 PLU
── Price
CASH/TEND
── Tender
* 0 2 5
1 . . . . . . 5 . 0 0
* . . . . . . 5 . 0 0 C A
* 1 0 0 0 0 1 3
1 5 . 2 7 3 0
4-3-2. PRESET PRICE PLU
1 2 PLU
── PLU No.
2 5 - 1 2 - 1 9 9 7
CASH/TEND
── Tender
4-3-3. PLU OVERRIDING
* 0 1 2
1 . . . . . . 2 . 5 0 T 1
* . . . . . . 2 . 5 0 C A
* . . . . . . 0 . 1 9 T 1
* 1 0 0 0 0 1 4
1 5 . 2 7 3 0
Press the RA key before entering the number of the PLU in case of
overriding of the preset PLU.
RA
── PLU Overriding
1 2 PLU
── Preset PLU
7 5 0 PLU
── Price
2 5 - 1 2 - 1 9 9 7
29
* 0 1 2
1 . . . . . . 7 . 5 0 T 1
* . . . . . . 7 . 5 0 C A
* . . . . . . 0 . 5 6 T 1
* 1 0 0 0 0 1 5
1 5 . 2 7 3 0
CASH/TEND
── Tender
4-3-4. PLU REPEAT ENTRY
1 2 PLU
── PLU No.
PLU
── PLU repeat entry
CASH/TEND
── Tender
OPERATION
2 5 - 1 2 - 1 9 9 7
* 0 1 2
1 . . . . . . 2 . 5 0 T 1
* 0 1 2
1 . . . . . . 2 . 5 0 T 1
* . . . . . . 5 . 0 0 C A
* . . . . . . 0 . 3 7 T 1
* 1 0 0 0 0 1 6
1 5 . 2 7 3 0
30
OPERATION
4-3-5. PLU MULTIPLICATION
2 X/TM
── Quantity
2 5 PLU
─┐
│ Open PLU
5 0 0 PLU
─┘
3 X/TM
── Quantity
1 2 PLU
── Preset PLU
CASH/TEND
── Tender
2 5 - 1 2 - 1 9 9 7
* . . . . . . . . . 2 X
@ . . . . . . 5 . 0 0
* 0 2 5
1 . . . . . 1 0 . 0 0
* . . . . . . . . . 3 X
@ . . . . . . 2 . 5 0
* 0 1 2
1 . . . . . . 7 . 5 0 T 1
* . . . . . 1 7 . 5 0 C A
* . . . . . . 0 . 5 6 T 1
* 1 0 0 0 0 1 7
1 5 . 2 8 3 0
4-3-6. PLU MULTIPLICATION WITH DECIMAL POINT
1
· 2 X/TM ── Quantity
2 5 PLU
── PLU No.
2 0 0 PLU
── Price
CASH/TEND
── Tender
4-3-7. SPLIT PRICING
2 X/TM
── Sale item
3 X/TM
── Set item
1 2 PLU
── PLU
CASH/TEND
── Tender
4-3-8. SINGLE ITEM
2 5 - 1 2 - 1 9 9 7
* . . . . . 1 . 2 0 0 X
@ . . . . . . 2 . 0 0
* 0 2 5
1 . . . . . . 2 . 4 0
* . . . . . . 2 . 4 0 C A
* 1 0 0 0 0 1 8
1 5 . 2 8 3 0
2 5 - 1 2 - 1 9 9 7
* . . . . . . . . . 2 X
* . . . . . . . . . 3 X
@ . . . . . . 2 . 5 0
* 0 1 2
1 . . . . . . 1 . 6 7 T 1
* . . . . . . 1 . 6 7 C A
* . . . . . . 0 . 1 2 T 1
* 1 0 0 0 0 1 9
1 5 . 2 8 3 0
When PLU is set up as single item, operate this function like a Department.
31
OPERATION
4-4 . PERCENT
These keys are used to add or subtract a percent rate to or from an individual sale entry item or the entire sale.
Each of the keys can function with a rate manually entered or a preset rate.
To activate the preset rate entry, rate setting is necessary.
4-4-1. PERCENT ON A DEPARTMENT OR PLU ITEM FOR THE PRESET RATE
┌ DPT ┐ ┌ -%
│ │ │
└ PLU ┘ └ +%
Example. Preset rate Percent discount is 10.000%.
1 0 0 0 DPT1
── Sale item
-%
── Percent discount on Preset rate
CASH/TEND
── Tender
2 5 - 1 2 - 1 9 9 7
1 . . . . . 1 0 . 0 0 T 1
* . . . . 1 0 . 0 0 0 - %
* . . . . . - 1 . 0 0
* . . . . . . 9 . 0 0 C A
* . . . . . . 0 . 7 4 T 1
* 1 0 0 0 0 2 0
1 5 . 2 8 3 0
32
OPERATION
4-4-2. PERCENT ON A DEPARTMENT OR PLU FOR THE MANUAL RATE
You can operate this key without the preset rate.
The manual rate is the number of 5 figures between 0 % and 99.999 %.
┌ -%
n1 n2 n3 n4 n5 -
│
└ +%
└─────────┘
Manual rate
Example. The price of Department 1 is 10.00 and Percent discount is 5.000%.
1 0 0 0 DPT1
── Sale item
5
· 0 0 0 -% ── Percent discount on manual rate
2 5 - 1 2 - 1 9 9 7
CASH/TEND
── Tender
1 . . . . . 1 0 . 0 0 T 1
* . . . . . 5 . 0 0 0 - %
* . . . . . - 0 . 5 0
* . . . . . . 9 . 5 0 C A
* . . . . . . 0 . 7 4 T 1
* 1 0 0 0 0 2 1
1 5 . 2 8 3 0
33
OPERATION
4-4-3. PERCENT ON SALE TOTAL
┌ -%
SUBTOTAL -
│ In case of preset rate
└ +%
┌ -%
SUBTOTAL - n1 n2 . n3 n4 n5 -
│ In case of the manual rate
└ +%
└─────────┘
Manual rate
Example. In case of Preset rate percent discount is 10.000%.
3 0 0 0 DPT3
── Sale item
SUBTOTAL
── Output subtotal
-%
── Percent discount
on preset rate
CASH/TEND
── Tender
Example. In case of Manual rate percent discount is 5.000%.
1 0 0 0 DPT1
── Sale item
5
3 0 0 0 DPT2
SUBTOTAL
── Output subtotal
· 0 0 0 -% ── Percent discount on manual rate
CASH/TEND
── Tender
2 5 - 1 2 - 1 9 9 7
3 . . . . . 3 0 . 0 0
* . . . . . 3 0 . 0 0 S T
* . . . . 1 0 . 0 0 0 - %
* . . . . . - 3 . 0 0
* . . . . . 2 7 . 0 0 C A
* 1 0 0 0 0 2 2
1 5 . 2 8 3 0
2 5 - 1 2 - 1 9 9 7
1 . . . . . 1 0 . 0 0 T 1
2 . . . . . 3 0 . 0 0 T 2
* . . . . . 4 0 . 0 0 S T
* . . . . . 5 . 0 0 0 - %
* . . . . . - 2 . 0 0
* . . . . . 3 8 . 0 0 C A
* . . . . . . 0 . 7 4 T 1
* 1 0 0 0 0 2 3
1 5 . 2 8 3 0
34
OPERATION
4-5. RETURN MERCHANDISE
This operation is used to return merchandise.
See the follows.
┌ DPT
RF
│ -- In case of Preset price
└ n1 n2 n3 PLU
┌ n1 n2 n3 n4 n5 n6 n7 - DPT -- In case of Manual price
│ └───────────┘
RF
│ Price
│
└ RA - n1 n2 n3 - PLU - n4 ... n10 - PLU ── PLU overriding
└───┘ └───┘
PLU No. Price
Example. PLU 12 has Preset price, 2.50.
RF
── Return
merchandise
1 2 PLU
── Preset PLU 12
CASH/TEND
── Tender
2 5 - 1 2 - 1 9 9 7
- - - - - - - - - - R T
* 0 1 2
1 . . . . . - 2 . 5 0 T 1
* . . . . . - 2 . 5 0 C A
* . . . . . - 0 . 1 9 T 1
* 1 0 0 0 0 2 4
1 5 . 2 9 3 0
Example. Return Department 1, 5.00.
RF
── Return
merchandise
5 0 0 DPT1
── Sale item
CASH/TEND
── Tender
2 5 - 1 2 - 1 9 9 7
- - - - - - - - - - R T
1 . . . . . - 5 . 0 0 T 1
* . . . . . - 5 . 0 0 C A
* . . . . . - 0 . 3 7 T 1
* 1 0 0 0 0 2 5
1 5 . 2 9 3 0
35
OPERATION
4-6. VOID
4-6-1. LAST ITEM VOID / ERROR ITEM
This key corrects the last item or voids the last item only.
1 0 0 0 DPT1
── Sale item
2 0 0 0 DPT4
VD
── Void or Correct
the last item
CASH/TEND
── Tender
1 2 PLU
── Preset PLU 12
PLU
── Repeat Entry
VD
── Void or Correct
the last item
1 2 VD PLU
── Void previous item
CASH/TEND
── Tender
2 5 - 1 2 - 1 9 9 7
1 . . . . . 1 0 . 0 0 T 1
4 . . . . . 2 0 . 0 0 T 1
- - - - - - - - - - V 1
4 . . . . - 2 0 . 0 0 T 1
* . . . . . 1 0 . 0 0 C A
* . . . . . . 0 . 7 4 T 1
* 1 0 0 0 0 2 6
1 5 . 2 9 3 0
2 5 - 1 2 - 1 9 9 7
* 0 1 2
1 . . . . . . 2 . 5 0 T 1
* 0 1 2
1 . . . . . . 2 . 5 0 T 1
- - - - - - - - - - V 1
* 0 1 2
1 . . . . . - 2 . 5 0 T 1
- - - - - - - - - - V 1
* 0 1 2
1 . . . . . - 2 . 5 0 T 1
* . . . . . . 0 . 0 0 C A
* 1 0 0 0 0 2 7
1 5 . 2 9 3 0
4-6-2. VOID PREVIOUS ITEM
1 0 0 0 DPT1
── Sale item
2 0 0 0 DPT4
1 0 0 0 VD DPT1
── Void
Previous item
CASH/TEND
── Tender
2 5 - 1 2 - 1 9 9 7
1 . . . . . 1 0 . 0 0 T 1
2 . . . . . 2 0 . 0 0 T 2
- - - - - - - - - - V 1
1 . . . . - 1 0 . 0 0 T 1
* . . . . . 2 0 . 0 0 C A
* . . . . . . 1 . 4 8 T 1
* 1 0 0 0 0 2 8
1 5 . 2 9 3 0
36
OPERATION
4-7. MINUS
1 0 0 0 DPT1
── Sale item
2 0 0 0 DPT2
1 0 0 -
── Discount
CASH/TEND
── Tender
2 5 - 1 2 - 1 9 9 7
1 . . . . . . . 1 0 . 0 0 T 1
2 . . . . . . . 2 0 . 0 0 T 2
* . . . . . . . - 1 . 0 0 -
* . . . . . . . 2 9 . 0 0 C A
* . . . . . . . .
0 . 7 4 T 1
* 1 0 0 0 0 2 9
1 5 . 2 9 3 0
4-8. CANCEL
When you have completed the transaction on the subtotal
press CANCEL key .
1 0 0 DPT1
── Sale item
2 0 0 DPT2
3 0 0 DPT3
SUBTOTAL
── Subtotal
CANCEL
── Cancel
4-9. NO SALE
4-9-1. OPEN DRAWER
This is used to open the cash drawer outside of a sale.
#/NS
2 5 - 1 2 - 1 9 9 7
1 . . . . . . 1 . 0 0 T 1
2 . . . . . . 2 . 0 0 T 2
3 . . . . . . 3 . 0 0
* . . . . . . 6 . 0 0 S T
- - - - - - - - - - V 3
* 1 0 0 0 0 3 0
1 5 . 3 0 3 0
2 5 - 1 2 - 1 9 9 7
. . . . . . . . . . N S
* 1 0 0 0 0 3 1
1 5 . 3 0 3 0
37
OPERATION
4-9-2. NON ADD NUMBER
This is used to print the reference number.
n1 n2 n3 n4 n5 n6 n7 - #/NS
└────────────┘
Reference number
Example. The reference number is 1234567.
1 2 3 4 5 6 7 - #/NS
4-10. RECEIVED ON ACCOUNT
n1 n2 n3 n4 n5 n6 n7 - RA
└────────────┘
money received on
Example. Received on 30.00.
3 0 0 0 RA
4-11. PAID OUT
4-11-1. PAID OUT OPERATION
n1 n2 n3 n4 n5 n6 n7 - PO
└────────────┘
money paid out
Example. Paid out 20.00.
2 0 0 0 PO
2 5 - 1 2 - 1 9 9 7
* . . . 1 2 3 4 5 6 7 #
2 5 - 1 2 - 1 9 9 7
* . . . . . 3 0 . 0 0 R A
* 1 0 0 0 0 3 2
1 5 . 3 1 3 0
2 5 - 1 2 - 1 9 9 7
* . . . . . 2 0 . 0 0 P O
* 1 0 0 0 0 3 3
1 5 . 3 1 3 0
38
OPERATION
4-11-2. RECEIPT BUFFER
Receipt issued when required.
Set up System option 21.
NOTE !! Refer to 3-1. SYSTEM OPTION about receipt buffer.
Before operating the register, depress the PO key.
This will suppress printing.
If receipt required press the CASH/TEND key.
Depress the PO key again, printing will resume.
PO
── Suppress printing
1 0 0 0 DPT1
── Sale item
2 0 0 0 DPT2
CASH/TEND
── Tender
( The receipt is not issued.)
CASH/TEND
── Post finalization
receipt.
PO
── Cancel printing
suppression.
2 5 - 1 2 - 1 9 9 7
1 . . . . . 1 0 . 0 0 T 1
2 . . . . . 2 0 . 0 0 T 2
* . . . . . 3 0 . 0 0 C A
* . . . . . . 0 . 7 4 T 1
* 1 0 0 0 0 3 4
1 5 . 3 1 3 0
NOTE !! If The sale item is more than 30 items or the tender key is used more than 3
times in perfomming this function, you get a receipt as follows.
2 5 - 1 2 - 1 9 9 7
1 . . . . . 1 0 . 0 0 T 1
1 . . . . . 1 0 . 0 0 T 1
: :
2 . . . . . 2 0 . 0 0 T 2
2 . . . . . 2 0 . 0 0 T 2
: :
3 . . . . . 3 0 . 0 0
3 . . . . . 3 0 . 0 0
: :
: :
: :
. . . . . . . . . .
* . . . . 6 4 0 . 0 0 T L
* . . . . . 5 0 . 0 0 C A
* . . . . 5 9 0 . 0 0 T L
* . . . . . 3 0 . 0 0 C 2
* . . . . 5 6 0 . 0 0 T L
* . . . . . 5 0 . 0 0 C A
* . . . . 5 1 0 . 0 0 T L
. . . . . . . . . .
* . . . . 4 8 0 . 0 0 C H
* . . . . . 1 0 . 3 7 T 1
* 1 0 0 0 0 3 4
1 5 . 3 1 3 0
39
OPERATION
4-12. SUBTOTAL
2 5 - 1 2 - 1 9 9 7
2 0 0 0 DPT1
── Sale item
SUBTOTAL
── Subtotal
CASH/TEND
── Tender
1 . . . . . 2 0 . 0 0 T 1
* . . . . . 2 0 . 0 0 S T
* . . . . . 2 0 . 0 0 C A
* . . . . . . 1 . 4 8 T 1
* 1 0 0 0 0 3 5
1 5 . 3 1 3 0
4-13. TENDER
These keys are finalization CASH/TEND , CHECK , CHARGE key.
They can also be used for split tendering and change calculation.
4-13-1. CASH TENDER
2 5 - 1 2 - 1 9 9 7
2 0 0 0 DPT1
── Sale item
SUBTOTAL
── Amount of sale
5 0 0 0 CASH/TEND
── Amount tender on cash
1 . . . . . 2 0 . 0 0 T 1
* . . . . . 2 0 . 0 0 S T
* . . . . . 2 0 . 0 0 T L
* . . . . . 5 0 . 0 0 C A
* . . . . . 3 0 . 0 0 C 4
* . . . . . . 1 . 4 8 T 1
* 1 0 0 0 0 3 6
1 5 . 3 1 3 0
4-13-2. CHECK TENDER
1 0 0 0 DPT1
── Sale item
CHECK
── Non-amount
Tender on Check
2 5 - 1 2 - 1 9 9 7
1 . . . . . 1 0 . 0 0 T 1
* . . . . . 1 0 . 0 0 C 2
* . . . . . . 0 . 7 4 T 1
* 1 0 0 0 0 3 7
1 5 . 3 1 3 0
4-13-3. CHARGE TENDER
2 0 0 0 DPT3
── Sale item
DPT3
── Repeat entry
SUBTOTAL
── Output subtotal
CHARGE
── Non-amount
Charge tender
2 5 - 1 2 - 1 9 9 7
3 . . . . . 2 0 . 0 0
3 . . . . . 2 0 . 0 0
* . . . . . 4 0 . 0 0 S T
* . . . . . 4 0 . 0 0 C 3
* 1 0 0 0 0 3 8
1 5 . 3 2 3 0
40
OPERATION
4-13-4. CHECK CASHING
Check cashing means changing cash against a check.
If this function was set up in System option, you can use this function.
NOTE !! Refer to SYSTEM OPTION about check cashing.
2 0 0 0 CHECK
── Check cashing
2 5 - 1 2 - 1 9 9 7
* . . . . . 2 0 . 0 0 C 2
* . . . . - 2 0 . 0 0 C A
* 1 0 0 0 0 3 9
1 5 . 3 2 3 0
4-13-5. SPLIT TENDER
You can use the tender key several times.
1 0 0 0 DPT1
── Sale item
2 0 0 0 DPT2
SUBTOTAL
── Output Subtotal
2 0 0 0 CASH/TEND
── Split
Tender on Cash
CHARGE
── Non-amount
Tender on Charge
4-13-6. POST TENDER
2 5 - 1 2 - 1 9 9 7
1 . . . . . 1 0 . 0 0 T 1
2 . . . . . 2 0 . 0 0 T 2
* . . . . . 3 0 . 0 0 S T
* . . . . . 3 0 . 0 0 T L
* . . . . . 2 0 . 0 0 C A
* . . . . . 1 0 . 0 0 T L
* . . . . . 1 0 . 0 0 C 3
* . . . . . . 0 . 7 4 T 1
* 1 0 0 0 0 4 0
1 5 . 3 2 3 0
Allows change calculation option is after finalization.
NOTE !! Refer to 3-1. SYSTEM OPTION about Post tender.
6 0 0 DPT1
── Sale item
SUBTOTAL
── Output subtotal
CASH/TEND
── Amount tender on cash
1 1 0 0 CASH/TEND
── Post tender
2 5 - 1 2 - 1 9 9 7
1 . . . . . . 6 . 0 0 T 1
* . . . . . . 6 . 0 0 S T
* . . . . . . 6 . 0 0 C A
* . . . . . . 0 . 4 4 T 1
* 1 0 0 0 0 4 1
1 5 . 3 3 3 0
41
5. VOID POSITION OPERATIONS
Void position is used for void operation outside of a sale.
Entries can be voided in the VOID control lock position by re-entering
the incorrect operation exactly as it was entered in the REG position.
VOIDS
42
REPORTS
System reports are divided into two basic categories;
"X", or read-only and "Z", or read & reset to zero.
Most reports are available in both categories.
NOTE 11 Refer to REPORT TABLE about report.
6-1. CASH-IN-DRAWER DECLARATION
In System Option Programming (3-1), Cash-In-Drawer Declaration can be programmed as compulsory.
Cash-In-Drawer Declaration is performed by adding the total of each type of media in the drawer, and pressing the SUBTOTAL key with numeric key will enter the information as the Cash-In-Drawer Declaration performed.
After performing this declaration, a report in X and Z position will be allowed.
In this case, the difference of input amount and Cash-In-Drawer is displayed.
* Turn to CONTROL LOCK POSITION X.
Example. You count the money in drawer, 420.00. Perform the Cash-In-Drawer Declaration.
4 2 0 0 0 SUBTOTAL
2 5 - 1 2 - 1 9 9 7
* . . . . 4 2 0 . 0 0 N A
* . . . . 4 2 8 . 4 4 R 1
* . . . . . - 8 . 4 4 N O
---- Inputted amount
---- Cash-in-drawer
---- Difference
NOTE !! If you do not issue the report in X or Z mode after this declaration,
you can not take any registering operation.
43
REPORTS
6-2. CASH-IN-DRAWER REPORT
After depressing the SUBTOTAL key in X mode, Cash-in-drawer Read Report will be issued.
You can check cash on hand by this means.
2 5 - 1 2 - 1 9 9 7
* . . . . 4 2 8 . 4 4 R 1
* 1 0 0 0 0 4 3
--- Cash-in-drawer
1 5 . 3 3 3 0
6-3. CHECK-IN-DRAWER REPORT
After depressing the CHECK key in X mode, Check-in-drawer Read Report
will be issued.
You can make check like Cash-in-drawer Read Report.
2 5 - 1 2 - 1 9 9 7
* . . . . . 3 0 . 0 0 R 2
* 1 0 0 0 0 4 4
1 5 . 3 3 3 0
---- Check-in-drawer
REPORTS
6-4. FINANCIAL REPORT
Financial report is divided into two.
One is Daily financial report and the other is Period financial report.
You can issue Daily financial report with the CASH/TEND key and Period
financial report with the CHARGE key.
6-4-1. FINANCIAL DAILY REPORT - X MODE
This Report is read daily financial report.
So does not reset totals, nor does it advance the Z counter.
6-4-2. FINANCIAL DAILY REPORT - Z MODE
This report is read and reset daily financial report.
So resets totals to 0, and will advance the Z counter.
44
REPORTS
6-4-3. FINANCIAL PERIOD REPORT - X MODE
This report is read period financial report.
So does not reset totals, nor does it advance the Z counter.
6-4-4. FINANCIAL PERIOD REPORT - Z MODE
This report is read and reset period financial report.
So resets totals to 0, and will advance the Z counter.
REPORT TABLE
R E P O R T
Finalcial Daily
Financial Period
T I M E
P L U
Read
Read & Reset
Read
Read & Reset
Read
Read & Reset
Read
Read & Reset
C L E R K
CASH - IN – DRAWER
CHECK - IN – DRAWER
Read
Read & Reset
Read
Read
MODE
X
Z
X
X
Z
X
Z
X
Z
X
Z
X
X
K E Y I N P U T
CASH/TEND
CHARGE
X/TM
PLU
The Start number of
PLU,PLU
The Last number of PLU,PLU
CLERK
SUBTOTAL
CHECK
45
FINANCIAL REPORT
2 5 - 1 2 - 1 9 9 7
-- PAID OUT COUNTER
-- RESET(Z) COUNTER, MODE
--
DEPARTMENT NO, COUNTER
-- DEPARTMENT TOTAL, TAX
1 . . . . . . . . 2 7
* . . . . 1 9 1 . 0 7 T 1
2 . . . . . . . . 1 1
* . . . . 1 8 0 . 0 0 T 2
3 . . . . . . . . . 4
* . . . . . 7 3 . 0 0
4 . . . . . . . . . 2
* . . . . . 6 0 . 0 0 T 1
5 . . . . . . . . . 1
* . . . . . . 1 . 2 0
6 . . . . . . . . . 2
* . . . . . . 0 . 6 7
7 . . . . . . . . . 0
* . . . . . . 0 . 0 0
8 . . . . . . . . . 0
* . . . . . . 0 . 0 0
9 . . . . . . . . . 0
* . . . . . . 0 . 0 0
1 0 . . . . . . . . 0
* . . . . . . 0 . 0 0
1 1 . . . . . . . . 0
* . . . . . . 0 . 0 0
1 2 . . . . . . . . 0
* . . . . . . 0 . 0 0
* . . . . 2 3 3 . 6 7 T 1
* . . . . . 1 7 . 2 9 T 1
* . . . . 1 7 9 . 0 0 T 2
* . . . . . . 0 . 0 0 T 2
* . . . . . . 0 . 0 0 T 3
* . . . . . . 0 . 0 0 T 3
* . . . . . . 0 . 0 0 T 4
* . . . . . . 0 . 0 0 T 4
@ . . . . . . . . . 2
* . . . . . - 1 . 5 0 - %
@ . . . . . . . . . 0
* . . . . . . 0 . 0 0 + %
--
TAXABLE AMOUNT BY TAX1
-- TAX1 AMOUNT
-- TAXABLE AMOUNT BY
TAX2
-- TAX2 AMOUNT
-- TAXABLE AMOUNT BY
TAX3
-- TAX3 AMOUNT
-- TAXABLE AMOUNT BY
TAX4
-- ITEM -% COUNTER
-- ITEM -% TOTAL
-- ITEM +% COUNTER
ITEM +% TOTAL
REPORTS
@ . . . . . . . . . 2
* . . . . . - 5 . 0 0 - %
@ . . . . . . . . . 0
* . . . . . . 0 . 0 0 + %
@ . . . . . . . . . 1
* . . . . . - 1 . 0 0 -
* . . . . 4 9 8 . 4 4 # 1
@ . . . . . . . . . 2
* . . . . . - 7 . 5 0 R T
@ . . . . . . . . . 4
* . . . . - 3 5 . 0 0 V 1
@ . . . . . . . . . 0
* . . . . . . 0 . 0 0 V 2
@ . . . . . . . . . 1
* . . . . . . 6 . 0 0 V 3
* . . . . 5 1 3 . 4 4 # 2
@ . . . . . . . . 2 9
* . . . . 4 3 8 . 4 4 C A
@ . . . . . . . . . 1
* . . . . . 1 0 . 0 0 C 2
@ . . . . . . . . . 2
* . . . . . 5 0 . 0 0 C 3
@ . . . . . . . . . 1
* . . . . . 3 0 . 0 0 R A
@ . . . . . . . . . 1
* . . . . . 2 0 . 0 0 P O
* . . . . 4 2 8 . 4 4 R 1
* . . . . . 3 0 . 0 0 R 2
-- SALE -% COUNTER
-- SALE -% TOTAL
-- SALE +% COUNTER
-- SALE +% TOTAL
-- - COUNTER
-- - TOTAL
-- NET TOTAL
-- RETURN MERCHANDISE COUNTER
-- RETURN MERCHANDISE TOTAL
-- VOID KEY COUNTER
-- VOID KEY TOTAL
-- VOID MODE COUNTER
-- VOID MODE TOTAL
-- CANCEL COUNTER
-- CANCEL TOTAL
-- GROSS TOTAL
-- CASH SALE COUNTER
-- CASH SALE TOTAL
-- CHECK SALE COUNTER
-- CHECK SALE TOTAL
-- CHARGE SALE COUNTER
-- CHARGE SALE TOTAL
-- RECEIVED ON ACCOUNT COUNTER
-- RECEIVED ON ACCOUNT TOTAL
-- PAID OUT COUNTER
-- PAID OUT TOTAL
-- CASH-IN-DRAWER
-- CHECK-IN-DRAWER
-- NO SALE COUNTER
-- CUSTOMER COUNTER
-- GRAND TOTAL
-- CURRENT CLERK, RECEIPT NO.
-- TIME, MACHINE NO.
REPORTS
47
6-5. TIME REPORT
If you depress the X/TM key in X mode, and then it will issue
Time Read Report.
If you depress the X/TM key in Z mode, it will issue
Time Read and Reset Report.
2 5 - 1 2 - 1 9 9 7
@ . . . . . . . . . 1 Z 1
1 5 . 0 0
@ . . . . . . . . 3 1
* . . . . 4 9 8 . 4 4
- - - - - - - - - -
@ . . . . . . . . 3 1
* 1 0 0 0 0 4 6
1 5 . 3 5 3 0
-- RESET(Z) COUNTER, MODE
-- TIME
-- COUNTER
-- TIMELY TOTAL
-- COUNTER TOTAL
-- SALES TOTAL
REPORTS
48
REPORTS
6-6-1. FROM-TO PLU REPORT
Enter the start number of PLU to be read, depress the PLU key, then
the last number of PLU to be read, depress the PLU key in X mode.
Example. Issue From 10 To 20 PLU REPORT.
1 0 PLU
─── Enter the start number of PLU
2 0 PLU
─── Enter the last number of PLU
2 5 - 1 2 - 1 9 9 7
@ . . . . . . . . . 1 X 1
0 1 0 - - 0 2 0
* 0 1 2 . . . . . . 8
1 . . . . . . 2 . 5 0 T 1
* . . . . . 2 1 . 6 7 T 1
- - - - - - - - - -
@ . . . . . . . . . 8
* . . . . . 2 1 . 6 7 T L
* 1 0 0 0 0 4 7
1 5 . 3 6 3 0
-- RESET(Z) COUNTER, MODE
-- THE START NUMBER OF PLU, THE LAST NUMBER
OF PLU
-- PLU NO, COUNTER
-- LINKED DEPARTMENT NO., PRESET PRICE, TAX
-- SALES AMOUNT, TAX
-- COUNTER TOTAL
-- SALES TOTAL
6-6-2. TOTAL PLU REPORT
After depressing the PLU key in X mode, PLU Read Report will be issued.
After depressing the PLU key in Z mode, PLU Read and Reset Report
will be issued.
2 5 - 1 2 - 1 9 9 7
@ . . . . . . . . . 1 Z 1
* 0 1 2 . . . . . . 8
1 . . . . . . 2 . 5 0 T 1
* . . . . . 2 1 . 6 7 T 1
* 0 2 5 . . . . . . 4
1 . . . . . . . . 4 0
* . . . . . 1 7 . 4 0
- - - - - - - - - -
@ . . . . . . . . 1 2
* . . . . . 3 9 . 0 7 T L
* 1 0 0 0 0 4 8
1 5 . 3 7 3 0
-- RESET(Z) COUNTER, MODE
-- PLU NO., COUNTER
-- LINKED DEPARTMENT NO., PRESET PRICE, TAX
-- SALES AMOUNT, TAX
-- LINKED DEPARTMENT NO., HDLO, TAX
-- COUNTER TOTAL
-- SALES TOTAL
49
REPORTS
6-7. CLERK REPORT
After depressing the CLERK key in X mode, it will issue Clerk Read Report.
After depressing the CLERK key in Z mode, it will issue Clerk Read and
Reset Report.
2 5 - 1 2 - 1 9 9 7
@ . . . . . . . . . 1 Z 1
-- RESET(Z) COUNTER, MODE
* 1
* . . . . 4 9 8 . 4 4 # 1
@ . . . . . . . . . 1 N S
@ . . . . . . . . 3 1 N 1
* 2
* . . . . . . 0 . 0 0 # 1
@ . . . . . . . . . 0 N S
@ . . . . . . . . . 0 N 1
* 3
* . . . . . . 0 . 0 0 # 1
@ . . . . . . . . . 0 N S
@ . . . . . . . . . 0 N 1
* 4
* . . . . . . 0 . 0 0 # 1
@ . . . . . . . . . 0 N S
@ . . . . . . . . . 0 N 1
* 0
* . . . . . . 0 . 0 0 # 1
@ . . . . . . . . . 0 N S
@ . . . . . . . . . 0 N 1
-- CLERK NO.
-- NET TOTAL OF EACH CLERK
-- NOSALE COUNTER OF EACH CLERK
-- CUSTOMER COUNTER OF EACH
CLERK
-- NO CLERK
- - - - - - - - - -
@ . . . . . . . . . 1 N S
@ . . . . . . . . 3 1 N 1
* . . . . 4 9 8 . 4 4 T L
* 1 0 0 0 0 4 9
1 5 . 3 8 3 0
-- NO SALE COUNTER TOTAL
-- CUSTOMER COUNTER TOTAL
-- TOTAL OF EACH CLERK NET TOTAL
50
SYSTEM BALANCING
7-1. DEPARMENT SALES TOTAL
The sum of all department totals: Add all positive departments,
subtract all negative department.
7-2. NET TOTAL
Net total = The sum of all department totals
+ Tax total (Add-on tax)
+ % total
+ - total
7-3. GROSS TOTAL
Gross total = Net total
- Return merchandise
- VOID Position total
- % total
- - total
7-4. GRAND TOTAL
Ending Grand total = Gross total
+ Previous Grand total
51
SPECIFICATION
·POWER : AC 110V/230V ± 10%, 50/60
·OPERATING TEMPERATURE : 0 - 40
·MEMORY PROTECTION : Approx. 60 days battery
·DISPLAY UNIT : 9 digits (front and rear)
·PRINTER UNIT
- COLUMN : 13 COLUMNS
- PRINTED SPPEED : 3.2 lines/sec
- PAPER ROLL : 57.5
± 0.5 mm, Diameter - 70
·INK RIBBON : PURPLE
·DIMENSION
- WITH MIDDLE DRAWER : 400(W)
× 450(D) × 281(H) mm
- WITH SMALL DRAWER : 325(W)
× 420(D) × 225(H) mm
·WEIGHT
- WITH MIDDLE DRAWER : 12.7
- WITH SMALL DRAWER : 7.7
52
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
