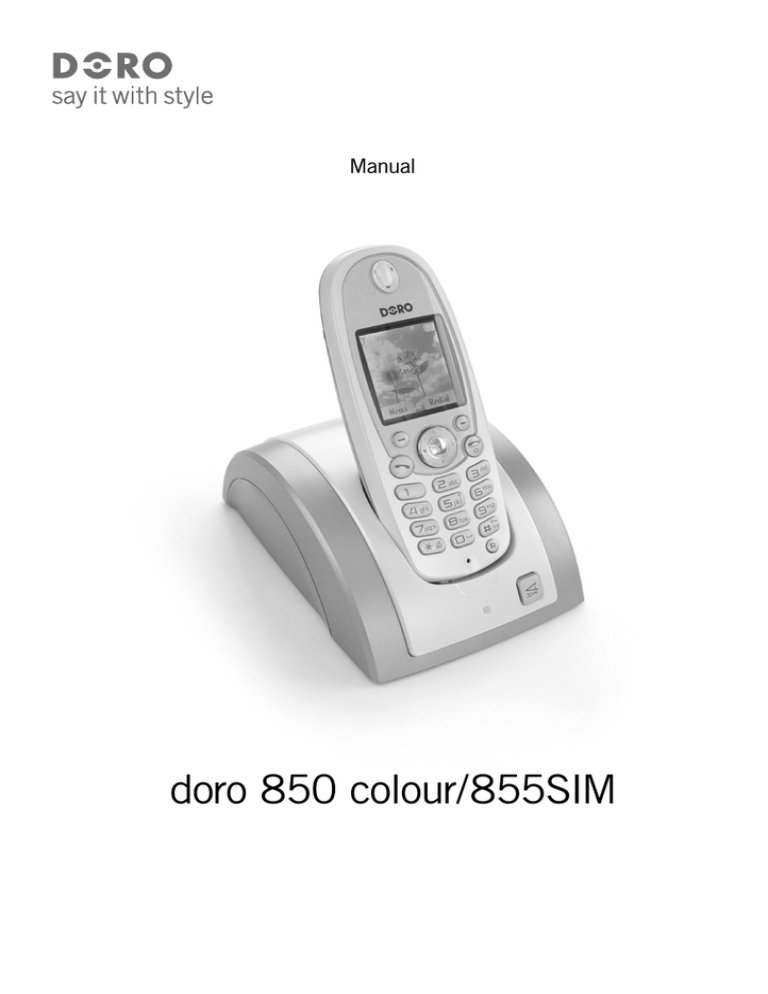

Manual
doro 850 colour/855SIM
1
2
3
4 6
5
9
8
7
English
1 New Message and Ring indicator
2 Left menu button/OK
3 Talk button/hands free function
4 * and ringer on/off
5 Recall
6 # and key lock
7 Disconnect and on/off
8 Right menu button/erase/redial
9 Scroll button
4
English
Installation 5
Unpacking........................... 5
Connection ......................... 5
Belt clip ............................... 6
Battery ................................ 6
Battery charge indicator ..... 7
Turning the handset on/off . 7
Range ................................. 7
Headset .............................. 8
Handset indicator................ 8
Base unit indicator.............. 8
Date and time ..................... 8
The display ......................... 9
Index
Alarm clock......................... 23
Contrast .............................. 24
Wall paper........................... 24
Auto answer........................ 24
Base selection .................... 24
Handset name .................... 25
Language............................ 25
Country Code ..................... 25
Registering an additional handset............................... 26
Handset PIN code .............. 26
Reset handset defaults....... 26
Base Set 27
Operation 10
Making a call....................... 10
Receiving a call .................. 10
Temporary silent mode....... 10
Volume control.................... 11
Timer................................... 11
Redial function.................... 11
Key lock .............................. 11
Recall.................................. 11
Hands free function/monitor12
Paging................................. 12
Ring Priority........................ 27
Call barring (call block)....... 28
Alternate Network
Routing (ANR) ................... 29
PBX function....................... 30
Recall time.......................... 30
Emergency numbers .......... 31
Dialling method................... 31
Date and time ..................... 32
De-register a handset......... 32
Base unit PIN code............. 32
Reset base unit defaults ..... 33
Menu
Phonebook
Messages 16
SMS messages .................. 16
Caller Identification............. 20
13
14
Expanded System 34
General information............ 34
Multiple handsets................ 34
Intercom calls ..................... 35
Transferring calls between handsets ............................. 35
Conference ......................... 35
Handset Set 22
Handset ringer .................... 22
Key tone.............................. 22
Other 36
Troubleshooting in general . 36
Specific Absorption Rate
(SAR).................................. 37
Guarantee........................... 37 www.doro.com
www.doro.com
English
5
4
English www.doro.com
English
Installation
Unpacking
The package contains:
- Handset
- Base unit
- Mains adapter (9VAC 300mA)
- Line cord
- 3 AAA batteries (Ni-MH 1.2V 600 mAh) - Belt clip
Models with an extra handset (e.g. +1) also include an additional handset, batteries, charger and mains adapter.
IMPORTANT!
Only use with the supplied power adaptor/s.
Connection
1. Connect the mains adapter to the AC 9V socket on the base unit and to an electrical wall socket.
2. Carefully remove the handset battery cover. Insert the batteries into the handset ensuring correct battery polarity is observed, and replace the battery cover.
3. Place the handset in the base unit, with the keypad facing outwards. Once the handset is correctly positioned in the base unit, a beep will be heard.
4. Leave the handset to charge initially for 24 hours before use.
5. Connect the line cord to the telephone plug and the
T socket on the base unit.
6. Plug into the telephone network wall socket.
7. Select language according to the description on page 25.
Only for models with an extra handset (+1):
8. Connect the mains adapter to electrical wall socket, and to the socket on the charger.
9. Carefully remove the handset battery cover. Insert the batteries into the handset ensuring correct battery polarity is observed, and replace the battery cover.
10.Place the handset in the base unit, with the keypad facing outwards. Once the handset is correctly positioned in the base unit, a beep will be heard.
11.Leave the handset to charge initially for 24 hours before use.
Important note!
Use an original adapter only (9VAC)!
Under power failure conditions the telephone will not operate. Please ensure that a separate telephone not dependant on local power is available for emergency use. The earpiece of the handset may attract small ferromagnetic objects such as staples and pins, care should be taken when placing the handset near these items. Do not place the base unit close to other electrical equipment such as TV sets, computer screens, telecom equipment, fans etc. This will minimise the risk of interference. Do not place the base unit in areas where it will be exposed to direct sunlight or other major heat sources.
www.doro.com 5
6
English
Installation
Belt clip
A belt clip is included, which can be fitted on the back of the handset. The belt clip enables the handset to be attached to a belt, waistband or similar. To attach the clip, align it with the indents on the sides of the handset and press it into place over the back of the handset.
Battery
The telephone is supplied with environmentally-friendly nickel metal hydride
(NiMH) batteries – 3 x AAA 1.2V. As with all batteries, performance may degrade over time; should you notice that the standby time has reduced considerably or there are signs of leakage, the batteries should be replaced.
Fully-charged batteries will last for approx. 120 hours in standby or 10 hours’ call time. These operation times apply at normal room temperature. Full battery capacity will be achieved once the batteries have been charged 4-5 times, completely discharged batteries will take about 10 hours to fully recharge.
To maintain optimum charge capacity it is better for hansets to be charged every other night, rather than after each call.
The base unit has an automatic charging mechanism that prevents the batteries from being overcharged or damaged by prolonged charging.
Please note!
To ensure and maintain good charging of the handset batteries we recommend that the base and handset charging contacts are cleaned regularly, ie monthly, with a pencil eraser and/or sotf dry cloth.The recharging system used in this model may result in the handset and the batteries becoming warm. This is normal and will not damage the equipment.
When the telephone is installed for the first time, the batteries must be charged for 24 hours before using the telephone. Use original batteries only. The guarantee does not cover any damage caused by incorrect use of batteries. Please dispose of any batteris in a responsible and environmantally friendly manner.
www.doro.com
www.doro.com
English
7
6
English www.doro.com
English
Installation
Battery charge indicator
The symbol [ in the display indicates when it is time to recharge the batteries.
When the battery is running low the display will show and a warning tone will be heard. If the handset is not recharged at this time, the phone will cease to function until it is recharged.
The symbol will be displayed when the battery is fully charged.
Please note:
When the handset has been switched off and then on again it may take up to five minutes before the correct charge indication is displayed.
Turning the handset on/off
Press and hold !
for a few seconds to turn the handset on or off.
When the handset is turned off, no calls can be made or received. The handset is designed to be always turned on, i.e. it is not necessary to turn it off overnight.
However, we recommend turning the handset off if it is not to be used for a prolonged period of time, e.g. during a holiday. If the batteries run low, the handset will turn off.
Range
The range of the telephone varies depending on different factors in the surrounding environment. Radio waves transmitting the call may be hindered by obstructions or signal reflections that can reduce the range.
Specified ranges require unobstructed transmission between the handset and the base unit. In such ideal conditions the telephones range can be up to 300 metres.
In densly populated areas, houses, apartments, etc. the range will be reduced.
Try to get the best range by relocating base unit, the ideal location is a highand unobstructed place.
Out of range warning
If the handset is carried to far from the base unit during a call, the sound quality will deteriorate and a warning tone will be heard. Unless the handset is moved closer to the base unit within a few seconds the call will be cut off.
www.doro.com 7
English
Installation
Headset
The handset can be used with a headset and is equipped with a socket for this.
Headsets are available as an extra accessory and can be purchased from your local retailer.
When using an optional headset there is no change in the way a call is received or made. When a headset is connected the handset microphone and earpiece will automatically be disconnected.
This telephone supports the use of the answering function with a button on the headset cable available on many headsets.
Please note!
The volume may be high on the headset earpiece. Adjust the setting immediately when you connect a headset.
Handset indicator
The indicator light above the display will flash during ringing of an incoming call/ paging and will flash in standby mode to indicate a new CID or SMS messages.
Base unit indicator
The indicator light located on the base unit will be permanently on in standby mode, and will flash during ringing of an incoming call, or during a conversation.
8
Date and Time
In some countries caller ID subscribers have the time and date updated automatically when a call is received, in other countries the time and date must be set manually.
The time and date only requires setting on one of the handsets.
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Date/Time. Press OK.
4. Enter the date using the handset keypad (DD.MM.YY). Press OK.
5. Enter the time (24 hour) using the handset keypad (HH:MM).
6. Press OK to save.
www.doro.com
www.doro.com
English
9
8
English www.doro.com
English
Installation
The display
�
���� �
�� ����
Indicator Function
6 Shown within range of the base unit. Flashes when out of range.
Intercom call INT
q
*
Ringer off (with
*
).
Indicates that a handset is in use.
Monitor/hands free function.
New SMS messages received/network voicemail.
H Alarm function activated.
INT 1
Battery charge indicator
Handset number, for use with more than one handset.
Base 1 Base unit number, for use with more than one base unit.
Ok
Describes the function of the button shown below the display, eg
Menu or Redial.
Press 19 Key Lock
Please note:
To conserve battery power the display will be darken after approximately 20 seconds while on a call and when placing the handset on the base unit. To briefly illuminate the display, press
< , www.doro.com 9
10
English
Operation
Important!
Please note when programming all references to press = to press once and then immediately release the button.
Making a call
1. Enter the required telephone number. Mistakes can be erased by pressing Clear.
2. Press
O the telephone number will now be dialled.
3. Press L to terminate the call.
Receiving a call
1. Wait for the handset to ring. The indicator light on the handset will flash.
2. Press O to answer the call.
3. Press L to terminate the call.
Please note!
During a call you can press Menu to access additional functions, use v
/
V
to scroll and press OK.
If the telephone cannot connect to a line, a warning tone will be heard. The problem may be due to the batteries running low, the handset being too far from the base unit or all of the transmission channels being engaged.
Temporary silent mode
If you do not wish to answer a call press Mute while the handset is ringing, this will temporarily turn the handset ringer off. On the next incoming call, the handset will ring as usual.
www.doro.com
www.doro.com
English
11
10
English www.doro.com
English
Operation
Volume control
The speaker and earpiece volume may be adjusted during a call using v / V
(1 - low, 3 - high).
Timer
Within approximately 10 seconds of the connection of a call, a timer will be shown on the display. The timer is a simple way to help you keep track of how long the call lasts.
Redial function
The 10 most recently dialled numbers can easily be redialled using the Redial button.
1. Press Redial and scroll using v / V to the desired telephone number.
2. Press O to dial the displayed number, alternatively press Option to select the display number, copy to Phonebook, delete entry or delete list functions.
Key lock
This function locks the push buttons on the handset to prevent unintentional usage.
1. To activate the key lock press and hold
N
until the display shows Press 19.
2. To deactivate the key lock press
1 9
.
Calls can still be received even if the key lock is active, when the call is terminated the handset returns to locked mode.
If the handset is placed in the base unit to charge the key lock will automatically deactivate.
Recall
Access to additional network services such as “Call Waiting” can be gained by using the recall button
R
. Example: when the call waiting tones are heard, press
R
, listen for the dial tone, then press 2. Please note that some networks require only the
R
button to be pressed, contact your network operator for more services information.
If this product is connected to a business PBX system, press the recall button
R followed by the extension number to transfer a call. www.doro.com 11
English
Operation
Hands free/monitor
In addition to normal handset mode you can select either monitor or hands free mode.
In monitor mode the handset is used as normal with the handset next to your ear, but allows everyone within the room to hear the caller.
With hands free mode you make a call then place the handset on a table or similar hard surface, this allows everyone in the room to converse with the caller.
1. Dial the required telephone number. Mistakes can be erased by pressing Clear.
2. Press O the telephone number will now be dialled. The earpiece volume can be adjusted by pressing v
/
V
.
3. Press O again to select the monitor function. Hold the handset to your ear and continue the conversation as normal.
4. Press
O again to select the hands free function.
5. When you have selected hands free mode place the handset on a hard flat surface, e.g. a table.
6. Speak towards the microphone on the lower front edge of the handset
(maximum 1 metre away).
7. You can adjust the speaker volume during a call by pressing v
/
V
(1 - min, 6 - max).
8. Press
O again to switch back to normal handset mode. The handset must again be placed against your ear to continue the conversation.
9. Press
L to terminate the call.
Please note!
In hands free mode it is only possible for one person at a time to talk. The switchover between speaker and microphone is automatic and dependent on the sound level of the incoming call and the microphone respectively. It is therefore essential that there are no loud noises, e.g. music, in the immediate vicinity of the telephone, as this will disrupt the speaker function.
Paging
Pressing j
on the base unit will activate the paging signal on the handset. This function is used to help locate the handset or to page the person carrying the handset. The signal will stop automatically after a while or if the
L
button on the handset is pressed. The page can also be cancelled by pressing j on the base unit again.
12 www.doro.com
www.doro.com
English
13
English
12
English
Menu
Description of the menu system
The telephone has a menu system controlled by the buttons directly under the display. The functions shown in the display (directly above the button) are:
Menu
OK
Accesses the menu system.
To scroll one step forward and/or confirm selected option.
Delete Entry Used to delete.
Back Used to go back to the previous menu option.
There are also the following buttons: v / V
L
To scroll through the menu alternatives.
Used to go back to the previous menu option, alternatively press and hold to exit the menu system.
The menu contains the following main headings:
Phonebook To store delete or change telephone numbers in the Phonebook memory.
Message* SMS and caller ID (CID) new calls.
Handset Set Settings for ringer, language, registering etc.
Base Set Settings for date/time, call barring etc.
INT Call Internal (Intercom) call.
*Only functions in certain countries and also require subscription.
www.doro.com
www.doro.com 13
English
Phonebook
Using the phone book
Use the phone book to store names and telephone numbers. A stored phone number can be dialled using fewer keystrokes than if dialled manually. If you subscribe to a
Caller ID service the name/number of the caller will be displayed when you receive an incoming call (names will only display when associated with a numbers stored in the
Phonebook).
The Phonebook will store 100 sets of names and phone numbers, entries can be up to
15 characters (name) and 30 digits (number) in length.
Entries in the Phonebook are arranged alphabetically.
Letters
Each number key has been allocated certain characters.
Button Letters/symbols
1.......................................... 1 @ € £ $ ¥ ¤ & § µ º ÷
2.......................................... A B C 2 Ą Á à Å Ä Æ Ć Ç
............................................ a b c 2 ą á à å æ ä ć ç
3.......................................... D E F 3 Ę É È Ê Ë
............................................ d e f 3 ę é è ê ë
4.......................................... G H I 4 Ğ Í Ì Í Î Ï
............................................ g h i 4 ğ í ì î ï
5.......................................... J K L 5 Ł
............................................ j k l 5 ł
6.......................................... M N O 6 Ń Ñ Ó Ö Ò Ô Ø
............................................ m n o 6 ń ñ ó ö ò ô ø
7.......................................... P Q R S 7 Ś Ş ß
............................................ p q r s 7 ś ş ß
8.......................................... T U V 8 Ü Ú ù û
............................................ t u v 8 ü ú ù û
9.......................................... W X Y Z 9 Ý Ż Ź
............................................ w x y z 9 ý ż ź
* .......................................... * # + - / % = ( ) < > \ _
0.......................................... [Space character] 0 ? ! ¿ ¡ . , “ ‘ : ;
#.......................................... Change between upper/lower case A / a
14
Dialling from the Phone book
1. Press
V .
2. Scroll through the entries in the phone book using v / V
. To perform a quicksearch press the corresponding number button one or more times for the first letter
(refer to the table on the previous page).
3. Press
O the displayed telephone number will now be dialled.
www.doro.com
www.doro.com
English
15
14
English www.doro.com
English
Phonebook
Storing names/numbers in the handset
1. Press Menu.
2. Scroll using v
/
V
to Phonebook. Press OK.
3. Press Option.
4. Scroll using v
/
V
to Add Entry. Press OK.
5. Enter name. Press the corresponding number button one or more times for the first letter
(refer to the table on the previous page). Mistakes can be erased by pressing Clear.
6. Press
V .
7. Enter the telephone number, including area code. Press Option.
8. If you need to insert a pause into the dialling sequence press Option, scroll using v
/
V
to Insert Pause. Press OK, then enter the remainder of the telephone number.
9. Press Option then scroll using v
/
V
to Save. Press OK.
Changing phone numbers/names
1. Press
V .
Scroll using v / V to desired entry in the phone book.
Press Option.
2. Scroll using v / V to Edit Entry. Press OK.
3. Correct the name/number using Clear,
v
/
V
and the corresponding number buttons.
Press Option. *
4. Scroll using v / V to Save. Press OK.
Deleting entries
1. Press V .
Scroll using v / V to desired entry in the phone book. Press Option. *
2. Scroll using v / V to Delete Entry or Delete List. Press OK.
3. If you chose Delete List press OK again to confirm deletion of all phone book memories.
Copy name/number from SIM card (855SIM only)
Please refer to your mobile telephones user guide to ensure all memories to be copied to the
855SIM are stored on the SIM card. Due to the continuous development of SIM-cards, we can not guarantee that all SIM cards in the market will work. Ensure the correct country code has been selected (page 25). Telephone numbers with a maximum of 20 digits/14 letters can be copied to the phone book with entries usually stored in alphabetical order.
1. Remove the SIM cardholder from the right hand side of the base unit.
2. Carefully slide the SIM card into the cardholder.
3. Insert the cardholder and card into the socket in the base unit.
4. On the handset press Menu. Scroll to Phonebook using v / V . Press OK.
5. Press Option. Scroll to Copy from SIM using v / V .
6. Some SIM cards may require a PIN code to be entered. Press OK.
7. It may take several minutes for the details on the SIM card to be read, the SIM card can then be removed.
* At this point you can also scroll and select: display number or memory status.
www.doro.com 15
English
Messages
SMS messages
This feature requires a current Caller ID subscription to be in place and only applies to text message users (SMS). The memory will store up to 30 messages, the maximum number of characters per message is 160. In standby mode new messages will be indicated by the indicator light above the display flashing and * will be shown in the display.
Please remember individual SMS features are country dependent and will vary or be unavailable. The following points are based on the UK service and may be of assistance, if difficulty is experienced please contact your network provider for assistance.
To register for the SMS text messaging service you can either send a text message to another telephone number, or text REGISTER to 00000.
- Should you wish to reset your SMS settings text RESET to 00000.
- You can also request a delivery report by entering
*
0
#
prior to any SMS message.
- An SMS message can also be sent to a telephone number that does not support this
feature, and will be received as a voice message.
Not all networks (ie mobile, cable) are compatible.
Further details regarding the SMS text message service are available from you local network provider.
Reading new (incoming) SMS messages
1. Press Menu.
2. Scroll using v / V to Message. Press OK.
3. Scroll using v / V to SMS. Press OK.
4. Scroll using v / V to Inbox. The number of new SMS messages will be displayed.
Press OK.
5. Scroll using v / V to the required message. Press Read.
6. Once you have read your message press Back to read another message, alternatively press Option.
7. Alternatively press Option and select one of the following using v / V .
- Use (answer/forward)
- Delete Entry
- Delete List
- Copy to Phoneb.
16 www.doro.com
www.doro.com
English
17
English English
Messages
Deleting SMS messages
1. Press Menu.
2. Scroll using v / V to Message. Press OK.
3. Scroll using v / V to SMS. Press OK.
4. Select either Inbox, Outbox or Saved using v / V
. The number of SMS messages will be displayed. Press OK.
4. Scroll using v / V to the required message. Press Read.
5. Press Option.
6. Select either Delete Entry or Delete List using v / V . Press OK.
7. If Delete List is selected press OK again to confirm.
16 www.doro.com
www.doro.com 17
18
English
Messages
Writing a new SMS
1. Press Menu.
2. Scroll using v
/
V
to Message. Press OK.
3. Scroll using v
/
V
to SMS. Press OK.
4. Scroll using v
/
V
to Write Message. Press OK.
5. Write your message. Press the corresponding number button one or more times for the first letter (refer to the table on page 14). To select: Upper/
Lower case press
#
, to move on one space press keypad digit
0
. Press
Option.
6. Scroll using v
/
V
and select either Send to or Store. Press OK.
7. Enter the telephone number including area code, mistakes can be erased using Clear. Alternatively press Option to retrieve the number from the
Phonebook.
8. Press Option.
9. Scroll using v
/
V
to Send. Press OK.
10. The display will indicate if the SMS has been sent and or has failed. If no error message is shown, the message has been sent correctly.
Stored and failed SMS messages are saved in the Outbox.
www.doro.com
www.doro.com
English
19
18
English English
Messages
Entering telephone numbers for SMS Service Centre/network
Check that the right number for your network has been programmed.
1. Press Menu.
2. Scroll using v
/
V
to Message. Press OK.
3. Scroll using v
/
V
to SMS. Press OK.
4. Scroll using v
/
V
to Service Centre. Press OK.
5. Select either Send or Receive using v
/
V
. Press OK.
6. Enter number, mistakes can be erased using Clear.
7. Press OK.
Please note!
In certain countries, the number for the service centre is saved using 1-2 extra figures following the number itself. The first figure added is the terminal number and the second (i.e. the last) is the message type (0-9). Contact your network operator to find out if the message type and terminal number must be used or if these can be set to 00 or left out entirely.
First ring
The telephone can be programmed to ring only upon receiving the second ring signal, this is ideal if receiving an incoming SMS message.
The factory setting is ON.
1. Press Menu.
2. Scroll using v
/
V
to Message. Press OK.
3. Scroll using v
/
V
to SMS. Press OK.
4. Scroll using v
/
V
to Set First Ring. Press OK.
5. Select the required setting using v
/
V
.
6. Press OK.
www.doro.com
www.doro.com 19
English
Messages
Explanation of Caller ID
Caller ID allows you to see who is calling before you answer a call or to see who has called in your absence. If the number received is stored in the Phonebook its associated name will be displayed instead.
New calls are indicated in standby mode by the indicator light above the display flashing.
Please note!
In order for numbers to be shown, you must subscribe to the Caller ID service provided by your network operator and a current subscription in place. Contact your operator for more information.
Important note for NZ users!
In order for the 0/00 prefix to be included when dialling from the CID memory the NZ CID mode must be set to on. The telephone will add the required prefix in accordance with Telecom
NZ guidelines. If a charge for local calls is unacceptable the NZ CID mode should not be activated.
Retrieving and dialling incoming numbers
1. Press Menu.
2. Scroll using v
/
V
to Message. Press OK.
3. Scroll using v
/
V
to Caller List. The number of new calls received will be displayed.
4. Select either New calls or All calls. The number of calls received will be displayed. Press OK.
5. Scroll to the required telephone number using v
/
V
.
6. Press O to dial the displayed number, alternatively press and hold L to return to standby mode.
20
Caller ID messages
Apart from showing telephone numbers, the display can also show:
Unavailable
Withheld no
Date/time not set (see page 32).
It is an International call or a call from a PBX (no information received).
Blocked number. The call could also be from a PBX.
www.doro.com
www.doro.com
English
21
20
English www.doro.com
English
Messages
Delete a number
1. Press Menu.
2. Scroll using v
/
V
to Message. Press OK.
3. Scroll using v
/
V
to Caller List. The number of calls received will be displayed.
Press OK.
4. Select either New calls or All calls. Press OK.
5. Scroll to the required telephone number using v
/
V
. Press Option.
6. Scroll using v
/
V
to Delete Entry or Delete List. Press OK.
7. If you select Delete List press OK again to confirm.
Storing numbers in the Phonebook
1. Press Menu.
2. Scroll using v
/
V
to Message. Press OK.
3. Scroll using v
/
V
to Caller List. The number of calls received will be displayed.
Press OK.
4. Select either New calls or All calls. The number of calls received will be displayed. Press OK.
5. Scroll to the required telephone number using v
/
V
. Press Option.
6. Scroll using v
/
V
to Copy to Phoneb. Press OK.
7. Enter name. Press the corresponding number button one or more times for the first letter (refer to the table on the previous page). Mistakes can be erased by pressing
Clear.
8. Press Option.
9. Scroll using v
/
V
to Save. Press OK.
New Zealand Caller-ID (Only Australia/New Zealand version)
For correct operation with NZ CID service this setting must be active. The telephone will add the required prefix in accordance with Telecom NZ guidelines. However if a charge for local calls is unacceptable this setting should not be changed. The matching with phone book will not work in New Zealand as the complete number is not sent from the operator. The factory setting is OFF(=Australia).
1. Press Menu.
2. Scroll using v
/
V to Message. Press OK.
3. Scroll using v
/
V to Caller List. Press OK.
4. Scroll using v
/
V to NZ Caller-id. Press OK.
5. Select the required setting using v / V .
6. Press OK.
www.doro.com 21
22
English
Handset Set
Handset ringer
The handset has several different ringer volumes and melodies which can be selected.
There is no ringer on the base unit.
1. Press Menu.
2. Scroll using v
/
V
to Handset Set. Press OK.
3. Scroll using v
/
V
to Ringer Set. Press OK.
4. Select either Ringer Volume or Ringer Melody using v
/
V
. Press OK.
5. Select the required setting using v
/
V
.
Press OK to save.
To turn off the ring signal, press and hold
*
in standby until is displayed.
Simply repeat to turn ringer back on.
Please note:
The handset ringer will continue to sound for a few seconds after a call is answered.
Key tone
When the handset buttons are pressed a tone will be heard, this can be switched on or off.
1. Press Menu.
2. Scroll using v
/
V
to Handset Set. Press OK.
3. Scroll using v
/
V
to Ringer Set. Press OK.
4. Scroll using v
/
V
to Key Beep. Press OK.
5. Select the required setting using v
/
V
.
Press OK to save.
www.doro.com
www.doro.com
English
23
22
English English
Handset Set
Alarm clock
When the alarm clock is activated H will be displayed in standby mode. Once the alarm clock goes off the chosen melody will be heard for one minute, to switch the alarm off press any button on the handset.
1. Press Menu.
2. Scroll using v
/
V
to Handset Set. Press OK.
3. Scroll using v
/
V
to Alarm Clock. Press OK.
4. Scroll using v
/
V
to Alarm Set. Press OK.
5. Select the required setting Once or Everyday using v
/
V
.
Press OK.
6. Enter the alarm time (HH:MM) using the handset keypad (24 hour format).
Press OK to save.
If symbol H is not visible in standby mode, this may be due to the clock not being set. The volume of the alarm when triggered will be dependent on the selected ringer volume, if a low volume has been selected this may require resetting.
You can also select an alarm melody or alarm off if required.
1. Press Menu.
2. Scroll using v
/
V
to Handset Set. Press OK.
3. Scroll using v
/
V
to Alarm Clock. Press OK.
4. Scroll using v
/
V
to Alarm Cancel or Alarm Melody. Press OK.
5. Select the required setting using v
/
V
.
Press OK.
www.doro.com
www.doro.com 23
24
English
Handset Set
Contrast
The display contrast can be adjusted between 0 - faint to 4 - dark.
1. Press Menu.
2. Scroll using v
/
V
to Handset Set. Press OK.
3. Scroll using v
/
V
to Contrast. Press OK.
4. Select the required setting using v
/
V
.
Press OK to save.
Wallpaper
The background image shown in display can be changed.
1. Press Menu.
2. Scroll using v
/
V
to Handset Set. Press OK.
3. Scroll using v
/
V
to Wall Paper. Press OK.
4. Select the required wallpaper using v
/
V
.
Press OK to save.
Auto Answer
This function allows incoming calls to automatically connected when the handset is lifted from the base unit during ringing.
1. Press Menu.
2. Scroll using v
/
V
to Handset Set. Press OK.
3. Scroll using v
/
V
to Auto Answer. Press OK.
4. Select the required setting using v
/
V
.
Press OK to save.
Base selection
Only used in installations with more than one base unit.
1. Press Menu.
2. Scroll using v
/
V
to Handset Set. Press OK.
3. Scroll using v
/
V
to Select Base: Press OK.
4. Select either a specific base unit number or Any Base using v
/
V
.
Press
OK to save.
www.doro.com
www.doro.com
English
25
24
English www.doro.com
English
Handset Set
Handset name
The text displayed in standby mode can be personalised.
1. Press Menu.
2. Scroll using v
/
V
to Handset Set. Press OK.
3. Scroll using v
/
V
to Handset Name. Press OK.
4. Enter name (maximum 8 characters). Press the corresponding number button one or more times for the first letter (refer to the table on the page 14). Mistakes can be erased by pressing Clear.
5. Press OK to save.
Language
Display texts can be shown in five different languages.
1. Press Menu.
2. Scroll using v
/
V
to Handset Set. Press OK.
3. Scroll using v
/
V
to Language. Press OK.
4. Scroll to the required setting using v
/
V
.
Press OK to save.
Country code (855 SIM only)
Some SIM cards will insert either “+” or 00 in front of any international telephone number, for example 01527583800 may be stored as +441527583800.
To allow the 855 to dial this type of number the correct country code, international
& national prefix’s must be selected. The UK, Australia & New Zealand settings are shown below:
Country Code: 44(UK), 61(AU) or 64(NZ)
Int. Prefix: 00 or 0011(NZ)
Nat. Prefix: 0
1. Press Menu.
2. Scroll to Handset Set using v
/
V
. Press OK.
3. Scroll to Country code using v
/
V
. Press OK.
4. Scroll to desired setting using v
/
V
. Press OK.
5. Enter number (up to 4 digits). Press OK to save.
www.doro.com 25
English
Handset Set
Registering an additional handset
To enable the use of more than one handset a registration has to be performed.
Every new additional handset must be registered in order to use the current base unit, each base unit can handle up to 6 handsets.
On registration the handset is allocated a handset number for use on the new base unit, the handset numbers are 1-6.
Please refer to the Expanded System chapter for more information.
1. On the Base unit press and hold j until the indicator light starts flashing.
Registration mode will remain active for one minute.
2. Press Menu.
3. Scroll using v
/
V
to Handset Set. Press OK.
4. Scroll using v
/
V
to Register. Press OK.
5. Select the base unit (1, 2, 3 or 4) you wish to register using v
/
V
. Press OK.
6. Enter the current base unit PIN code (0000 at default). Press OK.
7. After a few seconds (no more than 90) all unused handset numbers are displayed. Select one of these (usually the lowest displayed number) by pressing the corresponding keypad button.
If you wish to de-register an additional handset please refer to page 32.
Handset PIN code
The PIN code is a four-digit number that you can select and protects against unauthorised use of certain functions.
1. Press Menu.
2. Scroll using v
/
V
to Handset Set. Press OK.
3. Scroll using v
/
V
to Handset PIN. Press OK.
4. Enter the current PIN number (0000 at default).
5. Enter your new number.
6. Enter your new number again to confirm.
26
Reset handset defaults
Resetting will return most functions to the original manufacturer default settings.
Registrations are not affected.
1. Press Menu.
2. Scroll using v
/
V
to Handset Set. Press OK.
3. Scroll using v
/
V
to Default Set. Press OK.
4. Enter your current handset PIN code (0000 at default).
5. Press OK to confirm.
www.doro.com
www.doro.com
English
27
26
English English
Base Set
Ring Priority
This allows you select on incoming calls which handset should ring first (i.e. have priority), or if all handsets should ring simultaneously.
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Ring Priority. Press OK.
4. Scroll using v
/
V
to Priority. Press OK.
5. Select the required handset using v
/
V
.
6. Press OK to save.
Number of Rings
With Handset Priority activated you must select how many times the prioritised handset rings before any other additional handset.
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Ring Priority. Press OK.
4. Scroll using v
/
V
to Ring Count. Press OK.
5. Select the preferred number of rings (1 to 9) using v
/
V
.
6. Press OK to save.
www.doro.com
www.doro.com 27
28
English
Base Set
Call barring (call block)
The telephone can bar (restrict) various outgoing calls.
INT Call
Barred no.
Bars all outgoing calls
Only bars numbers you have specified (see below)
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Call Barring. Press OK.
4. Enter your current base unit PIN code (0000 at default).
5. Select the handset to which the restriction applies using v
/
V
. Press OK.
6. Scroll using v
/
V
to Barring Mode. Press OK.
7. Scroll to the required setting using v
/
V
.
Press OK to save.
Specifying barred numbers
Select the digits for the type of number to be barred, e.g. international prefix
(usually 00) to bar all international calls. Three different restrictions of up to eight digits each can be programmed.
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Call Barring. Press OK.
4. Enter your current base unit PIN code (0000 at default).
5. Select the handset to which the restriction applies using v
/
V
. Press OK.
6. Scroll using v
/
V
to Barring Number. Press OK.
7. Select the required entry using v
/
V
. Press OK.
8. Enter the telephone number to be barred (up to 8 digits).
9. Press OK to save.
To activate the Barred Number setting please refer to Call barring (call
block).
www.doro.com
www.doro.com
English
29
28
English English
Base Set
Alternate Network Routing (ANR)
This function will automatically select the telephone network operator of choice. The telephone can be set up to add digits and/or replace certain digits in telephone numbers.
To choose a certain network operator, you would normally dial a prefix code before the actual phone number.
If you have chosen a different operator for international calls, to use their service you must dial a prefix code before the telephone number, for example
9301. You can program the ANR function to insert the prefix code before the international access digits 00. For example: 0046 46 2805000 would automatically be dialled as 930100 46 46 2805000
Please note!
In order to place your call with a certain operator you must be a registered subscriber.
Only one ANR (Alternate Network Routing) setting can be active at a time.
Setting up an ANR number
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Net. Provider. Press OK.
4. Enter your current base unit PIN code (0000 at default).
5. Select a provider location using v
/
V
. Press OK.
6. Enter the dialling code to be replaced (up to five digits, e.g. 00). Press
V .
7. Enter the new number to be added (up to ten digits, e.g. 930100). Press V .
8. Select either On or Off using
<
/
>
.
9. Press OK to save.
Automatic network prefix using ANR
If the dialling code to be replaced is left empty the telephone will dial all numbers with the added ANR prefix. www.doro.com
www.doro.com 29
30
English
Base Set
PBX function
This telephone has a PBX function that will automatically insert a pause between the first and second digits of the telephone number before dialling.
For Example:
When the function is activated dialling a phone number ie: 0123456, the telephone will dial 0 followed by a pause and then the remaining part of the number 123456.
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Dial Set. Press OK.
4. Enter the base unit PIN code (0000 at default).
5. Scroll using v
/
V
to Access Code. Press OK.
6. Enter the required prefix dialling code (up to 4 digits).
7. Press OK to save.
Recall time
Access to additional network services such as “Call Waiting” can be gained by using the recall button
R
. Example: when the call waiting tones are heard, press
R
, listen for the dial tone, then press 2. Please note that some networks require only the
R
button to be pressed, contact your network operator for more services information.
If this product is connected to a business PBX system, press the recall button
R followed by the extension number to transfer a call. The standard setting is 98 ms.
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Dial Set. Press OK.
4. Enter the base unit PIN code (0000 at default).
5. Scroll using v
/
V
to Recall Time. Press OK.
6. Scroll to the required setting using v
/
V
.
7. Press OK to save.
www.doro.com
www.doro.com
English
31
30
English English
Base Set
Emergency numbers
Emergency telephone numbers are the only numbers that can be dialled when the call barring is activated. The telephone is already pre-programmed with some emergency numbers.
It is possible to dial numbers that start with the same digits as the full emergency numbers programmed.
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Dial Set. Press OK.
4. Enter your current base unit PIN code (0000 at default).
5. Scroll using v
/
V
to Emergency NO. Press OK.
6. Scroll to the required setting using v
/
V
.
Press OK.
7. Enter number (up to 10 digits). Press OK to save.
Dialling method (UK only)
The type of dialling method (tone or pulse) can be selected dependant on your network requirements, the unit should normally be left in tone mode. This function only applies to UK users.
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Dial Set. Press OK.
4. Enter your current base unit PIN code (0000 at default).
5. Scroll using v
/
V
to Dialling Mode. Press OK.
6. Scroll to the required setting using v
/
V
.
Press OK to save.
www.doro.com
www.doro.com 31
32
English
Base Set
Date and Time
In some countries caller ID subscribers have the time and date updated automatically when a call is received, in other countries the time and date must be set manually.
The time and date only requires setting on one of the handsets.
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Date/Time. Press OK.
4. Enter the date using the handset keypad (DD.MM.YY). Press OK.
5. Enter the time (24 hour) using the handset keypad (HH:MM).
6. Press OK to save.
De-register a handset
Any handset can easily be de-registered from a base unit.
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Deregister. Press OK.
4. Enter your current base unit PIN code (0000 at default).
5. Select the handset you wish to de-register using v
/
V
.
Press OK.
6. Press OK again to confirm.
Base unit PIN code
The PIN number is your personnel four-digit code. It protects against unauthorised use of certain functions.
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Base PIN. Press OK.
4. Enter the current PIN number (0000 at default).
5. Enter your new number using the handset keypad.
6. Enter your new number again.
www.doro.com
www.doro.com
English
33
English English
Base Set
Reset base unit defaults
Resetting will return most functions to the original factory default setting.
Registrations are not affected by resetting.
1. Press Menu.
2. Scroll using v
/
V
to Base Set. Press OK.
3. Scroll using v
/
V
to Default Set. Press OK.
4. Enter your current base unit PIN code (0000 at default).
5. Press OK to confirm.
32 www.doro.com
www.doro.com 33
34
English
Expanded System
General information
DECT (Digital Enhanced Cordless Telephone) is a digital method of transmission for cordless telephones. You can:
- Use up to 6 handsets with the same base unit.
- Make internal calls (intercom) and transfer calls between handsets
connected to the same base unit
- Connect (register) up to 4 base units to the same handset.
Additional handsets can be purchased from your local retailer.
This model is also GAP (Generic Access Profile) compatible, which means that the handset and the base unit can both be used with most other GAPcompatible units irrespective of manufacturer. However, the GAP protocol does not guarantee all functions will work.
Multiple handsets
The multiple handset function has numerous practical applications, e.g. employees in an office can have several handsets linked to the same base unit.
They can all answer incoming calls, make outgoing calls, use the handsets internally as an intercom system, and also transfer external calls between the handsets. One external call and one internal call can be active simultaneously.
To be able to use extra handsets with a base unit, you must register the handset.
Registration enables the handset to know which base unit it belongs to.
On registration, the handset is allocated a specific handset number, e.g. 2. This number is also used for internal calls between handsets. When you purchased the telephone, the handset was pre-registered with the accompanying base unit.
The handset has the handset number 1, which is shown in the display in standby mode. Refer to the Registration chapter for more information.
If you wish to use several handsets with one base unit, you should ensure that the base unit is centrally positioned to evenly distribute the base unit range among the handsets. www.doro.com
www.doro.com
English
35
34
English www.doro.com
English
Expanded System
Intercom calls
When using several handsets with the same base unit calls can be made internally between the handsets, this is referred to as an internal call or intercom. Intercom calls can only be made between handsets connected to the same base unit.
1. Press Menu.
2. Scroll using v
/
V
to INT Call. Press OK.
3. Press All for a general call (to all handsets) or enter the handset number
1 6 for the handset you wish to call.
Should an external call come in while an intercom call is in progress, a tone will be heard. External calls can then be answered using the Accept button.
Transferring calls between handsets
An external call can be transferred from one handset to another (providing both handsets are operating on the same base unit).
1. While an external call is connected.
2. Press Menu.
3. Scroll using v
/
V
to INT Call. Press OK.
4. Press All for a general call (to all handsets) or enter the handset number
1
-
6
for the handset you wish to call.
5. To transfer the external call, press
L
on the calling handset.
If you decide not to transfer the call or put the internal party on hold press 1. - 2. on the calling handset. You can then switch between the two calls by again pressing these buttons.
Conference
It is possible to have a call between two handsets and an external caller at the same time, this is known as a Conference call.
1. While an external call is connected.
2. Press Menu.
3. Scroll using v
/
V
to INT Call. Press OK.
4. Press All for a general call (to all handsets) or enter the handset number
1
-
6
for the handset you wish to call.
5. To connect all three callers in a conference call press Conf.
By pressing L or C.End to disconnect one party, any one of the handsets can terminate the conference call allowing the other continue the conversation with the external caller.
www.doro.com 35
English
Other
Troubleshooting
Check that the telephone cord is undamaged and properly plugged in.
Disconnect any additional equipment that may be connected. If the problem is resolved, the fault is with the other equipment.
Test the equipment on a known working line. If the product works then the fault is with the line. Please inform your local telephone company. Check that charge contacts in handset and base unit are clean
No number shown in display when ringing
- In order for this feature to function, you must subscribe to the Caller
Identification service provided by your network operator.
- If a text message is shown on the display, the call may be an international call (no data received), or from a private or withheld number.
- It may not be possible to receive Caller ID information if the phone operates in a
PBX system.
SMS does not work
- In order for this feature to function, you must subscribe to the service provided by your network operator.
- Check that the right number is stored for the service.
Warning tone while talking/cannot connect
- The batteries may be running low (recharge the handset).
36
Telephone does not work
- Check the adapter. Is it correctly connected to the base unit and to the mains power?
- Check that the telephone cord has been correctly connected to the base unit and to the line socket.
- Check the charge status of the handset batteries.
- Check that the charge contacts on the handset and base unit are clean.
- Try connecting another telephone, known to be in working order, to the line socket. If that phone works, then it is likely that the equipment is faulty.
If the telephone still does not work, contact DORO or the place of purchase. Don’t forget the receipt or copy of the invoice will be required for guarantee purposes.
www.doro.com
www.doro.com
English
37
36
English English
Other
Specific Absorption Rate (SAR)
This equipment meets current international safety requirements for exposure to radio waves.
This telephone measures 0.004 W/kg (measured over 10g tissue).
The limit value set by the WHO is 2W/kg (measured over 10g tissue).
UK
If you cannot resolve the fault using the faultfinder section, technical support is available on the Premium Rate Number: 0906 302 0114.
Calls cost 50 pence per minute (prices correct at the time of going to press), and is operational between 9AM - 5PM Monday-Friday excluding Bank
Holidays. Alternatively,
E-mail on: [email protected]
You can contact us in writing: Consumer Support Group, Doro UK Ltd.,
22 Walkers Road, North Moons Moat, Redditch, Worcestershire, B98 9HE,
(regarding any Spares or Technical query), or
Telephoning (Spares only): 01527 584377
Web site: www.doro-uk.com
Guarantee
This product is guaranteed for a period of 12 months from the date of purchase.
Proof of purchase is required for any service or support required during the guarantee period.
This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress, negligence, abnormal usage, not reasonably maintained or any other circumstances on the purchaser’s part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or any other voltage fluctuations.
This guarantee does not in any way affect your statutory rights. (As a matter of precaution, we recommend disconnecting the telephone during a thunderstorm.) www.doro.com
www.doro.com 37
English
Other
38
Australia and New Zealand
Products permitted for connection to the telephone network are marked with
in Australia and in New Zealand. These marks indicate the products comply with the regulations and can be used without concern in the country of purchase.
If you believe this product is malfunctioning, please refer to the relevant section and/or consult the troubleshooting guide in this manual to ensure that you have followed the instructions carefully. As an alternative you can visit our web site for FAQ’s or send an e-mail for a prompt reply.
Electro Magnetic Radiation (EMR)
This telephone complies with applicable safety requirements for exposure to radio waves.
The mean power of this telephone is not greater than the 20mW limit at which testing is required.
Guarantee
This product is guaranteed for a period of 12 months from the date of purchase.
Should you experience difficulties with the product, please contact us for assistance. If the product is then found to be faulty you will be asked to return it directly to us with a copy of the purchase receipt. This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress negligence, abnormal usage, not reasonably maintained or any other circumstances on the purchaser’s part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or lightning, excessive or any other voltage fluctuations or faults on the telephone line. (As a matter of precaution, we recommend disconnecting the telephone during a thunderstorm).
This guarantee does not affect your statutory rights.
AUSTRALIA
DORO Australia Pty Ltd
PO Box 6760
Baulkham Hills BC NSW 2153
Australia
Consumer Support
Ph: Ph: 1300 885 023
Fax: (02) 8853-8489
Email: [email protected]
Web site: www.doro.com.au
NEW ZEALAND
Atlas Gentech (NZ) Limited
Private Bag 14927
Panmure
Auckland
New Zealand
Consumer Support
Ph: 0900-500-25 (Toll Call)
Fax: (09) 574-2722
Email: [email protected]
www.doro.com
www.doro.com
English
39
38
English English
Technical information
REN (RN for New Zealand)
The REN (Ringer Equivalence Number) or (RN) is of significance only if you wish to connect more than 1 telephone to your telephone line. A standard telephone line has a maximum REN capacity of 3 (RN of 5). It is possible to connect 3 devices with a REN of 1 (RN of 1) with no degradation to the product’s performance. Exceeding this limit may cause the volume of the ringer in any phone to decrease or not ring at all.
Notes for operation in New Zealand
ALL PRODUCTS
The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item complies with the minimum conditions for connection to its network. It indicates no endorsement of the product by
Telecom, nor does it provide any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another item of
Telepermitted equipment of a different make or model, nor does it imply that any product is compatible with all of Telecom’s network services.
This equipment shall not be set to make automatic calls to the Telecom “111“
Emergency Service.
This equipment may not provide for the effective hand-over of a call to another device connected to the same line.
This equipment should not be used under any circumstances that may constitute a nuisance to other Telecom Customers.
CND PRODUCTS
If a charge for local calls is unacceptable, the “DIAL“ button should NOT be used for local calls. Only the 7 digits of the local number should be dialled from your telephone. DO NOT dial the area code digit or the “0“ prefix.
www.doro.com
www.doro.com 39
English
Version 1.0
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
