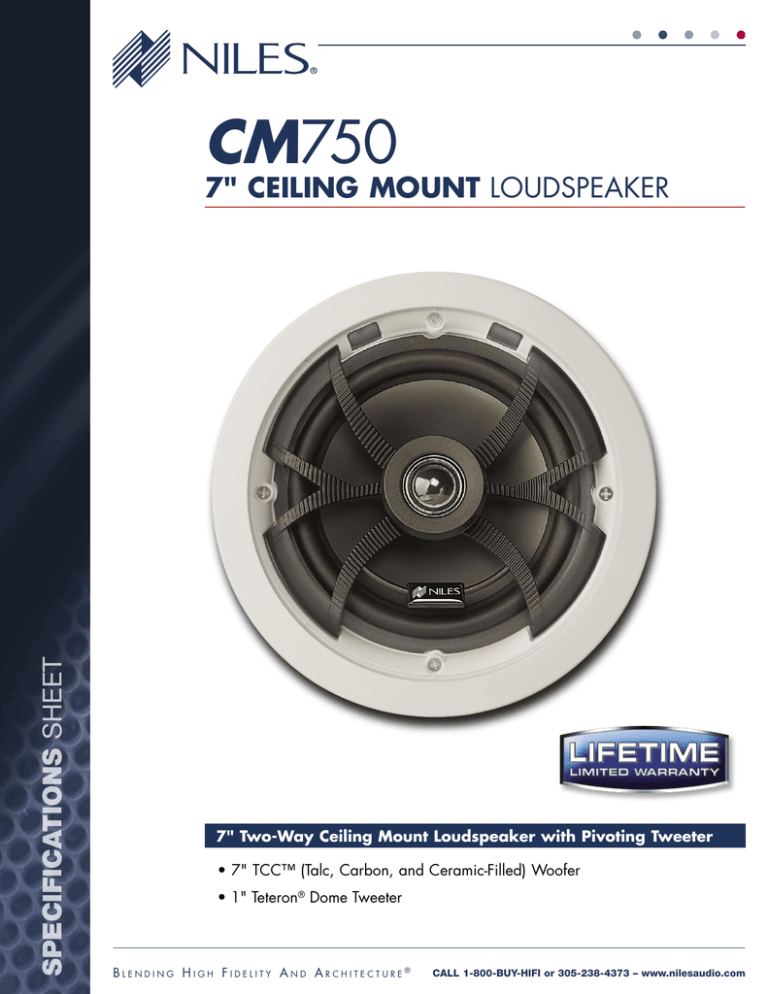

CM750
SPECIFICATIONS SHEET
7" CEILING MOUNT LOUDSPEAKER
7" Two-Way Ceiling Mount Loudspeaker with Pivoting Tweeter
• 7" TCC™ (Talc, Carbon, and Ceramic-Filled) Woofer
• 1" Teteron® Dome Tweeter
BLENDING HIGH FIDELITY AND ARCHITECTURE®
CALL 1-800-BUY-HIFI or 305-238-4373 – www.nilesaudio.com
7
INCH CEILING MOUNT LOUDSPEAKER
7" Two-way Loudspeaker
with Pivoting Tweeter
Features
CM750
■ Injection-molded TCC™ (Talc, Carbon, and Ceramic-filled) cone is extremely rigid to reduce
breakup, lower distortion and provide enhanced bass response
Stock Number
■ Butyl rubber surround damps resonance and provides exceptional durability
FG01298
■ 1” fluid-cooled Teteron® dome tweeter offers ultra-wide dispersion and silky-smooth highfrequency response
■ Integrated woofer/baffle design delivers greater low frequency response by employing a 7" woofer
where competitive models of the same outer size employ 6 1/2" woofers
■ Proprietary bridge-mounted tweeter-adjustment mechanism focuses the high frequency sound in
any direction up to 20º without diffraction
■ Includes flush-mount MicroPerf™ aluminum grille for a clean and unobtrusive look
■ Weather resistant construction reduces installation limitations and provides unique solutions in
moist environments or outdoors under eaves
Specifications
■ Frequency Response: 56Hz to 21kHz +/-3dB
■ Impedance: 8 ohm nominal; 6 ohm minimum
■ Recommended Amplifier Power: 10 to 125 Watts
■ Frame Dimensions: 9 1/4 inches (23.49 cm)
■ Hole cutout dimensions: 8 inches (20.32 cm)
■ Depth behind ceiling: 4 3/8 inches (11.11 cm)
Warranty: Lifetime Limited
P RODUCT CONSTRUCTION AND ACCESSORIES
4-3/8" (11.11 cm) Depth
SPECIFICATIONS SHEET
8" (20.32 cm)
Hole
Cutout
9-1/4" 23.49 cm
Frame Outer
Diameter
8" (20.32 cm)
Hole
Cutout
4-11/16" (11.90 cm) Depth
Loudspeaker Model
Model
Stock Number
CM750
FG01298
Works With
Previous Bracket
New Bracket
CM6 Series
Bracket Kit
FG00655
Metal Enclosure
Hole Cover
CM700 BKT
CE 6
CM700 Hole Cover
FG01308
FG00944
FG01309
NILES AUDIO CORPORATION 12331 SW 130 Street, Miami, FL 33186 1-800-BUY-HIFI – 305-238-4373 – www.nilesaudio.com
©2007 Niles Audio Corporation. All Rights Reserved. Niles, Blending High Fidelity and Architecture and the Niles logo are registered trademarks of Niles Audio Corporation. TCC and
MicroPerf are trademarks of Niles Audio Corporation. CS0052B
