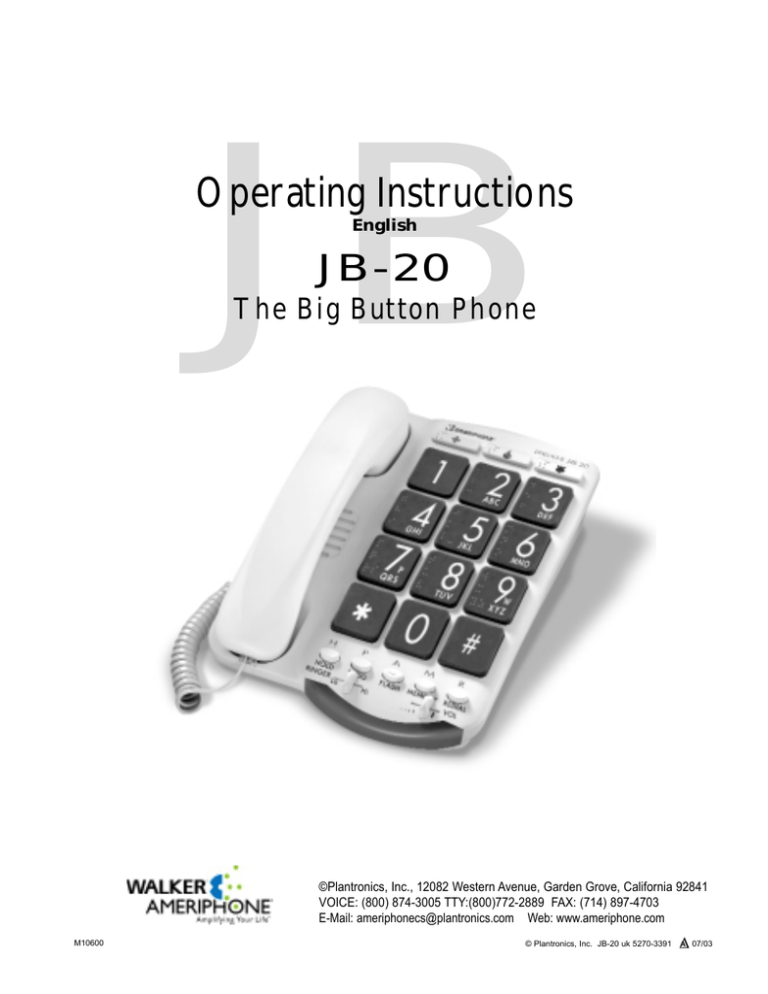

Ameriphone JB-20 Operating instructions
JB
Operating Instructions
English
JB-20
The Big Button Phone
©Plantronics, Inc., 12082 Western Avenue, Garden Grove, California 92841
VOICE: (800) 874-3005 TTY:(800)772-2889 FAX: (714) 897-4703
E-Mail: ameriphonecs@plantronics.com Web: www.ameriphone.com
M10600
© Plantronics, Inc. JB-20 uk 5270-3391
A 07/03
∆
Important Safety
Instructions
When using your telephone equipment, always follow
basic safety precautions to reduce the risk of fire, electric
shock, and injury to persons, including the following:
1. Read and understand all instructions. Observe all
warnings and other markings on the product.
2. During thunderstorms, avoid using telephones except
cordless models. There may be a slight chance of
electric shock from lightning.
3. Do not use a telephone near a gas leak. If you suspect a gas leak, report it immediately, but use a telephone away from the area where gas is leaking.
4. Do not use this product near water, or when you are
wet. For example, do not use it in a wet basement or
shower, or next to a swimming pool, bathtub, kitchen
sink or laundry tub. Do not use liquids or aerosol
sprays for cleaning. If the product comes in contact
with any liquids, unplug any phone line or power cord
immediately. Do not plug the product back in until it
has dried thoroughly.
5. Install this product in a protected location where no
one can trip over any phone line or power cord.
Protect cords from damage or abrasion.
6. If this product does not operate normally, review the
“Troubleshooting” section. If you cannot resolve the
problem, or if the product is damaged, refer to the
Ameriphone Warranty. Do not open this product
except as may be directed in this owner’s manual.
Opening this product or reassembling it incorrectly
may expose you to hazardous voltages or other risks.
Opening this product automatically voids the warranty.
7. If this product uses batteries as power back-up during
power outages, replace batteries only as described in
this owner’s manual. Do not burn or puncture used
batteries — they contain caustic chemicals.
8. Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the following conditions:
A. When the power supply cord or plug is damaged
or frayed.
B. If liquid has been spilled on the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions because improper adjustment of other controls may result in further damage.
E. If the product has been dropped or appears
damaged.
F. If the product exhibits a distinct change in performance.
9. If this product has a polarized plug with one wide
prong, it may not fit in non-polarized outlets. Do not
defeat the purpose of these plugs. If they do not fit in
your outlet, the outlet should be replaced by an
electrician.
ADDITIONAL SAFETY NOTES FOR
CANADIAN USERS
NOTICE: The Canadian Department of Communications
label identifies certified equipment. This certification means
that the equipment meets certain telecommunications network protective, operational and safety requirements. The
Department does not guarantee the equipment will operate
to the user's satisfaction.
Before installing the equipment, users should ensure that it
is permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be
installed using an acceptable method of connection. The
customer should be aware that compliance with the above
conditions may not prevent degradation of service in some
situations. Repairs to certified equipment should be made
by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alteration made by the
user to this equipment, or equipment malfunctions, may
give the telecommunications company cause to request the
user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone
lines and internal metallic water pipe system, if present,
are connected together. This precaution may be particularly
important in rural areas.
CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate electric
inspection authority, or electrician, as soon as possible.
NOTICE: The LOAD NUMBER (LN) assigned to each
terminal device denotes the percentage of the total load to
be connected to a telephone loop which is used by the
device, to prevent overloading. The termination on a loop
may consist of any combination of devices subject only to
the requirement that the sum of the load numbers of all
devices does not exceed 100.
SAVE THESE INSTRUCTIONS
Contents
CHAPTER 1: INTRODUCTION ..................................................................2
CHAPTER 2: PACKAGE CHECKLIST ..........................................................2
CHAPTER 3: FEATURES IDENTIFICATION ..............................................3
CHAPTER 4: INSTALLATION ......................................................................4
Desk mounting ........................................................................4
Wall mounting ........................................................................4
CHAPTER 5: OPERATING YOUR JB-20 ....................................................5
Dialing......................................................................................5
Adjusting the ringer tone..........................................................5
Adjusting handset volume ......................................................5
Ringer volume..........................................................................6
Hold ........................................................................................6
Last number redial ..................................................................6
Programming the Emergency buttons ....................................6
Dialing with an Emergency button ..........................................7
Programming frequently dialed numbers ................................8
Memory dialing ........................................................................8
Direct Audio Output ................................................................9
CHAPTER 6: TROUBLESHOOTING ........................................................10
CHAPTER 7: FCC INFORMATION ............................................................11
CHAPTER 8: WARRANTY ........................................................................16
CHAPTER 9: SPECIFICATIONS ................................................................17
INDEX ........................................................................................................17
1
CHAPTER 1
INTRODUCTION
Thank you for selecting the amplified
telephone JB-20 from Ameriphone.
These Operating Instructions and the
associated Quick Operating Guide provide you with the information you need
to use your JB-20 effectively and
safely. Read this manual thoroughly
before using your telephone. Keep the
manual near the telephone for easy reference.
CHAPTER 2 CHAPTER 2
PACKAGE CHECKLIST
PACKAGE CHECKLIST
Please make sure your JB-20
package includes the items as
shown below:
Warranty Service
Your telephone is designed to provide
years of quality service. Should the
phone malfunction and the Troubleshooting Chart on page 9 does not
resolve the problem, follow the
Warranty procedure on page 10.
Base Unit
Handset
Phone Base Plate
Sales Receipt
Be sure to save your sales receipt as
proof of purchase date should you
need warranty service.
Phone Cords
DIALOGUE JB-20
OPERATING
INSTRUCTIONS
Help from Ameriphone
For help with using your JB-20 , call
our Customer Relations department at
800-894-3005.
Please make sure your JB-20 package includes the items shown in
Figure 1.
2
Coiled Handset
Cord
Operating
Instructions
Fig. 1 - Package Components
CHAPTER 3
FEATURES IDENTIFICATION
Ringer
control switch (volume)
Audio Output jack
Tone / Pulse switch
Emergency buttons
Braille characters
Raised letters for
easy identification
REDIAL button
MEMORY button
HANDSET VOL
control (volume)
FLASH button
PROG button (program)
HOLD
button
RINGER TONE
selector
Fig. 2 - Features on JB-20
3
CHAPTER 4
INSTALLATION
Desk Mounting
1. Plug in the long phone
cord.
Wall Mounting
1. Pull the handset hook out
and reverse its position so
that the hook points up.
2. Plug the handset cord
into the telephone.
Fig. 4 - Reversing the hook
Fig.3 - Connections and installation
2. Install the Base Plate by
sliding the small tabs
into the upper slots. Push
on the bottom of the Base
Plate until it snaps into
place.
3. Lift the handset and listen
for a dial tone.
4. Your JB-20 is ready to
use.
MANUAL
AUTO
Fig. 5 - Phone base installation
for wall mounting
4
CHAPTER 4
(CONTINUED)
3. Plug in the short phone
cord.
4. Align the posts on the wall
mount with the holes in
back of the DIALOGUE JB20 . Slide the phone down
on the posts to secure it.
CHAPTER 5
OPERATING YOUR DIALOGUE JB-20
Dialing
Pick up the handset and dial like
any other telephone.
If you read Braille, you can use
the small bump on the 5 button to
help identify correct buttons. You
can also use the Braille characters
on the buttons to find the letters
on each button. For example, the
2 button has Braille characters for
A, B and C.
Adjusting the Ringer Tone
1. Adjust the Ringer Tone
selector to suit your hearing
Fig. 6 - Wall mounting installation.
5. Lift the handset and listen
for a dial tone.
6. Your JB-20 is ready to
use.
Fig. 7 - Adjusting ringer tone
Adjusting Handset Volume
1. Pick up the handset.
2. Adjust the HANDSET
VOLUME slider to suit your
hearing.
5
CHAPTER 5
(CONTINUED
2. To return to your call, pick up
the handset.
Fig. 8 - Adjusting the call volume
Ringer Volume
Adjust the RINGER volume
control to suit your hearing.
Note: When the DIALOGUE JB20 is on HOLD, if you pick up
another phone that is on the
same line, the DIALOGUE JB20 will automatically hang up.
You can continue your call on
the other phone.
Last Number Redial
Lift the handset and press the
REDIAL button to dial the last
number you dialed.
Fig. 9 - Ringer volume
Hold
1. To put the phone on hold,
press the HOLD button and
put the handset in its cradle.
The red light in the Ring
Flasher shows HOLD is on.
Fig. 11 - Redial button
Programming the Emergency
Buttons
The Emergency Buttons can be
programmed to dial numbers
with one touch. You may wish to
use these buttons for police, fire
or medical response.
Fig. 10 - Hold Button and indicator
6
CHAPTER 5
(CONTINUED
1. Lift the handset and press the
PROG button.
Fig. 12 - Prog button
2. Enter the phone number as you
would normally dial it.
4. Press one of the Emergency
buttons.
Fig. 15 - Emergency button
5. Hang up the handset.
6. The number is now stored into
the Emergency button you
selected.
Fig. 13 - Telephone keypad
7. To change a stored number or
to program another memory
button, repeat this process from
step 1.
3. Press PROG button again.
Dialing With An Emergency
Button
1. Lift the handset.
Fig. 14 - Prog button
2. Press one of the Emergency
buttons.
The number you have stored
for that button will be automatically dialed.
7
CHAPTER 5
(CONTINUED)
Programming Frequently
Dialed Numbers
6. The number is now stored into
the number button you selected.
1. Lift the handset and press
the PROG button.
7. To change a stored number or
to program another memory
button, repeat this process from
step 1.
Memory Dialing
Fig. 16 - Prog button
2. Enter the phone number as you
would normally dial it.
Fig. 17 - Telephone keypad
3. Press the PROG button again.
4. Press MEMORY, then one of
the number buttons: 0, 1, 2, 3,
etc.
Note: # and * keys are not
available for this function.
5. Hang up the handset.
8
1. Lift the handset.
2. Press MEMORY and one of
the number buttons.
Fig. 18 - Memory button
The number you have stored for
that button will be automatically
dialed.
CHAPTER 5
(CONTINUED)
Direct Audio Output
The AUDIO OUTPUT socket allows
you to connect the DIALOGUE JB20 to a hearing aid, cochlear
implant or other assistive listening
devices.
AUDIO
Connecting the speech processor:
Plug the mono end of the plug into
the speech processor.
Plug the stereo end of the plug into
the Audio Output socket on the
phone.
Speak into the handset when using
the Cochlear Implant Adapter Cord.
OUTPUT
POWER
LED
Figure 19 - Audio Output
Socket and Cochlear
Cord Hook-up
RELAY
M1
REL MGS
M2
M3
M4
M5
SELECT
SHIFT
DIALOGUE VCO
A
B
C
Q
SIGNAL
LED
AUTO ANS BACKSPACE SPACE
TM
D
E
F
Z
G
H
I
J
K
L
M
N
O
P
R
S
T
U
V
W
X
Y
, . ? : ;
" / ' + -
! $ () =
HOLD
PROG
FLASH
REDIAL
AMPLIFY
VOL
TONE
LO
To use this port, plug in a compatible
auxiliary cable and connect it to your
assistive listening device. Speak into
the handset when you use the Audio
Output connection.
HI
Figure 20 - Connecting the
Speech Processor
Cochlear Implant Adapter Cord:
A cochlear adapter cord is available
from Ameriphone that can be used to
plug the JB-20 directly into a
speech processor.
WARNING! During thunderstorms, avoid
using telephones as electric shock from
lightning can occur. Before plugging any
cord into your speech processor, you must
consult your implant manufacturer.
9
CHAPTER 6
TEXT
TROUBLESHOOTING
If any problem should arise during operation of your JB-20, go through
the suggestions listed below. Should the difficulty persist, contact
Ameriphone or your authorized dealer for assistance.
10
SYMPTOM
CAUSE AND
CORRECTIVE ACTION
No dial tone
Check all phone cord connections.
No number
dialed when memory
button pressed
No number stored in that
memory button. See
"Programming Frequently
Dialed Numbers
Call cannot be dialed,
or is dialed slowly
See "Installation" section to
reset the dial mode switch.
No audible ring
Make sure the ringer is not set
to "Off" position.
Phone ”locks- up“; no
functions operate
Check all the connections.
Make sure the cords are
plugged in
correctly.
CHAPTER 7
FCC INFORMATION
Part 68 of FCC Rules
Information
This equipment complies with Part
68 of the FCC rules and the
requirements adopted by the
ACTA. On the bottom of this
equipment is a label that contains,
among other information, a
product identifier in the format
US:AAAEQ##TXXXX. If requested,
this number must be provided to the
telephone company.
A plug and jack used to connect this
equipment to the premises wiring
and telephone network must comply with the applicable FCC Part
68 rules and requirements adopted
by the ACTA. A compliant telephone cord and modular plug,
RJ11 USOC, is provided with this
product. It is designed to be
connected to a compatible modular
jack that is also compliant. See
installation instructions for details.
The REN is used to determine the
number of devices that may be
connected to a telephone line.
Excessive RENs on a telephone
line may result in the devices not
ringing in response to an incoming
call. In most but not all areas, the
sum of RENs should not exceed
five (5.0). To be certain of the
number of devices that may be
connected to a line, as determined
by the total RENs, contact the
local telephone company. For
products approved after July 23,
2001, the REN for this product is
part of the product identifier that
has the format US:AAAEQ##TXXXX.
The digits represented by ## are
the REN without a decimal point
(e.g., 03 is a REN of 0.3). For
earlier products, the REN is
separately shown on the label.
If this telephone equipment, the
VCO telephone, causes harm to
the telephone network, the
telephone company will notify you
in advance that temporary
discontinuance of service may be
required. But if advance notice
isn’t practical, the telephone
company will notify the customer
as soon as possible. Also, you will
be advised of your right to file a
11
CHAPTER 7
FCC INFORMATION
complaint with the FCC if you
believe it is necessary.
The telephone company may
make changes in its facilities,
equipment, operations or procedures
that could affect the operation of
the equipment. If this happens the
telephone company will provide
advance notice in order for you to
make necessary modifications to
maintain uninterrupted service.
If trouble is experienced with this
telephone equipment, for repair or
warranty information, please contact
Walker / Ameriphone, 1-800874-3005. If the equipment is
causing harm to the telephone
network, the telephone company
may request that you disconnect
the equipment until the problem is
resolved.
DO NOT DISASSEMBLE THIS
EQUIPMENT.
This telephone equipment is not
intended to be repaired and it
contains no repairable parts.
Opening the equipment or any
attempt to perform repairs will
12
void the warranty. For service or
repairs, call 1-800-874-3005.
Connection to party line service is
subject to state tariffs. Contact the
state public utility commission,
public service commission or
corporation commission for
information.
If your home has specially wired
alarm equipment connected to the
telephone line, ensure the
installation of this telephone
equipment does not disable
your alarm equipment. If you
have questions about what will
disable alarm equipment, consult
your telephone company or a
qualified installer.
This telephone equipment is
hearing aid compatible.
We recommend the installation of
an AC surge arrester in the AC
outlet to which this equipment is
connected. The telephone
companies report that electrical
surges, typically lighting transients,
are very destructive to customer
CHAPTER 7
FCC INFORMATION
terminal equipment connected to
AC power sources.
Customer-Owned Coin/Credit
Card Phones:
To comply with state tariffs, the
telephone company must be given
notification prior to connection. In
some states, the state public utility
commission, public service
commission or corporation
commission must give prior
approval of connection.
Part 15 of FCC Rules
Information
This device complies with part 15
of the FCC Rules. Operation is
subject to the following two
conditions: (1) This device may
not cause harmful interference,
and (2) this device must accept
any interference received,
including interference that may
cause undesired operation.
Your XL-40 Telephone has been
tested and found to comply with
the limits of a Class B digital
device, pursuant to Part 15 of
FCC rules. These limits are
designed to provide reasonable
protection against harmful
interference in residential
installation.
This equipment generates, uses,
and can radiate radio frequency
energy and, if not installed and
used in accordance with the
instructions, may cause harmful
interference to radio communications.
However, there is no guarantee
that interference will not occur in
a particular installation; if this
equipment does cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment off and
on, you are encouraged to try to
correct the interference by one of
the following measures:
1.Where it can be done safely,
reorient the receiving
television or radio antenna.
2.To the extent possible,
13
CHAPTER 7
FCC INFORMATION
relocate the television, radio
or other receiver with respect
to the telephone equipment.
(This increases the separation
between the telephone
equipment and the receiver.)
3.Connect the telephone
equipment into an outlet on a
circuit difference from that
to which the television, radio,
or other receiver is connected.
4.Consult the dealer or an
experienced radio/TV
technician for help.
CAUTION: Changes or
modifications not expressly
approved by the manufacturer
responsible for compliance could
void the user’s authority to operate
the equipment.
THE PARTY RESPONSIBLE
FOR PRODUCT COMPLIANCE
Ameriphone Products by Walker,
A Division of Plantronics, Inc.
12082 Western Avenue
Garden Grove, CA 92841
Telephone: 800-874-3005
14
Industry Canada Technical
Specifications
This product meets the applicable
Industry Canada technical
specifications.
Before installing this equipment,
users should ensure that it is
permissible to be connected to the
facilities of the local
telecommunications company. The
equipment must also be installed
using an acceptable method of
connection. In some cases, the
company’s inside wiring
associated with a single line
individual service may be
extended by means of a certified
connector assembly (telephone
extension cord). The customer
should be aware that compliance
with the above conditions may not
prevent degradation of service in
some situations.
Repairs to certified equipment
should be made by an authorized
Canadian maintenance facility
designated by the supplier. Any
repairs or alterations made by the
CHAPTER 7
FCC INFORMATION
user to this equipment, or
equipment malfunctions, may give
the telecommunications company
cause to request the user to
disconnect the equipment.
Users should ensure for their own
protection that the electrical
ground connections of the power
utility, telephone lines and internal
metallic water pipe system, if
present, are connected together.
This precaution may be particularly
important in rural areas.
Caution: Users should not attempt
to make such connections
themselves, but should contact the
appropriate electric inspection
authority, or electrician, as
appropriate.
The Ringer Equivalence Number is
an indication of the maximum
number of terminals allowed to be
connected to a telephone interface.
The termination on an interface
may consist of any combination of
devices subject only to the
requirement that the sum of the
Ringer Equivalence Numbers of all
the devices does not exceed five.
[The term “IC:” before the
certification/registration number
only signifies that the Industry
Canada technical specifications
were met.]
15
CHAPTER 8
TEXT
WARRANTY
This warranty applies only to Ameriphone
products that are purchased and used in the
United States or Canada.
Ameriphone warrants the JB-20 . telephone against any defect in materials or
workmanship for the period of one year
from the date of purchase.
If your Ameriphone product is defective and
returned within 30 days of the date of purchase, your JB-20 . dealer will replace it
at no charge.
If returned after 30 days, but within one
year from the date of purchase, we will
repair or replace it at no charge. In the
repair of your JB-20 . , we may use new
or reconditioned replacement parts. If we
elect to replace your JB-20 , we may
replace it with a new or reconditioned
product of the same or similar design.
Repair or replacement will be warranted for
either 90 days or the remaining time on the
original warranty period, whichever is
longer.
Implied warranties, including those of fitness for a particular purpose and merchantability (an unwritten warranty that the
product is fit for ordinary use), are limited to
one year from date of purchase. We will
not pay for loss of time, inconvenience, loss
of use of your JB-20 , or property damage
caused by your JB-20 or its failure to
work, or any other incidental or consequential damages. Some states do not
allow limitations on how long an implied
warranty lasts or the exclusion of incidental
or consequential damages, so the above
16
exclusions or limitations may not apply to
you.
To get warranty service for your JB-20 , you
must provide proof of the purchase date.
Within 30 days of the date of purchase,
return your JB-20 to the place where you
purchased it for immediate replacement.
After 30 days, call Ameriphone at 800874-3005 VOICE or 800-772-2889 TTY
for the authorized service center near you.
You must prepay all shipping costs. We suggest you save the original package materials in the event you need to ship the JB20 . When shipping for warranty repair,
include your name, address, phone number, proof of date of purchase, and a
description of the problem. After repairing
the product, we, (or the service center) will
ship it back to you at no cost within the
United States and Canada. CANADIAN
RESIDENTS: call Ameriphone at 800-8743005, 800-772-2889 TTY for instructions.
This warranty does not cover defects resulting from accidents, damage while in transit
to our service location, alterations, unauthorized repair, failure to follow instructions, misuse, use outside the United States
or Canada, fire, flood, and acts of God.
Nor do we warrant the product to be compatible with any particular telephone equipment, party line, key telephone systems, or
more sophisticated switching systems. If
your JB-20 is not covered by this warranty, call us at 800-874-3005 or 800-7722889 TTY for advice as to whether we will
repair your JB-20 and other repair information. The repair shall be warranted for
90 days.
CHAPTER 9
TEXT
SPECIFICATIONS
DECIBEL GAIN
Maximum gain: 18dB
PHYSICAL DIMENSIONS
Size: 9.5" x 7" x 3.25"
Weight: 2.52 lbs.
INDEX
Audio output jack ........................9
Base plate, removal......................4
Desk mounting ............................4
Dial modes
Pulse ......................................3
Tone ......................................3
Handset Volume control ..............5
Hold ............................................6
Light indicator ........................6
Installation ....................................4
Memory dialing ............................8
Programming ......................6, 7, 8
Modular cords..............................2
Packing checklist ........................2
Redialing ......................................6
Ringer volume ..............................6
Wall mounting ..............................4
Toubleshooting ..........................10
Warranty ....................................16
17
12082 Western Avenue, Garden Grove, CA 92841-2913
Voice: (800) 874-3005
TTY: (800) 772-2889
Fax: (714) 897-4703
E-mail: ameriphonecs@plantronics.com www.ameriphone.com
AMERIPHONE products are made by Walker / Ameriphone, a Division of Plantronics, Inc.
Precision engineered in the U.S.A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
