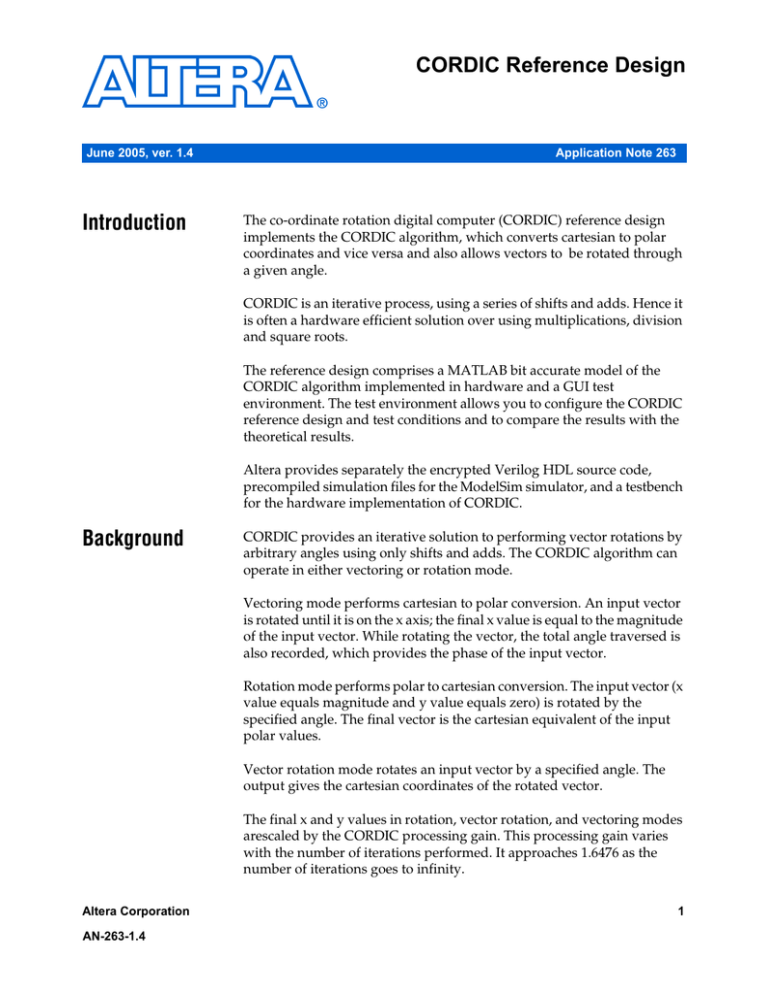

# Introduction CORDIC Reference Design

**CORDIC Reference Design**

**June 2005, ver. 1.4**

**Application Note 263**

**Introduction**

**Background**

**Altera Corporation**

**AN-263-1.4**

The co-ordinate rotation digital computer (CORDIC) reference design implements the CORDIC algorithm, which converts cartesian to polar coordinates and vice versa and also allows vectors to be rotated through a given angle.

CORDIC is an iterative process, using a series of shifts and adds. Hence it is often a hardware efficient solution over using multiplications, division and square roots.

The reference design comprises a MATLAB bit accurate model of the

CORDIC algorithm implemented in hardware and a GUI test environment. The test environment allows you to configure the CORDIC reference design and test conditions and to compare the results with the theoretical results.

Altera provides separately the encrypted Verilog HDL source code, precompiled simulation files for the ModelSim simulator, and a testbench for the hardware implementation of CORDIC.

CORDIC provides an iterative solution to performing vector rotations by arbitrary angles using only shifts and adds. The CORDIC algorithm can operate in either vectoring or rotation mode.

Vectoring mode performs cartesian to polar conversion. An input vector is rotated until it is on the x axis; the final x value is equal to the magnitude of the input vector. While rotating the vector, the total angle traversed is also recorded, which provides the phase of the input vector.

Rotation mode performs polar to cartesian conversion. The input vector (x value equals magnitude and y value equals zero) is rotated by the specified angle. The final vector is the cartesian equivalent of the input polar values.

Vector rotation mode rotates an input vector by a specified angle. The output gives the cartesian coordinates of the rotated vector.

The final x and y values in rotation, vector rotation, and vectoring modes arescaled by the CORDIC processing gain. This processing gain varies with the number of iterations performed. It approaches 1.6476 as the number of iterations goes to infinity.

** 1**

**2**

**AN 263: CORDIC Reference Design**

**Functional **

**Description**

At some point in the system this gain may have to be compensated for. If so, in vectoring mode, the resultant magnitude (x value) needs to be divided by the processing gain (or multiplied by the reciprocal of the processing gain); in rotation mode either the input polar magnitude (input x value) or the output x and y values can be divided by the processing gain.

Figure 1 shows the top-level block diagram of the CORDIC reference

design.

The x, y, and z inputs and outputs are twos complement signed numbers.

The bit widths and number of iterations are parameterizable.

The range of z is given by –

π ≤ z < +π, where –π = –2

(z_bits – 1) .

*Figure 1. Block Diagram*

x_in y_in z_in mode

CORDIC

Reference

Design x_out y_out z_out

**Cartesian to Polar Conversion**

The cartesian to polar conversion has the following attributes:

■ x_in

and y_in

are the input cartesian values

■ z_in

must be zero

■ mode

= 0, to enforce vectoring mode

■ x_out

is the polar magnitude (scaled by processing gain)

■ z_out

is the polar phase

**Polar to Cartesian Conversion**

The polar to cartesian conversion has the following attributes:

■ x_in

is the input polar magnitude.

■ y_in

must be zero.

■ z_in

is the input polar phase.

■ mode

= 1 to enforce rotation mode

■ x_out

, y_out

is the cartesian values (scaled by processing gain)

**Altera Corporation**

**Altera Corporation **

**AN 263: CORDIC Reference Design**

**Vector Rotation **

The vector rotation has the following attributes:

■ x_in

and y_in

are the input cartesian values

■ z_in

is the angle to rotate the input vector by

■ mode = 1

to enforce rotation mode

■ x_out

and y_out

are the cartesian values

**Vector Width**

The vector width of x and y should be increased by two over the required width, because of the processing gain of the CORDIC block. For example, if 16 bits represent the magnitude, you should select 18 bits as the vector width for x and y inputs and outputs. Any required sign extension of the inputs must be performed, prior to presenting the x and y inputs to the

CORDIC reference design.

You can select input and output vector widths of up to 32 bits for x, y and z.

**Iterations**

The accuracy of the CORDIC algorithm improves with each iteration, until the number of iterations equals the bit width of the inputs.

The CORDIC reference design is pipelined at every iteration. The number of clock cycles required to perform a conversion is equal to the number of iterations plus 3 (this extra number required for additional registering).

The number of iterations can be from 5 to 32, but must not exceed the number of bits of the x, y, and z input values.

**Processing Gain Compensation**

The CORDIC reference design does not compensate for the processing gain. However, Altera supply source code for a gain compensation block with the encrypted source code for the CORDIC reference design,. This block is synthesizable and is provided as sample code (it is not necessarily optimized).

The gain compensation block has two implementations, which are selectable via parameters.

**3**

**AN 263: CORDIC Reference Design**

In the first implementation the gain compensation is a series of shifts and adds. It has a latency of 6 clock cycles. For 32 bit vector lengths this achieves performance of over 285 MHz and uses approximately 950 LEs.

The second implementation uses a Stratix DSP block and has a latency of two clock cycles. For 32 bit vector lengths this achieves performance of over 190 MHz using one DSP block.

**Testbench**

The Verilog HDL testbench optionally connects the processing gain compensation block either before (if testing in rotational mode and removing gain) and/or after the CORDIC reference design (if testing in vectoring mode and removing gain). Input data is read from text files, and the output from the system is read and compared to the expected data which is also stored in text files.

Any error messages are logged to the screen and also logged to an output file.

The MATLAB environment auto-generates the input data and expected output data text files or you can generate them manually.

Altera provides scripts for simulation with ModelSim simulators.

**Design Flow**

The MATLAB GUI environment configures the CORDIC reference design

(i.e., vector widths, number of iterations, gain compensation) and the test conditions (i.e., rotation or vectoring modes, number of input samples, random or sequential input data, restrictions on input values).

You can plot graphs to compare the performance of the MATLAB bit accurate model of the CORDIC with the theoretical results. Once you are satisfied with the behavior of the CORDIC (i.e. accuracy), the GUI allows the input and output data to be written to text files and Verilog HDL parameters to configure the hardware CORDIC, gain compensation blocks, and testbench.

The Verilog HDL testbench confirms that the Verilog HDL behaves identically to your MATLAB CORDIC model that you required.

1

The Verilog HDL testbench is shipped with the CORDIC reference design encrypted source code.

**4 Altera Corporation**

**AN 263: CORDIC Reference Design**

**Getting Started**

This section involves the following steps:

■

■

■

**Software Requirements**

The design requires the following software:

■

Altera

®

Quartus

®

II software version 2.2 SP2

■

Mathworks MATLAB version 6.5

■

ModelSim version 5.7a

**Install the Design**

To install the reference design, run the** .exe**. and follow the installation instructions.

Figure 2 shows the directory structure.

**Altera Corporation 5**

**AN 263: CORDIC Reference Design**

*Figure 2. Directory Structure*

**cordic-<**

version**>**

**build**

Contains the project file and the files for Quartus II synthesis and fitting.

**ip**

Contains the encrypted source files.

**altera_sim_lib**

Contains simulation models of Altera device structures (i.e., DSP blocks that you can use in the gain compensation block).

**gate_sim**

Contains simulation models for gate-level simulation.

**source**

Contains the encrypted source files.

**mlab **

Contains the MATLAB files for the bit accurate model.

**verilog **

Contains the Verilog HDL source files for the CORDIC and gain compression blocks.

**test**

Contains the common files that are used in both projects.

**dat_files**

Contains text files for inputs and their expected outputs from the CORDIC reference design, which the Verilog HDL testbench requires. MATLAB can auto-generate these text files.

**mlab**

Contains MATLAB files.

**tb **

Contains the MATLAB testbench.

**verilog**

Contains Verilog HDL files.

**cordic_compiled_lib**

Contains the precompiled simulation files.

**scripts**

Contains the ModelSim simulation scripts.

**tb **

Contains the Verilog HDL testbench.

to

8 describe the files in each directory.

*Table 1. sourcebuild Directory Files*

**File Name**

cordic.psf

cordic.quartus

**Description**

Quartus II project settings file.

Quartus II project file.

**6 Altera Corporation**

**Altera Corporation **

**AN 263: CORDIC Reference Design**

*Table 2. ip Directory Files*

**File Name Description**

altera_sim_lib/altera_mf.v

Verilog functional simulation models for structures in Altera devices (e.g., DSP blocks).

altera_sim_lib/gate_sim/stratix_atoms.v Verilog simulation models required for gate-level simulation.

*Table 3. source/mlab Directory Files*

**File Name**

cordic.m

neg2pos.m

**Description**

Bit accurate MATLAB model of CORDIC and gain compensation blocks.

MATLAB function calculates the absolute number that represents negative numbers in twos complement.

*Table 4. source/verilog Directory Files*

**File Name**

cordic.v

cordic_core.v

ip_quad_info.v

ip_quad_adj.v

op_quad_adj.v

cordic_inc.v

cordic_inc_p2.v

cordic_gain_corr.v

**Description**

Top level CORDIC module.

module containing algorithm.

Determines quadrant information for CORDIC inputs.

Adjusts inputs to algorithm.

Adjusts outputs from algorithm.

Contains the static parameters.

Contains the parameters that change according to

CORDIC configuration; can be auto-generated by

MATLAB.

Gain compensation block.

**7**

**AN 263: CORDIC Reference Design**

*Table 5. test/dat_files Directory Files (required for the Verilog HDL testbench)*

**File Name**

ip_mode.txt

ip_xy.txt

ip_z.txt

op_exp_xy.txt

op_exp_z.txt

op_err.txt

**Description**

CORDIC mode of each input (rotation or vectoring); can be auto-generated by MATLAB.

X and Y inputs to the CORDIC system.

Z inputs to CORDIC system.

Expected X and Y outputs from CORDIC system.

Expected Z output from CORDIC system.

Output error log from simulation run.

*Note:*

(1) MATLAB can auto-generate all of the files except for **op_err.txt**.

*Table 6. test/mlab/tb Directory Files*

**File Name**

cordic_gui.fig

cordic_gui.m

cordic_test.m

comb_mlab_files

**Description**

MATLAB file for GUI.

MATLAB file for GUI.

MATLAB script that runs the CORDIC test.

Pearl script that combines data results from two different sets of files containing the input and expected output data.

*Table 7. test/verilog/scripts Directory Files*

**File Name Description**

encrypt_msim_com.bat

PC batch file for using ModelSim to simulate design in command mode.

encrypt_msim_gui.bat

PC batch file for using ModelSim in GUI mode to simulate design.

**8 Altera Corporation**

**Altera Corporation **

**AN 263: CORDIC Reference Design**

*Table 8. test/verilog/tb Directory Files*

**File Name**

cordic_tb.v

modelsim_wave.do

**Description**

Verilog HDL testbench.

Waveform file for ModelSim.

**Design Walkthrough**

The walkthrough involves the following steps:

■

■

■

Auto-generate Verilog Simulation Files from MATLAB

■

*Start the MATLAB GUI*

To start the MATLAB GUI, perform the following steps:

1.

Start MATLAB.

2.

Change the working directory to **cordic-**<*version*>**/test/mlab/tb**.

3.

Type the following command: cordic_gui

1

Output messages are still output to the MATLAB command window.

The CORDIC test control window opens (see

).

**9**

**AN 263: CORDIC Reference Design**

*Figure 3. CORDIC Test Control Window*

**10**

*Parameterize the Design*

To parameterize your design, perform the following steps:

1.

In the CORDIC H/W Configuration part of the CORDIC test control panel, perform the following steps: a.

Choose the vector widths: x/y and z bits, and x/y and z bits extend. Where the number of bits specifies the number of bits going into and out of the CORDIC. Bits extends specifies the number of extra bits the CORDIC works with, to increase accuracy.

**Altera Corporation**

**Altera Corporation **

**AN 263: CORDIC Reference Design**

b.

Choose the number of iterations.

c.

If you want gain compensation, select **Gain Compensation**, and choose the gain compensation logic. If you choose **h/w logic **

**shifts & adds**

, enter a value for **Bits Extend**, to increase accuracy.

2.

In the Test Set-up part of the CORDIC test control panel, perform the following steps: a.

Choose **rotational**, or **vectoring**, or **vector rotation** mode.

b.

If you require fixed point test, select **Fixed Point**.

1

Selecting **Fixed Point** overrides all settings for your x, y, and z bit widths.

c.

Choose either **Sequential** or **Random** input data.

d.

In rotational mode, enter the number of input data values for magnitude and phase.

*or*

In vectoring mode, enter the number of input data values for the

X and Y values.

*or*

In vector rotation mode, enter the different number of rotation angles in the Phase box, enter the different number of input vectors in the Magnitude box (each different input magnitude has a different starting phase, resulting in the different input vector; the starting phases are distributed evenly throughout the

360 degree space). Each different input vector is rotated through all the different rotation angles.

e.

In rotational mode, enter the **Input Data Constraints**: minimum magnitude, maximum magnitude, minimum phase, maximum phase.

*or*

In vectoring mode, enter the **Input Data Constraints**: minimum

X, maximum X, minimum Y, and maximum Y.

3.

Click **Run**.

**11**

**AN 263: CORDIC Reference Design**

*Figure 4. Input Values Graph*

4.

Select the type of graph that you want MATLAB to plot.

to

show various graphs that you can select, for various

CORDIC test control panel settings.

**12 Altera Corporation**

*Figure 5. Output Polar Errors Graph*

**AN 263: CORDIC Reference Design**

**Altera Corporation 13**

**AN 263: CORDIC Reference Design**

*Figure 6. Output X Y on a Cartesian Plane Graph*

**14**

5.

When you have viewed the graph, click **Close Plots**.

*Auto-generate Verilog Simulation Files from MATLAB*

Once MATLAB testing reaches a conclusion with the configuration of a suitable CORDIC reference design to auto-generate Verilog simulation files from MATLAB, perform the following steps:

1.

Click **Write Data to Files **to write the input and expected output data to **cordic-**<*version*>**/test/dat_files**.

2.

Click **Write Verilog Parameters**, to write the required Verilog HDL parameters to **cordic-**<*version*>**/source/verilog/cordic_inc_p2.vh** and

**cordic-**

<*version*>**/test/verilog/tb/cordic_tb_inc.vh**.

1

These files contain parameters to configure the CORDIC reference design, the gain compensation block, and the testbench.

**Altera Corporation**

**Performance**

**AN 263: CORDIC Reference Design**

*Simulation*

To use the ModelSim simulation files, perform the following steps:

1.

Open the ModelSim simulator.

2.

Change the working directory to **cordic-**

<*version*>**/test/verilog/script**.

3.

Ensure that the required data files are in the **cordic-**

<*version*>**/test/dat_files** directory.

4.

If you want to run the GUI run the **cordic-**

<*version*>**/test/verilog/scripts/encrypt_msim_gui.bat** batch file otherwise run the **cordic-**

<*version*>**/test/verilog/scripts/encrypt_msim_com.bat** batch file.

5.

The output log file, which is generated from simulation run, is

**cordic-**

<*version*>**/test/dat_files/op_err.txt**.

1

If you subsquently change the parameter values or the data used in the test and still have the ModelSim simulator open from the previous run, you can type cr

in the ModelSim window, which recompiles the testbench and reruns the simulation.

Table 9 shows the Quartus II push-button performance for the CORDIC

reference design on Stratix™ devices.

*Table 9. Example Performance in Stratix Devices*

**x, y, & z Bit Widths Number of Iterations Logic Elements (LEs) % LEs in Device **

**f**

**MAX**

** (MHz)**

8 8 292 2 269

16

24

32

40

*Note:*

(1) EP1S10F484C5 device.

16

24

32

40

965

2,021

3,462

5,287

9

19

32

50

221

202

185

179

**Altera Corporation 15**

**AN 263: CORDIC Reference Design**

Table 9 shows the Quartus II push-button performance the CORDIC

reference design on Cyclone™ devices.

*Table 10. Example Performance in Cyclone Devices*

**x, y, & z Bit Widths Number of Iterations Logic Elements (LEs)**

8

16

24

32

40

*Note:*

(1) EP1C 3T144C6 device.

(2) EP1C 4F324C6 device.

(3) EP1C 12F324C6 device.

8

16

24

32

40

293

963

2,022

3,463

5,287

**% LEs in Device**

10

24

50

28

43

**f**

**MAX**

** (MHz)**

233

219

181

173

166

101 Innovation Drive

San Jose, CA 95134

(408) 544-7000 http://www.altera.com

Applications Hotline:

(800) 800-EPLD

Literature Services: [email protected]

**16**

Copyright © 2005 Altera Corporation. All rights reserved. Altera, The Programmable Solutions Company, the stylized Altera logo, specific device designations, and all other words and logos that are identified as trademarks and/or service marks are, unless noted otherwise, the trademarks and service marks of Altera

Corporation in the U.S. and other countries. All other product or service names are the property of their respective holders. Altera products are protected under numerous U.S. and foreign patents and pending applications, maskwork rights, and copyrights. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera Corporation. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services

.

**Altera Corporation**

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
