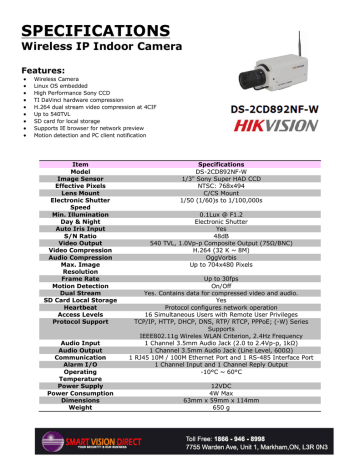

SPECIFICATIONS
Wireless IP Indoor Camera
Features:









Wireless Camera
Linux OS embedded
High Performance Sony CCD
TI DaVinci hardware compression
H.264 dual stream video compression at 4CIF
Up to 540TVL
SD card for local storage
Supports IE browser for network preview
Motion detection and PC client notification
Item
Model
Image Sensor
Effective Pixels
Lens Mount
Electronic Shutter
Speed
Min. Illumination
Day & Night
Auto Iris Input
S/N Ratio
Video Output
Video Compression
Audio Compression
Max. Image
Resolution
Frame Rate
Motion Detection
Dual Stream
SD Card Local Storage
Heartbeat
Access Levels
Protocol Support
Audio Input
Audio Output
Communication
Alarm I/O
Operating
Temperature
Power Supply
Power Consumption
Dimensions
Weight
Specifications
DS-2CD892NF-W
1/3" Sony Super HAD CCD
NTSC: 768x494
C/CS Mount
1/50 (1/60)s to 1/100,000s
0.1Lux @ F1.2
Electronic Shutter
Yes
48dB
540 TVL, 1.0Vp-p Composite Output (75Ω/BNC)
H.264 (32 K ~ 8M)
OggVorbis
Up to 704x480 Pixels
Up to 30fps
On/Off
Yes. Contains data for compressed video and audio.
Yes
Protocol configures network operation
16 Simultaneous Users with Remote User Privileges
TCP/IP, HTTP, DHCP, DNS, RTP/ RTCP, PPPoE; (-W) Series
Supports
IEEE802.11g Wireles WLAN Criterion, 2.4Hz Frequency
1 Channel 3.5mm Audio Jack (2.0 to 2.4Vp-p, 1kΩ)
1 Channel 3.5mm Audio Jack (Line Level, 600Ω)
1 RJ45 10M / 100M Ethernet Port and 1 RS-485 Interface Port
1 Channel Input and 1 Channel Reply Output
-10°C ~ 60°C
12VDC
4W Max
63mm x 59mm x 114mm
650 g
