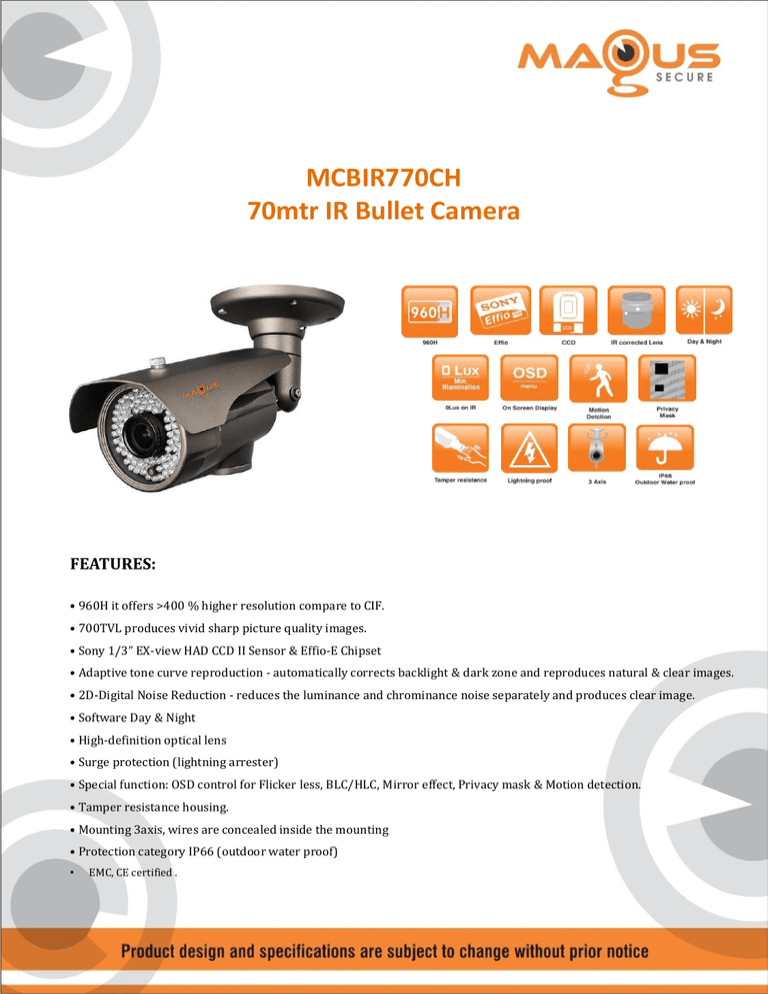

MCBIR770CH
MCBIR770CH
70mtr IR Bullet Camera
FEATURES:
• 960H it offers >400 % higher resolution compare to CIF.
• 700TVL produces vivid sharp picture quality images.
• Sony 1/3” EX-view HAD CCD II Sensor & Effio-E Chipset
• Adaptive tone curve reproduction - automatically corrects backlight & dark zone and reproduces natural & clear images.
• 2D-Digital Noise Reduction - reduces the luminance and chrominance noise separately and produces clear image.
• Software Day & Night
• High-definition optical lens
• Surge protection (lightning arrester)
• Special function: OSD control for Flicker less, BLC/HLC, Mirror effect, Privacy mask & Motion detection.
• Tamper resistance housing.
• Mounting 3axis, wires are concealed inside the mounting
• Protection category IP66 (outdoor water proof)
•
EMC, CE certified .
SPECIFICATIONS:
MCBIR770CH
Camera
Image Sensor
TV System
Pixels
Horizontal TVL
Minimum illumination
Scanning System
Scanning Frequency
Synchonization
Electronic Shutter Speed
S/N Ratio
Day & Night
1/3’’ Sony Ex-view HAD II CCD 960H
PAL
PAL: 976(H) x 596(V)
Color:700TVL, B/W: 750TVL
0Lux on IR, Colour 0.1Lux & B/W 0.01Lux
2:1 Interlace
H : 15.625KHz / V : 50Hz
Internal
1/50 ~ 1/100000sec
>50dB
Auto / Color / B&W
Lens
Focal Length
8mm F1.2
Viewing angle
35degrees
Lens Type
Mount Type
IR Corrected Lens
C-Mount Lens
Illuminator
Number of IR
IR Range
IR LED ф5mm 84nos
50 ~ 70 mtrs
Special function
ATR (D-WDR)
BLC/HLC
2D-Digital Noice Reduction
ON/OFF ( Brightness, Contrast adjustable)
ON / OFF
ON / OFF
Motion Detection
ON / OFF (4 zone)
Privacy Masking
ON / OFF (8 zone)
Mirror Image
ON / OFF
Gain Control
Auto / Manual (6 ~ 44.8 dB)
White Balance
Flicker less
Camera Title
Image correction
ATW / Push / User1 & 2 /Anti CR / Push Lock / Manual Selectable (1800K-10500K)
Programmable
54 character
Brightness/Contrast/Sharpness/Hue Adjustable
Interface
Video output
1V P-P / 75Ω
Power
Input Voltage
12V DC
Power Consumption
800mA
Mechanical
Product dimensions
302mm x 130mm x 145mm (L x W x H)
Box dimensions
292mm x 176mm x 140mm (L x W x H)
Gross weight
1410gm
Environment
Temperature
Humidity
Lighting proof
-10°C~+50°C
Less then 95% RH
Multi-level Lighting Proof
Accessories
Included
Certification
User manual, Plug wood, Screw, Allen key
EMC, CE certified
