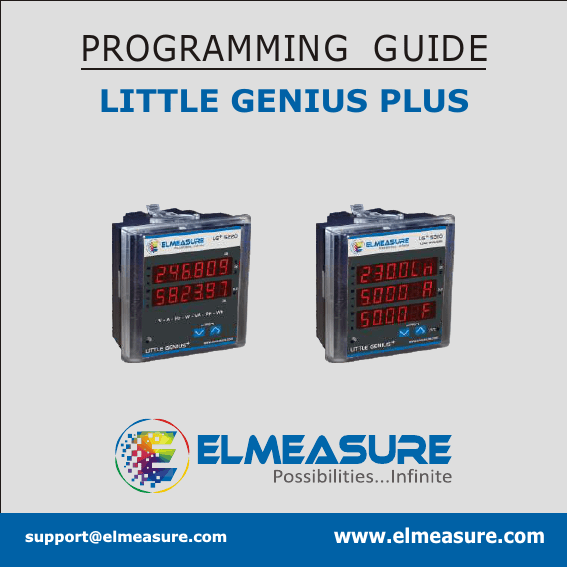

PROGRAMMING GUIDE
LITTLE GENIUS PLUS
support@elmeasure.com
www.elmeasure.com
Product & features at glance :
This Manual is applicable for the Models: LG+AYXX A indicates display
parameters & Y indicates nos of rows and may be replaced by any one digit
number from 1 to 9. XX indicates software variants without any change in
hardware construction and may be replaced by any two digit number from 00 to
99.Throughout this manual, the following methods are used to highlight
important information:
NOTE : Describes important considerations related to a device setup, feature or
application.
CAUTION : Alerts you to a condition which could potentially cause damage to
the device or other external equipment.
WARNING or DANGER: Warns you to avoid such conditions that could
potentially cause serious personal injury and/or damage to equipment.
Preventive Measures :
 Fuse: To avoid the possibility of short circuit, use a fuse that has a rating
(current and type) that is specified. When replacing a fuse, turn OFF the
power and unplug the power cord. Never short the fuse holder.
 Do Not Operate in an Explosive Atmosphere: Do not operate the
instrument in the presence of flammable liquids or vapors. Operation in such
environments pose a safety hazard.
 Do Not Remove Covers: The cover should be removed by ElMeasure's
qualified personnel only. Opening the cover is dangerous, because some
areas inside the instrument have high voltages.
 External Connection: Securely connect the protective grounding before
connecting to the product under measurement or to an external control unit.
If you come in contact with circuit, make sure to turn OFF the circuit and
check that no voltage is present.
Index
1. Features
-
2
2. Unique Features
-
2
3. Wiring Diagram
-
4
4. Key Functions
-
6
5. LED Indications
-
6
6. Display of Parameters
-
7
7. Entering Configuration (Setup) Mode
-
9
8. Clearing Parameters
-
19
9. Enabling and disabling of Auto scrolling
-
20
10. Multifunction Factor
-
20
11. Installation Procedure
-
21
12. Communication Register Map
-
23
13. Application
-
25
14. Technical Specification
-
26
PG/LGP/R06/0113
1
1. FEATURES
l
l
l
l
l
l
l
l
l
STAR (Wye)/ DELTA/1 Phase Programmable
Universal Auxiliary (80 - 300 VAC / DC) supply
PT ratio / CT ratio programmable including CT secondary
True RMS measurement
Active energy, positive energy accumulation & reverse Lock
'OLD' register to store the previously cleared energy value
User configurable (Editable) password
Simultaneous sampling of Volts & Amps
Universal Voltage Input: 50 - 550 VAC (for UL 50-520 VAC)
and Current Secondary (0.05A to 5A) with overload of 20%
l Energy selection: Wh / VAh
l Simultaneous sampling of Volts & Amps
2. UNIQUE FEATURES
l 3/2 row, 6 digit displays on each row for better readability
l Optional Programmable relay output maximum 2
(up to six threshold parameters) and tripping time up to
180 seconds-LGP5310
l Two sure selectable parameters from basic (VLL, VLN, A, Hz) or
W, VA, or PF
l Auto scrolling in both upward and downward direction
l Auto-scaling of kilo, mega & giga decimal point
l Energy display programmable-counter based or resolution
based. Energy resetting at 999999KVAh*Multiplication factor
l Optional RS232 communication with module
2
Precautionary Measures to be taken while Wiring the Circuit:
Turn OFF the power to the circuit, when wiring the circuit. Connecting
or removing measurement cables while the power is turned ON is
dangerous.
Take special caution not to wire a current measurement circuit to the
voltage input terminal or vice-versa.
Strip the insulation cover of the measurement cable so that when it is
wired to the input terminal, the conductive parts (bare wires) do not
protrude from the terminal. It is recommended to use appropriate pre
lug after crimping the wire. Also, make sure to fasten the input
terminal screws securely so that the cable does not come loose.
Use cables with safety terminals that cover the conductive parts for
connecting to the voltage input terminals. Using a terminal with bare
conductive parts is dangerous if the terminal comes loose.
After connecting the measurement cable, attach the current input
protection cover for your safety. Make sure that the conductive parts
are not exposed from the protection cover.
Use the suitable star screw driver and apply optimum torque to
prevent damage to the meter terminals.
CAUTION : During normal operation of this instrument,
hazardous voltages are present at the rear terminals, which can cause
severe injury or death. These voltages are present throughout the
potential transformer (PT), current transformer (CT) auxiliary supply,
communication & Input / Output terminal. Installation, disconnection or
removal of the meter should be carried out only by qualified, properly
trained personnel, after de-energizing connected circuits. Improper
installation, including improper wiring and/or improper grounding will
void ElMeasure's warranty.
3
RS 485
S1
AR
S2
S1
AY
S2
S1
AB
S2
VR
VY
LOAD
RECEIVED
N
RS 485
S1
AR
S2
S1
AY
S2
S1
AB
S2
VR
VY
VB
N
Fig. 1
Star Connection(3E)
3 Phase 4 Wire system
A
U
X
S2
S1
LOAD
RECEIVED
DELIVERED
VB
S2
S1
S2
S1
Fig. 2
Delta Connection (2E)
3 Phase 3 Wire system
A
U
X
S2
S1
DELIVERED
LINE
RY BN
S2
S1
4
LINE
R Y B N
3. WIRING DIAGRAM
Note: Wiring should be in accordance with the National Electrical Code and/or the
Canadian Electrical Code, Part I.
Note: For DC Aux Voltage, +/- ve can be connected anyway.
Common
Relay 2
Common
Relay 1
RS 485
COM
2
1
Fig. 4
Digital output
Connection diagram
S1
AR
S2
S1
AY
S2
S1
AB
S2
VR
VY
VB
S2
S1
RS 485
A
U
X
Fig. 3
Single Phase
Connection
S1
AR
S2
S1
AY
S2
S1
AB
S2
VR
VY
VB
N
R
N
LOAD
RECEIVED
DELIVERED
N
S2
S1
LOAD
RECEIVED
DELIVERED
LINE
RY BN
S2
S1
S2
S1
5
LINE
A
U
X
COM
4. KEY FUNCTIONS
In SET
(Programming)
mode
Key
In RUN
(Measurement)
mode
UP/Right
To select the value and
accept the value (it act
as a Right key in
programming mode)
Up scroll pages
to look at
different
parameters
DOWN
To edit the value/ system To scroll pages to
type down -ward in edit
look at different
mode and scroll through parameters
the parameters
5. LED INDICATIONS:
Meaning
LED status
KILO - ON
Kilo
MEGA - ON
Mega
KILO & MEGA - ON
Giga
KILO & MEGA - OFF Direct reading
Minus (-) ON
Lag/Minus
Minus (-) OFF
Lead/Plus
Old - ON
Old Readings (Cleared readings)
6
Meaning
LED status
I/O 1 - ON
- Blink
- ON
Relay tripped (programmed parameter
is out of range)
Reserved Pulse LED
Communication ON
6. DISPLAY OF PARAMETERS:
Meaning
DISPLAY
Voltage line to line
Voltage line to Neutral
Voltage RY Phase
Voltage YB Phase
Voltage BR Phase
Current Average
Frequency
Total VA
Watts Total
7
Meaning
DISPLAY
Power Factor
Active Energy Received
Load Hour
On Hours/Time
Power Factor R Phase/Y Phase/B Phase
Clear
VA - R Phase/Y Phase/B Phase
Parity
Identification number
Conversions of alphabets used
(W)
WARNING : When using a modem interface between the host computer and
any remote device(s), ensure that the host computer is not used to set the
BAUD RATE parameter of any selected device outside the working range of
the modem. Doing so will cause that meter to cease communicating. Reestablishing communication with that meter is possible through performing
the following:
1. Reset the baud rate of the remote device from its front panel to a
value within the working range of the modem.
2. Set the computer to communicate at the baud rate at which the
remote device has been set to communicate.
8
7. ENTERING CONFIGURATION (SETUP) MODE
Step
Range/Options/
Comments
Actions
Display Reads
1
Press UP &
DOWN keys
together to
enter SETUP
Row 1:
with first digit “0”
blinking
Row 2:
(SETUP, CLEAR)
Displayed.
2
Press UP key
four times to
accept the
password.
Row 1:
(Clear) Defines the
Row 2: Blank
clearing option for
Row 3: blank
the meter.
(throughout the
setup)
3
Press DOWN
Row 1:
key to navigate Row 2:
(Element)
Press DOWN
key to
decrement the
first digit to “9”
sequentially
come to
digit “.1”
Defines the
power system
configuration.
Options: STAR /
DELTA/ 1 Phase
Note: If any other password is already set move up and down key to reach the
right password
9
Step
Actions
Display Reads
4
Press UP key
to select
STAR/DELTA/
1. PHASE
5
Press UP key to Row 1: selected
accept STAR/
mode
DELTA/1.PHASE Row 2:
6
Press DOWN
Row 1: xxxx
key to navigate (415.0 -default/
next parameter factory set)
Row 2:
(PT Primary)
7
Press UP key
to set the PT
primary value
Range/Options/
Comments
Row 1:
Blinks (selected mode
StAr/ dELt/1.Phase blinks)
Row 2:
For selection press
down key
Row 1: First digit
blinking can be
edited using
DOWN key.
Row 2:
CAUTION: To dismantle the meter remove the fuse from the
voltage connections and Auxiliary connection. Short the external links
for CT (S1 to S2).
10
Step
Actions
8
Press UP key
to accept the
edited value for
first digit.
Display Reads
Range/Options/
Comments
Row 1: Second
Program Range for
digit blinking, can PT Primary :
be edited using
100V to 999kV
DOWN key. Press
UP key to accept
the edited value.
Continue the same
method till fourth
digit.
Row 2:
CAUTION : Before wiring, de-energize the PT secondary by
opening the circuit or removing the secondary fuse. Do not short the
PT secondary. All wiring must confirm to any applicable local electrical
codes/ engineering practices.
CAUTION : CT secondary circuits are capable of generating
lethal voltages and currents when open circuited with their primary
circuit energized. Standard safety precautions should be followed
while performing any installation or service on the device (e.g. shorting
CT secondaries, etc.)
CAUTION : Do not connect ground to the shield at both ends
of a segment. Doing so allows ground loop currents to flow in the
shield, inducing noise in the communication cable.
11
Step
9
Actions
Press
UP key
Display Reads
Row 1: Decimal
point blinking.
Can be set at
appropriate location
using DOWN key.
Ascertain the
correct scale (Kilo/
Mega/Giga) is
selected. Kilo/
Mega/Giga is placed
on the right hand
side of the display
by Letter K/M/G.
Press UP key to
accept the edited
value.
Row 2 :
Range/Options/
Comments
Eg: To set 11.00kV
Set first four digits
(1100)as explained
above keep
pressing DOWN
key to place
decimal point at
appropriate location
USE UP/DOWN KEY
Letter K/M/G will
indicate the Kilo/
Mega/Giga.
DANGER : PT secondary circuits are capable of generating
lethal voltages and currents with their primary circuit energized.
Standard safety precautions should be followed while performing any
installation or service on the device (e.g. removing PT fuses, etc.)
12
Step
Actions
Display Reads
Range/Options/
Comments
10
Press DOWN
key to go to
the next
parameter.
Row 1: xxxx
(415.0 -default/
factory set)
Row 2:
(PT Secondary).
Follow the
procedure as
described in steps
7 to 9.
Range: 50V to 550V
If value set is above
the limit, display
returns to the
maximum PT sec
value.
11
Press
DOWN key
Row 1: xxxx
(5.000-default/
factory set)
Repeat steps 7 to
9 to change the
settings.
Row 2 :
(CT Primary)
Program Range for
CT Primary
0.5A to 99kA
CAUTION : PTs are required for delta systems
NOTE: If value set is above this limit, display returns to the
maximum PT sec value acceptable.
13
Step
Actions
Display Reads
Range/Options/
Comments
12
Press
DOWN key
Row 1: xxxx
Range: 0.5A to 6A
(5.000 -default/
factory set)
Row 2:
(CT Secondary).
Repeat steps 7 to 9
13
Press
DOWN key
Row 1:
Row 2:
Revers Lock
Reverse lock - blocks
energy accumulation
in case the CT
polarity reverse
Option : NO/YES
14
Press
DOWN key
Row 1:
(Vector harmonics)
Row 2:
(Method of VA
Selection).
Arithmetic (Arth),
Vector harmonics
(UEC.H). Vector
(UECt) can be
selected using
DOWN key.
15
Press
DOWN key
Row 1:
1st digital output
parameter can be
selected using UP &
DOWN key.
Row 2:
14
Step
Actions
Display Reads
Range/Options/
Comments
16
Press
DOWN key
Row 1:
Row 2:
Range :
0.000 to 999.9 Mega
17
Press
DOWN key
Row 1:
Row 2:
2nd digital output
parameter can be
selected using UP &
DOWN key.
18
Press
DOWN key
Row 1:
Row 2:
Range :0.000 to
999.9 Mega
19
Press
DOWN key
Row 1:
Range:
Row 2:
1to 180 seconds
(digital output trip
delay time, default/
factory set :
3.000sec
20
Press
DOWN key
Row 1: xxxx
(9600 default/
factory set)
Row 2:
(baud rate)
communication
speed.
15
Defines the baud
rate.
Option :2400,4800,
9600,19.20k
Step
Actions
Display Reads
Range/Options/
Comments
21
Press
DOWN key
Row 1:
Row 2:
EUEn (even)/
odd(odd)/
no(no parity)
Internal
communication
error check
22
Press
DOWN key
Row 1:
Row 2:
(device ID)
Defines the (ID)
communications
identification
number.1 to 247
23
Press
DOWN key
Row 1:
Row 2:
(Password user
definable).
CAUTION:
memorize the
Password. Use the
same Password for
next time.
Instruments will
reject other
Passwords.
Range: 1000-9999.
CAUTION:
Password can be
re-setted only at
the factory.
16
Step
Actions
Display Reads
Range/Options/
Comments
24
Press
DOWN key
Row 1:
Row 2:
Energy value format
i.e., the energy
accumulated in the
meter to be displayed
in resolution (default)
or counter format.
25
Press
DOWN key
Row 1:
Row 2:
Pulse width defined
for pulse output
occurrence (if POP
option enabled)
Range: 50 to 500 ms
26
Press
DOWN key
Row 1:
Row 2:
Energy Selection
Option: Wh/VAh
27
Press
DOWN key
Row 1:
"Y" blinking.
28
Press
DOWN key
Row 1 : xxxxLL
Row 2 : xxxx A
Row 3 : xxxx F
If “n”(no) is selected
then Meter enters
into RUN mode
without affecting
any edited Values in
the setup
CAUTION : In counter mode energy accumulation is visible
depending on load.
Once the required parameter is programmed press the DOWN
key continuously till it reaches SAVE page directly.
17
7.1 The List of parameters can be configured
and the range is given below
Sl.No.
Parameter
Default setup
1
Connection mode
(ELEM)
STAR
STAR/ DELTA/
1.Phase
2
PT Primary(PT.Prı)
415.0
100V- 999kV
3
PT Secondary
(PT SEC)
415.0
50V - 550V
4
CT Primary(CT.Prı)
5.000
0.5A - 99kA
5
CT SECondary
(CT SEC)
5.000
0.5A - 6A
6
VA selection
(UA.SL)
UEC.H
(Vector
harmonics)
7
Digital delay
3.000
1 to 180 seconds
8
Digital o/p 1
Parameter (d1.Pr)
Digital 1
Threshold Limit
(d1.Hi)
dSbL
*
1000
0.001 to
9999 × 106
dSbL
*
9
10
Digital o/p 2
Parameter (d1.Pr)
Range
Arith (Arithmetic)/
UECt (vector)/
UEC.H (Vector
Harmonics)
* S1.Ph, REV.A, DG[Over (VLL,A,F,W,Wh); Under (VLL,A,F,PF)
EB[Over (VLL,A,F,W,Wh); Under (VLL,A,F,PF)
Note: Programming is applicable as per displayed parameter.
18
Sl.No.
Parameter
Default setup
11
1000
0.001 to
6
9999 × 10
12
Digital 2
Threshold Limit
(d1.Hi)
Baud rate (bAUd)
Range
9600
2400 to 19.2k
13
Parity (Prty)
Even
Even/ Odd/ no
14
Device Id
(dEV.Id)
1.000
1.000 to 247.0
15
Reverse lock(rEU.L)
16
Password (PWd)
1000
1000 to 9999
17
EnEr (Energy)
rESL
rESL /COUΠ
18
POP ON time
(POP.t)
250.0
50 to 500
milliseconds
19
Energy Selection
(E.SEL)
no
Wh
Yes/no
Wh / VAh
8. CLEARING PARAMETERS:
To Clear parameters of the Little Genius Plus series from the front
panel, Press UP and DOWN Keys together, and 'Set.CLr' (Set-Clear) is
shown on the display. Enter the Password (default password is 1000.
Set up and clear has the same password) and it will display “CLr”.
Press UP Key for selecting (Integ Clear). Display will prompt to select 'y'
or 'n'. Press DOWN key for changing 'y' or 'n' and Press the UP key to
do the operation.
CAUTIONS : Once the data is cleared (except energy) the value
will not be retained.
19
9. Enabling and disabling of Auto scrolling:
Enabling auto scrolling: Press UP key continuously for 5 seconds or
until display shows EnbL Auto.Sc for upward scrolling. Press
Down key continuously for 5 seconds or until display shows
EnbL Auto.Sc for downward scrolling.
Disabling auto scrolling: Press any key (UP/DOWN), display
show dSbL Auto.Sc and returns to normal mode.
10. Multiplication Factor
Energy Display programmable for counter based or Resolution
based
Multiplication factor for counter based energy mode
l Full Scale kW
3 V Pri LL x A Pri / 1000
l Multiplication Factor:
0.4
to
4.0
4.01 40.1 400.1 4Mega 40 M 400 M
to
to
to
to
to
to
40 400 4,000 40 M 400 M 4000 M
0.01
0.1 1.0
10
100
1000
10000
Note: 999999 kVAh × Multiplication Factor
Multiplication Factor is applicable only for designing energy reset.
20
11. Installation Procedure
Connection Diagram:
Connection Diagram for Little Genius Plus / Digital Output and RS 485
RS485
Note : Connections to the terminals
located at the rear side of the unit is
to be made by using preferably 12 to
2
2
14 SWG (2.6mm to 2.6mm )
industrial grade wire. Relay rating No
contact SPST. 250VAC / 30VDC @ 2
Amps resistive.
Connection
from AMF
panel to
Changeover
EB/DG
Relay 1
Common
Common
Relay 2
Safety Requirments:
The warnings, cautions & notes specified in this guide shall be followed
strictly (see the all pages).
The specified safety regulations must be observed.
Use dedicated fuse or circuit breaker in the Voltage and auxiliary circuit
in all the elmeasure make meters for the safe operation.
Fuse shall be used after PT.
Fuse / circuit breaker is not part of the instruments (refer rare side of
the TB Label). Recommended to use by the customer for safety
requirements.
21
Mounting : The front bezel of the basic model is molded plastic.
Bezel dimensions is 96x96mm. Depth 55mm behind the bezel.
Side Clamp
VR VY VB
AB
Panel
Cutout
AR
AY
92 mm
N
92 mm
Side Clamp
Panel
After Installation
CAUTION : Use MCB to connect and disconnect the device for
auxiliary and measurement circuit.
22
12. COMMUNICATION REGISTER MAP:
This Communication map is for LG Plus. All the parameters
declared in the communication map are either float or unsigned
long and follows;
Standard
Baudrate
Parity
Stopbit
Modbus Function
:
:
:
:
:
Modbus RTU protocol (Half Duplex)
2400 / 4800 / 9600 / 19200
Even / Odd / No
1/2
03 (Read holding register)
Sl.No.
Parameter
Data type
1
Watts Total
float
40101
2
Watts R phase
float
40103
3
Watts Y phase
float
40105
4
Watts B phase
float
40107
5
VAR Total
float
40109
6
VAR R phase
float
40111
7
VAR Y phase
float
40113
8
VAR B phase
float
40115
9
PF Ave. (Inst.)
float
40117
10
PF R phase
float
40119
11
PF Y phase
float
40121
23
Address
Sl.No.
Parameter
Data type
Address
12
PF B phase
float
40123
13
VA total
float
40125
14
VA R phase
float
40127
15
VA Y phase
float
40129
16
VA B phase
float
40131
17
VLL average
float
40133
18
Vry phase
float
40135
19
Vyb phase
float
40137
20
Vbr phase
float
40139
21
VLN average
float
40141
22
V R phase
float
40143
23
V Y phase
float
40145
24
V B phase
float
40147
25
Current Total
float
40149
26
Current R phase
float
40151
27
Current Y phase
float
40153
28
Current B phase
float
40155
29
Frequency
float
40157
30
Wh Received
float
40159
31
Load Hours Received
Unsigned long
40217
24
13. APPLICATION
It is a common phenomenon that the equipments/motors often break
down in any industry due to various reasons. Typically, the reasons could
be poor incoming power quality, improper/ floated earthing, Process
defects, loose connections in current route, poor safety measures,
unskilled operators, natural calamities (lightening, flood) etc., The
damages due to natural calamities is very hard to control by human
beings.
Process Integration
Integration of process parameters such as temperature, Oil level, RPM,
Pressure etc. giving greater flexibility to monitor them along with electrical
parameters.
Control Features
2 user defined potential free digital
output, upto 6 threshold parameters
with programmable trip time to
protect the equipment from electrical
abnormalities.
14. TECHNICAL SPECIFICATIONS
Range
Parameter
Accuracy
Class 1 (Default) IEC 61036, CBIP 88,
Class 0.5(Option)
Sensing/
Measurement
True RMS, 1 Sec update time,
2 Quadrant Power & Energy
25
14. TECHNICAL SPECIFICATIONS
Range
Parameter
Input voltage
4 Voltage inputs (VR, VY, VB, VN),
Measuring Range: 50 to 520 VLL / 28 to
300 VLN Nominal @45 to 65 Hz
Programmable Range: Primary 100V to
999 kV & Secondary 50V to 550VLL
Burden
External Fuse Rating
0.2VA Max. per phase and CAT lll
AXIAL, Voltage Rating VAC:250V;
Fuse Current:200mA;
Breaking Capacity:10kA @ 125VAC;
Fuse Size:5mm x 20mm;
Blow Characteristic: Slow Blow;
Body Material: Glass
Input Current
Overload
Burden
Current inputs (AR, AY, AB),
Measuring Range: 0.05A to 5A (internal CT) /
“ <1V (SELV)” (external CT )
Programmable Range: Primary 0.5A to
99 kA & Secondary 0.5A to 6A
With overload of 20%.
0.2VA Max. per phase
Aux-Supply
(Control Power)
80 300V AC, 40-70Hz, 80 300V DC (Default)
5VA Max and CAT ll
Burden
AXIAL, Voltage Rating VAC:250V;
Fuse Current:200mA; Breaking Capacity:10kA
@ 125VAC; Fuse Size:5mm x 20mm;
Blow Characteristic: Slow Blow;
Body Material: Glass
External Fuse Rating
26
Range
Parameter
Display Resolution
2/3 Row, 6 digits (10mm height)
CT PT Ratio Max
2000 MVA Programmable
Protection Class
3
Humidity
5% to 95% non condensing
Pollution Degree
2 (As per IEC 61010)
Altitude
Below 2000 mts
Insulation
Double Insulation
Ingress Protection
IP 51 As per IEC 60529
( As per IEC 61010-1)
Operating Temperature -10OC to + 55OC (14OF - 131OF)
Storage Temperature
O
O
O
O
-25 C to +70 C (-13 F - 158 F)
Measurement Category CAT lll ( As per IEC 61010)
Wire Gauge
(connecting wires)
12-14 swg (2.6 to 2.0mm2) Factory wiring only.
2.5mm2 crimp terminals (U cut Lugs) with max
strip length of 4mm. Insulated or Bare shall be
used Torque 1N-m
Communication
RS 485 serial channel connection Industry
standard Modbus RTU protocol
(RS232 optional)
2400 bps to 19200 bps (preferred 9600 bps)
2000 volts AC isolation for 1 minute between
communication and other circuits.
Baud rate
Isolation
Dimension Bezel
96 x 96 mm - Depth 55mm behind bezel
Panel Cutout
90 -0
+2
+2
X 90 -0 mm
27
TROUBLESHOOTING
Due to programming error, site conditions, some problems can cause the
Meter malfunction. The fault symptoms and their remedial action for
correction is given below.
1. If the display does not turn ON:
a) Check that there is at least 80 volts available to the power supply (L and N
connections) on the Aux supply terminals. If the above steps do not solve
the problem, Contact ElMeasure or your local ElMeasure representative
and report the problem and results of the test.
2.
a)
b)
c)
If the voltage or current readings are incorrect:
Check that the Connection mode (star/delta) is properly programmed.
Check that the voltage and current ratios are properly set.
Check the output of the CT's and PT's being used.
3. If the kW or Power Factor readings are incorrect but voltage and
current readings are correct:
a) Make sure that the phase relationship between voltage and current inputs
are correct by comparing the wiring with the appropriate wiring diagram.
b) CT reversal can be observed by either seeing the phase wise kW. Negative
kW is shown where the current polarity is reversed, need to be corrected.
Model where kW information is not available, you may check Amps Phase
angle.
4.
a)
b)
c)
d)
If RS-485 communication does not work:
Check that the baud rate of the host computer/PLC is the same as Meter.
Check that the device ID of the meter are unique and should not replicate.
Check all communications wiring is complete.
Check that the number of data bits is set to 8, with one stop bit and even
parity.
If the symptom persists after performing the specified steps, or if the
symptom is not listed above, contact your local ElMeasure representative or
the technical support / customer support department.
28
WARRANTY AND REGISTRATION
Every product of ElMeasure is warranted for 18 months from the date of invoice for the defects in materials and
workmanship when products are used in normal specified conditions. The warranty is void to the product which has
been damaged due to improper installation, improper handling, improper connections, neglect, misuse, accident, and
abnormal conditions of operation and natural calamities or acts of god. Any attempt of dismantling and unauthorized
repair or modifications shall also render the warranty null & void.
1. Failure of products during warranty In India
Customer shall report the failure to the nearest ElMeasure contact point or dealer at the earliest once noticed. ElMeasure
shall replace the product failed due to workmanship or defects in materials against receipt of failed product. Burnt,
blown, damaged products are not covered under warranty and hence no replacements shall be given.
In the event of product un-available for replacement at ElMeasure or dealer, same shall be arranged at the earliest.
Replacement of product is solely at the discretion of dealer or the ElMeasure representative who receive the failed
product.
ElMeasure SE may on a case to case basis, recommend for the advance replacement of product mentioning the reasons
and justifications for doing so. Sales Manager shall approve advance replacement in genuine cases. The defective
product shall be collected and sent to ElMeasure factory within 30 calendar days. Non compliance shall result in
debiting cost of the product to the Customer.
Burnt, abused, damaged products shall be forwarded to ElMeasure's Service Center at Bangalore for investigation,
transportation pre-paid. Upon investigation, If found the rectification is possible, an estimation for servicing is sent to
the customer. Rectification shall be done on receipt of approval for the charges with advance payment only.
2. Failure of products outside warranty In India
The defective products shall be forwarded to ElMeasure Service Center at Bangalore for rectification, transportation
pre-paid. Upon investigation, estimation for servicing is sent to the customer. Rectification shall be done on receipt of
approval for the charges with advance payment only.
ElMeasure, as a policy, do not provide replacement for the products outside warranty.
For Distributor / Dealer's use only
Seal
Invoice No.:
Date:
Elecon Measurements
A group of ElMeasure India Private Limited
HO & Unit-I
764, 4th Phase, 707, Yelahanka New Town, Bangalore - 560 064. INDIA
T : +91 80 2846 1777/744 F : +91 80 41272461
CS : +91 80 3290 4489 E : contactblr@elmeasure.com
Unit-II:
Goutham Garden, No. 4, Veerapandi, Coimbatore - 641019 INDIA
T : 0422 2697200. TF : 0422 2695200 E : contactcbe@elmeasure.com
Unit-III
Plot No.: 323/19, Camp Road, Selaqi, Dehradun, UTTARANCHAL
C : 097600 02492, 12492 E : contactddn@elmeasure.com
Unit-IV
1049, MIG 3rd Phase, Yelahanka New Town, Bangalore - 560 064. INDIA
Sales Offices:
BANGALORE | CHENNAI | COIMBATORE | MUMBAI | DELHI | HYDERABAD | USA | UAE
www.elmeasure.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
