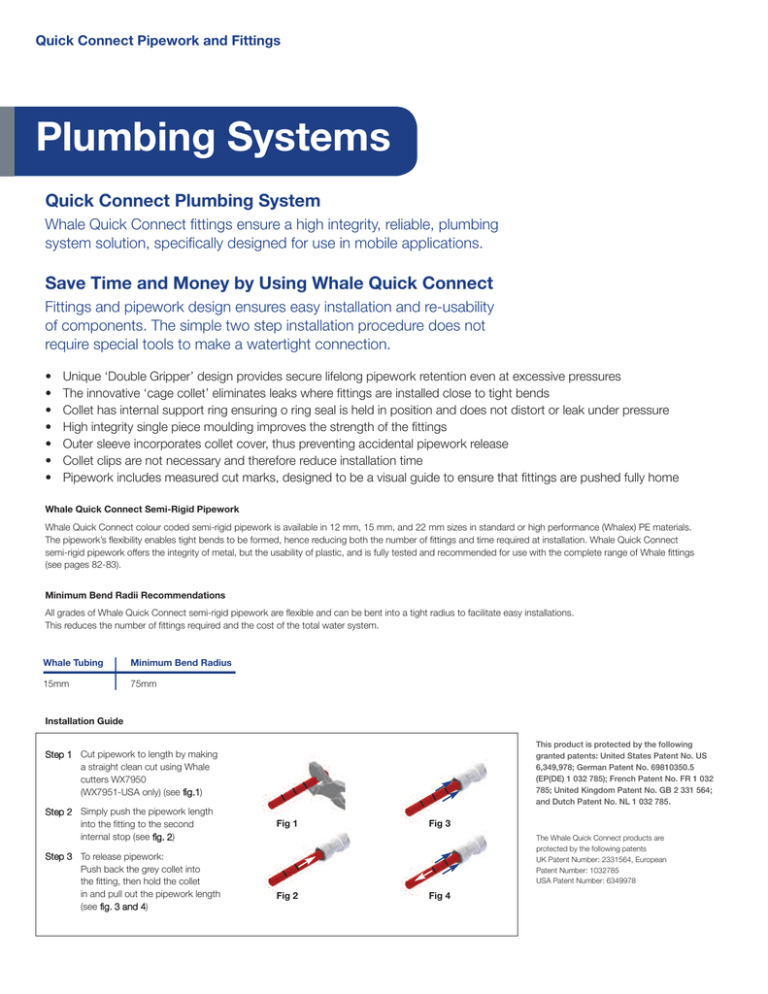

Quick Connect Pipework and Fittings
Plumbing Systems
Quick Connect Plumbing System
Whale Quick Connect fittings ensure a high integrity, reliable, plumbing
system solution, specifically designed for use in mobile applications.
Save Time and Money by Using Whale Quick Connect
Fittings and pipework design ensures easy installation and re-usability
of components. The simple two step installation procedure does not
require special tools to make a watertight connection.
•
•
•
•
•
•
•
Unique ‘Double Gripper’ design provides secure lifelong pipework retention even at excessive pressures
The innovative ‘cage collet’ eliminates leaks where fittings are installed close to tight bends
Collet has internal support ring ensuring o ring seal is held in position and does not distort or leak under pressure
High integrity single piece moulding improves the strength of the fittings
Outer sleeve incorporates collet cover, thus preventing accidental pipework release
Collet clips are not necessary and therefore reduce installation time
Pipework includes measured cut marks, designed to be a visual guide to ensure that fittings are pushed fully home
Whale Quick Connect Semi-Rigid Pipework
Whale Quick Connect colour coded semi-rigid pipework is available in 12 mm, 15 mm, and 22 mm sizes in standard or high performance (Whalex) PE materials.
The pipework’s flexibility enables tight bends to be formed, hence reducing both the number of fittings and time required at installation. Whale Quick Connect
semi-rigid pipework offers the integrity of metal, but the usability of plastic, and is fully tested and recommended for use with the complete range of Whale fittings
(see pages 82-83).
Minimum Bend Radii Recommendations
All grades of Whale Quick Connect semi-rigid pipework are flexible and can be bent into a tight radius to facilitate easy installations.
This reduces the number of fittings required and the cost of the total water system.
Whale Tubing
Minimum Bend Radius
15mm
75mm
Installation Guide
This product is protected by the following
granted patents: United States Patent No. US
6,349,978; German Patent No. 69810350.5
(EP(DE) 1 032 785); French Patent No. FR 1 032
785; United Kingdom Patent No. GB 2 331 564;
and Dutch Patent No. NL 1 032 785.
Step 1 Cut pipework to length by making
a straight clean cut using Whale
cutters WX7950
(WX7951-USA only) (see fig.1)
Step 2 Simply push the pipework length
into the fitting to the second
internal stop (see fig. 2)
Step 3 To release pipework:
Push back the grey collet into
the fitting, then hold the collet
in and pull out the pipework length
(see fig. 3 and 4)
9090Manual Bilge
Fig 1
Fig 3
The Whale Quick Connect products are
protected by the following patents
UK Patent Number: 2331564, European
Patent Number: 1032785
USA Patent Number: 6349978
Fig 2
Fig 4
PIPEWORK
Materials
Whale Quick Connect Fittings
Glass-filled Polypropylene
Whale Quick Connect Pipework
Recommended
Maximum Operating
Conditions
Polyethylene
Maximum
Pressure
Maximum
Temperature
Hot Water
6 bar (90 psi)
65oC (150 oF)
Cold Water
12 bar (180 psi)
20oC (68 oF)
Minimum Bend Radius
Quick Connect
15 mm Pipework
75 mm
Minimum Storage Temperature
The minimum dry storage temperature is -40 ºC (-40 ºF)
Note: It is vital that the system is fully winterized to prevent frost damage.
WARNING: Temperature Settings – To prevent scalding, (regardless of the water heating method or the control
devices used), the temperature for the hot water supplied to the faucets and showers should be controlled in the
range of 50 ºC to 60 ºC (110 º F to 140 º F) with a fail safe set at 82 ºC (180 ºF).
CAUTION: Ideally, the temperature should be set at 46 ºC (115 ºF) for health and safety reasons, higher settings will increase the risk
of scald injury. Those at greatest risk of scald injury include children, the elderly, disabled, and diabetics.
Fail Safe Controls
WARNING: In a typical marine installation, it is vital to incorporate primary and fail safe controls for water temperature
and pressure. Please see list below:
PRIMARY CONTROLS:
Thermostatic Mixer Valve: WX1599B
Pressure Switch: WU7207(B) - In-Line Pressure Switch or included in the Universal Pressure Pump (see page 77)
Pressure Regulator: WX1595B - Pressure Relief Valve - 6 bar 1/2" Female
Expansion Vessel: Accumulator Tank
FAIL SAFE CONTROLS:
WX1595B - Pressure / Temperature Relief Valve
For typical installation of these necessary controls see page 55
For a full list of our part numbers see pages 92-93
For advice on specific installation requirements contact Whale - see contact details
Note: The patented Whale Plumbing System is specifically designed to be use in "mobile" applications. Whale Quick Connect fittings
and Whalex pipework (any) are covered for 10 years from date of purchase (except WX1599). For use with Whale plastic tubing and
grooved stems only.
91
Quick Connect Pipework and Fittings
Threaded 1/2”
15 mm
WX1502(B)
15 mm Equal Tee
WX1503(B)
15 mm Equal Elbow
WX1577B
Stem Ice Maker Fitting (Brass)
WX1080B
Adaptor 1⁄2" BSP Male - 10 mm
Compression Fitting (Brass)
WX1578B
Stem Ice Maker Fitting With
WX1513B
Adaptor 1⁄2" NPT Male (Brass) 15 mm
15 mm Equal Tee (Brass)
WX1504(B)
15 mm Equal Straight
WX1582(B)
Check Valve - Non Return
Valve (Brass)
WX1515(B)
Faucet Tail Assembly Adaptor 1⁄2"
BSP Male - 15 mm
WX1508B
End Plug (Brass)
Threaded 3/4”
WX1509B
Stem Adaptor 12 mm – 15 mm
WX1516B
Adaptor 3⁄4" BSP Male
WX1511B
Stem Adaptor 11 mm – 15 mm
WX1520B
Adaptor 15 mm Female
15 mm Compression Fitting
(Brass)
WX1521(B)
Stem Tee
WX1522(B)
Stem Elbow
WX1546B
End Stop
WX1571(B)
3 Way Valve (Brass)
WX1573B
Shut-off Valve (Brass)
WX1574(B)
Shut-off Valve
WX1575B
Stem Shut-off Valve (Brass)
WX1514B
Adaptor 1⁄2" BSP Male - 15 mm
WX1542(B)
Adaptor 3⁄4" BSP Female
WX1519B
Flexible Heater Connector 1⁄2" NPT
Male 1⁄2" BSP Female
Length - 350 mm (14")
WX1524(B)
Stem Adaptor 1⁄2"
NPT Male (Brass)
WX1531(B)
Elbow Adaptor 1⁄2" BSP
Female - 15 mm
WX1552B
Adaptor 3⁄4" Garden Hose Thread
(Green) Female
WX1532(B)
Adaptor 1⁄2" Female - 15 mm
3
WX1533B
Adaptor 1⁄2" BSP Female (Brass) 15 mm
WX1538 / WX1538(B)
Adaptor 3⁄8" BSP Female
WX1534(B)
15 mm Stem with None Return Valve
Adaptor 1⁄2" NPT Male (Brass)
WX1539B
Stem Adaptor 3⁄8" Female (Brass)
WX1536B
Adaptor 1⁄2" BSP (Green)
(Short Wings) Female
WX1563(B)
Stem Adaptor 3⁄8" NPT Male (Brass)
WX1567B
1⁄ " NPT Male - 1⁄ " BSP Male
2
2
Shower Bulkhead Adaptor (Brass)
WX1583B
Adaptor 3⁄8" BSP Male
WX1587(B)
Stem Adaptor 1⁄2"
BSP Male - 15 mm
Threaded /8”
Part Numbers Explanation:
B Suffix: refers to items available only in bulk packed quantities for high volume production OEM use
(B) Suffix: refers to items available in either retail packaging (e.g. WX1502) or in bulk packed quantities
for high volume production OEM use (e.g. WX1502B).
WX1576B
Stem Shut-off Valve
92
Note: All brass connectors are lead-free as per USA federal regulations
Quick Connect Pipework and Fittings
Flexible Hose Fittings 1/2”
WX1544(B)
1⁄ " Hose Connector (Brass)
2
Colour Coded Tubing
WX7152
Standard Semi-Rigid Pipework
15 mm Blue 10 m (33 ft)
WX1517B
9⁄ " X 24 UNEF Male Faucet Tail
16
Adaptor (Brass) suitable for Gröhe
Faucets
PIPEWORK
WX1584(B)
Stem Adaptor 1⁄2"
Flexible Hose Male
Other Connections
WX7152B
Standard Semi-Rigid Pipework
15 mm Blue 50 m (164 ft)
WX1535B
Stem Adaptor 1⁄8" Hose (Brass)
for Windsrceen Washer
WX7154
Standard Semi-Rigid Pipework
15 mm Red 10 m (33 ft)
WX1585B
Tee 1⁄2" barb X 1⁄2" barb X 1⁄2" barb
WX1586B
Tee 1⁄2" barb X 15 mm WX X 1⁄2" barb
WX1591(B)
Stem Elbow 1⁄2" Flexible Hose
Flexible Hose Fittings 3/4”
WX7154B
Standard Semi-Rigid Pipework
15 mm Red 50M (164 ft)
WX1537B
Stem Adaptor 1⁄4"
NPT Female (Brass)
WX7156
Standard Semi-Rigid Pipework
15 mm Green 10 m (33 ft)
WX1566B
Tank Fitting Assembly
WX7156B
Standard Semi-Rigid
Pipework 15 mm Green 50 m (164 ft)
WX2260B
WX7162B
WHALEX Semi-Rigid Pipework 15 mm
High Performance Blue 50 m (164 ft)
End Stop 22mm Spigot
WX7562B
WHALEX Semi-Rigid Pipework 15 mm
High Performance Blue 152 m (500 ft)
WX1528(B)
Adaptor 5⁄8" - 15mm
WX7164B
WHALEX Semi-Rigid Pipework 15 mm
High Performance Red 50 m (164 ft)
WX1555B
Tee 3⁄4" barb X 3⁄4" barb X 3⁄4" barb
WX7564B
WHALEX Semi-Rigid Pipework 15 mm
High Performance Red 152 m (500 ft)
Plumbing Safety Fittings
WX1556B
Tee 3⁄4" barb X 15 mm WX
X 3⁄4" BARB
WX1557B
WX7166B
WHALEX Semi-Rigid Pipework 15 mm
High Performance Green 50 m (164 ft)
WX1595B
Pressure Relief Valve – 6 bar
1⁄ " Female
2
Tee 3⁄4" barb X 1⁄2" barb X 3⁄4" barb
WX1558B
Tee 1⁄2" barb X 1⁄2" barb X 3⁄4" barb
WX7168B
WHALEX Semi-Rigid Pipework 15 mm
High Performance White 15m (49.2 ft)
WX1599(B)
Thermostatic Mixer Valve 1⁄2" Male
(Brass) 15 mm and Check Valve /
Non-Return Valve
Note: This product is covered by 1
year warranty
Tools
WX1592(B)
Stem Elbow 3⁄4" Flexible Hose
Flexible Hose Fittings Other
WX1593(B)
Stem Adaptor 3⁄4" Flexible Hose
WX7950
Pipework Cutters - must be used to cut
Whale Semi-Rigid Pipework
WX1548B
⁄8" Hose Connector (Brass)
WX1569B
Pipework Mounting Clip (White)
WX1565(B)
WX1597(B)
Stem Adaptor 5⁄8" Flexible Hose
Pipework Mounting Clip (Black)
3
WX2259B
Adaptor 22 Spigot X 3⁄4" barb
WHALEX Pipework is NSF61 listed and has the benefits of
a more scratch-resistant surface and greater durability.
93
