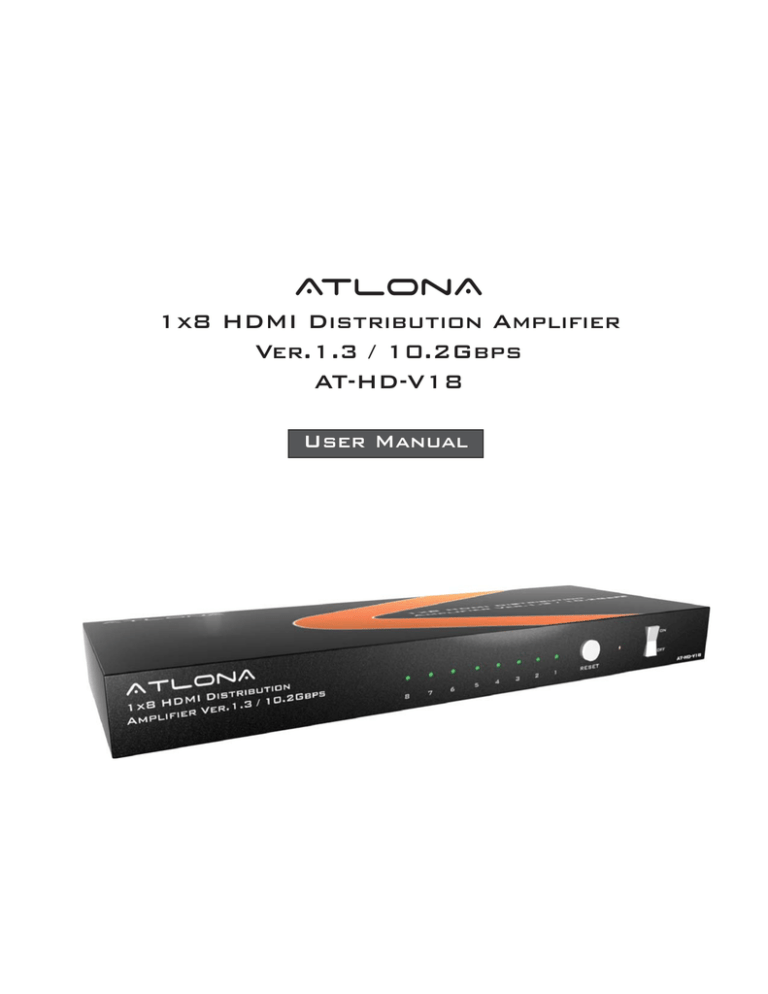

AtlonA
1x8 HDMI Distribution Amplifier
Ver.1.3 / 10.2Gbps
AT-HD-V18
User Manual
TABLE OF CONTENTS
1. Introduction
..................................................
1
2. Features
..................................................
1
3. Operation Controls and Functions
............................
2
3.1 Front Panel
..................................................
2
3.2 Rear Panel
..................................................
2
4. Connection and Installation
.......................................
3
5. Specifications
..................................................
3
11. Safety
..................................................
4
12. Warranty
..................................................
5
Introduction
The HDMI v1.3 Distribution Amplifier Series is the most advanced solution to
HDMI signal distribution. Each product in this series is compatible to HDMI v1.3
specifications, a cutting-age technology which defines the support to transfer Deep
Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby
Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to
10.2Gbps. Besides splitting and distributing, the HDMI v1.3 DA series also does
signal amplification and equalization, so as to provide high performance I/O of audio
and video.
Features
• HDMI 1.3, HDCP1.1 and DVI1.0 compliant Receiver.
• Deep color video up to 12bit, 1080p@(24/60)Hz 1920x1200.
• One HDMI source to connect up to eight HDMI displays simultaneously.
• HDCP keysets allows each output to work independently when connecting to a HDMI display.
• Splits a HDMI source up to eight outputs without signal loss.
• Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable.
• Dolby Digital, DTS digital audio transmission (32-192 kHz Fs sample rate).
• Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p.
• HDMI cable distance test with 1080p/8bits resolution, the Input/Output source can run up to
15/15 meters. If 1080p/12bits, the Input/Output source can run up to 10/15 meters.
• Supports EDID functionality. The unit will detect the first HDMI/DVI output source’s EDID and
record in the unit. If the first detected output source is empty it will pass to next source, until
the first HDMI/DVI has been detected. When user reconnect`s all the output sources or
re- plug`s the power, the system will automatically recover the EDID.
1
Panel Descriptions
FRONT PANEL
1. Power Switch: Press the switch to power on the unit.
2. Power LED Indicator: The LED will illuminate when the power is connected.
3. Reset button
4. Output LED: When the HDMI display is connected to the output ports the corresponding LED will
illuminate.
REAR PANEL
1. HDMI output 1~8: Connect each of the output ports to the HDMI display. When more than one
output is connected, the HDMI outputs play identical video signal simultaneously.
2. HDMI Input: Connect input port to the HDMI or DVI output port of your source equipment such as
DVD player or set-top-box.
3. Power: Plug the 5V DC power supply into the splitter and connect the adaptor to AC wall outlet.
2
Connection and Installation
DVD
LCD TV
LCD TV
LCD TV
LCD TV
LCD TV
LCD TV
LCD TV
LCD TV
Specifications
Input port
Output ports
Power Supply
Dimensions (mm)
Weight(g)
Chassis Material
Silk Skin Color
Operating Temperature
1x HDMI female port (Type A connector)
8x HDMI female ports (signal link)
5VDC/4.5A (US/EU standards, CE/FCC/UL certified)
275(W) x 155(D) x 25(H)
2.3 LB
Metal
Black
Operating from 0°C ~ 48°C
3
SAFETY INFORMATION
Avoid excessive humidity, sudden
temperature changes or temperature
extremes.
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
Keep this product away from wet locations
such as bathtubs, sinks, laundries, wet
basements and swimming pools.
If the wall plug does not fit into your local
power socket, hire an electrician to replace
your obsolete socket.
Use only accessories recommended by
ATLONA to avoid fire, shock or other
hazards.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
Unplug the product before cleaning. Use
a damp cloth for cleaning. Do not use
cleaning fluid or aerosols, which could
enter the unit and cause damage, fire or
electrical shock. Some substances may
also mar the finish of the product.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in case it requires
disconnection.
Precautions
Never open or remove unit panels or make
any adjustments not described in this
manual. Attempting to do so could expose
you to dangerous electrical shock or other
hazards. It may also cause damage to your
AT-HD-V18. Opening the product will void
the warranty.
FCC Regulations state that any
unauthorized changes or modifications to
this equipment not expressly approved by
the manufacturer could void the
user’s authority to operate this
equipment.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA
directly.
Operate this product using only the
included external power supply. Use of
other power supplies could impair
performance, damage the product or cause
fires.
In the event of an electrostatic discharge,
this device may automatically turn off. If this
occurs, unplug the device, and plug it back
in.
Protect and route power cords so they will
not be stepped on or pinched by anything
placed on or against them. Be especially
careful of plug-ins, or cord exit points from
this product.
4
WARRANTY
LIMITED ONE-YEAR WARRANTY
ATLONA by Lenexpo Electronics warrants only to the initial purchaser of this product for a period of one
year from the date of purchase from an Authorized ATLONA Reseller, the product will be free of electrical
and mechanical defects that materially affect the products operation as described in this users manual.
Within this period, ATLONA will, at it’s sole option, repair or replace any components, which fail of normal
use or refund the net original price.
DISCLAIMER OF WARRANTY
ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
ARE LIMITED TO ONE YEAR FROM PURCHASE; ALL OTHER EXPRESS OR IMPLIED CONDITIONS,
REPRESENTATIONS AND WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF NONINFRIGEMENT, ARE DISCLAIMED. Some jurisdictions do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights, which vary by jurisdiction.
LIMITATION OF LIABILITY
TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL ATLONA OR ITS SUPPLIERS BE
LIABLE FOR ANY LOST REVENUE, PROFIT OR DATA, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL,
INCIDENTAL, OR PUNITIVE DAMAGES, HOWEVER CAUSED REGARDLESS OF THE THEORYOF
LIABILITY, ARISING OUT OF OR RELATED TO THE USE OF OR INABILITY TO USE THE PRODUCT,
EVEN IF ATLONA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT
ATLONA’S LIABILITY TO YOU, WHETHER IN CONTRACT, TORT (INCLUDING NEGLIGENCE),OR
OTHERWISE, EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. The foregoing limitations
will apply even if any warranty or remedy provided to you fails its essential purpose. Some jurisdictions do
not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of or
exclusion may not apply to you.
Disclaimer
This document is provided for technical information for the user. It does not create any warranty with
respect to the product, and does not modify or enhance the terms of the warranty that may accompany this
product.
ATLONA reserves the right to modify the information in this document as necessary.
ATLONA holds no responsibility for any errors that may appear in this document. Customers should take
appropriate action to ensuretheir use of the product does not infringe upon any patents. ATLONA respects
valid patent rights of third parties.
Trademarks and Copyrights All other product names or marks referenced herein are trademarks or registered
trademarks of their respective owners.
ATLONA
2151 O’toole Ave, Ste D
San Jose CA 95131
Toll Free: 1-877-536-3976
International: 408-9548782
FAX: 408-954-8792
Website: www.atlona.com
E-MAIL: info@atlona.com
5
