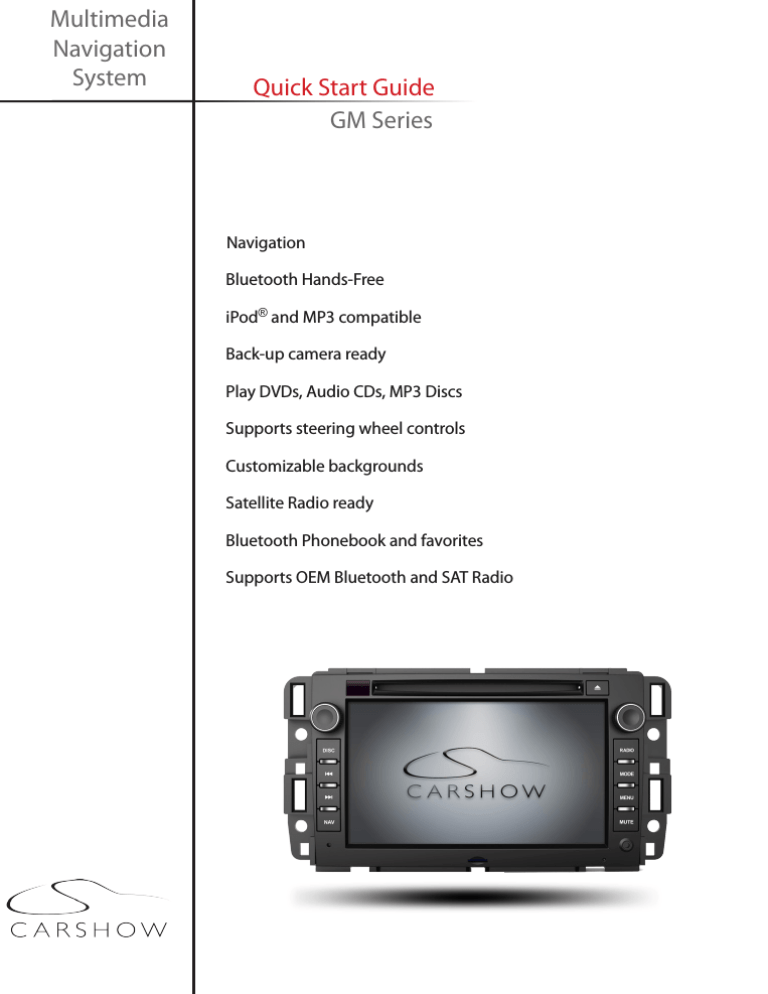

Quick Start Guide
GM Series
Bluetooth Hands-Free
iPod® and MP3 compatible
Back-up camera ready
Play DVDs, Audio CDs, MP3 Discs
Supports steering wheel controls
Customizable backgrounds
Satellite Radio ready
Bluetooth Phonebook and favorites
Supports OEM Bluetooth and SAT Radio
Some features of CarShow Systems are not intended for viewing by the driver when the vehicle is in motion, such as
movie playback. When using navigation, minimize the amount of time spent viewing the screen and use voice prompts
as much as possible. Avoid prolonged use of the touch screen controls. Such use might distract the driver or interfere
with the driver’s safe operation of the vehicle, and thus result in serious injury or death. Such use might also violate state
or local laws.
Rosen Electronics LP disclaims any liability for
any bodily injury or property damage that might result
from any improper or unintended use.
Copyright © 2012 by CarShow Entertainment Systems. All rights reserved. Except as permitted
under the Copyright Act of 1976, no part of this publication may be reproduced or distributed in
any form or by any means, or stored in a database or retrieval system, without the prior written
permission of CarShow Entertainment Systems.
This item incorporates copy protection technology that is protected by U.S. patents and other
intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are
iPod® and iPhone® are registered trademarks of Apple, Inc.
Car navigation maps are frequently updated. While the database was judged to be as accurate as possible at the time of its release, a map database can never be 100% accurate.
Road information that is maintained in the map databases, such as turn restrictions or road
names may change over time.
Errors or missing information in the map data are not covered by the Product Warranty. New
and/or updates for the map data are the responsibility of the End-user.
NOTE: Features listed in this manual are subject to change without notice.
For complete Owner’s and Navigation Manuals,
please visit
CarShow Electronics online at
Button & Knob Functions
●Power: Press & hold
●Press for display to Dim/Off/On
●Volume Control
●Turn to change station/track
●Press for audio menu
1) DISC: CD/DVD Source
5) RADIO: Radio Function
: Previous Station/Track
6) MODE: Change Sources
: Next Station/Track
7) MENU: Enter/Exit Setting Menu
4) NAV: Enter/Exit Navigation
The Basics
Screen Organization
Your system will automatically default to the last screen you were on prior to turning off the unit.
The Information Bar is located at the
top of the screen. Depending on the
source, it will provide information or content
sensitive controls
This will take you to the Settings
Menu for advanced control settings.
The Source Tabs located at the bottom of
the screen will give you direct access to
common sources.
Note: “PHONE” is highlighted BLUE when a phone is paired to CarShowBluetooth.
Voice Dial (if supported)
Screen Dimmer
Customizing Source Tabs
You have the option to customize the Source Tabs
3-6 on the bottom of the screen.
AM/FM, DISC and PHONE are not customizable.
To access the tab menu:
1) Press MENU and select SETTINGS
2) In left panel, select TABS
3) For each tab select the left and right arrows to
toggle through the selections
4) Once you are satisfied with your choices,
press RETURN to save. The customized tabs
will now appear
Channel Selection
Short touch to seek previous and
next available stations.
Touch to scan. Each station will
play for several seconds.
Push the volume knob for Tuning, push again
to go back to volume. In Tuning mode,
after several seconds it will automatically
go back to volume if it is not used.
Note: This is only for vehicles with one knob.
Touch to select AM1 & 2 and FM1,2 & 3
preset screens.
* OPTIONAL:Satellite Radio (If Equipped)
Your unit will default to factory Satellite Radio.
If you would like to use the CarShowSatellite
Radio functions, please contact your dealer.
Short touch to seek previous and
next available stations.
Touch to select SAT 1,2 & 3 preset
Use numeric keypad to directly enter a
channel station (Only for Sirius radio)
Preset Channels
To set a station as a Preset, press and hold the
button. The name of the channel for SAT Radio
or station frequency for AM/FM Radio will
appear in the button when saved.
Short touch the desired Preset button to select
that channel.
To learn how to access preset channels while in navigation mode, please refer to the Navigation
section of this Quick Start Guide.
You can access music files on your iPod by using your Apple iPod cable to connect to the
unit. Simply plug it into the Factory USB (if equipped) or the CarShow USB slot located on
the rear of the unit.
Note: Sleep mode should be enabled on the iPod to reduce battery drain if the iPod is left connected with
the vehicle off.
Touch Button Descriptions
Press once to restart current track, press
again for Previous Track
Next track
Repeat the current played song
Shuffle tracks
Search for artist, album, or song by the
first letter
Main iPod root menu
Root Menu
Use this to toggle between Video and Audio
Note: A special iPod video cable is required
Use to search by first letter
Toggle between song details and root menu
To Play a Song
From the list of songs, press once to play the
track and the song playing will be highlighted
Press a second time to display song details and
album artwork.
Select to go back to track list
Press once to restart current track,
press again for Previous Track
Next track
Repeat the current played song
Shuffle tracks
Search for artist, album, or song
Main CD root menu
Long Touch in DVD mode to show the DVD
control screen. To return to full screen,
either touch the image or leave the screen
idle for several seconds.
Previous Chapter
Next Chapter
Shows information such as Chapter,
Time Elapsed, etc
Main DVD menu
Exit Menu and return to full screen
DVD Settings menu
Note: DVD video can only be viewed if parking brake is engaged.
*Optional -Bluetooth General
Your unit will default to factory Bluetooth. If you would like to use the CarShow
Bluetooth functions, please contact your dealer.
Note: This system requires a Bluetooth enabled phone. Bluetooth phones and software vary by brand
and date of manufacture. Some phones or phone functions may not be compatible or may operate differently with this system during use. Phone compatibility problems are not warrantable issues.
There are several different Bluetooth screens
in the PHONE function. The first screen you
will see is the Call Screen. To switch between
screens, press the PHONE tab repeatedly or
select from one of the options below.
Favorites will display your selected
favorite Contacts
Lists the Contacts from your phone
Call Log lists Dialed, Received and
Missed calls
Devices menu will be shown to setup
your phone
Press the keyboard
button to access the Call
Screen below
Making/Ending A Call
You can dial the number from your
phone or use the touch-screen
shown at the right by entering the
number, then press the Call button.
Press to end the call.
Clear last number
Press to transfer call between phone
and car speakers.
Bluetooth Pairing
For Factory Bluetooth, please refer to vehicle owner’s manual
Pairing Your Phone
CarShow: Set your phone into discoverable mode.
1) Select DEVICES from the Bluetooth menu
2) Press “Add”
3) After several seconds, the unit will display all
devices within range.
4) Select your phone from then list, then “Connect”
5) “Pairing” will be displayed on the screen. After
the connection succeeds on your phone, enter
the password (1234). The system will indicate
“Pairing Successful” when your phone is
connected and its name will be displayed
on the unit.
Please note that an authorization request will
appear on your phone. You must accept it before
your phone can share contacts, phonebook and
call history.
6) Press “Close” and you will exit back to the main
Bluetooth menu. The name of your phone will
appear in the top menu bar.
Select Auto Connect If you desire the system’s
Bluetooth feature to automatically detect your
phone when the system is turned on.
You can also change the Pin Code and
Microphone settings in the Setup screen.
Setup Tab
Bluetooth Options
While your phone is paired, your contacts will
be displayed. This may take several seconds
to load.
When you select a contact from the list, all
associated numbers will be displayed on the left
Press to set a number as a Favorite
Press to search your Contacts list using the
alpha keypad
You can save up to 5 numbers in the Favorites
In order to replace a favorite, you will need to
delete the existing number first, as the unit will
not override it.
Call List
The call list can be used to view your dialed,
received and missed calls.
The unit will display as many calls that you can
view from your phone.
You can also quickly access your Contacts and
Favorites from this screen.
To make a call from the list, touch the number
on the screen and it will automatically dial the
Bluetooth Music
You can play the music stored on your phone by
pressing MENU and selecting A2DP.
From your phone, access your music and select
a song to play.
You can use the Previous, Play/Pause, Next
and Stop buttons on the unit to navigate through
your music
Note: Some phones do not support this feature
Press to enter the Settings Menu. To
change system settings, select desired
Note:If an option is unavailable, it will be grayed out.
Clock: Set clock to display 12hr, 24hr or OFF
Note: The time displayed is controlled by
GPS. Please refer to the navigation section for
instructions on adjusting the time zone.
Settings Menu Screen
Beep: Turn button beep ON/OFF
OSD: Set display language
TS Calibrate: Calibrate the Touch Screen
Main Screen
Reverse Trigger: For backup camera ON/OFF
Mute Audio: Mute ON/OFF while in reverse
Camera Screen
You can customize the style of your unit with
Illumination: Set to Auto/ON/OFF for the unit
Highlight Color: White, Gold, Green, Red, Blue
and Aqua
Background: Select from several options
Style Screen
Before operating your CarShow Navigation system, please carefully read and
follow the instructions provided in the “Safety Information and Precautions”
located on the inside back cover of this Quick Start Guide.
Entering Navigation
To access navigation, press the NAV button on the left side of the unit.
To exit navigation, you will need to press the same NAV button.
Note: The only way to exit navigation is by selecting the NAV button on the left side of the
unit as pictured above.
Start Up
When the navigation software starts, you will see the reminder warning to use your
navigation software safely and lawfully.
You must accept these conditions to continue
Please refer to the User’s Manual for additional information and warning on proper
use of the CarShow Navigation product.
Understanding the Map
The top part of the screen shows
you what the next street is and which
direction to turn on your route
Select the Quick
Menu to access the
most used functions
These displays show
you the distance, time
left and the estimated
arrival time of your trip
Shows you the street
you are currently on
Access the Navigation Menu
Find an address or Point of Interest and
access the Favorites and History menu
Displays the route details and allows
you to edit, change or cancel existing
Displays current position, surrounding
map area and route.
Customize the navigation software
Quick Menu
Located in the top right corner of the
map screen is the Quick Menu. In
this screen, there is a selection of
functions that are frequently needed
during navigation.
You can use this option to search for
places of interest along the way of
your route, such as: Gas Stations,
Restaurants, Parking, etc.
Modifying Existing Routes
You can modify an existing route by accessing
either the Quick Menu or Main Navigation menu
You can use this option to select an alternative route to your
This option is a good way to
change road types and modes.
You can avoid highways, allow
toll roads, etc.
Accessing Audio Functions in Navigation
There are several features in navigation that allows you to interact with functions within the
CarShow unit.
While in navigation, you can access the current
Audio function you are listening to (Radio, SAT,
iPod and CD) without leaving navigation.
PREV/NEXT arrows on the unit
Radio/SAT Radio:
Previous Preset
Next Preset
Note: This will not scroll through all stations in
Radio and SAT mode, only presets.
Previous Song/Track
Next Song/Track
Enter or Find Address
If you are on the Map screen, press MENU. In the Navigation Menu, select Find Address.
Note: By default, the software proposes the country and state where you are currently
1. Touch “City Name” and the keyboard screen will appear.
2. Your current city will automatically
default. To search for a different city,
start typing each letter of the City
Tap to confirm city
3. A “Select City” screen will appear.
This will show a list of cities that
match your selection. Touch the city
you desire.
4. Select “Street” and the keyboard
screen will appear.
5. Start typing each letter of the street
6. A Street Name list will appear. Select the one you are looking for.
7. Repeat these steps for House number,
or if you do not know it, you can select the
8. A map will appear.
Click Next and a short
summary of the route will flash on the
screen for a few seconds.
9. After the summary, the map appears showing the entire route.
Tap to start your journey.
Setting Favorites
You can set Favorite destinations (like Home, etc) so you do not have to enter it manually
each time.
-Once you have entered all information and press
DONE, in the next screen, you will select MORE
-It will take you to keyboard where you can rename
your favorite. (Example: HOME)
-Select DONE and you Favorite is now saved.
Route History
You can search through the History menu to access
past routes or to set a past route as a Favorite.
-From the QUICK MENU or SETTINGS in the main
menu, select HISTORY
- To set as a Route, select the address, then tap
-To set as a Favorite, select the address, then tap
You can also set a Favorite from the History
section. Please see below.
Adjusting the Time Zone
To adjust the time displayed on the unit, please use the steps below.
1. Press MENU in the bottom left
corner of the screen
2. Select SETTINGS
---->Time Zone
3. Now you are in the clock setting screen.
-Use can set the time zone to change
automatically when entering a new time
-Use the minus and plus icons to adjust
the time in increments of 15 min
-Set Daylight Savings OFF/ON
Map Settings
You can modify and customize the way your maps are displayed by accessing the Map
From the map screen select the
Quick Menu button.
Select Map Settings from the list
Map Setting Options
View Mode: Set as 3D or 2D
Viewpoint: Low, Med or High
Automatic Overview: ON/OFF
Colors: Day, Night or Auto
Day Map Color: Select from several themes
Night Map Color: Select from several themes
3D Vehicle Gallery: Select from several vehicles/people
that will be displayed as your marker
Landmarks: ON/OFF
Buildings: ON/OFF
Track Logs: ON/OFF
Place Markers: Select what markers (such as gas, food,
etc) that you would like the map to automatically display
Safety Information and Precautions
WARNING! Please read and follow the following safety precautions.
Failure to follow the instructions below may increase
your risk of collision and personal injury.
The Rosen Navigation software is not a substitute for your personal judgment. The route suggestions should never supersede
any local traffic regulation or your personal judgment and /or knowledge of safe driving practices. Prior to completing any maneuvers suggested by your Rosen Navigation software (for example, a U-turn or a left turn), verify that you can legally and safely
complete the maneuver. Do not follow route suggestions if they direct you to perform an unsafe or illegal maneuver, would place
you in an unsafe situation, or would route you into an area that you consider unsafe.
Do not use the Rosen Navigation software to locate emergency services (such as police, fire stations, hospitals, and clinics).
The database may not include all emergency service providers. Use your own best judgment and ask for directions in these
If the vehicle is in motion, only a passenger should program the Rosen Navigation software. The driver should not program the
system unless the vehicle is parked in a safe location.
The Rosen Navigation software’s map database provides information on suggested routes without regard to factors that may
affect your driving experience or the time required to arrive at your destination. For example, the system does not reflect road detours, closures or construction, some road characteristics (e.g., road surface, slope or grade, weight or height restrictions, etc.),
temporary traffic congestion, weather conditions, and similar factors.
Vehicle Position
The Rosen Navigation software’s computer considers vehicle speed and heading changes, together with longitude and latitude
information, to accurately determine vehicle heading and position on a digital map.
Map and Information Database
The map database used by your Rosen Navigation software was created using high-resolution aerial and land based data collection.
Car navigation maps are frequently updated. While the database was judged to be as accurate as possible at the time of its
release, a map database can never be 100% accurate. Road information that is maintained in the map databases, such as turn
restrictions or road names may change over time.
Errors or missing information in the map data are not covered by the Product Warranty. New and/or updates for the map data
are the responsibility of the End-user.
End-User License Agreement
Please refer to the Rosen Navigation User’s Manual to review and accept the terms and conditions in the End-User License
before operating this product.
CS108 Rev A
All rights reserved. Copyright 2012 CarShow Entertainment Systems
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
