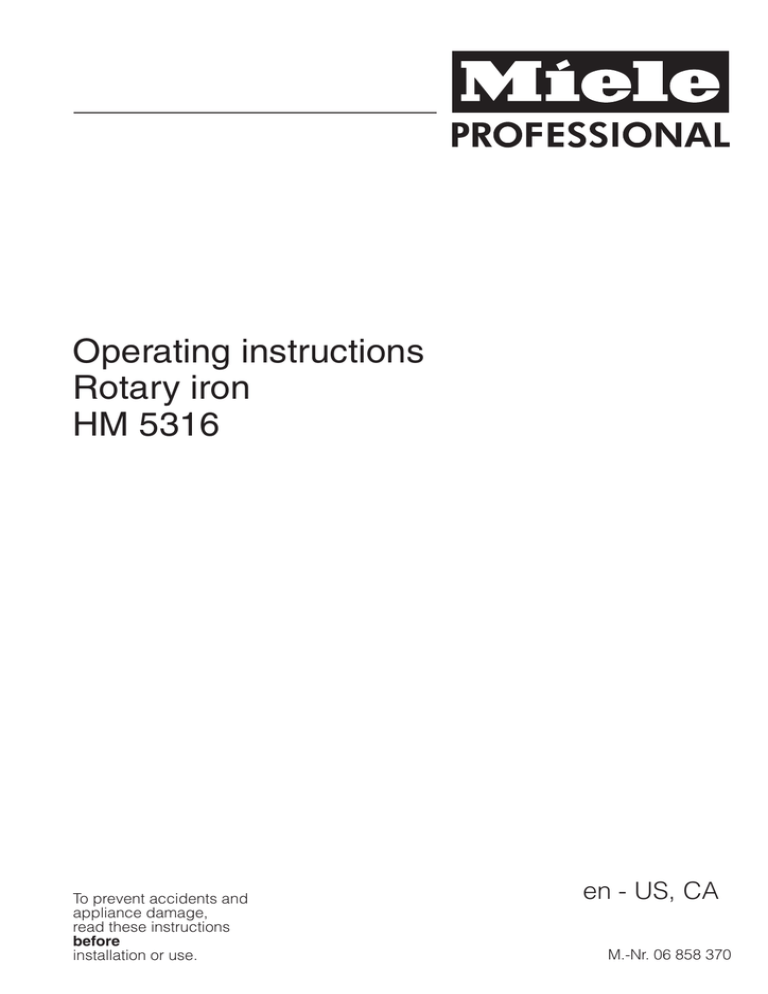

Operating instructions
Rotary iron
HM 5316
To prevent accidents and
appliance damage,
read these instructions
before
installation or use.
en - US, CA
M.-Nr. 06 858 370
Contents
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Guide to the rotary iron . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operating panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Foot control bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Finger guard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Correct dampness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Preparing the laundry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ironing tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ironing laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Steaming laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
To feed thicker items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
After ironing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Protecting the roller and iron cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Motor protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Waxing the heater plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning the heater plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Guide to the data plate symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Miele Ironing Handbook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Caring for your rotary iron. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Condensate trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Help to protect the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before installation or
use. To prevent injury and machine
damage.
Electrical safety
~ Be certain this appliance is properly
installed and grounded by an authorized
technician. To guarantee the electrical safety
of this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that this
basic safety requirement be met and tested.
Consult a qualified electrician if in doubt.
The manufacturer cannot be held
responsible for damage which is the direct
or indirect result of incorrect installation or
connection.
Use
~ This rotary iron is only intended for ironing
fabrics washed in water. Check the fabric
care labels to be sure the materials can be
ironed.
~ Only allow trained personnel to operate
the machine.
~ Do not let children play in, on or near the
rotary iron. Do not let them play with the
controls or operate the unit.
~ Do not operate the rotary iron in a room
where cleaning machines operate with
solvents containing CFC.
~ The rotary iron should only be used in a
room with a relatively low humidity level.
~ Be aware of loose fitting or hanging
garments when using the rotary iron.
Sleeves, apron ties, bracelets, etc. could be
caught by the roller.
~ Danger of burns when the heater plate is
touched. Do not smooth an item between the
heater plate and roller.
~ When ironing double layered items, do
not reach between the layers to straighten
out the fabric. Burns could result if you
cannot extract your hands before the
laundry is pulled into the rotary iron.
~ Do not reach into pockets when the open
side faces the hot heater plate.
~ Smooth creases on the feed board not
right in front of the hot heater plate. Feed
pillow cases and duvet covers into the rotary
iron with the open end first.
~ Test the finger guard before each use to
avoid injury.
~ Before switching into reverse, assure that
no harm can be done to oneself.
~ Do not place laundry on top of the heater
plate. Danger of fire!
~ Keep a fire extinguisher close to the
machine in case laundry catches fire.
3
IMPORTANT SAFETY INSTRUCTIONS
~ Do not damage, remove or bypass any of
the safety features and controls of the rotary
iron.
~ Do not operate a machine with an
electrical fault until repaired.
~ Repairs to electrical appliances should
only be carried out by an authorized
technician in accordance with local and
national safety regulations. Repairs and
other work by unqualified persons could be
dangerous. The manufacturer cannot be
held responsible for unauthorized work.
~ Faulty components must only be replaced
with genuine Miele spare parts. Only
genuine Miele spare parts can guarantee
the safe operation of this machine.
~ Before installation or service, disconnect
the power supply to the work area by
removing the fuse or "tripping" the circuit
breaker to the unit.
~ Any removable outer panels must be in
place, and all moving or electrical parts
shielded before the machine is operated.
~ Ensure that any person operating this
machine is familiar with these safety
instructions.
~ Turn the machine off before greasing any
parts.
Regard the national and local codes and
standards.
4
Using accessories
~ Only use genuine Miele accessories. If
other parts are used, guarantee,
performance and product liability claims
may become void.
SAVE THESE INSTRUCTIONS
Guide to the rotary iron
1 Heater plate with finger guard
2 Roller
3 Feed board
4 Operating panel
5 Laundry container
6 Cover for emergency handle insert
7 Emergency handle
8 Ironing table
9 Exhaust connector
10 Foot control bar
5
Guide to the rotary iron
Operating panel
a Temperature selector
e Button "0"
The temperature can be increased by turning the selector clockwise. It can be decreased by turning the selector counterclockwise.
Off
When the button is pressed, the rotary iron is
turned off.
ß
= Low temperature
ßß
= Medium temperature
ßßß
= High temperature
f Button "I"
On
When the button is pressed, the rotary iron is
turned on, the roller turns.
b Roller speed selector
g Button "O"
The roller speed can be increased by turning the selector clockwise. It can be decreased by turning the selector counterclockwise.
When the button is pressed the heater plate
lowers.
c "Operating" indicator
When the button is pressed the heater plate
raises.
The "operating" indicator lights, when the
button "I" is pressed.
With coin mechanism:
The indicator lights, when the "I" button is
pressed and a coin or token is inserted.
d "Heating" indicator
Lights when the iron is heating.
6
h Button "P"
Guide to the rotary iron
Foot control bar
1st Switch point
Steaming, the roller stops
2nd Switch point and button "O" pressed:
The heater plate lowers and the roller turns.
2nd Switch point and button "P" pressed:
The heater plate rises and the roller turns
backwards. Only for removing the ironing
cover and padding. (See "Cleaning and
Care" for more information.)
Finger guard
,The finger guard is a safety feature
which must be checked before each use
of the rotary iron.
If fingertips get between the feed board and
the finger guard 1, the roller will stop and the
heater plate will rise.
^ Turn the rotary iron on again by pressing
the "I" button and "O".
7
Use
Correct dampness
Ironing tips
For best results, the residual moisture of the
laundry should be 25%.
– To avoid creasing stop the roller, pull the
item back slightly and smooth out. If necessary, dampen again with a wet cloth or
spray bottle.
Laundry which contains more than 50%
synthetic fibers must not be ironed in this
machine. The synthetics might melt at the
high temperatures. Laundry with less
synthetics can be ironed at a low
temperature.
Preparing the laundry
^ Sort the laundry according to how much
heat is required for ironing.
^ Check the fabric care label for the correct
ironing temperature of the laundry.
Care
symbol
Fabric
J
G
Dot
symbol
Temp.
Do not iron
Polyester /
Rayon
ß
H
Silk /
Woolens
ßß
medium
hot iron
(medium
temp.)
I
Cottons /
Linen
ßßß
hot iron
(high
temp.)
cool iron
(low temp.)
^ Start ironing at a low setting and gradually
increase the temperature according to the
fabric being ironed.
^ If decreasing the temperature is
necessary, it is only reached, once the
"Heating" indicator lights again.
8
– If possible, always use the whole length of
the roller, otherwise it will lose its elasticity.
– For small items such as handkerchiefs, alternate between the right and left hand sides of the roller.
– Iron starched items last to avoid any
starch transfer to other items.
– Items with buttons, zippers or holes should
be ironed face down on to the roller so
that they are pressed into the cushioned
surface.
– Cover zippers, metal buttons, and metal
hooks with a cloth to protect the heater
plate.
– Buttons, zippers and trim that is not heat
resistant or very large buttons should not
be ironed. They may damage the heater
plate.
Caution!
Before using for the first time clean the
heater plate by ironing an old cloth over
the whole roller length.
Use
Ironing laundry
Steaming laundry
^ Turn the unit on at the wall switch.
^ To steam laundry, press the foot pedal
down to the 1st switch point.
^ Ironing with coin mechanism:
Insert coins or token.
^ Press "I" to turn the iron on.
^ Select the temperature depending on the
laundry with the temperature selector.
^ Press the "O" button.
The heater plate lowers when a temperature
of about 140°F (60°C) is reached.
^ Select a roller speed depending on
dampness and type of laundry.
^ Test the finger guard for proper operation.
,The finger guard is a safety feature
which must be checked each time the
rotary iron is used.
Once the "Heating" indicator goes out, the
rotary iron is ready for operation.
^ Insert the prepared laundry by feeding it
over the feed board.
^ Smooth the items during ironing from the
middle to the edges.
^ Use the whole roller width to iron small
laundry items, alternating items from left to
right.
If decreasing the temperature is necessary,
it is only reached, after the "Heating" indicator lights again.
Ironing with coin mechanism:
Once the preprogrammed running time has
counted down, the heater plate raises and
the roller stops turning.
The roller stops.
To feed thicker items
^ Press the foot pedal down to the 2nd
switch point.
The heater plate raises off the roller.
^ Release the foot pedal and the roller turns
again.
,The ironed laundry can be very hot
when coming right off the rotary iron.
Wear gloves if necessary.
Let the laundry completely cool before
packing or stacking. Hot laundry can
combust. Danger of fire!
To increase the durability of the roller
motor and the ironing cover raise the
heater plate and lower the temperature
during breaks.
After ironing
To dry the roller cover, turn the heat off and
let the rotary iron run for 5 minutes with the
heater plate lowered.
^ Press the "P" button to raise the heater
plate.
^ Turn the rotary iron off by pressing the "0"
button.
^ Turn the unit off at the main power switch.
9
Frequently asked questions
Power failure
Protecting the roller and iron cover
If there is a power failure when the iron is in
use, the heater plate will stay on the roller.
The item being ironed will then be held there
possibly becoming scorched. If no laundry
is ironed the ironing cover could be damaged.
– During breaks and after ironing the heater
plate should be raised. The roller and the
iron cover durability will be increased.
Avoid running the iron without laundry.
– Use the whole roller width to iron small
laundry items. When used only on one
side the roller and iron cover is strained.
Motor protection
If the motor gets too hot due to an overload,
the motor shuts off automatically and the
heater plate raises.
^ After the motor has sufficiently cooled,
press the I button and restart ironing.
^ Pull the emergency handle 1 from its
bracket.
^ Turn the cover 2 to the side.
^ Insert the emergency handle in the
opening.
^ Turn the handle clockwise to raise the
heater plate from the roller.
If the heater plate was raised and a noticeable resistance is felt, turn the handle twice
counterclockwise.
^ Remove the emergency handle after use
from the opening and put it back in the
bracket.
^ When the power is restored, press the "I"
button to turn the rotary iron on.
10
Cleaning and Care
Regular cleaning and maintenance of the
heater plate is essential for the durability
of the motor and roller pad and cover.
Waxing the heater plate
The heater plate should be waxed daily before use with a cleaning cloth for optimum
performance.
Original cleaning cloths and ironing wax can
be obtained from Miele.
^ For cleaning and waxing the heater plate,
set the roller speed to the lowest and the
temperature to ßßß.
^ Wrap the two ends over and feed the cloth
into the rotary iron like a laundry item with
the long side (arrow) first.
^ Starting from left to right, the cloth is fed
into the iron until the entire roller length is
covered.
Cleaning the heater plate
Do not use abrasive cleaning agents,
scrubbing sponges or sand paper.
^ Sprinkle the ironing wax on the middle part
of a cleaning cloth (Miele accessory).
Only use a small quantity of wax.
Do not get wax on the roller, it will melt
and damage the roller cover.
^ Lime and starch deposits can build up on
the heater plate. Clean the heater plate
1-3 times per week with an oil cloth and
cleanpaste.
^ For stubborn deposits use a cleaning cloth
along with the cleaning mat.
^ The heater plate must be waxed after each
cleaning.
See "Miele Ironing Handbook" for further information.
11
Cleaning and Care
Discoloration of the ironing cover
Applying an ironing cover
A slight to heavily brown coloration of the ironing cover is normal.
^ Raise the heater plate and turn the rotary
iron off.
To avoid the cover from turning black:
^ Lay the ironing cover on the roller
(parallel).
– Always use the complete roller width.
– Space out smaller items, alternating from
left to right.
– Raise the heater plate and lower the temperature during breaks.
Washing the ironing cover
The ironing cover should not be washed if
only slightly discolored (yellowing normal).
^ A heavily soiled cover can be washed at a
hot temperature 203°F (95°C), spun and
returned to the roller while still damp.
^ Before removing the ironing cover to clean
or replace it, turn the rotary iron off, let the
heater plate cool and remove the feed
board.
^ Unhook the laundry pick-off units off the
roller one after another.
^ Turn the rotary iron on "I" and raise the
heater plate "P".
^ Press the foot pipe to the 2nd switch point
and remove the ironing cover while the
roller turns backwards.
^ Turn the rotary iron on "I" and lower the
heater plate "O". The ironing cover is
pulled in.
^ Steel wool bits will fall on the ironing table
when removing or replacing the ironing
cover. Clean them immediately.
A repadding is necessary if an air gap is visible between the lower edge of the heater
plate and the roller (laundry outlet).
To replace or renew the roller padding call
Technical Service.
Laundry pick-off unit
Clean the tips of the laundry pick-off unit’s to
remove dirt and starch every 2-3 months or
as needed.
^ Pull the laundry unit out and clean with
warm water.
Maintenance
Call Technical Service for the following
maintenance.
^ When the roller needs repadding, check
and grease the swivel joints.
^ Check and replace the carbon brushes.
12
After sales service
In the event of a problem, please contact the
Miele Technical Service Department at the
phone number on the back of this booklet.
When contacting Technical Service please
quote the model (M.-Nr.) and serial number
(Fabr.-Nr.) of the machine. These can be
found on the silver data plate.
Only use original Miele spare parts for maintenance or repairs on this machine.
13
Guide to the data plate symbols
1 Machine type
15 Electric heating
2 Serial number/Year of production *
16 Fuse (on site)
3 Voltage/Frequency
17 Steam heating indirect
4 Fuse rating
18 Steam heating direct
5 Drive motor
19 Gas heating
6 Plate diameter/Plate quantity *
20 Commissioning date
7 Drum data
21 Water-Registration
DVGW-test cert (Water)
8 Drum diameter/Drum depth
9 Spin speed
22 Field for CE test symbol
10 Drum volume/Laundry dry weight
11 Kinetic Energy
Noise level
12 Ex. time to top speed
Noise level was rated A.
13 Breaking time
14 Heating
* Not valid for this machine.
14
Installation Instructions
Installation instructions
Condensate trap
The rotary iron should be installed by a
Miele trained installer.
Installation site
,Do not operate the rotary iron in a
room where cleaning machines are
operated with solvents containing CFC.
These vapors could damage the machine.
The machine does not require any special
anchorage or base installation.
^ Select a location which has sufficient light
for comfortable operation.
Installation
^ Level the rotary iron with the 4 height
adjustable feet. Hold the level on the front
and side columns.
Air extraction
^ The on-site ducting must not be connected
to a chimney which is used by gas, solid
fuel or oil fire boilers. It must be kept
separate from any dryer exhaust system.
^ The warm, moist exhaust should be
discharged outside by the shortest route
possible.
^ To ensure optimum air flow, the ducting
should contain as few bends as possible
and airtight connections.
^ Cover the open end at the outside with a
weather hood.
16
A condensate trap must be installed at the
lowest point to prevent condensation from
collecting in the duct.
Installation instructions
Electrical connection
,All electrical work must be performed
by a qualified service technician in
accordance with all applicable codes and
standards.
^ Regard the data plate, wiring diagram,
conversion and installation plan.
The wiring diagram is located under the cover of the right side column.
The machine is supplied for 230V, 60 Hz,
3AC.
^ If converted to another voltage, mark it
with D on the data plate.
,Caution! The heater plate rises as
soon as the machine is connected to the
mains.
17
Help to protect the environment
Disposal of the packing materials
Disposal of an old appliance
The packing materials protect the appliance
during shipping. They have been designed
to be biodegradable and recyclable.
Old appliances may contain materials that
can be recycled. Please contact your local
recycling center about the possibility of recycling these materials.
To prevent suffocation, ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children.
18
Ensure that the appliance presents no danger to children while being stored for disposal. Before discarding an old appliance, unplug it from the outlet, cut off its power cord
and remove any doors to prevent hazards.
19
20
21
All rights reserved / 2509
06 858 370 / 01

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
