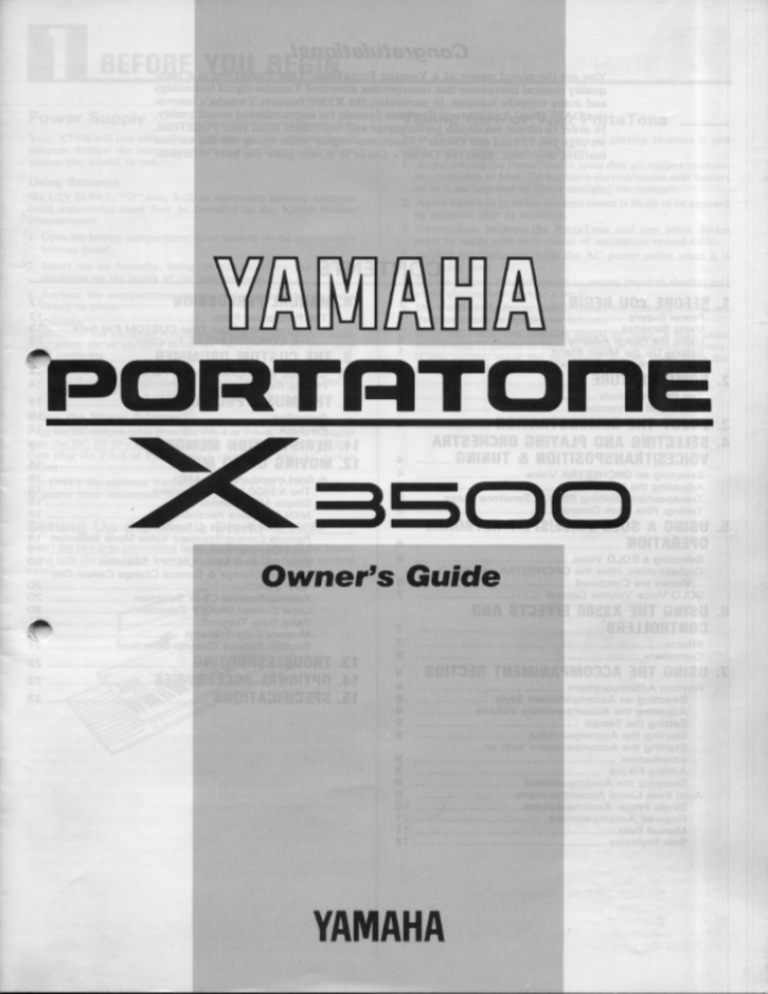

Yamaha X3500 Owner's manual

- man
RPOIRTIEATONE
X 3500
Owners Guide
YAMAHA
Congratulations!
You are the proud owner of a Yamaha PortaTone. Your PortaTone is a high-
quality musical instrument that incorporates advanced Yamaha digital technology
and many versatile features. In particular, the X3500 features Yamaha's innova-
tive DASS (Dual Architectural Synthesis System) for unprecedented sound quality.
In order to obtain maximum performance and enjoyment from your PortaTone,
we urge you to read this Owner’s Guide thoroughly while trying out the various
features described. Keep the Owner’s Guide in a safe place for later reference.
CONTENTS
1.
2.
3.
Ja
7.
BEFORE YOU BEGIN
Power Supply ..............eererresrresrecuacocneceroreneaccanea
Using Batteries ..............eeeresnccnrervarreoecoconcenocane
Using the Power Adapter .................ec.ereesevenverneoes
Setting Up the Music Stand ...................eeorcerenveees
Taking Care of Your PortaTone
NOMENCLATURE
Top Panel Controls ...…....................….…sessrorennonsacrn00s
Rear Panel Connectors
ENJOY THE DEMONSTRATION ...................
. SELECTING AND. PLAYING ORCHESTRA
VOICES/TRANSPOSITION 8%: TUNING .........
Selecting an ORCHESTRA Voice ..................eecemee
Adjusting the Volume ............re...esmcrvonaeoreocccavenene
Transposition: Shifting Pitch in Semitone Steps ......
Tuning: Fine Pitch Control ................e...esmesxerierenea
USING A SOLO VOICE/SPLIT KEYBOARD
OPERATION
Selecting a SOLO Voice ...............eeecenocervacesooneneuas
Orchestration: How the ORCHESTRA and SOLO
Voices are Combined
SOLO Voice Volume Control
USING THE X3500 EFFECTS AND
CONTROLLERS
UHR EURE A
USING THE ACCOMPANIMENT SECTION .
Rhythm Accompaniment ..…....................…...…racsereuss
Selecting an Accompaniment Style ...................
Adjusting the Accompaniment Volume ..............
Setting the Tempo ............c..ee.eexcaverocarrenrenccare
Starting the Accompaniment ...................e...esme.
Starting the Accompaniment with an
Introduction
Adding Fill-ins
Stopping the Accompaniment ...........e..ee=.eseoreo.
Auto Bass Chord Accompaniment..............e==e..eeme..
Single Finger Accompaniment............e....e-...eerro
Fingered Accompaniment...................esssessraccones
Manual Bass............e...ecenerreocorooceoonenocenoeccaacene.
Solo Styleplay .............c..ees.erececarrensocorearennenne_.
LEO
8. MANUAL PERCUSSION ............................ 12
The Percussion Pads reinen 12
Programming Your Own CUSTOM Pad Sets ..... 13
The SYNCHRO BREAK Function ..................... 13
9. THE CUSTOM DRUMMER ..................... 9
Creating an Original Rhythm Pattern .................... 4
Playing Back Your Custom Rhythm Pattern .......... 14
10. THE MUSIC PROGRAMMER ...................... 15
Recording ............ere..enecrercenrorncrrareecorconenanceae.. 15
Playback ...........eeo.essrrevcorrrrccorererioncnreoreacca eee. 17
11. REGISTRATION MEMORY .............. 18
12. MOVING UP TO MIDI ............................. 18
A Brief Introduction to MIDI... 18
The X3500 MIDI Connectors ............... PT 18
Simple MIDI Control .............e-..re.erirmmesarvearena 18
MIDI Sequence Recording -...............e..e.e=esecenos 19
X3500 MIDI Settings & Functions ..........e...e...... 19
Remote Control/Standard Voice Mode Selection 19
MID! Channel Selection ..…...….........................…. 19
Split Transmit Mode ON/OFF Selection ............ 20
Program Change & Control Change Cancel ON/
OFF Selection ..................ereveccncccarcenercene. 20
External/Internal Clock Selection ..................... 20
Local Control ON/OFF Selection ...................... 20
Panel Data Transmit ..............reesereceecoreneceree.. À
Memory Data Transmit .................eemeeerieverrero JT.
Rhythm Receive Channel Selection ................. 21
13. TROUBLESHOOTING ................................... 22
14. OPTIONAL ACCESSORIES .......................... 23
15. SPECIFICATIONS 23
rer re rite
BEFORE YOU BEGIN
Power Supply
Your X3500 will run either from batteries or the optional power
adapter. Follow the instructions below according to the power
source you intend to use.
Using Batteries
Six 1.5V SUM-1, “D” size, R-20 or equivalent alkaline batteries
(sold separately) must first be installed in the X3500 battery
compartment.
1. Open the battery compartment cover located on the instrument’s
bottom panel.
2. Insert the six batteries, being careful to follow the polarity
markings on the inside of the compartment.
3. Replace the compartment cover, making sure that it locks
firmly in place.
Caution:
1. When the batteries run down, replace them with a com-
plete set of six new batteries. NEVER mix old and new
I batteries.
Z. To prevent possible damage due to battery leakage,
remove the batteries from the instrument if it is not to
be used for an extended period of time.
Using the Power Adapter
Plug the DC output cable from the PA-4 or PA-40 Power Adapter
into the DC IN (9— 12V) jack on the rear panel of the X3500,
then plug the PA-4 or PA-40 into a convenient wall AC power
socket.
Use ONLY the optional Yamaha PA-4 or PA-40 Power Adapter
to power your instrument from the AC mains.
Setting Up the Music Stand
Insert the two pegs protruding from the bottom edge of the music
stand into the two holes located at the top of the X3500 control
panel.
Taking Care of Your PortaTone
Your PortaTone will give you years of playing pieasure if you
follow the simple rules given below:
1. Avoid placing the PortaTone in areas that are subject to exces-
sive humidity or heat. Do not leave the instrument near heaters
or in a car exposed to direct sunlight, for example.
2. Avoid locations in which the instrument is likely to be exposed
to excessive dust or moisture.
3. Connections between the PortaTone and any other device
must be made with both pieces of equipment turned OFF.
4. Unplug the Portatone from the AC power outlet when it is
not being used.
5. Do not subject the instrument to strong physical shocks, and
avoid placing heavy objects on it.
6. Use a soft cloth, dry or slightly damp, for cleaning. Never use
chemicals such as benzine or thinner.
7. Since the PortaTone contains digital circuitry, it may cause
interference if placed to close to radio or television receivers.
If this occurs, move the instrument further away from the
affected equipment. |
DA nomenciatur
ACCOMPANIMENT STYLE LIST
00 DISCO 10 BA
01 11 CHRISTMAS ROCK
12 ORIENTAL ROCK
13 ROCK BAROQUE
14 TECHNO ROCK 1
TECHNO ROCK 2
ARD ROCK
16H
TT HEAVY METAL
L1 16 SPEED METAL
19 CONTEMPORAR
SESERLEN
HE
y
Y SOUL
F 1
se
EE)
A BLUES 2
SLOW BLUES
1
22058
ZZX
5-22
:
BRNRIVINIY
28585
Rone
ses
BESERREOS
ms oD
ACCOMPANIMENT STYLE SELECT
Y TEMO à
“e |
|.
|
001000100001
Tap Panel Controls
(1) POWER Switch ...................reevecevererernens (page 4)
(2 MASTER VOLUME Control ................. (page 4, 5)
(3) RHYTHM VOLUME Control ................. (page 4, 8)
(4) BASS VOLUME Control ............... (page 4, 10, 12)
(5) CHORD VOLUME Control ................. (page 4, 10)
(6) ORCHESTRA VOLUME Control .......... (page 4, 10)
(7) SOLO VOLUME Control ..................... (page 4, 7)
AUTO BASS CHORD Buttons ............. (page 6, 9)
(9) CUSTOM DRUMMER Buttons ............... (page 14)
ACCOMPANIMENT STYLE SELECT
Buttons —including TEMPO and VARIATION
Buttons ................rrrrececorecocerccaoarrercane. (page 8)
(7 SOLO STYLEPLAY Button .................... (page 12)
(2 INTRO./FILL IN Buttons 1, 2 and 3 ......... (page 9)
(3 INTRO./ENDING Button ........................e. (page 9)
SYNCHRO START Button ...................... (page 9)
(15 START and STOP Buttons ..................... (page 9)
ACCOMPANIMENT STYLE/BEAT/
TEMPO Display ....................e.e..... (page 5, 9, 19)
(7) ACCOMPANIMENT STYLE LIST .............. (page 8)
PAD Buttons ...................ee0evcencceciercere. (PASE 12)
Percussion Pads ....................eececcrcccecoo (page 12)
VOICE SELECT Buttons — including PART
SELECT Button ...................w..eom... (page 4, 6, 19)
@) VOICE Display ......................ece.0m. (page 4, 6, 19)
(2 PART Indicators ...................e.e.erecmneoo (page 4, 6)
23) EFFECT Buttons ................e.e.erereceococoneno (page 7)
PITCH BEND
ORCHESTRATION Buttons ...........c......... (page 6)
(25 ROLL BAR Buttons ..................e.eeserveicecs (page 8)
MUSIC PROGRAMMER Buttons ............ (page 15)
27 MIDI Button ..….....................…..….….….….ercrre (page 8)
PITCH Buttons ..................eerercccorocerenacoo (pag >)
TRANSPOSE Buttons ..................e.eecece.o (page 5)
REGISTRATION Buttons ....................... (page 18)
3) DEMONSTRATION Button ...................... (page 4)
32 Keyboard
63 PITCH BEND Roller .........................eme... (page 8)
ROLL BAR .................eeecocerercccorcocanenenees (page 8)
Rear Panel Connectors
@ DC IN (9— 12V) Jack
The DC output cord from the supplied Yamaha PA-4 or PA-40
Power Adapter should be plugged in here when the X3500 is
to be powered from the AC mains supply (refer to “Power
Supply” on page 1 for more details).
HEADPHONES Jack
A standard pair of stereo headphones can be plugged in here for
private practice or late-night playing. The internal speaker system
is automatically shut off when a pair of headphones is plugged
into the HEADPHONE jack.
VOICE LIST
eg GLOCKEN NGS x RECORDER ю wn GUITAR
1 CHIMES PING
12 XYLOPHONE 22 PIZZ STRINGS 3 OBOE
n MARIMBA 23 SYNTH STRINGS 1 33 BASSOON 3 TUBA
4 BAMBOD MARIMBA 24 SYNTH STRINGS 2 34 SAXOPHONE 1 4 4 BRASS ENSEMBLE
MPA Y 35 SAXOPH
1
5 TI ONÉ Z 45 POWER
X STEEL АР 28 CELLO
17 KALIMBA 7 HARP
18 GAMELAN 28 FLUTE
MUSIC BOX 20 PAN FLUTE
40 MUTE TRUMPET 50 ROCK ORGAN
3 TROMBONE 51 STREET CAGAN
2 HORN 52 HUMAN VOX £2 MANDOLIN
53 HUSKY 63 SITAR
ы ELEC PIANO 2 54 WHISTLE 5
О 55 CLASSIC GUITAR ES SHAMISEN
36 HARMONICA
37 ACCORDION
38 BAGPIFE
39 TRUMPET 49 JAZZ OA
a Cha
о CÉLÉSTA
TOY PIANO
& vIBES
58 ELEC. BASS 1
59 DIÉTORTION Sur TAR 56 ELEC. BASS 2
70 SLAP BASS
74 SYNTH pass, ;
75 HOLLOW SYN
76 SOFT CLOUD
N DAYBREAK
SUNBEA
7a ARABESQUE
86 SYNTH BELLS
87 BELL FOUNTAIN 97 STORM
69 SYNTHERIMBA
90 AFRICAN PERCUSS
Ea ATER BURNER
® MONS Sten.
= EMERGENCY
96 RACING CIRCUIT
56 WAVE
99 ORCHESTRA MIT
E SYNCHRO BREAK
= EFFECTS HOLD
т É MODULATION — EXPRESSION @ : MIDI
- VOICE SELECT EFFECT ORCHESTRATION ROLL SAR
PART SELECT с 1 an
CUSTOM 2 SUSTAIN 2 ORCHESTRA
20) 23) (24) MUSIC PROGRAMMER
GJ (73 G3 O ENSEMBLE O TO LOWER O RECORD PLAY
pag | | || CTD
© DUAL VOICE RECORD PLAY
az || - ESE
REGISTRATION 3
BT FT mp Fh a = oH
ou =
fi
| г -
L— ——=>=ÑÑ..————— _
|
С” |
— ez ]
г} AU EEE DS MECTI “ERA
YAMAHA
e ТРИ
67 AUX. OUT L/L +R and R Jacks
These jacks can be used to deliver the output of the X3500 to
a keyboard amplifier, stereo sound system, mixing console or
tape recorder. When plugs are inserted into both jacks, the left-
channel sound is delivered via the L/L +R jack and the right-
channel sound is delivered via the R jack. If a plug is inserted
into the L/L +R jack only, the left- and right-channel sound
is mixed and delivered via that jack. The L/L +R jack should
be used when the X3500 is to be connected to a mono sound
system (i.e. a keyboard amplifier, etc.)
AUX. QUT
LL+R LINE INR L
STEREO
AMPLIFIER
® Use a relatively low MASTER VOLUME control setting
when connecting the X3500 to a stereo sound system.
Use the stereo system's volume control to adjust volume.
EXP. PEDAL Jack
An optional Yamaha EP-1 Expression Pedal can be connected
to this jack to allow foot expression (swell) control.
SUSTAIN Jack
An optional Yamaha FC-5 footswitch can be connected here for
foot sustain control. The footswitch functions like the damper
pedal on a piano—press for sustain, release for normal sound.
MIDI IN and OUT Connectors
The MIDI IN connector receives MIDI data from an external
MIDI device which can be used to control the X3500. The MIDI
OUT connector transmits MIDI data generated by the X3500
(e.g. note data produced by playing the keyboard).
More details on MIDI are given in “MIDI FUNCTIONS” on
page 18.
ENJOY THE
DEMONSTRATION
To give you an idea of the X3500’s sophisticated capabilities, it
is programmed with a demonstration sequence which plays
automatically while demonstrating a number of the instrument's
voices.
1. Switch ON
Slide the POWER switch to the ON position. The VOICE
and ACCOMPANIMENT STYLE displays will light when
the power is ON.
POWER
|
|
À
—
—,
=
—
—
—
2. Set an Initial Volume Level
Slide the X3500 MASTER VOLUME control to a position
about three quarters of the way to the “MAX” setting.
You can set the MASTER VOLUME control for the most
comfortable volume level after playback begins.
MASTER RHYTHM BASS CHORD ORCHESTRA SOLO
VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME
О ВЕ
i MAX a 1 п | nn
— — JN ul
3. Press the DEMONSTRATION Button
The demonstration music will begin playing as soon as you
press the DEMONSTRATION button.
The demonstration will play continuously, providing samples
of different voices and accompaniment styles, until the
DEMONSTRATION button is pressed a second time.
DEMON
STRATION
In the X3500, the term “orchestra voice” refers to the voice that
you normally play on the keyboard. “Solo”” and “bass” voices
can also be selected, but these functions will be described later
in appropriate parts of this Owner's Guide. Before you attempt
to select an orchestra voice as described below, check to make
sure than the ORCHESTRA voice part indicator (to the right of
the VOICE display) is lit. If any other indicator is lit, use the
VOICE SELECT PART SELECT button to select the ORCHES-
TRA part.
/ VOICE © SOLO
VOICE SELECT -_ „чт
PART SELECT + / I § Ot
CT D) / Lut
O BASS
Selecting an ORCHESTRA Voice
The X3500 provides two methods of selecting any of its 100
voices:
1) Choose one of the 100 voices—numbered “00” through AN
—shown on the VOICE LIST then enter its number using
the numbered VOICE SELECT buttons. To select XYLO-
PHONE (number 12), for example, first press “17” and then
“2 The number “12”*? should then be displayed on the
VOICE display.
2) The + and — buttons in the VOICE SELECT group can
be used to increment (increase by one) or decrement (decrease
by one) the current voice number. Press the + button briefly
to select the voice one number higher than the current voice,
or the — button to select the voice one number lower than
the current voice. If you hold the + or — button down, the
voice number will increment or decrement continuously—
simply release the button when the desired voice number has
been reached.
The selected voice can now be played on the instrument's key-
board.
VOICE SELECT
PART SELECT
C
pr
000
768 |
L-}
EN
J
DL)
® When the power is initially turned ON, the PIANO 1 voice
is automatically selected and its number (“00”) is shown
on the VOICE display.
e The X3500 has ‘‘8-note polyphony.” This means that up
to 8 notes can be produced simultaneously. When the
SOLO voice, AUTO BASS CHORD, or CUAL VOICE func-
tion is not used, up to 8 notes can be played simultane-
ously using the selected ORCHESTRA voice. The functions
listed above and some others use some of the available
notes, thus reducing the total number of voices that can
be played via the keyboard.
SELECTING AND PLAY!
TRANSPOSITION & TUN
NG ORCHESTRA VOICES/
ING
Adjusting the Volume
Adjust the MASTER VOLUME control while playing to set the
desired overall volume level.
The other volume controls--RHYTHM, BASS, CHORD, OR-
CHESTRA and SOLO-— allow the volume of the corresponding
parts to be adjusted in relation to each other. The ORCHESTRA
VOLUME control, for example, can be used to adjust the volume
of the selected ORCHESTRA voice. The other volume controls
will be described in the appropriate sections of this Owner’s
Guide.
MASTER
VOLUME
||
Transposition: Shifting Pitch in
Semitone Steps
The X3500 TRANSPOSE function makes it possible to shift the
pitch of the entire keyboard up or down in semitone intervals
up to a maximum of six semitones. ‘‘Transposing’’ the pitch
of the X3500 keyboard makes it easier to play in difficult key
signatures, and you can simply match the pitch of the keyboard
to the range of a singer or other instrumentalist.
The TRANSPOSE A and V¥ buttons are used for transposition.
Press the A button to increase the pitch of the keyboard, or the
V button to lower the pitch. The selected degree of transposition
will be displayed on the ACCOMPANIMENT STYLE display
while the TRANSPOSE A or Y button is pressed, and for
approximately 3 seconds after either TRANSPOSE button is
released.
The transposition range is from — 06 to 06, with — 06 correspond-
ing to downward transposition by 6 semitones, and 06 correspond-
jag to upward transposition by 6 semitones (see chart below).
7s the “normal” keyboard pitch value. The normal transpose
value (00) can be recalled at any time by pressing both the
TRANSPOSE A and V¥ buttons at the same time (the transpose
value is automatically set to 00 whenever the power switch is
turned ON).
Display Transposition Display Transposition
— 06 — 6 semitones 01 + 1 semitone
— 05 — 5 semitones 02 + 2 semitones
— 04 —4 semitones 03 +3 semitones
— 03 —3 semitones 04 +4 semitones
— 02 —2 semitones 05 + 5 semitones
— 01 — 1 semitone 06 + 6 semitones
V TRANSPOSE A
(| ) C )) / Li о
ВЕАТ
ТЕМРО
Tuning: Fine Pitch Control
Pitch control makes it possible to tune the X3500 over a + 50-
cent range in approximately 3-cent intervals. A hundred ‘‘cents’’
equals one semitone, so the tuning range provided allows fine
tuning of overall pitch over a range of approximately a semi-
tone. Pitch control is useful for tuning the X3500 to match other
instruments or recorded music.
Press the PITCH A button to tune up, or the PITCH V button
to tune down. The selected degree of tuning will be displayed
on the ACCOMPANIMENT STYLE display while the PITCH
A or ¥ button is pressed, and for approximately 3 seconds after
either PITCH button is released.
The transposition range is from — 16 to 16, with — 16 correspond-
ing to downward tuning by approximately 50 cents (one quarter
tone), and 16 corresponding to upward transposition by approxi-
mately 50 cents. O is the “normal” pitch value, at which the
A3 key (the A above middle C) produces ‘‘concert pitch’’: 440
Hertz. The normal pitch value (0) can be recalled at any time
by pressing both the PITCH A and Y buttons at the same time
(the pitch value is automatically set to 0 whenever the power
switch is turned ON).
v PITCH A _ Mm =)
(Cd ( )) LI |
/
BEAT
TEMPO
USING A SOLO VOICE]
SPLIT KEYBOARD OPERATION
In addition to an ORCHESTRA voice (described in the previous
section), the X3500 makes it possible to select a SOLO voice
which can be played alone, together with the ORCHESTRA
voice, or on the upper (right-hand) section of the keyboard while
the ORCHESTRA voice is played on the lower (left-hand) section
of the keyboard (split keyboard). The SOLO voice is a “mono-
phonic”” voice, meaning that only one note can be played at a
time. The SOLO voice is therefore ideal for playing single-note
melody lines.
Selecting a SOLO Voice
To select a SOLO voice, first use the VOICE SELECT PART
SELECT button to select SOLO voice (the SOLO indicator to
the right of the VOICE display should light). When this is done,
the number of the current SOLO voice will be displayed on the
VOICE display (PIANO 1 is selected automatically when the
power is initially turned ON).
VOICE
VOICE SELECT / 36%
A ¡E
PART SELECT | 11 ! © ORCHESTRA
С 3) / LILI
O Bass
Then choose the desired voice from the VOICE LIST and select
it in the same way as described in ‘‘Selecting an ORCHESTRA
Voice” on page 4—i.e. use the VOICE SELECT number or +/—
buttons.
/ УЕ фе
2400
VOICE SÉLECT
PART SELECT
CI
© ORCHESTRA
O BASS
300
300
966 |
д
DL)
Orchestration: How the ORCHESTRA
and SOLO Voices are
Combined
Using the ORCHESTRATION buttons* it is possible to combine
and use the selected ORCHESTRA and SOLO voices in a number
of ways.
* The ORCHESTRATION button group includes the DUAL
VOICE button which, although it is an “orchestration fea-
ture, ‘’ has been described under “EFFECTS” on page 7
since it applies only to the ORCHESTRA voice.
ORCHESTRA Voice Only
When the SOLO, ORCHESTRA and TO LOWER button indica-
tors are off, or when only the ORCHESTRA button indicator
is lit, only the selected ORCHESTRA voice will sound. In this
case, the ORCHESTRA voice can be played across the entire
X3500 keyboard (assuming that the AUTO BASS CHORD fea-
ture is off). The indicators are turned on or off alternately by
pressing the corresponding button.
ORCHESTRATION
=
= ESTRA
© TO LOWER
(С)
OQ DUAL VOICE
TD
SOLO Voice Only
When only the SOLO button indicator is lit, only the selected
SOLO voice will sound. In this case, the SOLO voice can be
played across the entire X3500 keyboard (assuming that the
AUTO BASS CHORD feature is off). The SOLO voice is mono-
phonic, so only a single note can be played at a time.
ORGHESTRATION
€oLo
ORCHESTRA
O TO LOWER
Q DUAL VOICE
CD
|
ORCHESTRA and SOLO Voices Simultaneously
If both the SOLO and ORCHESTRA button indicators 6
turned on, the SOLO and ORCHESTRA voices can be play."
simultaneously across the entire keyboard (assuming that the
AUTO BASS CHORD feature is off). If no functions which
use some of the available notes are being used (e.g. AUTO BASS
CHORD, or DUAL VOICE), up to 7 ORCHESTRA voice notes
can be played simultaneously. The SOLO voice will sound
together with the highest note played on the keyboard.
ORCHESTRATION
@Éo.Lo
des,
Q TO LOWER
CD
© DUAL VOICE
(==)
Split Keyboard: ORCHESTRA On Lower and SOLO
On Upper Keyboard
When the TO LOWER button is pressed (causing its ndice
to light), the ORCHESTRA voice is assigned to the “low.
keyboard while the SOLO voice is assigned to the “upper”
keyboard. This means that the ORCHESTRA voice can be played
with the left hand, while a single-note SOLO-voice melody line
can be played with the right hand. The lower and upper key-
board sections are separated by the “split point”? which can be
set between the G#2 and A2 keys or between the F#2 and G2
keys (marked by the “Y” symbols immediately above the key-
board). The F#2/G2 split point is automatically selected when
the power is initially turned ON. To change the split point, press
any of the AUTO BASS CHORD buttons (MANUAL BASS,
FINGERED or SINGLE FINGER) while holding the G¥2 key
(for the G#2/A2 split point) or the F*2 key (for the F#2/G2 split
point).
Foy
У ОО
ORCHESTRA
Y SO Lowen
ED
© DUAL VOICE
|
® When the TO LOWER indicator is on, the keyboard is split
(ORCHESTRA on lower keyboard and SOLO on upper key-
board) regardless of the settings of the ORCHESTRA and
SOLO buttons.
SOLO Voice Volume Control
The volume of the SOLO voice can be adjusted in relation to
the ORCHESTRA voice and other parts (to be described later)
by using the SOLO VOLUME control.
USING THE X3500 EF-
FECTS AND CONTROLLERS
EFFECTS
Sustain
The X3500 offers two sustain effects—SUSTAIN 1 and SUSTAIN
2. Press the SUSTAIN 1 or SUSTAIN 2 button once (the cor-
responding indicator will light) and notes played on the keyboard
will decay gradually after you lift your fingers from the keys.
Press the SUSTAIN 1 or SUSTAIN 2 button a second time (it’s
indicator will go out) to turn the sustain effect off. The SUSTAIN
2 button produces a longer sustain effect than the SUSTAIN 1
button, although the actual length of the SUSTAIN 1 and
SUSTAIN 2 effects varies from voice to voice.
OQ SUSTAIN 1
O SUSTAIN 2
® The SUSTAIN effect can also be switched ON or OFF using
an optional FC-5 footswitch connected to the rear-panel
SUSTAIN jack.
® SUSTAIN 1 and SUSTAIN 2 cannot be selected simultane-
ously.
e The SUSTAIN effects cannot be applied to accompaniment
or rhythm.
Ensemble
The ensemble effect produces a ‘‘thick’’ multi-instrument sound.
Press the ENSEMBLE button once (it’s indicator will light) to
turn the ensemble effect ON, and a second time (the ENSEMBLE
indicator will go out) to turn the ensemble effect OFF.
OQ ENSEMBLE
(=)
® The actual sound of the ENSEMBLE effect varies according
to the selected voice.
® The ENSEMBLE effect cannot be applied to accompaniment
or rhythm.
Duet
This effect only functions while AUTO BASS CHORD FIN-
GERED or SINGLE FINGER accompaniment is running (see
“Auto Bass Chord Accompaniment” on page 9). The DUET
effect automatically adds harmony notes to notes you play on
the keyboard, producing a ““duet”” type sound. The harmony
notes are automatically selected according to the chord currently
being played by the AUTO BASS CHORD feature. Press the
DUET button once (it’s indicator will light) to turn the duet
effect ON, and a second time (the DUET indicator will go out)
to turn the duet effect OFF.
© DUET
CD
Dual Voice
This effect is actually included in the ORCHESTRATION button
group, but we’ll include here for convenience. The DUAL VOICE
feature makes it possible to select and play two different voices
simultaneously. To activate the DUAL VOICE feature press the
DUAL VOICE button (the DUAL VOICE button indicator will
light). When the DUAL VOICE feature is ON, the last two voices
selected will sound simultaneously. For example, if you selected
PIANO 1 and then HARP, the PIANO 1 and HARP voices will
be combined. If you then select the VIBES voice, HARP and
VIBES will be combined, and so on. Of course, if you turn the
DUAL VOICE feature OFF (by pressing the DUAL VOICE
button a second time), only the last selected voice will sound.
© DUAL VOICE
CD
® DUAL VOICE cannot be applied to accompaniment or
rhythm.
® When DUAL VOICE is ON, the number of notes that can
be played simultaneously is reduced by half.
CONTROLLERS
Pitch Bend
The PITCH BEND roller located to the lower left of the key-
board offers extra expressive control by allowing you to manually
“bend”” (raise or lower) the pitch of the selected performance
voice. Rotating the PITCH BEND wheel away from you raises
pitch, while moving it toward you lowers pitch. When released,
the PITCH BEND wheel automatically returns to the center
(normal pitch) position. The total pitch bend range is + 200 cents
(100 cents = one semitone).
Bend Down
e The PITCH BEND effect cannot be applied to accompani-
ment or rhythm, or the lower voice in the MANUAL BASS
mode (see page 11).
Roll Bar
The “ROLL BAR” located below the keyboard can be used
for two different expression control functions, selected by the
ROLL BAR buttons to the right of the control panel:
ROLL BAR
o MODULATION © MASTER EXPRESSION
. The ROLL BAR controls modu-
lation (vibrato) depth. Roll the
bar away from you for greater
modulation depth.
… The ROLL BAR controls overall
volume. Roll the bar away from
you for higher volume.
MODULATION
MASTER EXPRESSION
® When the MASTER EXPRESSION function is selected,
the minimum ROLL BAR position does not turn the sound
all the way off. Expression can be controlled over a limited
portion of the upper volume range.
7 USING THE ACCOMPAN
Selecting an Accompaniment Style —
The X3500 provides two methods of selecting any of its 100
accompaniment styles:
1) Choose one of the 100 accompaniment styles—numbered 00°’
through *99?—shown on the ACCOMPANIMENT STYLE
LIST then enter its number using the numbered ACCOMPANI-
MENT STYLE SELECT buttons. To select GOSPEL (number
29), for example, first press “2” and then “9.” The number
“29” should then be displayed on the ACCOMPANIMENT
STYLE display.
2) The + and — buttons in the ACCOMPANIMENT STYLE
SELECT group can be used to increment (increase by one)
or decrement (decrease by one) the current accompaniment
style number. Press the + button briefly to select the accom-
paniment style one number higher than the current accc
paniment style, or the — button to select the accompanimes:
style one number lower than the current accompaniment style.
If you hold the + or — button down, the accompaniment
style number will increment or decrement continuously—simply
release the button when the desired accompaniment style
number has been reached.
ACCOMPANIMENT STYLE SELECT
Y TEMPO A
({ JC >)
JEU
HH
1 EJE)
(9 9 5)
Each rhythm pattern also has a variation which can be selected
by pressing the ACCOMP. VARIATION button. When the
ACCOMP. VARIATION button LED is off, the standard rhythm
pattern will play, and when the ACCOMP. VARIATION Flan
is on, the variation will play.
© ACCOMP. VARIATION
cD
® Selecting VARIATION produces a change in the chord and
bass patterns, but not in the rhythm.
e When the power is initially turned ON, the DISCO 1 accom-
paniment style is automatically selected and its number
(‘00’) is shown on the ACCOMPANIMENT STYLE display.
e Only one accompaniment style can be selected at a time.
Adjusting the Accompaniment
Volume
Although the MASTER VOLUME control can be used to set the
overall volume level, the RHYTHM VOLUME control can be
used to adjust the volume of the selected accompaniment rhythm
in relation to the ORCHESTRA and/or SOLO voices, and other
parts to be described later.
IMENT SECTION
Setting the Tempo
Press the TEMPO A button to increase the tempo, or the
TEMPO Y button to decrease the tempo. The selected tempo
will be displayed on the ACCOMPANIMENT STYLE/BEAT/
TEMPO display (in quarter-note beats per minute) while the
TEMPO A or V button is pressed, and for approximately 3
seconds after either TEMPO button is released.
The available tempo range is from 40 to 280 beats per minute.
Each accompaniment style has a different ‘“‘normal’’ tempo which
can be recalled at any time by pressing both the TEMPO A
and Y buttons at the same time (the tempo is automatically
set to the normal value for the DISCO 1 style—110—whenever
the power switch is turned ON).
ACCOMPANIMENT STYLE
Y TEMPO A / / (I
CL ) С J) ‘ I 14
BEAT
TEMPO
Wu” is also possible to adjust the tempo after starting play-
back of the accompaniment. This allows you to set the
optimum tempo by ear.
Starting the Accompaniment
Press the START button to start the selected accompaniment
immediately, or press the SYNCHRO START button if you want
the accompaniment to start when you play the first note on the
keyboard. If you press the SYNCHRO START button, the left-
most dot in the ACCOMPANIMENT STYLE/BEAT/TEMPO
display will flash at the selected tempo.
SYNCHRO
START | START
ar?
® The three LED dots at the bottom of the ACCOMPANIMENT
STYLE/BEAT/TEMPO display provide a visual indication of
the selected tempo as follows:
1st MEASURE, 1st BEAT : 2nd MEASURE, 1st BEAT
ACCOMPANIMENT STYLE ACCOMPANIMENT STYLE
añ : г 17
LL я Lu
1st MEASURE, 2nd BEAT : 2nd MEASURE, 2nd BEAT
ACCOMPANIMENT STYLE ACCOMPANIMENT STYLE
I 11 : Nan
1 LI L LI
1st MEASURE, 3rd BEAT * 2nd MEASURE, 3rd BEAT
ACCOMPANIMENT STYLE ACCOMPANIMENT STYLE
añ añ
I LI | LI
1st MEASURE, 4th BEAT : 2nd MEASURE, 4th BEAT
ACCOMPANIMENT STYLE ACCOMPANIMENT STYLE
Rar | Ran
IIT. MT
BEAT 4 BEAT
TEMPO ' TEMPO
The above 8 beats (two 4/4 measures) repeat.
e /f the AUTO BASS CHORD selector is set to OFF, the
accompaniment will consist only of rhythm (drums &
percussion) sounds. Operation of the AUTO BASS CHORD
SINGLE FINGER and FINGERED modes is described on
pages 10 and 11.
® A different accompaniment style can be selected at any
time while the accompaniment is playing.
Starting the Accompaniment
with an Introduction
Any of the X3500 accompaniment patterns can be started with
a 1-measure introductory pattern by pressing either the INTRO./
FILL IN 1, INTRO./FILL IN 2 or INTRO./FILL IN 3 button
before pressing the START or SYNCHRO START button. The
INTRO./ENDING button produces a 2-measure introduction.
INTRO
ENDING
INTRO / INTRO. INTRO.
FILL IN FILL IN FILL IN
2 3
Adding Fill-ins
To add a fill-in (rhythm variation) at any time while the accom-
paniment is playing, press the INTRO./FILL IN 1, INTRO./
FILL IN 2 or INTRO./FILL IN 3 button. The fill-ins have a
maximum length of one measure, but the actual length depends
on precisely when in the current measure you press a FILL IN
button (i.e. the fill-in lasts from the point at which the button
is pressed until the end of the current measure). You can stop
a fill-in pattern before the end of the current measure by pressing
the FILL IN button a second time. If you hold one of the FILL
IN buttons, the fill-in pattern will repeat until the button is
released.
INTRO! INTRO / INTRO!
FILL IN FILL IN FILL IN
2 3
Stopping the Accompaniment
An accompaniment in progress can be stopped immediately by
pressing the STOP button, or it can be stopped with a two-
measure ending by pressing the INTRO./ENDING button. If the
INTRO./ENDING button is used, the ending will start from
the current measure if the button is pressed during the first half
of the measure, or from the beginning of the next measure if
the button is pressed during the second half of the current
measure.
INTRO.
ENDING STOP
The X3500 includes a sophisticated Auto Bass Chord accom-
paniment system that can provide automated bass and chordal
backing in a number of ways.
® The maximum number of notes that can be played simul-
taneously on the X3500 keyboard is reduced when the
Auto Bass Chord feature is used.
10
SINGLE FINGER ACCOMPANIMENT _
SINGLE FINGER accompaniment makes it simple to produce
beautifully orchestrated accompaniment using major, seventh,
minor and minor-seventh chords by pressing a minimum number
of keys on the lower section of the keyboard (indicated by the
“VW” symbol between the F*2 and G2 or G#2 and A2 keys). The
bass and chord accompaniment produced is perfectly matched
to the currently selected accompaniment style.
1. Select the SINGLE FINGER Mode
Press the AUTO BASS CHORD SINGLE FINGER button
(its indicator should light).
AUTO BASS CHORD
OQ MANUAL BASS
J
© FINGERED
|
A
® SINGLE FINGER
il
2. Select an Accompaniment Style
Select the desired accompaniment style or its variation in the
normal way. Although you can select the melody (upper key-
board) voice you intend to use, the X3500 automatically
determines the voices to be used for the accompaniment bass
and chords according to the accompaniment style you select.
/ ACCOMPANIMENT STYLE
К A
NEN
’ LILA
BEAT
ACCOMPANIMENT STYLE SELECT
т ТЕМРО A
(О { D
TEMPO
3. Start the Accompaniment
Press the START button, SYNCHRO START button or one
of the INTRO buttons to determine how the accompaniment
will be started. If you press the START button, the rhythm
will begin playing immediately without chordal accompaniment.
SYNCHRO
Ea | START
INTRO. INTRO! INTRO.
FILL IN FILL IN FILL IN Nad
2 3
4. Press a Key on the Lower Keyboard
Pressing any key below the split point will cause the auto-
matic chord and bass accompaniment to begin. If you press
a “C” key, for example, a C-major accompaniment will be
played. Press another key in the Auto Bass Chord Keys
section to select a new chord. The key you press will always
determine the ‘‘goot’’ of the chord played (i.e. ‘°С’ Гог а
C chord).
С G F
THAR CEE Е
Playing Minor, Seventh, and Minor-seventh Chords in
the Single-finger Mode
® For a minor chord, press the root key and the first black
key to its left.
Cm
mM For a seventh chord, press the root key and the next white
key to its left.
С,
Mm For a minor-seventh chord, press the root key and both
next white and black keys to its left.
Cm,
® The automatic accompaniment will continue playing even
if you lift your fingers from the Auto Bass Chord keys.
You only need to press the Auto Bass Chord keys when
changing chords.
5. Stop the Auto Accompaniment
Press the STOP button or INTRO./ENDING button to stop
the Accompaniment. The AUTO BASS CHORD mode can
be turned off if desired by pressing the AUTO BASS CHORD
OFF button.
INTRO.!
ENDING STOP
® The FILL IN buttons can be used in the Auto Bass Chord
mode to create pattern variations in exactly the same way
that they are used with rhythm accompaniment patterns
(refer to the “Adding Fill-ins” section on page 9 for
details).
Setting the Accompaniment Volume -
The RHYTHM, BASS and CHORD volume controls can be
used to set the best balance between the volume of the respective
accompaniment parts, and the optimum volume of the accom-
paniment parts in relation to the ORCHESTRA and/or SOLO
voices. Use the MASTER VOLUME control for overall volume
adjustment.
Setting the Tempo
Use the TEMPO controls to set the desired accompaniment
tempo (see “Setting the Tempo” on page 9 for details).
FINGERED ACCOMPANIMENT
The FINGERED mode is ideal if you already know how to play
chords on a keyboard, since it allows you to supply your own
chords for the Auto Bass Chord feature.
1. Select the FINGERED Mode
Press the AUTO BASS CHORD FINGERED button (its
indicator should light).
AUTO BASS CHORD
©) MANUAL BASS
|
vi
GFINGERED
J
© SINGLE FINGER
J
OFF
|
2, Select an Accompaniment Style
Select the desired accompaniment style or its variation in the
normal way. Although you can select the melody (upper key-
board) voice you intend to use, the X3500 automatically
determines the voices to be used for the accompaniment bass
and chords according to the accompaniment style you select.
ACCOMPANIMENT STYLE SELECT
Y TEMPO A
({ ) ( J
)
Job / nr
с) / Li LS)
OEM Tus
DO
3. Start the Accompaniment
Press the START button, SYNCHRO START button or one
of the INTRO buttons to determine how the accompaniment
Pwill be started. If you press the START button, the rhythm
will begin playing immediately without chordal accompaniment.
INTRO! INTRO. INTRO.
Acc || PEN || PEN | nes (sae | … |
3
4. Play a Chord on the Auto Bass Chord Keys
As soon as you play any chord that the X3500 can ““recognize””
in the lower section of the keyboard (see chord types listed
below), the X3500 will automatically begin to play the chord
along with the selected rhythm and an appropriate bass line.
The accompaniment will continue playing even if you release
the Auto Bass Chord keys. When changing chords, be sure
to release all keys before playing a new chord.
The X3500 will accept the chord types listed below, although
the resultant accompaniment pattern will be either major,
minor or seventh.
C chord G chord F chord
Chord Acceptable Fingering
Major 1—-3—5*
Minor | - *3 — 5*
Major seventh 1—3-—(S)—7*
Sixth 1-3-5-6
Minor sixth 1->3—5-—6
Minor seventh 1—b3—(5)-?7
Minor seventh flat five 1— b3— b5— 7
Seventh 1-3—(5)—->7*
Seventh flat five 1-3—b5— 7
Seventh suspended fourth 1—4—5—»7*
Minor major seventh 1—+3—(5)—7*
Augmented 1—3— #5
Diminished 1—+3—»5—(6)
Notes in parentheses may be omitted.
* Chords marked with an asterisk (*) can be played in any
inversion (i.e. the root of the chord does not have to be
the lowest note played).
e All other FINGERED mode operations are the same as in
the SINGLE FINGER mode.
MANUAL BASS
The X3500 MANUAL BASS mode provides an alternative split
keyboard mode to that using the ORCHESTRA and SOLO voices
described on page 6. The bass voice assigned to the lower key-
board is monophonic, while a polyphonic ORCHESTRA voice
is played on the upper section of the keyboard. The bass voice
can be played up to the selected split point (indicated by the
“Y” symbol between the F#2 and G2 or G#2 and A2 keys). You
can select any of the X3500’s 100 voices to play on the lower
or upper section of the keyboard—of course, it’s normal to
choose on the available bass voices (voices 66 through 74) for
the lower keyboard.
1. Select the MANUAL BASS Mode
Press the AUTO BASS CHORD MANUAL BASS button.
AUTO BASS CHORD
DUANUAL BASS
Q FINGERED
Q SINGLE FINGER
OFF
==
2. Select an Upper Keyboard Voice
Select the desired upper ORCHESTRA and/or SOLO voice
in the normal way (the DUAL VOICE mode can be used
for the upper voice if desired).
3. Select a Bass Voice
Use the VOICE SELECT PART SELECT button to select
BASS voice (the BASS indicator to the right of the VOICE
display should light). When this is done, the number of the
current BASS voice will be displayed on the VOICE display
(PIANO 1 is selected automatically when the power is initially
turned ON, although it sounds an octave lower than normal
when the MANUAL BASS mode is on). Then choose the
desired bass voice from the VOICE LIST and select it in the
same way as described in ‘Selecting an ORCHESTRA Voice”
on page 4—i.e. use the VOICE SELECT number or +/—
buttons.
11
12
. VOICE SELECT
PART SELECT
(С J)
coco / Ta] aaa
Ja y, ox.
OG /
=]
4. Select an ACCOMPANIMENT STYLE
If you intend to use the MANUAL BASS feature while a
rhythm accompaniment is playing, select the desired accoin-
paniment style.
5. Play
The selected bass voice can now be played on the lower sec-
tion of the keyboard while the ORCHESTRA and/or SOLO
voice can be played on the upper section of the keyboard. Use
the BASS VOLUME control to adjust the volume of the bass
sound as required.
SOLO STYLEPLAY
This sophisticated feature automatically adds appropriate harmony
notes and effects to a melody you play on the upper keyboard
according to the selected accompaniment style. For example,
with the ROCK’N ROLL 2 style (STYLE 09) the SOLO STYLE-
PLAY feature automatically adds harmony, counter melody and
glissando to what you play. With the BIG BAND 1 style (STYLE
33), a melody you play on the upper keyboard is repeated in
the next measure, creating a “round” or “call and answer”
type effect.
e Only a single note can be played at a time on the X3500
upper keyboard section when the SOLO STYLEPLAY fea-
ture is used.
e When SOLO STYLEPLAY is turned ON, an appropriate
ORCHESTRA voice for the selected ACCOMPANIMENT
STYLE is automatically selected.
1. Turn SOLO STYLEPLAY ON
Press the SOLO STYLEPLAY button. The SOLO STYLE-
PLAY LED will light indicating that the SOLO STYLEPLAY
feature is ON. The AUTO BASS CHORD SINGLE FINGER
mode is automatically selected when SOLO STYLEPLAY is
turned ON. You can select the FINGERED mode if required.
SOLO STYLEPLAY
©
2. Play
The SYNCHRO START mode is automatically selected when
SOLO STYLEPLAY is turned ON, so all you have to do is
play the required chords (SINGLE FINGER or FINGERED)
on the lower keyboard while playing a single-note melody
line on the upper keyboard.
3. Stop the Accompaniment
Stop the accompaniment using the STOP or INTRO./END-
ING button (and turn SOLO STYLEPLAY OFF, if necessary,
by pressing the SOLO STYLEPLAY button again so that
its LED goes out).
INTRO /
ENDING STOP |
8 MANUAL PERCUSSION
The X3500”s six percussion pads let you play percussion to
accompany other instruments, or add original rhythm fills and
breaks to your performances. The percussion pads can also be
played while one of the X3500 accompaniments is playing.
Each percussion pad can be assigned any of 40 different percus-
sion instrument or 16 sound effects. Two different custom assign-
ment ‘‘sets’’ can be created for the percussion pads using the
PAD CUSTOM buttons (1 and 2). Simply select the desired
custom pad set by pressing the appropriate CUSTOM button
(its indicator will light).
The CUSTOM 1 through 2 pad sets are initially programmed
as follows:
CUSTOM 1 PRESETS
PAD 1 | Rim Shot PAD 4 | High Tom |
PAD 2 | Low Tom PAD 5 | Closed Hi-hat |
PAD 3 | Middle Tom PAD 6 | Open Hi-hat <>
CUSTOM 2 PRESETS
PAD 1 | Bass Drum
PAD 2 | Low Synth Tom
PAD 3 | Middle Synth Tom
PAD 4 | High Synth Tom
PAD § | Light Snare
PAD 6 | Ride Cymbal
PAD
© PROGRAM
C ))
CUSTOM 1 CUSTOM 2
(C ) С ))
© SYNGHRO BREAK
(С 2)
IIA LA
-
Press the PAD SOUND EFFECTS button to select the pre-
programmed sound effect set (listed below). The SOUND EF-
FECTS set is automatically selected when the X3500 is initially
turned on. When the SOUND EFFECTS set is selected, the
HOLD button can be pressed (its indicator will light) causing
a sound effect played on the pads to be repeated until the HOLD
button is pressed again (causing its indicator to go out). The
sound effect is repeated at a speed determined by the current
TEMPO setting. While the HOLD function is on, any number
of sound effects played simultaneously or one after the other
will be repeated until the HOLD button is pressed.
SOUND EFFECTS
PAD | | Bird 1 PAD 4 | Explosion
PAD 2 | Bird 2 PAD 5 | Male “Yeah!”
PAD 3 | Breaking Glass PAD 6 | Applause
® Some rhythm sounds may be cut short if the pads are
played while a preset rhythm pattern is running.
Programming Your Own CUSTOM
Pad Sets
1. Activate the PROGRAM Mode
To program your own CUSTOM percussion pad sets, press
the PAD PROGRAM button (its indicator will light) and
then the CUSTOM button corresponding to the set (1 or 2)
you wish to program.
e RAM
CUSTOM 1 CUSTOM 2
(C IC. ))
e The CUSTOM 1 set is automatically selected when you
first press the PROGRAM button.
e While in the PROGRAM mode, you can play any of the
X3500's 40 percussion instruments and 16 sound effects
on the keyboard. The sound produced by each key is indi-
cated by a graphic symbol above the key. For your con-
à venience, the sounds associated with each key are listed
“> below.
2. Program the Pads
Press and hold the desired instrument or sound effect key,
then press the percussion pad you wish to assign that sound
to. Repeat this process to program any or all of the 6 pads
in the selected CUSTOM set.
J Je J Jee Je
Select a Different CUSTOM Set or Finish
y Programming
Press a different CUSTOM button to select a different set
for programming, or press the PROGRAM button to finish
programming (its indicator will go out).
KEYBOARD PERCUSSION KEYS
Sound Effects
C1 | Bird 1 A?1| Male Laugh
D?1| Bird 2 A1 | Chipmunk Laugh
D1 | Bird 3 B>1 | Female “Yeah!”
Е»! | Car Horn B1 | Male “Yeah!”
E1 | Breaking Glass C2 | Male “Ha!”
F1 | Explosion D?2| Kabuki “Wo”
F*1 | Low Scratch D2 | Tsuzumi Drum
Gt | High Scratch E>2 | Applause
Percussion Instruments
G2 | Low Bass Drum E4 | Ride Cymbal
A*»2| Low Timbales F4 | Ride Cup
A2 | Bass Drum F#4 | Claves
B»2 | High Timbales G4 | Low Crash Cymbal
B2 | Low Tom Ab4| Low Cowbell
C3 | Middle Tom A4 | High Crash Cymbal
D¢t3| Cabasa B>4 | High Cowbell
D3 | High Tom B4 | Reverse Cymbal
E?3 | Surdo Cs | Low Synth Tom
E3 | Rim Shot Dbs| Low Agogo
F3 | Snare Drum (Gate Echo)| Ds | Middle Synth Tom
F#3 | Low Conga Ebs | High Agogo
G3 | Heavy Snare Drum Es | High Synth Tom
A>3| High Conga Fs | Closed Triangle
A3 | Light Snare Drum F#s | Low Samba Whistle
B?3 | Mute Conga Gs | Open Triangle
B3 | Pedal Hi-hat As! High Samba Whistle
C4 | Closed Hi-hat As | Tambourine
D'>4| Low Cuica B?s | Claps
Da | Open Hi-hat Bs | ACCENT
E*+4 | High Cuica C6 | CANCEL
® The volume of the percussion pads is controlled by the
RHYTHM VOLUME control.
The SYNCHRO BREAK Function
This function allows you to create your own fill-ins using the
percussion pads while one of the X3500 accompaniments is play-
ing. When the SYNCHRO BREAK button is pressed and its
LED is lit, playing on the percussion pads causes the accompani-
ment rhythm to stop playing until the end of that measure so
you can create your own fill-in.
¿ee BREAK
e SYNCHRO BREAK functions with the CUSTOM 1 and 2
pad assignment sets but not with the pre-programmed
SOUND EFFECTS set.
13
14
9 THE CUSTOM DRUMMER
The X3500 Custom Drummer feature allows you to create three
original rhythm patterns in addition to the 100 preset accom-
paniment styles. Your original rhythm patterns can be selected
and played at any time, just like the presets.
Creating an Original Rhythm Pattern _
1. Select a Suitable Rhythm
Begin by selecting one of the preset accompaniment styles that
is close to the rhythm you want to create.
e For example, select a WALTZ accompaniment style if you
want to program a rhythm pattern in 3/4 time. You cannot
program a 3/4 rhythm when a 4/4 accompaniment style
is selected, and vice versa. The X3500 accompaniment
styles include 4/4, 3/4, 9/8, 5/4 and 12/8 type rhythm
patterns.
2. Engage the Program Mode
Press the CUSTOM DRUMMER PROGRAM button so that
its LED indicator lights. The select rhythm pattern will begin
playing (a repeating 2-measure pattern)
CUSTOM DRUMMER
PROGRAM
CUSTOM 1 CUSTOM 2
(C ] { D
CUSTOM 3-
CLEAR
(( —])
3. Set the Appropriate Tempo
To make programming as easy as possible, set up an appropri-
ate tempo and volume before you begin. It might be easier
to program your rhythm pattern if you set a relatively slow
tempo.
4. Begin Programming
You can now add new notes to the rhythm by playing the
keys corresponding to the X3500 sound effects (the 16 lowest
keys on the keyboard) and the keys corresponding to the
percussion instruments (the 40 keys from G2 upward). The
sound effects or percussion instruments produced are indicated
by the symbols immediately above the keys (see the “KEY-
BOARD PERCUSSION KEYS”? chart in the previous section).
If you want to create a totally new rhythm, press the CUSTOM
DRUMMER CLEAR button before beginning to program.
This cancels all the instruments in the original accompaniment,
leaving only a closed hi-hat metronome sound (the metronome
sound will not be heard when you play back your rhythm).
The rhythm pattern is two measures long, and the pattern will
continue to repeat so you can add new instruments during
each repeat, if necessary.
e Up to 8 percussion instruments can be played simul-
taneously.
e Some rhythm patterns may change slightly when the
PROGRAM button is turned ON.
5, If You Want to Cancel A Single Instrument
Although you can cancel all instruments in a pattern by press-
ing the CUSTOM DRUMMER CLEAR button, it is also
possible to cancel a single instrument to eradicate a mistake
or simply eliminate an unwanted instrument. While holding
the CANCEL key (the highest key on the X3500 keyboard),
press the key corresponding to the instrument you want to
cancel. The selected instrument should now be cleared from
the pattern.
MO 5 A ES — > + à ALCA AD + > im
6. If You Want to Add Accented Beats
Specified beats of your pattern can be accented simply by
pressing the accent key (the second from highest key on the
X3500 keyboard—with the ‘‘>’’ mark above it) at the ap-
propriate time. To accent the third beat of the first measure,
for example, simply press the accent key on the third beat
of the first measure. All instruments on the selected beat
will be accented. Accents can be cancelled by holding the
CANCEL key and tapping the accent key.
7. Assign the Complete Pattern to a CUSTOM Button
When your custom drum pattern is complete, assign it to
one of the CUSTOM DRUMMER CUSTOM buttons (1
through 3) by pressing the appropriate CUSTOM button (a
pattern previously assigned to that CUSTOM button will be
erased).
8. Stop Programming
Press the PROGRAM button again when your rhythm patte
is complete and you want to stop programming. a»
® The program mode can also be exited by pressing the
accompaniment STOP button.
Playing Back Your Custom
Rhythm Pattern
Once created, your original rhythm pattern can be played back
by pressing the corresponding CUSTOM DRUMMER CUSTOM
(1, 2, or 3) button to select the pattern, and then the START
button. Press the STOP button to stop playback. Your CUSTOM
DRUMMER rhythm can also be used as the basis for Auto Bass
Chord FINGERED or SINGLE FINGER accompaniment.
CUSTOM DRUMMER
EXAMPLE
Here's very simple Custom Drummer programming exam-
ple. Start by selecting the DISCO rhythm (accompaniment
style 00) and then press the CLEAR button so you can
program from scratch. You can use the closed hi-hat
sound for every hi-hat beat, or alternate the closed and
open hi-hat sounds for more variety.
TT]
X X X X X X X X
o #
<— Hi-hat
«— Snare
<— Bass Drum
7 THE MUSIC
PROGRAMMER
The X3500 MUSIC PROGRAMMER allows you to “record”
and play back anything you play on the keyboard—along with
auto accompaniment if required. You can record the accompani-
ment and your own performance separately or at the same time.
If, for example, you record the accompaniment first and then
record your own performance while listening to playback of the
accompaniment, you're free to use the entire keyboard for your
performance rather than being limited to only the upper key-
board area.
MUSIC PROGRAMMER
O RECORD PLAY
ORCHESTRA CC |] { 3)
QRECORD © PLAY
ACCOMP a }1 J)
The MUSIC PROGRAMMER independently records the follow-
ing “parameters” on the ORCHESTRA and ACCOMPANI-
MENT tracks in addition to notes and accompaniments played.
Any changes you make to any of these parameters are recorded,
and will be reproduced exactly as they occurred when the record-
ing is played back:
ORCHESTRA:
* VOICE number * ORCHESTRA VOLUME e SUSTAIN 1/2
* ROLL BAR * DUET * TO LOWER
ACCOMPANIMENT:
¢ SINGLE FINGER/FINGERED ¢ ACCOMPANIMENT STYLE
number ¢ ACCOMP. VARIATION ON/OFF * CUSTOM 1/2/3
* INTRO./ENDING * INTRO./FILL-IN 1/2/3 * RHYTHM
VOLUME * BASS VOLUME * CHORD VOLUME * TEMPO
* ROLL BAR (when MASTER EXPRESSION selected) * EN-
SEMBLE ¢ PERCUSSION PAD CUSTOM * PERCUSSION
PAD ¢ SYNCHRO BREAK ® HOLD * SOUND EFFECTS
Recording Accompaniment and
Performance Simultaneously
1. Select the Desired Accompaniment Style
Pick out an accompaniment style that is appropriate for the
type of music you want to record.
2. Select the SINGLE FINGER or FINGERED Auto Bass
Chord Mode
Use the AUTO BASS CHORD selector to select either the
SINGLE FINGER or FINGERED mode (if the AUTO BASS
CHORD selector is set to any position other than FINGERED,
the SINGLE FINGER mode will automatically be selected
when recording is begun).
© FINGERED
O SINGLE FINGER
15
16
. Set the Record Ready Mode
Press both the ORCHESTRA and ACCOMPANIMENT
RECORD buttons, causing both of their LED indicators to
light. This engages the “record ready” mode: the metronome
will sound at the currently selected tempo, and recording
will begin as soon as you play a note on the keyboard (SYN-
CHRO START type operation).
MUSIC PROGRAMMER
vi
QhECORD PLAY
onchesTea ( Г ) [ ))
vi
@feconn — QPLAY
accom. Г 1 | ) )
When the record ready mode is engaged, the number of
remaining memory ‘‘banks’’ is shown on the ACCOM-
PANIMENT STYLE display.
ml
LI LI
TEMPO
. Set Up All Necessary Parameters
Before actually beginning to record, you should make sure
that you select the desired voice, engage any required effects,
adjust the accompaniment and voice volume levels for the
appropriate balance, and adjust the tempo to match the piece
you are about to record.
. Choose an Alternative Start Mode If Necessary
If you do not perform this step, recording will begin as soon
as you play a note or chord on the keyboard. At this point,
however, you can choose to start recording immediately by
pressing the START button, or start recording immediately
with an introduction by pressing one of the INTRO buttons.
. Start Recording
If you haven't already started recording as in step 5, above,
recording will begin automatically as soon as you begin play-
ing. While playing, you can change accompaniment styles,
voices, tempo and other parameters. Such changes will be
recorded and reproduced when the recording is played back.
. Stop Recording
Press either the STOP button or INTRO./ENDING button
to stop recording. Recording actually ends the instant the
accompaniment stops playing. It is also possible to stop record-
ing immediately by pressing either of the RECORD or PLAY
buttons. Recording will stop automatically if you exceed the
X3500’s memory capacity (this will depend on the complexity
of your performance and whether you use accompaniment
or not).
Whenever you record using the MUSIC PROGRAMMER,
any previously recorded material will be erased.
If you make a mistake while recording, simply press the
SYNCHRO START button and begin again from step 5,
above.
Recording the Accompaniment and
Performance Separately
® Recording the Accompaniment Part
1.
Select the Desired Accompaniment Style
Pick out an accompaniment style that is appropriate for the
type of music you want to record.
. Select the SINGLE FINGER or FINGERED Auto Bass
Chord Mode
Use the AUTO BASS CHORD selector to select either the
SINGLE FINGER or FINGERED mode (if the AUTO BASS
CHORD selector is set to any position other than FINGERED,
the SINGLE FINGER mode will automatically be selected
when recording is begun).
. Set the Record Ready Mode
Press the ACCOMPANIMENT RECORD button, causing
its LED indicator to light. This engages the “record ready”
mode: the metronome will sound at the currently selec ia
tempo, and recording will begin as soon as you play a n..”,
on the keyboard (SYNCHRO START type operation). —
ds
A
efeconD © PLAY
accome f I ] { ] )
. Set Up All Necessary Parameters
Before actually beginning to record, you should make sure
that you adjust the accompaniment volume level for the ap-
propriate balance, and adjust the tempo to match the piece
you are about to record.
. Choose an Alternative Start Mode If Necessary
If you do not perform this step, recording will begin as soon
as you play a note or chord on the keyboard. At this point,
however, you can choose to start recording immediately by
pressing the START button, or start recording immediately
with an introduction by pressing one of the INTRO buttons.
. Start Recording
If you haven’t already started recording as in step 5, above,
recording will begin automatically as soon as you begin p*
ing. While playing, you can add fill-ins, change accompañ:-
ment styles, tempo and other parameters. Such changes will
be recorded and reproduced when the recording is played
back.
. Stop Recording
Press either the STOP button or INTRO./ENDING button
to stop recording.
Em Recording the Orchestra Part
1. Set the Accompaniment Track for Playback
Press the ACCOMPANIMENT PLAY button, causing the
ACCOMPANIMENT LED to flash.
à
LEP
OQ RECORD -0@ PLAY
a
ACCOMP ( ]
2. Set the Record Ready Mode
Press the ORCHESTRA RECORD button, causing its LED
indicator to light. Recording will begin as soon as you play
a note on the keyboard (SYNCHRO START type operation).
@fecorp QrPLAY
ORCHESTRA
3. Set Up All Necessary Parameters
Before actually beginning to record, you should make sure
ww that you select the desired voice and adjust the voice volume
level for the appropriate balance.
4. Choose an Aiternative Start Mode If Necessary
If you do not perform this step, recording will begin as soon
as you play a note on the keyboard. At this point, however,
you can choose to start recording immediately by pressing
the START button, or start recording immediately with an
introduction by pressing one of the INTRO buttons. Since
the accompaniment has already been recorded, however, an
introduction will not be recorded even if an INTRO button
is pressed.
5. Start Recording
If you haven't already started recording as in step 4, above,
recording will begin automatically as soon as you begin play-
ing. While playing, you can turn effects on or off or change
voices. Such changes will be recorded and reproduced when
the recording is played back.
6. Stop Recording
Recording will stop automatically when the accompaniment
part finishes playing, if the accompaniment recording was
stopped by pressing the INTRO./ENDING button. You can
‘also press either the STOP button or INTRO./ENDING but-
ton to stop recording.
1. Engage the Start Ready Mode
Press both the ORCHESTRA and ACCOMPANIMENT
PLAY buttons (causing their indicators to flash) if you want
to play back both the ORCHESTRA and ACCOMPANI-
MENT parts, or press just one of the PLAY buttons if you
only want to hear one of the parts (for example, you could
play back only the accompaniment part and play along manu-
ally on the keyboard).
MUSIC PROGRAMMER
ча”
O RECORD a QPLAY
ORCHESTRA qi | to >)
4
ча
O RECORD -4@ PLAY
#
ACCOMP ( )
2. Start Playback
Press the START button or a key on the keyboard to begin
playback. Your recording will begin with an introduction if
you start playback by pressing one of the INTRO buttons.
3. Adjust Volume, Tempo, etc.
If necessary, adjust the overall volume using the MASTER
VOLUME control. You can also adjust the tempo and even
change accompaniment styles during playback.
4. Play Along if You Like
Play along on the X3500 keyboard if you like.
5. Stop Playback
Playback will stop automatically when the end of the record-
ed piece is reached. You can also stop playback at any time
by pressing the STOP or INTRO./ENDING button.
® When playback is stopped, the MUSIC PROGRAMMER
re-enters the playback ready mode. This can be exited by
pressing the PLAY buttons so that neither the ORCHESTRA
or ACCOMPANIMENT LED is flashing.
® The AUTO BASS CHORD mode can not be changed during
playback if the ACCOMPANIMENT track is playing. Other
panel settings can be changed as desired.
® Different tracks can be turned on or off at any time during
playback by pressing the appropriate PLAY buttons.
MUSIC PROGRAMMER EXAMPLE
“Orchestra” staff, below. You can then play the “Melody”
line on the PSR-3500 keyboard while the accompaniment and
orchestra parts are being played back.
Here’s a short musical example you can use to familiarize your-
self with the Music Programmer. Record the ROCK BAROQUE
(style 13) accompaniment and the obbligato line shown in the
ACCOMPANIMENT: Style 13 ROCK BAROQUE
< 00 PIANO 1 >
Melody |
< 20 STRINGS 1 >
Orchestra
18
REGISTRATION
MEMORY
The X3500 Registration Memory feature can be used to memorize
two complete control-panel setups that you can recall whenever
LJ
REGISTRATION E MEMORY
Memory Store
1. Set Up the Controls as Required
Make the desired control settings. The following settings are
memorized by the registration memory function:
* ORCHESTRA VOLUME * SOLO VOLUME ¢ RHYTHM
VOLUME ¢ CHORD VOLUME * BASS VOLUME * AUTO
BASS CHORD MODE * ACCOMPANIMENT VARIATION
e STYLE SELECT * SOLO STYLEPLAY ON/OFF * CUS-
TOM 1/2/3 * TEMPO * SOLO ON/OFF * ORCHESTRA
ON/OFF * TO LOWER ON/OFF * SOLO VOICE SELECT
* ORCHESTRA VOICE SELECT * BASS VOICE SELECT
* SUSTAIN 1/2 * ENSEMBLE ON/OFF *« DUET ON/
OFF * DUAL VOICE ON/OFF * DUAL VOICE SELECT
* SOUND EFFECTS ON/OFF *« HOLD ON/OFF * PER-
CUSSION PAD CUSTOM 1/2 * SYNCHRO BREAK
* ROLL BAR MODE e PART SELECT * SPLIT POINT
2. Store in Memory
Press and hold the MEMORY button, then press one of the
REGISTRATION buttons (1 or 2).
e When a store operation is performed, any data that was
previously in the selected memory is erased and replaced
by the new settings.
Recall
Simply press the desired REGISTRATION button (1 or 2) at any
time to recall the memorized settings.
e /f a FINGERED-mode SOLO STYLEPLAY setting has been
stored in the registration memory, the FINGERED mode
must be selected before the registration memory is recalled.
MOVING UP TO MIDI
MIDI, the Musical Instrument Digital Interface, is a world-
standard communication interface that allows MIDI-compatible
musical instruments and equipment to share musical information
and control one another. This makes it possible to create ‘‘sys-
tems”? of MIDI instruments and equipment that offer far greater
versatility and control than is available with isolated instruments.
The X3500 MIDI Connectors _ _—
The X3500 MIDI IN connector receives MIDI data from an
external MIDI device which can be used to control the X3500.
The MIDI OUT connector transmits MIDI data generated by
the X3500 (e.g. note data produced by playing the keyboard).
00
MIDI
e To connect the X3500 MIDI connectors to other MIDI
devices, always use high-quality MIDI cables such as the
Yamaha MIDI-15 (15-meter type) or MIDI-03 (3-meter
type).
Simple MIDI Control
Most MIDI keyboards (including the X3500, of course) transmit
note information via the MIDI OUT connector whenever a note
is played on the keyboard. If the MIDI OUT connector is con-
nected to the MIDI IN connector of a second keyboard (syn-
thesizer, etc.) or a tone generator (essentially a synthesizer with
no keyboard), the second keyboard or tone generator will respond
precisely to notes played on the original transmitting keyboard.
The result is that you can effectively play two instruments 4m
once, providing thick multi-instrument sounds. The X3500 a...
transmits “program change” data when one of its voices is
selected. Depending on how the receiving device is set up, the
corresponding voice will be automatically selected on the receiv-
ing keyboard or tone generator whenever a voice is selected on
the X3500.
MIDI IN
MIDI Keyboard
or
Tone Generator
X3500
The X3500 is capable of receiving the same MIDI data, so a
second MIDI keyboard connected to the X3500 MIDI IN con-
nector can be used to remotely play the X3500 and select voices
as required.
MIDI IN
MIDI OUT
я + mage E £23 ло кз | езез | ==
san Se sue >
BBD... FRE = me >
ва
= B88 == SER > a Sa
MIDI Keyboard
EET UU ООО ООООНАОДААНННЯ
MIDI Sequence Recording
The same type of musical information transfer described above
is used for MIDI sequence recording. A MIDI sequence recorder
can be used to ‘‘record’’ MIDI data received from a X3500, for
example. When the recorded data is played back, the X3500
automatically ““plays”” the recorded performance in precise detail.
PLAYBACK
RECORD
MIDI OUT
MIDI IN
MIDI IN MIDI OUT
EEE
MIDI
Sequencer
X3500
Note: Always use a high-quality MIDI cable to connect MIDI
OUT to MID! IN terminals. Never use MIDI cables longer
| than about 15 meters, since cables longer than this
Nr can pick up noise which can cause data errors.
Remote Control/Standard Voice
Mode Selection
The Remote Control mode should be used when the X3500 is
to be connected to a second keyboard or tone generator which
it is to control. In this mode, the X3500 can only receive on a
single MIDI channel.
The Standard Voice mode should be used when the X3500 is
to be used as a tone generator, for example, receiving data from
a second MIDI device (such as a sequencer). In this mode the
X3500 can receive on multiple MIDI channels, each channel
~~rresponding to a different voice.
PROCEDURE:
Pressing the VOICE SELECT number “0” button while holding
the MIDI button alternately selects the remote control and stan-
dard voice modes.
DISPLAYS:
REMOTE CONTROL MODE
ACCOMPANIMENT STYLE VOICE
STANDARD VOICE MODE
ACCOMPANIMENT STYLE VOICE
| /
rc Lo
e SYSTEM REAL TIME COMMANDS can be received when
the Standard Voice Mode is ON. Press the VOICE SELECT
2” button and E2 key while holding the MIDI button to
engage the SYSTEM REAL TIME COMMANDS enable/
disable mode, then, while holding the MIDI button, press
the ‘+’ button to enable on the “— ” button to disable
reception.
DISABLE ENABLE
“To € с o _
EA lof] | FA lon
BEAT BEAT
TEMPO TEMPO
ACCOMPANIMENT STYLE VOICE
® Refer to “MIDI! Channel Selection’’ below for more infor-
mation on MIDI channels.
® This setting has no effect when the X3500 is used for
transmission only.
® The number of notes that can be played simultaneously
via external control when the Standard Voice mode is
selected: 8 melody, 7 rhythm.
MIDI Channel Selection
The MIDI transmit and receive channels can be set independently.
PROCEDURE:
Press the VOICE SELECT number “1” button while holding
the MIDI button to set the transmit channel or the VOICE
SELECT number ‘‘2’’ button while holding the MIDI button
to set the receive channel. Then, while holding the MIDI button,
press one of the lowest 17 keys on the keyboard corresponding
to the desired channel (see diagram below). If the standard voice
mode is active, reception can be turned ON or OFF by pressing
the VOICE SELECT “ +” or “—” button, respectively, instead
of a channel key.
2114} | [719111] | 1416
113 |5 | 6 | 8 10121315} |,
| | |
OMNI OFF OMNI ON (ALL)
DISPLAYS:
TRANSMIT CHANNEL
CHANNEL 1 CHANNEL 16
ACCOMPANIMENT STYLE VOICE ACCOMPANIMENT STYLE VOICE
c ! IC IC
=! / - 1
BEAT lit BEAT
TEMPO TEMPO
RECEIVE CHANNEL
OMNI ON + CHANNEL 1
ACCOMPANIMENT STYLE VOICE
«an
- LI
=
BEAT
TEMPO
OMNI! OFF + CHANNEL 16
ACCOMPANIMENT STYLE VOICE
OMNI OFF + CHANNEL 1
ACCOMPANIMENT STYLE VOICE
- / | IC
/ I о
ВЕАТ ТЕМРО ВЕАТ ТЕМРО
ОМ OFF
ACCOMPANIMENT STYLE VOICE ACCOMPANIMENT STYLE VOICE
Ne I É
1 IA 1 11
BEAT —" BEAT ——|o—]——
TEMPO TEMPO
(STANDARD VOICE MODE)
e The transmit channel is automatically set to channel 1
and the receive channel is automatically set to OMNI OFF
+ channel 1 when the power is initially turned ON.
® OMNI ON means that reception can occur simultaneously
on all available channels (1 through 16). When OMNI OFF
is selected, reception only occurs on the specified channel.
19
20
Split Transmit Mode ON/OFF
Selection
If the Split Transmit Mode is turned ON, lower and upper key-
board notes played in the Single Finger, Fingered or Manual
Bass modes are transmitted on different MIDI channels, and
can thus be used to control different MIDI devices.
PROCEDURE:
Press the VOICE SELECT number “3” button while holding
the MIDI button to select this function, then, while still holding
the MIDI button, press the VOICE SELECT “* +” button for
ON or the “—”” button for OFF.
DISPLAYS:
ON OFF
CC - Ci: E
2 1 Li 4 4. Li
TEMPO TEMPO
® [ower-keyboard note data is transmitted on MIDI channel
2, so be sure to set the MIDI device which is to receive
the lower-keyboard data to receive on channel 2. The
upper-keyboard note data is transmitted on the MIDI channel
selected using the MIDI Channel Selection function, des-
cribed above.
® Upper and lower keyboard data can be recorded to a MIDI
sequencer on different channels, so that different voices
set to the corresponding channels can be independently
controlled when the recorded sequence is played back.
e This function has no effect when the X3500 is used for
reception only.
e This function cannot be used when the Standard Voice
mode is selected.
® When the power is initially turned ON, the Split Trans-
mission Mode is automatically turned OFF.
Program Change & Control Change
Cancel ON/OFF Selection
Normally the X3500 will respond to MIDI program change and
control change data received from an external keyboard or other
MIDI device, causing the correspondingly numbered X3500 voice
to be selected and the corresponding ‘‘control’’ operations to
be performed. The X3500 will normally also send MIDI program
change data whenever one of its voices is selected or control
change data when one of its controls are operated, causing the
corresponding operation to be performed on an external MIDI
device.
This function makes it possible to cancel program change and
control change data reception and transmission so that voices
can be selected on the X3500 without affecting the external MIDI
device, etc. Program Change & Control Change Cancel is auto-
matically turned ON when the power is initially turned ON.
PROCEDURE:
Press the VOICE SELECT number “4” button while holding
the MIDI button to select this function, then, while still holding
the MIDI button, press the VOICE SELECT “ +” button for
ON or the “—” button for OFF.
DISPLAYS:
ON OFF
LIFE | E e e
Ir LL LIT Ir LL Li
TEMPO TEMPO
External/Internal Clock Selection
This function determines whether the X3500 rhythm and accom-
paniment timing is controlled by the X3500’s own internal clock
or an external MIDI clock signal received from external equip-
ment connected to the MIDI IN connector. The Clock Mode
is automatically set to INTERNAL when the power is initially
turned ON.
PROCEDURE:
Press the VOICE SELECT number “57” button while holding
the MIDI button to select this function, then, while still holding
the MIDI button, press the VOICE SELECT “+” button for
EXT or the “—”” button for INT.
DISPLAYS:
EXTERNAL CLOCK INTERNAL CLOCK
ACCOMPANIMENT STYLE VOICE ACCOMPANIMENT STYLE VOICE
T1 = 1 /
LL L LL /
BEAT cre asa BEAT RO
i
"7
e To synchronize playback of an external sequencer or
rhythm programmer to the X3500, for example, set this
function to INTERNAL and make sure that the external
device is set up to receive EXTERNAL clock data.
e To synchronize the X3500 to playback of an external
seguencer or rhythm programmer, set this function to
EXTERNAL.
NOTE: If the clock mode is set to EXTERNAL and a MIDI
clock signal is not being received from an external
source, the X3500 rhythm, accompaniment and other
clock-dependent features will not operate.
Local Control ON/OFF Selection
“Local Control” refers to the fact that, normally, the X3500
keyboard controls its internal tone generator, allowing the internal
voices to be played directly from the keyboard. This situation
1s “Local Control ON” since the internal tone generator is con-
trolled locally by its own keyboard.
Local control can be turned OFF, however, so that the X3500
keyboard does not play the internal voices, but the appropri 8%
MIDI information is still transmitted via the MIDI OUT connes
tor when notes are played on the keyboard. At the same time,
the internal tone generator responds to MIDI information received
via the MIDI IN connector. This means that while an external
MIDI sequence recorder, for example, plays the X3500°s internal
voices, an external tone generator can be played from the X3500
keyboard. Local Control is automatically turned ON when the
power 1s initially turned ON.
PROCEDURE:
Press the VOICE SELECT number ‘‘6’’ button while holding
the MIDI button to select this function, then, while still holding
the MIDI button, press the VOICE SELECT “+” button for
ON or the ‘‘—’’ button for OFF.
DISPLAYS:
ON OFF
EI UTILE
Loe (uni Lone | (Ln
BEAT BEAT
TEMPO TEMPO
® This function has no effect when the X3500 is being used
for reception only.
Panel Data Transmit
This function transmits data corresponding to all of the X3500°s
current panel settings. This data can be received by a second
X3500 to automatically match its settings to the transmitting
X3500, or to a MIDI sequence recorder which will then set up
the X3500 automatically when played back.
PROCEDURE:
Press the VOICE SELECT number “7” button while holding
the MIDI button to transmit the panel data.
Memory Data Transmit
This function transmits all data in the X3500’s internal memory
(custom accompaniment data, music programmer data, etc). This
data can be received by a second X3500 to automatically match its
data to the transmitting X3500, or to a MIDI sequence recorder
which will then set up the X3500 automatically when played back.
, JCEDURE.
ess the VOICE SELECT number “8” button while holding
the MIDI button to transmit the memory data.
DISPLAYS:
ACCOMPANIMENT STYLE VOICE
BEAT
TEMPQ
Rhythm Receive Channel Selection —
This function is used to select the MIDI receive channel that
will be used to receive rhythm data (the channel selected using
the MIDI Channel Selection function described earlier applies
to non-rhythm parts and voices). The Rhythm Receive Channel
must be matched to the transmit channel of the device from
which the rhythm data is to be received.
PROCEDURE:
Press the VOICE SELECT number “9” button while holding
‚ MIDI button. Then, while holding the MIDI button, press
Mare of the lowest 16 keys on the keyboard corresponding to the
desired channel (see diagram below).
2/4 | (7 9/11] | [ane
1/3|15/6|8/1011213[15
DISPLAYS:
CHANNEL 1 CHANNEL 16
ACCOMPANIMENT STYLE VOICE ACCOMPANIMENT STYLE VOICE
! ic
/ 14)
BEAT —E——— BEAT
TEMPO TEMPO
e /f the assigned Rhythm Receive Channel is the same as
a channel assigned for reception of non-rhythm data, the
rhythm data takes priority.
e When the power switch is turned ON, the Remote Control
Mode is selected and the OMNI OFF + receive channel
1 mode is selected. If the Standard Voice Mode is then
selected, this function is automatically set to channel 16.
® This function has no effect if the Remote Control Mode
is selected.
21
13 TROUBLESHOOTING
Something not working as it should? In many cases what appears
to be a malfunction can be traced to a simple error that can be
remedied immediately. Before assuming that your PortaTone
is faulty, please check the following points.
PROBLEM POSSIBLE CAUSE
The X3500 speakers produce a “‘рор’’ sound | This is normal and is no cause for alarm.
whenever the power is turned ON or OFF.
No sound. Are the MASTER VOLUME control and individual accompaniment and voice
volume levels turned up high enough?
Is a pair of headphones plugged into the HEADPHONE jack?
Perhaps the MIDI LOCAL ON/OFF mode is set to OFF.
Rhythm won’t start or no rhythm sound. Is the RHYTHM volume turned up high enough?
Are you sure you pressed the START button?
Perhaps the X3500 is in the SYNCHRO START mode, so all you have to do is
start playing.
No lower keyboard sound. Is the BASS and/or CHORD volume turned up high enough? „а
Are you sure you're playing in the lower keyboard (Auto Bass Chord keys) section.’
Auto Bass Chord accompaniment won’t function. | Have you selected the SINGLE FINGER or FINGERED mode?
Auto Bass Chord accompaniment won’t function if the FINGERED mode is selected
and you’re using SINGLE FINGER type fingering.
The accompaniment key changes while you're | Perhaps you accidentally pressed a key in the Auto Bass Chord key range.
playing.
Auto Bass Chord accompaniment chords don’t | Are you releasing all Auto Bass Chord keys before playing the next chord?
seem to change properly. Are you playing chords that the X3500 can recognize (see chord chart on page 9)?
SOLO STYLEPLAY function won’t turn on. The SOLO STYLEPLAY function cannot be turned on when the MUSIC PROGRAM-
MER is recording or playing.
A voice other than the one selected sounds. Make sure that the AUTO BASS CHORD selector is set to OFF.
The effects selected do seem to be applied to | This is normal. The parts to which effects can be applied are pre-determined.
certain accompaniment parts.
Music Programmer data disappears from | The data is only backed up for approximately one week if the power is not turned
memory. ON. A,
The control panel LEDs light only dimly. Oper- | In this case, your batteries are probably flat and need replacement.
ation errors occur.
® AC Power Adaptor (PA-4/PA-40)
Transforms AC mains voltage to the DC voltage required by
the X3500.
e Car Battery Adaptor (CA-1)
Enables you to provide power to the instrument from a car
battery using the cigarette lighter socket.
e Headphones (HPE-3/HPE-5)
These specially designed lightweight headphones feature extra-
comfortable ear pads.
15 X3500 SPECIFICATIONS
e KEYBOARD
61 keys (C1—C6)
e VOICE (00 — 99)
Piano 1, Piano 2, Honky-Tonk Piano, Elec. Piano 1, Elec. Piano 2,
Harpsichord, Clavi, Celesta, Toy Piano, Vibes, Glocken, Chimes,
Xylophone, Marimba, Bamboo Marimba, Timpani, Steel Drum,
Kalimba, Gamelan, Music Box, Strings 1, Strings 2, Pizz. Strings,
Synth Strings i, Synth Strings 2, Violin, Cello, Harp, Flute, Pan
Flute, Recorder, Clarinet, Oboe, Bassoon, Saxophone 1, Saxophone 2,
Harmonica, Accordion, Bagpipe, Trumpet, Mute Trumpet, Trombone,
Horn, Tuba, Brass Ensemble, Power Brass, Synth Brass 1, Synth
Brass 2, Pipe Organ, Jazz Organ, Rock Organ, Street Organ, Human
Vox, Husky, Whistle, Classic Guitar, Folk Guitar, Jazz Guitar, Rock
Guitar, Distortion Guitar, Mute Guitar, Banjo, Mandolin, Sitar,
Koto, Shamisen, Acoustic Bass, Bowed Bass, Elec. Bass 1, Elec.
Bass 2, Slap Bass, Fretless Bass, Synth Bass 1, Synth Bass 2, Synth
Bass 3, Hollow Synth, Soft Cloud, Daybreak, Sunbeam, Arabesque,
Aqua, Landscape, Metallic, Crystal, Ice Block, Glass Bells, Synth
Bells, Bell Fountain, Pluck, Syntherimba, African Percuss., After
Burner, Funny, Monster, Ha Ha Ha!, Emergency, Racing Circuit,
Storm, Wave, Orchestra Hit
® ACCOMPANIMENT STYLES (00 — 99)
Disco 1, Disco 2, Pop Rock 1, Pop Rock 2, 8 Beat 1, 8 Beat 2, 16
Beat 1, 16 Beat 2, Rock’n’Roll 1, Rock’n’Roll 2, Brass Rock, Christ-
mas Rock, Oriental Rock, Rock Baroque, Techno Rock 1, Techno
ock 2, Hard Rock, Heavy Metal, Speed Metal, Contemporary
\_-oul, Fusion 1, Fusion 2, Funk 1, Funk 2, Funk 3, Rap, Rock
Shuffle, Euro Beat 1, Furo Beat 2, Gospel, Rhythm & Blues 1,
Rhythm & Blues 2, Slow Blues, Big Band 1, Big Band 2, Modern
Jazz, 5/4 Swing, Jazz Ballad, Jazz Baroque, Swing Guitar, Swing
Piano, 16 Beat Bounce, Slow Rock, Pop Ballad, Baroque, Shuffle,
Boogie Woogie Piano 1, Boogie Woogie Piano 2, Boogie Big Band 1,
Boogie Big Band 2, Dixieland Combo, Dixieland Banjo, Country,
Country Piano, Country Steel Guitar, Ragtime Piano, Bluegrass,
Merengue, Tango, Habanera, Reggae 1, Reggae 2, Salsa 1, Salsa 2,
Calypso, Conga, Cuban, Cha-Cha-Cha, Mariachi, Bolero, Flamenco,
Argentine Folklore, Island Folklore, Son Afro, Beguine, Rhumba,
Manbo 1, Manbo 2, Samba 1, Samba 2, Bossa Nova 1, Bossa Nova 2,
Hawaiian, Chanson, Ondo, Enka, March 1, March 2, Polka, Fanfare,
Viennese Waltz, Big Band (Waltz), Baroque (Waltz), Jazz Waltz,
Lullaby, Classical Guitar, Street Organ, Mandolin Band, String
Quartet, Barbershop Quartet
e PERCUSSION PADS
Sound Effects: Bird 1, Bird 2, Bird 3, Car Horn, Breaking Glass,
Explosion, Low Scratch, High Scratch, Male Laugh, Chipmunk
Laugh, Female ‘‘Yeah!’’, Male “Yeah!”, Male “Ha!”, Kabuki
“Wo”, Tsuzumi Drum, Applause
Percussion Instruments: Low Bass Drum, Low Timbales, Bass Drum,
High Timbales, Low Tom, Middle Tom, Cabasa, High Tom, Surdo,
Rim Shot, Snare Drum (Gate Echo), Low Conga, Heavy Snare Drum,
High Conga, Light Snare Drum, Mute Conga, Pedal Hi-hat, Closed
Hi-hat, Low Cuica, Open Hi-hat, High Cuica, Ride Cymbal, Ride
Cup, Claves, Low Crash Cymbal, Low Cowbell, High Crash Cymbal,
High Cowbell, Reverse Cymbal, Low Synth Tom, Low Agogo, Middle
Synth Tom, High Agogo, High Synth Tom, Closed Triangle, Low
Samba Whistle, Open Triangle, High Samba Whistle, Tambourine,
Claps
OPTIONAL ACCESSORIES
Stand (L-2/L-4)
This lightweight, portable stand provides a sturdy, convenient
support for your X3500.
Bench (BC-6)
Soft Case (SCC-33)
For extra protection and convenient carrying, keep your
X3500 in this high-quality soft case.
Expression Pedal (EP-1)
Foot Switch (FC-5)
Some optional accessories may not be available in all areas.
PAD
PROGRAM, SYNCHRO BREAK, SOUND EFFECT, HOLD, CUS-
TOM 1, CUSTOM 2, PERCUSSION PAD 1~6
ORCHESTRATION
SOLO, ORCHESTRA, TO LOWER, DUAL VOICE, SOLO
VOLUME, ORCHESTRA VOLUME
EFFECTS
SUSTAIN 1, SUSTAIN 2, ENSEMBLE, DUET
SOLO STYLEPLAY
RHYTHM CONTROL
START, STOP, SYNCHRO START, INTRO./ENDING, INTRO./
FILL IN 1, INTRO./FILL IN 2, INTRO./FILL IN 3, RHYTHM
VOLUME
AUTO BASS CHORD
MANUAL BASS, FINGERED, SINGLE FINGER, OFF, BASS
VOLUME, CHORD VOLUME
CUSTOM ACCOMPANIMENT
PROGRAM, CLEAR, CUSTOM 1, CUSTOM 2, CUSTOM 3,
MUSIC PROGRAMMER
RECORD (ORCHESTRA, ACCOMPANIMENT), PLAY (ORCHES-
TRA, ACCOMPANIMENT)
REGISTRATION MEMORY
MEMORY, 1, 2
VOICE SELECT
PART SELECT, —, +, 0~9
ACCOMPANIMENT STYLE SELECT
TEMPO, VARIATION, —, +, 0-9
ROLL BAR
MODULATION, MASTER EXPRESSION
PITCH BENDER
OTHER CONTROLS
POWER SWITCH, MASTER VOLUME, PITCH, TRANSPOSE,
TEMPO, VARIATION, 3-DIGIT AND 2-DIGIT LED DISPLAYS,
MIDI MODE, DEMONSTRATION
CONNECTORS
HEADPHONES, AUX OUT (R, L/L+R), EXP. PEDAL, DC IN
(9—12V), SUSTAIN, MIDI (IN, OUT), OPTIONAL IN (L, R)
AMPLIFIER
8 Wx2
SPEAKERS
12cm x 2
POWER REQUIREMENTS
DC 9V (six 1.5V SUM-1, D size, R-20 or equivalent batteries), PA-4
or PA-40 Power Adaptor or CA-1 Car Battery Adaptor
DIMENSIONS (W xD x H)
1221 x 392.4 x 145.6 mm (48-5/7’’ x 15-3/7 x 5-5/7’)
WEIGHT
8.4 kg (18.5 Ibs.)
SUPPLIED ACCESSORIES
MUSIC STAND
23
24
MIDI DATA FORMAT
e SYSTEM EXCLUSIVE MESSAGE
1) Bulk Dump Request
11110000 FOH STATUS
01000011 43H YAMAHA ID
0010nnnn 2nH SUBSTATUS/CH
00001010 OAH FORMAT NO.
11110111 F7H EOX
2) Bulk Dump Data
11110000 FOH STATUS
01000011 43H YAMAHA ID
0000nnnn OnH SUBSTATUS/CH
00001010 OAH FORMAT NO.
Onnnnnnn nn ÑBYTE COUNT MSB
Onnnnnnn nn BYTE COUNT LSB
01010000 50H Header P
01001011 4BH K
00100000 20H space
00100000 20H space
00110010 32H 2
00110001 31H 1
00110010 32H 2
00110010 31H 1
00100000 20H space
Onnnnnnn nn DATA NO.
Oddddddd dd
. DATA
Oddddddd dd
Osssssss ss CHECKSUM
11110111 F7H EOX
DATA NO.
00H REGISTRATION MEMORY
01H CUSTOM RHYTHM
02H MUSIC PROGRAMMER INDEX
03H TRACK 1
OnH TRACK n-2
3) Panel Data Request
11110000 FOH STATUS
01000011 43H YAMAHA ID
0010nnnn 2nH SUBSTATUS/CH
01111100 7CH FORMAT NO.
11110111 F7H EOX
4) Panel Data Transmission
11110000 FOH STATUS
01000011 43H YAMAHA ID
0000nnnn OnH SUBSTATUS/CH
01111100 7CH FORMAT NO.
Onnnnnnn nn BYTE COUNT MSB
Onnnnnnn nn BYTE COUNT LSB
01010000 50H Header P
01001011 4BH K
00100000 20H space
00100000 20H space
00110010 32H 2
00110001 31H 1
00110010 32H 2
00110010 31H 1
00100000 20H space
00100000 20H space
Software version number.
Software revision number,
Ovvvvvvv vv
Orrrrrrr IT
0ddddddd dd
. DATA
Oddddddd dd
Osssssss SS CHECKSUM
11110111 F7H EOX
n = local device no.
n = local device no.
n = local device no.
n= local device no.
5) Name Data Request
11110000 FOH STATUS
01000011 43H YAMAHA ID
0010nnnn 2nH SUBSTATUS/CH
01111101 7DH FORMAT NO.
11110111 F7H EOX
n= local device no.
6) Name Data Transmission
11110000 FOH STATUS
01000011 43H YAMAHA ID
0000nnnn OnH SUBSTATUS/CH
01111101 17DH FORMAT NO.
Onnnnnnn nn BYTE COUNT MSB
Onnnnnnn nn BYTE COUNT LSB
n = local device no.
01010000 50H Header P
01001011 4BH K
00100000 20H space
00100000 20H space
00110010 32H 2
00110001 31H 1
00110010 32H 2
00110010 31H 1
00100000 20H space
00100000 20H space
Ovvvwwv vv Software version number.
Orrrrrrr Ir Software revision number.
Оссссссс сс CONDITION DATA
Оссссссс сс ”
Occecece сс
Оссссссс сс ”
Osssssss ss CHECKSUM
11110111 F7H EOX
”
7) Standard Voice Mode/Remote Control Mode
Switch
a) Remote Control Mode
FOH, 43H, 76H, 05H, 00H, F7H
b) Standard Voice Mode
FOH, 43H, 76H, 05H, 01H, F7H
8) Clock Mode Switch
a) Internal Mode
FOH, 43H, 73H, 01H, 02H, F7H
b) External Mode |
FOH, 43H, 73H, 01H, 03H, F7H
9) Program/Control Change Cancel ON
FOH, 43H, 73H, 01H, 10H, F7H
® MIDI EXTENDED CONTROL CHANGE
1) Format
FOH, 43H, 76H, 04H, gnH, ccH, ddH, F7TH"
(n= local device no.)
2) DATA
g | cc
PARAMETER
FUNCTION
CC
PARAMETER
FUNCTION
0 | 00h
STYLE NO.
STYLE
01h
03h
OFF
S/F
F/C
M/B
ABC
11h
REGISTRATION 1
REGISTRATION 2
REGISTRATION
MEMORY
02h
VARI. OFF
VARI. ON
ABC VARIATION
03h
00h
01h
02h
04h
OFF
FILL1 ON
FILL2 ON
FILL3 ON
FILL IN
12h
SOUND EFFECTS
CUSTOM 1
CUSTOM 2
HOLD OFF
HOLD ON
SYNCR. BREAK OFF
SYNCR. BREAK ON
DRUM PAD
FUNCTION
04h
INTRO./ENDING ON
EVENT
INTRO./ENDING
05h
S.S ON EVENT
SYNCRO. START
06h
0—127
TEMPO VALUE
TEMPO SPEED
07h
36 — 64
SPLIT POINT
SPLIT
08h
7Ah
7Fh
a
—6
l
—1
0
+1
l
+6
TRANSPOSE
13h
PAD! OFF
PAD1 ON
PAD2 OFF
PAD2 ON
PAD3 OFF
PAD3 ON
PAD4 OFF
PAD4 ON
PADS OFF
PADS ON
PAD6 OFF
PAD6 ON
PAD ON/OFF
14h
CUSTOM 1
CUSTOM 2
CUSTOM 3
CUSTOM
ACCOMPANIMENT
09h
0~99
SOLO VOICE NO.
SOLO VOICE
OAh
0 — 99
BASS VOICE NO.
BASS VOICE
0Bh
ORC. OFF
ORC. ON
SOLO OFF
SOLO ON
TO LOWER OFF
TO LOWER ON
DUAL VOICE OFF
DUAL VOICE ON
ORCHESTRATION
15h
о = © | ю = © | 2 Б © со а сл Бо = © | спо в оны © | - © | &
ORC. REC
ORC. PLAY
ACCOMP. REC
ACCOMP. PLAY
MUSIC
PROGRAMER
16h | 0~127 | SOLO VOLUME SOLO VOLUME
17h | 0~127 | CHORD VOLUME CHORD VOLUME
18h | 0~127 | BASS VOLUME BASS VOLUME
19h | 0-127 | RHYTHM VOLUME RHYTHM VOLUME
1Bh
0~127
ROLL BAR VALUE
ROLL BAR VALUE
SOLO STYLEP OFF
SOLO STYLEP ON
SOLO STYLE PLAY
ODh
ENSEMBLE OFF
ENSEMBLE ON
DUET OFF
DUET ON
EFFECT
10h
= © | 52 В = © | == © | 3 © бл Бы 2 о = ©
MODULATION
MAST. EXPRESSION
ROLL BAR
25
26
e STANDARD VOICE MODE OUTPUT VOICE NUMBER CHART
X3500 MIDI OUT
NO. : PANEL VOICES NO.: STANDARD VOICES
00 : PIANO 1 03 : PIANO 1
01 : PIANO 2 52 : PIANO 2
02 : HONKY-TONK PIANO |25 : HONKY TONK PIANO
03 : E. PIANO 1 05 : ELECTRIC PIANO 1
04 : E. PIANO 2 54 : ELECTRIC PIANO 2
05 : HARPSICHORD 04 : HARPSICHORD 1
06 | CLAVI 30 : FUNKY СГАУ!
07 : CELESTA 06 : CELESTA
08 : TOY PIANO 26 : TOY PIANO
09 : VIBES 07 ; VIBRAPHONE
10 : GLOCKEN 32 : GLOCKENSPIEL
11 i CHIMES 64 : CARILLON
12 : XYLOPHONE 59 : XYLOPHONE
13 : MARIMBA 08 : MARIMBA
114): BAMBOO MARIMBA 65 : PIZZICATO VIOLIN
15 : TIMPANI 66 : TIMPANI
16 : STEEL DRUM 09 : STEEL DRUM
17 : KALIMBA 61 : KALIMBA
[18]: GAMELAN 62 : TUBULA BELLS
19 : MUSIC BOX 24 : MUSIC BOX
20 : STRINGS 1 41 : STRINGS 1
21 : STRINGS 2 50 : STRINGS 2
22 : PIZZ. STRINGS 78 : PIZZICATO STRINGS
23 : SYNTH STRINGS 1 51 | SYNTH STRINGS
: SYNTH STRINGS 2 67 : VIOLIN 2
25 : VIOLIN 10: VIOLIN 1
26 : CELLO 11 : CELLO
27 : HARP 37 : HARP
28 : FLUTE 20 : FLUTE
29 : PAN FLUTE 47 : PAN FLUTE
30 | RECORDER 88 : RECORDER
31 | CLARINET 19 | CLARINET
32 | OBOE 21 | OBOE
[33]: BASSON 97 | KAZOO
34 : SAXOPHONE 1 18 : SAX
[35]: SAXOPHONE 2 42 : ALPENHORN
36 : HARMONICA 22 : HARMONICA
37 : ACCORDION 31 | ACCORDION
38 : BAGPIPE 43 | BAGPIPE
39 | TRUMPET 15 | TRUMPET
40 | MUTE TRUMPET 44 | MUTE TRUMPET
41 |: TROMBONE 16 | TROMBONE
42 : HORN 17 | HORN
43 : TUBA 84 | TUBA
44 : BRASS ENSEMBLE 92 : BRASS ENSEMBLE 1
45]: POWER BRASS 83 | WOW TRUMPET
46 ; SYNTH BRASS 1 00 : SYNTH BRASS 1
47 : SYNTH BRASS 2 82 i SYNTH BRASS 2
48 : PIPE ORGAN 29 i PIPE ORGAN 2
49 : JAZZ ORGAN 01 : JAZZ ORGAN
X3500 MIDI OUT
NO.: PANEL VOICES NO.: STANDARD VOICES
50 : ROCK ORGAN 27 ; ROCK ORGAN
51 | STREET ORGAN 57 | STREET ORGAN
52 : HUMAN VOX 96 : HUMAN CHORUS
53 : HUSKY 95 : HUMAN VOICE 2
54 : WHISTLE 23 : WHISTLE
55 : CLASSIC GUITAR 73 : CLASSIC GUITAR
56 : FOLK GUITAR 36 | FOLK GUITAR
57 : JAZZ GUITAR 12 : JAZZ GUITAR
58 : ROCK GUITAR 68 : ROCK GUITAR 2
59 : DISTORTION GUITAR | 13 : ROCK GUITAR |
60 : MUTE GUITAR 70 : ROCK GUITAR 4
61 : BANJO 34 | BANJO
62 : MANDOLIN 74 : MANDOLIN
63 : SITAR 75 | SITAR
64 : KOTO 76 : KOTO
65 : SHAMISEN 77 : SHAMISEN
66 : ACOUSTIC BASS 14 : WOOD BASS |
67 : BOWED BASS 35 : BOWED BASS
68 : ELEC. BASS 1 38 : ELECTRIC BASS 1
69 : ELEC. BASS 2 79 : ELECTRIC BASS 2
70 : SLAP BASS 39 : SLAP BASS
71 : FRETLESS BASS 80 : ELECTRIC BASS 3
: SYNTH BASS | 81 : WOOD BASS 2 |
73 | SYNTH BASS 2 58 | SYNTH BASS | 4
74 : SYNTH BASS 3 86 : SYNTH BASS 2 al
| HOLLOW SYNTH 98 : MUSIC SAW
: SOFT CLOUD 46 : JUG
[77]: DAYBREAK 53 : HARPSICHORD 2
[78]: SUNBEAM 56 : BANDNEON
[79]: ARABESQUE 69 : ROCK GUITAR
: AQUA 28 : TREMOLO ORGAN
[81]: LANDSCAPE 99 : SINE WAVE
[82]: METALLIC 45 : SYNTH REED
[83]: CRYSTAL 33 | HAWAIIAN GUITAR
84 : ICE BLOCK 48 : ICE BLOCK
: GLASS BELL 2 63 : HAND BELL
[86]: SYNTH BELLS 40 : UKULELE
: BELL FOUNTAIN 72 : 12 STRING GUITAR
[88]: PLUCK 60 | SYNTH (PERCUS)
[89]: SYNTHERIMBA 71 : PEDAL STEEL GUITAR
: AFRICAN PERCUSS. 55 : GLASS CELESTA
: AFTER BURNER 85 : SYNTH REED 2
[92]: FUNNY 91 : SAMBA WHISTLE
[93]: MONSTER 87 : FLUGEL HORN
: HA HA HA! 94 : HUMAN VOICE 1
: EMERGENCY 49 : REED ORGAN |
[96]: RACING CIRCUIT 93 : WOODWIND ENSEMBI Y
[97]: STORM 89 : OCALINA |
[98]: WAVE 02 : PIPE ORGAN 1
99 : ORCHESTRA HIT 90 : ORCHESTRA HIT
e Voice numbers not enclosed in boxes are common panel
and standard voices.
e STANDARD VOICE MODE INPUT VOICE NUMBER CHART
MIDI IN X3500
NO.: STANDARD VOICES |NO. : PANEL VOICES
00 | SYNTH BRASS 1 46 | SYNTH BRASS 1
01 : JAZZ ORGAN 49 | JAZZ ORGAN
02 : PIPE ORGAN 1 : FLUTE
03 : PIANO 1 00 : PIANO 1
04 | HARPSICHORD 1 05 : HARPSICHORD
05 : ELECTRIC PIANO 1 03 : E. PIANO 1
06 | CELESTA 07 : CELESTA
07 : VIBRAPHONE 09 : VIBES
08 : MARIMBA 13 : MARIMBA
09 i STEEL DRUM 16 : STEEL DRUM
10 : VIOLIN 1 25 : VIOLIN
11 : CELLO 26 : CELLO
12 : JAZZ GUITAR 57 : JAZZ GUITAR
13 : R.GUITAR 1 (DIST) 59 : DISTORTION GUITAR
14 : WOOD BASS 1 66 : ACOUSTIC BASS
15 | TRUMPET 39 | TRUMPET
16 : TROMBONE 41 | TROMBONE
17 : HORN 42 : HORN
18 : SAX 34 : SAXOPHONE |
19 : CLARINET 31 | CLARINET
20 : FLUTE 28 | FLUTE
21 : OBOE 32 : OBOE
22 : HARMONICA 36 | HARMONICA
| 23 : WHISTLE 54 : WHISTLE
24 : MUSIC BOX 19 : MUSIC BOX
25 : HONKY-TONK PIANO | 02 : HONKY-TONK PIANO
26 | TOY PIANO 08 : TOY PIANO
27 | ROCK ORGAN 50 | ROCK ORGAN
28 : TREMOLO ORGAN . JAZZ ORGAN
29 : PIPE ORGAN 2 48 : PIPE ORGAN
30 : FUNKY CLAVI 06 : CLAVI
31 : ACCORDION 37 : ACCORDION
32 : GLOCKENSPIEL 10 : GLOCKEN
33 | HAWAIIAN GUITAR : FOLK GUITAR
34 : BANJO 61 |: BANJO
35 : BOWED BASS 67 : BOWED BASS
36 : FOLK GUITAR 56 : FOLK GUITAR
37 : HARP 27 : HARP
38 : ELECTRIC BASS 1 68 : ELEC. BASS 1
39 : SLAP BASS 70 : SLAP BASS
40 : UKULELE : MANDOLIN
41 : STRINGS 1 20 : STRINGS 1
42 : ALPENHORN : HORN
43 : BAGPIPE 38 | BAG PIPES
44 | MUTE TRUMPET 40 | MUTE TRUMPET
| 45 : SYNTH REED 1 . HOLLOW SYNTH
| 46 : JUG [76]: SOFT CLOUD
47 : PAN FLUTE 29 : PAN FLUTE
48 : ICE BLOCK 84 : ICE BLOCK
49 : REED ORGAN : STREET ORGAN
50 : STRINGS 2 21 | STRINGS 2
51 i SYNTH STRINGS 23 | SYNTH STRINGS 1
52 : PIANO 2 01 : PIANO 2
53 | HARPSICHORD 2 05 | HARPSICHORD
54 : ELECTRIC PIANO 2 04 : E. PIANO 2
55 : GLASS CELESTA [90]: AFRICAN PERCUS.
56 : BANDONEON : ACCORDION
57 | STREET ORGAN 51 : STREET ORGAN
58 | SYNTH BASS 1 73 : SYNTH BASS 2
59 : XYLOPHONE 12 : XYLOPHONE
60 : SYNTH (PERCUSS) [88]: PLUCK
61 : KALIMBA 17 : KALIMBA
62 : TUBULA BELLS : CHIMES
63 | HAND BELL : MUSIC BOX
e Voice numbers not enclosed in boxes are common panel
and standard voices.
MIDI IN X3500
NO. : STANDARD VOICES |NO.: PANEL VOICES
64 | CARILLON 11 | CHIMES
65 | PIZZICATO VIOLIN : PIZZ STRINGS
66 : TIMPANI 15 : TIMPANI
67 : VIOLIN 2 25 : VIOLIN
68 : R.GUITAR 2 58 : ROCK GUITAR
69 | R.GUITAR 3 : ROCK GUITAR
70 : R.GUITAR 4 60 : MUTE GUITAR
71 : PEDAL STEEL GUI : FOLK GUITAR
72 : 12 STRING GUITAR : FOLK GUITAR
73 : CLASSIC GUITAR 55 : CLASSIC GUITAR
74 : MANDOLIN 62 : MANDOLIN
75 i SITAR 63 | SITAR
76 : KOTO 64 : КОТО
77 : SHAMISEN 65 : SHAMISEN
78 : PIZZ. STRINGS 22 : PIZZ. STRINGS
79 : ELECTRIC BASS 2 69 : ELEC. BASS 2
80 : ELECTRIC BASS 3 71 : FRETLESS BASS
81 | WOOD BASS 2 72 : SYNTH BASS 1
82 | SYNTH BASS 2 47 | SYNTH BRASS 2
83 : WOW TRUMPET : TRUMPET
84 | TUBA 43 : TUBA
85 | SYNTH REED 2 : SOFT CLOUD
86 : SYNTH BASS 2 74 : SYNTH BASS 3
87 : FLUGELHORN : HORN
88 : RECORDER 30 : RECORDER
89 : OCARINA : WHISTLE
90 : ORCHESTRA HIT 99 : ORCHESTRA HIT
91 : SAMBA WHISTLE : WHISTLE
92 : BRASS ENSEMBLE 44 : BRASS ENSEMBLE
93 : WOODWIND ENSEM. : CLARINET
94 : HUMAN VOICE 1 52 : HUMAN VOX
95 : HUMAN VOICE 2 53 : HUSKY
96 | HUMAN CHORUS : HUMAN VOX
97 | KAZOO 33 : BASOON
98 : MUSIC SAW : HOLLOW SYNTH
99 : SIN WAVE : FLUTE
100 : — 14 : BAMBOO MARIMBA
101 : — 18 : GAMELAN
102 : — 24 : SYNTH STRINGS 2
103 : — 80 : AQUA
104 : — 81 : LANDSCAPE
105 : — 82 : METALLIC
106 : — 83 : CRYSTAL
107 : — 35 | SAXOPHONE 2
108 | — 45 : POWER BRASS
109 | — 75 : HOLLOW SYNTH
110 | — 76 : SOFT CLOUD
111; — 77 : DAYBREAK
112: — 78 : SUNBEAM
113: — 79 : ARABESQUE
114: — 85 : GLASS BELLS
115: — 86 : SYNTH BELLS
116: — 87 : BELL FOUNTAIN
117: — 89 : SYNTHERIMBA
118: — 90 : AFRICAN PERCUSS.
119: — 91 : AFTER BURNER
120: — 98 : WAVE
121: — 92 : FUNNY
122: — 93 : MONSTER
123 | — 94 : HA HA HA!
124: — 95 | EMERGENCY
125: — 96 : RACING CIRCUIT
126 : — 97 : STORM
127: — XX : NO CHANGE
e STANDARD VOICE MODE RHYTHM INSTRUMENT CHART
MIDI IN X3500
NO.:KEY : STANDARD RHYTHM VOICES RHYTHM VOICES
33:A0 : — REVERSE CYMBAL
34 :AÑo: — HIGH COWBELL
35:B0 : — HIGH CRASH CYMBAL
36:C | — | PEDAL HIGH HAT
37:CH: — CLOSED TRIANGLE
38 :D1 | SYNTH SNARE S.D (GATE ECHO)
39 DH: — OPEN TRIANGLE
40 :E1 : SYNTH TOM BASS [LOW SYNTH TOM]
41 :Fi | SYNTH TOM LOW LOW SYNTH TOM
42 i F#1 | SYNTH TOM MID MIDDLE SYNTH TOM
43 :G1 : SYNTH TOM HI HIGH SYNTH TOM
44 :G*1: BASS DRUM 2 LOW BASS DRUM
45 :A1 : BASS DRUM 1 BASS DRUM
46 : Af1 : RIM SHOT 2 RIM SHOT
47 :Bı : BASS TOM
48 :C: : LOW TOM LOW TOM
49 : Ci : SNARE HI LIGHT SNARE DRUM
50 :D2 | MID TOM MIDDLE TOM
51 : D#2 : RIM SHOT RIM SHOT
52:E2 | SNARE LO HEAVY SNARE DRUM
53:F2 : HI TOM HIGH TOM
54 :F*: | HAND CLAP CLAPS
55 G2 | COWBELL LOW COWBELL
56 : Gt: © SHAKER (CABASA) CABASA
57 :A2 : HI-HAT CLOSE CLOSED HI-HAT
58 : Af: : BRUSH HIT [CLOSED HI-HAT]
59:B2 : HI-HAT OPEN OPEN HI-HAT
60:C3 : CRASH CYMBAL LOW CRASH CYMBAL
61 : C# : SPLASH CYMBAL [RIDE CYMBAL |
62 :D3 : RIDE CYMBAL CUP RIDE CUP
63 : D#3 : RIDE CYMBAL RIDE CYMBAL
64 :E3 : CONGA LOW LOW CONGA
65:F3 | CONGA HI OPEN HIGH CONGA
66 : F¥3 | CONGA HI MUTE MUTE CONGA
67:G3 : BONGO LOW SURDO
68 :G#3 : BONGO HI
69 :A3 : TIMBALES LOW LOW TIMBALES
70 : At3 : TIMBALES HIGH HIGH TIMBALES
71 :B3 | TAMBOURINE TAMBOURINE
72 :C4 : CASTANET
73 : C4 : CLAVES CLAVES
74 :Da : AGOGO LOW LOW AGOGO
75 : Df4 : AGOGO HI HIGH AGOGO
76 :Es : CUICA LOW LOW CUICA
77 :F4 : CUICA HI HIGH CUICA
78 | F¥s © WHISTLE LOW SAMBA WHISTLE
79 {Gs | BRUSH
80 :GH4 : — HIGH SAMBA WHISTLE
81 1 A4 | — BIRD 1
82: Abs: — BIRD 2
83:Bs | — BIRD 3
84:C5 : — CAR HORN
85 CH 1 — BREAKING GLASS
86:Ds : — EXPLOSION
87 :Ds : — LOW SCRATCH
88 :Es |: — HIGH SCRATCH
89 :Fs : — MALE LAUGH
90 :Fis : — CHIPMUNK LAUGH
91 iGs | — FEMALE “YEAH!”
92 | G¥s | — MALE “YEAH!”
93 :As | — MALE “HA!”
94 : Als: — KABUKI “WO”
95 :Bs : — TSUZUMI DRUM
9 :C6 |: — APPLAUSE
® Voice numbers not enclosed in boxes are common X3500
and standard voices.
YAMAHA [ Portatone |] Date : 04/10 1989
Model X3500 MIDI Implementation Chart Version : 1.0
+ = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = - +
Transmitted Recognized : Remarks :
Function ;
A + = = = = = = = = = = = - - = - - + = = = = = = = = = = = = = = — = += неее — +
: Basic Default : 1 : 1 :
: Channe | Changed : 1-16 : 1-16
mmm mmm = = = = = = = = = — — — + = = = = = = = = = = - - - - - - += -- === == - = ---- + = = = = = = = = = = — — — - = — +
: Default : 3 | : 3 : remote control
:Mode Messages : X : OMNIon.OMNIoff : mode
| Altered : XXXKXXKXXKXKKXKXXX : X :
oo + — = = = = = = = = = = — — — — — + — = = = = = = = = = = = = — = — + — == — = = = = = = = — = = — = = +
Note : 36-96 : 36-96 1 :
:Number : True voice: XXX XXX XXX XXX : 36-96 X2 :
рее нон оное aaa + = = = = = = = = = = = = = = = — += - == - == == == = = = - + не н +
Velocity Note on : X 9nH,v=80 . O v=1-127
: Note off : X 9nH,v=0 ; X :
== = = = = = = = = = = = = = = = — — + = = = = = = = = = = = = = = = = + = = = = = = = = = = = = = = = = + = = = = = = = = = = = = = = = - +
After Key's X X :
Touch Ch's X X :
Peones + = = = = = = = = = = = = = = = = + = = = = = = = = = = = = = = = — + = = = = = = = = = = = = = = - — +
bp itch Bender O O 0-2 semi :Tbit resolution
‚= = = = = = = = = = = = = = = = = = - + = = = = = - = = - = - - - = - - + = — = = = = = = = = = = = = — — mn +
1 : Q : 0 :Modulation
: 7 : O : O | : Мо 1 ите
Control : : :
: 64 : © : O :Sustain
: Change ; : :
‚=== он = = = = = = = = = = = = = — — + = — = = = = = = = = = = — = = — + = — = = = = = — = — - — — = - - + = = = = = = = = = = = = - = - - +
Program : O 0-99 : О 0-99 ЖЗ :
: Change : True # : ЖЖЖЖЖЖЖЖЖЖЖЖЖ : 0-99 :
Peas + = = = = = = = = = = = — - - - - + = = = = = = = = = = = = - = - - + = = = = = = = = = = = = = = - — +
system Exclusive O : О :
E + = = = = = = = = = = = = = — — — + = = = = = = = = = = - = - = - - + = = = = = = = = = — — — = = — - +
:System : Song Pos X ; X :
: Song Sel : X ; X :
:Common : Tune . X : X :
mmm mm = = = = = = = = = = = — — + = = = = = = = = — = — — — = - - + = = = = = = = = = = = = = — = — + = = = = = = = = = — — — — - - -- +
: System :Clock : © : О :
Real Time:Commands : О : © :
ро=рер= ое = — = = = = = = = = — = = = = + = = — — = = = = = = — — — — — — + — — — — — — — — = = = = = = = —= + = = — — = = = = = = = = = — — — +
: Aux :Local ON/OFF : X O
| All Notes OFF: X : O (122-125) :
:Mes- :Active Sense : O : Q :
‘sages: Reset ; X о Хх :
== = = = = = = = = = = = = = = - = = + = = = = = = — — — - — = — — - — + = = = = = = = = = = = = = = = = |+ — - = = — = - = = = - - - - - — +
Notes : XI | -127 if standard voice mode is on
x2 24-102 if standard voice mode is on
X3 0 -126 if standard voice mode is on
Mode | : OMNI ON, POLY Mode 2 : OMNI ON, MONO O : Yes
Mode 3 : OMNI OFF, POLY Mode 4 : OMN! OFF, MONO X : No
FCC INFORMATION
Attention users in the U.S.A.
PortaTone X3500 is prepared in accordance
with FCC rules.
The PortaTone X3500 uses frequencies that appear in the
radio frequency range, and if installed in the immediate
proximity (within three meters) of some types of audio or
video devices interference may occur.
The PortaTone X3500 has been type tested and found
to comply with the specifications set for a Class B
computing device in accordance with those specifications
listed in Subpart J of Part 15 of the FCC rules. These rules
are designed to provide a reasonable measure of protection
against such interference. However, this does not guarantee
that interference will not occur. If your PortaTone X3500
should be suspected of causing interference with other
electronic devices, verification can be made by turning your
PortaTone X3500 off and on. If the interference continues
when your PortaTone X3500 is off, PortaTone X3500 is not
the source of the interference. If your PortaTone X3500
does appear to be the source of the interference, you should
try to correct the situation by using one or more of the
following measures:
Relocate either the PortaTone X3500 or the electronic
device that is being affected by the interference.
Utilize power outlets for the PortaTone X3500 and the
device being affected that are on different branch (circuit
breaker of fuse) circuits, or install A/C line filters.
in the case of radio-TV interference, relocate the
antenna or, if the antenna lead-in is a 300 ohm ribbon lead,
change the lead-in to a co-axial type cable.
If these corrective measures do not produce satisfactory
results, please contact your Authorized Yamaha dealer for
suggestions and/or corrective measures. If you cannot
locate an Authorized Yamaha dealer in your general area,
contact the Service Division, Yamaha Corporation of
America, 6600 Orangethorpe Ave, Buena Park, CA 90620.
If for any reason you should need additional information
relating to radio or TV interference, you may find a booklet
prepared by the Federal Communications Commission
helpful: “How to Identify and Resolve Radio-TV Interference
Problems”. This booklet is available from the U.S.
Government Printing Office, Washington D.C. 20402—stock
# 004-000-345-4.
This applies only to products distributed by Yamaha Corporation
of America.
YAMAHA
The serial number of this product may be found on
the bottom of the unit. You should note this serial
number in the space provided below and retain this
manual! as a permanent record of your purchase to
aid identification in the event of theft.
Model No. _X3500
Serial No.
Where of find the nameplate
Concerning Warranty
This product was made for international distribution,
and since the warranty for this type of product varies
from marketing area to marketing area, please
contact the selling agency for information concern-
ing the applicable warranty and/or service policies.
YAMAHA CORPORATION
PO.Box 1, Hamamatsu, Japan
3) @ #912 VH65290 Printed in Japan

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
