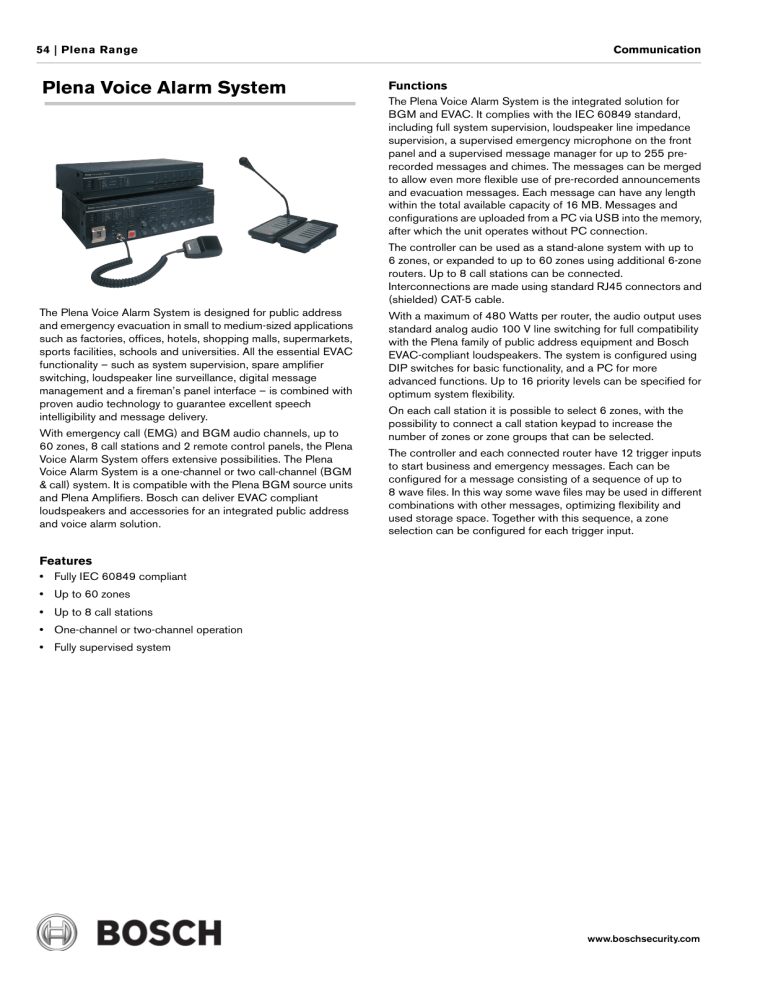

Plena Voice Alarm System
54 | Plena Range
Plena Voice Alarm System
Communication
Functions
The Plena Voice Alarm System is the integrated solution for
BGM and EVAC. It complies with the IEC 60849 standard,
including full system supervision, loudspeaker line impedance
supervision, a supervised emergency microphone on the front
panel and a supervised message manager for up to 255 prerecorded messages and chimes. The messages can be merged
to allow even more flexible use of pre-recorded announcements
and evacuation messages. Each message can have any length
within the total available capacity of 16 MB. Messages and
configurations are uploaded from a PC via USB into the memory,
after which the unit operates without PC connection.
The controller can be used as a stand-alone system with up to
6 zones, or expanded to up to 60 zones using additional 6-zone
routers. Up to 8 call stations can be connected.
Interconnections are made using standard RJ45 connectors and
(shielded) CAT-5 cable.
The Plena Voice Alarm System is designed for public address
and emergency evacuation in small to medium-sized applications
such as factories, offices, hotels, shopping malls, supermarkets,
sports facilities, schools and universities. All the essential EVAC
functionality – such as system supervision, spare amplifier
switching, loudspeaker line surveillance, digital message
management and a fireman’s panel interface – is combined with
proven audio technology to guarantee excellent speech
intelligibility and message delivery.
With emergency call (EMG) and BGM audio channels, up to
60 zones, 8 call stations and 2 remote control panels, the Plena
Voice Alarm System offers extensive possibilities. The Plena
Voice Alarm System is a one-channel or two call-channel (BGM
& call) system. It is compatible with the Plena BGM source units
and Plena Amplifiers. Bosch can deliver EVAC compliant
loudspeakers and accessories for an integrated public address
and voice alarm solution.
With a maximum of 480 Watts per router, the audio output uses
standard analog audio 100 V line switching for full compatibility
with the Plena family of public address equipment and Bosch
EVAC-compliant loudspeakers. The system is configured using
DIP switches for basic functionality, and a PC for more
advanced functions. Up to 16 priority levels can be specified for
optimum system flexibility.
On each call station it is possible to select 6 zones, with the
possibility to connect a call station keypad to increase the
number of zones or zone groups that can be selected.
The controller and each connected router have 12 trigger inputs
to start business and emergency messages. Each can be
configured for a message consisting of a sequence of up to
8 wave files. In this way some wave files may be used in different
combinations with other messages, optimizing flexibility and
used storage space. Together with this sequence, a zone
selection can be configured for each trigger input.
Features
• Fully IEC 60849 compliant
• Up to 60 zones
• Up to 8 call stations
• One-channel or two-channel operation
• Fully supervised system
www.boschsecurity.com
Communication
Plena Range | 55
Technical Specifications
Electrical
Maximum allowed total cable length
1000 m
between the controller and the last router in
the chain
Maximum allowed total cable length
1000 m
between the controller and the last call station
in the chain
Maximum allowed total cable length
1000 m
between the controller and the RC panel
System configuration through
USB 2.0
PC connection
Allowable power per router
1000 Watts
Interconnections
CAT-5
No of zones in the system
Up to 60
Number of call station in the system
Up to 8
Number of call station key pads
8 per call station
Number of messages
255
Ordering Information
Model & Description
Plena Voice Alarm System
www.boschsecurity.com
56 | Plena Range
LBB 1990/00 Plena Voice Alarm
Controller
Communication
Functions
The controller has two BGM source inputs and a mic/line input
with configurable priority, speech filter, phantom power and
selectable VOX activation. A total of 16 priority levels can be
specified for microphone, call stations and trigger inputs for
optimum system flexibility.
The powerful 240 W output section has six transformer-isolated
100 V constant voltage outputs for driving 100 V loudspeakers
in six separate zones. The 100 V-technique reduces line losses
on longer distances and allows for easy parallel connection of
multiple loudspeakers. All zones may be individually selected
from the front panel, and the BGM output level in each zone can
be individually set in 6 steps. The BGM output is connected to
the 70 V line, so it is possible to connect a total load of
480 Watts in a two-channel system combined with a 480 Watt
booster.
The Plena Voice Alarm Controller is the heart of the voice alarm
system. It is the basis of the Plena Voice Alarm System, and has
all the essential functionality for compliance with the IEC 60849
standard, including full system supervision, loudspeaker line
impedance supervision, a supervised emergency microphone on
the front panel and a supervised message manager.
The messages can be merged to allow even more flexible use of
pre-recorded announcements and evacuation messages. The
controller can be used as a stand-alone system with up to
6 zones, or expanded to up to 60 zones using additional 6-zone
routers. Up to 8 call stations can be connected.
Interconnections are made using standard RJ45 connectors and
shielded CAT-5 cable.
A built-in 240 W amplifier provides the power for the emergency
call channel and BGM. Additional Plena Amplifiers can be
added to provide two-channel operation, or for additional power
if the total power requirement exceeds 240 W (maximum 480 W
per 6 zones). All amplifiers are supervised. The audio output
uses standard analog audio 100 V line switching for full
compatibility with the Plena family of public address equipment
and Bosch EVAC-compliant loudspeakers. The system is
configured using DIP switches for basic functionality and a PC
for more advanced functions.
The output of the booster is also available as a separate output
on 100 V and 70 V. A separate 100 V Call Only output is
provided for addressing an area where BGM is not required but
where priority announcements are. Six configurable Volume
Override output contacts are available for overriding local
volume controls during priority calls. A LED VU-meter monitors
the output.
Up to 255 messages can be stored in the internal
16 MB flash ROM, without a need for battery backup. Each
message can have any length within the total available capacity.
Messages and configurations are uploaded from a PC via USB
into the memory, after which the unit operates without PC
connection. The standard WAV-format is used for the messages
and sample rates of 8 kHz up to 24 kHz with 16-bit word length
(linear PCM) are supported. This gives up to 17 minutes of
recording time with CD-quality signal-to-noise ratio.
The unit has 12 contact trigger inputs for business and
emergency (EMG) calls. Each can be configured for a message
consisting of a sequence of up to 8 wave files. In this way some
wave files may be used in different combinations with other
messages, optimizing flexibility and used storage space. Multiple
messages can be merged to form one integrated message.
Together with this sequence, for each trigger input, a zone
selection can be configured.
Parts Included
Quantity
Component
Features
1
LBB 1990/00 Plena Voice Alarm Controller
• Heart of the Plena Voice Alarm System
2
19”Mounting brackets
• Compliant with standards for emergency sound systems
(IEC60849)
1
Mains cable
1
Plena CD
• 6-zone system controller
• Built-in 240 W booster amplifier
Certifications and Approvals
• 12 Business and emergency control inputs and outputs
EMC emission
acc. to EN 55103-1
EVAC compliance
acc. to IEC 60849
EMC immunity
acc. to EN 55103-2
Safety
acc. to EN 60065
www.boschsecurity.com
Communication
Plena Range | 57
Installation/Configuration Notes
Electrical
BGM and PC Call Station
Rear view
Technical Specifications
Electrical
Mains Voltage
230 / 115 VAC, ±10%, 50 / 60 Hz
Main Power Consumption
60 VA
Input Type
Cinch stereo (converted to mono)
Input Level
200 mV – 2 V
Impedance
22 kOhm
S/N
70 dB (flat at max volume)
S/N
75 dB (flat at min volume/muted)
Headroom
25 dB
Trigger Inputs
6 EMG, 6 business
Type
MC1,5/14-ST-3,5
Activation
Programmable
Supervision
On EMG inputs, programmable
Supervision Method
Series / parallel resistor
100 V Input
MSTB 2,5 /16-ST
Power Handling Capacity
480 Watts
*) Maximum load means; maximum power out, maximum load 24V out, maximum
number of call stations
Max/Rated Output Power
360 W / 240 W
Battery Current
24VDC, +20% / -10%
Outputs
8A @ 230 VAC / 16A @ 115 VAC
Tape Output
Max Mains Inrush Current
Cinch, 2x mono
Power Consumption
Nominal Level
350 mV
Mains Current
Impedance
<1 kOhm
0.26 A = 60 VA
Loudspeaker Outputs
MSTB 2,5 /16-ST floating
0.6 A = 136 VA
100 V Outputs
480 W rated per zone
3.6 A = 830 VA
Volume Override Type
3 wire, 4 wire (24V), 4 wire failsafe
BGM Zone Output
70/50/35/25/18/13 V for 0/-3/-6/-9/
Attenuation
-12/-15 dB (120/60/30/15/8/4 W)
System Idle
System Idle with Pilot Tone
Maximum Load*
)
24 V Current
System Idle
0.9 A
Maximum Load*
14 A
Performance
Frequency Response
60 Hz – 18 kHz (+1/-3 dB,
Distortion
<1% @ rated output, 1 kHz
Bass Control
-8/+8 dB @ 100 Hz
Treble Control
-8/+8 dB @ 10 kHz
@ -10 dB ref. rated output)
Inputs
Input Type
XLR, 6.3 mm jack
Sensitivity
1 mV / 1V
S/N
63 dB (flat at max volume)
S/N
75 dB (flat at min volume/muted)
Headroom
25 dB
Speech Filter
-3 dB@ 315 Hz, high-pass, 6 dB/oct
Phantom Power Supply
12 V
–20 dB (100 µV mic / 100 mV line)
or via input contact
Limiter
www.boschsecurity.com
All Contacts
Connector Type
MC 1,5/14-ST-3,5
Rating
250 V 7A voltage free
Emergency Active Relay
NO / COM / NC
Call Active Relay
NO / COM / NC
Fault Relay
NO / COM / NC normally energized
(failsafe)
General Purpose Relays (2x)
Mic / Line
VOX Trigger Level
Output Contacts
Automatic
NO / COM
58 | Plena Range
Communication
Environmental
Operating Temperature
+5°C to +55°C
Storage Temperature
-25°C to +55°C
Relative Humidity
<95%
Acoustic Noise Level of Fan
<48 dB SPL @ 1m, at max speed
temperature controlled 0 to max
speed
Dimensions
144 x 430 x 360 mm
(19" wide, 3U high)
Weight
approx. 15 kg
Rack Building
Rack mounting kit included
Messages
Data Format
WAV-file, 16-bit PCM, mono
Supported Sample Rates (fs)
24 kHz, 22.05 kHz, 16 kHz, 12 kHz,
11.025 kHz, 8 kHz
Frequency Response
@ fs = 24kHz
100 Hz – 11 kHz (+1/-3 dB)
@ fs = 22.05kHz
100 Hz – 10 kHz (+1/-3 dB )
@ fs = 16kHz
100 Hz – 7.3 kHz (+1/-3 dB )
@ fs = 12kHz
100 Hz – 5.5 kHz (+1/-3 dB)
@ fs = 11.025kHz
100 Hz – 5 kHz (+1/-3 dB)
@ fs = 8kHz
100 Hz – 3.6 kHz (+1/-3 dB)
Distortion
<0.1% @ 1 kHz
S/N (flat at max volume)
>80 dB
Memory Capacity
16 MB Flash ROM
Recording / Playback Time
1000 seconds @ fs = 8 kHz
Number of Messages
Max. 255
333 seconds @ fs = 24 kHz
Supervision Flash ROM
Continuous checksum control
Supervision DAC
1 Hz pilot tone
Data Retention Time
>10 years
Ordering Information
Model & Description
LBB 1990/00 Plena Voice Alarm Controller
www.boschsecurity.com
60 | Plena Range
LBB 1992/00 Plena Voice Alarm
Router
Communication
Functions
The LBB 1992/00 has a set of relays for zone-switching the
power amplifier output(s) to different loudspeaker groups.
Each of the zones can be switched between the call channel
(upon call-station selection or all-call microphone or emergency
activation), the BGM channel (upon front panel selection), or off.
In order to get a message through (although the local volume
controls may be set to a low volume level for e.g. background
music), volume override relay contacts are provided for each
zone separately for overriding local loudspeaker volume controls.
Both the 3-wire and 4-wire override schemes are supported.
Upon a call or an activated trigger input these contacts will be
activated for the appropriate zones, together with an additional
voltage free contact (Call Active) for control purposes.
A 24 VDC output is available to supply power to external relays,
so no external power supply is required for that purpose.
A LED VU-meter allows for monitoring of the master output.
The Plena Voice Alarm router is an expansion unit that can add
6 zones as well as 12 input and 8 output contacts to the Voice
Alarm System.
Parts Included
Quantity
Component
It can use the built-in booster of the Voice Alarm Controller, and
provides outputs and inputs for one or two boosters in a multi
amplifier one- or two-channel system.
1
LBB 1992/00 Plena Voice Alarm Router
It provides dual channel operation for calls and BGM
simultaneously to a maximum of six different zones, using two
Plena booster amplifiers. Plus, single channel operation is
possible with only one Plena booster.
The routers can also share one Amplifier, including the internal
booster of the Voice Alarm Controller. It is possible to use any
number of amplifiers from one up to the number of routers used.
2
19”Mounting brackets
1
Mains cable
1
Plena CD
Certifications and Approvals
EMC emission
Acc. to EN 55103-1
EMC immunity
Acc. to EN 55103-2
Features
• 6-zone router with single or dual channel operation
• 6 EMG input contacts
• 6 Business input contacts
• 6 Volume Override output contacts
• Supervision within the Plena Voice Alarm System
(compliant to IEC60849)
Rear view
www.boschsecurity.com
Communication
Plena Range | 61
Technical Specifications
Electrical
Mains Voltage
230 VAC / 115 VAC,
±15%, 50 / 60 Hz
Max Mains Power
50 VA
Consumption
Battery Voltage
20 – 26.5 V
Max Battery Current
1.8 A
Max Mains Inrush Current
1.5 A @ 230 VAC / 3A @ 115 VAC
Power Consumption
Mains Current
System Idle
0.2 A
Maximum Load
0.3 A
24 V Current
System Idle
0.51 A
Maximum Load 24 V Output
1.5 A
Trigger Inputs
6 EMG, 6 business
Type
MC1, 5/12-ST-3, 5
Activation
Programmable
Supervision
On EMG inputs, programmable
Supervision Method
Series / parallel resistor
100 V Inputs
MSTB 2,5 /16-ST
Booster 1
100 V / 70 V / 0 V
Booster 2
100 V / 0 V
Power Handling Capacity
1000 Watts
Outputs
100 V / 70 V Outputs
MSTB 2,5 /16-ST, floating
100 V Outputs
1000 W rated per zone
Volume Override Type
3 wire, 4 wire (24 V),
4 wire failsafe
Output Contacts
All Contacts
Connector Type
MC1,5/12-ST-3,5
Rating
250 V 7A voltage free
General Purpose Relays (2x)
NO / COM
Environmental
Operating Temperature
+5°C to +55°C
Storage Temperature
-25°C to +55°C
Relative Humidity
<95%
Dimensions
88 x 430 x 260 mm
(19" wide, 2U high)
Weight
approx. 3 kg
Rack Building
Rack mounting kit included
Ordering Information
Model & Description
LBB 1992/00 Plena Voice Alarm Router
www.boschsecurity.com
62 | Plena Range
LBB 1956/00 Plena Voice Alarm
Call station
Communication
Functions
On each call station it is possible to select 6 zones with the
possibility to connect up to 8 call station keypads
(LBB 1957/00) to increase the number of zones or zone groups
that can be selected. Each keypad adds 7 zone or zone-group
keys.
This call station features selectable gain, a selectable speech
filter, a limiter for improved intelligibility. Because the call station
provides a balanced line level output, it can be positioned up to
1000 m away from the controller, using CAT-5 extension cables.
Using shielded cable, the call station may also be used in a EMC
level 5 (heavy industry) environment.
Using dipswitches on the bottom of the call station, different
microphone gain levels can be selected as well as the call
station ID and the speech filter. Selected zones are indicated
with LEDs on the call station. Three additional LEDs give visible
feedback on the active state of the microphone and the system.
Green flashing means standby (chine is sounding), green
indicates microphone active, amber indicates that the system
has detected a fault (IEC 80649) and red indicates that the
system is in the emergency state.
Parts Included
The Plena 6-zone call station is a stylish, high-quality call station
with a stable metal base design, a flexible microphone stem and
a unidirectional condenser microphone. It is intended for making
calls to selected zones (1 to 6 and all-call) in a PA system built
around the LBB 1990/00 Voice Alarm System. In addition to
table-top use, the unit’s special design allows it to be neatly
flush-mounted in desk tops. The Plena Voice Alarm Keypad
(LBB 1957/00) is an extension adding 7 additional keys.
Features
• Stylish 6-zone call station, intended for LBB 1990/00 Voice
Alarm System Controller
Quantity
Components
1
LBB 1956/00 Plena Voice Alarm Call Station or
LBB 1957/00 Plena Voice Alarm Keypad
1
Cable terminated with a lockable CAT-5 connector
Certifications and Approvals
EMC emission
acc. to EN 55103-1
EMC immunity
acc. to EN 55103-2
• Six zone selection keys, all-call key and momentary PTT-key
for calls
• Selectable gain, speech filter and limiter for improved
intelligibility
• LED indications for zone selection, fault and emergency state
• Call station extension provides 7 additional zone and zone
group keys
www.boschsecurity.com
Communication
Plena Range | 63
Technical Specifications
Electrical
Power Supply
Voltage Range
18 – 24 V
24 V by LBB 1990/00
or external power supply
Current Consumption
<30 mA Call Station
<15 mA Key Pad
Performance
Nominal Sensitivity
85 dB SPL (gain preset 0 dB)
Nominal Output Level
700 mV
Maximum Input Sound Level
110 dB SPL
Gain Preset
+6 / 0 / -15 dB
Limiter Threshold
2V
Compression Ratio Limiter
20 : 1
Distortion
<0.6% (maximum input)
Equivalent Input Noise Level
25 dB SPLA
Frequency Response
100 Hz – 16 kHz
Speech Filter
-3 dB @ 315 Hz, high-pass,
6 dB/oct
Output Impedance
200 ohms
Selections
Environmental
Operating Temperature
-10°C to +55°C
Storage Temperature
-40°C to +70°C
Relative Humidity
<95%
Base
40 x 100 x 235 mm
Stem Length with Microphone
390 mm (15.35 inch)
Cable Length
5 m (196.85 inch)
Weight
approx. 1 kg
(1.57 x 3.97 x 9.25 inch)
Ordering Information
Model & Description
LBB 1956/00 Plena Voice Alarm Call station
www.boschsecurity.com
64 | Plena Range
LBB 1995/00 - LBB 1999/00 Plena
Voice Alarm System Remote
Control
Communication
Functions
The remote control is an exact match to the voice alarm
controller with all controls and indicators at the same location.
The remote control has BGM zone selection but not source
selection, volume and tone controls. The remote control
extension is a match to the router.
The volume units (VU) meter shows the presence and level of
the calls that are running in the system. The fault indicators show
detailed information of a fault in the system. Connection to the
Bosch Voice Alarm System is done via standard shielded CAT 5
cable and RJ45 connectors. Included in the delivery are rack
mount brackets that can also be used to mount the units to a
rear wall with spacing for cables and even to a flat surface above
or below the units.
The Plena Voice Alarm Remote Control panels offer operational
control at up to two remote locations. The main RC unit offers
the front panel of the voice alarm controller, while the RC
extensions offer the control of the routers. Both remote controls
(LBB 1996 & LBB 1997) are available as a kit to manufacture
tailor made solutions. Also available is a fireman’s panel that
features large illuminated buttons and an all call functionality.
Features
• Remote Control of the Voice Alarm System
• Emergency (EMG) microphone
The kits LBB 1998 & LBB 1999 are a functional match to the
remote control and the RC extension, with connectors on the
front panel instead of controls and indicators. With these kits it is
possible to reliably build a custom control unit with confidence
and ease. The electrical connections are printed on front and
rear panels. A 24 VDC output is available to supply power to
external LEDs and relays, so no external power supply is
required for that purpose. An LED VU-meter allows for
monitoring of the master output.
The fire panel, remote control and remote control kit function on
an external 24V power supply. The RC extension and extension
kit are powered by the interconnecting CAT-5 (shielded) cable.
• EMG and background (BGM) zone selections
• EMG state and fault indicators
Parts Included
• Control outputs for EMG and Fault state Front panel zone
selection for BGM and call station zone selection for calls
Quantity
Component
1
LBB 1995/00 – LBB 1999/00
1
EMG microphone and cable (except extension)
1
1 m CAT-5 cable
2
19” mounting brackets
1
EMG mic mounting clip
1
Release notes
1
Plena CD with configuration software, installation and
user instructions, audio tools, free music and more
Certifications and Approvals
EMC emission
Acc. to EN 55103-1
EMC immunity
Acc. to EN 55103-2
www.boschsecurity.com
Communication
Plena Range | 65
Technical Specifications
Electrical
24 V input
24 VDC, +20% / -10%
battery current
Typical – max (indicator test)
LBB 1995/00
100 mA – 250 mA
LBB 1996/00
100 mA – 250 mA
LBB 1997/00
50 mA – 200 mA
LBB 1998/00
100 mA – 250 mA
LBB 1999/00
50 mA – 200 mA
Performance*
Relays
Priority relay contacts
30 V, 1 A
Emergency relay contacts
30 V, 1 A
DC supply output voltage
24 V, 200 mA max
LEDs / LAMPs
(KITS)
LEDs on internal power
5 mA max
External power
50V – 200 mA max
Type
Open collector pull down
Environmental
Operating temperature range
-10°C to +55ºC
Storage temperature range
-40°C to +70ºC
Relative humidity
<95%
General
Dimensions
LBB 1995/00
134 x 430 x 90 mm
LBB 1996/00
134 x 430 x 90 mm
(19" wide, 3U high)
(19" wide, 3U high)
LBB 1997/00
88 x 430 x 90 mm
LBB 1998/00
134 x 430 x 90 mm
(19" wide, 2U high)
(19" wide, 3U high)
LBB 1999/00
88 x 430 x 90 mm
Weight approx.
3 kg
(19" wide, 2U high)
*) Technical performance data acc. to IEC60268-3
Ordering Information
Model & Description
LBB 1995/00 Plena Voice Alarm System Fireman's panel
All call EVAC Remote Control with microphone
LBB 1996/00 Plena Voice Alarm Remote Control
6 zone Voice Alarm Controller remote control with microphone
LBB 1997/00 Plena Voice Alarm System Remote Control Extension
6 Zone Voice Alarm Router remote control
LBB 1998/00 Plena Voice Alarm System Remote Kit
Kit for 6 Zone Voice Alarm controller remote control
LBB 1999/00 Plena Voice Alarm System Remote Control Extension
Kit for 6 Zone Voice Alarm router remote control
www.boschsecurity.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
