White Rodgers 1F95-71 Programming instructions

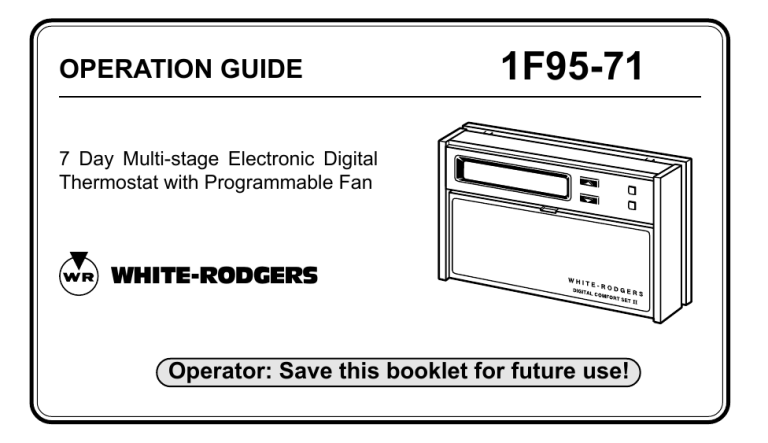

OPERATION GUIDE
1F95-71
7 Day Multi-stage Electronic Digital
Thermostat with Programmable Fan
WHITE-RODGERS
Operator: Save this booklet for future use!
About Your New Thermostat . . .
Your new Digital COMFORT SET II Multi-stage Thermostat uses the technology of a solid-state
microcomputer to provide precise time/temperature control. The COMFORT SET II Thermostat
offers you the flexibility to design heating and cooling programs that fit your needs.
Please read this manual thoroughly before operating or programming your thermostat. If you
have questions, you may write to our Technical Service Department at 9797 Reavis Road, St.
Louis, MO, 63123.
2
In This Guide . . .
YOUR NEW THERMOSTAT’S
FEATURES ............................................ 4
OPERATING YOUR THERMOSTAT ......... 5
PARTS OF THE THERMOSTAT
The Back Of the Thermostat Body
The Display
The Thermostat Buttons
OPERATING FEATURES
PROGRAMMING YOUR
THERMOSTAT .................................... 18
PLANNING FOR YOUR NEEDS
ENTERING YOUR PROGRAM
Set Current Time and Day
Program Heating and Cooling
Temperatures
Program Heating/Cooling Times
and Heating Temperatures
Program Cooling Temperatures
Using the COPY Button
CHECK YOUR PROGRAMMING
QUESTIONS AND ANSWERS ................. 33
Operator: Save this
booklet for future use!
3
YOUR NEW THERMOSTAT’S FEATURES
• Computed Energy Management Recovery
(EMR)
• Automatic changeover
• Two hour temperature override
• Manual program override (HOLD temperature)
• °F/°C convertibility
• Keypad lockout (optional)
• Simultaneous heat and cool program
storage
• Four separate time and two separate temperature settings per 24-hour period
• Backlit LCD displays continuous set point,
time, and room temperature
• Adjustable cycle times
• 9 volt Energizer® alkaline battery backup
4
• Compressor short cycle protection
• Blower delay in the cooling cycle
• Up to 3 stages of heat and up to 2 stages
of cool
• Initial total system checkout
• Preprogrammed temperature control
• Separate setback programming for 7 independent days
• Electric heat (optional)
• Audio and visual prompting for programming
• Armchair programming capability
• Programmable blower control
• Temperature range 40° to 99°F
• Compatible with Remote Sensor (optional)
OPERATING YOUR THERMOSTAT
Before you begin programming your thermostat, you should be familiar with its features and
with the display and the location and operation
of the thermostat buttons. The information in
this section will help you become familiar with
your new thermostat so that you can easily
program it.
Your thermostat consists of two parts: the
thermostat body and the subbase.
! CAUTION
Use
SYSTEM
SWITCH
to turn thermostat OFF
before removing or attaching the thermostat body. Equipment damage and/
or personal injury could occur.
The subbase is attached to the wall, but you
can remove the thermostat body for easy programming. To remove the thermostat body
from the subbase, grasp the thermostat body
and gently pull it out from the bottom of the
subbase and pivot up. To attach the thermostat
body, line up the four terminal pins on the upper
section of the thermostat back with the matching connector on the subbase. Insert these,
then gently pivot the thermostat body down to
connect the eight pin connectors on the lower
portion of the thermostat back. Gently push
until the snap connectors engage. DO NOT
FORCE OR PRY THE THERMOSTAT as this
may damage the unit.
5
PARTS OF THE THERMOSTAT
4-pin connector
Battery
The Back of The Thermostat Body
Turn the thermostat body over. On the back are
the 9 volt Energizer® alkaline battery and the
option switches.
1. The 9 volt Energizer® alkaline battery
provides power to the thermostat when
the 24 VAC power is interrupted (for example, when you remove the thermostat
from the wall for programming). A fresh
battery will maintain the stored program
for approximately a week. If power loss is
long enough for the program to be lost,
the thermostat will automatically return to
the factory programmed temperatures
(64°F heating and 82°F cooling) when
power is restored. You must reprogram
the thermostat if this happens.
6
Option switches
9-pin connector
BACK OF THERMOSTAT BODY
If the word BATTERY is flashing in the
display window, the battery is low and should
be replaced with a fresh 9 volt Energizer®
alkaline battery. The battery will provide
power for all functions except the display
light and audio prompting beep, which work
only on 24 VAC power.
2. You may adjust the option switches for
keypad lockout (see OPERATING FEATURES).
! CAUTION
Use
SYSTEM
SWITCH
to turn thermostat OFF
before removing thermostat from the
wall to replace the battery.
7
The buttons (other than
and
) are
located behind the thermostat door. To open
the door, use your fingernail in the indentation
at the top center of the door. Pull the door out,
then swing the door down on its hinges.
Following are brief descriptions of the display
and the thermostat buttons.
The Display
1 Continuously displays system mode
(HEAT, OFF, COOL, AUTO, HOLD). During programming, the day of the week is
displayed (MO, TU, WE, etc).
2 Alternately displays room temperature (F
denotes degrees Fahrenheit and C denotes degrees Celsius) and time of day (A
denotes AM time and P denotes PM time).
3 Displays the setpoint temperature.
8
4 When
VIEW
TEMP
is pressed, A is displayed when
the setpoint temperature displayed (at the
far right) is the 1st programmed heating or
cooling temperature (depending on mode).
B is displayed when the 2nd programmed
heating or cooling temperature is being
displayed.
5 FAN ON is displayed when the blower is
operating continuously. FAN AUTO is displayed during automatic fan operation
(when the blower cycles with the heating or
cooling system). PRG FAN is displayed
when the fan has been programmed to run
continuously during the current program
period.
6 The word BATTERY flashes on the display
when the 9 volt alkaline battery power is
weak and should be replaced.
A
FAN AUTO
WHITE-RODGERS
SEVEN DAY DIGITAL COMFORT-SET II
SYSTEM
SWITCH
TIME
FWD
SET
CLOCK
VIEW
PRGM
HOLD
COPY
TIME
BACK
ADV
DAY
VIEW
TEMP
RUN
PRGM
HEAT-OFF-COOL-AUTO
FAN
SWITCH
ON-AUTO
1
A
4
FAN AUTO
5
2
3
4
B
4
3
BATTERY
FAN ON
5
2
6
9
The Thermostat Buttons
7 Sets the system mode (HEATing, OFF,
COOLing, or AUTOmatic changeover).
8 Selects fan operation (see #5, above). This
button is also used to program the fan to
run continuously during a program period.
9 Runs display forward or backward through
time, day, or anticipation settings during
programming.
10 Used with
TIME
FWD
and
TIME
BACK
to set current time
and day of the week.
11 Used during programming to set the day of
the week to be programmed.
12 Used to initiate programming or to review
programming for a given day (program
10
viewing automatically begins with Monday’s
program; use
ADV
DAY
to view programming for
following days).
13 Used with
and
point temperatures.
to select set-
14 Used to manually override programming to
hold at a selected temperature (when HOLD
is displayed). Also used to copy one day’s
programming to another day (when COPY
is displayed).
15 Used to start program operation after pro-
gramming. Also used to return thermostat
to program operation after being in HOLD
mode.
16 (Red arrow) Raises temperature setting
(99°F or 37°C maximum).
17 (Blue arrow) Lowers temperature setting
18 Red indicator is lit whenever heating or
(40°F or 4°C minimum).
cooling is in operation. Yellow indicator is lit
whenever the second or third stages of
heating or cooling are in operation.
16 17
18
FAN AUTO
WHITE-RODGERS
7
SYSTEM
SWITCH
SEVEN DAY DIGITAL COMFORT-SET II
TIME
FWD
SET
CLOCK
VIEW
PRGM
HOLD
COPY
TIME
BACK
ADV
DAY
VIEW
TEMP
RUN
PRGM
HEAT-OFF-COOL-AUTO
8
FAN
SWITCH
ON-AUTO
9
10 11 12 13 14 15
11
OPERATING FEATURES
Now that you are familiar with the thermostat
display and buttons, read the following information to learn about the many features of the
thermostat.
• COMPUTED ENERGY MANAGEMENT
RECOVERY (EMR) — The thermostat’s
microcomputer automatically calculates the
time it will take to change the temperature
to the next program setting. Then the thermostat will activate the heating or cooling
system to change the temperature so that
the desired temperature is reached at the
beginning of the next program period. As an
example of this feature, assume that you
have programmed your thermostat to provide an overnight heating temperature of
62°F, and that during the next program
period, beginning at 6:00 AM, you have
12
programmed a temperature of 70°F. The
thermostat will automatically activate the
heating system at about 5:00 AM, so that
the programmed 70°F temperature is
reached by about 6:00 AM.
• AUTOMATIC CHANGEOVER — You can
set the thermostat to automatically switch
the system from heating to cooling as
needed. Use
SYSTEM
SWITCH
to set the thermo-
stat to AUTO (the setpoint display is
blank in the AUTO mode). The system
will now automatically switch between
heating and cooling depending on the
actual room temperature.
The thermostat will not allow the temperature separation between the highest heat
setting and the lowest cool setting to be less
that 1°F. For example, if the highest heat
setting is 76°F, the lowest cool setting cannot be below 77°F (see diagram below).
79
78
77
76
75
74
COOLING TEMPERATURES
DEAD BAND 1°F
HEATING TEMPERATURES
• TWO HOUR TEMPERATURE OVERRIDE — Press
or
until the
display shows the temperature you want.
The thermostat will override current programming and keep the room temperature
at the selected temperature for two hours.
After two hours, the thermostat will automatically revert to the program.
• HOLD TEMPERATURE — The thermostat
can hold any temperature within its range
for an indefinite period, without reverting to
the program. Press
HOLD
COPY
. HOLD will be
displayed. Then choose the desired hold
temperature by pressing
or
.
The thermostat will hold the room temperature at the selected setting until you press
RUN
PRGM
to start program operation again. This
feature is ideal for energy conservation
when the building is unoccupied for an
extended period of time.
• °F/°C CONVERTIBILITY — Press
TIME
BACK
TIME
FWD
and
at the same time until the temperature
display is in °C (Celsius). To display °F,
repeat the process.
13
• ADJUSTABLE HEATING AND COOLING
CYCLE TIMES (ANTICIPATION) — If the
heating/cooling system is turning on and off
too often (short cycles) or not often enough
(long cycles), you may want to adjust the
anticipation setting.
the heat cycles are too short, press
A cooling anticipation setting of less
than 10 may cause decreased compressor life.
to
increase the cycle time. If the heat cycles
are too long, press
TIME
BACK
to decrease the
cycle time. To set cooling anticipation, press
SET
CLOCK
! CAUTION
TIME
FWD
and
ADV
DAY
at the same time again. The
display will show COOL 14 (factory preprogrammed cooling anticipation). Use
and
TIME
BACK
to adjust anticipation. Press
TIME
FWD
RUN
PRGM
to return to your program.
To adjust anticipation, press
SET
CLOCK
and
ADV
DAY
at the same time. The display will show
HEAT 8 (this is the factory preprogrammed
heating anticipation setting). You may select any anticipation setting from 4 to 40. If
14
• LOW BATTERY INDICATOR — The word
BATTERY will flash on the display if the 9
volt alkaline battery is low and should be
replaced.
• AUDIO PROMPTING — Each time you
press a button, the thermostat will beep
(this feature works only when the thermostat is attached to the wall and 24 VAC
power is present to the thermostat).
• BACKLIT DISPLAY — When you press
any button on the thermostat, the display is
lit for approximately eight seconds (this
feature works only when the thermostat is
attached to the wall and 24 VAC power is
present to the thermostat).
• COMPRESSOR SHORT CYCLE PROTECTION — To protect your compressor
from potential damage due to rapid cycling,
this thermostat has a built-in delay of 5
minutes between cooling cycles. The following may cause a time delay in COOL:
a)Return of power after a power outage.
b)Pressing
SYSTEM
SWITCH
to change operating
modes.
c)Pressing
or
, creating a call
for COOL too soon after a previous call.
• SYSTEM INDICATOR LIGHTS — The red
indicator light comes on whenever the heating or cooling system is operating. The
yellow indicator light comes on when the
second or third stages of heating or cooling
are operating.
15
• TOTAL KEYPAD LOCKOUT — When option switch #3 is in the total keypad lockout
position (ON), programs cannot be altered
and all buttons are disabled.
NOTE
Programming should be completed, desired
system operation should be selected (HEAT,
COOL, or AUTO), and battery should be installed before changing option switch #3.
Total Keypad Lockout (ON)
2
3
4
Switch #1 set at installation (DO NOT CHANGE)
Switch #2 set at installation (DO NOT CHANGE)
Switch #3 ON
Switch #4 OFF
16
• PARTIAL KEYPAD LOCKOUT — When
option switch #4 is in the partial keypad
lockout position (ON), programs cannot be
altered. All buttons except
and
are disabled.
NOTE
ON
1
Switches #1 and #2 are set at installation
and should not be changed. To enable total
keypad lockout, move option switch #3 to
ON (ensure that option switch #4 is OFF).
To disable total keypad lockout, move option switch #3 to OFF.
Programming should be completed, desired
system operation should be selected (HEAT,
COOL, or AUTO), and battery should be installed before changing option switch #3.
Partial Keypad Lockout (ON)
ON
1
2
3
4
Switch #1 set at installation (DO NOT CHANGE)
Switch #2 set at installation (DO NOT CHANGE)
Switch #3 OFF
Switch #4 ON
Switches #1 and #2 are set at installation
and should not be changed. To enable
partial keypad lockout, move option switch
#4 to ON (ensure that option switch #3 is
OFF). To disable partial keypad lockout,
move option switch #4 to OFF.
• PROGRAMMABLE BLOWER CONTROL — You may program the fan blower
to run continuously during any given program period, regardless of the cycling of the
heating or cooling system. During programming, after entering the time and temperature for the time period, press
FAN
SWITCH
until
PRG FAN is displayed. To override constant fan, press
FAN
SWITCH
until PRG FAN is
not displayed.
17
PROGRAMMING YOUR THERMOSTAT
Now you are ready to program your thermostat.
This section will help you plan and program
your thermostat to meet your needs.
For maximum comfort and efficiency, keep the
following guidelines in mind when planning
your program.
• When heating (cooling) your building, program the temperatures to be cooler (warmer)
when the building is vacant or during periods of low activity.
using the thermostat for a commercial application (a store, office building, etc.), answer
questions 1 through 4. If you are using the
thermostat in your home, answer questions 5
through 8.
FOR COMMERCIAL APPLICATIONS:
1a. What time does the first person arrive at
the building in the morning?
• During early morning hours, the need for
cooling is usually minimal.
2a. What time do the building occupants reach
a maximum activity level (using lights,
equipment, meeting rooms, etc.)?
PLANNING FOR YOUR NEEDS
First, answer the following questions to help
you decide what your needs are. If you are
18
b. What temperature should the building be
at this time? (heating? cooling?)
b. What temperature should the building be
at this time?
3a. What time do the building occupants reach
a minimum activity level (limited personnel
in building)?
b. What temperature should the building be
at this time?
4a. What time does the building become
vacant?
b. What temperature should the building be
at this time?
IN YOUR HOME:
5a. What time does the first person get up in
the morning?
b. What temperature should the house be at
this time?
6a. What time does the last person leave the
house in the morning?
b. What temperature should the house be at
this time?
7a. What time does the first person arrive
home in the evening?
b. What temperature should the house be at
this time?
8a. What time does the last person go to bed at
night?
b. What temperature should the house be at
this time?
Now look at the factory preprogrammed times
and temperatures shown on the following page.
If this program will suit your needs, simply
press
RUN
PRGM
to begin running the factory preset
program.
19
FACTORY PREPROGRAMMING
Heating Program for ALL days of the Week:
PERIOD
TIME
TEMP
64
1
5:00 AM
70
2
8:00 AM
64
3
5:00 PM
64
4
10:00 PM
If you want to change the preprogrammed
times and temperatures, follow these steps.
1. Determine the heating and cooling temperatures you want to use. You may select
up to two heating temperatures (HEAT A
and HEAT B), and up to two cooling temperatures (COOL A and COOL B). Use the
following table to write down the temperatures you have selected. Keep in mind that
you can program up to 4 temperatures (2
heating, 2 cooling) at a time.
20
Cooling Program for ALL Days of the Week:
TEMP
PERIOD
TIME
5:00 AM
82
1
8:00 AM
78
2
3
5:00 PM
82
4
10:00 PM
82
NOTE
To operate properly in the AUTO mode, there
must be a minimum 1°F separation between
the highest heat temperature and the lowest
cool temperature (see diagram below).
79
78
77
76
75
74
COOLING TEMPERATURES
DEAD BAND 1°F
HEATING TEMPERATURES
Temperature
Designation
Your
Selected
Temperature
Factory
Preprogrammed
Temperature
HEAT A
HEAT B
70
64
COOL A
COOL B
78
82
2. Determine the time periods during which
you will program the temperatures you have
just selected. You must program 4 periods
for each day (periods 1, 2, 3 & 4). However,
you may use the same heating and cooling
temperatures for consecutive time periods.
Also keep in mind that, for any given day,
you can only program one set of times for
both heating and cooling (for example, if
you select 5:00 AM to begin heating period
1 on Monday, then your cooling period 1 for
Monday will also begin at 5:00 AM). However, you may choose different time periods for each day separately (for example,
heating/cooling period 1 on Monday may
begin at 5:00 AM, but heating/cooling period 1 on Saturday may begin at 9:00 AM).
Use the following table to plan your program time periods, and the temperatures
you want during each period. You may also
want to look at the sample program table to
get an idea of how the thermostat can be
programmed.
21
Heating/Cooling Schedule Plan
THIS THERMOSTAT ALLOWS ONE SET OF TIMES FOR BOTH HEATING AND COOLING
Period 1
Period 2
Period 3
Period 4
Heat Cool
Heat Cool
Heat Cool
Heat Cool
Time Temp. Temp. Time Temp. Temp. Time Temp. Temp. Time Temp. Temp.
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
22
SAMPLE
Heating/Cooling Schedule Plan
THIS THERMOSTAT ALLOWS ONE SET OF TIMES FOR BOTH HEATING AND COOLING
Period 1
Period 2
Period 3
Period 4
Heat Cool
Heat Cool
Heat Cool
Heat Cool
Time Temp. Temp. Time Temp. Temp. Time Temp. Temp. Time Temp. Temp.
Monday
5:00 A 65° (A) 78° (A) 9:00 A 65° (A) 78° (A) 3:30 P 65° (A) 78° (A) 12:00 A 65° (A) 78° (A)
Tuesday
5:00 A 65° (A) 78° (A) 9:00 A 70° (B) 72° (B) 3:30 P 70° (B) 72° (B) 12:00 A 65° (A) 78° (A)
Wednesday 5:00 A 65° (A) 78° (A) 9:00 A 70° (B) 72° (B) 3:30 P 70° (B) 72° (B) 12:00 A 65° (A) 78° (A)
Thursday
5:00 A 65° (A) 78° (A) 9:00 A 70° (B) 72° (B) 3:30 P 70° (B) 72° (B) 12:00 A 65° (A) 78° (A)
Friday
5:00 A 65° (A) 78° (A) 9:00 A 70° (B) 72° (B) 3:30 P 70° (B) 72° (B) 12:00 A 65° (A) 78° (A)
Saturday
5:00 A 65° (A) 78° (A) 9:00 A 70° (B) 72° (B) 3:30 P 70° (B) 72° (B) 12:00 A 65° (A) 78° (A)
Sunday
5:00 A 70° (B) 72° (B) 9:00 A 70° (B) 72° (B) 3:30 P 65° (A) 78° (A) 12:00 A 65° (A) 78° (A)
23
ENTERING YOUR PROGRAM
Follow these steps to enter the heating/cooling
program you have selected.
NOTE
We recommend that you remove the thermostat from the wall for programming (especially
for entering cooling programming). A fresh 9
volt Energizer® alkaline battery must be installed to perform off-wall programming. BE
SURE SYSTEM SWITCH IS SET TO OFF
POSITION BEFORE REATTACHING
THERMOSTAT TO SUBBASE!
You cannot program the thermostat with the
SYSTEM SWITCH in the AUTO position.
24
Set Current Time and Day
1. Press
SET
CLOCK
once. The display will show
minutes only.
EXAMPLE:
2. Press and hold either
TIME
FWD
or
TIME
BACK
until you
reach the correct minutes.
3. Press
SET
CLOCK
once. The display window will
show the hour only.
EXAMPLE:
4. Press and hold either
TIME
FWD
or
TIME
BACK
until you
reach the correct hour and AM/PM designation (AM begins at midnight; PM begins
at noon).
5. Press
SET
CLOCK
once. The display will show the
day of the week as an abbreviation (MO for
Monday, TU for Tuesday, etc.).
6. Press and hold either
TIME
FWD
or
TIME
BACK
until you
reach the current day of the week.
7. Press
RUN
PRGM
once. The display will show the
correct time and room temperature alternately.
Program Heating and Cooling
Temperatures
During programming, if you don’t press any
buttons for 5 minutes, the thermostat will enter
the HOLD mode and will maintain a constant
temperature. The display will revert to the alternating time/temperature display. To resume
programming after this happens, press
VIEW
PRGM
until you are at the point where you stopped
programming. Then you may continue to enter
your programs normally. If you want to stop
programming at any time, simply press
RUN
PRGM
to
resume program operation.
1. Press
2. Press
SYSTEM
SWITCH
VIEW
TEMP
until HEAT is displayed.
once. The display will continue
to show HEAT. Below HEAT is the letter A,
representing the first programmed heating
temperature (HEAT A). At the right of the
display is the currently programmed HEAT
A setting.
25
3. Press either
or
to change the
temperature to your selected HEAT A
setting.
9. Press either
or
to change the
temperature to your selected COOL A
setting.
4. Press
10. Press
VIEW
TEMP
once. The letter A will change to
the letter B, representing HEAT B.
5. Press either
or
to change the
temperature to your selected HEAT B
setting.
6. Press
7. Press
RUN
PRGM
.
SYSTEM
SWITCH
8. Press
or
to set
11. Press
RUN
PRGM
.
Program Heating/Cooling Times and
Heating Temperatures
1. Press
SYSTEM
SWITCH
until HEAT is displayed.
until COOL is displayed.
once. The display will show
COOL and A, representing the first programmed cooling temperature (COOL A).
26
once. Press
your selected COOL B setting.
2. Press
VIEW
TEMP
VIEW
TEMP
VIEW
PRGM
once. MO, the abbreviation for
Monday, and the number 1, representing
the first heating/cooling period, will appear
in the display. Also displayed are the currently programmed start time for heating/
cooling period 1 and the currently programmed HEAT A or HEAT B temperature
for heating/cooling period 1.
EXAMPLE:
This display window shows that for
Monday’s heating/cooling period 1, the start
time is 5:00 AM, and 64° is the programmed
temperature (this example reflects factory
preprogramming, where 64° is the HEAT A
temperature).
3. To change the displayed start time to your
selected start time for Monday’s period 1,
press
TIME
FWD
or
TIME
BACK
until your selected time is
displayed. The time will change in 15 minute
increments. The time you program will be
the start time of Monday’s period 1 for
both heating and cooling.
4. If the temperature displayed is not the HEAT
A or HEAT B temperature you want for
or
(if
Monday’s period 1, press
you continue to press
or
, the
display will alternate between the HEAT A
and HEAT B temperatures you previously
selected).
5. If you want the fan to run continuously
during Monday heating/cooling period 1,
press
FAN
SWITCH
until PRG FAN is displayed.
6. After selecting the desired heating temperature for heating/cooling Monday’s period 1, press
VIEW
PRGM
. The currently pro-
grammed start time and heating temperature for Monday’s heating/cooling period 2
will be displayed.
27
7. Repeat steps 3 through 5 to select the start
time and heating temperature for Monday’s
heating/cooling period 2.
8. Repeat steps 3 through 7 for Monday’s
heating/cooling periods 3 and 4.
NOTE
RUN
PRGM
to start the thermostat’s
programmed operation. Every day will then use
the same program you set for Monday. You
may also choose to use the
28
ing programs, use the
below, or press
The thermostat has a built-in COPY feature.
This feature automatically copies the heating
and cooling programs you select for Monday
into Tuesday through Sunday’s programs. If
you want to have the same programming every
day, after you program Monday’s schedule,
you simply press
any day’s heating and cooling program into any
other day’s program (see USING THE COPY
BUTTON).
9. To enter Tuesday’s through Sunday’s heat-
HOLD
COPY
button to copy
ADV
DAY
HOLD
COPY
button described
until the correct day’s
abbreviation is shown in the display. Repeat the above steps to program each day’s
heating/cooling periods and heating temperatures.
10. When you have completed programming
your heating/cooling periods and heating
temperatures, press
operation.
RUN
PRGM
to begin program
Program Cooling Temperatures
! CAUTION
If outside temperature is below 50°F, we
recommend that you remove the thermostat from the wall before proceeding
with the following steps to program
cooling temperatures. Personal injury
or property damage may occur due to
air conditioner compressor operation
in cold weather. A fresh 9 volt Energizer® alkaline battery must be installed
to perform off-wall programming. Programming away from the wall should
prevent accidental compressor operation. USE
SYSTEM
SWITCH
TO TURN THERMO-
STAT OFF BEFORE REATTACHING THE
THERMOSTAT TO THE SUBBASE!
1. To program cooling temperatures for the
heating/cooling periods you have already
set, press
2. Press
VIEW
PRGM
SYSTEM
SWITCH
until COOL appears.
once. The Monday heating/
cooling period 1 start time you just programmed will appear, and the currently
programmed cooling temperature (A or B)
will be displayed.
3. Press
or
to display the COOL A
or COOL B temperature you want for
Monday’s heating/cooling period 1.
4. Press
VIEW
PRGM
, then select Monday’s COOL A
or COOL B temperature for period 2.
5. Repeat steps 3 and 4 for Monday’s heating/
cooling periods 3 and 4.
29
6. Press
ADV
DAY
to choose other days to pro-
gram. Remember, once you enter Monday’s
program, Monday’s program is automatically copied into Tuesday’s through
Sunday’s programs.
7. After you enter or copy heating and cooling
programs for all 7 days, press
RUN
PRGM
to begin
program operation.
tion is not complete until
HOLD
COPY
has been pressed
TWICE.
For most efficient programming, you should
enter both the heating and cooling programs
for the day you wish to copy FROM before
using the COPY function, since the COPY
function copies the entire day’s programming
to other days.
1. Press
VIEW
PRGM
2. Press
ADV
DAY
.
Using The COPY Button
You can copy the entire heating/cooling program into any or all other days’ programs.
However, you must perform each copy function
separately. Each time you begin a COPY operation, you must start with the day’s program you wish to copy FROM. A COPY opera30
until the day you want to copy
FROM is displayed. If you have not completed programming for this day, do so
before proceeding.
3. Press
HOLD
COPY
once. COPY will be displayed. A
number from 1 to 7 will also appear, representing the day you have selected to copy
(Monday is 1, Tuesday is 2, Wednesday is
3, etc.). For example, if in step 2 you selected to copy Wednesday’s program, when
you press
HOLD
COPY
, COPY 3 will be displayed
(as shown below).
ADV
DAY
to select the day you want to
copy the program TO.
5. Press
HOLD
COPY
7. Press
RUN
PRGM
to begin program operation.
CHECK YOUR PROGRAMMING
Follow these steps to check your thermostat
programming one final time before beginning
thermostat operation.
1. Press
EXAMPLE:
4. Press
6. Repeat the above steps to copy any day’s
programming into any other day’s program.
SYSTEM
SWITCH
until HEAT is displayed.
2. Press and hold
VIEW
PRGM
to view the heating/
cooling period times and heating temperatures for Monday.
. COPY will disappear from the
display, and the display will show the copied heating/cooling time and temperature
for the day you copied TO.
3. Press
ADV
DAY
once to advance to Tuesday.
31
4. Press and hold
VIEW
PRGM
to view heating/cool-
ing periods and heating temperatures for
Tuesday.
5. Repeat steps 3 and 4 to review all remaining days’ programming. If you find an error
in any day’s programming, go back to the
programming instructions to correct the error (you can change any part of your program while you are reviewing it).
6. Press
7. Press
RUN
PRGM
.
SYSTEM
SWITCH
32
RUN
PRGM
Press
SYSTEM
SWITCH
until OFF is displayed. Reat-
tach thermostat to subbase. Then press
SYSTEM
SWITCH
to select the operation mode you want
(HEAT, COOL, AUTO).
NOTE
until COOL is displayed.
8. Repeat steps 2 through 5 to check cooling
temperatures.
9. Press
YOUR THERMOSTAT IS NOW COMPLETELY
PROGRAMMED AND READY TO AUTOMATICALLY PROVIDE MAXIMUM COMFORT AND
EFFICIENCY!
to begin program operation.
When you have completed programming, you
may set option switches #3 or #4. (see TOTAL
KEYPAD LOCKOUT and PARTIAL KEYPAD
LOCKOUT in the OPERATING FEATURES
section).
QUESTIONS AND ANSWERS
1. How can I permanently change a part of
my program?
Press
VIEW
PRGM
and
ADV
DAY
until you reach the
time/temperature schedule you want. Then
press
or
and
TIME
FWD
and
TIME
BACK
to
change the program (remember, when you
change the time, you are changing it for
both the heating and cooling programs).
See PROGRAMMING YOUR THERMOSTAT.
2. How can I have no change in temperature from one time period to another?
Simply select the same temperature for
each consecutive time period. For example,
you may select the same COOL A tem-
perature for period 2 as you did for period 1,
which means the temperature will not
change from COOL A when period 2 begins. See PROGRAMMING YOUR
THERMOSTAT.
3. How can I finish my programming if the
display has already changed to time/
temperature?
During programming, if no buttons are
pressed for five minutes, the thermostat will
enter the HOLD mode and maintain a constant temperature. The display will change
to the time/temperature mode. To resume
programming, press
VIEW
PRGM
and
ADV
DAY
until you
return to the point where you stopped pro33
gramming. Then you may continue to program the thermostat normally. If you want
to stop programming at this point, press
for about one week with no 24 VAC power
present to the thermostat. See OPERATING YOUR THERMOSTAT.
to start the normal program function.
5. Why can’t I program the thermostat in
the AUTO mode?
RUN
PRGM
See PROGRAMMING YOUR THERMOSTAT.
4. What happens if the electricity goes off
or is manually shut off?
If you have not installed a 9 volt alkaline
battery, the display will go blank and the
program will be lost in five seconds. When
electricity is restored, the thermostat will
maintain a heating temperature of 64°F and
a cooling temperature of 82°F until you
reenter your program. Setpoint temperature will not be displayed.
If a fresh 9 volt Energizer® alkaline battery
is installed, the program will be maintained
34
The thermostat can only be programmed in
the HEAT and COOL modes. See PROGRAMMING YOUR THERMOSTAT.
6. What can cause the thermostat display
to freeze or go blank?
A completely blank display may indicate
that power has been lost to the thermostat
and the backup battery is also dead. However, if there is power to the thermostat and
the display is blank or frozen, static discharge is probably the cause.
During periods of low humidity (especially
during cold weather), you may feel or see a
spark discharge when you touch the thermostat. This may cause the program to be
lost or the thermostat to display incorrectly.
To correct this, remove the thermostat from
the wall and disconnect the battery. Wait
about two minutes, then reconnect the battery. The thermostat will revert to the factory preset program until you reprogram the
thermostat. If you don’t want to reprogram
the thermostat immediately, press
SYSTEM
SWITCH
until OFF is displayed and replace the thermostat on the wall. Then press
SYSTEM
SWITCH
until HEAT, COOL, etc. is displayed, and
press
RUN
PRGM
to begin the factory preset pro-
gram. Or you may reprogram the thermostat, then replace it on the wall.
To prevent further static discharge problems, touch another object to release static
build-up before touching the thermostat.
See OPERATING YOUR THERMOSTAT.
7. Why won’t the setpoint temperature go
to the temperature I want?
The highest heating setpoint temperature
you select must be at least 1°F lower than
the lowest cooling setpoint temperature
you select (for example, if 70°F is your
lowest selected cooling temperature, you
cannot select a heating temperature any
higher than 68°F). If such a conflict exists,
you must set the lowest cooling temperature higher in order to set the heating temperature higher. To set a lower cooling
temperature, you must select a lower heating temperature. See PROGRAMMING
YOUR THERMOSTAT.
35
8. Why doesn’t the display light come on
when I press a button? Why don’t I hear
a beep when I press a button?
The display light and audio prompting (beep)
only work when the thermostat is on the
wall and 24 VAC power is present to the
thermostat. These features will not work on
battery power alone. See OPERATING
YOUR THERMOSTAT.
9. The display is flashing BATTERY. What
does this mean?
The 9 volt battery installed in the thermostat
is low and should be replaced with a fresh
9 volt Energizer® alkaline battery. See OPERATING YOUR THERMOSTAT.
10. Why won’t the system turn on, even
though the thermostat display is functioning normally?
36
Either the compressor lockout feature is in
operation or the thermostat is not currently
calling for heat or cool. Wait about 5 minutes for the compressor lockout to expire. If
the system is still not running, read the
cautionary statement below. If conditions
permit, use
or
to move the
temperature above or below the setpoint
temperature. See OPERATING YOUR
THERMOSTAT.
! CAUTION
If the outside temperature is below 50°F,
DO NOT use
to move the temperature below the setpoint temperature.
Property damage may result due to compressor operation in cold weather.
11. Why doesn’t the temperature change at
the time I programmed?
There may be a number of causes for this
situation. The following are primary reasons.
• The EMR function is operating. The EMR
function will automatically bring on the
system automatically to bring the temperature to the selected level by the
beginning of the next program period.
See OPERATING YOUR THERMOSTAT.
• You have programmed the incorrect day
or time. Check your programming (be
sure that the times you programmed are
correct AM or PM times). See PROGRAMMING YOUR THERMOSTAT.
• The thermostat is in the HOLD mode.
Press
RUN
PRGM
to start program operation.
See OPERATING YOUR THERMOSTAT.
• The compressor lockout feature is operating; wait about 5 minutes for system to
begin running. See OPERATING YOUR
THERMOSTAT.
37
12. Why does the blower fan keep running
after the system has turned off?
13. Why is the system turning on and off so
frequently (seldom)?
• You have programmed the fan to run
continuously during this period. See
PROGRAMMING YOUR THERMOSTAT.
The anticipation setting is too low (high). To
change anticipation settings, see OPERATING YOUR THERMOSTAT.
• The blower delay feature is operating.
This energy saving feature continues to
blow conditioned air through the ducts
after the system has turned off, rather
than letting the air dissipate.
38
NOTES
39
If you need further information on programming or operation, you may
write to us at:
White-Rodgers Division, Emerson Electric Co.
9797 Reavis Road
St. Louis, MO 63123-5398
Attention: Technical Service Department
WHITE-RODGERS DIVISION
EMERSON ELECTRIC CO.
9797 REAVIS ROAD
ST. LOUIS, MISSOURI 63123-5398
Part No. 37-4500C
Replaces 37-4500B
9602
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
