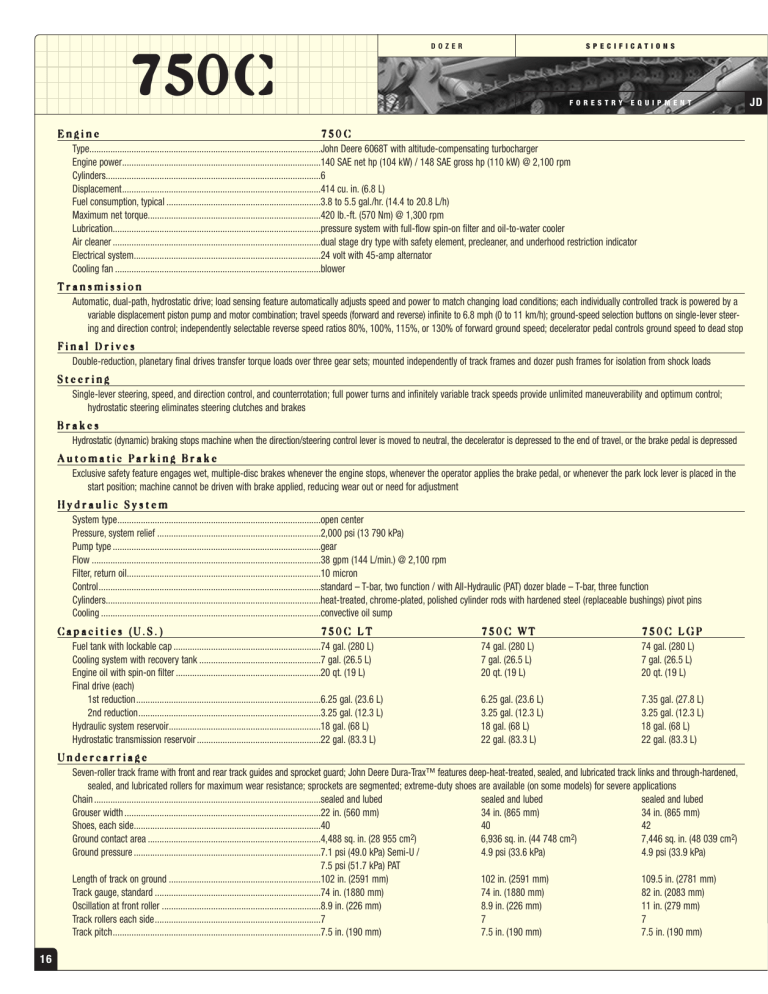

SPECIFICATIONS
DOZER
750C
Engine
FORESTRY
EQUIPMENT
750C
Type...................................................................................................John Deere 6068T with altitude-compensating turbocharger
Engine power.....................................................................................140 SAE net hp (104 kW) / 148 SAE gross hp (110 kW) @ 2,100 rpm
Cylinders............................................................................................6
Displacement.....................................................................................414 cu. in. (6.8 L)
Fuel consumption, typical ..................................................................3.8 to 5.5 gal./hr. (14.4 to 20.8 L/h)
Maximum net torque..........................................................................420 lb.-ft. (570 Nm) @ 1,300 rpm
Lubrication.........................................................................................pressure system with full-flow spin-on filter and oil-to-water cooler
Air cleaner .........................................................................................dual stage dry type with safety element, precleaner, and underhood restriction indicator
Electrical system................................................................................24 volt with 45-amp alternator
Cooling fan ........................................................................................blower
Transmission
Automatic, dual-path, hydrostatic drive; load sensing feature automatically adjusts speed and power to match changing load conditions; each individually controlled track is powered by a
variable displacement piston pump and motor combination; travel speeds (forward and reverse) infinite to 6.8 mph (0 to 11 km/h); ground-speed selection buttons on single-lever steering and direction control; independently selectable reverse speed ratios 80%, 100%, 115%, or 130% of forward ground speed; decelerator pedal controls ground speed to dead stop
Final Drives
Double-reduction, planetary final drives transfer torque loads over three gear sets; mounted independently of track frames and dozer push frames for isolation from shock loads
Steering
Single-lever steering, speed, and direction control, and counterrotation; full power turns and infinitely variable track speeds provide unlimited maneuverability and optimum control;
hydrostatic steering eliminates steering clutches and brakes
Brakes
Hydrostatic (dynamic) braking stops machine when the direction/steering control lever is moved to neutral, the decelerator is depressed to the end of travel, or the brake pedal is depressed
Automatic Parking Brake
Exclusive safety feature engages wet, multiple-disc brakes whenever the engine stops, whenever the operator applies the brake pedal, or whenever the park lock lever is placed in the
start position; machine cannot be driven with brake applied, reducing wear out or need for adjustment
Hydraulic System
System type.......................................................................................open center
Pressure, system relief ......................................................................2,000 psi (13 790 kPa)
Pump type .........................................................................................gear
Flow ..................................................................................................38 gpm (144 L/min.) @ 2,100 rpm
Filter, return oil...................................................................................10 micron
Control...............................................................................................standard – T-bar, two function / with All-Hydraulic (PAT) dozer blade – T-bar, three function
Cylinders............................................................................................heat-treated, chrome-plated, polished cylinder rods with hardened steel (replaceable bushings) pivot pins
Cooling ..............................................................................................convective oil sump
Capacities (U.S.)
750C LT
Fuel tank with lockable cap ...............................................................74 gal. (280 L)
Cooling system with recovery tank ....................................................7 gal. (26.5 L)
Engine oil with spin-on filter ..............................................................20 qt. (19 L)
Final drive (each)
1st reduction...............................................................................6.25 gal. (23.6 L)
2nd reduction..............................................................................3.25 gal. (12.3 L)
Hydraulic system reservoir.................................................................18 gal. (68 L)
Hydrostatic transmission reservoir .....................................................22 gal. (83.3 L)
750C WT
750C LGP
74 gal. (280 L)
7 gal. (26.5 L)
20 qt. (19 L)
74 gal. (280 L)
7 gal. (26.5 L)
20 qt. (19 L)
6.25 gal. (23.6 L)
3.25 gal. (12.3 L)
18 gal. (68 L)
22 gal. (83.3 L)
7.35 gal. (27.8 L)
3.25 gal. (12.3 L)
18 gal. (68 L)
22 gal. (83.3 L)
Undercarriage
Seven-roller track frame with front and rear track guides and sprocket guard; John Deere Dura-Trax™ features deep-heat-treated, sealed, and lubricated track links and through-hardened,
sealed, and lubricated rollers for maximum wear resistance; sprockets are segmented; extreme-duty shoes are available (on some models) for severe applications
Chain .................................................................................................sealed and lubed
sealed and lubed
sealed and lubed
Grouser width ....................................................................................22 in. (560 mm)
34 in. (865 mm)
34 in. (865 mm)
Shoes, each side................................................................................40
40
42
6,936 sq. in. (44 748 cm2)
7,446 sq. in. (48 039 cm2)
Ground contact area ..........................................................................4,488 sq. in. (28 955 cm2)
Ground pressure ................................................................................7.1 psi (49.0 kPa) Semi-U /
4.9 psi (33.6 kPa)
4.9 psi (33.9 kPa)
7.5 psi (51.7 kPa) PAT
Length of track on ground .................................................................102 in. (2591 mm)
102 in. (2591 mm)
109.5 in. (2781 mm)
Track gauge, standard .......................................................................74 in. (1880 mm)
74 in. (1880 mm)
82 in. (2083 mm)
Oscillation at front roller ....................................................................8.9 in. (226 mm)
8.9 in. (226 mm)
11 in. (279 mm)
Track rollers each side.......................................................................7
7
7
Track pitch.........................................................................................7.5 in. (190 mm)
7.5 in. (190 mm)
7.5 in. (190 mm)
16
JD
SAE Operating Weights
750C LT
750C WT
Base weights were computed for units with standard equipment, rollover protective structures, full fuel tanks, and 175-lb. (79 kg) operators.
All-Hydraulic (PAT) Dozer ...................................................................33,736 lb. (15 335 kg)
N/A
Semi-U (High Production)...................................................................31,712 lb. (14 415 kg)
33,843 lb. (15 383 kg)
Straight..............................................................................................N/A
33,324 lb. (15 147 kg)
Refer to the Attachment Guide or see your dealer for details regarding Semi-U (Low Profile), Straight, and Mechanical Angle blades for the 750C LT.
750C LGP
36,576 lb. (16 625 kg)
N/A
N/A
Blade Weights
Includes push beams, trunnion mounts, straight end bits, C-frames, angle and tilt cylinders where applicable.
All-Hydraulic (PAT) Dozer ...................................................................4,939 lb. (2245 kg)
N/A
Semi-U (High Production)...................................................................4,355 lb. (1980 kg)
4,609 lb. (2095 kg)
Straight..............................................................................................N/A
4,090 lb. (1859 kg)
Refer to the Attachment Guide or see your dealer for details regarding Semi-U (Low Profile), Straight, and Mechanical Angle blades for the 750C LT.
5,024 lb. (2284 kg)
N/A
N/A
Blade Capacities
All-Hydraulic (PAT) Dozer ...................................................................4.60 cu. yd. (3.52 m3)
N/A
5.60 cu. yd. (4.28 m3)
Semi-U (High Production)...................................................................5.60 cu. yd. (4.28 m3)
Straight..............................................................................................N/A
3.25 cu. yd. (2.48 m3)
Refer to the Attachment Guide or see your dealer for details regarding Semi-U (Low Profile), Straight, and Mechanical Angle blades for the 750C LT.
4.84 cu. yd. (3.70 m3)
N/A
N/A
Optional or Special Equipment
Complete push beam assemblies for straight or semi-U
1,903 lb. (865 kg)
N/A
blades, rakes, Stingers®, etc. .....................................................1,700 lb. (773 kg)
Complete PAT dozer C-frame assembly..............................................2,834 lb. (1288 kg)
N/A
2,834 lb. (1288 kg)
Tracks – Dura-Trax™ lubricated chain with split
master link
Single-bar grousers
22-in. (560 mm) moderate duty............................................5,056 lb. (2298 kg)*
N/A
N/A
22-in. (560 mm) extreme duty..............................................5,400 lb. (2455 kg)
N/A
N/A
24-in. (610 mm) moderate duty............................................5,340 lb. (2427 kg)
N/A
N/A
28-in. (710 mm) moderate duty .....................................................................................................................................................................................6,322 lb. (2874 kg)
34-in. (865 mm) moderate duty ................................................................................................................6,756 lb. (3070 kg)*
7,093 lb. (3224 kg)*
Swamp shoe – 34-in. (865 mm) ......................................................................................................................6,366 lb. (2894 kg)
N/A
Cab with pressurizer and heater
Without air conditioner ................................................................2,080 lb. (945 kg)
2,080 lb. (945 kg)
2,080 lb. (945 kg)
With air conditioner .....................................................................256 lb. (116 kg)
256 lb. (116 kg)
256 lb. (116 kg)
Canopy ..............................................................................................1,430 lb. (650 kg)*
1,430 lb. (650 kg)*
1,430 lb. (650 kg)*
Rock guard, center section ................................................................353 lb. (160 kg)
N/A
N/A
Drawbar, rigid ....................................................................................154 lb. (70 kg)*
154 lb. (70 kg)*
154 lb. (70 kg)*
Drawbar, extended rigid.....................................................................282 lb. (128 kg)
282 lb. (128 kg)
282 lb. (128 kg)
Limb risers (canopy and cab).............................................................540 lb. (245 kg)
540 lb. (245 kg)
540 lb. (245 kg)
Rear screen (canopy) .........................................................................75 lb. (34 kg)
75 lb. (34 kg)
75 lb. (34 kg)
Rear screen (cab with air conditioner)................................................110 lb. (50 kg)
110 lb. (50 kg)
110 lb. (50 kg)
Side screens (canopy and cab) ..........................................................70 lb. (32 kg)
70 lb. (32 kg)
70 lb. (32 kg)
Door and front screens (canopy and cab)...........................................200 lb. (91 kg)
200 lb. (91 kg)
200 lb. (91 kg)
Cylinder hose guards .........................................................................65 lb. (30 kg)
65 lb. (30 kg)
65 lb. (30 kg)
Prescreener guard .............................................................................15 lb. (7 kg)
15 lb. (7 kg)
15 lb. (7 kg)
Track cleaner bars, front ....................................................................275 lb. (125 kg)
N/A
N/A
Track cleaner bars, rear .....................................................................475 lb. (216 kg)
N/A
N/A
Tank guard 950 lb. (432 kg) .............................................................950 lb. (432 kg)
950 lb. (432 kg)
Lift cylinder guards ............................................................................120 lb. (55 kg)
120 lb. (55 kg)
120 lb. (55 kg)
Extreme-service bottom guard...........................................................280 lb. (127 kg)
280 lb. (127 kg)
280 lb. (127 kg)
Heavy-duty transverse case cover with doors ....................................698 lb. (317 kg)
698 lb. (317 kg)
698 lb. (317 kg)
*Included in SAE operating weight.
17
Dimensions
C Ground clearance
A Overall height to roof
750C LT.......................120.7 in. (3065 mm)
750C WT .....................120.7 in. (3065 mm)
750C LGP ....................120.7 in. (3065 mm)
*Swamp shoes add 2.6 in. (66 mm).
D Blade width
B Tread depth with single-bar grousers
Overall height
to exhaust stack
124.6 in. (3165 mm)
124.6 in. (3165 mm)
124.6 in. (3165 mm)
E Blade height
Moderate duty
2.2 in. (56 mm)
2.2 in. (56 mm)
2.2 in. (56 mm)
F Blade lift height
Tread depth with
swamp shoes
with grousers (excludes
grouser height)*
3.15 in. (80 mm)
14.6 in. (371 mm)
14.6 in. (371 mm)
14.6 in. (371 mm)
Extreme duty
2.7 in. (68 mm)
G Blade dig-
H Blade tilt
I Overall
J Overall width
ging depth
(uses tilt jack)
length
with blade
with blade
angled
35.4 in.
(899 mm)
33.4 in.
(848 mm)
16.2 in.
(413 mm)
195.1 in.
(4955 mm)**
118.5 in.
(3011 mm)
42.2 in.
(1072 mm)
20.2 in.
(513 mm)
27.6 in.
(700 mm)
197.3 in.
(5011 mm)*
N/A
42.2 in.
(1072 mm)
42.2 in.
(1072 mm)
20.2 in.
(513 mm)
20.2 in.
(513 mm)
37.6 in.
(955 mm)
34.6 in.
(878 mm)
197.3 in.
(5011 mm)*
195.1 in.
(4956 mm)**
N/A
35.4 in.
(899 mm)
33.4 in.
(848 mm)
19.1 in.
(484 mm)
193.5 in.
(4916 mm)**
750C LT
All-Hydraulic
(PAT) Dozer ...........129.3 in.
47.0 in.
(3283 mm)
(1193 mm)
Semi-U (High
Production) ...........126.6 in.
50.5 in.
(3216 mm)
(1283 mm)
*Optional extended drawbar adds 7 in. (176 mm).
**Optional extended drawbar adds 8.9 in. (223 mm).
750C WT
Semi-U (Low Profile) blade available through Custom Engineering.
Semi-U (High
Production) ...........144.0 in.
45.0 in.
(3658 mm)
(1143 mm)
Straight .......................132.4 in.
38.4 in.
(3363 mm)
(976 mm)
*Optional extended drawbar adds 7 in. (176 mm).
**Optional extended drawbar adds 8.9 in. (223 mm).
N/A
750C LGP
All-Hydraulic
(PAT) Dozer ...........152.0 in.
45.0 in.
(3861 mm)
(1143 mm)
**Optional extended drawbar adds 8.9 in. (223 mm).
K Blade angle
L Cut reach
M Width over track
N Cast reach
139.4 in.
(3541 mm)
O Cutting edge angle
750C LT
All-Hydraulic
(PAT) Dozer ...........24 degrees
3.5 in. (89 m)
96 in. (2438 m)
12.8 in. (326 m)
58 degrees
5.7 in. (144 mm)
116 in. (2946 mm)
14.4 in. (366 mm)
60 degrees
750C LGP
All-Hydraulic
(PAT) Dozer ...........24 degrees
Drawbar Pull
750C
Maximum ..........................................................................................51,000 lb. (227 kN)
At 1.2 mph (1.9 km/h) .......................................................................31,800 lb. (141 kN)
At 2.0 mph (3.2 km/h) .......................................................................20,200 lb. (90 kN)
18
A
E
C
G
Standard Drawbar
B
F
Extended Drawbar
O
I
K
Cut Reach
L
Width Over Track
M
J
H
Cast Reach
N
D
75
320
70
32
750C LT, WT,
WXLT, and LGP
65
280
60
55
240
DRAWBAR PULL X 1000 lb. (N) (kg)
50
45
CRAWLER SPEED
VS
GROUND PULL
28
Usable pull will depend
on traction and weight of tractor.
24
200
20
40
35
160
16
30
120
12
25
20
80
8
15
10
40
4
5
lb.
N
kg
km/h
0
mph
0
2
1
4
2
6
3
8
4
5
10
6
12
7
8
SPEED
19
Additional Equipment
Key: ● Standard equipment ▲ Optional or special equipment
See your John Deere dealer for further information.
LT WT LGP Engine
LT WT LGP Undercarriage (continued)
LT WT LGP Operator’s Station (continued)
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
● ● ● Headliner for canopy
● ● ● Horn, electric (conforms to SAE
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●●●
▲▲▲
▲▲▲
▲▲▲
▲▲▲
▲▲▲
Air cleaner, dual-stage aspirated type
Air cleaner restriction indicator
Blower fan
Coolant recovery tank
Electric ether start aid
Enclosed safety fan guard (conforms
to SAE J1308)
Engine coolant –34°F (–37°C)
Oil-to-water engine oil cooler
Precleaner
Spin-on fuel filter
Trash-resistant radiator
Turbocharger
Underhood muffler with vertical
exhaust stack
Water separator
Engine coolant heater, 1,000 watts,
120 volts
Prescreener guard
Radiator sand screen
Reversible fan
Chrome exhaust stack
22-in. (560 mm) moderate-duty singlebar grouser tracks, Dura-Trax™ lubricated chain with split master link
▲
22-in. (560 mm) extreme-duty singlebar grouser tracks, Dura-Trax lubricated chain with split master link
▲
24-in. (610 mm) moderate-duty singlebar grouser tracks, Dura-Trax lubricated chain with split master link
▲ 28-in. (710 mm) moderate-duty singlebar grouser tracks, Dura-Trax lubricated chain with split master link
● ● 34-in. (865 mm) moderate-duty singlebar grouser tracks, Dura-Trax lubricated chain with split master link
▲ 34-in. (865 mm) swamp shoe tracks,
Dura-Trax lubricated chain with split
master link*
▲
Bolt-on full-length rock guards
Lights
● ● ● Two front driving/working and one
●
●
●
●
●
●
●
●
●
●
●
●
●●●
▲▲▲
▲▲▲
released park brake, pedal operated
Oil-to-air transmission cooler
Dual-path hydrostatic transmission
Guard, built-in final drive seal
Transmission neutral lock with
safety start switch
Transmission diagnostic test ports
Remote transmission diagnostic
test ports
Winch drive
Operator’s Station
● ● ● Built-in diagnostics – Fault code
●●●
●●●
▲▲▲
Electrical
● ● ● Dual 12-volt low-maintenance batteries, 190-min. reserve capacity,
950 CCA
● ● ● Bypass start safety cover at starter
● ● ● Master electrical disconnect switch,
lockable
Hydraulic System
●●●
●●●
●●●
▲▲●
●●
▲▲●
▲ ▲
▲▲▲
▲▲▲
Lift cylinders
“O” ring face seal fittings
Quick-drop hydraulic valve
All-Hydraulic (PAT) dozer blade with
grille “up-loop” plumbing
Two-spool hydraulic system
Three-spool hydraulic system
Four-spool hydraulic system
Auxiliary hydraulic lines to rear
Oil sampling test kit
Undercarriage
● ● Chain guides
● ● ● Front idler and bolt-on sprocket
chain guides
● ● ● Sealed and lubricated chain
● ● ● Oscillating track-frame system
●●●
●●●
●●●
●●●
●●●
●●●
●●●
●●●
retrieval / Onboard diagnostics
for monitors, controller(s), wiring,
gauges, sensors, etc.
Built-in Operator’s Manual storage
compartment and manual
Modular design canopy (conforms
to SAE J1040)
Cab – Air conditioning, 33,000 Btu* /
Fresh air intake heater/pressurizer,
400 CFM, 40,000 Btu/hr. (11.7 kW)
(conforms to SAE J1503, J1535D) /
Front window and two door windshield wipers/washers
Deluxe suspension vinyl seat –
Adjustable armrests, thigh support,
backrest, height/weight, and foreaft (conforms to SAE J899)
Deluxe suspension cloth seat
Deluxe air suspension vinyl and
cloth seat
Electronic monitor system with audible and visual warning – Air restriction / Coolant temperature / Engine
oil pressure / Ether injection on /
Fasten seat belt / Hydraulic filter
restriction / Low alternator voltage /
Transmission filter restriction /
Transmission malfunction / Transmission return to neutral / Transmission temperature
Engine rpm digital display (selectable)
Floormat
Fuel gauge, electric, illuminated
Ground-speed decelerator (engine
and transmission)
Net engine power is with standard equipment including air cleaner, exhaust system, alternator, and
cooling fan, at standard conditions per SAE J1349 and DIN 6270B, using No. 2-D fuel at 35 API gravity. No derating is required up to 10,000-ft. (3050 m) altitude. Gross power is without cooling fan.
Also available: winches, fair-leads, log arches, skidding grapples, trash packages, landfill protection
packages, cable plows, side booms, field-installed cab for canopy, canopy heater, and fire suppression systems.
DKA750CII Litho in U.S.A. (00-10)
(selectable)
● ● ● Interior-mounted rearview mirror
(conforms to SAE J985)
● ● ● Key start switch with electric fuel
shutoff
● ● ● Lunch-box storage
● ● ● Parking brake, single-lever activation
▲ ▲ ▲ Protection package, full vehicle –
●●●
●●●
●●●
rear working halogen, 33,000 candlepower (375 737 lux each)
Power Train
● ● ● Automatic applied, hydrostatic-
J994, J1446)
● ● ● Hourmeter, electric, illuminated
●●●
●●●
Brush screens, heavy-duty / Guards,
tank protection / Limb risers, arched
Reverse ratio – user selectable at
80%, 100%, 115%, or 130% of forward speed
Seat belt, 3 in. (76 mm), with
retractors (conforms to SAE J386)
Single-lever steering, direction,
and ground-speed control with
selectable ground-speed and horn
controls integrated in “T” handle
Tool storage, lockable
Voltmeter digital display (selectable)
Overall Vehicle
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●●●
▲▲▲
▲▲▲
▲ ●
●●
▲
●●●
▲
▲▲▲
▲▲▲
▲▲▲
▲▲▲
▲▲▲
▲
Front tow hook
Heavy-duty, hinged, bar-type grille
Perforated engine side shields
Rear service doors, lockable
Reverse alarm – Switchable to 97
dB(A) or 111 dB(A) (conforms to
SAE J994, J1446)
Vandal protection – Engine access
door / Fuel tank cap / Rear service
doors / Instrument panel
Cupped end bits (except All-Hydraulic
[PAT] dozer blades)
Straight end bits
All-Hydraulic (PAT) dozer blade
(included in SAE operating weight)
Semi-U (High Production) dozer
blade (included in SAE operating
weight)
Straight dozer blade (included in
SAE operating weight – see your
John Deere dealer for 750C LT
application)
Tilt cylinder hose protection
Blade trash rack
Environmental fluid drains
Extended rigid drawbar with pin for
pull-type implements
Heavy-duty transverse case cover
Perforated hood for trash environments
Rigid drawbar with pin
Trash bars front and rear
Specifications and design subject to change without notice. Wherever applicable, specifications are
in accordance with SAE standards. Except where otherwise noted, these specifications are based
on units with rollover protective structures, full fuel tanks, 175-lb. (79 kg) operators, and standard
equipment; 750C LT unit with 22-in. (560 mm) moderate-duty grousers, rigid drawbar, and Semi-U
(High-Production) blade; and 750C WT and LGP units with 34-in. (865 mm) single-bar grousers and
rigid drawbars.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
