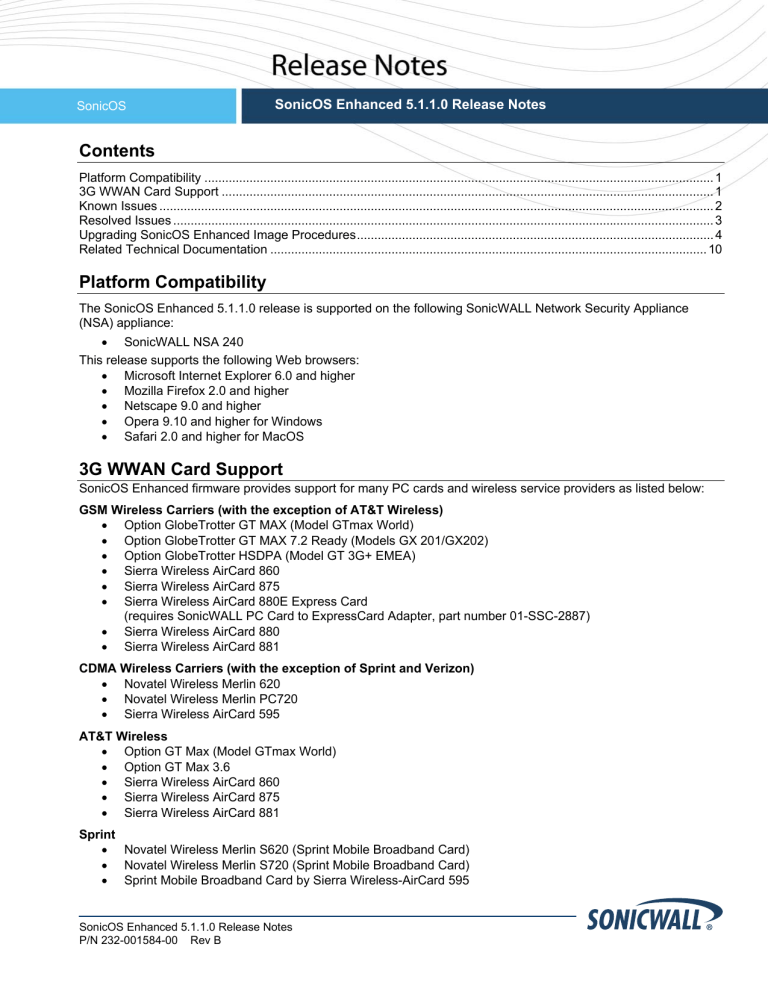

SonicOS Enhanced 5.1.1.0 Release Notes, Rev B
SonicOS
SonicOS Enhanced 5.1.1.0 Release Notes
Contents
Platform Compatibility ................................................................................................................................................... 1
3G WWAN Card Support .............................................................................................................................................. 1
Known Issues ................................................................................................................................................................ 2
Resolved Issues ............................................................................................................................................................ 3
Upgrading SonicOS Enhanced Image Procedures....................................................................................................... 4
Related Technical Documentation .............................................................................................................................. 10
Platform Compatibility
The SonicOS Enhanced 5.1.1.0 release is supported on the following SonicWALL Network Security Appliance
(NSA) appliance:
• SonicWALL NSA 240
This release supports the following Web browsers:
• Microsoft Internet Explorer 6.0 and higher
• Mozilla Firefox 2.0 and higher
• Netscape 9.0 and higher
• Opera 9.10 and higher for Windows
• Safari 2.0 and higher for MacOS
3G WWAN Card Support
SonicOS Enhanced firmware provides support for many PC cards and wireless service providers as listed below:
GSM Wireless Carriers (with the exception of AT&T Wireless)
• Option GlobeTrotter GT MAX (Model GTmax World)
• Option GlobeTrotter GT MAX 7.2 Ready (Models GX 201/GX202)
• Option GlobeTrotter HSDPA (Model GT 3G+ EMEA)
• Sierra Wireless AirCard 860
• Sierra Wireless AirCard 875
• Sierra Wireless AirCard 880E Express Card
(requires SonicWALL PC Card to ExpressCard Adapter, part number 01-SSC-2887)
• Sierra Wireless AirCard 880
• Sierra Wireless AirCard 881
CDMA Wireless Carriers (with the exception of Sprint and Verizon)
• Novatel Wireless Merlin 620
• Novatel Wireless Merlin PC720
• Sierra Wireless AirCard 595
AT&T Wireless
• Option GT Max (Model GTmax World)
• Option GT Max 3.6
• Sierra Wireless AirCard 860
• Sierra Wireless AirCard 875
• Sierra Wireless AirCard 881
Sprint
• Novatel Wireless Merlin S620 (Sprint Mobile Broadband Card)
• Novatel Wireless Merlin S720 (Sprint Mobile Broadband Card)
• Sprint Mobile Broadband Card by Sierra Wireless-AirCard 595
SonicOS Enhanced 5.1.1.0 Release Notes
P/N 232-001584-00 Rev B
Verizon Wireless
• Novatel Wireless Merlin V620
• Sierra Wireless AirCard 595
• Verizon Wireless V740 ExpressCard
(requires SonicWALL PC Card to ExpressCard Adapter, part number 01-SSC-2887)
Analog Modem
• Zoom Model 3075 56K V.92 PC Card Modem
Known Issues
This section contains a list of known issues in the SonicOS Enhanced 5.1.1.0 release.
Application Firewall
Symptom
Condition / Workaround
Issue
Application Firewall can fail to match a
keyword referenced in an SMTP Client
Request policy.
Occurs when an email is sent with an inline
attachment that contains the keyword, and the
keyword is defined in an application object of type File
Content.
71952
Symptom
Condition / Workaround
Issue
Imported preferences files containing
Portshield interfaces result in incorrect
VLAN settings on the SonicWALL NSA 240.
Occurs when preferences are imported from
SonicWALL TZ and PRO appliances running SonicOS
Enhanced 3.x and 4.x firmware versions. When the
preferences file contains Portshield V1 interfaces, the
interfaces are represented as VLANs in the target
system running SonicOS Enhanced 5.x firmware.
72152
The spillover value for WAN load balancing
is limited to 100 Mbps.
Occurs when attempting to configure a spillover value
of more than 100 Mbps for WAN load balancing on
gigabit interfaces.
71816
The WAN probe feature does not work
correctly for an interface configured as a
PPTP client, causing the interface to
failover in a load balancing environment.
Occurs when WAN load balancing is enabled and one
of the WAN interfaces is configured as a PPTP client.
Ping packets sent to the probe target are successfully
handled, but the probe results are unavailable for the
PPTP WAN interface.
71768
Microsoft Network (MSN) services on the
WAN cannot be accessed from the
SonicWALL LAN under certain conditions.
Occurs when the SonicWALL WAN port is configured
as a PPPoE client, and connects to the MSN server
through a PPPoE server.
71298
ARP requests are unexpectedly forwarded
to the bridged interface.
Occurs when a secondary subnet is configured on an
interface, using a static route and a static ARP entry,
and then another interface is configured as a Layer 2
bridge to the first interface. SonicOS correctly
provides the static ARP entry in responses to ARP
requests for a short time after rebooting the system,
but then begins forwarding the ARP requests to the
bridged interface.
71127
The OSPF router ID (such as 10.0.0.2)
retains its previous value after being
changed.
Occurs when the OSPF authentication mode is
“simple password”.
66113
Networking
SonicOS Enhanced 5.1.1.0 Release Notes
P/N 232-001584-00 Rev B
2
VPN
Symptom
Condition / Workaround
Issue
Fragmented packets are sometimes not
handled correctly by site-to-site VPN.
Occurs when site-to-site VPN is configured between
the WAN interfaces of two SonicWALL appliances,
and both of the following are configured:
• A VPN NAT policy is configured for access to
the LAN side of the destination appliance.
• The destination appliance has both IPS and
IP Reassembly enabled.
72178
A remote DHCP client can no longer ping a
client connected to the central gateway
appliance after that appliance reboots.
Occurs when the remote client receives its IP address
by using DHCP over VPN. The client is connected to
a remote SonicWALL gateway that communicates
with the central gateway / DHCP server over a site-tosite VPN tunnel.
71811
Local users on a SonicWALL appliance
cannot access the SonicOS user interface
on a remote appliance over a VPN tunnel.
Occurs when the local users are connected to an
interface in a custom zone (Zone1) on the local
appliance, and the firewall access rules for Zone1 to
VPN are configured to allow access to all users, or to
specific local users or their corresponding local
groups.
71250
In a site-to-site VPN tunnel, continuous
ping, HTTP, or HTTPS traffic is temporarily
disconnected.
Occurs when the Encryption method is set to None
during the IPSec (Phase 2) Proposal.
70339
Symptom
Condition / Workaround
Issue
A local user with wireless guest privileges
can still access the WAN and cannot be
logged out after the login session expires.
The User > Guest Status page displays the
Session Expiration as N/A.
Occurs when a guest user is connected to the WLAN
over a SonicPoint and remains logged in until the
maximum session time is reached and the popup
window with the Logout button closes.
71620
Users
Resolved Issues
The following issue is resolved in the SonicOS Enhanced 5.1.1.0 release.
Flash File System
Symptom
Condition / Workaround
Issue
New versions of the SonicWALL NSA 240
hardware are no longer compatible with
SonicOS Enhanced 5.1.1.x versions of the
firmware.
Occurs because the flash memory in the newer units
is provided by a different manufacturer since the
original flash is no longer available.
72850
SonicOS Enhanced 5.1.1.0 Release Notes
P/N 232-001584-00 Rev B
3
Upgrading SonicOS Enhanced Image Procedures
The following procedures are for upgrading an existing SonicOS Enhanced image to a newer version:
Obtaining the Latest SonicOS Enhanced Image Version ............................................................................................. 4
Saving a Backup Copy of Your Configuration Preferences .......................................................................................... 4
Importing Preferences from SonicOS Standard to SonicOS Enhanced 5.1 ................................................................. 5
Upgrading a SonicOS Enhanced Image with Current Preferences .............................................................................. 8
Upgrading a SonicOS Enhanced Image with Factory Defaults .................................................................................... 8
Using SafeMode to Upgrade Firmware......................................................................................................................... 9
Obtaining the Latest SonicOS Enhanced Image Version
To obtain a new SonicOS Enhanced firmware image file for your SonicWALL security appliance:
1. Connect to your mysonicwall.com account at http://www.mysonicwall.com.
2. Copy the new SonicOS Enhanced image file to a directory on your management station.
You can update the SonicOS Enhanced image on a SonicWALL security appliance remotely if the LAN interface or
the WAN interface is configured for management access.
Saving a Backup Copy of Your Configuration Preferences
Before beginning the update process, make a system backup of your SonicWALL security appliance configuration
settings. The backup feature saves a copy of your current configuration settings on your SonicWALL security
appliance, protecting all your existing settings in the event that it becomes necessary to return to a previous
configuration state.
In addition to using the backup feature to save your current configuration settings to the SonicWALL security
appliance, you can export the configuration preferences file to a directory on your local management station. This
file serves as an external backup of the configuration preferences, and can be imported back into the SonicWALL
security appliance.
Perform the following steps to save a backup of your configuration settings and export them to a file on your local
management station:
1. On the System > Settings page, click Create Backup. Your configuration preferences are saved. The
System Backup entry is displayed in the Firmware Management table.
2. To export your settings to a local file, click Export Settings. A popup window displays the name of the
saved file.
SonicOS Enhanced 5.1.1.0 Release Notes
P/N 232-001584-00 Rev B
4
Importing Preferences from SonicOS Standard to SonicOS Enhanced 5.1
The SonicOS Standard to Enhanced Settings Converter is designed to convert a source Standard Network Settings
file to be compatible with a target SonicOS Enhanced appliance. Due to the more advanced nature of SonicOS
Enhanced, its Network Settings file is more complex than the one SonicOS Standard uses. They are not
compatible. The Setting Converter creates an entirely new target Enhanced Network Setting file based on the
network settings found in the source Standard file. This allows for a rapid upgrade from a Standard deployment to
an Enhanced one with no time wasted in re-creating network policies. Note: SonicWALL recommends deploying the
converted target Network Settings file in a testing environment first and always keeping a backup copy of the
original source Network Settings file.
The SonicOS Standard to Enhanced Settings Converter is available at: https://convert.global.sonicwall.com/
If the preferences conversion fails, email your SonicOS Standard configuration file to
settings_converter@sonicwall.com with a short description of the problem. In this case, you may also consider
manually configuring your SonicWALL NSA 240.
To convert a Standard Network Settings file to an Enhanced one:
1. Login using your MySonicWALL credentials and agree to the security statement.
The source Standard Network Setting file must be uploaded to MySonicWALL as part of the conversion
process. The Setting Conversion tool uses MySonicWALL authentication to secure private network settings.
Users should be aware that SonicWALL will retain a copy of their network settings after the conversion
process is complete.
2. Upload the source Standard Network Settings file:
• Click Browse.
• Navigate to and select the source SonicOS Standard Settings file.
• Click Upload.
• Click the right arrow to proceed.
3. Review the source SonicOS Standard Settings Summary page.
This page displays useful network settings information contained in the uploaded source Network Settings
file. For testing purposes, the LAN IP of the appliance can be changed on this page in order to deploy it in a
testing environment.
• (Optional) Change the LAN IP address of the source appliance to that of a target testing appliance.
• Click the right arrow to proceed.
4. Select the target SonicWALL appliance for the Enhanced deployment from the available list.
SonicOS Enhanced is configured differently on various SonicWALL appliances, mostly to support different
interface numbers. As such, the converted Enhanced Network Settings file must be customized to the
appliance targeted for deployment.
5. Complete the conversion by clicking the right arrow to proceed.
6. Click the download button and save the new target SonicOS Enhanced Network Settings file.
SonicOS Standard to Enhanced Preferences Caveats List
Common Items
A number of features are shared in SonicOS Standard and Enhanced, leading to elements represented similarly
between STD and ENH network settings files. Such common elements are translated to the new Enhanced file.
Not Supported Items
The following items from the SonicOS UI and preferences tags are not supported:
•
In Network->Intranet, the settings for the network ranges listed here are not supported when the checkbox
is set to “Specified address ranges are attached to the WAN link.”
SonicOS Enhanced 5.1.1.0 Release Notes
P/N 232-001584-00 Rev B
5
•
•
•
•
•
In the VPN policy creation, there is a checkbox named "Forward packets to remote VPNs". This setting is
normally used in a hub and spoke VPN scenario. In ENH, the local and destination networks are explicitly
specified. This setting is translated only when there is more than one VPN policy that has the checkbox
enabled. This is supported in ENH firmware by adjusting the local networks of each policy to include the
remote networks of every other policy.
When translating access rules, the destination IP addresses are compared to the entries from the One-toOne NAT table. When a matching range is found in that table, the destination network in the translated
access rule will contain the public IP address object rather than the private address object.
For firewalls with the WLAN connections, there is a checkbox and a configuration section in WGS->Settings
called "Enable URL Allow List for Unauthenticated Users". In ENH, this has been replaced with address
objects and address objects at the moment does not support URLs.
Certificates are not translated at all as these belong to unique firewalls.
Upgrade keys are not translated as these are unique to each firewall.
Naming Conventions
The biggest difference in between SonicOS Standard and Enhanced is the way that Enhanced increases network
policy granularity through the use of network objects. While initially time consuming to set up, an extensive object
library allows a network administrator to define very specific and effective network policies.
As part of the conversion to Enhanced, the Standard policies found in the Standard Network Settings file are broken
down into logical network objects and are named in the following way:
VPN Policies
•
•
•
The destination networks in VPN policies are replaced with address objects. The naming convention for the
address objects created are: “policy-name”-local and “policy-name”-remote.
Access rules are also created depending on the checkboxes per policy.
STD VPN Policies refer to its local networks using the termination point. There are three choices, a) LAN,
b) DMZ and c) LAN and DMZ. In order to support this in ENH, the local networks are pointed to the
appropriate subnets object. If the termination point is LAN and DMZ, an address group containing both the
LAN and DMZ subnets is created and used as its local network.
Address Objects
•
The naming convention for address objects is to use the IP address as its name as well.
Interfaces
•
•
Ungrouped items referring to LAN/WAN/DMZ in STD are set to the correct interface and zone objects in
ENH.
If LAN subnets are supported in ENH, the tool creates the appropriate ARP entry/ies, routing entry/ies and
address objects.
Access Rules
•
•
•
•
•
Address Objects referring to the source/destination are created.
Schedule objects are created if a time constraint is configured in Standard.
In Standard, certain services can be configured to pass through the firewall from LAN to WAN unimpeded
(i.e., the access rules are ignored). A Service Object group is created for these services and an access rule
allowing the traffic for these services to flow between LAN/WAN.
HTTP/HTTPS/Ping/SNMP management are derived from default rules in STD and set in the proper
interfaces in ENH.
The order of the access rules in Standard is not followed when translated to ENH because the access rules
from Standard can have multiple equivalents in ENH. Also, the default rules are ensured to remain as the
lowest priority.
SonicOS Enhanced 5.1.1.0 Release Notes
P/N 232-001584-00 Rev B
6
NAT Policies
•
SonicOS Standard One-to-One NAT policies are translated to appropriate NAT policies in SonicOS
Enhanced, which may include the creation of address objects when necessary.
Note that in order to support One-to-One NAT correctly, the address ranges specified in a One-to-One NAT
policy requires that we create individual address objects for each IP address in the range.
Services
•
•
•
Default Service items in STD are translated to equivalent ENH address objects.
Additional service items are also translated into new service objects.
Service Object groups were supported in STD by using similar names. An equivalent ENH service object
group is created in this case.
DHCP Server
•
Dynamic and Static lease settings require creation of its equivalent ENH settings.
IP Helper
•
NetBIOS settings in STD are supported by creating appropriate IP Helper policies. This is not supported
yet.
Users
•
•
•
Local users are translated to equivalent ENH users
Passwords are copied over to ENH and the tool also updates the tag that is used for encryption.
User properties were supported by checkboxes in STD. This is supported in ENH by adding the user to a
group that supports the property (e.g., Limited Admin, Bypass Auth, etc.)
Wireless
•
•
•
•
•
If WLAN restricts certain MAC addresses, MAC address objects are created and added to a group of
objects with the name “WLAN ACL MAC Access Denied”.
If WLAN allows certain MAC addresses, MAC address objects are created and added to a group of objects
with the name “WLAN ACL MAC Access Allowed".
The set of authorized access points also require the creation of MAC address objects and group.
Guest Profiles are translated to ENH directly.
Configured items in Wireless guest services are translated to correct users in ENH.
Static Routes
•
Static routes are translated by creating address objects for the destination network, the gateway and adding
the static route in the routing section for the ENH firmware.
Transparent Mode
•
•
Transparent mode between WAN and DMZ is translated by creating address objects for each of the ranges
defined and then creating an address group containing the address objects created. The address group is
then used for the DMZ configuration in ENH.
Transparent mode between WAN and LAN is supported in a similar manner as the WAN/DMZ pairing and
the network ranges are created depending on the settings from the Network->Intranet page in Standard.
SonicOS Enhanced 5.1.1.0 Release Notes
P/N 232-001584-00 Rev B
7
Upgrading a SonicOS Enhanced Image with Current Preferences
Perform the following steps to upload new firmware to your SonicWALL appliance and use your current
configuration settings upon startup:
1. Download the SonicOS Enhanced firmware image file from mysonicwall.com and save it to a location on
your local computer.
2. On the System > Settings page, click Upload New Firmware.
3. Browse to the location where you saved the SonicOS Enhanced firmware image file, select the file, and
click Upload.
4. On the System > Settings page, click the Boot icon in the row for Uploaded Firmware.
5. In the confirmation dialog box, click OK. The SonicWALL restarts and then displays the login page.
6. Enter your user name and password. Your new SonicOS Enhanced image version information is listed on
the System > Settings page.
Upgrading a SonicOS Enhanced Image with Factory Defaults
Perform the following steps to upload new firmware to your SonicWALL appliance and start it up using the default
configuration:
1. Download the SonicOS Enhanced firmware image file from mysonicwall.com and save it to a location on
your local computer.
2. On the System > Settings page, click Create Backup.
3. Click Upload New Firmware.
4. Browse to the location where you saved the SonicOS Enhanced firmware image file, select the file, and
click Upload.
5. On the System > Settings page, click the Boot icon in the row for Uploaded Firmware with Factory
Default Settings.
6. In the confirmation dialog box, click OK. The SonicWALL restarts and then displays the login page.
7. Enter the default user name and password (admin / password) to access the SonicWALL management
interface.
SonicOS Enhanced 5.1.1.0 Release Notes
P/N 232-001584-00 Rev B
8
Using SafeMode to Upgrade Firmware
If you are unable to connect to the SonicWALL security appliance’s management interface, you can restart the
SonicWALL security appliance in SafeMode. The SafeMode feature allows you to quickly recover from uncertain
configuration states with a simplified management interface that includes the same settings available on the
System > Settings page.
To use SafeMode to upgrade firmware on the SonicWALL security appliance, perform the following steps:
1. Connect your computer to the X0 port on the SonicWALL appliance and configure your IP address with an
address on the 192.168.168.0/24 subnet, such as 192.168.168.20.
2. Use a narrow, straight object, like a straightened paper clip or a toothpick, to press and hold the reset
button on the security appliance for one second. The reset button is located on the back of the appliance
next to the power connector.
The Test light starts blinking when the SonicWALL security appliance has rebooted into SafeMode.
3. Point the Web browser on your computer to 192.168.168.168. The SafeMode management interface
displays.
4. If you have made any configuration changes to the security appliance, select the Create Backup On Next
Boot checkbox to make a backup copy of your current settings. Your settings will be saved when the
appliance restarts.
5. Click Upload New Firmware, and then browse to the location where you saved the SonicOS Enhanced
firmware image, select the file, and click Upload.
6. Select the boot icon in the row for one of the following:
•
Uploaded Firmware – New!
Use this option to restart the appliance with your current configuration settings.
•
Uploaded Firmware with Factory Defaults – New!
Use this option to restart the appliance with default configuration settings.
7. In the confirmation dialog box, click OK to proceed.
8. After successfully booting the firmware, the login screen is displayed. If you booted with factory default
settings, enter the default user name and password (admin / password) to access the SonicWALL
management interface.
SonicOS Enhanced 5.1.1.0 Release Notes
P/N 232-001584-00 Rev B
9
Related Technical Documentation
SonicWALL user guides and reference documentation is available at the SonicWALL Technical Documentation
Online Library: http://www.sonicwall.com/us/Support.html
For basic and advanced deployment examples, refer to SonicOS Guides and SonicOS TechNotes available on the
Web site.
______________________
Last updated: 10/19/2009
SonicOS Enhanced 5.1.1.0 Release Notes
P/N 232-001584-00 Rev B
10
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
