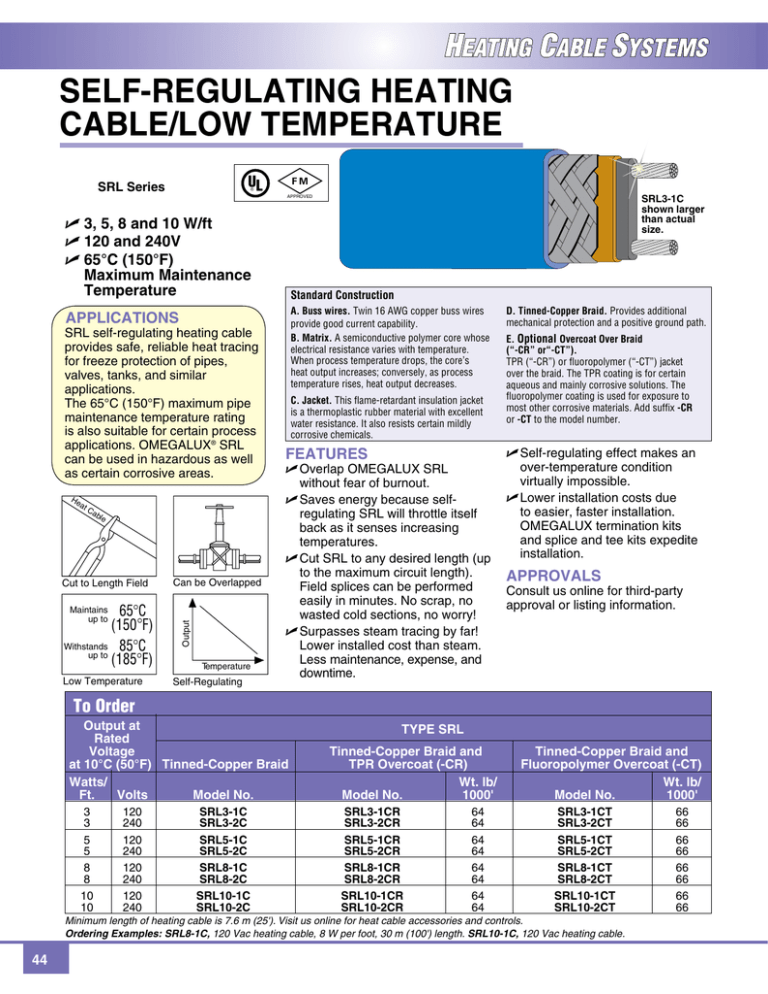

SELF-REguLaTiNg hEaTiNg CaBLE/LOW TEMPERaTuRE U 3, 5, 8 and 10 W/ft

SELF-REguLaTiNg hEaTiNg CaBLE/LOW TEMPERaTuRE U 3, 5, 8 and 10 W/ft
Self-regulating heating
cable/low temperature
ARTWORK/PRODUCT ART/ ELECTRIC HEATERS/EH-SRL CABLE
FM
SRL Series
APPROVED
B
U3, 5, 8 and 10 W/ft
U120 and 240V
U65°C (150°F)
Maximum Maintenance
Temperature
Standard Construction
A. Buss wires. Twin 16 AWG copper E
buss wires
provide good current capability.
B. Matrix. A semiconductive polymer core whose
electrical resistance varies with temperature.
When process temperature drops, the core’s
heat output increases; conversely, as process
temperature rises, heat output decreases.
Applications
SRL3-1C
shown larger
than actual
size.
E. Optional Overcoat Over Braid
(“-CR” or“-CT”).
TPR (“-CR”) or fluoropolymer (“-CT”) jacket
over the braid. The TPR coating is for certain
aqueous and mainly corrosive solutions. The
fluoropolymer coating is used for exposure to
most other corrosive materials. Add suffix -CR
or -CT to the model number.
USelf-regulating effect makes an
over-temperature condition
virtually impossible.
ULower installation costs due
to easier, faster installation.
OMEGALUX termination kits
and splice and tee kits expedite
installation.
Approvals
Consult us online for third-party
approval or listing information.
Output
SRL self-regulating heating cable
provides safe, reliable heat tracing
for freeze protection of pipes,
valves, tanks, and similar
applications.
C. Jacket. This flame-retardant insulation jacket
The 65°C (150°F) maximum pipe
is a thermoplastic rubber material with excellent
maintenance temperature rating
water resistance. It also resists certain mildly
is also suitable for certain process
corrosive chemicals.
applications. OMEGALUX® SRL
Features
DUCT ART/ELECTRIC
HEATERS/EH-SRM
QUALITY CHART3
can be used in hazardous
as well
UOverlap OMEGALUX SRL
as certain corrosive areas.
without fear of burnout.
He
U
Saves energy because selfat
Ca
ble
regulating SRL will throttle itself
back as it senses increasing
temperatures.
UCut SRL to any desired length (up
to the maximum circuit length).
Can be Overlapped
Cut to Length Field
Field splices can be performed
easily in minutes. No scrap, no
Maintains 65°C
wasted cold sections, no worry!
up to
(150°F)
USurpasses steam tracing by far!
Lower installed cost than steam.
Withstands 85°C
up to
Less maintenance, expense, and
(185°F)
Temperature
downtime.
A
D Braid.CProvides
B
D. Tinned-Copper
additional
mechanical protection and a positive ground path.
Low Temperature
Self-Regulating
To Order
Output at
TYPE SRL
Rated
Voltage
Tinned-Copper Braid and
Tinned-Copper Braid and
at 10°C (50°F) Tinned-Copper Braid
TPR Overcoat (-CR)
Fluoropolymer Overcoat (-CT)
Watts/
Wt. lb/
Wt. lb/
Ft. Volts
Model No.
Model No.
1000'
Model No.
1000'
3 120SRL3-1C
SRL3-1CR 64SRL3-1CT
66
3240SRL3-2C
SRL3-2CR 64SRL3-2CT
66
5120SRL5-1C
SRL5-1CR 64SRL5-1CT
66
5 240SRL5-2C
SRL5-2CR 64SRL5-2CT
66
8120SRL8-1C
SRL8-1CR 64
SRL8-1CT
66
8 240SRL8-2C
SRL8-2CR 64SRL8-2CT
66
10 120
SRL10-1CSRL10-1CR
64SRL10-1CT
66
10 240SRL10-2C
SRL10-2CR 64SRL10-2CT
66
Minimum length of heating cable is 7.6 m (25'). Visit us online for heat cable accessories and controls.
Ordering Examples: SRL8-1C, 120 Vac heating cable, 8 W per foot, 30 m (100') length. SRL10-1C, 120 Vac heating cable.
44
General Specifications
Maximum Pipe Maintenance
Temperature/POWER ON: 65°C (150°F)
Maximum Intermittent Exposure
Temperature/POWER OFF: 85°C (185°F)
Buss Wire Gauge: 16 AWG
Approximate Cable Size: 3⁄8 x 1⁄8"
(CR & CT only) 7⁄16 x 3⁄16"
Alternate Voltage Operation
SRL Percent Output Operated At
Rating
208V 220V277V
SRL 3-2
SRL 5-2
SRL 8-2
SRL 10-2
80%
82%
86%
87%
87%
90%
91%
92%
115%
113%
112%
110%
Maximum Circuit Lengths
Max.
Max.
SRL
Circuit
SRL Circuit
Rating Length Rating Length
SRL 3-1
SRL 3-2
SRL 5-1
SRL 5-2
385'
695'
295'
540'
SRL 8-1
SRL 8-2
SRL 10-1
SRL 10-2
210'
420'
180'
360'
ARTWORK/PRODUCT ART/ELECTRIC HEATERS/EH-SRL-therm output rtg
Start-up Current (Amps/ft)
Thermal Output Rating
Watts Temperature °F
/Ft.
Volts
-20 0+50
120
240
120
240
120
240
120
240
0.06
0.05
0.14
0.09
0.27
0.15
0.31
0.17
0.05
0.04
0.12
0.08
0.21
0.13
0.25
0.15
0.04
0.03
0.08
0.05
0.17
0.08
0.21
0.12
Circuit Breaker Selection
Circuit breakers must have sufficient capacity to allow
for the inrush current of initial start-up. To determine
the circuit breaker size required, multiply the start-up
in amps/ft. times the installed total cable length in feet
at the expected start-up temperature (°F).
NOTE: Thermal circuit breakers are recommended
since magnetic circuit breakers could “nuisance trip”
at low temperature.
13
12
11
SRL 10W/Ft
10
9
SRL 8W/Ft
8
Heat Output (W/Ft)
3
3
5
5
8
8
10
10
14
7
SRL 5W/Ft
6
5
SRL 3W/Ft
4
3
Cable Output vs.
Temperature
2
1
1
10
20
30
40
50
60
70
80
90 100 110 120 130 140 150
Pipe Temperature (ϒF)
Third Party Approvals
For a listing of Third Party Approvals, please refer
to us online.
45
