Dexter Laundry T-900 Operating instructions

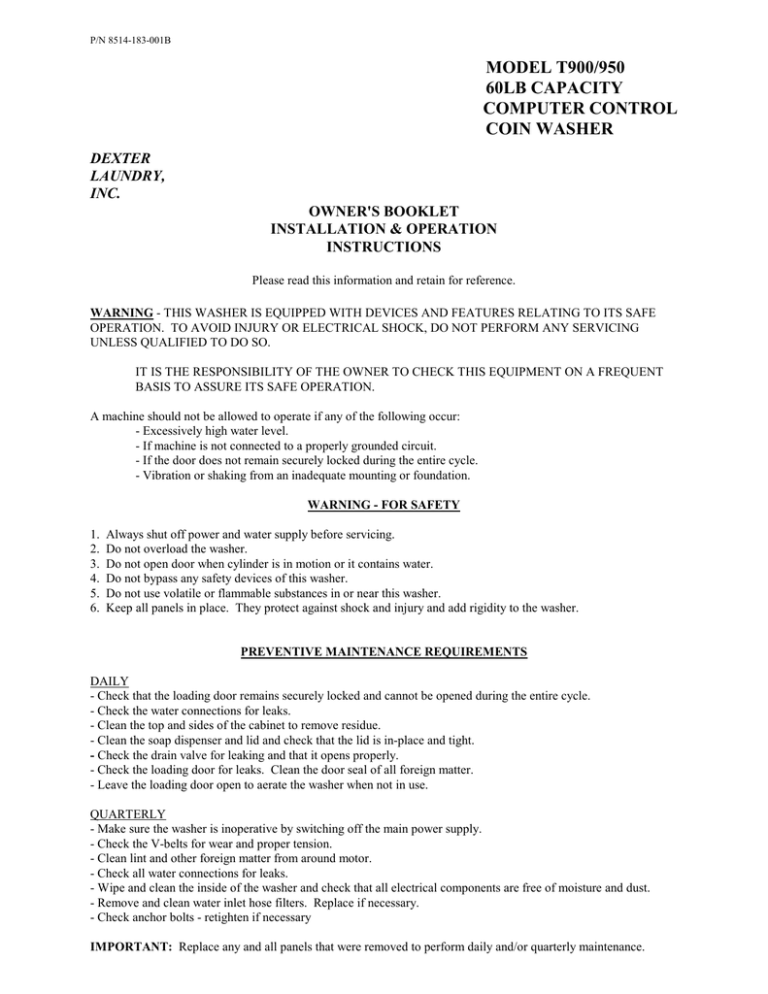

P/N 8514-183-001B
MODEL T900/950
60LB CAPACITY
COMPUTER CONTROL
COIN WASHER
DEXTER
LAUNDRY,
INC.
OWNER'S BOOKLET
INSTALLATION & OPERATION
INSTRUCTIONS
Please read this information and retain for reference.
WARNING - THIS WASHER IS EQUIPPED WITH DEVICES AND FEATURES RELATING TO ITS SAFE
OPERATION. TO AVOID INJURY OR ELECTRICAL SHOCK, DO NOT PERFORM ANY SERVICING
UNLESS QUALIFIED TO DO SO.
IT IS THE RESPONSIBILITY OF THE OWNER TO CHECK THIS EQUIPMENT ON A FREQUENT
BASIS TO ASSURE ITS SAFE OPERATION.
A machine should not be allowed to operate if any of the following occur:
- Excessively high water level.
- If machine is not connected to a properly grounded circuit.
- If the door does not remain securely locked during the entire cycle.
- Vibration or shaking from an inadequate mounting or foundation.
WARNING - FOR SAFETY
1.
2.
3.
4.
5.
6.
Always shut off power and water supply before servicing.
Do not overload the washer.
Do not open door when cylinder is in motion or it contains water.
Do not bypass any safety devices of this washer.
Do not use volatile or flammable substances in or near this washer.
Keep all panels in place. They protect against shock and injury and add rigidity to the washer.
PREVENTIVE MAINTENANCE REQUIREMENTS
DAILY
- Check that the loading door remains securely locked and cannot be opened during the entire cycle.
- Check the water connections for leaks.
- Clean the top and sides of the cabinet to remove residue.
- Clean the soap dispenser and lid and check that the lid is in-place and tight.
- Check the drain valve for leaking and that it opens properly.
- Check the loading door for leaks. Clean the door seal of all foreign matter.
- Leave the loading door open to aerate the washer when not in use.
QUARTERLY
- Make sure the washer is inoperative by switching off the main power supply.
- Check the V-belts for wear and proper tension.
- Clean lint and other foreign matter from around motor.
- Check all water connections for leaks.
- Wipe and clean the inside of the washer and check that all electrical components are free of moisture and dust.
- Remove and clean water inlet hose filters. Replace if necessary.
- Check anchor bolts - retighten if necessary
IMPORTANT: Replace any and all panels that were removed to perform daily and/or quarterly maintenance.
1 Load laundry, close and latch door .
2 Add detergent and fabric softener
into dispenser on front of machine.
3 Select
wash temper ature.
4 Inser t coins/card.
5 Press START
button.
6 Add bleach when light comes on.
(Optional)
Door Locks when machine starts, and
r emains locked until cycle is completed.
Quarters Only
D etergent
Add
Bleach
ON
WASH
RINSE
F IN AL
RIN SE
SPIN
Fabric Softener
Push and Hold
for 3 seconds.
C O M M E RC I A L
WASHER
MODEL T900/950
DEXTER
LAUNDRY,
INC.
INSTALLATION INSTRUCTIONS
All washers must be installed in accordance with all local, state and national building,
electrical, plumbing and other codes in effect in the area.
WARNING - THESE INSTALLATION AND SERVICING INSTRUCTIONS
ARE FOR USE BY QUALIFIED PERSONNEL ONLY. TO AVOID INJURY
AND ELECTRICAL SHOCK DO NOT PERFORM ANY SERVICING
OTHER THAN THAT CONTAINED IN THE OPERATING
INSTRUCTIONS, UNLESS QUALIFIED.
FOUNDATION REQUIREMENTS
This machine is designed for use on or over bare concrete floor - not to be used above combustible
flooring. The washer must be securely bolted and grouted to a substantial concrete floor, or mounted
and grouted upon a suitable base that is securely bolted and grouted to a substantial concrete floor.
CARE MUST BE STRESSED WITH ALL FOUNDATION WORK TO INSURE A STABLE UNIT
INSTALLATION, ELIMINATING POSSIBILITIES OF EXCESSIVE VIBRATION. All
installations must be made on sound concrete floors, 8 inches (203 mm) or thicker. Anchor bolts or
expansion anchors must be of a quality grade and a minimum of 3/4-inch (19 mm) diameter. Six
bolts are required to mount the washer to the steel base or concrete pad.
MOUNTING
A concrete pedestal or steel-mounting base that elevates the machine approximately 4 inches (102
mm) above the floor level is recommended to provide easy access to the loading door. Allow a
minimum of 24 inches (610mm) of clearance behind the rear of the machine, to provide access for
motor removal. Refer to Fig. 1-1 and 1-2 for machine bolt-down dimensions.
If an elevated concrete pedestal is desired, it should be embedded into the existing floor. Anchor
bolts should be 3/4" x 8" (19 mm x 200 mm), grade 8 or better, headed by a 4 inch (10 cm) square
fish plate and should protrude 2 1/2” (64 mm) above the finished surface of the pedestal.
EXPANSION ANCHORS ARE NOT RECOMMENDED FOR USE IN CONCRETE PEDESTALS,
BECAUSE THE ANCHORS ARE TOO CLOSE TO AN EDGE, CAUSING IT TO BREAK OUT.
(See Fig. 1-1 and 1-3.)
FLOOR OUTLINE
Figure 1-1
Figure 1-2
Figure 1-3
MACHINE MOUNTING DETAIL
CONCRETE PEDESTAL MOUNTING
PLUMBING
Water supply hoses are furnished with each machine. The threaded connections on the hoses are ¾-11
½ NHT.
Separate hot and cold water lines must be provided, maintaining 30 psi to 120 psi (207 kPa to 827 kPa)
water flow pressure. A 140F (60C) degree hot water supply is recommended for best washing results.
DRAIN
The drain outlet tube at the rear of the machine is 3 inches (76 mm) in diameter. Any drain hose used
must be lower than the drain valve to assure proper draining.
ELECTRICAL
WARNING
SHUT OFF POWER AND WATER BEFORE OPENING ANY SERVICE PANELS.
Dexter single/three-phase 208-240VAC 60 Hz washing machines are intended to be permanently
installed appliances. No power cord is provided. The machine should be connected to an individual
branch circuit not shared by lighting or other equipment. The connection should be sheathed in liquid
tight flexible conduit, or equivalent, with conductors of the proper size and insulation. A qualified
technician should make such connections in accordance with the wiring diagram. (Suggest a minimum
wire size of 12 ga.)
TO MAKE ELECTRICAL CONNECTIONS: Disconnect all power to the washer. Remove screw and
lift out the cover located in the upper left corner of the machine (as viewed from the back).
If power is 208-240-3PH-60Hz, connect L1, L2, L3 and ground. If there is a high leg it must be
connected to L3.
If power is 208-240-1PH-60Hz, connect L1, L2 and Ground.
NOTE: It is important that the grounding screw next to the power terminal block TB-1 be connected
to a good external ground.
FUSING REQUIREMENTS:
SINGLE- and THREE -PHASE MODELS - 20 AMP TIME-DELAY (DUAL ELEMENT)
FUSE (or equivalent circuit breaker). *
*Note: For elevations above 6600 feet or very hot climates, a 30 amp breaker is recommended due
to down-rating of circuit breakers under these conditions.
CONTROLS TRANSFORMER:
The controls transformer is located inside the control trough and steps a range of 208 to 240 volts down
to 115 volts. There are two terminals on the controls transformer for the primary (incoming) power.
Use the terminal marked “208V” for power supplies between 208 and 215 volts. Use the terminal
marked “230V” for power supplies between 216 and 240 volts.
CHECKOUT
After all mounting, plumbing and electrical work is completed, the washer should be run through a
cycle and checked for water leaks and proper functioning.
STARTING THE WASHER
A. Load the clothes into the cylinder and latch the door securely. Be sure clothing does not
get caught between the door gasket and tub front when closing the door. Maximum load is
60 pounds clothes, dry weight. Do not load the washer with more than 60 lbs.
B. Select the appropriate cycle temperatures for the load being washed.
C. Add low sudsing powdered detergent into the “detergent” compartment of the automatic
dispenser on the front of the washer. If desired add fabric softener to the “fabric softener”
compartment. Use the amount of fabric softener as recommended by the manufacturer.
If liquid wash products are used in the “detergent” compartment, they must be added at
the beginning of the wash cycle.
If the machine is set for pre-wash, washing products can be added to dispenser or put in with
the clothes when loading the washing machine.
D. Insert coins, tokens or debit card to meet the displayed vend price. Once the vend price is
met, the display will read “PUSH” and the start button LED will blink. If the door is not
closed and latched, the display will read “DOOR” and the control will wait until the door
is latched to continue. Pressing the start button will begin the cycle and activate the ON
light. The display will go blank for a moment and then display the cycle time in minutes.
The clothes door will lock and remain locked until the end of the cycle.
END OF CYCLE
When the cycle is complete the time will display “0” until the door is opened and a 5-second tone
will sound. The door can now be opened. Leave the clothes door open when the machine is not in
use.
EMERGENCY STOP / SAFETY DOOR LOCK
This machine is equipped with a Safety Door Lock that locks the door closed from when the cycle is
started until the cycle is complete. The door lock prevents opening the door for up to 3 minutes if the
power is interrupted during the cycle.
The Emergency Stop button pauses the washer and allows the door to be opened during the cycle
after the Safety Door Lock releases. When the Emergency Stop button is pressed an alarm will
sound and the display will begin counting down from “3”. If the button is released before 3 seconds
elapse, the alarm will stop and the cycle will continue normally. If the Emergency Stop is held down
for 3 seconds, the display will count down to “0” and the washer will begin stopping movement and
water flow and begin draining water from inside the washer. Though the machine may stop wash
movement quickly, it may take up to 3 minutes for the door to unlock. During that time the alarm
will continue to sound. When the alarm stops, the door may be opened. The washer may be
restarted by closing and latching the door, and pressing the Start button. If the washer was stopped
more than once before the final extract, the cycle will be cancelled. If the washer was stopped during
final extract, the cycle will be ended. If the washer is stopped for more than 1 hour, the cycle will be
terminated.
SPECIFICATIONS
MODEL
CAPACITY
T900/950 60LB WASHER
60LBS/9 CUBIC FT. (27.2 kg/255 L)
CYLINDER SIZE
30” DIA X 22” DEEP (76.2cm X 55.9cm)
ELECTRICAL
208-240 VAC, 60 HZ, 1 OR 3 PHASE
DRIVE SYSTEM
SOFT START REVERSING INVERTER DRIVE
WASH SPEED
43 RPM
INTERMEDIATE
EXTRACT
375 RPM (60 G’S)
FINAL EXTRACT
484 RPM (100 G’S) / 573 RPM (140 G’S) / 685 (200 G’S)
MACHINE CONTROL
PROGRAMMABLE COMPUTER WITH 6 STANDARD CYCLES.
WATER INLET
4 SOLENOID OPERATED VALVES
FLOW RATE: 2 DUAL VALVES (9 GAL/MIN) EACH, 30-120 PSI,
2 SINGLE VALVES (12 GAL/MIN) EACH, 30-120 PSI
DRAIN VALVE
3” DIAMETER
PROGRAMMING INSTRUCTIONS:
Programming can be accomplished manually using the machine controls or by connecting to the
machine control using a PDA (personal digital assistant). For instructions on using a PDA with this
washer control, please contact your local Dexter distributor. Please read below for manual
programming instructions.
The washer has two levels of programming. The Coin/Price Programming allows the owner to set
the price for the washer features and the values of the coins. The Washer Cycle Programming allows
the owner complete access to the wash cycle parameters – add/remove a bath, bath times, spin times,
water temperatures, etc. To enter the programming modes, the top of the washer must be unlocked
and slid toward the back of the washer a few inches.
COIN PRICE PROGRAMMING
While the washer is in the Idle mode, push the Programming pushbutton on the controller. The Idle
mode is when the washer is not running a cycle and the price of the bath is displayed. The
Programming pushbutton is a very small button located on the upper center of the controller directly
behind the display. There are seven stages in the Coin/Price Programming mode.
To step through to the desired stage, repeatedly push the START button until the desired
stage is blinking on the display. To exit the Coin/Price programming mode, push and hold
the Cold temperature button for 5 seconds.
Stage 1: Right Coin – The display will blink first a “r” indicating right coin and then a coin value
($1.00 – default). The display will blink back and forth between the “r” and the value. To change
the value, use the Hot temperature button to decrease and the Warm temperature button to increase.
The value will change in 1¢ steps. The range of values is from $00.00 to $99.99. When the desired
right coin value is displayed, push the Start button once to store the new value and a second time to
move to the next Coin/Price programming step.
To exit the Coin/Price programming mode, push the Cold temperature button for 5 seconds.
Stage 2: Left Coin – The display will blink first a “L” indicating left coin and then a coin value
($0.25– default). The display will blink back and forth between the “L” and the value. To change
the value, use the Hot temperature button to decrease and the Warm temperature button to increase.
The value will change in 1¢ steps. The range of values is from $00.00 to $99.99. When the desired
left coin value is displayed, push the Start temperature button once to store the new value and a
second time to move to the next Coin/Price programming step. To exit the Coin/Price programming
mode, push the Cold temperature button for 5 seconds.
Stage 3: Wash Price – The display will blink first a “P” indicating wash price and then present wash
price. The display will blink back and forth between the “P” and the price. To change the value, use
the Hot temperature button to decrease and the Warm temperature button to increase. The value will
change in 1¢ steps. The range of values is from $00.00 to $99.99. If the wash price is set to $00.00,
the display will show “FREE” after exiting the programming mode. When the desired price is
displayed, push the Start button once to store the new value and a second time to move to the next
Coin/Price programming step. To exit the Coin/Price programming mode, push the Cold temperature
button for 5 seconds.
WATER TEMPERATURE PRICING
The washer can be set for different levels of pricing for Cold, Warm and Hot water. The Cold water
setting is considered as the base price, which is the normal washer cycle price.
Stage 4: Warm Water Price – The next step in the pricing program is to set the additional price for
Warm water usage. The additional price is the amount added to the price of a cold wash. The display
will blink first “CH P” indicating cold/hot water mix price and then “00.00”. To change the value,
use the Hot temperature button to decrease and the Warm temperature button to increase. The value
will change in 1¢ steps. The range of values is from $00.00 to $99.99.
Note: To not use this feature, set the price to “00.00”.
When the desired price is displayed, push the Start button once to store the new value and a second
time to move to the next Coin/Price programming step. To exit the Coin/Price programming mode,
push the Cold temperature button for 5 seconds.
Stage 5: Hot Water Price – The next step in the pricing program is to set the additional price for Hot
water usage. The additional price is the amount added to the price of a cold wash. The display will
blink first “H P” indicating hot water price and then “00.00”. To change the value, use the Hot
temperature button to decrease and the Warm temperature button to increase. The value will change
in 1¢ steps. The range of values is from $00.00 to $99.99.
Note: To not use this feature, set the price to “00.00”.
When the desired price is displayed, push the Start button once to store the new value and a second
time to move to the next Coin/Price programming step. To exit the Coin/Price programming mode,
push the Cold temperature button for 5 seconds. The Coin/Price programming mode will
automatically exit and return to the Idle mode if no buttons are pushed for one minute.
Stage 6: Plus Cycle Price -- The next step in the programming sequence is the Plus Cycle feature.
The Plus Cycle adds three (3) minutes of wash time to the wash bath only. The controller can be
programmed to charge a fee for this or the feature can be turned off. The default setting is off. To
turn the Plus Cycle feature off, set the Plus Cycle price to zero.
The display will blink first a “PC P” indicating Plus Cycle price and then price (back and forth). To
change the value, use the Hot temperature button to decrease and the Warm temperature button to
increase. The value will change in 1¢ steps. The range of values is from $00.00 to $99.99. When
the desired price is displayed, push the Start temperature button once to store the new value and a
second time to move to the next Coin/Price programming step. To exit the Coin/Price programming
mode, push the Cold temperature button for 5 seconds.
Stage 7: Decimal Point -- The next step in the programming sequence is the decimal point display.
The display will start blinking back and forth first “dP “ (Decimal Point) and then either “on”
(default) or “off”. Press the Hot or Warm temperature buttons to select the decimal point display as
“on” or “off”. When the desired setting is displayed, push the Start button to store it and a second
time to move to the next programming step.
WASH CYCLE PROGRAMMING
To change a feature of the wash cycle, push and hold the Hot temperature button and then push the
programming pushbutton on the controller. The Washer must be in the Idle mode to enter the Wash
Cycle Programming mode. When entering the cycle programming mode, the Bleach LED will start
to blink and continue to blink as long as you are in the Cycle Programming mode.
The display will show “C 0”. This is the default cycle number.
Note: The washer can be returned to the factory default settings by holding
the Start button and then pressing the Warm button. The display must
show “C 0” to do this. When the cycle default values are loaded, the
washer will automatically exit the programming mode.
Note: The Wash Cycle programming mode will automatically exit and return to
the Idle mode if no buttons are pushed for one minute.
End of Cycle Alarm: The end of cycle alarm can be turned on or off by pushing the Hot or Warm
temperature buttons until “AL” is displayed and pressing the Start button. The display will now read
“on” or “off” and can be changed by pressing the Hot or Warm temperature buttons. When the
desired setting is displayed, press Start again to save.
Modifying the Wash Cycle: To change the wash cycle, push the Hot or Warm temperature buttons
until the display changes to “C 1”, indicating cycle one is selected. The temperature buttons are
used to make changes to the program. In the program mode, the buttons will do the following:
When the display shows “C 1”, push Enter. The display will show “b“ and the PreWash mode light
will blink. Use the Up/Down buttons to move to the bath that will be changed. As Up/Down
buttons are pushed, the next bath mode light turns on.
When the Up button is pushed, the bath mode light changes from Prewash to Wash. With each
additional push of the Up button, the lit bath mode changes from left to right: Prewash, Wash, Rinse
and Final Rinse. As there are two possible Rinse bathes, for Rinse1 the Rinse LED and the display
changes to “b” in the left digit and “r1" in the two right hand digits. For Rinse2, the display changes
to “b” in the left digit and “r2" in the two right hand digits. Note that the Spin light is not used.
When the Down button is pushed, the bath mode light changes from Prewash to Final Rinse, etc.
There is a wrap around feature in both directions. When the desired bath mode light is on, push
Enter.
The selected bath LED begins to blink. The display shows the letters “ct” in the left two digits and
the bath cycle time in the right two digits. Again the up/down buttons change this value. The range
is shown below. If zero time is entered, then the bath will be skipped and the program will return to
the bath selection. When the desired cycle time is selected, push enter.
The display shows the letter “t” in the left digit and the letters “CC” appear in the right two digits.
This is the bath water temperature. The selection choices are shown below but for the coin washer
the value is defaulted to CC. When the desired temperature is selected, press enter.
The display shows the letter “L” in the left digit and the letters “LO” appear in the right two digits.
This is the bath water level. The selection choices are shown below but for the coin washer the value
is defaulted to LO. As it is not selectable with a coin washer, the owner pushes enter to continue.
The display shows the letters “dF” in the left two digits and the letter “t” appears in the right digit.
This is the bath delay fill. The selections are “t” for counting down bath time during the fill or “d”
for delay the bath time until water level is reached. When the desired selection is made, push enter.
The display shows the letter “S” in the left digit and the bath spin time in the right two digits. Again
the up/down buttons change this value. The range is shown below. When the desired spin time is
selected, push enter.
The display shows the letters “IS” in the left two digits and the injection selection appear in the right
digit. For the coin washer the default value is “0" and cannot be changed. Push enter twice.
At this point the bath LED stops blinking. The display will show “b” and the next bath LED lights.
Again use the up/down buttons to change the bath selection. To exit the programming mode, push
and hold exit for 5 seconds. The cycle will be stored when exiting the programming mode.
COIN WASHER CYCLE PARAMETER RANGES
The range of each cycle parameter is shown below:
Cycle Time “ct”
0 to 15 minutes for Prewash, Rinse1 and Rinse2
3 to 15 minutes for Wash and Final Rinse
For the bathes that can, if the time is set to zero, then the bath
will be eliminated from the cycle.
Water Temperature “t”
HH – hot, CH – warm, CC – cold
The owner can set the bath default. For the wash bath, the
customer overrides the default for that cycle when the
temperature is selected.
Water Level “L”
LO – low
The owner can change the displayed value, but for a coin
washer only LO will be put into the cycle.
Delay Fill “dF”
The selections are “d” for delay the bath time until water level
is reached or “t” to countdown bath time during the fill.
Spin Time “S”
0 to 10 minutes for Prewash, Wash, Rinse1 and Rinse2
1 to 10 minutes for Final Spin.
“IS”
The owner can change the displayed value, but for a coin
washer only 0 will be put into the cycle.
COIN WASHER DEFAULT CYCLE
The following table shows the complete details for the coin washer default cycle.
Bath
Bath Cycle
Time
(min.)
Water
Temp.
Water
Level *
Delay Fill
Spin Time
(min.)
IS *
Prewash
0
CC
LO
t
0
0
Wash
9
CH
LO
t
0
0
Rinse 1
4
CC
LO
t
1
0
Rinse 2
0
CC
LO
t
0
0
Final
Rinse
5
CC
LO
t
4
0
Note *
These default values are preset and cannot be changed.
RAPID ADVANCE MODE
To enter the Rapid Advance mode, push and hold the Cold water temperature button and then push
the programming button on the controller. There will be no observed change to the washer or the
display. The Rapid Advance mode can be entered from either the Idle mode or during the cycle. To
rapid advance to the next step in the wash cycle, push the Start and Warm temperature buttons at the
same time. The display will show an “Ad” (advance) in the display. The washer will advance to the
next bath segment. The water will drain before the advance will occur.
The Rapid Advance mode will not end until the final bath segment is completed. The final segment
cannot be skipped in Rapid Advance mode.
Notes: 1. When the Rapid Advance mode is used, the cycle time will no longer be correct.
2. By skipping steps with rapid advance, the door may not open immediately at the end of
the cycle.
EASY CARD
If your Dexter washer is installed with Dexter’s Easy Card debit card system, the card reader signals
the washer control when money is debited from the user’s card account to satisfy the price of the
wash cycle. The washer’s pricing and the Easy Card system pricing are completely independent of
each other and must be programmed separately and coordinated. Refer to the instructions that came
with the Easy Card system for complete information.
SETTING THE ELECTRONIC COIN ACCEPTOR SWITCHES
Some washer models come equipped with an electronic coin acceptor. Follow the instructions below
for setting the switches for the desired country and currencies.
1) The electronic coin acceptor has switch settings depending on the coins and country. See the
table below for available values of the left and right coin inputs for the available countries.
WARNING: TURN POWER OFF BEFORE AND LEAVE POWER OFF WHEN
CHANGING THE SWITCHES OF THE ELECTRONIC COIN ACCEPTOR.
2) Turn power back on and test coins to ensure proper operation.
Acceptor P/N
9021-010-001
9021-011-001
Country
Left Coin
Canada
Canada
Canada
Japan
Japan
Taiwan
Taiwan
Korea
25¢
U.S.A.
U.S.A.
Australia
Australia
Australia
Australia
New Zealand
New Zealand
New Zealand
New Zealand
Hong Kong
Hong Kong
100¥
10NT
500W
Greenwald 118-1 Token
Greenwald 118-5 Token
25¢
10¢
20¢
10¢
20¢
$5
Greenwald 118-1 Token
Greenwald 118-5 Token
Right
Coin
SWs 1-8
SWs 9-16
↓↓↑↑↑↑↑↓ ↓↑↑↑↑↑↑↓
$1
↑↑↓↓↓↑↑↓ ↓↑↑↑↑↑↑↓
$2
↑↑↑↑↑↓↓↓ ↓↑↑↑↑↑↑↓
↓↓↑↑↑↑↑↓ ↑↓↑↑↑↑↑↓
500¥
↑↑↓↓↑↓↓↓ ↑↓↑↑↑↑↑↓
↓↓↑↑↑↑↑↓ ↑↑↓↑↑↑↑↓
50NT ↑↑↓↓↑↓↓↓ ↑↑↓↑↑↑↑↓
↓↓↑↑↑↑↑↓ ↑↑↑↓↑↑↑↓
↑↑↑↑↑↑↑↓ ↑↑↑↑↓↑↑↓
↑↑↑↑↑↑↑↓ ↑↑↑↑↑↓↑↓
↓↓↑↑↑↑↑↓ ↑↑↑↑↑↑↓↓
$1
↑↑↓↓↑↑↑↓ ↑↑↑↑↑↑↓↓
↓↓↑↑↑↑↑↓ ↑↓↑↑↑↑↑↓
↑↑↓↓↑↑↑↓ ↑↓↑↑↑↑↑↓
$1
↑↑↑↑↓↓↑↓ ↑↑↓↑↑↑↑↓
$2
↑↑↑↑↑↑↓↓ ↓↑↓↑↑↑↑↓
↓↓↑↑↑↑↑↓ ↑↓↑↑↑↑↑↓
↑↑↓↓↑↑↑↓ ↑↓↑↑↑↑↑↓
$1
↑↑↑↑↓↓↑↓ ↑↑↑↓↑↑↑↓
$2
↑↑↑↑↑↑↓↓ ↓↑↑↓↑↑↑↓
↓↓↓↓↑↑↑↓ ↑↑↑↑↓↑↑↓
$10
↑↑↑↑↓↓↑↓ ↑↑↑↑↓↑↑↓
↑↑↑↑↑↑↑↓ ↑↑↑↑↑↓↑↓
↑↑↑↑↑↑↑↓ ↑↑↑↑↑↑↓↓
Switches ↑=up/on, ↓=down/off
Note: Coins and tokens in the left coin column will result in one pulse to the left coin input.
Note: The $1, 500¥, 50NT, and $10 coins in the right coin column will result in one pulse to the
right coin input, while the $2 coins will result in two pulses to the right coin input.
Note: Acceptance of multiple coins per country and multiple tokens is allowed. Only the down/off
setting for each coin and token is required to accept that coin or token.
WASHER ERROR CODES
Fault#
(F #)
1
2
3
4
5
6
7
8
9
10
Description
Customer Action
The door failed to close and lock or the door
failed to remain locked after three tries of
latching the door and starting during the cycle.
The washer tub does not fill with water within
7 minutes. The wash cycle will continue. The
F 2 will flash three times, then wait for 30
seconds. The error will clear at the end of the
cycle.
Memory error in controller.
Turn off the power to the washer. Check wire connections to door /lock switches. Check wire
connections from switches to controller. If necessary door lock mechanism should be
adjusted by a qualified person. Turn on the power to the washer. (See Note)
Turn of the power to the washer. Check the operation of the water valves. Check the
incoming water pressure. Check for blocked or restricted water flow. Check to ensure the
drain valve is functioning properly. Turn on the power to the washer. (See Note)
Turn off the power to the washer. Wait one minute. Turn power back on to the washer. If the
problem returns, clear the fault with the Palm. If the problem returns again, replace the
washer controller.
Washer controller communication error
Turn off the power to the washer. Wait one minute. Turn power back on to the washer. If the
problem returns, replace the washer controller.
Pressure Switch error ( only OPL )- when the Turn off the power to the washer. Replace the pressure switch. Turn on power to the washer.
high level sensor indicates full but the lower
(See Note)
one indicates empty. The wash cycle will
continue. The F 5 will flash three times, then
wait for 30 seconds. The error will clear at the
end of the cycle.
Wrong washer size for drive type.
Turn off the power to the washer. Check to ensure all the harnesses are properly connected
to the controller. Check to ensure the drive horsepower is proper for this size of washer. Turn
on power to the washer. (See Note) If problem reappears, contact your Dexter
representative.
Wrong size drive installed
Turn off the power to the washer. Check to ensure all the harnesses are properly connected to
the controller. Check to ensure the drive horsepower is proper for this size of washer.
Contact your Dexter representative.
The washer tub does not empty within 7
Turn off the power to the washer. Check to ensure the drain valve is operating properly.
minutes. The wash cycle will continue. The F Check to ensure the pressure switch tube is clear of blockage. Check to ensure the pressure
8 will flash three times, then wait for 30
switch is operating proper. Correct any located problems. Turn on power to the washer.
seconds. The error will clear at the end of the (See Note)
cycle.
The washer tub does not reach the spin target Turn off the power to the washer. Inspect the washer to ensure the tub spins freely. If
frequency within 200 seconds. The wash
restricted, then clear the blockage. Test washer. If tub spins freely, the drive needs to be
cycle will continue. The F 9 will flash three
replaced.
times, then wait for 30 seconds. The error will
clear at the end of the cycle.
After a spin the washer tub does not stop
Turn off the power to the washer. Inspect the braking resistors and the connecting wiring to
within 150 seconds.
the drive braking resistors mounted in the top of the washer. If the resistors and wiring is
correct, then replace the drive.
The drive size setting has changed.
11
12
13
Washer controller internal error
The control can not communicate with the
drive
Over-current on the drive or motor.
14
Over-voltage on the drive or motor.
15
Overheating of the drive
16
Overload of the drive or motor
17
Ground Fault to the drive
18
Low Voltage to the drive
19
20
21
Note:
Internal drive error
Data error on communications between the
controller and drive
Turn off the power to the washer. Check to ensure all the harnesses are properly connected
to the controller. Check to ensure the drive horsepower is proper for this size of washer. Turn
on power to the washer. (See Note) If problem reappears, contact your Dexter
representative.
Turn off the power to the washer. Wait one minute. Turn on the power to the washer. (See
Note) If problem reappears, contact your Dexter representative.
Turn the power off to the washer. Check the data cable between the controller and the drive.
If no problem is observed, turn on power to the washer and test. (See Note) If problem
reappears, contact your Dexter representative.
Turn the power off to the washer. Check the washer motor to ensure it turns freely. Check
the wiring connections to the drive and motor. If no problem is observed, turn on power to the
washer and test. (See Note) If problem reappears, contact your Dexter representative.
Turn the power off to the washer. Check the washer motor to ensure it turns freely. Check
the wiring connections to the drive, braking resistors and motor. Measure incoming line
voltage. If no problem is observed, turn on power to the washer and test. (See Note) If
problem reappears, contact your Dexter representative.
Turn the power off to the washer. Allow the drive to cool. Check the cooling fins of the drive
to ensure proper airflow. Check the wiring to the drive including the fan wiring. If no problem
is observed, turn on power to the washer and test. (See Note) If problem reappears, contact
your Dexter representative.
Turn the power off to the washer. Check the washer motor to ensure it turns freely. Check
the wiring connections to the drive and motor. If no problem is observed, turn on power to the
washer and test. (See Note) If problem reappears, contact your Dexter representative.
Turn the power off to the washer. Check the wiring connections to the drive and motor. Check
the ground wiring of the drive, motor and incoming connection to ensure a proper ground is
present. If no problem is found, contact your Dexter representative.
Turn the power off to the washer. Check the wiring connections to the drive and motor. If no
problem is observed, turn on power to the washer and test. (See Note) Measure the incoming
line voltage. If problem reappears, contact your Dexter representative.
Turn the power off to the washer. Wait one minute. Turn the power on to the washer. (See
Note) If problem reappears, contact your Dexter representative.
Turn the power off to the washer. Check the data cable between the controller and the drive.
If no problem is observed, turn on power to the washer and test. (See Note) If problem
reappears, contact your Dexter representative.
Whenever power is turned off to the washer, it must remain off for one minute. The washer will not operate properly if this is not done.
ACCESSORIES
INSTALLATION: (Furnished)
9990-027-011
Hose, Water Supply
8641-242-000
Washer, Inlet Hose
9565-003-001
Strainer, Inlet Hose
QTY. 900/950
2/4
2/4
4/8
Contact your distributor or Dexter Laundry, Inc. if a steel-mounting base is required.
www.dexterlaundry.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
