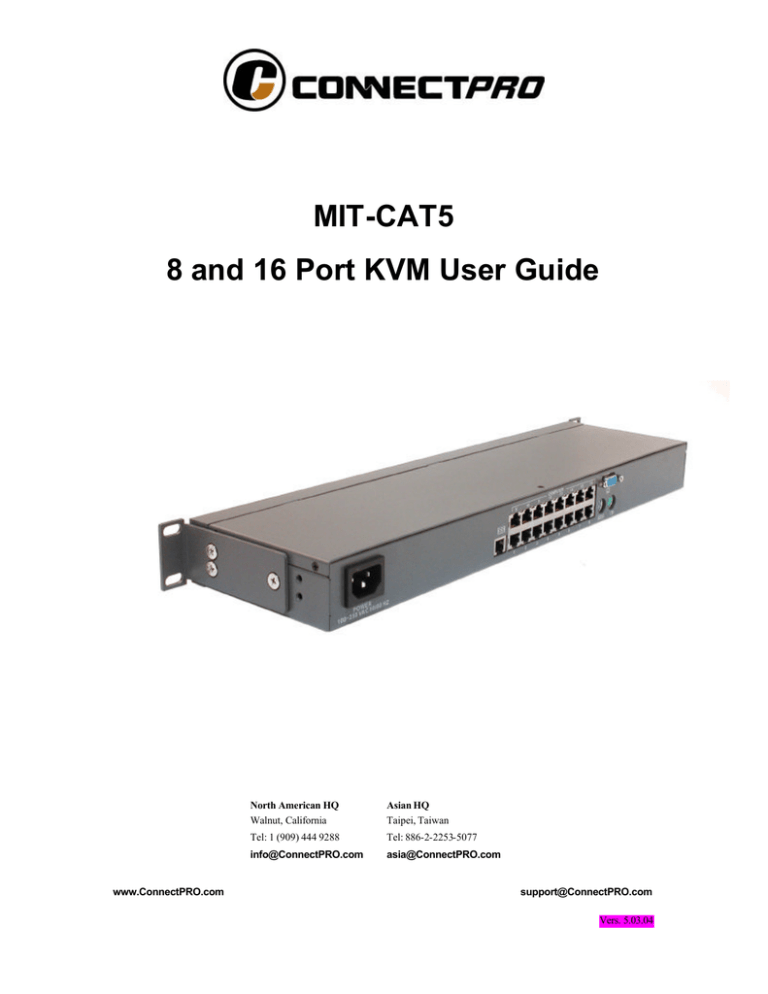

ConnectPRO MIT-CAT5 8 User guide
MIT-CAT5
8 and 16 Port KVM User Guide
www.ConnectPRO.com
North American HQ
Walnut, California
Asian HQ
Taipei, Taiwan
Tel: 1 (909) 444 9288
Tel: 886-2-2253-5077
info@ConnectPRO.com
asia@ConnectPRO.com
support@ConnectPRO.com
Vers. 5.03.04
Table of Contents
1. Welcome...............................................................................................................3
2. Introduction..........................................................................................................4
3. Features.................................................................................................................4
4. System components...............................................................................................4
5. Compatibility.........................................................................................................4
6. The CAT5 KVM system configuration..................................................................5
7. The CAT5 KVM models........................................................................................5
8. Pre-installation guidelines.......................................................................................6
9. Connecting the CAT5 KVM system.......................................................................6
10. Connecting the power supply................................................................................9
11. Updating the LEDs.................................................................................................9
12. Resetting the Switch..............................................................................................9
13. Rack mounting the CAT5 KVM.........................................................................10
14. Rack mounting the CIMs....................................................................................10
15. Operating the CAT5 KVM system......................................................................11
16. The keyboard hotkeys.........................................................................................11
17. The OSD..............................................................................................................11
18. Navigating the OSD............................................................................................12
19. Selecting a computer..........................................................................................12
20. The OSD settings (F2)........................................................................................12
21. The General settings...........................................................................................12
22. F7 Defaults.........................................................................................................15
23. The Ports settings...............................................................................................15
24. The Time settings...............................................................................................16
25. Users ..................................................................................................................17
26. Security...............................................................................................................18
27. The OSD HELP window – F1............................................................................19
28. Scanning computers– F4.....................................................................................19
29. Tuning – F5.........................................................................................................20
30. Moving the label – F6.........................................................................................20
31. Using the Control software.................................................................................20
32. Control software system requirements..............................................................21
33. Connecting the RS232 Serial cable...................................................................21
34. Installing and running the Control software......................................................21
35. Computer icons..................................................................................................22
36. Communication Error.........................................................................................23
37. The View menu...................................................................................................23
38. Selecting a computer..........................................................................................23
39. The toolbar buttons.............................................................................................23
40. Get Status............................................................................................................24
41. Read Configuration..............................................................................................24
42. Write Configuration.............................................................................................24
43. Loading a saved configuration.............................................................................26
44. The factory default settings..................................................................................26
45. Reminder!.............................................................................................................26
46. Password protection.............................................................................................27
47. Upgrading the CAT5 KVM firmware..................................................................28
48. System requirements for the CAT5 KVM Update software................................28
49. Connecting the CAT5 KVM System....................................................................28
50. Connecting the RS232 Serial cable.......................................................................28
51. Installing the software...........................................................................................28
52. Starting and configuring the CAT5 KVM Update................................................29
53. Verifying the version numbers..............................................................................30
54. Obtaining new firmware........................................................................................31
55. Updating the firmware...........................................................................................31
56. Reset .....................................................................................................................32
57. Troubleshooting tips.............................................................................................32
58. USB SUN Combo keys........................................................................................34
59. Technical specifications........................................................................................35
1. Welcome
Technical precautions
This equipment generates radio frequency energy and if not installed in accordance with the
manufacturer’s instructions, may cause radio frequency interference.
This equipment complies with Part 15, Subpart J of the FCC rules for a Class A computing device.
This equipment also complies with the Class A limits for radio noise emission from digital
apparatus set out in the Radio Interference Regulation of the Canadian Department of
Communications. These above rules are designed to provide reasonable protection against such
interference when operating the equipment in a commercial environment. If operation of this
equipment in a residential area causes radio frequency interference, the user, and not ConnectPRO
Inc. Limited, will be responsible.
Changes or modifications made to this equipment not expressly approved by ConnectPRO Inc.
Limited could void the user’s authority to operate the equipment.
ConnectPRO Inc. Limited assumes no responsibility for any errors that appear in this document.
Information in this document is subject to change without notice.
No part of this document may be reproduced or transmitted in any form or by any means, electronic
or mechanical, for any purpose, without the express written permission of ConnectPRO Inc.
Limited.
© 2003 ConnectPRO Inc. Limited. All rights reserved.
Trademarks
PS/2 is a registered trademark of International Business Machines Corporation. All other
trademarks and registered trademarks are the property of their respective owners.
2. Introduction
Access and control multiple multi-platform computers from one Keyboard Video Mouse (KVM)
console with the Multi-Platform CAT5 KVM (CAT5 KVM) system. The CAT5 KVM comes in 8
and 16 port models. Connect up to 8 computers to the 8 port model, and up to 16 to the 16 port
model.
3. Features
• Hot-Swap - disconnect and reconnect computers without rebooting
• Scan-mode operation with variable time interval
• 1U Rack mountable
• Operate the system using an On Screen Display (OSD) or Control software or front panel push
buttons or keyboard hotkeys
• Create multi-level cascade arrangements. For example by cascading the CAT5 KVM 16 Port
model, connect up to up to 256 computers in the system
• The computers can be placed up to 10m/33ft from the CAT5 KVM
• Multi-platform — supports PS/2, SUN, and USB computers/servers
4. System components
The CAT5 KVM system consists of:
• Multi-Platform CAT5 KVM 8 or 16 port
• Computer Interface Module (CIMs) – PS/2, SUN, USB
• CAT5 cables (1.5m provided)
• RS232 Serial cable
• Rack mounts for the CAT5 KVM and the CIMs
• VGA Extender cable
5. Compatibility
The CAT5 KVM is compatible with:
• PS/2, SUN and USB computers/servers
• VGA, SVGA, or XGA monitors
• DOS, Windows (3X, 9X, 2000, NT4, ME, XP), LINUX, UNIX, HP UX, QNX, SGI, FreeBSD,
BeOS, Open VMS, Novell 3.12-6
6. The CAT5 KVM system configuration
Figure 1 illustrates the basic configuration of the CAT5 KVM system.
Figure 1 The CAT5 KVM system configuration
7. The CAT5 KVM models
Figure 2 illustrates the front panel of the CAT5 KVM 16 port model. The 8 port model is the same
but with only 8 rows of LEDs.
Figure 2 CAT5 KVM front panel
The figure below illustrates the rear panel of the CAT5 KVM 16 port unit. The 8 port model is the
same but with only 8 Computer ports.
Figure 3 CAT5 KVM 16 port rear panel
8. Pre-installation guidelines
• Switch off all computers
• Place cables away from fluorescent lights, air conditioners, and machines that are likely to
generate electrical noise
• Ensure that the maximum distance between each computer and the CAT5 KVM, does not exceed
10m/33ft
9. Connecting the CAT5 KVM system
Connect each computer to the CAT5 KVM system using the appropriate CIM and CAT5 cables.
Figure 4 illustrates the CAT5 KVM system connections with the appropriate CIM connected to a
PS/2, SUN and USB computer/server.
Figure 4 CAT5 KVM system connections
The CIMs
The CIMs draw their power from the computer’s keyboard port (CIM PS/2, SUN) or from the USB
port (CIM USB).
Connecting a PS/2 CIM
Figure 5 illustrates the CIM.
To connect the PS/2 CIM:
1. Connect the Screen connector to the computer’s Video card.
2. Connect the Keyboard connector to the computer’s Keyboard port.
3. Connect the Mouse connector to the computer’s Mouse port.
Figure 5 PS/2 CIM
Connecting a SUN CIM
Figure 6 illustrates the SUN CIM and its connections.
To connect the SUN CIM:
1. Connect the Screen connector to the computer’s Video card.
2. Connect the Keyboard connector to the computer’s Keyboard port.
Figure 6 SUN CIM
Connecting a USB CIM
The CIM USB supports Windows 98 SE and later, MAC, SUN and SGI. Figure 7 illustrates the
USB CIM and its connections.
To connect the USB CIM:
1. Connect the Screen connector to the computer’s Video card.
2. Connect the USB connector to the computer’s USB port.
Figure 7 USB CIM
VGA Extender cable
Where the CIM’s Screen connector won’t reach the computer’s Video card, connect the VGA
Extender cable to the CIM and then follow the instructions below.
Connecting the CAT5 cables
1. Connect one connector to the CIMs RJ45 port.
2. Connect the other connector to one of the CAT5 KVM’s Computer ports.
3. Follow the above 2 steps for each computer.
Connecting the KVM console
To connect a KVM console to the CAT5 KVM:
1. Connect the monitor’s connector to the CAT5 KVM’s Monitor port.
2. Connect the keyboard’s connector to the CAT5 KVM’s Keyboard port.
3. Connect the mouse’s connector to the CAT5 KVM’s Mouse port.
10. Connecting the power supply
1. Connect the CAT5 KVM to the power supply using the Power cable provided.
2. Switch on the computers.
11. Updating the LEDs
The front panel CPU onputers when you do one of the following:
• Open the OSD (On Screen Display) – see below
• Press the 2 front panel Select buttons simultaneously.
12. Resetting the Switch
To reset the Switch press the 2 front panel Select buttons simultaneously. The CIMs are unaffected
by this reset.
Resetting can also be performed through the software – explained later.
13. Rack mounting the CAT5 KVM
Use the L-shaped brackets and screws provided to mount the CAT5 KVM on a server rack as
illustrated below.
14. Rack mounting the CIMs
You can attach the CIMs to a server rack or computer using the Velcro strips provided. Or connect
it using the bracket provided.
The figure below illustrates the bracket.
15. Operating the CAT5 KVM system
Switch between the connected computers by either
• The front panel Select buttons
• Keyboard hotkeys
• The OSD (On Screen Display)
The OSD is also the place to adjust various settings as explained below.
When switching computers the illuminated LED of the top bank indicates which computer is
currently selected.
16. The keyboard hotkeys
To switch to the next computer forwards press Shift then, +. Release Shift, before pressing +.
To switch to the next computer backwards press Shift then, -. Release Shift, before pressing -.
Note! With a US English keyboard you can use the + of the alphanumeric section or of the numeric
keypad. With a Non-US English keyboard only use the + of the numeric keypad.
17. The OSD
To display the OSD:
Press Shift twice. The OSD Main window appears. See Figure 8. Lines with blue text show active
computers. Lines with grey text show inactive computers.
The Type column indicates whether a computer “C” or another switch “S” is connected to the port.
Figure 8 The OSD Main window
18. Navigating the OSD
To navigate up and down use the Up and Down arrow keys.
To jump from one column to the next (when relevant) use the Tab key.
To exit the OSD or return to a previous window within the OSD press Esc.
19. Selecting a computer
To select a computer:
1. Navigate to the desired computer line.
2. Press Enter. The selected computer is accessed. An confirmation label appears showing which
computer is accessed.
Note! When the OSD is displayed you cannot select computers using the front panel Sele ct buttons
or the keyboard hotkeys.
20. The OSD settings (F2)
Press F2. The OSD Settings window appears see Figure 9.
Figure 9 The Settings window
Note! When the OSD is password protected (explained below) only the Administrator has
access to the F2 settings window.
21. The General settings
With the blue line on the word GENERAL, press Enter. The General settings window appears see
Figure 10.
Figure 10 The General Settings window
From this window you can do the following:
Security
The OSD comes with an advanced password security system that contains 3 different security
levels. Each security level has different access rights to the system.
These levels are as follows:
Administrator (Status A)
The Administrator can:
• Set and modify all Passwords and security profiles
• Fully access any computer
• Use all OSD functions
Supervisor (Status S)
The Supervisor can:
• Fully access any computer
• Access the following OSD functions only –F4 Scan, F5 Tune and F6 Moving the
Confirmation label.
User (Status U)
There are 6 different Users in the CAT5 KVM system. Each User has a Profile set by the
Administrator that defines the access level to different computers. There are 3 different access
levels, these are explained on page 17.
Activating password protection
By default OSD access is not password protected. Only the Administrator can password-protect the
OSD or disable password protection.
To do so:
1. In the General settings window navigate to the Security line.
2. Press the Space bar to toggle between Security On and Off. The password box appears.
3. Type the Administrator’s password (default is “admin”).
4. Press Enter. The new security status is set.
Changing the OSD hotkey
By pressing Shift, Shift the OSD appears. You can replace Shift, Shift with any of the following:
• Ctrl, Ctrl
• Ctrl, F11
• Print Screen
To change the hotkey:
1. Navigate to the Hotkey line.
2. Press the Space bar to toggle between options. To display the OSD in future press the new
hotkey.
Autoskip
With the Autoskip feature, the arrow keys only access the active computer lines on the OSD. When
Autoskip is Off, The arrow keys access both active and inactive computer lines.
To change the Autoskip setting:
1. Navigate to the Autoskip line.
2. Toggle between the options using the Space bar.
Serial port
The Serial port is used for the Control Management program. Serial port On means the program can
be used.
To change the Serial port setting:
1. Navigate to the Serial port line.
2. Toggle between the options using the Space bar.
Changing the Keyboard language
The keyboard is preset to US English, this can be changed to French (FR) or German (DE), as
follows:
1. Navigate to the Keyboard language line.
2. Toggle between the options using the Space bar.
Editing the Switch name
You can substitute up to 18 characters in the line. A space constitutes a character. When there is
more than one switch in the system give each Switch’s Osd a different name.
22. F7 Defaults
Press F7 to return the OSD to the factory default settings. Note! All changes made will be removed.
23. The Ports settings
In the Settings window navigate to the Ports line and press Enter. The Ports settings window
appears see Figure 11.
Figure 11 Ports Settings window
Editing the computer name
In this window you can edit the computer names with up to 15 characters.
To erase a character:
Select it and press the Space bar. Blank spaces remain in place of the erased character.
To erase an entire line:
Place the cursor at the beginning of the line. Keep the Space bar depressed until the line is erased.
Keyboard (KB)
The CAT5 KVM operates with Windows, Linux, HP UX, Alpha UNIX SGI, DOS, Novell, MAC,
USB or Open VMS.
By default the keyboard mode is set to PS for Intel based computers.
For the other systems set the KB column as follows:
• U1 for HP UX
• U2 for Alpha UNIX, SGI, Open VMS
• U3 for IBM AIX
Adding/changing a hotkey (HKEY)
Cascade the CAT5 KVM by connecting another Multi-Platform CAT5 KVM to a Computer port
instead of a computer, and then connecting more CIMs to the second Switch. Connect a third and
fourth Switch in the same way. With the CAT5 KVM 16 Port model, connect up to up to 256
computers through cascading.
You must define a hotkey to display the OSD of each Switch. These hotkeys must be different for
the top and bottom layers. The hotkeys can be any of the choices as set out above on page 14.
To add/change a hotkey:
1. On the line to which the Switch is connected, press Tab to jump to the HKEY column.
2. Toggle between the options using the Space bar.
24. The Time settings
In the Settings window navigate to the Time line and press Enter. The Time settings window
appears see Figure 12.
Figure 12 Time settings window
Scan (SCN) - Label (LBL) - Time out (T/O)
SCN SCN column, change the scan period.
LBL - In the LBL column, change the display period of the OSD label showing which computer is
currently accessed.
T/O - When password protection is activated you can automatically disable the Management
keyboard, mouse and screen after a preset time of non-use. Set this Timeout period in the T/O
column.
To set the above periods:
1. On the desired line press Tab to jump to the desired column.
2. Place the cursor over one of the 3 digits and type a new number. Enter a leading zero where
necessary. For example, type 040 for 40 seconds.
Typing 999 in the LBL column displays the label continuously. Typing 000 – the label will not
appear.
Typing 999 in the T/O column disables the Timeout function. Typing 000 – the Timeout
function works immediately.
Typing 999 in the SCNn displays the screen for 999 seconds. Typing 000 – the computer screen
is skipped.
25. Users
In the Settings window navigate to the Users line and press Enter. The Users settings window
appears see Figure 13.
Figure 13 The Users settings window
There are 3 different access levels. These are:
• Y – Full access to a particular computer. Plus access to the F4, F5 and F6 OSD functions
• V –Viewing access only, to a particular computer (No keyboard/mouse functionality)
• N – No access to a particular computer – A TIMEOUT label appears if access is attempted
To give each user the desired access level:
1. Navigate to the desired computer line and User.
2. Toggle between the options using the Space bar.
26. Security
In the Settings window navigate to the Security line and press Enter. The Security settings window
appears see Figure 14.
Figure 14 The Security settings window
The ‘T’ column on the right hand side stands for Type of password.
There can only be 1 Administrator password, 1 Supervisor password, and 6 User passwords.
To change a user name or password:
1. Navigate to the desired line and column.
2. Type a new user name / password. User authentication is done solely via the password there is no
security significance to the names.
By default the User Profile settings are full access.
27. The OSD HELP window – F1
To access the HELP window press F1. The HELP window appears, see Figure 15.
Figure 15 The HELP window
Please note! All the functions set out in the Help window are performed from the Main window.
The Help window is merely a reminder of the hotkeys and their functions.
28. Scanning computers– F4
Where necessary adjust the scan time in the Time Settings window, see above.
To activate scanning:
1. Press Shift twice to open the OSD.
2. Press F4. Your screen displays each active computer sequentially, with the Scan label appearing
in the top left corner.
To deactivate scanning:
Press F4.
29. Tuning – F5
You can tune the image of any remote computer screen from the Select Computer
window.
To adjust the screen image:
1. Navigate to the remote computer you wish to adjust.
2. Press F5. The screen image of the selected computer appears, together with the
Image Tuning label.
3. Adjust the image by using the RightLeft Arrow keys.
4. When the image is satisfactory, press Esc.
Note! Picture quality is relative to distance. The further away a remote computer is from the CAT5
KVM, the lower the image quality, and the more tuning needed. So place the higher resolution
computers closer to the manager unit.
30. Moving the label – F6
Position the OSD label anywhere on the screen.
To position the label from the Main window:
1. Navigate to the desired computer using the Up and Down arrow keys.
2. Press F6. The selected screen image and Identification label will appear.
3. Use the arrow keys to move the label to the desired position.
4. Press Esc to save and exit.
31. Using the Control software
As an alternative to the OSD you can operate the CAT5 KVM system with the Control software
located on the Marketing & Documentation CD. With the OSD you operate the system and view
the computer screens on the same monitor. The Control software requires 2 monitors 1 for the
software and 1 to view the computer screens.
With the Control software you can:
• View computers
• Edit OSD settings
• Save configurations for future use
• Read configurations from and write configurations to the Multi-Platform CAT5 KVM
32. Control software system requirements
• Pentium 166 or higher computer
• 16Mb RAM
• Windows 98, NT4 (SP6), 2000, ME, XP or 2003 server
• Free Serial port
33. Connecting the RS232 Serial cable
To run the software, connect the RS232 Serial cable to the computer containing the software, and to
the CAT5 KVM. See the figure below.
Figure 16 Connecting the RS232 Serial cable
34. Installing and running the Control software
Note! The CAT5 KVM system must be fully connected BEFORE running the Control software.
Failure to first connect the system will lead to the software working in demo mode.
Start the Marketing & Documentation CD and choose Multi-Platform CAT5 KVM Softpack. The
Multi-Platform CAT5 KVM Softpack window appears.
To install the software choose Install CAT5 KVM RS232 Control Software . Once the software
is installed, a shortcut icon appears on the Desktop .
To run the software double -click the icon.
Or choose Start / Programs / CAT5 KVM RS232 Control / CAT5 KVM RS232 Control.
To run the software from the CD:
Choose Run CAT5 Smart switch RS232 Control Software from CD.
Selecting a Com port
During the Setup process you will be prompted to choose a Com port. Choose the Com port to
which the RS232 Serial cable is connected. Failure to select the correct Com port will result in the
software running in demo mode.
Once Setup is complete the Control window appears. See the figure below.
Figure 17 The Control window
35. Computer icons
Icon
Meaning
Computer is connected and switched on
Computer is switched off or unconnected
Connected and switched on computer with a Local . After remaining idle for the Timeout
period, it changes to yellow.
When you first open the Control window the software automatically gets the status of the
CAT5 KVM system, including the security access settings.
36. Communication Error
If a Communication Error box appears when trying to scan the system – see Figure 18.
Figure 18 Communication Error
Check that:
• The RS232 Serial cable is connected to the computer’s and CAT5 KVM Manager’s serial
ports.
• The Com Port settings in Options / Com Port are set correctly. After changing the Com port
exit and re-enter the Control software.
37. The View menu
From the View menu choose to display:
• All computers, or only active switched on computers.
• The Legend
• The toolbar
38. Selecting a computer
To select a computer:
Click on the computers icon. The system switches to that computer. The connected icon appears
with a red background
. Control and monitor the selected computer from the keyboard and
mouse connected to the CAT5 KVM.
39. The toolbar buttons
The toolbar buttons are explained below.
40. Get Status
If for whatever reason there is a break in communication between the Control software and the
CAT5 KVM system, click
to get the current status of the computers in system. The
system automatically updates the status before every switching.
41. Read Configuration
To see the current settings of the entire CAT5 KVM system (names, scan settings etc.) click
. All current settings are received. You view the computer settings from the
Control window and other settings from the Edit menu – discussed below.
42. Write Configuration
With the Control software you can make changes to all OSD settings. You can then save these
configurations in a file to use in the future by selecting SaveSaveAs from the File menu.
Note! SaveorSaveAs will have no affect on the OSD .
To change the OSD settings you must press
or choose Write Configuration
from the File menu after making changes. The changes will then be sent to the CAT5 KVM
Manager, and the OSD will reflect these changes.
Renaming a computer
To rename a computer:
1. Type the new name in the box below the computer icon.
2. Click
to send the new name to the CAT5 KVM system.
Or click SaveSaveAs from the File menu to save the change in a file and not alter the OSD names.
The Edit menu
You can edit all OSD fields. Edit the following from the Edit menu.
• Logo
• Passwords
• Settings
Logo and Passwords
You can edit the logo that appears at the top of the OSD window. You can also edit the names and
passwords for the Administrator, Supervisor and 6 Users.
1. Edit the Logo and Passwords by choosing them from the Edit menu. See figures below.
Figure 20 The names and passwords
Figure 19 The logo
2. Make the desired changes.
3. Click OK.
Settings
Choose Settings from the Edit menu. The Computers’ Properties box appears. See Figure 21.
Figure 21 The Settings box
Here you can edit all the data that can be edited in the OSD. This includes:
Scan times, Confirmation label display time, Timeout, mouse type, keyboard type, User access,
password mode, Autoskip mode, keyboard mode – Display hotkey.
To edit a setting:
1. Select the desired computer or group of computers.
2. Make the desired changes.
3. Check the Select box next to the changed setting.
4. Click OK.
Single computer settings
To see all the settings of a single computer right click on the computer icon. The settings appear as
in the figure below.
Note! There is no Select box to check.
Figure 22 The single computer Settings box
43. Loading a saved configuration
To load a saved configuration:
From the File menu choose Open.
44. The factory default settings
To view to the factory default settings:
From the File menu choose New.
45. Reminder!
All changes done with the Control software are only reflected in the OSD AFTER pressing
.
46. Password protection
When the CAT5 KVM system is password protected, the Control software behaves in exactly the
same way as the OSD. You must type in the required password to access the Control software. The
access you gain depends on the security status – exactly as with the OSD.
To change the security access, close and reopen the Control software, and type in the different
password.
Administrator (Status A)
The Administrator can:
• Set and modify all Passwords and security profiles
• Fully access any computer
• Use all functions
Supervisor (Status S)
The Supervisor can:
• Fully access any computer
• Scan computers.
User (Status U)
There are 6 different Users in the CAT5 KVM system. Each User has a Profile that defines the
access level to different computers. There are 3 different access levels. These are:
• Y – Full access to a particular computer
• V –Viewing access only, to a particular computer (No keyboard/mouse functionality)
• N – No access to a particular computer
The Administrator defines the desired access levels of each User Profile. This is done in the Setting
box. By default the User Profile settings are full access.
47. Upgrading the CAT5 KVM firmware
With the CAT5 KVM Update software program you can upgrade the firmware for the:
• OSD
• Manager
• CIMs
CAT5 KVM Update enables you to add new features and fix bugs in a quick and efficient manner.
You can install the Multi-Platform CAT5 KVM Update on any computer, even one not part of the
CAT5 KVM system.
The CAT5 KVM Update software and latest firmware is on the Marketing & Documentation CD.
To obtain the latest firmware for your system go to www.ConnectPRO.com .
48. System requirements for the CAT5 KVM Update software
• Pentium 166 or higher with 16 MB RAM and 10 MB free Hard Drive space.
• Available Serial port.
• Windows 98, 2000, ME, XP or Windows NT 4.0 SP (service pack) 3 or later.
49. Connecting the CAT5 KVM System
To update the firmware the CAT5 KVM system must be connected and switched on.
50. Connecting the RS232 Serial cable
To run the software, connect the RS232 Serial cable to the computer containing the software, and to
the Multi-Platform CAT5 KVM. See page 21.
51. Installing the software
To install the Multi-Platform CAT5 KVM Update software:
1. Insert the Marketing & Documentation CD. The CD menu runs automatically.
2. Choose Multi-Platform CAT5 KVM Softpack.
3. Either run the Multi-Platform CAT5 KVM Update software straight from the CD or install it
on the computer’s hard drive and run it from there.
52. Starting and configuring the CAT5 KVM Update
1. Start the CAT5 KVM Update software. The CAT5 KVM Update window appears. See Figure
23.
Figure 23 The Multi-Platform CAT5 KVM Update window
The table below explains the functions of the buttons and boxes in the Multi-Platform CAT5 KVM
Update window.
Button or Box
Function
Selects all CIMs
Unselects selected CIMs
Starts firmware download
Displays the firmware version number
Displays the hardware version number
Cancels selected function
System time
Displays download status
Name of Update file
2. From the Options menu choose Com Port. The Com Port box appears.
See Figure 24.
Figure 24 The Com Option box
3. Choose an available Com Port and click OK.
Note! The RS232 Serial cable must be connected to the selected Serial port.
53. Verifying the version numbers
Before upgrading the firmware, you must first verify which firmware and hardware versions you
have.
The OSD version number
To verify the OSD version number:
1. Open the Multi-Platform CAT5 KVM Update program.
2. In the Switch Unit box, check the OSD option. See Figure 23.
3. Click
. The version number appears in the Switch box.
The H/W Version button is grayed out, as there is no hardware relevant to the OSD.
The CAT5 KVM Manager version number
To verify the CAT5 KVM version number:
1. Open the Multi-Platform CAT5 KVM Update program.
2. In the Switch Unit box, check the CAT5 KVM Manager option.
3. Click
. The firmware version number appears in the Switch Unit box.
4. Click
. The hardware version number appears in the Switch Unit box.
Verifying the CIM version number
Before you can check a CIM, you must uncheck the Switch Unit box options.
To verify the CIM version number:
1. Open the Multi-Platform CAT5 KVM Update program.
2. Check one or more or all of the CIMs.
3. Click
. The firmware version number appears after the CIM number.
4. Click
. The hardware version number appears after the CIM number.
When “Not responding” appears, there is no computer connected, or it is switched off.
54. Obtaining new firmware
Download the latest firmware for your system from www.ConnectPRO.com
55. Updating the firmware
Warning!
Never switch off any computer connected to the CAT5 KVM system during the updating process.
To update the firmware:
1. Open the Multi-Platform CAT5 KVM Update program.
2. In the Multi-Platform CAT5 KVM Update window, check the appropriate option in the Switch
Unit box or the desired CIM.
3. From the File menu, choose Open. The Open box appears. See Figure 25.
4. Navigate to the folder that contains the firmware update file. You may only see the files that
match the file selection mask.
Figure 25 The Open box
5. Open the file.
6. Click Start. The Multi-Platform CAT5 KVM Update flashes the firmware. On completion the
firmware version number appears.
7. Check that the updated version number is correct by pressing
.
Firmware Update generates one log file per session that displays a chronological list of actions.
You can read the log file in any ASCII text editor. The log file is located in the Windows directory.
56. Reset
Reset the software for the CAT5 KVM Manager or CIMs when for example the unit hangs or when
the mouse fails to work properly. Resetting is done via the Serial port, and avoids the need to shut
down the computer.
NOTE! The Reset function does not affect the parameters of the unit settings.
Resetting the Switch or CIM units
To reset the Switch or CIM units:
1. For the Switch, check the Multi-Platform CAT5 KVM option in the Switch Unit box.
For the CIMs, check one or more CIMs in the CIM Units box.
2. From the Options menu choose Advanced / Reset. The units reset. The system should now be
operational.
57. Troubleshooting tips
When using Firmware Update software you may sometimes get a Communication Error message.
When updating a unit and a Communication Error message appears, do the following:
1. Check that the RS232 Serial cable’s RS232 connector is connected to the Switch’s
Communication port.
2. Check that the RS232 Serial cable’s DB9F connector is connected to the DB9M Serial port on
the CPU’s rear panel.
3. Restart the download process.
Electricity failure
If the electricity fails while updating the CAT5 KVM firmware, do the following:
If the electricity fails during the firmware update of the Switch, a Communication Error message
appears. Simply resume the firmware update by opening the folder that contains the firmware
update file and continue from there.
If the electricity fails during the firmware update of the CIMs a Not Responding or Upgrade
Error message appears. Restart the upgrade from the beginning.
58. USB SUN Combo keys
The connected PS/2 keyboard does not have a special SUN keypad to perform special functions in
the SUN Operating System environment. So when a CIM USB or SUN is connected to a SUN
computer, the CIM emulates these SUN keys using a set of key combinations called Combo keys.
See the table below.
SUN key
Combo key
Stop
Left Ctrl + Alt + F1
Props
Left Ctrl + Alt + F3
Front
Left Ctrl + Alt + F5
Open
Left Ctrl + Alt +F7
Find
Left Ctrl +Alt + F9
Again
Left Ctrl + Alt + F2
Undo
Left Ctrl + Alt + F4
Copy
Left Ctrl + Alt + F6
Paste
Left Ctrl + Alt + F8
Cut
Left Ctrl + Alt + F10
Help
Left Ctrl + Alt + F11
Compose
Application key or Left Ctrl + Alt + Keypad *
Crescent
Scroll Lock
Volume Up
Left Ctrl + Alt + Keypad –
Volume Down
Left Ctrl + Alt + Keypad +
Mute
Left Ctrl + Alt + F12
Sun Left ? key
Left Windows key
Sun Right ? key
Right Windows key
Alt-Graph
Right Alt or Alt Gr
Stop A
Left Ctrl + Alt +1
59. Technical specifications
Operating Systems
DOS, Windows (3X, 9X, 2000, NT4, ME, XP)
LINUX, UNIX, QNX, SGI, FreeBSD, BeOS, Open VMS, Novell 3.12-6
Local Mouse Driver
PS/2, wheel mouse
Resolution
1600x1200@75Hz
Transmission distance
Up to 10m/33ft
Multi-Platform CAT5 KVM
Dimensions – 8/16
266.5 x 110.5 x 41.3mm / 10.47 x 4.35 x 1.62in
Weight – 8/16 port
Product – 1Kg / 2.2lbs
Shipping – 1.95Kg / 4.22lbs
Power supply – 8/16 port
Connections
Internal switching 85-260 VAC 50 / 60 Hz
System
RJ45
Local KVM
RJ11
HDD15/MinDin6/MiniDin6
Operating temperature
0ºC to 40ºC/32ºF to 104ºF
Storage temperature
-40ºC to 70ºC/-40ºF to 158ºF
Humidity
80% non-condensing relative humidity
CIMs
PS/2
USB
SUN
VGA
HDD15
HDD15
HDD15
Keyboard/Mouse
MiniDin6
USB
MiniDin6
System
RJ45
RJ45
RJ45
Power
From computer’s
From USB port
From computer’s
Connections
Product weight
107g
Shipping weight
300g
Dimensions
91 x 41 x 24mm / 3.58 x 1.61 x 0.94in
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
