Casio | XJ-UT310WN | Setup guide | Casio XJ-UT310WN Setup guide

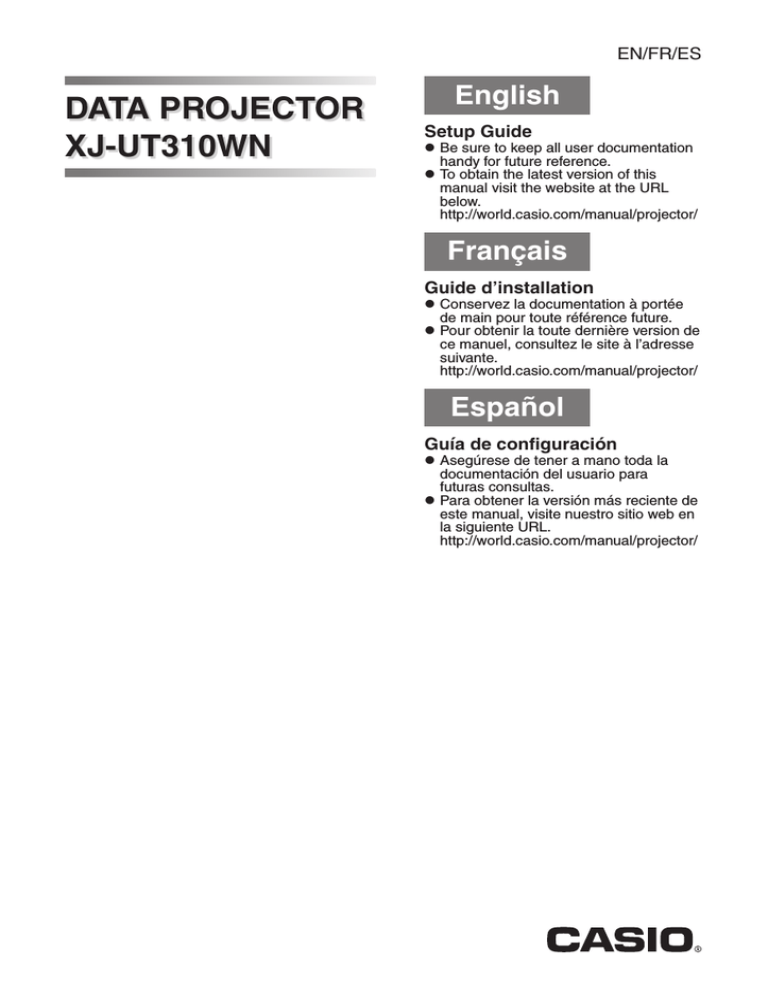

EN/FR/ES
DATA PROJECTOR
XJ-UT310WN
English
Setup Guide
Be sure to keep all user documentation
handy for future reference.
To obtain the latest version of this
manual visit the website at the URL
below.
http://world.casio.com/manual/projector/
Français
Guide d’installation
Conservez la documentation à portée
de main pour toute référence future.
Pour obtenir la toute dernière version de
ce manuel, consultez le site à l’adresse
suivante.
http://world.casio.com/manual/projector/
Español
Guía de configuración
Asegúrese de tener a mano toda la
documentación del usuario para
futuras consultas.
Para obtener la versión más reciente de
este manual, visite nuestro sitio web en
la siguiente URL.
http://world.casio.com/manual/projector/
Contents
Safety Precautions .................................. EN-1
Quick Guide ............................................EN-12
Operating Precautions ............................ EN-7
Specifications .........................................EN-14
General Guide ........................................ EN-11
Unpacking
As you unpack the projector, check to make sure that all of the items listed below are present.
z Cable cover
z DATA PROJECTOR
z Wireless remote control (YT-140)
z Setup Guide
z Test Batteries (AAA-size × 2)
z “Read this first” Sheet
z Warranty
z AC Power Cord
z Wireless adapter
z RGB Cable
Projector Documentation and Software
The manuals for this projector can be downloaded from the CASIO website at the URL below.
http://world.casio.com/manual/projector/
Reference manual:
“User’s Guide” (UsersGuide.pdf), “Network Function Guide”
The software for the projector can be downloaded from the CASIO website at the URL below.
http://www.casio-intl.com/support/download/
Software for the projector:
Network Connection, EZ-Converter FA
z The contents of this User’s Guide are subject to change without notice.
z Copying of this manual, either in part or its entirety, is forbidden. You are allowed to use this manual for your
own personal use. Any other use is forbidden without the permission of CASIO COMPUTER CO., LTD.
z CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims from third parties arising
out of the use of this product or this manual.
z CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to loss of data caused
by malfunction or maintenance of this product, or any other reason.
z The sample screens shown in this manual are for illustrative purposes only, and may not be exactly the
same as the screens actually produced by the product.
EN
Safety Precautions
Thank you for selecting this CASIO product. Be sure to read these “Safety Precautions” before trying to
use it. After reading this User’s Guide, keep it in a safe place for future reference.
About safety symbols
Various symbols are used in this User’s Guide and on the product itself to ensure safe use, and to
protect you and others against the risk of injury and against material damage. The meaning of each of the
symbols is explained below.
*Danger
*Warning
*Caution
This symbol indicates information that, if ignored or applied incorrectly,
creates the risk of death or serious personal injury.
This symbol indicates information that, if ignored or applied incorrectly, could
possibly create the risk of death or serious personal injury.
This symbol indicates information that, if ignored or applied incorrectly, could
possibly create the risk of personal injury or material damage.
Icon Examples
’
!
$
A triangle indicates a situation against which you need to exercise caution. The example shown
here indicates you should take precaution against electric shock.
A circle with a line through it indicates information about an action that you should not perform.
The specific action is indicated by the figure inside the circle. The example shown here means
disassembly is prohibited.
A black circle indicates information about an action that you must perform. The specific action
is indicated by the figure inside the circle. The example shown here indicates you must unplug
the power cord from the power outlet.
● Malfunction
Precautions During Use
* Warning
● Adult supervision is required
whenever there are young children
present and especially when there is
the possibility of young children
coming into contact with the
projector.
● Smoke, odor, heat, and other
abnormalities
-
Immediately stop using the projector if
the screen appears abnormal, or if any
other abnormal operation occurs even
though you are operating the projector
correctly. Continued use creates the risk
of fire and electric shock. Immediately
perform the following steps.
1. Turn off the projector.
2. Unplug the projector.
3. Contact your original dealer or authorized
CASIO service center.
-
Should you ever notice smoke, strange
odor, or any other abnormality,
immediately stop using the projector.
Continued use creates the risk of fire and
electric shock. Immediately perform the
following steps.
1. Unplug the projector.
2. Contact your original dealer or authorized
CASIO service center.
EN-1
Safety Precautions
● Power cord
+
● Water and foreign matter
Misuse of the power cord creates the risk
of fire and electric shock.
Make sure that you always observe the
following precautions.
• Be sure to use only the accessories that come
with the projector.
• Make sure that you use a power source with the
same voltage as that specified for the projector.
• Do not overload a power outlet with too many
devices.
• Do not locate the power cord near a stove.
• Do not use the power cord that comes with the
projector with any other device.
• Do not share the outlet supplying power to the
projector with other devices. If you are using an
extension cord, make sure that the ampere rating
of the extension cord is compatible with the
power consumption value of this projector.
• Never use the power cord while it is still bundled
together.
• Use a conveniently located power outlet that you
can reach easily when you need to unplug the
projector.
A damaged power cord creates the risk
of fire and electric shock.
Make sure that you always observe the
following precautions.
• Never place heavy objects on the power cord
and never expose it to heat.
• Make sure the power cord is not pinched
between the wall and the rack or table where the
projector is located, and never cover the power
cord with a cushion or other object.
• Never try to modify the power cord, allow it to
become damaged, or subject it to excessive
bending.
• Do not twist the power cord or pull on it.
Never touch the power cord or plug while
your hands are wet.
Doing so creates the risk of electric
shock.
• When using this projector in the country where
you purchased it, be sure to use the power cord
that came with it. Whenever using the projector
in another country, be sure to purchase and use
a power cord that is rated for the voltage of that
country. Also make sure that you are aware of
the Safety Standards that apply in that country.
When going out, make sure the projector
is in a location away from pets and other
animals, and unplug the power plug from
the power outlet. A power cord damaged
by chewing can cause shorts, and
creates the risk of fire.
-
"
+
%
%
Never allow water to get on the projector.
Water creates the risk of fire and electric
shock.
Never place a vase or any other container
of water on top of the projector. Water
creates the risk of fire and electric shock.
Water or other liquid, or foreign matter
(metal, etc.) getting into the projector
creates the risk of fire and electric shock.
Should anything get inside the projector,
immediately perform the following steps.
1. Turn off the projector.
2. Unplug the projector.
3. Contact your original dealer or authorized
CASIO service center.
● Disassembly and modification
!
Never try to take the projector apart or
modify it in any way. The projector
contains a large number of high-voltage
components that create the risk of
electric shock and burn injury. Also, note
that problems caused by unauthorized
projector disassembly or modification are
not covered by the warranty and are not
eligible for repair by CASIO.
Be sure to leave all internal inspection, adjustment,
and repair up to your original dealer or authorized
CASIO service center.
● Dropping and impact
-
Continued use of the projector after it has
been damaged by dropping or other
mistreatment creates the risk of fire and
electric shock. Immediately perform the
following steps.
1. Turn off the projector.
2. Unplug the projector.
3. Contact your original dealer or authorized
CASIO service center.
-
EN-2
Safety Precautions
● Disposal by burning
-
● Exhaust vents
Never try to dispose of the projector by
burning it. Doing so can cause an
explosion, which creates the risk of fire
and personal injury.
● Projector light emission
-
• Never look directly into the lens, intake
vents, or exhaust vents while the light is
on. When turning on the projector, check
to make sure that no one is looking
directly into its lens, intake vents, or
exhaust vents. The strong light emitted
by the projector creates the risk of eye
damage.
• Do not attempt to use a magnifying
glass, mirror, or other similar object to
bend or reflect the projector’s light, and
never hold or place such object in the
path of the projector’s light. Refracted or
reflected light can shine into a person’s
eyes and create the risk of eye damage.
● Blocking the vents
-
Never allow the vents to become
blocked. Doing so causes internal heat
build-up, which creates the risk of fire
and breakdown of the projector.
Touching the projector while it is hot
creates the risk of burn injury. Make sure
that you always observe the following
precautions.
• Maintain a distance of at least 6 cm (2.4 inches)
between the front of the projector (from which
light is being emitted) and the projection surface
(screen). Maintain a distance of at least 30 cm
(11.8 inches) between surfaces and the other
sides of the projector.
• Do not insert the projector into any space where
air circulation is poor.
• Never cover the projector with a blanket or any
similar item.
• Locate the projector on a firm, flat surface during
use. Never use the projector while it is on a
carpet, blanket, towel, seat cushion, or other
pliable surface.
• Never stand the projector up on either end during
use.
The exhaust vents become very hot while the
projector is running. Never touch them. Doing so
creates the risk of burn injury. The areas near the
exhaust vents also become quite hot. Never locate
objects made of plastic or other heat-sensitive
materials near or under the projector. Doing so
creates the risk of deformation and discoloration of
the object.
● Location
Never locate the projector in any of the following
types of locations. Doing so creates the risk of fire
and electric shock.
• Near an area subject to strong vibration
• An area subject to large amounts of moisture or
dust
• Food preparation areas and other locations
where there is the chance of contact with oil
smoke, and areas where there are large amounts
of tobacco smoke present.
• Near a heater, on a heated carpet, or in an area
exposed to direct sunlight
• An area subject to temperature extremes
(Operating temperature range is 5°C to 35°C
(41°F to 95°F)).
● Heavy objects
Never place heavy objects on the projector or
climb on top of the projector. Doing so creates the
risk of fire and electric shock.
● Water
Never locate the projector in a bathroom or
anywhere else there is the chance that it will be
splashed with water.
● Unstable location
-
● Projector cabinet
’
Never open the projector’s cabinet.
Doing so creates the risk of electric
shock.
● Cleaning
$
Before cleaning the projector, be sure to
turn it off and unplug it from the power
outlet. Failure to do so creates the risk of
electric shock.
EN-3
Never place the projector on an unstable
surface or on a high shelf. Doing so can
cause it to fall, creating the risk of
personal injury.
Safety Precautions
● Using the projector on a base with
casters
* Caution
Whenever using the projector on a base that has
casters, make sure that you lock the casters when
not moving the base.
● Lightening
During a lightening storm, do not touch the plug of
the projector’s power cord.
● Remote controller
!
+
Never try to take the remote controller
apart or modify it in any way. Doing so
creates the risk of electric shock, burn
injury, and other personal injury. Be sure
to leave all internal inspection,
adjustment, and repair up to your original
dealer or authorized CASIO service
center.
Never allow the remote controller to
become wet. Water creates the risk of fire
and electric shock.
● Radio waves emitted by the wireless
adapter
-
Never use this product inside of an
aircraft or medical facility, or in any other
location where use of such devices is
prohibited. Radio waves can have an
effect on the operation of electronic
equipment and medical equipment, and
cause accidents.
Do not use this product in the vicinity of
high-precision electronic instruments or
electronic devices that handle weak radio
signals. Radio waves can have an effect
on the operation of such equipment, and
cause accidents.
• If you are using a pace maker or any other
electronic medical device, be sure to consult
your physician or device manufacturer before
using this product.
-
● Power cord
-
Misuse of the power cord creates the risk
of fire and electric shock. Make sure that
you always observe the following
precautions.
• When unplugging the power cord, always grasp
the plug, and do not pull on the power cord.
• Insert the plug into the power outlet as far as it
will go.
• After using the projector, unplug it from the
power outlet.
• Unplug the projector from the power outlet if you
do not plan to use it for a long time.
• At least once a year, unplug the power plug and
use a dry cloth or vacuum cleaner to clear dust
from the area around the prongs of the power
plug.
• Never use detergent to clean the power cord,
especially the power plug and jack.
• Before moving the projector, be sure to turn it off
and unplug it from the power outlet first.
● Backup of important data
+
Be sure to keep separate written records
of all data stored in projector memory.
Memory data can be lost due to
breakdown, maintenance, etc.
● During projection, make sure there is
nothing in front of the lens blocking
the light.
An object in front of the lens creates the risk of fire.
● Lens effect
Never have an aquarium or any other object that
produces a lens effect in front of the projector
while the light source unit is on. Such an object
creates the risk of fire.
● Lens
Never touch the lens with your hand.
● Wireless adapter
-
EN-4
Keep the wireless adapter out of the
reach of small children. Accidental
swallowing of a wireless adapter can
interfere with proper breathing and create
a life-threatening situation.
Safety Precautions
Battery Precautions
Other
* Danger
* Caution
+
Should liquid leaking from an alkaline
battery get into the eyes, immediately take
the following steps.
1. Do not rub the eyes! Wash the eyes with clean
water.
2. Contact a physician immediately. Failure to
take immediate action can lead to loss of
eyesight.
* Warning
Allowing dust to build up inside the projector by
not cleaning it for long periods creates the risk of
fire and accident, and can cause loss of projection
luminosity. Contact your original dealer or
authorized CASIO service center once a year about
having the interior of the projector cleaned. Note
that you will be charged for cleaning.
● Be sure to follow all applicable local
laws and regulations, and do not
dismantle the projector when
disposing of it.
Misuse of batteries can cause them to leak and
stain the area around them, or to explode, creating
the risk of fire and personal injury. Make sure that
you always observe the following precautions.
• Never try to take batteries apart and do
not allow them to become shorted.
• Never expose batteries to heat or throw
them into fire.
• Never mix old batteries and new ones.
• Never mix batteries of different types.
• Never try to charge batteries.
• Take care that batteries are oriented
correctly when you load them.
+
* Caution
Misuse of batteries can cause them to leak and
stain the area around them, or to explode, creating
the risk of fire and personal injury. Make sure that
you always observe the following precaution.
• Use only the type of batteries that is
specified for the remote controller.
-
● Dead batteries
Be sure to remove batteries from the remote
controller as soon as they go dead.
• Remove batteries from the remote
controller if you do not plan to use it for a
long time.
+
● Disposing of batteries
Make sure that you dispose of used batteries in
accordance with the rules and regulations in your
local area.
EN-5
Safety Precautions
+
3D Glasses
* Warning
-
3D images should not be viewed by the
types of individuals described below.
Doing so creates the risk of loss of
health.
• Individuals with heart disease
• Individuals with a history of photodermatosis
• Individuals with epileptic tendencies
* Caution
-
Do not view 3D images if you are
experiencing any of the symptoms
described below.
• When you are in poor physical condition
• When you feel you are losing your health
• Should you ever experience fatigue, loss of
health, or abnormal feelings while watching 3D
images, stop watching. Continued watching
could damage your health.
• Should the 3D image ever start appearing double
or lose its three-dimensionality, stop watching.
Continued watching can cause eye fatigue.
+
Avoid watching 3D images for very long
periods. Doing so can cause eye fatigue.
Be sure to observe the following
precautions when watching 3D images.
● Take care about nearby people and
objects.
Viewing 3D images can interfere with distance
judgment, so you should take care about nearby
people and objects when extending your arms or
making sudden movements. Failure to do so
creates the risk of material damage and personal
injury.
● Use 3D glasses when viewing 3D
images.
Watching 3D images without 3D glasses can cause
eye fatigue. Always use the specified 3D glasses
whenever viewing 3D images.
● You need to wear your glasses or any
other devices you normally use for
vision correction.
If you normally wear glasses or contact lenses, you
should be wearing them when you watch 3D
images with the 3D glasses. Failure to do so
creates the risk of eye fatigue or abnormal vision.
EN-6
The normal minimum age for viewing 3D
images is six. When 3D images are being
watched by a small child, a competent
adult should be on hand to monitor the
child, to ensure that the 3D images are
suitable for the child, that the child does
not watch the 3D images for too long an
uninterrupted period, etc.
Operating Precautions
About the Light Source Unit
z The projector’s light source unit uses a laser and LED.
z The life of the light source unit is rated at approximately 20,000 hours. The actual life will depend on
use conditions, the settings configured on the setup menu, and differences between each individual
light source unit.
z The light source unit is warranted for the period noted on the warranty certificate or for 6,000 hours,
whichever comes first.
z The failure of the light source unit to light or a noticeable drop in light source unit brightness indicates
the end of the light source unit’s life. Contact your original dealer or authorized CASIO service center
for replacement. Note that problems caused by unauthorized projector disassembly or modification
are not covered by the warranty and are not eligible for repair by CASIO.
EN-7
Operating Precautions
Vent Outlets
• Vent outlets become very hot during projection. Never touch vents or allow them to become blocked.
• Do not insert foreign objects.
Bottom
Projector Light Emission
• Never look directly into the light source while the light is on.
EN-8
Operating Precautions
Other Precautions
This projector is made of precision components. Failure to observe the following precautions can result
in inability to correctly save data and malfunction.
● Never use or store the projector in the following locations. Doing so creates the
risk of malfunction of and damage to the projector.
z
z
z
z
z
z
z
z
Locations subjected to electrostatic charge
Locations subjected to temperature extremes
Locations where there is extreme moisture
Locations subjected to sudden temperature changes
Locations where there is a lot of dust
On a shaky, slanted, or otherwise unstable surface
Locations where there is the danger of getting wet
Locations where there are large amounts of oil smoke or other smoke
● Ensure that the remote control signal receiver is not exposed fluorescent light,
sunlight, or other strong light. Strong light can cause malfunction.
● Avoid using the projector under the following conditions. Such conditions
create the risk of malfunction of and damage to the projector.
z Avoid areas subject to temperature extremes (operating temperature range is 5°C to 35°C (41°F to
95°F)).
z Never place heavy objects on the projector or climb on top of the projector.
z Never insert or allow foreign objects to drop into the projector.
z Never place a vase or any other container of water on top of the projector.
● Whenever setting the projector down or performing any operation that involves
moving or reorienting it, take care that you do not pinch your fingers under the
projector.
● Never leave dead batteries inside the remote controller for a long time.
Dead batteries can leak, which leads to malfunction of and damage to the remote controller. Be sure to
replace the batteries at least once every one year, no matter how much you use the remote controller
during that time.
● Clean with a soft, dry cloth.
When very dirty, use a soft cloth that has been dampened in a weak solution of water and a mild neutral
detergent. Wring all excess water from the cloth before wiping. Never use thinner, benzine, or any other
volatile agent to clean the projector. Doing so can remove its markings and cause staining of the case.
● Missing Screen Dots
Though this projector is manufactured using the most advanced digital technology available today, some
of the dots on the screen may be missing. This is normal, and does not indicate malfunction.
● Never subject the projector to strong impact while it is projecting.
If the projector is accidentally subjected to strong impact, the projection image will momentarily go
blank. The image will reappear after some time, but it may be the wrong color or it may be accompanied
by an error message.
If the projected image is the wrong color, re-select the current input source. If this does not return the
projected image to its proper color, turn projector power off and then back on again.
If the image reappears with an error message, correct the problem in accordance with the indicator
explanations under “Error Indicators and Warning Messages” in the User’s Guide.
● Use a power outlet near the projector. Always use the projector so that the
power cord can be easily unplugged.
EN-9
Operating Precautions
● Keystone Correction and Image Quality
Performing keystone correction causes the image to be compressed before it is projected. This can
result distortion of the image or a loss of image quality. If this happens, change orientation of the
projector and/or screen so it conforms as much as possible to the illustration under “Setting Up the
Projector” in the User’s Guide.
If image quality is the highest priority, turn off auto keystone correction and position the projector so it is
pointed straight at the screen.
z Even if your projector is still within the warranty period, you will be charged for repair if a problem is
due to running the projector non-stop for very long periods (like 24 hours) or if the projector was set up
and used without following the “Setup Precautions” in the User’s Guide.
z Use under high ambient temperature or in environments subjected to large amounts of dust, oil
smoke, tobacco smoke, or other types of smoke can shorten the replacement cycles and require more
frequent replacement of the optical engine and other components. Note that you are charged for such
replacement. For details about replacement cycles and fees, contact an authorized CASIO service
center.
Precaution when Handling the Projector after Use
The projector’s exhaust vents and the area around the vents
become very hot during operation, and will still be hot immediately
after turning off the projector. Because of this, you should hold the
sides of the projector as shown in the illustration whenever
moving it.
Cleaning the Projector
z Periodically clean the projector exterior, lens, intake vents, and exhaust vents on a regular basis.
z When cleaning the lens, do not apply undue force and take care to avoid damaging it.
z Dust and dirt tend to collect around the intake vents. Because of this, you should use a vacuum
cleaner to clean away accumulated dust and dirt periodically.
z Continued use of the projector after dust has accumulated around the intake vents can cause
overheating of internal components and lead to malfunction.
z Certain operating conditions also can cause dirt and dust to accumulate around the projector’s
exhaust vents. If this happens, use the same procedure as that described above to clean the exhaust
vents.
EN-10
General Guide
Projection lens
Control panel
Remote control signal receiver
Exhaust vents (left side)
Indicators
[P] (Power) key
Brightness sensor
Intake vents
Intake vents
AC Terminal
Security bar
Focus lever
Terminals
Security lock hole
Control Panel and Indicators
[ENTER] key
[AUTO] key
[INPUT] key
[P] (Power) key
[MENU] key
POWER/STANDBY indicator
LIGHT indicator
TEMP indicator
[ESC] key
Brightness sensor
Cursor keys (q/w/U/I)
EN-11
Quick Guide
This section explains the operational flow up to the point that projection is started.
For more individual operations, see the “User’s Guide” (UsersGuide.pdf).
1. Load batteries into the remote controller.
☞ “To load remote controller batteries” (User’s Guide)
2. Place the projector onto a table, desk, or stand that is level and firm, making sure
that you allow enough room around it.
☞ “Setting Up the Projector”, “Setup Precautions” (User’s Guide)
z Also, be sure to read the “Safety Precautions” (page EN-1) and the “Operating Precautions” (page
EN-7).
z You will need to purchase special hardware to hang this projector from a ceiling or to mount it on
a wall. For details, contact the retailer where you purchased the projector.
3. Adjust the vertical angle of the
projector.
1 Rotate the single foot on the bottom front of
the projector to fine adjust the projector’s
vertical angle.
2 Rotate the two feet on the bottom back of the
projector to fine adjust the projector’s
horizontal angle.
1
2
4. Use the supplied power cord to plug the projector into a power outlet.
5. Connect the projector to an image output device and then turn on the device.
☞ “Connecting Projector Cables” (User’s Guide)
6. Press the [P] (Power) key to turn on the projector.
z The first time you turn on the projector, a “Language” window will appear in the center of the
projection screen. Select the language you want.
7. Use the [INPUT] key to select the input source.
☞ “Selecting the Input Source” (User’s Guide)
8. Use the focus lever to adjust the focus.
9. After you finish projecting, press the [P] (Power) key.
z This will cause a power down confirmation message to appear. Press the [P] (Power) key again
to turn off the projector.
NOTE
z This product is also designed for IT power distribution system with phase-to-phase voltage 230V.
EN-12
Quick Guide
If you run into problems...
If you experience any problems while operating the projector or if you suspect that the projector is not
operating properly, refer to the “Troubleshooting” section in the “User’s Guide” (UsersGuide.pdf).
Attaching and Removing the Cable Cover
To attach the cable cover
1. If the projector is on, turn it off and wait until it cools down.
2. Unplug the projector power cord from the power outlet.
3. Turn the projector over and insert the cable cover hook into the hole provided on
the projector (Figure 1).
4. Rotate the cable cover in the direction indicated by the arrow in Figure 2 to attach it
to the projector.
z The cable cover screw should be aligned with the projector screw hole (Figure 3).
5. Use a Phillips head screwdriver to tighten the screw (Figure 4).
Hook
Screw
Figure 1
Figure 2
Figure 3
Figure 4
Screw
Screw hole
To remove the cable cover
1. If the projector is on, turn it off and wait until it cools down.
2. Unplug the projector power cord from the power outlet.
3. Use a Phillips head screw driver to loosen the cable cover screw until it disengages
from the projector (without detaching it from the cover).
4. Remove the screw side of the cable cover from the projector and then unhook the
cover hook from the projector.
EN-13
Specifications
Model Name
XJ-UT310WN
DLP® chip × 1, DLP® system
Display system
Display Chip
Chip Size
WXGA 0.65 inches (Aspect ratio: 16:10)
Number of Pixels
1,024,000 (1280 × 800)
Projection Lens
Fixed zoom, manual focus
F 2.3 / f 4.2
Light Source
Laser and LED
Projected Image Size
Projection
Distance
50 to 110 inches
60 inches
0.13 meters (0.4 feet)
100 inches
0.40 meters (1.3 feet)
Minimum Projection
Distance
0.06 meters (0.2 feet)
Gamut
Full color (16.77 million colors)
Brightness
3100 lumens
Contrast Ratio (Full White / Black)
Scanning
Frequencies
Horizontal
Display
Resolution
RGB Signal
Vertical
50 to 120 Hz
Native: 1280 × 800
Maximum: 1600 × 1200 (UXGA) resizing
Component Signal
Terminals
1800:1
15 to 102 kHz
Maximum: 1920 × 1080 (HDTV 1080P)
HDMI Signal
Maximum: 1920 × 1080 (HDTV 1080P)
Video Signal
NTSC, PAL, PAL-N, PAL-M, PAL60, SECAM
RGB Input
Component Input
RGB Output
COMPUTER terminal: RGB 15-pin mini D-Sub × 2
Used for both RGB input and component (YCbCr/YPbPr)
input.
MONITOR OUT terminal: RGB 15-pin mini D-Sub × 1
Digital Video Input
HDMI input terminal: HDMI type A terminal × 1
HDCP support, audio signal support
Analog Video Input
Composite (RCA) terminal × 1, S-video terminal × 1
Audio Input
RCA R/L terminals, 3.5 mm stereo mini jack × 2
Audio Output
3.5 mm stereo mini jack × 1
Mic Input *1
3.5 mm monaural mini jack × 1
USB Host
USB Device
USB type A × 1
USB type B × 1
Micro-USB type B × 1: For logo data registration
Control Terminal
RS-232C (D-sub 9 pin) × 1
LAN Terminal
RJ-45 × 1
Wireless Support *2
IEEE 802.11b/g/n compatible
Speaker
16W × 1, Monaural
Operating Temperature
5 to 35°C (41 to 95°F)
Operating Humidity
20 to 80% (non-condensation)
Operating Altitude
0 to 3,000 meters (0 to 10,000 feet) above sea level
Power Requirements
100 to 240V AC, 50/60Hz
EN-14
Specifications
Model Name
XJ-UT310WN
Power Consumption (100 to 240V)
Eco Level 1 when Eco Mode is “On”
185W
Eco Level 5 when Eco Mode is “On”
110W
When “Bright” is selected for Eco Off
Mode.
230W
When “Normal” is selected for Eco
Off Mode.
205W
Standby Power Consumption (100 to 120V)
When “Disable” is specified for
“Remote On” *3
0.12W
When “Enable” is specified for
“Remote On” *3
2.3W
Standby Power Consumption (220 to 240 V)
When “Disable” is specified for
“Remote On” *3
0.23W
When “Enable” is specified for
“Remote On” *3
2.6W
Approximate Dimensions
*4
338 (W) × 333 (D) × 153 (H) mm (13.3" × 13.1" × 6")
(Including projections)
Approximate Weight *4
5.5kg (12.1lbs)
*1 Plug-in power type microphones are not supported.
*2 With connection of provided wireless adapter to USB-A port on the back of the projector.
*3 For information about configuring the Remote On setting, see the separate “Network Function
Guide”.
*4 Excluding cable cover.
Specifications are subject to change without notice.
EN-15
Specifications
GPL and LGPL
(1) This product uses software (This Software) that comes under the GNU General Public License
(GPL) and GNU Lesser General Public License (LGPL). In accordance with the GPL and LGPL, the
source code of This Software is open source code. Anyone who wishes to view the open source
code can do so by downloading it from the CASIO Projector download site. Whenever copying,
modifying, or distributing This Software, be sure to do so in accordance with the terms and
conditions of the GPL and LGPL.
(2) This Software is provided “as is” without expressed or implied warranty of any kind. However, this
disclaimer does not affect the terms and conditions of the warranty of the product itself (including
malfunctions due to This Software).
(3) The full text of the GPL and LGPL that covers this software can be found at the back of the “User’s
Guide”. The “User’s Guide” for this projector is included with the files that you download from the
website whose URL is provided on the cover of this manual.
z DLP is a registered trademark of Texas Instruments Incorporated of the United States.
z Microsoft, Windows, Windows Vista, and PowerPoint are registered trademarks or trademarks of Microsoft
Corporation in the United States and other countries.
z HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing, LLC.
z Apple and Macintosh are registered trademarks of Apple Inc. of the United States.
z Adobe and Reader are registered trademarks of Adobe Systems Incorporated.
z XGA is a registered trademark of IBM Corporation of the United States.
z Other company and product names may be registered trademarks or trademarks of their respective
owners.
EN-16
GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THIS UNIT IN THE U.S.A. (not
applicable to other areas).
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communication. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Proper connectors must be used for connection to host computer and/or peripherals in order to meet
FCC emission limits.
Connector cable....XJ-UT310WN unit to PC
Declaration of Conformity
Model Number: XJ-UT310WN
Trade Name: CASIO COMPUTER CO., LTD.
Responsible party: CASIO AMERICA, INC.
Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801
Telephone number: 973-361-5400
This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Information
This device, Wireless LAN USB Adapter, complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received; including interference that may cause undesired operation.
Federal Communications Commission (FCC) Statement
This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
—
—
—
—
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the
equipment.
Tested to comply with FCC standard. FOR HOME OR OFFICE USE.
FCC RF Radiation Exposure Statement:
1. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment,
under 47 CFR 2.1093 paragraph (d)(2).
2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The Wireless LAN USB Adapter has been tested to the FCC exposure requirements (Specific Absorption
Rate).
XJ-UT310WN
FOR CALIFORNIA USA ONLY
Perchlorate Material – special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Manufacturer:
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan
Responsible within the European Union:
CASIO EUROPE GmbH
Casio-Platz 1, 22848 Norderstedt, Germany
Printed in Japan
Imprimé au Japon
MA1405-A
RJA530975-002
Download PDF

advertising
