Phase-Locked Loop (ALTPLL)

Phase-Locked Loop (ALTPLL)

2013.05.03

ug-altpll-9.0

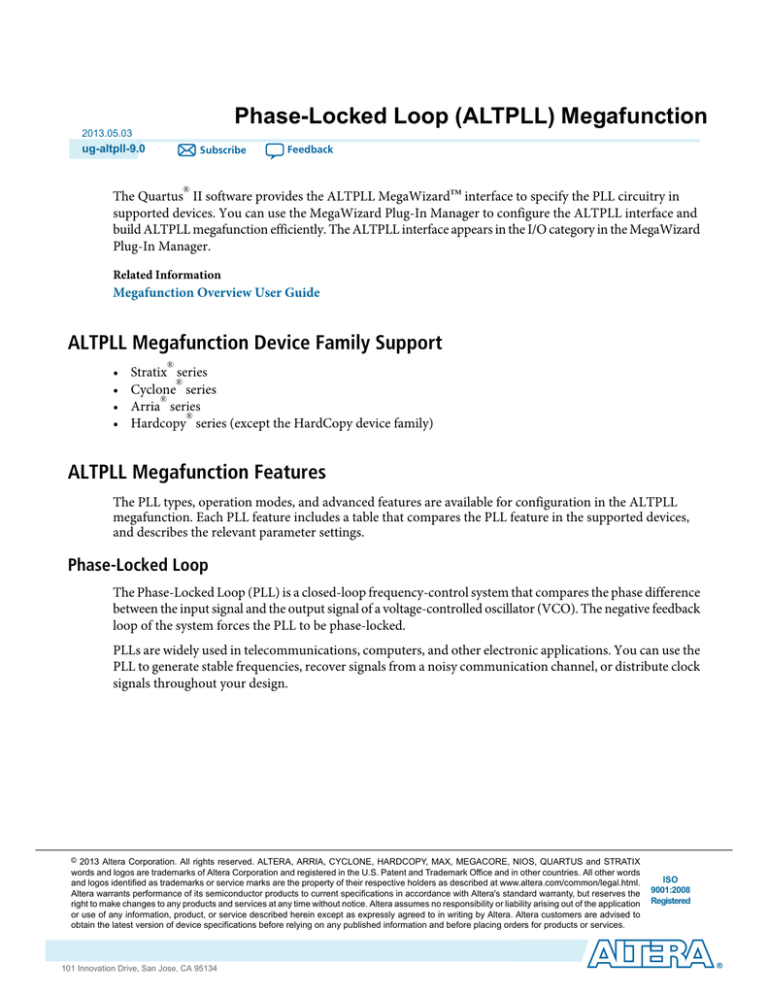

Phase-Locked Loop (ALTPLL) Megafunction

Subscribe

Feedback

The Quartus

®

II software provides the ALTPLL MegaWizard

™ interface to specify the PLL circuitry in supported devices. You can use the MegaWizard Plug-In Manager to configure the ALTPLL interface and build ALTPLL megafunction efficiently. The ALTPLL interface appears in the I/O category in the MegaWizard

Plug-In Manager.

Related Information

Megafunction Overview User Guide

ALTPLL Megafunction Device Family Support

• Stratix

®

• Cyclone series

® series

• Arria

® series

• Hardcopy

® series (except the HardCopy device family)

ALTPLL Megafunction Features

The PLL types, operation modes, and advanced features are available for configuration in the ALTPLL megafunction. Each PLL feature includes a table that compares the PLL feature in the supported devices, and describes the relevant parameter settings.

Phase-Locked Loop

The Phase-Locked Loop (PLL) is a closed-loop frequency-control system that compares the phase difference between the input signal and the output signal of a voltage-controlled oscillator (VCO). The negative feedback loop of the system forces the PLL to be phase-locked.

PLLs are widely used in telecommunications, computers, and other electronic applications. You can use the

PLL to generate stable frequencies, recover signals from a noisy communication channel, or distribute clock signals throughout your design.

©

2013 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html.

Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered www.altera.com

101 Innovation Drive, San Jose, CA 95134

2

Building Blocks of a PLL

Building Blocks of a PLL

Figure 1: PLL Block Diagram ug-altpll-9.0

2013.05.03

F

IN

N

F

REF

PFD

Charge

Pump

Loop

Filter

& VCO

Post-Dividers

F

VCO

K

V

F

OUT1

F

OUT1

F

OUT2

Feedback

M

The PLL consists of a pre-divider counter (N counter), a phase-frequency detector (PFD) circuit, a charge pump, loop filter, a VCO, a feedback multiplier counter (M counter), and post-divider counters (K and V counters).

The PFD detects the differences in phase and frequency between its reference signal (f

REF

) and feedback signal (Feedback), controls the charge pump, and controls a loop filter that converts the phase difference to a control voltage. This voltage controls the VCO.

Based on the control voltage, the VCO oscillates at a higher or lower frequency, which affects the phase and frequency of the Feedback signal. After the f

REF frequency, the PLL is said to be phase-locked.

signal and the Feedback signal have the same phase and

Inserting the M counter in the feedback path causes the VCO to oscillate at a frequency that is M times the frequency of the f

(N).

REF signal. The f

REF signal is equal to the input clock (f

IN

) divided by the pre-scale counter

The reference frequency is described by the equation f

REF

= f

IN

/N. The VCO output frequency is f

VCO

× M/N, and the output frequency of the PLL is described by the equation f

OUT

= (f

IN

= f

IN

× M)/(N × K) for the signals.

PLL Behavior

PLL lock time—Also known as the PLL acquisition time, PLL lock time is the amount of time required by the PLL to attain the target frequency and phase relationship after power-up, after a programmed output frequency change, or after a reset of the PLL. Simulation software does not model a realistic PLL lock time. Simulation shows an unrealistically fast lock time.

PLL resolution—The minimum frequency increment value of a PLL VCO. The value is based on the number of bits in the M and N counter.

PLL sample rate—The f

REF sampling frequency required to perform the phase and frequency correction in the PLL. The PLL sample rate is f

REF

/N.

Types of PLLs

The types of PLL supported by the megafunction depend on the device family. Device families typically support one or two PLL types. For example, the Stratix series supports two types of PLLs, and the Cyclone series supports only one type. The two PLL types supported within a device family are identical in their analog portions and differ slightly in the digital portion, for example, more counters on one type than another.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Parameter Setting

3

Parameter Setting

You select the PLL type on the General/Modes page of the ALTPLL MegaWizard interface. The list of available PLL types to choose from depends on the selected device family. If you select Select the PLL type

automatically, the ALTPLL MegaWizard interface selects the best possible PLL type, based on other options that you set in the ALTPLL MegaWizard interface.

Related Information

Determining the PLL Lock Range

on page 7

Expanding the PLL Lock Range

on page 7

Output Clocks

on page 9

Ports and Parameters

on page 36

Total Number of PLL Available in Each Supported Device Family

The following table lists the total number of PLLs available for configuration and the PLL types supported by the ALTPLL megafunction for each device family.

Table 1: Total Number of PLLs per Device Family

Device Family

Arria GX

Arria II GX

Stratix IV

Stratix III

Stratix II

Stratix II GX

Stratix

Stratix GX

Cyclone IV

Cyclone III

Cyclone II

Cyclone

4

2

4

4

12

8

12

12

12

8

8

6

Total Number of

PLLs

Enhanced and Fast

Left_Right

Top_Bottom and Left_Right

Top_Bottom and Left_Right

Enhanced and Fast

Enhanced and Fast

Enhanced and Fast

Enhanced and Fast

Cyclone IV PLL

Cyclone III PLL

Cyclone II PLL

Cyclone PLL

PLL Types

Operation Modes

The ALTPLL megafunction supports up to five different clock feedback modes, depending on the selected device family. Each mode allows clock multiplication and division, phase shifting, and duty-cycle programming.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

4

Operation Modes Supported in Each Device Family ug-altpll-9.0

2013.05.03

The following list describes the operation modes for the ALTPLL megafunction:

Normal mode—The PLL feedback path source is a global or regional clock network, minimizing clock delay to registers for that clock type and specific PLL output. You can specify PLL output that is compensated.

Source-Synchronous mode—The data and clock signals arrive at the same time at the input pins. In this mode, the signals are guaranteed to have the same phase relationship at the clock and data ports of any

Input Output Enable (IOE) register.

Zero-Delay Buffer mode—The PLL feedback path is confined to the dedicated PLL external output pin.

The clock port driven off-chip is phase aligned with the clock input for a minimal delay between the clock input and the external clock output.

No Compensation mode—The PLL feedback path is confined to the PLL loop. It has no clock network or other external source. A PLL in no-compensation mode has no clock network compensation, but clock jitter is minimized.

External Feedback mode—The PLL compensates for the fbin feedback input to the PLL. The delay between the input clock pin and the feedback clock pin is minimized.

Operation Modes Supported in Each Device Family

The following table summarizes the operation modes supported for each device family.

Table 2: PLL Types and Modes Supported in Different Device Families

Arria GX

Arria II GX

Stratix IV

Stratix III

Stratix II

Stratix II GX

Stratix

Stratix GX

Cyclone IV

Cyclone III

Cyclone II

Cyclone

Device Family Normal

All PLL types

Left_Right PLL

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

Source-Synchronous

All PLL types

Left_Right PLL

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

Zero-Delay Buffer No Compensation External Feedback

Enhanced PLL

Left_Right PLL

All PLL types

Enhanced PLL

Enhanced PLL

Enhanced PLL

Enhanced PLL

Enhanced PLL

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

Left_Right PLL

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

All PLL types

Enhanced PLL

All PLL types

Enhanced PLL

Enhanced PLL

Enhanced PLL

Enhanced PLL

Enhanced PLL

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Parameter Settings

5

Parameter Settings

Describes how to set the operation mode for the PLL using the ALTPLL MegaWizard interface. The parameter settings are located on the General/Modes page of the ALTPLL MegaWizard interface.

The following figure shows the options you can select from the page.

Figure 2: Operation Mode Options

The following table lists the options you can select from the page.

Table 3: Operation Mode Options and Descriptions

Option Description

Use the feedback path inside the PLL Specify which operation mode to use.

For source-synchronous mode, zero-delay buffer mode, and external feedback mode, you must make PLL

Compensation assignments using the Assignment

Editor in addition to setting the appropriate mode in the megafunction. The assignment allows you to specify an output pin as a compensation target for a PLL in zero-delay buffer mode or external feedback mode, or to specify an input pin or group of input pins as compensation targets for a PLL in source-synchronous mode.

Create an 'fbin' input for an external feedback (External

Feedback Mode)

Select this option to set the PLL in external feedback mode. The fbin port is the input port to the PLL from the external feedback path. In this mode, the PLL compensates for the fbin port. The delay between the input clock pin and the feedback clock pin is minimized.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

6

Parameter Settings

Option

Which output clock will be compensated for?

ug-altpll-9.0

2013.05.03

Description

Specify which output port of the PLL is to be compensated for. The drop down list contains all output clock ports for the selected device. The correct output clock selection depends on the operation mode that you select. For example, for normal mode, select the core output clock. For zero-delay buffer mode or external feedback mode, select the external output clock.

The following figure shows the options you can select from the page.

Figure 3: General Options on the General/Modes page of the ALTPLL MegaWizard Interface

The following table lists the options you can select from the page.

Table 4: Operation Mode Options and Descriptions

Option

Which device speed grade will you be using?

What is the frequency of the inclock0 input?

Set up PLL in LVDS mode

Specify the speed grade if you are not already using a device with the fastest speed. The lower the number, the faster the speed grade.

Description

Specify the frequency of the input clock signal.

Select this option when you want the PLL to supply the necessary clocking signals to the LVDS transmitter or receiver. In this mode, the PLL type and operation mode are forced to fast PLL and normal mode, respectively.

This option creates two new output ports —sclkout and enable.

This option is available only for the Arria GX, Stratix II,

Stratix II GX, andHardCopy II device families.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Data rate

Option

Determining the PLL Lock Range

7

Description

Specify the data rate for the PLL in LVDS mode. This option is available only if Set up PLL in LVDS mode is enabled.

Determining the PLL Lock Range

The PLL lock range is the range between the minimum (Freq min lock parameter) and maximum (Freq min lock parameter) input frequency values for which the PLL can achieve lock. The Quartus II software shows these input frequency values in the PLL Summary report located under Resource Section of the Fitter folder in the Compilation Report. Changing the input frequency may cause the PLL to lose lock, but while the input clock remains within the minimum and maximum frequency specifications, the PLL is able to achieve lock.

Expanding the PLL Lock Range

The Quartus II software does not necessarily pick values for the PLL parameters to maximize the lock range.

For example, you specify a 75 MHz input clock in the ALTPLL MegaWizard interface, the actual PLL lock range may be between 70 MHz to 90 MHz. If your application requires a lock range of 50 MHz to 100 MHz, the default lock range of this PLL is insufficient.

For devices that support clock switchover in PLLs, you can use the ALTPLL MegaWizard interface to maximize the lock range.

To extract valid parameter values to maximize your PLL lock range, perform the following steps:

1. In the schematic editor, double-click the ALTPLL instance in your design to open the ALTPLL MegaWizard interface.

2. For What is the frequency of your inclock0 input?, type the value of the low end of you desired PLL lock range. For example, if your application requires a lock range of 50 MHz to 100 MHz, type 50 MHz.

3. Turn on Create output file(s) using the 'Advanced' PLL parameters.

4. Turn on Create an 'inclk1' for a second inclk and enter the high end of your lock range as the frequency for inclk1. For example, if your application requires a lock range of 50 MHz to 100 MHz, type 100 MHz.

5. Complete the remaining pages in the ALTPLL MegaWizard interface.

6. Compile your project and note the lock range shown in the PLL Summary report. If it is satisfactory, note all of the values for the PLL from this report, such as the M value, N value, charge pump current, loop filter resistance, and loop filter capacitance.

7. In the schematic editor, double-click the ALTPLL instance in your design to open the ALTPLL MegaWizard interface.

8. Turn off Create an 'inclk1' for a second inclk.

9. Click Finish to update the PLL wrapper file.

10. In a text editor, open the PLL wrapper file. If the wrapper file is in Verilog format, go to the defparam section. If the wrapper file is in VHDL HDL, go to the generic map section. Modify all of the values for the parameters listed in step 6. Save the changes.

11. Compile your project.

12. Check the PLL Summary report to confirm the PLL lock range meets your requirements. The modified

PLL should have the desired lock range.

If your input clock frequency is too close to the end of the desired PLL lock range—for example the low end of the desired lock range is 50 MHz and the input clock frequency is 50 MHz, the PLL might not maintain lock when the input clock has jitter or the frequency drifts below 50 MHz. You may choose to expand your

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

8

Setting Up Stratix III and Stratix IV PLLs for LVDS Interfacing ug-altpll-9.0

2013.05.03

PLL lock range to ensure your expected input clock frequency is further from the end of the range. For this example, you can enter 45 MHz and 105 MHz to ensure that your target lock range of 50 MHz to 100 MHz is within the PLL lock range.

The Quartus II software prompts an error message if it is unable to implement your preferred lock range using this procedure. Therefore, you have to look into other options, such as PLL reconfiguration to support your input frequency range.

Setting Up Stratix III and Stratix IV PLLs for LVDS Interfacing

The ALTLVDS megafunction provides SERDES transmitter and receiver functionality commonly used in

LVDS interfacing.

The following table lists the options and values to configure a PLL on a Stratix III or Stratix IV device to clock an ALTLVDS megafunction block.

Table 5: Options to Configure a PLL on a Stratix III or Stratix IV Device

Option Value

Which PLL type will you be using?

Left_Right PLL

How will the PLL outputs be generated?

In Source-Synchronous Compensation mode

On the Output clocks page c0 c1

This clock signal is the high-speed serial clock

(fast clock) signal connected to the rx_ inclock or tx_ inclock port of the

ALTLVDS megafunction

Output frequency = data rate

Phase shift = -180 degrees

Duty cycle = 50%

This clock signal is the load enable signal connected to the rx_ enable or tx_enable port of the ALTLVDS megafunction.

Output frequency = data rate/deserialization factor

Phase shift =

[(deserialization factor –

2)/deserialization factor]

× 360 degrees

Duty cycle =

(100/deserialization factor)% c2

This clock signal is the slow clock signal that feeds the synchronization register of the ALTLVDS megafunction.

Output frequency = data rate/deserialization factor

Phase shift =

(-180/deserialization factor) degrees

Duty cycle = 50%

Related Information

SERDES Transmitter/Receiver (ALTLVDS) Megafunction User Guide

Simulating External Feedback Board Delay

The PLL external feedback board delay option is available for Arria GX, Cyclone, HardCopy series, Stratix,

Stratix GX, Stratix II, and Stratix II GX device families only.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Output Clocks

9

The functional and timing models of these devices do not support the simulation of external feedback. To simulate the external feedback mode, perform the following steps:

1. In the Quartus II software, open an existing project or create a new project.

2. On the Assignments menu, click Assignment Editor.

3. In the Category bar, under Timing, click All.

4. In the spreadsheet, double-click an empty row in the To cell and either type in the pin name or click the arrow to use the Node Finder to search for the external feedback input pin.

5. Double-click the Assignment Name cell, and select PLL External Feedback Board Delay.

6. In the Value cell, double-click and type the amount of time for the signal to propagate between the external clock output pin through the trace on the board and into the external feedback input pin.

7. Simulate your design.

The behavioral models for the ALTPLL megafunction reside in the \quartus\eda\sim_lib directory. The

altera_mf.vhd file contains the VHDL behavioral models and the altera_mf.v file contains the Verilog HDL behavioral models. The behavioral model does not perform parameter error checking, so you must specify valid values.

Output Clocks

The PLL can generate a number of clock output signals depending on the PLL type and the device family that you select in the ALTPLL MegaWizard interface. For example, in a Stratix IV device, a Left_Right PLL can generate seven clock output signals, and a Top_Bottom PLL can generate as many as 10 clock output signals. The generated clock output signals are used to clock the core or external blocks outside of the core.

The ALTPLL megafunction does not have a dedicated output enable port, you can disable the PLL output.

You can use the pllena signal or the areset signal to disable the PLL output counters, and thereby disable the PLL output clocks. Another possible method is to feed the PLL output clock signals to the

ALTIOBUF megafunction and use the enable output ports of the resulting buffers to disable the signals.

Parameter Settings

The Output Clocks page of the ALTPLL MegaWizard interface contains the parameter settings for the clock output signals. The output clock port can be used as a core output clock or an external output clock port.

The core output clock is used to feed the FPGA core and the external output clock is used to feed the dedicated pins on the FPGA.

The following figure shows a screenshot of the page to configure the c0 clock output signal of the ALTPLL megafunction.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

10

Parameter Settings

Figure 4: The Output Clocks Page of the ALTPLL MegaWizard Interface ug-altpll-9.0

2013.05.03

Each option has the following two columns:

• Requested settings

• Actual settings

The requested settings are the settings that you want to implement, and the actual settings are the settings closest values that can be implemented in the PLL circuit to best approximate the requested settings. Use the values in the actual settings column as a guide to adjust the requested settings. If the requested settings for one of the output clocks cannot be approximated, the ALTPLL MegaWizard interface produces a warning message at the top of every page. To determine the output clocks that contain unachievable settings, turn on Per Clock Feasibility Indicators at the bottom of the ALTPLL MegaWizard interface page. The output clock name in red is the name of the clock with unachievable settings. The clock listed in green has no settings issues, and the grayed-out names are the unselected output clocks. You must adjust the requested settings for the affected output clocks to resolve the warning messages, or use another Altera device that meets your desired timing specifications.

To generate an output clock port in your ALTPLL megafunction instance, select Use this clock.The output clock port that is to be compensated for is enabled by default. It cannot be disabled, unless you select a different output clock port to be compensated for.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Parameter Settings When “Set up PLL in LVDS mode” Option is Enabled

11

The rest of the options on the page allow you to set the following output clock values:

• frequency

• phase shift

• duty cycle

The phase shift option allows you to set the programmable phase shift for an output clock signals. The smallest phase shift is 1/8th of VCO period. For degree increments, the maximum step size is 45 degrees.

You can set smaller steps using the clock multiplication and division factors options. For example, if the post-scale counter is 32, the smallest phase shift step is 0.1°. The up and down buttons let you cycle through phase shift values. Alternatively, you can enter a number in the phase shift field manually instead of using the buttons.

Instead of specifying frequency of the output clock signal, you can also specify the multiplication and division factors of the signal in the requested settings column.

The following figure shows the formula for an output clock frequency.

Figure 5: PLL Output Clock Frequency

The ALTPLL MegaWizard interface calculates the simplest fraction, and displays it in the actual settings column. For example, if the input clock frequency is 100 MHz, and the requested multiplication and division factors are 205 and 1025 respectively, the output clock frequency is calculated as 100 × 205/1025=20 MHz.

The actual settings reflect the simplest fraction — the actual multiplication factor is 1, and the actual division factor is 5. You can use the copy button to copy values from the actual settings to the requested settings.

The actual values of multiplication and division factors are affected when you select Use these clock settings

for the DPA clock or Set up PLL in LVDS mode.

Select Use these clock settings for the DPA clock if you want the output clock signal of the PLL to drive the input clock port of the DPA block in the ALTLVDS megafunction. This option is available only for

Stratix III and Stratix IV devices.

Parameter Settings When “Set up PLL in LVDS mode” Option is Enabled

The following parameter settings apply only when Set up PLL in LVDS Mode is turned on for Arria GX,

Stratix II, Stratix II GX, and HardCopy II fast PLLs.

When you turn on Set up PLL in LVDS mode, two additional options are available on the Output Clocks pages for c0 and c1.

The following figure shows the additional options to configure the c0 output clock signal.

Figure 6: Additional Options to Configure the c0 Output Clock Signal

Turn on Create sclkout0/enable0 outputs to create the sclkout0 and enable0 ports. The sclkout0 port is the serial clock output port, and the enable0 port is the enable port.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

12

Summary of PLL Output Clocks

The following figure shows the additional options to configure the c0 output clock signal.

Figure 7: Sclkout Phase Shift Option ug-altpll-9.0

2013.05.03

The sclkout phase shift option allows you to edit the phase shift of the sclkout signal (in this case, the sclkout0 signal).

Only two pairs of sclkout and enable ports can be created in an ALTPLL megafunction. The sclkout0 and enable0 ports are for the c0 output clock, and the sclkout1 and enable1 ports are for the c1 output clock.

Summary of PLL Output Clocks

The following table summarizes and compares properties of the clock output ports per PLL for each PLL type in the supported device families. The number of clock output ports shown in the table for each device family can be set as internal or external clock output port unless described otherwise.

Table 6: Number of Clock Output Ports per PLL

Device Family

Arria GX

Arria II GX

Stratix IV

Stratix III

Stratix II

Stratix II GX

Stratix

Stratix GX

Cyclone IV

Cyclone III

Cyclone II

Cyclone

Top_Bottom

10

10

7

7

7

Left_Right

6

1

6

6

6

1

6

Enhanced PLL

3

4

4

4

3

Fast PLL

3

2

2

5

5

Cyclone Series PLL

1

2

Only four ports can be used as the external clock output ports.

Only one port can be used as the external clock output port.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Advanced Features

Advanced Features

13

Altera devices offer on-chip PLL features previously found only in high-end discrete PLL devices. These advanced features, including gated lock, clock switchover, dynamic reconfiguration, programmable bandwidth, reconfigurable bandwidth, spread spectrum clocking, and post-scale counter cascading, increase system and device performance and provide advanced clock interfacing. The following sections define each advanced feature, and describe its application, and the parameter settings you must select in the ALTPLL MegaWizard interface to enable the feature.

Advanced Control Signals (pllena, areset, pfdena)

You can use these three signals—pllena, areset, and pfdena—to observe and control PLL operation and resynchronization.

pllena

Use the pllena signal to enable or disable the PLL. When you deassert the pllena signal, the PLL does not drive any output clock signal and therefore it loses lock. All counters in the PLL, including the gated lock counter, return to the default state. When you assert the pllena signal, the PLL drives output clock signals and tries to gain lock. The single PLL enable port on each device is shared among all PLLs on the device. By default, the pllena signal is tied to VCC internally.

areset

The areset signal is the reset or resynchronization input for each PLL. The device input pin or internal logic can drive the areset signal. When you assert the areset signal, all counters in the PLL, including the gated lock counter, are reset to initial values, in which the PLL output is cleared and the PLL is in the out-of-lock state. The VCO is also reset to its nominal setting. When the areset signal is deasserted, the

PLL resynchronizes its input and tries to gain lock.

You should include the areset signal in your designs if any of the following conditions hold:

• PLL reconfiguration or clock switchover is enabled in your design.

• Phase relationships between the PLL input and output clocks must be maintained after a loss-of-lock condition.

• The input clock to the PLL is not toggling or is unstable at power-up.

• Assert the areset signal after the input clock is toggling while staying within the input jitter specification.

pfdena

The pfdena signal enables or disables the PFD circuit. The PFD circuit is enabled by default. When the

PFD circuit is disabled, the PLL output does not depend on the input clock, and tends to drift outside of the lock window. By default, the pfdena signal is tied to VCC internally.

Parameter Settings

For devices that support the advanced control signals—pllena, pfdena, and areset, the parameter settings for these signals are located on the Inputs/Lock or Scan/Inputs/Lock page of the ALTPLL

MegaWizard interface.

The following figure shows the options related to the advanced control signals. Turn on the control signal you want to create from the options available.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

14

Summary of Advanced Control Signals

Figure 8: Options to Select the Advanced Control Signals ug-altpll-9.0

2013.05.03

The deassertion of the pllena signal or the assertion of the areset signal does not disable the VCO, but instead resets the VCO to its nominal value. The only time that the VCO is completely disabled is when you do not have a PLL instantiated in your design.

Summary of Advanced Control Signals

The following table summarizes the device families support for advanced control signals.

Device Family Supported Advanced Signals

Arria GX

Arria II GX

Stratix IV

Stratix III

Stratix II

Stratix II GX

Stratix

Stratix GX

Cyclone IV

Cyclone III

Cyclone II

Cyclone

Yes

Yes

Yes

pllena

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

pllena

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

areset

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Clock Switchover

The clock switchover feature allows the PLL to switch between two input clocks. The clock switchover feature can be used for switching between clock inputs of different frequencies and is also useful for video applications that require a manual switch between operation frequencies. The clock switchover capability is widely implemented in telecommunication, storage, and server markets because these markets require highly reliable clocking schemes to ensure system reliability.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Parameter Settings

15

The following clock switchover modes are supported by the ALTPLL megafunction:

Automatic switchover—The PLL monitors the currently used clock signal, and if it stops toggling or loss-of-lock occurs, the PLL automatically switches to the other clock signal (inclk0 or inclk1).

Manual clock switchover—The clock switchover is controlled using the clkswitch signal. The manual override feature available in automatic clock switchover is different from the manual clock switchover.

Parameter Settings

For devices that support the clock switchover feature, the parameter settings are located on the Clock

switchover page of the ALTPLL MegaWizard interface.

The following figure shows all the options available on the Clock switchover page for an Arria GX device.

The options are device-dependent and what you see may differ.

Figure 9: Clock Switchover

To enable the switchover feature, turn on Create an 'inclk1' input for a second input clock, and specify the frequency of the inclk1 signal. The inclk0 signal is by default the primary input clock signal of the

ALTPLL megafunction.

Select the related option for manual or automatic clock switchover mode. For the automatic clock switchover mode, you can choose to create the clkswitch signal as a manual override. The automatic switchover is initiated during loss of lock or when the inclk0 signal stops toggling or when the clkswitch signal is asserted. You must specify the number of clock cycles to wait before the PLL performs the clock switchover.

Note that the allowed number of clock cycles to wait is device-dependant.

You can use the optional signals – activeclock, clkloss, and clkbad—as indicators when you use the clock switchover feature.

Use the activeclock signal to monitor which input clock signal is driving the PLL. When the current clock signal is inclk0, the activeclock signal is low. When the current clock signal is inclk1, the activeclock signal is high.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

16

Summary of Automatic Clock Switchover Feature ug-altpll-9.0

2013.05.03

Use the clkbad signals (clkbad0 and clkbad1) to monitor which input clock signal has stopped toggling. The clkbad0 signal is used to monitor the inclk0 signal, and the clkbad1 signal monitors the inclk1 signal. The clkbad0 signal goes high when the inclk0 signal stops toggling, and the clkbad1 signal goes high when the inclk1 signal stops toggling. The clkbad signals remain low when the input clock signals are toggling.

Use the clkloss signal to monitor the current status of the clock switchover. The clkloss signal goes high to indicate that loss of lock has been detected, and the clock switchover is initiated. The clkloss signal remains low when the clock switchover is not initiated. The clkloss signal is only available in

Arria GX, Stratix, Stratix GX, Stratix II, and Stratix II GX devices.

The following top-level ports are created from these parameter settings:

• Input ports: inclk1 and clkswitch.

• Output ports: activeclock, clkloss, clkbad0, and clkbad1.

Summary of Automatic Clock Switchover Feature

The following table summarizes automatic clock switchover support in the supported device families. Also supports automatic clock switchover feature with manual override control.

Table 7: Automatic Clock Switchover Feature Support

Device Family

Arria GX

Arria II GX

Stratix IV

Stratix III

Stratix II

Stratix II GX

Stratix

Stratix GX

Cyclone IV

Cyclone III

Cyclone II

Cyclone

Top_Bottom

Yes

Yes

Yes

Yes

Yes

Left_Right Enhanced PLL

Yes

Yes

Yes

Yes

Yes

No

No

No

No

No

Fast PLL Cyclone Series PLL

Yes

Yes

No

No

The following table summarizes the manual clock switchover support in the supported device families.

Table 8: Manual Clock Switchover Feature Support

Device

Arria GX —

Top_Bottom

Left_Right Enhanced PLL

Yes Yes

Fast PLL Cyclone Series PLL

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Device

Arria II GX

Stratix IV

Stratix III

Stratix II

Stratix II GX

Stratix

Stratix GX

Cyclone IV

Cyclone III

Cyclone II

Cyclone

Top_Bottom

Yes

Yes

Yes

Left_Right

Yes

Yes

Yes

Yes

Yes

Enhanced PLL

Yes

Yes

No

No

Yes

Spread-Spectrum Clocking

Fast PLL

17

Yes

Yes

No

Yes

Cyclone Series PLL

Spread-Spectrum Clocking

Spread-spectrum technology reduces electromagnetic interference (EMI) in a system. This technology works by distributing the clock energy over a broad frequency range.

The spread-spectrum clocking feature distributes the fundamental clock frequency energy throughout your design to minimize energy peaks at specific frequencies. By reducing the spectrum peak amplitudes, the feature makes your design more likely meets the EMI emission compliance standards, and reduces costs associated with traditional EMI containment.

The traditional methods for limiting EMI include shielding, filtering, and using multi-layer printed circuit boards. Multi-layer circuit boards are expensive and are not guaranteed to meet the EMI emission compliance standards. The use of spread-spectrum technology is simpler and more cost-effective than these other methods.

To use the spread-spectrum clocking feature, you must set the programmable bandwidth feature to Auto.

Parameter Settings

For devices that support spread-spectrum technology, the parameter settings are located on the Bandwidth/SS page of the ALTPLL MegaWizard interface.

The following figure shows the Spread Spectrum window.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

18

Summary of Spread-Spectrum Clocking Feature

Figure 10: Spread Spectrum Settings ug-altpll-9.0

2013.05.03

To enable the spread-spectrum feature, turn on Use spread spectrum feature. Set the desired down spread percentage, and the modulation frequency. The table in the spread spectrum window lists the detailed descriptions of the current counter values.

The down spread percentage defines the modulation width or frequency span of the instantaneous output frequency resulting from the spread spectrum. When you use down spread, the modulation width falls at or below a specified maximum output frequency. The wider the modulation, the larger the band of frequencies over which the energy is distributed, and the more reduction is achieved from the peak. For example, with a down spread percentage of 0.5% and maximum operating frequency of 100 MHz, the output frequency is swept between 99.5 and 100 MHz.

The modulation frequency, often called sweep rate, defines how fast the spreading signal sweeps from the minimum to the maximum frequency.

Turning on spread-spectrum clocking creates no new top-level ports.

Summary of Spread-Spectrum Clocking Feature

The following table summarizes the PLL types that support the spread-spectrum clocking feature.

Table 9: Spread-Spectrum Clocking Feature

Device

Arria GX

Arria II GX

Stratix IV

Stratix III

Stratix II

Stratix II GX

Top_Bottom

Yes

3

Yes

3

No

Yes

3

Yes

3

Left_Right Enhanced PLL

Yes

Yes

Yes

No

No

No

Fast PLL Cyclone Series PLL

3

This device can accept a spread-spectrum input with typical modulation frequencies, but it cannot generate spread-spectrum clock signals internally.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Device

Stratix

Stratix GX

Cyclone IV

Cyclone III

Cyclone II

Cyclone

Top_Bottom

Left_Right Enhanced PLL

Yes

Yes

No

No

Gated Lock and Self-Reset

Fast PLL

19

Cyclone Series PLL

No

No

No

No

Gated Lock and Self-Reset

The lock time of a PLL is defined as the amount of time required by the PLL to attain the target frequency and phase relationship after device power-up, after a change in the PLL output frequency, or after resetting the PLL.

A PLL might lose lock for a number of reasons, such as the following causes:

• Excessive jitter on the input clock.

• Excessive switching noise on the clock inputs of the PLL.

• Excessive noise from the power supply can cause high output jitter and possible loss of lock.

• A glitch or stopping of the input clock to the PLL.

• Resetting the PLL by asserting the areset or pllena ports of the PLL.

• An attempt to reconfigure the PLL might cause the M counter, N counter, or phase shift to change, which causes the PLL to lose lock. However, changes to the post-scale counters do not affect the PLL locked signal.

• PLL input clock frequency drifts outside the lock range specification.

• The PFD is disabled using the pfdena port. When this happens, the PLL output phase and frequency tend to drift outside of the lock window.

The ALTPLL megafunction allows you to monitor the PLL locking process using a lock signal named locked and also allows you to set the PLL to self-reset on loss of lock.

Gated Lock

Some devices support a gated lock signal that allows you to configure a programmable 20-bit counter that holds the lock signal low for a user-specified number of input clock transitions. This is useful to eliminate the false toggling of the lock signal as the PLL begins tracking the reference clock. Gated lock allows the PLL to lock before asserting the locked signal, providing a stabilized lock signal.

An asserted locked signal indicates the PLL clock output is aligned with the PLL reference input clock.

The locked signal might toggle as the PLL begins tracking the reference clock. To avoid such a false lock indication, use a gated lock signal. A gated locked signal or an ungated locked signal can feed a logic array or an output pin. When you must reset the gated counter, reset the PLL by asserting the areset signal or the pllena signal.

The following figure shows the timing waveform for gated and ungated locked signals.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

20

Self-Reset on Loss of Lock

Figure 11: Input and Output Ports of the ALTPLL Megafunction Block

PLLENA

Reference Clock

Feedback Clock

Locked

Gated Lock

Filter Counter

Reaches

Value Count

ug-altpll-9.0

2013.05.03

Self-Reset on Loss of Lock

This feature allows the PLL to self-reset upon loss of lock, normally for the same reasons described in

Gated

Lock and Self-Reset

on page 19

Related Information

Gated Lock and Self-Reset

on page 19

Parameter Settings

To enable the locked signal, and the self-reset feature in the ALTPLL megafunction, use the parameter settings on the Scan/Inputs/Lock or Inputs/Lock page of the ALTPLL MegaWizard interface.

The following figure shows the related options in the Scan/Inputs/Lock or Inputs/Lock page for an

Arria II GX device. Note that the options are device-dependent and what you see may differ.

Figure 12: Lock Output Options

Turning on Create 'locked' output creates an output port named locked in the ALTPLL megafunction block.

Turning on Enable self-reset on loss of lock enables the self-reset feature.

In devices that support gated lock, another option appears on the page, which is the Hold 'locked' output option. Turning on this option enables the gated lock circuitry to gate the locked signal. You must specify the number of PLL input clock cycles to hold the locked signal low after the PLL is initialized. This value is used by the gated lock counter. The value ranges from 1 to 1,048,575 clock cycles.

The following figure shows the Hold Locked Output option.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Figure 13: Hold Locked Output Option

Calculating the Value of Gated Lock Counter

21

Calculating the Value of Gated Lock Counter

To calculate the number of clock cycles needed, you must know the maximum lock time of the PLL, and the period of the PLL input clock. The lock time of the PLL is listed in the “PLL Timing Specifications” section of the DC & Switching Characteristics chapter of the device handbook. The period of the PLL input clock is user-specified. For example, if the maximum lock time of a PLL is 1 ms, and its input clock frequency is

100 MHz which corresponds to a 10 ns clock period, you calculate the value of the gated lock counter, by dividing 1 ms by 10 ns. The result is 100,000 clock cycles.

Only the locked port is created from these parameter settings.

Summary of Gated Lock Signals and Self-Reset on Loss of Lock

The following table summarizes the device families that support the gated lock and self-reset on loss of lock features.

Table 10: Gated Lock Signals and Self-Reset on Loss of Lock

Device Family

Arria GX

Arria II GX

Stratix IV

Stratix III

Stratix II

Stratix II GX

Stratix

Stratix GX

Cyclone IV

Cyclone III

Cyclone II

Cyclone

Yes

Yes

Yes

Yes

Gated Lock Support

Yes

Yes

Yes

Yes

Yes

Self-Reset on Loss of Lock

Programmable Bandwidth

The PLL bandwidth is defined as the ability of the PLL to track the input clock and jitter. The bandwidth is measured by the -3 dB frequency of the closed-loop gain in the PLL, or approximately the unity gain point of the PLL open loop response. Altera devices provide a programmable PLL bandwidth feature that allows you to configure the characteristics of the PLL loop filter. Most loop filters contain only passive components,

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

22

Parameter Settings ug-altpll-9.0

2013.05.03

such as resistors and capacitors, which consumes board space. Altera FPGAs already contain these components, and by using the programmable bandwidth feature, you can control how the components affect the PLL bandwidth. This includes controlling the charge pump current, loop filter resistance, and high frequency capacitance values. The charge pump current affects the PLL bandwidth directly. The higher the charge pump current, the higher the PLL bandwidth.

Parameter Settings

The parameter settings to configure the bandwidth of the ALTPLL megafunction are located on the

Bandwidth/SS page of the ALTPLL MegaWizard interface.

The following figure shows the bandwidth configuration options on the Bandwidth/SS page.

Figure 14: Bandwidth Configuration Options

The following list describes the preset values that you can choose:

Low—PLL with a low bandwidth has better jitter rejection but a slower lock time.

High—PLL with a high bandwidth has a faster lock time but tracks more jitter.

Medium—A medium bandwidth offers a balance between lock time and jitter rejection.

If you select Auto, the ALTPLL MegaWizard interface chooses the best possible bandwidth values to achieve the desired PLL settings. In some cases, you can get a bandwidth value outside the Low and High preset range.

To set the bandwidth manually, select Custom, and specify the value. The compiler attempts to achieve the value that you specify, or the closest possible value to achieve your desired setting. You can check the bandwidth value in the compilation report.

The table on the right in the Bandwidth/SS page shows the values of the charge pump current, loop filter resistance and capacitance, and the M counter.

An advanced level of control is also possible for precise control of the PLL loop filter characteristics. This level allows you to select the charge pump current, and loop filter resistance and capacitance values explicitly.

The advanced parameters are: charge_pump_current, loop_filter_r, and loop_filter_c.

You can use the programmable bandwidth feature with the clock switchover or spread-spectrum features to get the PLL output settings that you desire. You must set the bandwidth to Auto if you want to enable the spread-spectrum feature.

These parameter settings create no additional top-level ports.

Summary of Programmable Bandwidth Support

The following table summarizes programmable bandwidth support in the different device families.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Table 11: Programmable Bandwidth Support

Device Family

Arria GX

Arria II GX

Top_Bottom

Stratix IV

Stratix III

Stratix II

Stratix II GX

Stratix

Stratix GX

Cyclone IV

Yes

4

Yes

4

Yes

4

Yes

4

Yes

4

Left_Right

Cyclone III — —

Enhanced PLL

Yes

Yes

Fast PLL

Yes

Yes

Yes

Yes

Advanced PLL Parameters

Yes

Yes

No

No

Cyclone Series PLL

Yes

4

No

No

Yes

4

23

Cyclone II

Cyclone

Advanced PLL Parameters

The ALTPLL MegaWizard interface provides an option for you to generate output files using the ALTPLL advanced parameters. Examples of advanced parameters are charge_pump_current, loop_filter_r, and loop_filter_c. This option is supported in all Altera devices.

This option is intended for advanced users who know the exact details of their PLL configuration and for users who understand the parameters well enough to set them optimally. The files generated are not intended to be re-used by the ALTPLL MegaWizard interface, because after the ALTPLL megafunction output files are specified using the advanced parameters, the Quartus II compiler cannot change them. For example, the compiler cannot perform optimization. Thus, your design cannot benefit from improved algorithms to pick better settings or to make changes to some settings that the ALTPLL MegaWizard interface finds to be incompatible with your design.

Advanced Parameter Settings

Altera recommends you not to use these parameters unless you are an advanced user.

4

This device family supports only Auto and preset values.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

24

PLL Dynamic Reconfiguration

The parameter settings to generate output files using advanced PLL parameters are located on the

Scan/Inputs/Lock or Inputs/Lock page of the ALTPLL MegaWizard interface.

The following figure shows the Advanced PLL parameters window.

Figure 15: Advanced PLL Parameters ug-altpll-9.0

2013.05.03

Turn on Create output file(s) using the 'Advanced' PLL parameters to enable the feature. You must explicitly select enhanced or fast PLL to use this option.

When this option is turned on, the generated output files contain all of the initial counter values used in the

PLL. You can use these values for functional simulation in a third-party simulator.

These parameter settings create no additional top-level ports.

PLL Dynamic Reconfiguration

The PLL Dynamic Reconfiguration feature allows you to reconfigure your PLL on-the-fly. You can control the configuration process using the following ports:

• Input ports: scanclk, scandata, scanclkena, and configupdate.

• Output ports: scandataout and scandone. The scandone port is not available for Cyclone,

Cyclone II, Stratix, and Stratix GX devices.

The Stratix and Stratix GX enhanced PLLs can be dynamically reconfigured using scan chains. Depending on the PLL type, two options are available for the scan chain – long or short. The long scan chain allows the configuration of those PLLs with six core and four external clocks, while the short scan chain limits the configuration to those PLLs with the six core clocks with no external clocks.

The scan chain method for dynamic reconfiguration is not available for all supported device families. The devices that support the normal dynamic reconfiguration scheme uses configuration files, such as the

Hexadecimal-format file, .hex, or the Memory Initialization file, .mif. These files are used together with the

ALTPLL_RECONFIG megafunction to perform the dynamic configuration.

Related Information

Phased-Locked Loops Reconfiguration (ALTPLL_RECONFIG) Megafunction User Guide.

Parameter Settings

To enable the dynamic reconfiguration feature for Stratix and Stratix GX devices, use the parameter settings located on the Scan/Input/Lock page of the ALTPLL MegaWizard interface.

The following figure shows the dynamic reconfiguration options using scan chains.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Figure 16: Dynamic Reconfiguration Options for Stratix and Stratix GX Devices

Parameter Settings

25

The following table lists the dynamic reconfiguration options using scan chains.

Table 12: Dynamic Reconfiguration Options for Stratix and Stratix GX Devices

Option

Create optional inputs for dynamic reconfiguration

Which scan chain type will you be using?

Description

This option enables all the PLL reconfiguration ports for this instantiation—scanclk, scanaclr, scandata, and scandataout

.

This option lets you specify the following types of scan chain to be used in the PLL reconfiguration:

Long chain—Specifies that you are using PLLs 5 and 6 with PLL reconfiguration. PLLs 5 and 6 have six logic array outputs and four external clock outputs and therefore, have a longer reconfiguration chain.

Short chain—Specifies that you are using PLLs 11 and 12 with PLL reconfiguration. PLLs 11 and 12 have only six logic array outputs with no dedicated external clock output counters and are considered the shorter reconfiguration chain PLLs.

For devices that use the normal dynamic reconfiguration scheme, the parameter settings are located on the

PLL Reconfiguration page of the ALTPLL MegaWizard interface.

The following figure shows the normal dynamic configuration scheme options that uses configuration files.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

26

Summary of Supported Device Families for PLL Dynamic Reconfiguration Feature

Figure 17: Dynamic Reconfiguration Options Using Configuration Files ug-altpll-9.0

2013.05.03

The following table lists the normal dynamic reconfiguration scheme options.

Table 13: Normal Dynamic Reconfiguration Options and Descriptions

Option

Create optional inputs for dynamic reconfiguration

Initial Configuration File

Additional Configuration File(s)

Description

This option enables all the PLL reconfiguration ports for this instantiation—scanclk, scanaclr, scandata, scandone, and scandataout.

Specify the location of the configuration file that is used to initialize the ALTPLL_RECONFIG megafunction.

Specify additional configuration file. This file might contain additional settings for the PLL, or might be used to initialize the

ALTPLL_RECONFIG megafunction.

Summary of Supported Device Families for PLL Dynamic Reconfiguration Feature

The following table summarizes PLL dynamic reconfiguration support in the different device families and

PLL types.

Table 14: PLL Dynamic Reconfiguration Feature Support

Device Family

Arria GX —

Top_Bottom

Left_Right Enhanced PLL

Yes Yes

Fast PLL Cyclone Series PLL

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Device Family

Arria II GX

Stratix IV

Stratix III

Stratix II

Stratix II GX

Stratix

Top_Bottom

Yes

Yes

Yes

Left_Right

Yes

Yes

Stratix GX

Cyclone III

Cyclone II

Cyclone

Yes

5

Enhanced PLL

Yes

Yes

Yes

5

Yes

Yes

No

Dynamic Phase Configuration

Fast PLL

27

Cyclone Series PLL

No

Yes

No

No

Dynamic Phase Configuration

The dynamic phase configuration feature allows the output phases of individual PLL outputs to dynamically adjust relative to each other and the reference clock, without sending serial data through the scan chain of the corresponding PLL. This feature is also known as the dynamic phase stepping feature.

You can use this feature to quickly adjust the output clock phase shift in real time. This adjustment is achieved by incrementing or decrementing the VCO phase-tap selection to a C counter or to the M counter. By default, the phase is shifted by 1/8th of the VCO frequency at each step. However, you can easily modify the phase shift step resolution of the individual PLL output clock using the ALTPLL MegaWizard interface.

For dynamic phase shifting to work correctly, the PLL must have the following ports:

• Input ports: phasecounterselect[3..0], phaseupdown, phasestep, and scanclk

• Output port: phasedone

Related Information

Ports and Parameters

on page 36

Supported Devices

The dynamic phase configuration feature is available only for Cyclone IV, Cyclone III, Arria II GX, Stratix III, and Stratix IV device families.

Parameter Settings

The parameter settings to enable the dynamic phase configuration feature are located on the PLL

Reconfiguration page of the ALTPLL MegaWizard interface.

5

This device family supports dynamic reconfiguration using scan chains only.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

28

Modifying the PLL Phase Shift Step Resolution Using Advanced Parameters

The following figure shows the dynamic phase configuration options.

Figure 18: Dynamic Phase Configuration ug-altpll-9.0

2013.05.03

Turning on Create optional inputs for dynamic phase reconfiguration enables the feature, and create these ports - phasecounterselect[3..0], phaseupdown, phasestep, scanclk, and phasedone

.

Turning on Enable phase shift step resolution edit allows you to modify the phase shift step resolution value for each individual PLL output clock on its Output Clocks page.

The following figure shows the new option that appears on each output clock settings page. By default, the finest phase shift resolution value is 1/8th of the VCO period. If the VCO frequency is at the lower end of the supported VCO range, the phase shift resolution might be larger than you would prefer for your design.

Use this option to fine tune the phase shift step resolution.

Figure 19: Phase Shift Step Configuration

Modifying the PLL Phase Shift Step Resolution Using Advanced Parameters

The finest phase shift step resolution you can get in the ALTPLL megafunction is 1/8th of the VCO period.

If the VCO frequency is at the lower end of the supported VCO range, the phase shift step resolution may be larger than you would prefer for your design.

You can modify your phase shift resolution using the dynamic phase reconfiguration feature of the PLL. If you want to modify the phase shift resolution without the dynamic phase reconfiguration feature enabled, perform the following steps:

1. Create an ALTPLL instance. Make sure you specify the speed grade of your target device and the PLL type.

2. On the PLL Reconfiguration page, turn on Create Optional Inputs for Dynamic Phase Reconfiguration and Enable Phase Shift Step Resolution Edit.

3. On the Output Clocks page, set your desired phase shift for each required output clock. Click More

Details to see the internal PLL settings. Note all of the settings shown.

4. On the Bandwidth/SS page, click More Details to see the internal PLL settings. Note all of the settings shown.

5. On the Inputs/Lock page, turn on Create output file(s) using the ‘Advanced’ PLL Parameters.

6. Return to the PLL Reconfiguration page and turn off Create Optional Inputs for Dynamic Phase

Reconfiguration.

7. Click Finish to generate the PLL instantiation file(s).

When using Advanced Parameters, the PLL wrapper file (<ALTPLL_instantiation_name>.v|.vhd) is written in a format that allows you to identify the PLL parameters. The parameters are listed in the

Generic Map section of the VHDL file, or in the defparam section of the Verilog file.

8. Open your PLL instantiation wrapper file and locate either the Generic Map or the defparam section.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Design Examples

29

9. Modify the settings to match the settings that you noted in steps 3 and 4.

10. Save the PLL instantiation wrapper file and compile your design.

11. Verify that the output clock frequencies and phases are correct in the PLL Usage report located under

Resource Section of the Fitter folder in the Compilation Report.

By using this technique, you can apply valid PLL parameters as provided by the ALTPLL MegaWizard interface to optimize the settings for your design.

Alternatively, you can leave the dynamic phase reconfiguration option enabled and tie the relevant input ports—phasecounterselect[3..0], phaseupdown, phasestep, and scanclk—to constants, if you prefer not to manually edit the PLL wrapper file using Advanced PLL Parameters option.

Design Examples

The design examples use the ALTPLL megafunction to:

• Generate an external differential clock from an enhanced PLL.

• Generate and modify internal clock signals .

These examples use the MegaWizard Plug-In Manager in the Quartus II software. Each page of the

MegaWizard is described in detail. When you are finished with the examples, you can incorporate them into your overall projects.

Related Information

Design Example 1: Differential Clock

on page 29

Design Example 2: Generating Clock Signals

on page 32

Design Files

The design files are available on the Literature and Technical Documentation page of the Altera website.

Related Information ddr_clk.zip

ddr-clk-msim.zip

shift_clk.zip

shift_clk_msim.zip

Design Example 1: Differential Clock

This design example uses the ALTPLL megafunction to generate an external differential clock from an enhanced PLL. You must generate or modify clock signals to meet design specifications. When you interface to double data rate (DDR) memory, you must generate a differential SSTL clock signal for the external device.

A DDR DIMM requires three pairs of differential SSTL clocks. You can use enhanced PLLs in Stratix devices to generate these clock signals.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

30

Generating a 166-MHz Differential SSTL External Clock ug-altpll-9.0

2013.05.03

In this example, perform the following activities:

• Generate a 166-MHz differential SSTL external clock (ddr_clk) output from a 33.33-MHz input clock using the ALTPLL megafunction and the MegaWizard Plug-In Manager.

• Implement the DDR_CLK design by assigning the EP1S10F780 device to the project and compiling the project.

• Simulate the DDR_CLK design.

Generating a 166-MHz Differential SSTL External Clock

To generate a 166-MHz Differential SSTL external clock, follow these steps:

Download and unzip the

ddr_clk.zip

.

1. In the Quartus II software, open the project file \ddr_clk\ddr_clk.qpf.

2. Open the top-level \ddr_clk\ddr_clk.bdf file. You will complete this project in this example.

3. Double-click on a blank area in the block design (.bdf) file, and click MegaWizard Plug-In Manager in the Symbol window, or, on the Tools menu, click MegaWizard Plug-In Manager.

4. Under What action do you want to perform?, click Create a new custom megafunction. Click Next.

Page 2a appears.

5. On Page 2a of the MegaWizard Plug-In Manager, expand the I/O folder and select ALTPLL.

6. For Which device family will you be using?, select Stratix.

7. In Which type of output file do you want to create?, select AHDL.

8. For What name do you want for the output file?, name the output file ddr_pll.

9. Click Next. Page 3 appears.

10. On Page 3, in the General section, for What is the frequency of the inclock0 input?, type 33.33, and select MHz.

11. Under PLL type, click Select the PLL type automatically.

12. Under Operation mode, select Create an 'fbin' input for an external feedback (External Feedback

Mode).

13. Under Operation mode, for Which output clock will have a board level connection?, select e0 from the drop-down menu.

14. Click Next. Page 4 appears.

15. In the Dynamic configuration section, turn off Create optional inputs for dynamic reconfiguration.

16. In the Optional inputs sections:

a. Turn on Create an ‘pllena’ input to selectively enable the PLL.

b. Turn on Create an ‘areset’ input to asynchronously reset the PLL.

c. Turn off Create an ‘pfdena’ input to selectively enable the phase/frequency detector.

17. In the Lock output section, turn on Create ‘locked’ output.

18. Leave the remaining options at their default settings.

19. Click the Output Clocks tab. Page 7 appears.

20. On page 7, click extclk e0. Page 13 appears.

21. Turn on Use this clock.

22. Turn on Enter output clock parameters, and in the Clock multiplication factor box, type 5.

23. In the Clock division factor box, type 1.

24. In the Clock duty cycle (%) box, type 50.00.

25. Click Next. Page 14 appears.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Implementing the ddr_clk Design

31

26. On page 14, repeat

step 21

through

step 24

for extclk e1.

27. Click Next.

28. On page 15, repeat

step 21

through

step 24

for extclk e2.

29. Click Next.

30. On page 16, repeat

step 21

through

step 24

for extclk e3.

31. Click Next. Page 17 appears. No input is required for this page.

32. Click Next. Page 18 appears.

33. On page 18, ensure that the Text Design File (.tdf), Pin Planner File (.ppf), AHDL Include File (.inc),

Block Symbol File (.bsf), and Sample waveforms in summary file (.html and .jpg) are turned on.

34. Click Finish. The ddr_pll module is built.

35. In the Symbol dialog box of the .bdf file, click OK.

36. Move the pointer to place the ddr_pll symbol between the input and output ports in the ddr_clk.bdf file, connecting the inputs and outputs to the symbol. Click to place the symbol.

37. On the File menu, click Save Project to save the design.

The following figure shows a completed design file.

Figure 20: ALTPLL ddr_pll Design Schematic

Implementing the ddr_clk Design

To assign the EP1S10F780 device to the project and compile the project, follow these steps:

1. On the Assignments menu, click Settings. The Settings dialog box appears.

2. In the Category list, click Device. Select Stratix in the Device Family field.

3. In the Target device section, under Available devices, select EP1S10F780C5.

4. Click OK.

5. On the Processing menu, click Start Compilation.

6. When the Full Compilation was successful message box appears, click OK.

7. To view how the module is implemented in the Stratix device, on the Assignments menu, click Timing

Closure Floorplan.

The ddr_clk design is now implemented.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

32

Functional Results — Simulate the ddr_clk Design in the ModelSim

®

-Altera Software

Functional Results — Simulate the ddr_clk Design in the ModelSim

®

-Altera Software

ug-altpll-9.0

2013.05.03

This ModelSim design example is for the ModelSim-Altera (Verilog) version. To simulate the design in the

ModelSim-Altera software, follow these steps:

1. Unzip

ddr-clk-msim.zip

file to any working directory on your PC.

2. Locate the folder in which you unzipped the files to and open the DDR_CLK.do file in a text editor.

3. In line 1, replace <insert_directory_path_here> with the directory path of the appropriate library files.

For example, C:/Modeltech_ae/altera/verilog/stratix

4. On the File menu, click Save.

5. Start the ModelSim-Altera software.

6. On the File menu, click Change Directory.

7. Select the folder in which you unzipped the files. Click OK.

8. On the Tools menu, click TCL, and click Execute Macro.

9. Select the DDR_CLK.do file and click Open. The DDR_CLK.do file is a script file for the ModelSim-Altera software to automate all the necessary settings for the simulation.

10. Verify the results shown in the Waveform Viewer window.

The following figure shows the expected simulation results in the ModelSim-Altera software.

Figure 21: ModelSim Simulation Results

Design Example 2: Generating Clock Signals

This design example uses the ALTPLL megafunction to generate and modify internal clock signals. This example generates three internal clock signals from an external 100-MHz clock signal.

In this example, you perform the following activities:

• Generate 133 MHz, 200 MHz, and 200 MHz clocks that are time shifted by 1.00 ns from a 100 MHz external input clock using the ALTPLL megafunction and the MegaWizard Plug-In Manager.

• Implement the shift_clk design by assigning the EP1S10F780 device to the project and compiling the project.

• Simulate the shift_clk design.

Generating 133-MHz, 200-MHz, and 200-MHz Time-Shifted Clocks

To generate 133-MHz, 200-MHz, and 200-MHz time-shifted clocks, follow these steps:

Download and unzip the

shift_clk.zip

.

1. In the Quartus II software, open the project file shift_clk.qpf.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Generating 133-MHz, 200-MHz, and 200-MHz Time-Shifted Clocks

33

2. Open the top-level shift_clk.qpf file. You will complete this project in this example.

3. Double-click on a blank area in the block design (.bdf) file, and click MegaWizard Plug-In Manager in the Symbol dialog box, or, on the Tools menu, click MegaWizard Plug-In Manager.

4. Under What action do you want to perform?, click Create a new custom megafunction and click Next.

Page 2a appears.

5. On Page 2a of the MegaWizard Plug-In Manager, expand the I/O folder and click ALTPLL.

6. In Which type of output file do you want to create?, select AHDL.

7. For What name do you want for the output file?, name the output file as shift_pll.

8. Click Next. Page 3 appears.

9. To specify the 100 MHz input clock (inclk0), perform the following steps:

10. On page 3 of the General section, for What is the frequency of the inclock0 input?, type 100 , and select MHz.

11. Under PLL type, click Select the PLL type automatically.

12. In the Operation mode section, select In Normal Mode.

13. For Which output clock will be compensated for?, select c0.

14. Click Next. Page 4 appears.

15. In the Dynamic configuration section, turn off the Create optional inputs for dynamic reconfiguration option.

16. In the Optional inputs section, perform the following steps:

a. Turn off Create an ‘pllena’ input to selectively enable the PLL.

b. Turn off Create an ‘areset’ input to asynchronously reset the PLL.

c. Turn off Create an ‘pfdena’ input to selectively enable the phase/frequency detector.

17. In the Lock output section, turn on Create ‘locked’ output.

18. Leave the other options in the Parameter Settings tab as the default.

19. To specify the 133 MHz output clock (c0), perform the following steps:

20. Click the Output Clocks tab to see the output clocks of the PLL. Page 7 appears.

21. On the clk c0 page, turn on Use this clock.

22. In the Clock Tap Settings section, perform the following steps:

a. Turn off Enter output clock frequency.

b. Turn on Enter output clock parameters.

c. For Clock multiplication factor, type 4.

d. For Clock division factor, type 3.

e. For Clock phase shift, type 0 and select deg.

f. For Clock duty cycle (%), type 50.00.

23. Leave the other options at their default values.

24. Click Next. Page 8 appears.

25. To specify the 200 MHz output clock (c1), perform the following steps:

26. On the clk c1 page, turn on Use this clock.

27. In the Clock Tap Settings section, perform the following steps:

a. Turn off Enter output clock frequency.

b. Turn on Enter output clock parameters.

c. For Clock multiplication factor, type 2.

d. For Clock division factor, type 1.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

34

Generating 133-MHz, 200-MHz, and 200-MHz Time-Shifted Clocks ug-altpll-9.0

2013.05.03

e. For Clock phase shift, type 0.00 and select ns.

f. For Clock duty cycle (%), type 50.00.

28. Leave all other options at their default values.

29. Click Next. Page 9 appears.

30. To specify the 200 MHz output clock c2 with a 1.00 nanosecond delay, perform the following steps:

31. On the clk c2 page, turn on Use this clock.

32. In the Clock Tap Settings section, perform the following steps:

a. Turn off Enter output clock frequency.

b. Turn on Enter output clock parameters.

c. For Clock multiplication factor, type 2.

d. For Clock division factor, type 1.

e. For Clock phase shift, type 1.00 and select deg.

f. For Clock duty cycle (%), type 50.00.

33. Leave all other options at their default values.

34. Click Finish. Page 18 appears.

35. On page 18, ensure that the Text Design File (.tdf), Pin Planner File (.ppf), AHDL Include file (.inc),

Block Symbol File (.bsf), and Sample waveforms in summary file (.html and .jpg) are turned on.

36. Click Finish. The shift_pll module is built.

37. In the Symbol dialog box, click OK.

38. Move the pointer to place the shift_pll symbol between the input and output ports in the shift_clk.bdf.

Click to place the symbol. You have now completed the design file.

39. On the File menu, click Save Project to save the design.

The following figure shows the completed design file.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Figure 22: ALTPLL shift_pll Design Schematic

Implementing the shift_clk Design

35

Implementing the shift_clk Design

To assign the EP1S10F780C5 device to the project and compile the project, follow these steps:

1. On the Assignments menu, click Settings. The Settings dialog box appears.

2. In the Category list, click Device. Select Stratix in the Device Family field.

3. In the Target device section, under the Available devices list, select EP1S10F780C5.

4. Click OK.

5. On the Processing menu, click Start Simulation.

6. When the Full Compilation was successful message box appears, click OK.

7. To view how the module is implemented in the Stratix device, from the Assignments menu, click Timing

Closure Floorplan.

The shift_clk design is now implemented.

Simulating the shift_clk Design in the ModelSim-Altera Software

This ModelSim design example is for the ModelSim-Altera (Verilog) version. To simulate the design in the

ModelSim-Altera software, follow these steps:

1. Download and unzip the

shift_clk_msim.zip

fileto any working directory on your PC.

2. Locate the folder in which you unzipped the files to, and open the shift_clk.do file in a text editor.

3. In line 1 of the shift_clk.do file, replace <insert_directory_path_here> with the directory path of the appropriate library files. For example, C:/Modeltech_ae/altera/verilog/stratix.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

36

Ports and Parameters ug-altpll-9.0

2013.05.03

4. On the File menu, click Save.

5. Start the ModelSim-Altera software.

6. On the File menu, click Change Directory.

7. Select the folder in which you unzipped the files. Click OK.

8. On the Tools menu, click TCL and click Execute Macro.

9. Select the shift_clk.do file and click Open. The shift_clk.do fileis a script file for the ModelSim-Altera software to automate all the necessary settings for the simulation.

10. The Waveform Viewer appears. Verify the waveform shown in the viewer.

The following figure shows the expected simulation results in the ModelSim-Altera software.

Figure 23: ModelSim Simulation Results

Ports and Parameters

The ALTPLL megafunction ports and parameters are available to customize the ALTPLL megafunction according to your application.

The options you select in the MegaWizard Plug-In Manager pages affect the ports and parameters settings of the megafunction. Most of these options are device-dependent, and some options depend on one another.

The options you select enable the PLL features, and some might generate top-level ports in the ALTPLL megafunction block.

The following figure shows the top-level ports of the ALTPLL megafunction block.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

ALTPLL Megafunction Input Ports

Figure 24: Input and Output Ports of the ALTPLL Megafunction Block

ALTPLL inclk[] fbin phaseupdown phasestep phasecounterselect[] pllena clkswitch areset pfdena c[]_ena e[]_ena configupdate scanclk scanclkena scanaclr scandata scanread scanwrite c[] e[] clkbad[] activeclock clkloss locked scandataout fbout enable[] sclkout[] phasedone scandone fbmimicbidir

37

The parameters are only relevant if you bypass the MegaWizard Plug-In Manager interface and use the megafunction as a directly parameterized instantiation in your design. The details of these parameters are hidden from the MegaWizard Plug-In Manager interface.

ALTPLL Megafunction Input Ports

Table 15: ALTPLL Megafunction Input Ports

Port Name

6

areset

Optional

Condition

c[]_ena clkswitch configupdate

Optional

Optional

Optional

Description

Resets all counters to initial values, including the GATE_LOCK_

COUNTER parameter.

An enable input port for the output clock, c[]. Available for Stratix and

Stratix GX devices only.

The control input port to dynamically toggle between clock input ports (inclk0 and inclk1 ports), or to manually override the automatic clock switchover. You should create the clkswitch port if only the inclk1 port is created.

Dynamic full PLL reconfiguration.

6

Replace brackets, [], in the port name with integer to get the exact name. For example, inclk0, inclk1, c1_ena

, and e0_ena.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

38

ALTPLL Megafunction Input Ports

Port Name

6

e[]_ena[]

Optional fbin inclk[] pfdena phasecounterselect[]

Optional

Required

Optional

Optional

Condition ug-altpll-9.0

2013.05.03

Description

An enable input port for the external output clock, e[]. Available for

Stratix and Stratix GX devices only.

The external feedback input port for the PLL.

This port must be created if the PLL operates in the external feedback mode. To complete the feedback loop, there must be a board-level connection between the fbin port and the external clock output port of the PLL.

In the Stratix III device, if the PLL operates in the zero-delay buffer mode and the fbmimicbidir port is not used, you must connect the fbin port to the fbout port.

The clock inputs that drive the clock network.

If more than one inclk[] port is created, you must use the clkselect port to specify which clock is used. The inclk0 port must always be connected; connect other clock inputs if switching is necessary. A dedicated clock pin or

PLL output clock can drive this port.

Enables the phase frequency detector (PFD). When the PFD is disabled, the PLL continues to operate regardless of the input clock.

Because the PLL output clock frequency does not change for some time, you can use the pfdena port as a shutdown or cleanup function when a reliable input clock is no longer available.

Specifies counter select. Only available for Arria II GX, Stratix III, and Cyclone III devices onwards.

6

Replace brackets, [], in the port name with integer to get the exact name. For example, inclk0, inclk1, c1_ena

, and e0_ena.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Port Name

6

phasestep phaseupdown pllena scanaclr scanclk scanclkena scandata scanread scanwrite

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Condition

ALTPLL Megafunction Input Ports

39

Description

Specifies dynamic phase shifting.

Only available for Arria II GX,

Stratix III, and Cyclone III devices onwards.

Specifies dynamic phase adjustment up or down. Only available for

Arria II GX, Stratix III, and

Cyclone III devices onwards.

The PLL enable port. When the pllena port is asserted, the PLL drives out a signal, and vice versa.

When the pllena port is re-asserted, the PLL has to re-lock.

All PLLs on the device share the same pllena port.

Asynchronous clear port for the real-time programming scan chain, or the serial scan chain. Only available for Stratix and Stratix GX devices.

Input clock port for the serial scan chain. Not available for Cyclone and

Cyclone II devices.

Clock enable port for the serial scan chain. Available only for Arria II

GX, Cyclone III, HardCopy III, and

Stratix III devices onwards.

Contains the data for the serial scan chain. Not available for Cyclone and

Cyclone II devices.

Port that controls the serial scan chain to read input from the scandata port. Only available for

Arria GX, HardCopy II, Stratix II, and Stratix II GX devices.

Port that controls the real-time programming scan chain to write to the PLL. Only available for Arria

GX, HardCopy II, Stratix II, and

Stratix II GX devices.

6

Replace brackets, [], in the port name with integer to get the exact name. For example, inclk0, inclk1, c1_ena

, and e0_ena.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

40

ALTPLL Megafunction Output Ports

ALTPLL Megafunction Output Ports

Table 16: ALTPLL Megafunction Output Ports

Port Name

7

activelock

Optional c[] clkbad[] clkloss enable[] e[]

Required

Optional

Optional

Optional

Optional

Condition ug-altpll-9.0

2013.05.03

Description

Specifies which clock is used as the primary reference clock when the clock switchover circuit initiates. If the inclk0 is in use, the activeclock port goes low. If the inclk1 is in use, the activeclock port goes high.

You can set the PLL to automatically initiate the clock switchover when the primary reference clock is not toggling correctly, or you can manually initiate the clock switchover using the clkswitch input port.

The clock output of the PLL.

clkbad1 and clkbad0 ports check for input clock toggling. If the inclk0 port stops toggling, the clkbad0 port goes high. If the inclk1 port stops toggling, the clkbad1 port goes high.

This output port acts as an indicator when the clock switchover circuit initiates. Only available for Arria

GX, HardCopy II, Stratix, Stratix

GX, Stratix II, and Stratix II GX devices.

Enable pulse output port. This port is available only when the PLL is in

LVDS mode. Only available for

Arria GX, HardCopy II, Stratix II, and Stratix II GX devices.

The clock output of the PLL that feeds the dedicated clock pins on the device. Only available for Cyclone,

Stratix, and Stratix GX devices.

7

Replace the brackets, [], in the port name with an integer to get the exact name (for example, c0, c1, c3, e0, e1

, e2, enable1 and sclkout0).

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

fbout

Port Name

7

Optional

Condition

ALTPLL Megafunction Output Ports

41

Description

The port that feeds the fbin port through the mimic circuitry. If a feedback path is not connected, the compiler automatically connects the fbout port directly to the fbin port. Additionally, a clkbuf primitive is added to specify the resource type used, similarly to other clock networks.

The fbout port is available only if the PLL is in external feedback mode.

For Stratix III and Stratix IV device families, if the PLL operates in zero-delay buffer mode, and the fbmimicbidir port is not used, you must perform the following steps:

1. Replace the brackets, [], in the port name with an integer to get the exact name (for example, c0, c1

, c3, e0, e1, e2, enable1 and sclkout0).

2. Instantiate an ALT_IOBUF megafunction.

3. Connect the fbout and fbin ports to the o and i ports of the

ALT_IOBUF instantiation, respectively.

4. Connect the bidirectional port of the ALT_IOBUF instantiation to a bidirectional pin, and set the oe port of the ALT_IOBUF instantiation to 1.

7

Replace the brackets, [], in the port name with an integer to get the exact name (for example, c0, c1, c3, e0, e1

, e2, enable1 and sclkout0).

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

42

ALTPLL Megafunction Output Ports

Port Name

7

locked

Optional

Condition

phasedone

Optional

ug-altpll-9.0

2013.05.03

Description

This output port acts as an indicator when the PLL has reached phase-locked. The locked port stays high as long as the PLL is locked, and stays low when the PLL is out-of-lock.

The number of cycles needed to gate the locked signal is based on the

PLL input clock. The gated-lock circuitry is clocked by the PLL input clock. The maximum lock time for the PLL is provided in the DC and

Switching Characteristics chapter of the device handbook.

Take the maximum lock time of the

PLL and divide it by the period of the PLL input clock. The result is the number of clock cycles needed to gate the locked signal.

The lock signal is an asynchronous output of the PLL. The PLL lock signal is derived from the reference clock and feedback clock feeding the

Phase Frequency Detector (PFD).

Reference clock = Input Clock/N

Feedback clock = VCO/M

The PLL asserts the locked port when the phases and frequencies of the reference clock and feedback clock are the same or within the lock circuit tolerance. When the difference between the two clock signals goes beyond the lock circuit tolerance, the PLL loses lock.

This output port indicates that dynamic phase reconfiguration is completed. Only available for

Arria II GX, Cyclone III,

HardCopy III onwards, and Stratix

III onwards.

7

Replace the brackets, [], in the port name with an integer to get the exact name (for example, c0, c1, c3, e0, e1

, e2, enable1 and sclkout0).

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Port Name

7

scandataout scandone sclkout[] vcounverrange vcounderrange

Optional

Condition

Optional

Optional

Optional

Optional

ALTPLL Megafunction Output Ports

43

Description

The data output for the serial scan chain. You can use the scandataout port to determine when PLL reconfiguration is completed. The last output is cleared when reconfiguration completes.

Not available for Cyclone and

Cyclone II devices.

This output port indicates that the scan chain write operation is initiated. The scandone port goes high when the scan chain write operation initiates, and goes low when the scan chain write operation completes. Not available for

Cyclone, Cyclone II, Stratix, and

Stratix GX devices.

Serial clock output port.

This port is available only when the

PLL is in LVDS mode. Only available for Arria GX, HardCopy

II, Stratix II, and Stratix II GX devices.

This output port indicates that the

VCO frequency has exceeded the legal VCO range.

This output port indicates that the

VCO frequency has not met the legal

VCO range.

7

Replace the brackets, [], in the port name with an integer to get the exact name (for example, c0, c1, c3, e0, e1

, e2, enable1 and sclkout0).

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

44

ALTPLL Megafunction Bidirectional Port

ALTPLL Megafunction Bidirectional Port

Table 17: ALTPLL Megafunction Bidirectional Output Ports

Port Name

fbmimicbidir

Optional

Condition ug-altpll-9.0

2013.05.03

Description

The bidirectional port that connects to the mimic circuitry. This port is available only for Stratix III and

Stratix IV device families, and only when the PLL is in zero-delay buffer mode. This port must be connected to a bidirectional pin that is placed on the positive feedback dedicated output pin of the PLL.

ALTPLL Megafunction Parameters

In the ALTPLL parameters, the c[] and e[] ports are named CLK[] and EXTCLK[], respectively. This is to differentiate them from the parameters used to describe the C and E counters of the PLL.

Replace the brackets, [], in the parameter name with an integer to get the exact parameter name. For example, the C[]_HIGH parameter can have up to 10 variations as described in the parameter description.

The variations are C0_HIGH, C1_HIGH, C2_HIGH, C3_HIGH, C4_HIGH, C5_HIGH, C6_HIGH, C7_HIGH,

C8_HIGH

, and C9_HIGH.

A string must be contained within a pair or double quotes. For example, to specify a medium bandwidth type of PLL, BANDWIDTH_TYPE=”MEDIUM”.

An integer must not be contained within a pair or double quotes. For example, to specify a 40% duty cycle for the output clock port, c5, CLK5_DUTY_CYCLE=40.

Table 18: ALTPLL Megafunction Parameters

Parameter

BANDWIDTH

BANDWIDTH_TYPE

C[]_HIGH

Type

String

Description

Specifies the bandwidth value of the PLL in MHz. If this parameter is not specified, the Compiler automatically determines the value of the BANDWIDTH parameter to satisfy other PLL settings.

String Specifies the type of bandwidth for the BANDWIDTH parameter. Values are AUTO, LOW, MEDIUM, or HIGH. If omitted, the default value is AUTO.

For the low bandwidth option, the PLL has a better jitter rejection but slower lock time. For the high bandwidth option, the PLL has a faster lock time but tracks more jitter.

The medium option is a balance between the other two options.

Integer Specifies the value of the high period count for the corresponding counter, C[9..0]. If omitted, default is 1.

Counters C[9..5] are not available in Cyclone III devices onwards.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Parameter

C[]_INITIAL

C[]_LOW

C[]_MODE

C[]_PH

C[]_TEST_SOURCE

C[]_USE_CASC_IN

CHARGE_PUMP_CURRENT

CLK[]_COUNTER

CLK[]_DIVIDE_BY

CLK[]_DUTY_CYCLE

ALTPLL Megafunction Parameters

45

Type Description

Integer Specifies the initial value for the corresponding counter,

C[9..0]

. If omitted, default is 1. Counters C[9..5] are not available in Cyclone III devices onwards.

Integer Specifies the value of the low period count for the corresponding counter, C[9..0]. If omitted, default is

1

. Counters C[9..5] are not available in Cyclone III devices onwards.

String Specifies the operation mode for the counter, C[9..0].

The values are BYPASS, ODD, or EVEN. If omitted, the default is BYPASS. Counters C[9..5] are not available in Cyclone III devices onwards.

Integer Specifies the phase tap for the counter, C[9..0]. If omitted, default is 0. Counters C[9..5] are not available in Cyclone III devices onwards.

Integer Specifies the test source for the counter, C[9..0]. If omitted, default is 0. Counters C[9..5] are not available in Cyclone III devices onwards.

String Specifies whether to use cascade input for the counter,

C[9..1]

. Values are ON or OFF. If omitted, default is OFF.

Counters C[9..5] are not available in Cyclone III devices onwards.

Integer Specifies the value of the charge pump current in microamperes (mA).

String Specifies the counter for the corresponding output clock port, CLK[9..0]. Values are UNUSED, C0, C1, C2, C3,

C4

, C5, C6, C7, C8 or C9. If omitted, the default is C0. This parameter is not available for Cyclone II and Stratix II devices. Counters CLK[9..5]_COUNTER are not available for Cyclone III devices onwards.

Integer Specifies the integer division factor for the VCO frequency of the corresponding output clock port, CLK[9..0] port.

The parameter value must be greater than 0. Specify this parameter only if the corresponding CLK[9..0] port is used; however, it is not required if a Clock Settings assignment is specified for the corresponding CLK[9..0] port. If omitted, the default is 0. Parameters CLK[9..5]_

DIVIDE_BY are not available in Cyclone III devices.

Integer Specifies the duty cycle in percentage for the corresponding output clock port, clk[9..0]. If omitted, the default is

50

. Parameters CLK[9..5]_DUTY_CYCLE are not available in Cyclone III devices.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

46

ALTPLL Megafunction Parameters ug-altpll-9.0

2013.05.03

Parameter

CLK[]_MULTIPLY_BY

CLK[]_OUTPUT_FREQUENCY

Type Description

Integer Specifies the integer multiplication factor for the VCO frequency for the corresponding output clock port,

CLK[9..0]

. The parameter value must be greater than 0.

Specify this parameter only if the corresponding

CLK[9..0

] port is used; however, it is not required if a

Clock Settings assignment is specified for the corresponding

CLK[9..0] port. If omitted, the default is 0. Parameters

CLK[9..5]_MULTIPLY_BY are not available in Cyclone

III devices.

Integer Specifies the output frequency of the corresponding output clock port, CLK[9..0].This parameter is ignored if the corresponding CLK[9..0] port is not used. This parameter is unavailable if multiplication or division factors are specified. If omitted, the default is 0.

CLK[]_PHASE_SHIFT

CLK[]_TIME_DELAY

String Specifies the phase shift for the corresponding output clock port, CLK[9..0], in picoseconds (ps). If omitted, the default is 0. Parameters CLK[9..5]_PHASE_SHIFT are not available in Cyclone III devices.

String Specifies, in picoseconds (ps), the delay value to be applied to the corresponding output clock port, CLK[9..0]. This parameter affects only the corresponding CLK[9..0] port and is independent of the corresponding CLK[9..0]_

PHASE_SHIFT parameter; therefore, both parameters can be used simultaneously. If no units are specified, default is picoseconds (ps). Legal time delay values range from -3 ns to 6 ns in increments of 0.25 ns. These values should not be used as parameters except when reprogramming the PLL using the real-time programming interface.

CLK[]_USE_EVEN_COUNTER_MODE

CLK[]_USE_EVEN_ COUNTER_

VALUE

String

String

Specifies whether the clock output needs to be forced to use even counter mode for the corresponding CLK[9..0] port. Values are ON or OFF. If omitted, the default is OFF.

Specifies whether the clock output needs to be forced to use even counter values for the corresponding CLK[9..0] port. Values are ON or OFF. If omitted, the default is OFF.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

ALTPLL Megafunction Parameters

47

Parameter

COMPENSATE_CLOCK

DOWN_SPREAD

E[]_HIGH

E[]_INITIAL

E[]_LOW

E[]_MODE

E[]_PH

E[]_TIME_DELAY

ENABLE[]_COUNTER

ENABLE_SWITCH_OVER_COUNTER

Type

String

Description

Specifies the output clock port which should be compensated for.

• If the OPERATION_MODE parameter is set to normal mode, the values are CLK[], GCLK[], LCLK[] , or

LVDSCLK[]

. Default is CLK0.

• If the OPERATION_MODE parameter is set to zero-delay buffer mode, value is EXTCLK[]. Default is EXTCLK0.

• If the OPERATION_MODE parameter is set to source-synchronous mode, the values are CLK[],

LCLK[]

, GCLK[], or LVDSCLK[]. This clock cannot be offset with respect to the reference clock. This relationship is preserved closely even upon temperature and frequency changes.

String Specifies the down spectrum percentage. Values range from

0 through 0.5.

Integer Specifies the high period count for the corresponding

E[3..0] counter. Values range from 1 through 512. If omitted, the default is 1.

Integer Specifies the initial value for the corresponding E[3..0] counter. Values range from 1 through 512. If omitted, the default is 1.

Integer Specifies the low period count for the corresponding

E[3..0] counter. Values range from 1 through 512. If omitted, the default is 1.

String Specifies the mode for the corresponding E[3..0] counter.

Values are BYPASS, ODD, or EVEN. If omitted, the default is BYPASS.

Integer Specifies the phase tap for the corresponding E[3..0] counter. Values range from 0 through 7. If omitted, the default is 0.

String Specifies, in nanoseconds (ns), the time delay for the corresponding E[3..0] counter. Values range from 0 ns to 3 ns. If omitted, the default is 0.

String Specifies the counter for the corresponding

ENABLE[1..0] port. Values are L0 or L1.

String Specifies whether to use the switchover counter. Values are

ON or OFF. If omitted, the value is OFF.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

48

ALTPLL Megafunction Parameters

Parameter

EXTCLK[]_COUNTER

EXTCLK[]_DIVIDE_BY

EXTCLK[]_DUTY_CYCLE

EXTCLK[]_MULTIPLY_BY

EXTCLK[]_PHASE_SHIFT

EXTCLK[]_TIME_DELAY

ug-altpll-9.0

2013.05.03

Type

String

Description

Specifies the external counter for the corresponding external clock output port, EXTCLK[3..0]. Values are E0, E1,

E2

, or E3. If omitted, the default is E0. This parameter is only available for Stratix, Stratix GX, and Cyclone

(EXTCLK0) devices.

Integer Specifies the integer division factor for the corresponding external clock output port, EXTCLK[3..0], with respect to the input clock frequency. The parameter value must be greater than 0. You can specify this parameter only if the corresponding EXTCLK[3..0] port is used; however, it is not required if a Clock Settings assignment is specified for the corresponding EXTCLK[3..0] port. If omitted, the default is 1. This parameter is not available for Stratix II devices.

Integer Specifies the duty cycle in percentage for the corresponding external clock output port, EXTCLK[3..0]. If omitted, the default is 50. This parameter is not available for Stratix II devices.

Integer Specifies the integer multiplication factor for the corresponding external clock output port, EXTCLK[3..0], with respect to the input clock frequency. The parameter value must be greater than 0. You can specify this parameter only if you use the corresponding EXTCLK[3..0] port.

However, it is not required if a Clock Settings assignment is specified for the corresponding EXTCLK[3..0] port.

If omitted, the default is 1. This parameter is not available for Stratix II devices.

String Specifies the phase shift for the corresponding external clock output port, EXTCLK[3..0]. This parameter is not available for Stratix II devices.

String Specifies, in picoseconds (ps), a delay value to be applied to the corresponding external clock output port,

EXTCLK[3..0]

. This parameter affects only the corresponding EXTCLK[3..0] port and is independent of the EXTCLK[3..0]_PHASE_SHIFT parameter; therefore you can use both parameters simultaneously. If no units are specified, picoseconds (ps) are assumed.

Legal values range from –3 ns to 6 ns in increments of

0.25

ns. Do not use these values as parameters except when reprogramming the PLL using the real-time programming interface. This parameter is not available for Stratix II devices.

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

G[]_HIGH

G[]_LOW

G[]_MODE

G[]_PH

Parameter

FEEDBACK_SOURCE

G[]_INITIAL

G[]_TIME_DELAY

GATE_LOCK_COUNTER

GATE_LOCK_SIGNAL

INCLK[]_INPUT_FREQUENCY

INTENDED_DEVICE_FAMILY

INVALID_LOCK_MULTIPLIER

ALTPLL Megafunction Parameters

49

Type

String

Description

Specifies which clock output has a board-level connection to the fbin port. If the OPERATION_MODE parameter is set to EXTERNAL_FEEDBACK, the FEEDBACK_SOURCE parameter is needed. Values are EXTCLK[]. If omitted, the value is EXTCLK0.

Integer Specifies the high period count for the corresponding

G[3..0

] counter. Values range from 1 to 512. If omitted, the default is 1.

Integer Specifies the initial value for the corresponding G[3..0] counter. Values range from 1 to 512. If omitted, the default is 1.

Integer Specifies the low period count for the corresponding

G[3..0] counter. Values range from 1 to 512. If omitted, the default is 1.

String Specifies the mode for the corresponding G[3..0] counter.

Values are BYPASS, ODD, or EVEN. If omitted, the default is BYPASS.

Integer Specifies the phase tap for the corresponding G[3..0] counter. Values range from 0 to 7. If omitted, the default is 0.

String Specifies, in nanoseconds (ns), the time delay for the corresponding G[3..0] counter. Values range from 0 ns to 3 ns. If omitted, the default is 0.

Integer Specifies the value for the 20-bit counter that gates the locked output port before sending it to the locked port.

This parameter is required for simulation in third-party simulators.

String Specifies whether the locked port should be gated internally with a 20-bit programmable counter so it does not oscillate during initial power-up. Values are NO or YES.

If omitted, default is NO.

Integer Specifies the input frequency for the input clock port, inclk[1..0]

. The compiler uses the frequency of the clk0 port to calculate the PLL parameters, but also analyzes and reports the phase shifts for the clk1 port.

String This parameter is used for modeling and behavioral simulation purposes. The default is NONE

Integer Specifies the scaling factor, in half-clock cycles, for which the clock output ports must be out-of-lock before the locked pin goes low.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

50

ALTPLL Megafunction Parameters

Parameter

L[]_HIGH

L[]_INITIAL

L[]_LOW

L[]_MODE

L[]_PH

L[]_TIME_DELAY

LOCK_HIGH

LOCK_LOW

LOCK_WINDOW_UI

LOOP_FILTER_C

LOOP_FILTER_R

LPM_HINT

LPM_TYPE

Altera Corporation ug-altpll-9.0

2013.05.03

Type Description

Integer Specifies the high period count for the corresponding

L[1..0] counter. Values range from 1 to 512. If omitted, the default is 1.

Integer Specifies the initial value for the corresponding L[1..0] counter. Values range from 1 to 512. If omitted, the default is 1.

Integer Specifies the low period count for the corresponding

L[1..0] counter. Values range from 1 to 512. If omitted, the default is 1.

String Specifies the mode for the corresponding L[1..0] counter. Values are BYPASS, ODD or EVEN. If omitted, the default is BYPASS.

Integer Specifies the phase tap for the corresponding L[1..0] counter. Values range from 0 to 7. If omitted, the default is 0.

String Specifies, in nanoseconds (ns), the time delay for the corresponding L[1..0] counter. Values range from 0 ns to 3 ns. If omitted, the default is 0.

Integer Specifies the number of half-clock cycles that the output clocks must be locked before the locked port goes high.

This parameter is required for simulation in third-party simulators. Available for Stratix IV, Stratix III, Cyclone IV, and Cyclone III devices only.

Integer Specifies the number of half-clock cycles that the output clocks must be out-of-lock before the locked port goes low. This parameter is required for simulation in third-party simulators. Available for Stratix IV, Stratix III, Cyclone IV, and Cyclone III devices only.

String Specifies the value of the LOCK_WINDOW_UI setting. If omitted, default is 0.05.

String Specifies, in picofarads (pF), the value of the loop capacitor.

Values range from 5 to 20 pF. The Compiler cannot achieve all values. If omitted, the default value is 10.

String Specifies, in kilo ohms (K Ohm), the value of the loop resistor. Values range from 1 K to 20 K. The Compiler cannot achieve all values.

String Allows you to specify Altera-specific parameters in VHDL

Design Files (.vhd). The default is UNUSED.

String Identifies the library of parameterized modules (LPM) entity name in VHDL Design Files.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

M

M_INITIAL

Parameter

M_PH

M_TEST_SOURCE

M_TIME_DELAY

M2

N

N_TIME_DELAY

N2

ALTPLL Megafunction Parameters

51

Type Description

Integer Specifies the modulus for the M counter. Provides direct access to the internal PLL parameters. If the M parameter is specified, all advanced parameters must be used. Values range from 1 to 512. If omitted, the default is 0.

Integer Specifies the initial value for the M counter. Provides direct access to the internal PLL parameters. If the M_INITIAL parameter is specified, all advanced parameters must be used. Values range from 0 to 512. If omitted, the default is 0.

Integer Specifies the phase tap for the M counter. Values range from

0 to 7. If omitted, the default is 0.

Integer Specifies the test source for the M counter. If omitted, default is 5.

Integer Specifies, in nanoseconds (ns), the time delay for the M counter. Values range from 0 ns through 3 ns. If omitted, the default is 0. This parameter is not available for Cyclone

II and Stratix II devices.

Integer Specifies the spread spectrum modulus for the M counter.

Provides direct access to the internal PLL parameters. If the

M2 parameter is specified, all advanced parameters must be used. Values range from 1 to 512. If omitted, the value is

1

.

Integer Specifies the modulus for the N counter. Provides direct access to the internal PLL parameters. If the N parameter is specified, all advanced parameters must be used. Values range from 1 to 512. If omitted, the default is 1.

Integer Specifies, in nanoseconds (ns), the time delay for the N counter. Values range from 0 ns through 3 ns. If omitted, the default is 0. This parameter is not available for

Cyclone II and Stratix II devices.

Integer Specifies the spread spectrum modulus for the N counter.

Provides direct access to the internal PLL parameters. If the

N2 parameter is specified, all advanced parameters must be used. Values range from 1 through 512. If omitted, the default is 1.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

52

ALTPLL Megafunction Parameters

Parameter

OPERATION_MODE

Type

String

Description ug-altpll-9.0

2013.05.03

Altera Corporation

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Parameter

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ALTPLL Megafunction Parameters

53

Type Description

Specifies the operation of the PLL. Values are EXTERNAL_

FEEDBACK

, NO_COMPENSATION, NORMAL, ZERO_

DELAY_BUFFER

, and SOURCE_SYNCHRONOUS. If omitted, the default is NORMAL.

• In no compensation mode, the PLL does not align a clock to the input, which leads to better jitter performance.

• In source-synchronous mode, the clock delay from pin to I/O input register matches the data delay from pin to

I/O input register.

• Source-synchronous mode allows the clock delay from pin to I/O input register to match the data delay from pin to I/O input register.

• In normal mode, the PLL compensates for the delay of the internal clock network used by the clock output specified in the COMPENSATE_CLOCK parameter. If the PLL is also used to drive an external clock output pin, a corresponding phase shift of the output pin results.

• In zero-delay buffer mode, the PLL must feed an external clock output pin and compensate for the delay introduced by that pin. The signal observed on the pin is synchronized to the input clock. If the PLL is also used to drive the internal clock network, a corresponding phase shift of that network results.

• In external feedback mode, the fbin input port must be connected to an input pin, and there must be a board-level connection between this input pin and an external clock output pin, which is specified with

FEEDBACK_SOURCE parameter. The fbin port is aligned with the input clock. Use the maximum input delay assignment on the fbin port to specify external board delay.

Note that for source-synchronous mode and zero-delay buffer mode, you need to make assignments (in this case, the PLL_COMPENSATE assignment) in addition to setting the appropriate mode in the megafunction. This allows you to specify an output pin as a compensation target for a PLL in zero-delay buffer or external feedback mode, or an input pin or a group of input pins as compensation targets for a

PLL in Source- Synchronous mode.

If assigned to an output pin, the pin must be fed by the external clock output port of a PLL in a Stratix, HardCopy

Stratix or Cyclone device, or the compensated clock output port of a PLL in other devices. Any other output pins fed by the same PLL generally are not delay compensated, especially if they have different I/O standards.

If assigned to an input pin or a group of input pins, the input pins must drive input registers that are clocked by the compensated clock output port of a PLL in source-synchronous mode.

Altera Corporation

PFD_MAX

PFD_MIN

PLL_TYPE

PORT_ACTIVECLOCK

PORT_ARESET

PORT_CLK[]

PORT_CLKBAD[]

PORT_CLKENA[]

PORT_CLKLOSS

PORT_CLKSWITCH

PORT_CONFIGUPDATE

PORT_ENABLE[]

PORT_EXTCLK[]

54

ALTPLL Megafunction Parameters

Parameter

Altera Corporation ug-altpll-9.0

2013.05.03

Type Description

This parameter is ignored if it is applied to anything other than an output or input pin as described above

Integer Specifies the maximum value for the PFD pin. If omitted, the default is 0.

Integer Specifies the minimum value for the PFD pin. If omitted, the default is 0.

String Specifies the type of PLL to instantiate. Values are AUTO,

ENHANCED

, FAST, TOP_BOTTOM and LEFT_RIGHT.

If omitted, the default is AUTO.

String Specifies the ACTIVECLOCK port connectivity. Values are

PORT_USED or PORT_UNUSED. If omitted, the default is

PORT_UNUSED

.

String Specifies the ARESET port connectivity. Values are PORT_

USED or PORT_UNUSED. If omitted, the default is PORT_

UNUSED

.

String Specifies the CLK[9..0] port connectivity. Values are

PORT_USED or PORT_UNUSED. If omitted, the default is

PORT_UNUSED

.

String Specifies the CLKBAD[1..0] port connectivity. Values are PORT_USED or PORT_UNUSED. If omitted, the default is PORT_UNUSED.

String Specifies the CLKENA[5..0] port connectivity. Values are

PORT_USED or PORT_UNUSED. If omitted, the default is

PORT_UNUSED

.

String Specifies the CLKLOSS port connectivity. Values are PORT_

USED or PORT_UNUSED. If omitted, the default is PORT_

UNUSED

.

String Specifies the CLKSWITCH port connectivity. Values are

PORT _ USED or PORT_UNUSED. If omitted, the default is PORT_UNUSED.

String Specifies the CONFIGUPDATE port connectivity. Values are PORT_USED or PORT_UNUSED. If omitted, the default is PORT_UNUSED.

String Specifies the ENABLE[1..0] port connectivity. Values are PORT_USED or PORT_UNUSED. If omitted, the default is PORT_UNUSED.

String Specifies the EXTCLK[3..0] port connectivity. Values are PORT_USED or PORT_UNUSED. If omitted, the default is PORT_UNUSED.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Parameter

PORT_EXTCLKENA[]

PORT_FBIN

PORT_FBOUT

PORT_INCLK[]

PORT_LOCKED

PORT_PFDENA

PORT_PHASECOUNTERSELECT

PORT_PHASEDONE

PORT_PHASESTEP

PORT_PHASEUPDOWN

PORT_PLLENA

PORT_SCANACLR

PORT_SCANCLK

ALTPLL Megafunction Parameters

55

Type

String

Description

Specifies the EXTCLKENA[3..0] port connectivity. Values are PORT_USED or PORT_UNUSED. If omitted, the default is PORT_UNUSED.

String Specifies the FBIN port connectivity. Values are PORT_

USED or PORT_UNUSED. If omitted, the default is PORT_

UNUSED

.

String Specifies the FBOUT port connectivity. Values are PORT_

USED or PORT_UNUSED. If omitted, the default is PORT_

UNUSED

.

String Specifies the INCLK[1..0] port connectivity. Values are

PORT_USED or PORT_UNUSED. If omitted, the default is

PORT_UNUSED

.

String Specifies the LOCKED port connectivity. Values are PORT_

USED or PORT_UNUSED. If omitted, the default is PORT_

UNUSED

.

String Specifies the PFDENA port connectivity. Values are PORT_

USED or PORT_UNUSED. If omitted, the default is PORT_

UNUSED

.

String Specifies the PHASECOUNTERSELECT port connectivity.

Values are PORT_USED or PORT_UNUSED. If omitted, the default is PORT_UNUSED.

String Specifies the PHASEDONE port connectivity. Values are

PORT_USED or PORT_UNUSED. If omitted, the default is

PORT_UNUSED

.

String Specifies the PHASESTEP port connectivity. Values are

PORT_USED or PORT_UNUSED. If omitted, the default is

PORT_UNUSED

.

String Specifies the PHASEUPDOWN port connectivity. Values are

PORT_USED or PORT_UNUSED. If omitted, the default is

PORT_UNUSED

.

String Specifies the PLLENA port connectivity. Values are PORT_

USED or PORT_UNUSED. If omitted, the default is PORT_

UNUSED

.

String Specifies the SCANACLR port connectivity. Values are

PORT_USED or PORT_UNUSED. If omitted, the default is

PORT_UNUSED

.

String Specifies the SCANCLK port connectivity. Values are PORT_

USED or PORT_UNUSED. If omitted, the default is PORT_

UNUSED

.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

56

ALTPLL Megafunction Parameters

Parameter

PORT_SCANCLKENA

PORT_SCANDATA

PORT_SCANDONE

PORT_SCANREAD

PORT_SCANWRITE

PORT_SCLKOUT[]

PORT_VCOOVERRANGE

PORT_VCOUNDERRANGE

PRIMARY_CLOCK

QUALIFY_CONF_DONE

SCAN_CHAIN

SCLKOUT[]_PHASE_SHIFT

Altera Corporation ug-altpll-9.0

2013.05.03

Type

String

Description

Specifies the SCANCLKENA port connectivity. Values are

PORT_USED or PORT_UNUSED. If omitted, the default is

PORT_UNUSED

.

String Specifies the SCANDATA port connectivity. Values are

PORT_USED or PORT_UNUSED. If omitted, the default is

PORT_UNUSED

.

String Specifies the SCANDONE port connectivity. Values are

PORT_USED or PORT_UNUSED. If omitted, the default is

PORT_UNUSED

.

String Specifies the SCANREAD port connectivity. Values are

PORT_USED or PORT_UNUSED. If omitted, the default is

PORT_UNUSED

.

String Specifies the SCANWRITE port connectivity. Values are

PORT_USED or PORT_UNUSED. If omitted, the default is

PORT_UNUSED

.

String Specifies the SCLKOUT[1..0] port connectivity. Values are PORT_USED or PORT_UNUSED. If omitted, the default is PORT_UNUSED.

String Specifies the VCOOVERRANGE port connectivity. Values are PORT_USED or PORT_UNUSED. If omitted, the default is PORT_UNUSED.

String Specifies the VCOUNDERRANGE port connectivity. Values are PORT_USED or PORT_UNUSED. If omitted, the default is PORT_UNUSED.

String Specifies the primary reference clock of the PLL. Values are

INCLK0 or INCLK1. If omitted, the default is INCLK0.

Use the clock switch scheme to switch between clocks.

Automatic clock switchover is defined differently in different device families.

String The values are ON or OFF. If omitted, the default is OFF.

String Specifies the length of the scan chain. Values are LONG or

SHORT

. If omitted, the default is LONG. If set to LONG, the scan chain length is 10 counters. If set to SHORT, the scan chain length is 6 counters.

String Specifies, in picoseconds (ps), the phase shift for the corresponding sclkout[1..0] port. The maximum phase value is 7/8 of one VCO period. The VCO phase tap is shared with the corresponding clock output port, clk[1..0]

, and must have the same phase amount that is less than one VCO period. In LVDS mode, this parameter default value is 0.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

Parameter

SELF_RESET_ON_GATED_LOSS_

LOCK

SELF_RESET_ON_LOSS_LOCK

SKIP_VCO

SPREAD_FREQUENCY

SS

SWITCH_OVER_COUNTER

SWITCH_OVER_ON_GATED_LOCK

SWITCH_OVER_ON_LOSSCLK

SWITCH_OVER_TYPE

ALTPLL Megafunction Parameters

57

Type

String

Description

Specifies if the self-reset on gated-lock-loss feature is used.

Values are ON or OFF. If omitted, the default is OFF.

String Specifies if the self-reset on loss lock feature is used. Values are ON or OFF. If omitted, the default is OFF.

Integer Specifies if the VCO is skipped. Values are ON or OFF. If omitted, the default is OFF.

Integer Specifies, in picoseconds (ps), the modulation frequency for spread spectrum. If omitted, the default is 0.

Integer Specifies the modulus for the spread spectrum counter.

Provides direct access to the internal PLL parameters. If the

SS parameter is specified, all advanced parameters must be used. Values range from 1 to 32768. If omitted, the default is 1.

Integer Specifies the number of clock cycles to switch the input clock after the switchover circuit is initiated. Values are 0 through

31

. If omitted, the default is 0.

String Specifies whether the gated-lock condition should initiate a clock switch over. Values are ON or OFF. If omitted, the value is OFF.

String Specifies whether the loss-of-lock condition should initiate a clock switch over. Values are ON or OFF. If omitted, the value is OFF.

String Specifies the switchover type. Values are AUTO or MANUAL.

If omitted, the default is AUTO.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

58

ALTPLL Megafunction Parameters

Parameter

USING_FBMIMICBIDIR_PORT

VALID_LOCK_MULTIPLIER

VCO_CENTER

VCO_DIVIDE_BY

VCO_FREQUENCY_CONTROL

VCO_MAX

Altera Corporation ug-altpll-9.0

2013.05.03

Type

String

Description

Specifies whether the fbmimicbidir port is used. Values are ON or OFF. If omitted, the default is OFF.

For Stratix III and Stratix IV device families, with the

OPERATION_MODE parameter set to ZERO_DELAY_

BUFFER

, and the USING_FBMIMICBIDIR_PORT parameter is set to OFF, you must perform the following steps:

1. Instantiate an ALT_IOBUF megafunction.

2. Connect the fbout and fbin ports to the o and i ports of the ALT_IOBUF instantiation, respectively.

3. Connect the bidirectional port of the ALT_IOBUF instantiation to a bidirectional pin, and set the oe port of the ALT_IOBUF instantiation to 1.

If the OPERATION_MODE parameter is set to ZERO_

DELAY_BUFFER

, and the USING_FBMIMICBIDIR_

PORT parameter is set to ON, connect the fbmimicbidir port to a bidirectional pin. This pin must be placed on the positive feedback dedicated output pin of the PLL.

Integer Specifies the scaling factor, in half-clock cycles, for which the clock output ports must be locked before the locked pin goes high.

Integer Specifies the center value for the VCO pin. Use for simulation purposes only.

Integer Specifies the integer division factor for the VCO pin. If omitted, the default is 0. If VCO_FREQUENCY_CONTROL is set to MANUAL_PHASE, specify the VCO frequency as a phase shift step value; that is, one-eighth of the VCO period.

String Specifies the integer division factor for the VCO pin. If omitted, the default is 0. If VCO_FREQUENCY_CONTROL is set to MANUAL_PHASE, specify the VCO frequency as a phase shift step value; that is, one-eighth of the VCO period.

Specifies the frequency control value for the VCO pin.

Values are AUTO, MANUAL_FREQUENCY, and MANUAL_

PHASE

. If omitted, the default is AUTO.

• AUTO—VCO_MULTIPLY_BY and VCO_DIVIDE_BY values are ignored and VCO frequency is set automatically.

• MANUAL_FREQUENCY—Specifies the VCO frequency as a multiple of the input frequency.

• MANUAL_PHASE—Specifies the VCO frequency as a phase shift step value.

Integer Specifies the maximum value for the VCO pin. Use for simulation purposes only.

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

ug-altpll-9.0

2013.05.03

VCO_MIN

Parameter

VCO_MULTIPLY_BY

VCO_PHASE_SHIFT_STEP

VCO_POST_SCALE

WIDTH_CLOCK

ALTPLL Megafunction Parameters

59

Type Description

Integer Specifies the minimum value for the VCO pin. Use for simulation purposes only.

Integer Specifies the integer multiplication factor for the VCO pin.

If omitted, the default is 0.

Integer Specifies the phase shift for the VCO pin. If omitted, the default is 0.

Integer Specifies the VCO operating range. The VCO post-scale divider value is 1 or 2. If omitted, the default is 1.

Integer Specifies the clock width. Values are 10 for Stratix III devices, 5 for Cyclone III and Cyclone IV devices, and 6 for all other supported device families. If omitted, the default is 6. For Stratix III, Stratix IV, Cyclone III, and Cyclone IV devices, the WIDTH_CLOCK parameter is required for both clear box and non-clear box implementation to reflect the correct width.

Related Information

ALTPLL Megafunction Input Ports

on page 37

ALTPLL Megafunction Output Ports

on page 40

ALTPLL Megafunction Bidirectional Port

on page 44

Phase-Locked Loop (ALTPLL) Megafunction

Feedback

Altera Corporation

Document Revision History

2013.05.03

ug-altpll-9.0

Subscribe

Feedback

Lists the revision history for this user guide.

Table 1: Document Revision History

Date

May 2013

November 2009

December 2008

March 2007

December 2006

May 2006

Version

9.0

8.0

7.0

6.0

5.0

4.0

Changes Made

DITA conversion.

Updated to reflect new document organization and format.

• Updated the following sections:

• “Device Family Support” section

• “Introduction” section

• “Features” section

• “General Description” section

• “Design Examples” section

• “Simulation” section

• “Ports and Parameters” section

• “How to Contact Altera” section

• Removed the following sections:

• “Resource Utilization & Performance” section

• “Software and System Requirements” section

• “Instantiating Multifunction in HDL Code” section

• “Identifying a Multifunction after Compilation” section

• “Signature II Embedded Logic Analyzer” section

• Removed all screenshots on “Using the MegaWizard Plug-In Manager” section

• Reorganized the “Using the MegaWizard Plug-In Manager” section into table format.

• Renamed “About this User Guide” section to “Additional Information” and moved the section to the end of the user guide.

Updated for software version 7.0, including:

• Added support for Cyclone III devices

• Added Referenced Documents section

Updated to reflect new document organization, additions, and GUI changes for

Quartus 6.1, including adding information relating to Stratix

®

III devices

Updated to reflect new document organization, additions, and GUI changes for

Quartus 6.0

©

2013 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html.

Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

ISO

9001:2008

Registered www.altera.com

101 Innovation Drive, San Jose, CA 95134

2

Document Revision History

Date

December 2004

Version

3.0

Changes Made

Updated to reflect new document organization and GUI changes

ug-altpll-9.0

2013.05.03

Altera Corporation

Document Revision History

Feedback

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
