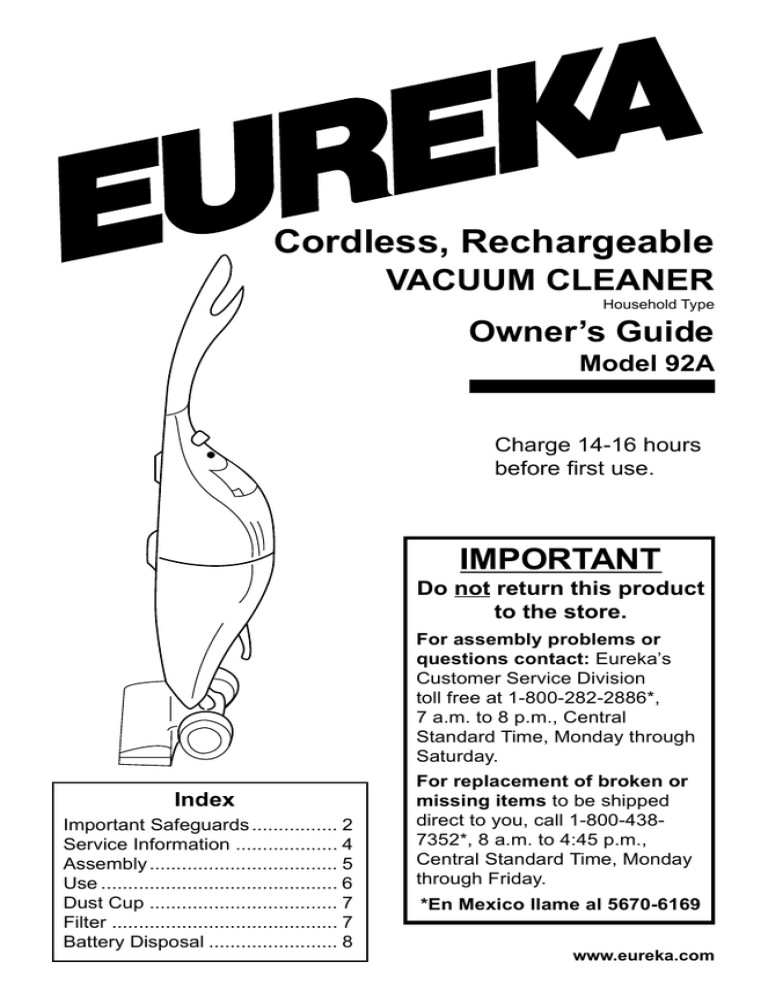

Eureka 92A Specifications
Cordless, Rechargeable
VACUUM CLEANER
Household Type
Owner’s Guide
Model 92A
Charge 14-16 hours
before first use.
IMPORTANT
Do not return this product
to the store.
For assembly problems or
questions contact: Eureka’s
Customer Service Division
toll free at 1-800-282-2886*,
7 a.m. to 8 p.m., Central
Standard Time, Monday through
Saturday.
Index
Important Safeguards ................ 2
Service Information ................... 4
Assembly ................................... 5
Use ............................................ 6
Dust Cup ................................... 7
Filter .......................................... 7
Battery Disposal ........................ 8
For replacement of broken or
missing items to be shipped
direct to you, call 1-800-4387352*, 8 a.m. to 4:45 p.m.,
Central Standard Time, Monday
through Friday.
*En Mexico llame al 5670-6169
www.eureka.com
IMPORTANT SAFEGUARDS
When using an electric appliance, basic precautions should always be followed,
including the following:
Read all instructions before using this vacuum cleaner.
WARNING
To reduce the risk of fire, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
• Do not operate the vacuum cleaner or charger that has been damaged in any way.
If vacuum cleaner is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center.
• To avoid excessive heat and damage to the unit or batteries, do not operate the
vacuum cleaner while plugged into the charger.
• Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
• Use only as described in this manual.
• Use only Eureka charger D7300-02 for 120 volt and 6.0 volt battery pack 61223.
• Do not pull or carry the charger by cord, use cord as a handle, close a door on cord,
or pull cord around sharp edges or corners. Keep cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Do not unplug by pulling on cord. To unplug, grasp the charger, not the cord.
• Do not handle charger or vacuum cleaner with wet hands.
• DO NOT MUTILATE OR INCINERATE BATTERIES AS THEY WILL EXPLODE AT
HIGH TEMPERATURES.
• Leaks from battery cells can occur under extreme usage or temperature conditions.
If the liquid gets on the skin wash quickly with soap and water. If the liquid gets into
the eyes, flush them immediately with clean water for a minimum of 10 minutes.
Seek medical attention.
• The terminal on the vacuum cleaner should be kept free and clean of objects. While
there is no shock hazard from the terminal, a burn could occur if metal objects are
inserted into the terminal area.
• This vacuum cleaner creates suction. Keep hair, loose clothing, fingers, and all parts
of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or
hot ashes.
• Do not use without a filter in place. When servicing the unit, never put fingers or
other objects into the fan chamber in case the unit would accidentally be turned on.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline, or use in
areas where they may be present.
• Locate the charger indoors in a cool, dry area not exposed to the weather to avoid
electrical shock and/or cleaner damage.
• Keep your work area well lighted.
• Unplug electrical appliances before vacuuming them.
SAVE THESE INSTRUCTIONS
2
CONSEILS DE SÉCURITÉ
Lors de l’utilisation d’un appareil électrique, quelques précautions élémentaires doivent
être observées, incluant les suivantes:
LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER VOTRE ASPIRATEUR.
AVERTISSEMENT
Pour réduire le risque de feu, de choc électrique ou de blessure:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
N’utilisez pas l’aspirateur à l’extérieur ou sur une surface mouillée.
N’utilisez jamais l’aspirateur ou le chargeur s’ils ont été endommagés. Si l’aspirateur
ne fonctionne pas comme il le faut, s’il a été échappé, s’il a été endommagé, s’il a été
laissé à l’extérieur, s’il a été échappé dans de l’eau, retournez-le à un centre de
service avant de l’utiliser.
Pour éviter que l’aspirateur surchauffe, ou que l’aspirateur ou les piles soient
endommagés, n’utilisez pas l’aspirateur lorsqu’il est encore dans son support de
recharge.
Ne permettez pas que l’aspirateur soit utilisé comme un jouet. Une attention particulière
est nécessaire lorsqu’il est utilisé par ou près d’un enfant.
Suivez les recommandations d’utilisation de ce manuel.
Utilisez uniquement le chargeur Eureka modèle nº D6300-02 pour 120 volt; et pièce
nº 61223, 6.0 volt bat de pile.
Ne pas tirer l’aspirateur ou le transporter par le cordon. Ne pas utiliser le cordon en
guise de poignée. Ne pas fermer une porte sur le cordon ou tirer le cordon sur des
bordures ou des coins pointus. Tenir le cordon à distance des surfaces chauffantes.
Ne pas utiliser des rallonges ou des prises qui n’ont pas une capacité suffisante pour
transporter le courant.
Ne pas débrancher en tirant sur le cordon. Pour débrancher, empoignez le chargeur
et non pas le cordon.
Ne pas manipuler le chargeur ou l’aspirateur avec les mains mouillées.
NE PAS MUTILER OU INCINÉRER LES PILES. LES PILES EXPLOSENT A DES
TEMPÉRATURES EXCESSIVES.
Il peut y avoir des fuites des éléments des piles lorsque celles-ci sont soumises à
des conditions d’emploi excessif ou de température excessive. Si le liquide touche la
peau (1) laver tout de suite la peau avec de l’eau et du savon. Au cas de contact avec
les yeux, nettoyer à grande eau pour un minimum de 10 minutes. Cherchez des
soins médicaux.
La borne de l’aspirateur doit être maintenue propre et libre de tout autre objet. Il n’y a
aucun risque de choc électrique de la borne elle-même, mais une brûlure est possible
si des objets en métal sont introduits dans la borne.
Cet aspirateur crée de la succion. Tenir les parties mobiles et les ouvertures loin des
cheveux, des habits, des doigts et de toute partie du corps.
Ne pas ramasser des objets qui brûlent ou fument comme des cigarettes, des
allumettes ou les cendres chaudes.
Ne pas utiliser sans que le filtre ne soit installé. Lors de réparations ou d’entretien, il
ne faut jamais mettre les doigts, ou autres objets, près du ventilateur dans le cas où
l’aspirateur serait accidentellement mis en marche.
Portez une attention particulière lorsque vous nettoyez les escaliers.
Ne pas utiliser pour ramasser des liquides inflammables ou combustibles comme de
l’essence. Ne pas utiliser dans les endroits où ces liquides pourraient être présents.
Situez le support et le chargeur pour l’aspirateur à l’intérieur, dans un endroit frais,
sec et protégé pour éviter le choc électrique ou les dommages.
Travaillez toujours dans un endroit bien éclairé.
Débranchez les appareils électriques avant de les nettoyer avec l’aspirateur.
CONSERVEZ CES INSTRUCTIONS
3
GENERAL INFORMATION
The cordless vacuum cleaner is the answer for quick, convenient, and easy cleanups.
Grab the cleaner for little tasks rather than using a larger cleaner.
Charge for 14-16 hours before first use.
Batteries could lose charge in shipping.
It is best to charge the batteries when temperatures are between 32°F (0°C) and 104°F
(40°C). Other temperatures could damage batteries.
While charging, the charger may become warm to the touch. This is a normal condition
and does not indicate a problem.
Service Information
The instructions in this booklet serve as a guide to routine maintenance. If additional
service is required, telephone toll free:
USA: 1-800-282-2886
Mexico: 5670-6169
Canada: 1-800-282-2886
for the nearest Eureka Authorized Warranty Station. If you prefer, you can write to The
Eureka Company, Service Division, 807 N. Main St., Bloomington, IL 61701, USA. In
Canada write to The Eureka Company, 866 Langs Drive, Cambridge, Ontario N3H 2N7.
Refer to The Eureka Warranty for complete service information.
DO NOT OIL. The motor has lubrication and has a permanent seal.
Rating Plate
The model number is indicated on the
rating plate which is located on the
back of the vacuum cleaner. For
prompt and complete service, always
refer to these numbers
Model and Type No. ____________________
THE EUREKA COMPANY
Bloomington, Illinois 61701 USA
HOUSEHOLD TYPE
MODEL
Serial No. or Date Code _________________
Important Battery Disposal Information - Call 1-800-822-8837
Nickel-Cadmium Batteries
The RBRC Battery Recycling Seal on the nickel-cadmium (Ni-Cd)
battery indicates The Eureka Company is voluntarily participating
in an industry program to collect and recycle these batteries at
the end of their useful life, when taken out of service in the United
States or Canada. The RBRC program provides a convenient
alternative to placing used Ni-Cad batteries into the trash or the
municipal waste system, which is illegal in some areas. Please
call 1-800-8-BATTERY for information on Ni-Cd battery recycling
in your area.
NOTE: Remove the battery pack only when the batteries no longer hold a charge
and you plan to dispose of them.
4
Identify Parts
Telescoping Handle
Telescoping Handle
Release
Charger Socket
On/Off Switch
Battery Cover
Motor Unit
Dust Cup Latch
Dust Cup
Crevice
Tool
Charging Plug
Charge the Batteries
NOTE: Charge the batteries for 14-16 hours before initial use. A cleaner may lose
charge in shipment. The charging plug will become warm, however, this is
not a cause for concern.
It is all right to leave the cleaner on constant charge so it is always ready to use. Unplug
only if it will not be in use for several weeks at a time.
1. Find the charger connector on the
opposite end of the charging plug.
2. Push the charger connector into the
charger socket on the vacuum.
3. Push the charging plug into your
electric socket.
4. The vacuum batteries are now being
charged.
Charger Socket
Charger
Connector
Electric
Socket
Charging
Plug
5
HOW TO USE
Use this lightweight vacuum cleaner for quick and
easy cleaning. Move the nozzle over any floor
covering to quickly clean dirt, lint or threads.
Telescopic Handle
Handle
Press down on telescoping handle release,
then pull the handle out to its maximum
length and release the latch so that the
handle locks firmly into place.
Telescoping
Handle
Release
Power Switch
1. Push switch forward to turn on.
2. Pull switch back to turn off.
Power Switch
As a Stick Vac
Handle
1. Assemble the nozzle into the dust cup.
2. Pull out handle to its maximum length. (See
page 5.)
Dust Cup
Nozzle
As a Hand Vac
Handle
Telescoping
Handle Release
Crevice
Tool
1. Remove the nozzle if it is attached.
2. Press down on the telescoping handle release button and push the handle firmly
down into the cleaner. It will lock into place.
3. To use hand vac with crevice tool, push crevice tool into hand vac till it stops.
6
HOW TO MAINTAIN
The instructions in this booklet serve as a guide to routine maintenance. To keep the
cleaner operating at top efficiency empty the dust cup and clean the filter after each use.
Empty Dust Cup
Note:
Turn off the power switch before emptying dust cup.
1. The telescoping handle must be completely
extended to remove the dust cup.
Handle
2. Push down on the top of the dust cup latch.
2. Pull dust cup from handle section and lift
from the nozzle.
Motor
Unit
Latch
3. Grasp the edge of dust cup filter and pull
out to remove. Clean motor filter (refer to
dust cup filter section).
4. Shake contents of dust cup into waste
container.
Dust
Cup
Dust Cup
Filter
,,
,,
5. Replace dust cup filter.
6. Fit dust cup and motor unit back together
and push firmly until latch clicks into place.
How to Clean Dust Cup Filter
Note:
Turn off the power switch and unplug the electrical cord to service.
Clean the dust cup filter after each cleaner use.
1.
2.
3.
4.
,,,
,,,
,,,
Separate dust cup from motor unit.
Pull dust cup filter out of dust cup.
Shake and brush the dust and dirt from filter.
If desired, launder the filter by hand in warm water using
a mild detergent.
5. Air dry thoroughly before returning to use.
6. Replace dust cup filter in dust cup. Fit dust cup and
motor unit back together and push firmly until latch clicks
into place.
Replace a dirty or torn filter. Order additional dust cup filters from The Eureka
Company, Bloomington, IL 61701. Order dust cup filter, part number 60796. To
place an order please telephone 1-800-438-7352.
7
HOW TO MAINTAIN (continued)
How To Change Batteries
1. Find the battery cover located on the back of
the vacuum.
2. Use a screwdriver at either bottom corner of
the battery cover to pry the battery cover up
and off the vacuum.
3. Remove the battery pack by disconnecting
the two wires attaching it to the vacuum. After
disconnection pull out battery pack.
4. Put the new battery pack into the vacuum with
contact strips facing out. Connect the wires.
(Hook the black lead to the top contact strip
and the red lead to the bottom contact strip.
5. Replace battery cover.
Cleaner Care
NOTE: Turn off power switch before cleaning unit.
To keep the vacuum cleaner looking new, it can be wiped with a damp cloth and a mild
soap solution, then thoroughly dried. Never use any type of chemical as chemicals can
damage the cleaner.
How to Store Unit
Hole in the Handle
Use the hole in the handle to hang the
cleaner for storage or stand upright by
itself.
8
To Order
(Eve)
State
__________________
Model Number
Telephone (Day)
City
Address (street address needed for UPS)
Name
59884
www.eureka.com
Simply fill out this
Order Form.
Please be sure to
include day
and evening
phone numbers.
By Mail
*En Mexico
llame al 5670-6169
By FAX
1-309-823-5789
and 4:45 p.m.,
central standard time
Monday through Friday.
(Fax)
Zip
T
O
S
H
I
P
1-800-282-2886*
5670-6169
*En Mexico llame al
7 a.m. to 8 p.m. central standard time Monday through Saturday.
Acct. number
MasterCard (13 digits)
Expiration date
American Express (15 digits)
Signature (Full name as shown on account) _____________________________________________
Visa (13/16 digits)
Check or money order (payable to The Eureka Company). Do not send currency.
Charge to my
Telephone (Day)
City
2/01
Qty.
1.99
17.39
3.99
3.09
3.09
2.99
Price (USD)
$3.75
© 2001 White Consolidated Industries, Inc.
Printed in China
TOTAL
Postage and Handling Charge (Within the U.S.A.)
Total
(Fax)
Zip
Tax (add state and local taxes as required by law)
Total (prices subject to change without notice)
60796
61223
70674
60925-2
60925-1
60925
Part No.
(Eve)
State
(Not applicable in Canada)
ORDER FORM
Address (street address needed for UPS)
Name
#
To Answer Problems or Questions for U.S.A. and Canada call:
Filter
Battery Pack (92A)
Charger (92A)
Crevice Tool (92A)
Crevice Tool (160A)
Crevice Tool (166A)
Genuine Eureka Parts
,,,
,,,
,,,
Method of Payment (No C.O.D.s)
IMPORTANT:
Be sure to include your
model, type, and serial
numbers. These
numbers may be found
on the rating plate.
__________________
Serial Number
By Phone
1-800-438-7352* __________________
HOURS:
Type
Call between 8 a.m.
T
O
S
O
L
D
VACUUM CLEANERS
The Eureka Company
P.O. Box 2799
Bloomington, IL 61702-2799
If you prefer, you can write to The Eureka Company, Service Division, 807 North Main Street, Bloomington, Illinois 61701, USA. In Canada write to The Eureka Company, 866 Langs
Drive, Cambridge, Ontario N3H 2N7. If it is necessary to ship the cleaner outside your community to obtain warranty repair, you must pay the shipping charges to the Eureka Authorized
Warranty Station.
Return shipping charges will be paid by the Warranty Station. When returning parts for repair, please include the model, type, and serial number from the data plate on the cleaner.
USA: 1-800-282-2886
Mexico: 5670-6169
Canada: 1-800-282-2886
To obtain warranty service you must return the defective cleaner or cleaner part along with proof of purchase to any Eureka Authorized Warranty Station.
You will find the nearest location in the Yellow Pages, under “Vacuum Cleaners–Service and Repair.” Be certain that the Warranty Station is “Eureka Authorized.”
For the location of the nearest Eureka Authorized Warranty Station or for service information, telephone toll free:
Obtaining Warranty Service
Please fill out and return the warranty registration card accompanying your cleaner.
Warranty Registration
The Eureka Company will, at its option, repair or replace a defective cleaner or cleaner part that is covered by this warranty. As a matter of warranty policy, the Eureka Company
will not refund the consumer’s purchase price.
What The Eureka Company Will Do
• Parts of the cleaner that require replacement under normal use.
• Damages or malfunctions caused by negligence, abuse, or use not in accordance with the Owner’s Guide.
• Defects or damages caused by unauthorized service or the use of other than Genuine Eureka parts.
What This Warranty Does Not Cover
Your Eureka cleaner is warranted to be free from all defects in material and workmanship in normal household use for a period of one year. The warranty is granted only to the
original purchaser and members of his or her immediate household. The warranty is subject to the following provisions.
What This Warranty Covers
THE EUREKA LIMITED WARRANTY
Part No. 70671 (11/01)
©2000 White Consolidated Ind., Inc.
Printed in China
Household Warranty
abs 190
For Genuine Eureka Value, Accept No Imitations!
Q: Are there any differences between “made to fit” or “imitation” and Genuine Eureka parts?
A: Yes, there are some very important differences in materials, quality, and reliability. Many customers have mistakenly purchased “imitation” paper bags
and parts while thinking they purchased genuine. Unfortunately, many of these customers discovered the differences after they experienced related
difficulties.
Q: How can I be sure I am using only genuine Eureka products in my product?
A: Typically, packaged products and paper bags can be identified by a “Genuine Eureka Product” symbol (see illustration above). For further identification
assistance, you may call our toll-free number, 1-800-282-2886, for the location of a nearby Eureka Authorized Warranty Station.
Q: Why should I use only Genuine Eureka parts in my Eureka product?
A: Using Genuine Eureka Products, which are made to our exacting specifications and engineered with emphasis on quality, performance, and customer
satisfaction, ensures the long life and cleaning efficiency of your vacuum cleaner. Overall, this saves you money and helps to keep your home clean.
Questions & Answers about Genuine Eureka Products
EUREKA PRODUCT
GENUINE
Any warranty that may be implied in connection with your purchase or use of the cleaner, including any warranty of Merchantability or any warranty for Fitness For
A Particular Purpose is limited to the duration of this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may
not apply to you.
Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall Eureka be liable for any consequential or incidental
damages you may incur in connection with your purchase or use of the cleaner. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary by state.
Further Limitations and Exclusions
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
