VuQube VQ2000 Specifications
C
KING CONTROLS SATELLITE SYSTEMS
RV ELECTRONICS
& GAUGES
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
Phone Accessories
TV
Stereo
CB
Navigation

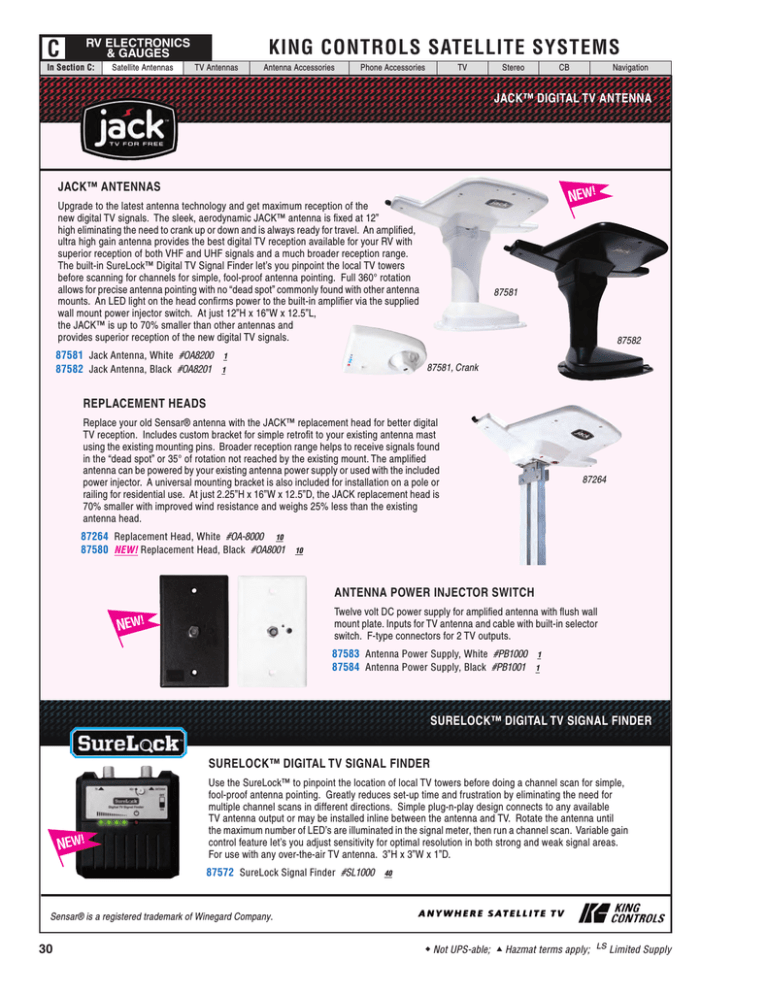

JACK™ DIGITAL TV ANTENNA
JACK™ ANTENNAS
NEW!
Upgrade to the latest antenna technology and get maximum reception of the
new digital TV signals. The sleek, aerodynamic JACK™ antenna is fixed at 12”
high eliminating the need to crank up or down and is always ready for travel. An amplified,
ultra high gain antenna provides the best digital TV reception available for your RV with
superior reception of both VHF and UHF signals and a much broader reception range.
The built-in SureLock™ Digital TV Signal Finder let’s you pinpoint the local TV towers
before scanning for channels for simple, fool-proof antenna pointing. Full 360° rotation
allows for precise antenna pointing with no “dead spot” commonly found with other antenna
mounts. An LED light on the head confirms power to the built-in amplifier via the supplied
wall mount power injector switch. At just 12”H x 16”W x 12.5”L,
the JACK™ is up to 70% smaller than other antennas and
provides superior reception of the new digital TV signals.
87581 Jack Antenna, White #OA8200
87582 Jack Antenna, Black #OA8201
87581
87582
1
87581, Crank
1
REPLACEMENT HEADS
Replace your old Sensar® antenna with the JACK™ replacement head for better digital
TV reception. Includes custom bracket for simple retrofit to your existing antenna mast
using the existing mounting pins. Broader reception range helps to receive signals found
in the “dead spot” or 35° of rotation not reached by the existing mount. The amplified
antenna can be powered by your existing antenna power supply or used with the included
power injector. A universal mounting bracket is also included for installation on a pole or
railing for residential use. At just 2.25”H x 16”W x 12.5”D, the JACK replacement head is
70% smaller with improved wind resistance and weighs 25% less than the existing
antenna head.
87264 Replacement Head, White #OA-8000 10
87580 NEW! Replacement Head, Black #OA8001
87264
10
ANTENNA POWER INJECTOR SWITCH
Twelve volt DC power supply for amplified antenna with flush wall
mount plate. Inputs for TV antenna and cable with built-in selector
switch. F-type connectors for 2 TV outputs.
NEW!
87583 Antenna Power Supply, White #PB1000
87584 Antenna Power Supply, Black #PB1001
1
1
SURELOCK™ DIGITAL TV SIGNAL FINDER
SURELOCK™ DIGITAL TV SIGNAL FINDER
NEW!
Use the SureLock™ to pinpoint the location of local TV towers before doing a channel scan for simple,
fool-proof antenna pointing. Greatly reduces set-up time and frustration by eliminating the need for
multiple channel scans in different directions. Simple plug-n-play design connects to any available
TV antenna output or may be installed inline between the antenna and TV. Rotate the antenna until
the maximum number of LED’s are illuminated in the signal meter, then run a channel scan. Variable gain
control feature let’s you adjust sensitivity for optimal resolution in both strong and weak signal areas.
For use with any over-the-air TV antenna. 3”H x 3”W x 1”D.
87572 SureLock Signal Finder #SL1000
40
Sensar® is a registered trademark of Winegard Company.
30
◆
Not UPS-able;
▲
Hazmat terms apply; LS Limited Supply
KING CONTROLS SATELLITE SYSTEMS
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
Phone Accessories
RV ELECTRONICS
& GAUGES
TV
Stereo
CB
C
Navigation
KING DOME AIR: ONE ANTENNA FOR
ALL YOUR DIGITAL HDTV VIEWING!
King Controls’ patent-pending King-Dome AIR with Advanced
Integrated Reception lets you enjoy digital satellite and high definition
broadcast TV viewing from a single antenna system that is completely
self-contained in a weatherproof dome mounted on your RV’s roof. There’s
nothing to raise or lower – the King-Dome AIR is always ready to go.
SATELLITE ANTENNA FEATURES: • One touch operation • Latest DVB technology for positive satellite identification • Automatic satellite switching
by simply changing channels • Dual LNB for 2 receivers • Works with HDTV programming for Dish Network and Bell TV • Works with DirecTV, Dish
Network and Bell standard digital service.
OVER-THE-AIR ANTENNA FEATURES: • Combine with existing digital OTA antenna for multi-directional TV reception • Improves digital signal
reception in UHF band • Wider reception range than traditional RV antennas.
SERVICE PROVIDER COMPATIBILITY: • DIRECTV 101˚, 119˚ • DISH 500 110˚, 119˚ • DISH NETWORK HD 61˚, 110˚, 119˚, 129˚
• Bell 91˚ • Bell HD 82˚, 91˚.
KING DOMEAIR STATIONARY AUTOMATIC
Just park and push – fully automatic operation.
With completely automatic satellite acquisition, all you need to do is decide what to watch! Just park, press a button and within minutes you have
all your favorite channels at your fingertips. Provides a seamless program guide for all available channels and automatically switches satellites when
you select a new channel on a different satellite. Use with Dish Network HD programming to get the most available HDTV channels nationwide.
Fully compatible with both Eastern and Western arc satellite trios and is easily configured from control panel – no need to remove dome cover.
10315 Stationary Auto, 12” – White #KD-2200 ◆ 1
10317 Stationary Auto, 12” – Black #KD-2200-B ◆ 1
15105 In-Motion Upgrade 9704 & KD2200 Series
#9743
1
KING DOMEAIR IN-MOTION
Enjoy live satellite TV while heading down the highway.
Get up-to-the-minute news, weather and sports or watch a blockbuster movie while on the way to your next destination. With the King-DomeAIR
In-Motion antenna you get reliable, crystal clear satellite TV reception while parked or driving. You also get the most HD channels available via
satellite and off-air from a single antenna for the ultimate HDTV experience. When driving into your campsite, you’ll know you have an unobstructed
view to the satellite before you even let the jacks down.
10316 In-Motion, 12” – White #KD-3200 ◆ 1
10322 In-Motion, 12” – Black #KD-3200-B ◆ 1
TRAC-KING
Extremely fast satellite tracking & full digital display.
With tracking speeds greater than 60 degrees per second, the Trac-King is the fastest in-motion satellite TV antenna available. Offers truly silent
operation. A unique rotary joint design provides for a single cable installation. A digital display shows satellite signal strength, which satellite is
being tracked and offers full diagnostics. Off-air antenna feature not included. Use with standard programming for DirecTV and Bell TV.
13245 Trac-King, 12” – White #9762-LP ◆
14493 Trac-King, 12” – Black #9762-LP-B ◆ 1
1
RAIN FADE SOLUTION
MORE ACCESSORIES!
Improves satellite TV reception
during rain (white domes only).
DIRECTV HD Converter allows reception of
specially formatted HD signals available from
DIRECTV’s 110 satellite.
14291 5-oz. Spray
14489 HD Converter, 9762 Series
#1830
12
14496 Single Wipe
#1830-SP
1
* More accessories are presented on page 44.
#9747
14489,
15106
1
15106 HD Converter, 9704 & 9754 Series
#9748
1
King-Dome installation & diagnostic tool.
10997 Diagnostic Tool #1844 1
10997
King-Dome systems are compatible with Dish Network and Bell HDTV. These antennas
do not receive DIRECTV HD.Dish Network, DIRECTV and Bell TV are trademarks of
their respective companies.
6
= Std. Carton Qty.
31
C
KING CONTROLS SATELLITE SYSTEMS
RV ELECTRONICS
& GAUGES
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
Phone Accessories
TV
Stereo
CB
Navigation
Experience Satellite TV Without Boundaries
TAKE YOUR FAVORITE SATELLITE
TV PROGRAMS ANYWHERE
LIFE TAKES YOU!
VQ1000 REMOTE CONTROLLED
• Single cable connection – no additional power cable required• Powered by your satellite
receiver over the coaxial cable • Auto-satellite switching for Dish Network and Bell TV
standard and HDTV programming • Tamper proof security ring fortheft protection • Exclusive self leveling feature
offers fast, reliable operation with no need for tripod or other leveling accessory • Supports 1 receiver.
Used as a primary satellite TV antenna or as a back-up to your roof mounted antenna when parked in a wooded campsite, the VQ1000 is affordable
and much easier to use than traditional portable dishes. Just set it on the ground, picnic table or anywhere you have a clear view to the southern
sky and use the wireless remote control to point the dish from inside your RV. No need to level. Can also be used for tailgating, trips to the cabin,
backyard barbecues or anywhere you want.
16746 VuQube Remote Controlled, With Auto-switching #VQ-1000 1
VQ2000 AUTOMATIC
• One-touch, fully automatic search • Self leveling – no need for tripod or other leveling accessories
• 12 volt or 110AC power for greater versatility – converter included • Built-in diagnostics to show when signal is blocked
• Automatic satellite switching • HD compatible for Dish Network & Bell TV• Dual LNB for 2 receivers.
A fully automatic satellite dish with the same features as roof mounted antennas - yet is 100% portable. The VQ2000 gives you two antennas
for the price of one! Use the optional flex install kit to secure the VQ2000 to your RV’s ladder without increasing the overall height of your rig.
When parked in the trees or you want to take your satellite TV somewhere other than camping, simply remove the antenna from the quick
release bracket and take it wherever you’d like.
17403 VuQube Automatic #VQ-2000
1
VQ3000 IN-MOTION TRACKING
• All the same great features as the VQ2000 plus in-motion tracking • Enjoy live satellite TV while heading down the road • Provides
reliable reception, even on winding roads • Use with Flex Install Kit for fixed and portable use • Rugged design - originally developed
for long-haul trucks.
It’s an automatic, it’s a portable, it’s an in-motion antenna all rolled into one compact design. The VQ3000 offers what no other mobile satellite
antenna can, and for those who want the ultimate in performance and flexibility – the VuQube in-motion is the perfect solution.
17404 VuQube In-Motion #VQ-3000
1
ENJOY ALL THE
ADVANTAGES OF AN
AUTOMATIC SATELLITE AND
PORTABLE DISH ALL-IN-ONE!
FLEX INSTALL KIT
LADDER BRACKET
Includes ladder bracket, controller and
cables to add a fixed mounting location for
VQ2000 & VQ3000.
Use to secure any model VuQube antenna
to your rear ladder. Quick release with
security lock. No cables included.
17407 Flex Install Kit
17405 Ladder Bracket
#MB-410
#MB-400
1
1
*VuQube antennas are compatible with Dish
Network and ExpressVU HD programming.
They are not compatible with DIRECTV HD.
32
◆
Not UPS-able;
▲
Hazmat terms apply; LS Limited Supply
WINEGARD SATELLITE SYSTEMS
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
TRAV’LER®
MULTI-SATELLITE
TV ANTENNAS
Phone Accessories
RV ELECTRONICS
& GAUGES
TV
Stereo
CB
C
Navigation
Bringing you the ULTIMATE in
satellite TV viewing!
• The only antenna capable of viewing all satellites at the same time.
• DIRECTV Slimline is the only antenna to offer complete DIRECTV HD
• Approved and certified reflectors for strongest signal strength
• Works great with DVRs /PVRs• Low profile stowed
• Compatible on all RVs
Stowed
• Can tolerate a roof slope of +/- 5º off level
TRAV’LER DISH 1000/BELL TV
TRAV’LER DIRECTV® TRIPLE LNB
DISH Network’s premier reflector dish
used for home systems. Automatic, one
button on/off antenna views all satellites
at the same time for maximum reception
performance. Works great with DVRs!
Receives all DISH Network® standard
and HD programming from satellites
(110º, 119º and 129º)simultaneously.
Also receives all Bell TV standard and
HD programming from satellites
82º and 91º simultaneously.
Ideal for DIRECTV customers interested in
receiving all standard DIRECTV programming, not HD. Automatic, one button on/off
antenna views all DIRECTV KU-band
satellites (101º, 110º and 119º) at the
same time for maximum reception performance. Not compatible with DIRECTV
KA-band satellites. Works great with DVRs!
86828 Trav’ler DirecTV Triple LNB
#SK-3003 ◆
1
86831 Trav’ler Dish 1000/Bell TV
#SK-1000 ◆
1
TRAV’LER DIRECTV® SLIMLINE KU/KA
Get everything DIRECTV has to offer
with the TRAV’LER Slimline! This fully
automatic, one button on/off antenna
receives programming from all
5 DIRECTV satellites at the same time
for maximum HD and standard DIRECTV
coverage! Receives both KU-band
satellites (101º, 110º and 119º) and
KA-band satellites (99º and 103º) signals
simultaneously. Works great with DVRs!
87096 Trav’ler Shaw Direct Mount
86829 Trav’ler DirecTV Slimline KA/KU
87097 Trav’ler Shaw Direct Reflector &
#SK-3005
Model
Type
Satellite Viewing
DIRECTV Basic
DIRECTV HD
DISH Network HD
Bell TV HD
Shaw Direct HD
Stow Height
Unit Weight
Dimensions
TRAV’LER SHAW DIRECT
= Std. Carton Qty.
#SK-7002 ◆
DISH 1000
DIRECTV
DIRECTV
SHAW
BELL TV
SLIMLINE TRIPLE LNB
DIRECT
86831
86829
86828
87096/87097
Stationary
Stationary
Stationary
Stationary
3 at a Time
5 at a Time
3 at a time
2 at a time
No
Yes
Yes
No
No
Yes
No
No
Yes
No
No
No
Yes
No
No
No
No
No
No
Yes
9.75”
9.75”
9.75”
11.75”
45 lbs.
53 lbs.
43 lbs.
54 lbs.
42”L x 26”W 44”L x 34”W 40”L x 24”W 48”L x 38”W
1
LNB #SKA-722 ◆
1
Winegard, Sensar, Trav’ler, RoadTrip, Carryout, and Wingman are registered trademarks of Winegard
Co. Digital Magic, RoadStar, MiniMax and MP1 are trademarks of Winegard Co. DISH Network is a
registered trademark of EchoStar Satellite L.L.C. DIRECTV is a registered trademark of DIRECTV,
Inc., a unit of Hughes Electronics Corp. Bell TV is a trademark of Bell Canada, Inc. Shaw Direct is a
trademark of Shaw Satellite G.P. VuQube is a trademark of King Controls. All other trademarks are
official trademarks of their respective owners.
6
The solution for Canadian RVers!
Fully automatic, one button on/off antenna
receives signals simultaneously from Shaw
Direct KU-band satellites 107.3º (English
language programs) and 111.1º (French
language programs and HD programming).
Works great with PVRs. Order both
models listed below for complete unit.
1
TRAV’LER ACCESSORIES
Communication cable 25’ long extension
power/communication cable. Connects directly
to the existing TRAV’LER power/communication cable to allow for runs up to 50’.
S/O
Communication Cable 25’ #CL-SK26
Roller plate designed to create solid landing
area for LNB arm. Ideal for rubber roofs.
S/O
Roller Plate #SKA-004
Mounting plate (Opt.) designed for extra
support in thin roof installations.
S/O
Mounting Plate #SKA-008
All Winegard Antennas made in USA.
33
C
WINEGARD SATELLITE SYSTEMS
RV ELECTRONICS
& GAUGES
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
Phone Accessories
TV
Stereo
CB
Navigation
ROADTRIP® MINIMAX™
AUTOMATIC 15” SATELLITE TV ANTENNAS
What makes this antenna so great is its
MINI size and MAXimum signal reception.
Ultra compact size gives it the smallest footprint on the
market. MiniMax features an enhanced antenna design and a
high-gloss rounded dome to deliver maximum performance in
bad weather (rain, dew, snow).
Easy one-button on/off automatic operation with DVB
technology to provide fast satellite acquisition. Single satellite
viewing antenna automatically switches between satellites.
Supports two receivers so you can watch different programs
from the same satellite on two TVs at the same time. Receives
all standard and HD programming from DISH Network® and Bell
TV; standard DIRECTV® only. Not compatible with DIRECTV
KA-band satellites. Includes wall switch, power and coax
cables. Only 15”H x 20”, unit wt. only 13.5 lbs, ship wt. 20 lbs.
15” RoadTrip Minimax In-Motion Antenna
87508 “In-Motion”, White #RT8000T
87509 “In-Motion”, Black #RT8035T
1
1
15” RoadTrip Minimax Stationary Antenna
87252 “Stationary”, White #RT8000S
87253 “Stationary”, Black #RT8035S
RoadTrip Minimax
20”
Model
Type
Satellite Viewing
DIRECTV Basic
DIRECTV HD
DISH Network HD
Bell TV HD
Ht. x Dia.
Unit Weight
Ship Weight
RoadTrip
MiniMax
87508(Wh)/87509(Blk)
In-Motion
1 at a time/auto toggles
Yes
No
Yes
Yes
15” x 20”
13.5 lbs.
20 lbs.
RoadTrip
MiniMax
87252(Wh)/87253(Blk)
Stationary
1 at a time/auto toggles
Yes
No
Yes
Yes
15” x 20”
13.5 lbs.
20 lbs.
1
1
RoadTrip SDi/SD
32”
RoadTrip SDi
RoadTrip SD
86278(Wh)/86279(Blk)
In-Motion
1 at a time/auto toggles
Yes
No
Yes
Yes
12.5” x 32”
35 lbs.
50 lbs.
86276(Wh)/86277(Blk)
Stationary
1 at a time/auto toggles
Yes
No
Yes
Yes
12.5” x 32”
35 lbs.
50 lbs.
All Winegard Antennas made in USA.
34
◆
Not UPS-able;
▲
Hazmat terms apply; LS Limited Supply
WINEGARD SATELLITE SYSTEMS
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
RV ELECTRONICS
& GAUGES
Phone Accessories
TV
Stereo
CB
C
Navigation
ROADTRIP® SDi and SD
AUTOMATIC 12” ROOF MOUNT SATELLITE TV ANTENNAS
RoadTrip SDi in-motion and SD stationary automatic antennas
feature a simple one-button operation and a sleek look and are
ideal for RVs with height restrictions. DVB technology ensures
extremely fast and accurate satellite acquisition. Antennas are
equipped to receive programming from a single satellite at a time
and automatically toggle between multiple satellites depending
on the provider.
Receives all standard and HD programming from DISH Network®
and Bell TV; standard DIRECTV® only. Not compatible with DIRECTV KA-band satellites. Supports two receivers so you can
watch different programs on the same satellite. 32” diameter,
12.5” dome ht, wt 35 lbs, ship wt 50 lbs.
12” RoadTrip SDi In-Motion Satellite TV Antenna
86278 “In-Motion”, White #RT1200T ◆ 1
86279 “In-Motion”, Black #RT1235T ◆ 1
12” RoadTrip SD Stationary Satellite TV Antenna
86276 “Stationary”, White #RT1200S ◆ 1
86277 “Stationary”, Black #RT1235S ◆ 1
12” ROADTRIP ACCESSORIES
Dish Network HD Upgrade
Designed for pre-2009 12” RoadTrip models.
Electronic board upgrade kit allows antenna to
receive DISH Network HD programming from KUband satellite 129º. Toggles between all three DISH
Network satellites. For installation under the dome.
S/O
RoadTrip Stationary DISH HD Upgrade
# RT12HDS
S/O
RoadTrip In-Motion DISH HD Upgrade
# RT12HDT
12” RoadTrip Upgrade Kit motion
DISH Network
Bell TV
Convert RoadTrip SD antenna to RoadTrip SDi
in-motion antenna.
S/O
Upgrade Kit # RT-1205
Fifth Wheel Kit
Leveling brackets for mounting RoadTrip antenna on
unlevel surface.
RoadTrip Minimax
15”
RoadTrip SDi/SD
12.5”
S/O
Fifth Wheel Kit # RT-5012
See 15” Minimax
for details
+12 V POWER SUPPLY
Converts any standard 110 VAC electrical
outlet to a +12 VDC power source.
Output: 13.8 VDC, 6 amp. Never search
for a 12V power source again!
S/O
12V Power Supply #PS-1208
All Winegard Antennas made in USA.
6
= Std. Carton Qty.
35
C
WINEGARD SATELLITE SYSTEMS
RV ELECTRONICS
& GAUGES
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
100% Automatic!
Phone Accessories
TV
Stereo
CB
Navigation
CARRYOUT
PORTABLE SATELLITE
TV ANTENNA
• Automatically switches between satellites no remote or controls needed
• View one satellite at a time
• Easy grip handle for effortless carrying
• Eyelet on base for added security
• Standard DIRECTV programming
• Standard and HD DISH Network and
Bell TV programing
• Supports up to 2 receivers
• Stationary use only
19286 15” Carryout Automatic #GM-1518
S/O
1
15” Carryout Black Dome Only
with Handle# RP-GM35
DISH Network
Bell TV
All Winegard Antennas made in USA.
Carryout Automatic Accessories
• TRIPOD MOUNT
Aluminum tripod elevates your Carryout (both 19286 automatic and 87510 manual models)
off the ground for protection from mud and water. Adjustable height settings from
14 ” to 22”. Ground anchor, 6” bungee cord and anchor loop hold the antenna securely.
Assembles easily/quickly disassembles for compact storage. Ship. weight, 4.4 lbs
87265 Carryout Tripod Mount #TR-1518
1
• LADDER/POLE MOUNT
Mount your Carryout Automatic Portable antenna to the RV ladder for temporary or
permanent installation. Weather resistant powder coated mount features quick disconnect,
so you can remove your Carryout antenna and set it on the ground or take it with you
anywhere! Extends from 19.5” – 23.5” in two inch increments for 3 setting options.
Comes with wall plate with on/off switch for convenient operation from inside the coach,
cable entry plate, 50’ coax and 25’ power cable without lighter adapter plug. Verify your
ladder can support total weight of Carryout antenna and mount – 20 lbs.
Unit weight 5.5 lbs, shipping weight, 8.5 lbs.
87239 Carryout Ladder Mount #GM-3000
1
• POWER CONVERTER
Sunforce 12V AC/DC power converter allows you to hook up your Carryout to 110V when
12V is not available. 5.8 amps.
10002 Power Converter #55522
36
20
◆
Not UPS-able;
▲
Hazmat terms apply; LS Limited Supply
WINEGARD SATELLITE SYSTEMS
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
RV ELECTRONICS
& GAUGES
Phone Accessories
TV
Stereo
CB
C
Navigation
CARRYOUT® MP1™
MANUAL PORTABLE SATELLITE TV
Fully encloses inside durable case and features FAST and EASY set-up!
NEW!
Twist on/off cap
provides easy way
to fill top portion
with water or
sand for increased
stability
25’ Coax cable
allows optimal antenna
placement and stores in base
for easy stowing
Compass
ensures antenna is
pointed to correct
southern setting
Bubble Level
helps to check antenna
is level for easy set up
Durable Case
protects dish while not
in use and functions
as mount during use
Elevation markings
and knobs
assist in elevating and locking
antenna at exact angle
Azimuth Lock Knob
threads through center of top
portion and base to prevent
left to right movement
• Supports up to 2 receivers • Compatible with 87265 tripod mount
• Dimensions: 17”w x 17”h x 10”d, 9 lbs. • For Stationary use only
• Standard and HD programming for DISH Network® and Bell TV™
• Standard DIRECTV® programming
(Does not work with 110° for HD or KA-band satellites 99°, 103°)
87510 Carryout MP1 Manual Portable Antenna #GM-MP1
1
TRIPOD MOUNT
SATELLITE ALIGNMENT COMPASS
Aluminum tripod elevates your Carryout (both
19286 automatic and 87510 manual models) off
the ground for protection from mud and water.
Adjustable height settings from 14 ” to 22”.
Ground anchor, 6” bungee cord and anchor loop
hold the antenna securely. Assembles easily
/quickly disassembles for compact storage.
Ship. weight, 4.4 lbs.
Use local zip code to obtain azimuth setting from
satellite receiver. Aim your dish in the direction
indicated by the compass. Easy to read
instructions printed on compass.
87265 Carryout Tripod Mount
#TR-1518
1
SATELLITE FINDER METER
Meter with audio tone helps you align manual
satellite antenna to signal. Includes coax for
installing meter between satellite antenna and
receiver.
83599 Satellite Compass
#SC-2000
12
DIGITAL SMART COMPASS
Smallest and lightest digital compass.
Instant directions and due-north LCD readout.
With water resistant case, compass is highly
accurate and easy to use. Comes with keychain
clip or lanyard. Requires lithium battery,
included. Compass measures 1-1/4” x 2”.
86268 Digital Satellite Compass
#SC-8000
20
82268 Satellite Finder Meter
#SF-1000
6
All Winegard Antennas made in USA.
6
= Std. Carton Qty.
37
C
WINEGARD SATELLITE SYSTEMS
RV ELECTRONICS
& GAUGES
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
Phone Accessories
TV
Stereo
CB
Navigation
Crank-up and Accessories
18” CRANK-UP SATELLITE DISH WITH DIGITAL MAGIC™ SENSOR
Raise, lower and rotate the 18” dish with hand crank from inside vehicle. Digital Magic™
elevation sensor makes finding the satellite faster and easier. After you park, the LCD
readout inside your vehicle shows the elevation of the dish within 2 degrees, even if not
parked level. 30” deployed, 8” stowed, wt. 12 lbs.
Crank-Up Dish:
84170 Antenna, without Digital Magic Sensor #RM-4600 1
84171 Antenna, with Digital Magic Sensor #RM-DM46 1
84291 Combination 18” Crank-up Satellite Antenna with Omnidirectional
over-the-air antenna for local channels. Without Digital Magic. (Not Pictured)
#RM-4610 1
DIGITAL MAGIC™ ELEVATION SENSOR
Digital Magic elevation sensor gives the exact elevation of the antenna on an LCD readout inside the vehicle. Accurate to within 2º even when the vehicle is not
level. The sensor is installed on the elevating tubes or
the back of the antenna and wired to the wall plate.
Includes 20’ of 3-conductor cable. Requires + 12 VDC
or a 9V battery. Ideal for models 84170, 84291.
82357 Digital Magic Sensor #DM-4000
All Winegard Antennas made is USA.
INTERIOR SATELLITE ANTENNA
REPLACEMENT CRANK
Replacement interior hand crank for manual crank-up
satellite antennas.
84531 Replacement Crank Handle
#RK-HAND
6
INTERIOR SATELLITE ANTENNA
CONTROL PARTS
6
EXTERIOR ROOF WEDGE
Designed to level satellite TV antenna on vehicle
with uneven roof. For vehicles with extremely
sloped roofs, multiple wedges may be needed. For
use with RM model Winegard crank-up satellite antennas.
84203 Roof Wedge, RM Series #RW-5000
Replacement interior control parts kit for manual
crank-up satellite antennas. Includes ceiling plate
with directional handle, directional handle extension
and hardware. Crank handle sold separately.
84530 Ceiling Control Parts Kit
#RK-CEIL
1
RM Series Thick Roof Kit (not shown) for RVs with roof thickness of 5" to 6.75".
For RM models only. Includes longer elevating shaft, directional handle and extension.
HEAVY DUTY TRIPOD MOUNT
NEW!
Sturdy powder-coated steel tripod
mount with 1.66” OD mount pipe
compatible with all DISH Network®,
Shaw Direct and Bell TV™ antennas, plus all DIRECTV® antennas except Slimline. Fully
adjustable legs allow up to
a 45° angle setting for
ultimate stability and
expand and retract
between 28” - 37”
for an optimal setting. Includes handy nylon bag which
attaches to leg when not in use to store
3 ground anchors, satellite alignment
compass and bubble level also
included. Tripod folds to 36” requiring
minimal storage space. Wt.10-1/2 lbs. Made in the U.S.A.
87579 Multi-Satellite Tripod Mount #TR-3535
1
82332 Thick Roof Kit #RP-4200
1
TRIPOD/ BASE MOUNT
For use with 18" Home Satellite Dish Antenna
(Not for use with Portable Dishes)
Ideal when permanent mounting is not desirable. Great for
short stops, wooded areas, boat docks, decks, etc. Works
with a standard 18” single satellite viewing home dish. Azimuth degree markings molded in. Includes removable legs,
ground anchor, bungee cord, compass and level. Not for use
with portable satellite TV antennas. 8-1/4” x 8-1/4” x 19”.
Weight: 5 lbs.
83598 Tripod Mount #TR-2000
1
COAXIAL CABLE
Low loss RG-59 coaxial cable. Connectors attached.
80019 8’ Cable Kit #CX-0008 12
80021 25’ Cable Kit (Shown) #CX-0025
12
All trademarks and registered trademarks are the property of their respective owners.
38
◆
Not UPS-able;
▲
Hazmat terms apply; LS Limited Supply
WINEGARD ANTENNAS & ACCESSORIES
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
RV ELECTRONICS
& GAUGES
Phone Accessories
TV
Stereo
CB
C
Navigation
SENSAR® IV
VHF/UHF/DIGITAL OVER-THE-AIR TV ANTENNA
OPTIMIZED FOR ALL DIGITAL
CHANNELS IN ALL U.S. RV MARKETS
NEW!
INTEGRATED SENSAR® IV HDTV ANTENNA. Winegard has taken the
powerfully performing Sensar III antenna and integrated it with the UHF
enhanced Wingman® antenna for the ultimate in over-the-air TV viewing!
Optimized for the new DTV spectrum, this amplified antenna receives all
available VHF/UHF channels so you can enjoy watching all your favorite local
programs while parked. Raise, lower and rotate the antenna with hand crank
from inside your RV. It's easy to install and lowers to only 4” inches above the
roof while traveling. Integrated Sensar head requires 46.25” L x 15.25” W,
unobstructed roof space while stowed. RVW-395 includes amplified antenna
and lift assembly, +12 VDC white power supply with on/off switch, white interior control parts and 20 feet of 75 ohm coax cable. U.S. Patent D620,483.
INTEGRATED SENSAR IV REPLACEMENT HEAD. Optimized for the new
DTV spectrum, this amplified antenna with the Wingman UHF upgrade integrated into the Sensar head receives all available VHF/UHF channels so you
can enjoy watching all your favorite local programs while parked.
Requires 46.25” L x 15.25” W, unobstructed roof space while stowed.
U.S. Patent D620,483.
87512 HD Sensar IV Integrated Amplified Antenna/Lift
#RVW-395
1
87511 HD Sensar IV Integrated Replacement head, amplified
#RVW-205
1
Fast and Easy UHF Upgrade For Your Sensar® Antenna
Attaches to
existing Sensar II or III
• Lightweight sleek add-on attaches to
existing Sensar head II or III with simple
snap-on screws
• Increases UHF db gain up to 100% on DTV
channels giving you more range
• Compatible with all Sensar antennas made
after 1990
• Powder coated for long lasting durabiolity in harsh
environmental conditions
• Dim: (Box) 16.5”W x 14”D x 1.4”H; Weight 1 lb.
US Patent D612, 369
WINGMAN™ SENSAR ANTENNA UHF UPGRADE
87174 Wingman Antenna #RV-WING
6
= Std. Carton Qty.
5
All Winegard Antennas made is USA.
39
C
WINEGARD ANTENNAS & ACCESSORIES
RV ELECTRONICS
& GAUGES
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
Phone Accessories
TV
Stereo
CB
Navigation
DIGITAL TV ANTENNAS
Antennas For FREE Digital Programming: ABC, CBS, NBC, FOX, PBS, CW, plus more!
SENSAR® III HDTV ANTENNA
Enjoy local programs in crisp, clear digital and HD FREE with the most popular and most reliable
over-the-air antenna in the RV industry! Built-in amplifier and unique circuitry provides clear VHF/UHF
reception whenever you park your RV. Raise, lower and rotate the antenna with hand crank from inside
your RV. It’s easy to install and lowers to only four inches above the roof while traveling. Antenna RV-3095
includes amplified antenna and lift assembly, +12 VDC white power supply with on/off switch, white interior
control parts, 20 feet of 75 ohm coax cable, 6 ft. TV set cord. Antenna RV-7095 includes amplified
antenna/lift, white control parts, no power supply or cable. Sensar® head U.S. Patent D500,496.
85412
85413
85415
85414
80280
Sensar III Antenna with Power Supply #RV-3095 1
HD Sensar III Replacement head, amplified (RV-3095) #RV-2005 1
Non-Amplified Sensar III Antenna #RV-5095 1
Sensar III Antenna without Power Supply #RV-7095 1
Leveling Mount (to replace a broken mount on old-style head) #RP-2000
6
Sensar® Antenna
Replacement Parts
SENSAR TV ANTENNA REPLACEMENT PARTS
87511 HD Sensar IV Integrated Replacement head,
amplified #RVW-205
1
85413 HD Sensar III Replacement head,
amplified #RV-2005
1
89496 Elevator Tube Assembly Kit. Includes: 2 elevator tubes
#2750900, 2 grommets #2200340, 4 pins #5160817,
4 retaining rings #5160817, 1 rubber bumper #2240022,
1 self-drilling screw (#2160120) #RP-2900 25
80280 Leveling Mount Assembly Kit for pre-1990 models.
Includes: 1 leveling mount #3200625, 4 spacers #3200626, 2 pins
#5160817, 4 retaining rings (#5160818) #RP-2000 6
80285 Elevating Gear (Replaces #2200046), Poly Bagged
#RP-3000 6
80293 Worm & Shaft Assembly #RP-4000 12
Spec.Ord. Extra Long Worm & Shaft Assy.: • #2750896, 12 1/4 "
with Directional Handle;
• #2764162, 14" without Directional Handle.
89495 Gear Housing Assembly Kit; Includes: 1 gear housing
#2200049, 2 pins #5160817, 1 bearing #3200656,
nuts #2200047, 1 bearing #3200657, 1 o-ring seal #5240603,
1 retaining ring (#5160817) #RP-2049 1
89497 Baseplate Boot Assembly Kit; Includes: 1 base plate
#3100523, 10 screws #2160178, 1 rubber boot #3200154
#RP-3523 1
89492 Directional Handle Assembly Kit, Ivory. Includes:
1 directional handle #3200621, 1 ceiling plate #3200608,
4 screws #5160812, 1 spring #2160822 1 decal #5413002
#RP-6200 4
89493 Directional Handle Assembly Kit, White. Includes
1 directional handle #3200612, 1 ceiling plate #3200609,
4 screws #5160812, 1 spring #2160822 1 decal #5413002
#RP-6300 4
89499 Elevating Crank Kit, White
Includes: 1 crank, 1 set screw (hex shaft) #RP-6795 12
85159 Handle Spring #RP-6822 12
85169 Nylon Bearing #RP-2658 12
80307 Elevating Crank with Set Screw, Ivory, Straight
(Angled handle no longer available) #RP-5000 12
ROADSTAR™
OMNIDIRECTIONAL HDTV ANTENNA
Omnidirectional, over-the-air HD antenna
continuously receives VHF/UHF/FM signals
from all directions, so you’ll never have to adjust
it. Built-in solid state amplifier boosts signals on
average of 15dB on VHF, 20 dB on UHF.
Power supply operates on 12 volt DC.
ROADSTAR RS-2000 SPECIFICATIONS
Height: antenna only: 2 3/16 inches;
Height: with mount: 8 3/16 inches;
Diameter: 21 1/2 inches;
Weight with mount & hardware: 5 pounds;
Bandpass: VHF/FM: 54-216 mHz;
................................ UHF: 470-810 mHz;
Amplifier gain: VHF: 15.5 dB avg.;
................................. UHF: 19.5 dB avg.;
Impedance: 75 ohm;
Power required: 12VDC at 85 ma.
83315 RoadStar HD Antenna
#RS-2000
1
WINEGARD
ANTENNA TOOL
Antenna tool features a long
shaft for tightening 15/16 gear
housing nut for Sensar and crankup RV satellite systems.
82263 Antenna Tool #TT-1000*
6
All Winegard Antennas made is USA.
All trademarks and registered trademarks are the property of their respective owners.
40
◆
Not UPS-able;
▲
Hazmat terms apply; LS Limited Supply
WINEGARD ANTENNAS & ACCESSORIES
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
Phone Accessories
WINEGARD
ROOF WEDGE
HD SATELLITE
INTERFACE
Compatible with 15” Movin’ View 3500 series
or 12” RoadTrip dome satellite TV antennas.
The Winegard® HD Satellite Interface allows
the satellite TV antenna to receive additional
programming, including any available HD programming, from 3 or more KU-B and satellites.
Leveling mounting kit,
for use on slanted roofs.
Provides a level surface for proper
installation of RD-4610 manual system &
Sensar® RV antennas.
80416 Roof Wedge #RW-2000
6
HD Satellite Interface Kit: Access additional
programming DISH Network™, DIRECTV® Plus
and Bell ExpressVu with the Winegard HD
Satellite Interface, WB-2700. Upgradeable on
15" Movin’ View 3500 series and 12" RoadTrip
dome satellite TV antennas. WB-2700 designed
for RVs NOT pre-wired with communication
cable. Package includes: HD Satellite Interface,
30' MV/RT communication cable, 2' coaxial
cable, installation kit, and software upgrade tool.
Requires HD-ready TV and HD receiver, sold
separately.
86691 HD Satellite Interface Kit
#WB-2700
2
WINEGARD TV ANTENNAS
MORE TV ACCESSORIES FROM
WINEGARD IN THE FOLLOWING PAGES!
WINEGARD
DUPLEX
RECEPTACLE
COVER
HIDEAWAY TV ANTENNA HA-0130
UHF/VHF/FM travel antenna picks up stations in
all directions without rotor. Opens and closes
like an umbrella, stores inside weatherproof tube
for travel. Ideal for RVs, boats, mobile homes.
Includes weatherproof housing with rain cap,
shielded antenna cable with connectors, backof-set UHF/VHF band separator, and hardware.
80005 Hideaway Antenna #HA-0130
1
14614 Cover, Ivory #WB-1110
12
Single outdoor receptacle
for 75 ohm coaxial cable
satelite input. Features
a thick gasket of
closed cell
neoprene which
compresses to seal
against most textured surfaces.
Molded of tough Noryl® material. Stainless
steel hardware helps prevent breakage and
corrosion. S. steel mounting screws included.
82163 Single Satellite Receptacle, White
6
= Std. Carton Qty.
Stereo
CB
C
Navigation
SHAKESPEARE
GALAXY® SIRIUS
SATELLITE RADIO
ANTENNA
Satellite radio for your boat just got
easier, and smaller! Specially
designed for smaller boats that ply
inland waters, Shakespeare’s
Galaxy® SRA-25 Digital Satellite
Radio Antenna sports an ultralow-profile. Tiny as it is, it delivers
plenty: weather, news, music,
sports, and entertainment from
Sirius Satellite Radio. The versatile SRA-25
accommodates a variety of mounting methods,
with or without running its cable through the
mounting surface. It comes with a 25’ RG-174
cable. Attaches to surfaces up to 1” thick via a
9/16” diameter threaded shaft, or use the
included SM-32 Surface Mounting Kit to secure
the antenna to flat surfaces where access to the
area underneath is difficult or impossible
• When installed only 3/4” H x 2-3/8” W x 2” L.
• No separate power cable required. • Singlecable design for newer receivers. • Style SRS-1
adapter available for older, dual-input Sirius
receivers. • Optional cable kits available for
longer cable runs up to 90 feet. • Shakespeare
1 year Limited Warranty.
86836 Sirius Satellite Radio Antenna
#SRA-25
24
REPLACEMENT
PART FOR
BRAUND ANTENNAS
Replacement gear set for
Skyliner, Starliner, and
Galaxy Antennas.
Will not fit the Concord.
84657 Worm and Worm Gear Kit
SATELLITE
RV RECEPTACLE
12
TV
WORM AND WORM
GEAR KIT
Weatherproof duplex electrical outlet cover to
be used with any standard 117V duplex outlet.
#WA-1024
RV ELECTRONICS
& GAUGES
#11901
TV ANTENNA RV-7020
Dipole bi-directional type TV-FM antenna for all
RV applications. Straight forward dipole,
82-channel RV antenna provides excellent
reception. Easy to install, lowers to side of
vehicle when not in use. Complete kit includes
hardware, mast and downlead.
80033 TV Antenna #RV-7020
1
1
DUAL ELECTRONICS
AM/FM
ANTENNA SOFT WIRE
This Dual AM/FM
antenna includes
a 40” long
flexible wire
with plug.
15336 Antenna, Black #MAW40
1
41
C
ANTENNAS, CABLES & ACCESSORIES
RV ELECTRONICS
& GAUGES
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
Phone Accessories
15333
TV
Stereo
CB
Navigation
85324
15335
84628
DUAL ELECTRONICS
AM/FM ANTENNA FLEXIBLE MAST
These Dual AM/FM antennas offer a flexible
mast for durability, 180º swivel base for
increased mounting options, and a 52” cable.
• Angled mounting options allow you to install the
antenna in the most convenient locations.
• Corrosion resistant for the marine environment.
Antenna, Flexible mast:
15333 Black #MAR16B
15335 White #MAR16W
85323
84631
RV DESIGNER
INTERIOR TV-HOOK UP CABLE
RV DESIGNER CABLE CONNECTORS
6' cable with screw-on connectors for permanent
TV/video hook ups. Gold connectors for high
quality signal. Pk/1.
For Grade RG59 Cable:
Grade RG59 Cable:
84628 6' #T173
84631 RG59 Connectors #T183
12
1
85324 6' #T273
1
For Satellite Grade RG6 TV Cable:
Satellite Grade RG6 TV Cable:
1
Repair video cables, or remake to custom
length. Connectors twist onto cable. No tools
required. Gold for high quality signal. Pk/2.
85323 RG6 Connectors #T283
1
12
80012
88993,
84661
RV DESIGNER
FLAT CABLE
HOOK-UP
WINEGARD CONNECTORS
COAX CONNECTORS
DUAL ELECTRONICS
iPLUG™ INTERFACE CABLE
Use flat cable through window sill, door jamb,
for fast and easy installation of your satellite or
cable TV hook-up. No more drilling! 8" long.
The Dual Electronics iplug allows you to listen to
any portable music, video or multimedia player
equipped with a 3.5mm headphone jack through
any stereo equipped with standard RCA inputs.
Compatible with all portable digital music players
regardless of manufacturer or platform—
the iPlug delivers your music on your terms.
GENERAL: Included are an iplug adapter and
a 1M 3.5mm audio cable. Multiple mounting
options let you install iplug in the most convenient location for easy access.
85322 Flat TV Cable #T265
88993 Bag/12 F-59 Coax
Connectors #FC-5910
12
80012 Cable Adapter #FS-8100
1
6
RG-6 COAX CONNECTORS
Used with RG-6 coax cable in satellite installations. RG-6 cable is slightly thicker than the
standard RG-59, so it requires these connectors.
84661 Package of 2 RG-6 Connectors
RV DESIGNER
CABLE
SPLICE
#FC-5602
12
14545 iPlug™ Interface Cable, 3.5MM Audio
Cable, White #IP35WG
1
Join 2 TV/video cables for longer length.
Gold for high quality signal. Pk/1.
84632 Cable Splice #T187
84636
1
85723
RV DESIGNER
TV LINE
SPLITTERS
RV DESIGNER TV HOOK-UP KIT
RV DESIGNER CABLE CONVERTER –
TWIST ON TO PUSH ON
Includes exterior jack, interior wall plate and
6' hook-up cable. Gold connectors for high
quality signal. Pk/1 set.
Converts screw on connectors to push on for
easy connect/disconnect. No tools required.
Gold for high quality signal. Pk/2.
84637 White #T201
84629 Cable Converter #T181
42
12
2-WAY: Split 1 source signal to 2 locations.
Gold connectors for high quality signal. 2-1/8" x
1-3/4".
84636 2-Way Line Splitter, Mounting screws
included, Pk/1 #T189 1
4-WAY: Digital. Satellite grade.
85723 4-Way TV Line Splitter, Digital,
Clamshell Pack #T195
1
◆
Not UPS-able;
▲
1
Hazmat terms apply; LS Limited Supply
TV & PHONE ACCESSORIES
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
WINEGARD
82-CHANNEL
TWO-WAY SPLITTER
RV ELECTRONICS
& GAUGES
Phone Accessories
TV
82164
Two-way line splitter in
cast metal housing with
ground connection. For
coupling or dividing signals on
75 ohm coaxial line. May be
mounted outside when boots are used over connectors. All connections are “F” type suitable.
80008 2-Way Splitter #SP-1002
12
WINEGARD
ROOFTHRU-PLATE
Roof-through plate
for RVs. Allows weatherproof entry of coaxial
cable. Has 75-ohm “F” connector on each side.
80492 Roof Plate Jack #RJ-1010
6
86733
Stereo
CB
WINEGARD
TV ANTENNA/
SATELLITE WALL
PLATE POWER
SUPPLY
Combination TV antenna/
satellite wall plate power
supply with cable input jack and built-in two set
splitter. Equipped for input of satellite signal
from external jack. White only. 1 per pack.
WINEGARD
RV OUTDOOR
RECEPTACLES
Outdoor receptacles for all RVs where TV, telephone and other appliances will be used outside
the vehicle. Outlet covers feature a thick gasket
of closed cell neoprene which compresses to
seal against most textured surfaces. Molded of
tough Noryl® material, equipped with stainless
steel hardware to prevent breakage and corrosion. Stainless steel mounting screws included.
CABLE/TV RECEPTACLE
Cable/TV receptacle with two F-jacks for
75 ohm coaxial cable on TV output and cable
input. Uses standard coax connectors.
82266 Combination TV/Satellite Wall
Plate, White #RV-7542
#WA-1110
Combination coaxial
TV and convenient
12-V outlet. Fits standard
electrical box or mounts
directly on wall (if code
permits). Ivory.
80047
is ivory
Use for outdoor cable
TV connection. Flip-up
cover protects connector from water,
etc. Gold connector for high
quality signal. 2" x 2". Screws included.
84620 White, Pk/1 #T111
6
TELEPHONE/TV RECEPTACLE
Receptacle with one F-jack and one modular
telephone plug. F-jack accepts standard coax
connectors; telephone jack has modular output
and crew connections on input.
82267 Winegard Wall Plate Amplifier
6
WINEGARD 12V RECEPTACLE
DUST COVER
6
= Std. Carton Qty.
27804
27803
6
6
JR PRODUCTS
PLATES
CABLE/CABLE PLATE
POWER SUPPLY WITH CABLE TV
OUTLET for Winegard Antennas
12VDC on/off power supply switch in flush mount
wall plate with 2-way splitter, 75 ohm coax cable
connection, on/off indicator light and a 12VDC
receptacle. Includes 75 ohm input jack for an
outside TV signal. Wall plate and power supply
are designed as a 1-piece molded unit, and for
added protection, feature a fused, printed circuit
board.
Power Supply with Cable Outlet:
84290 Dust Cover for 12V Receptacle,
12
6
1
The RA-7296 is a +12
VDC amplified wall plate
with cable input jack and
second set jack. Use
with Winegard’s nonamplified RV-5090, or
any other non-amplified
RV antenna. White.
White #DC-7341
80047 12-V TV Outlet #TG-7321
TV/Telephone Receptacle:
82165 White #WT-1120
86733 Ivory #WT-1110
WINEGARD WALL
PLATE AMPLIFIER
#RA-7296
6
WINEGARD
COAX-TYPE
12V TV OUTLET
82164 Cable /TV Receptacle, Ivory
RV DESIGNER
WEATHERPROOF
TV JACK
C
Navigation
87362 Ivory #RV-7012
89514 White #RV-7042
6
6
Dual cable TV plugs. Flush mounted panel built
of durable plastic that resists rust, UV and
discoloring. One piece unit with cable plug
covers built in makes this the perfect addition for
use where satellite and cable TV are available.
27804 Cable/Cable Plate, Polar White, Pkg.
#543-B-2-A
1
PHONE/CABLE PLATE
One piece phone/ cable plate is constructed of
durable plastic that won't rust, fade or discolor.
Access covers are constructed as part of the
plate. Easy installation or replacement anywhere
a cable TV and phone hook up is needed.
27803 Phone/Cable Plate, Polar White, Pkg.
#543-A-2-A
1
43
C
TV & PHONE ACCESSORIES • RECEIVERS • TV
RV ELECTRONICS
& GAUGES
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
Phone Accessories
TV
Stereo
CB
Navigation
32”
13809
15107
18318
18317
26”
KING CONTROLS
ACCESSORIES
JR PRODUCTS
PHONE PLATE
AND CABLE
TV PLATE
27801
The phone and cable TV plates are UV stable,
easily installed, fade resistant, water resistant,
and have a low profile design.
#476-A-2-A 1
18318 Cable TV Plate, Polar White
#476-B-2-A 1
78839 Cable TV Plate, Colonial White
#476-B-1-A 1
27801 Dust Cover Only Polar White
#475-PW-A 1
WINEGARD TV
OUTLET, 75-OHM
#H21
6
19”
1
DIRECTV Receiver w/universal IR remote.
1
JENSEN LCD TV’s MADE FOR RV’S
Enjoy your favorite TV shows or movies in
dazzling picture clarity and superior sound
quality on the only LCD TVs designed specifically for RV use. Built to withstand rugged road
conditions, extreme temperatures, vibrations
and voltage variations. The subframe consists
of a reinforced internal structure and integrated
mounting points. Single-piece metal chassis
houses all internal components and does
not rely on the plastic cosmetic cabinet as a
mounting point, offering increased strength
and stability for mobile environments.
MORE PRODUCTS
OF KING CONTROLS
ARE PRESENTED
ON PAGES 30 to 32!
RV DESIGNER
TV WALL PLATE
Flush mounting 75-ohm
TV outlet, input and output
connection is through
75-ohm “F” jack.
Not isolated.
NEW!
15107 DIRECTV® HDTV Receiver
13809 Reveiver #D12
18317 Phone Plate, Polar White
80015 TV Outlet, Ivory #OT-8700
DIRECTV® HDTV Receiver With universal
IR remote control, receives available HD
programming via satellite from DIRECTV,
not for use with dome type satellite antennas.
Color may vary due to availability.
JE3208RTL. Quick Overview: • 32" Diagonal
Screen • 16:9 LCD Panel • Integrated HDTV
(ATSC) tuner • HDTV Ready (1080p, 1080i)
• Resolution 1366 x 768 • Brightness 500 Nit
• High contrast ratio 1500:1 • HDMI input (2)
• Tabletop stand included • Full Function
Wireless Remote • Dimensions: 32"W x 22"H x
4.3"D (without stand). Weight 35 lbs.
Interior wall connector
for TV/video cable.
Gold connector for
high quality signal.
2-3/4" x 4-1/2".
White plastic. Screws included. Pk/1.
84624 White #T141
36
14976 NEW! 32” LCD Television 100-240V AC
#JE3208RTL
JE2608RTL. Quick Overview: • 26" Diagonal
Screen • 16:9 LCD Panel • Integrated HDTV
(ATSC) tuner • HDTV Ready (1080p, 1080i)
• Resolution 1366 x 768 • Brightness 500 Nit
• High contrast ratio 800:1 • HDMI input (2)
• Tabletop stand included • Full Function
Wireless Remote • Dimensions: 26.8"W x 18.7"H
x 3.7"D (without stand). Weight 23 lbs.
FASTENING SOLUTIONS
“THUMB LOCK” TV GRIP KITS
READY
AMERICA
STRONG ARM
LCD
REMOVABLE MOUNT
A new LCD Flat Panel Articulating Wall Mount for
RV and Marine use! Holds up to 40 lbs. securely
and fits up to 27” screens (VESA 75/100 mount
pattern). The arm extends up to 16.4” away from
the wall, and the head swivels +/- 20˚. Three
hinge pivot system for limitless viewing angles.
Easy ‘On Demand’ knob adjustment (no tools
required). Two piece design for easy installation.
Built in level and cord management hook.
86826 LCD Removable Mount
#MRV3500
44
5
A high strength, easyrelease fastening
system that’s versatile
and simple to use.
Holds portable TVs,
laptops and countertop
appliances safely and
securely. 3M adhesive
pads remove cleanly.
Safe for use on furniture
and equipment. Twocorner kit holds 13" TV
or similar size equipment.
14972 NEW! 26” LCD Television 110-240V AC
#JE2608RTL
41318 Black #MRV-100BK
1
JE1909RTL. Quick Overview: • 19" LCD
Screen • 12 Volt DC Power (AC Adapter available) • 16:9 Aspect Ratio • Integrated HDTV
(ATSC) tuner • HDTV Ready • Resolution 1440 x
900 • Brightness 400 Nit • High contrast ratio
1000:1 • Viewing Angles: 160/170 • Blunt Cut DC
Power Cord included • Full Function Wireless
Remote • Dimensions: 20.4"W x 15.2"H x 3"D.
TV Grip Kit:
41317 White #MRV-100WT
1
10
10184 19” LCD Television AC/DC
#JE1909RTL
10
◆
Not UPS-able;
▲
1
Hazmat terms apply; LS Limited Supply
TV, STEREO & NAVIGATION SYSTEMS
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
Phone Accessories
D
Only Jensen LC ecifically
sp
e
ar
s
on
si
Televi
operate
to
ed
er
ne
gi
en
under the
smoothly even
itions.
harshest cond
TV
Stereo
CB
C
Navigation
NEW!
14976
NEW!
14972
• Resistant to Extreme
Humidity & Temperatures
• Metal Frame Interior Support
• Vibration Resistant
• Hi Definition HDMI Inputs
AC/DC
10184
14435
RV ELECTRONICS
& GAUGES
14443
14551
16198
NEW!
10285
16380
CD, MP3 Input
6
= Std. Carton Qty.
10314
10294
16381
3 Channel, MP3 & iPod
Input, USB Input, DVD
14971
15667
• 12 Million Points of interest
• iPod Control
• Rear Cam Input
• DVD-Radio
• Bluetooth
45
C
CB RADIO • STEREO • SPEAKERS • NAVIGATION
RV ELECTRONICS
& GAUGES
In Section C:
Satellite Antennas
TV Antennas
Antenna Accessories
Phone Accessories
30732,
30733
UNIDEN®
40 CHANNEL
PROFESSIONAL
MOBILE CB RADIO
Features: front firing speaker, 3 instant weather
channels, instant channel 9 button, one PA/CB
switch (lets you instantly select either PA or
normal CB operation), RF gain, squelch,
LED signal strength meter, TX LED, heavy duty
mic and mounting hardware.
751480 CB Radio #PRO538W
6
Supplemental Product Information:
• 50 Watts ( 12.5 W x 4) • Positive LCD Display
• 30 Station Presets (18 FM, 12 AM) • 4 Ch Audio
Output; 2 zones • Pushbutton Speaker Selector
with LED Indicators • Remote trigger output
(Power Antenna Circuit) • Auto-Dimming Display
(Power Off) • Mounting Hole Dim.:9-3/4” W x
6-1/8” H x 3-1/8” D • Weight (Lbs) 4.7.
16380 AM/FM/CD Stereo Black
1
14427
14428
DUAL ELECTRONICS 3-WAY INDOOR/
OUTDOOR LOUD SPEAKERS, 100W
• Woofer: 4\" (100mm) Polyelite PVA surround;
• Midrange: 40mm Polypropylene; • Tweeter:
20mm Piezo Dome; • Frequency Response:
100Hz-20kHz ±3dB; • Sensitivity: 85.5dB
(2.83v @ 1 meter); • Nominal Impedance: 4-6Ω;
• Power Handling: 50W RMS - 100W (IPP).
8.25" H x 5.25" W x 5.25" D; 2.8 lbs each.
3-Way Indoor/Outdoor Loud Speakers, 100W:
46
DURASAFE
ELECTRONIC LOCKS
3
3
Stereo
CB
Navigation
NEW!
PIONEER NAVIGATION
WITH DVD PLAYER; AVICX920BTKIT
A unique lock that deters theft of electronics,
providing the user with the freedom to leave the
boat or RV without having to hide the unit or take
it with them. The lock acts as a knob, replacing
one factory knob from either side of an electronics unit. Constructed from marine grade materials. Provides an affordable way of protecting
electronics while reducing the plug wear from
continually having to plug and unplug the unit.
Easy to install. Worldwide patent.
If electronics are installed on a mounting
system, the swivel mount lock is necessary
to secure the swivel mount. Works on most
popular ball mount systems.
Wallmount stereo with CD player keeps the
music smooth with electronic CD skip protection
(ESP). Plays CD, CD-R, CD-RW and includes
electronic tune AM/FM radio with backlit digital
display and controls. Preset EQ (Rock, Pop,
Classic), clock and alarm, and speaker selector
switch (A, B, A+B). Includes front auxiliary input,
headphone jack, and hi-power. 12V DC.
Dimensions: 10-1/2”W x 7”H x 4”D.
14427 Black, Pair #LU43PB
14428 White, Pair #LU43PW
30761
SWIVEL MOUNT LOCK SYSTEM
JENSEN
WALLMOUNT
CD STEREO
#AWM910
TV
Swivel Mount Lock System:
30732 Fits 1” Ball #SM005
30733 Fits 1.5” Ball #SM006
Full featured navigation and entertainment system is easy to use as well as easy on the eyes.
The 6.1” touch screen panel helps locate destinations in all 50 states. Includes 12 million business listings to help you find gas, medical
services, restaurants, shopping, and more.
Displays back up camera image (back up
camera purchased separately). AM-FM-CD and
DVD entertainment and plays MP3 CDs.
The built-in Bluetooth hands-free cell phone
technology shows the caller ID of incoming
phone calls for Bluetooth enabled phones.
Allows voice control of iPod music library
with accessory cable CDIU50V. Display shows
streaming Pandora Internet radio stations when
connected to an iPhone. Fits double-DIN dash
openings (4”H x 7”W).
Special Order #15667 In-Dash All-In-1
Navigation System #AVICX920BTKIT
6
6
UNIVERSAL ELECTRONICS LOCK
Works on any electronics that utilizes a
mounting bracket and knobs.
30761 Universal Lock #UEL50
DVD MULTIMEDIA
STATION
18
DUAL ELECTRONICS BLUETOOTH
HANDSFREE
MODULE • BUILT-IN MIC
• VISOR MOUNT
Features: • Bluetooth Version
2.0 (v1.2 compliant). • Supports
the following profiles: HFP - hands free profile;
A2DP - streaming audio; AVRCP - remote
device control. • Communicates with most Bluetooth enabled phones. • Last number redial.
• View last 5 received/dialed/ missed calls.
• Auto answer/Auto connect. • Caller ID.
General: • Answer and place calls using front
panel controls. • Talk button for simplified operation. • Integrated noise and echo cancelling
microphone. • Easy 1-wire installation with visor
mounting clip and 3 meter cable. • Class 2 support (10m). • Full duplex. • Compatible with the
following DUAL models: XDM6400, XDMA6700,
DMA6855,XDMA7715 and XHD6425.
NZ409 Features: • DVD-Video/DVD+-R/DVD+RW/CD-DA/HDCD CD-R/RW Ready • Built-in
Navigation (2 GB Flash Memory Map
Storage/Map Coverage: US 50 States and
Canada) • 12 Million Built-in POIs • TTS (Text to
Speach) for Street Announcements • MP3/WMA
Compa-tible with ID3-TAG Display • 18 FM /6 AM
Station Presets • Rear USB Connector • iPod
Direct Control via USB (CCA723 Cable
Required) • Rear AV Input • Rear vision Camera
RCA Input • 24-bit D/A Converter • Touch Panel
Control • Fully-motorrized QVGA Color LCD
Monitor • 6ch RCA Output and RCA Rear Video
Output • 40 W x 4 Built-in Amplifier • OEM
Steering Wheel Remote Ready • Sirius SSP
Direct Connection Ready • Bluetooth® Interface
Ready (Optional BLT370) • Built-in IR Eye.
Special Order #13706
In-Dash GPS Navigation#NZ409
16738 Bluetooth Handsfree Module
#BTM60
WITH BUILT-IN
NAVIGATION & 7”
TOUCH PANEL CONTROL
1
DUAL XP265 2-WAY 6.5" SPEAKERS
• 6.5" 2-way speaker with silver anodized PVA treated cone and
black surround; • ABS framed metal mesh grille; • Sensitivity 89 dB;
• Freq. Response 60 Hz - 20 kHz; • Recommended Power range:
2-50 watts (RMS); • 120 watts peak (IPP).
14426 2-way 6.5" Speakers, Silver & Black #DS652
◆
Not UPS-able;
▲
1
Hazmat terms apply; LS Limited Supply
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
