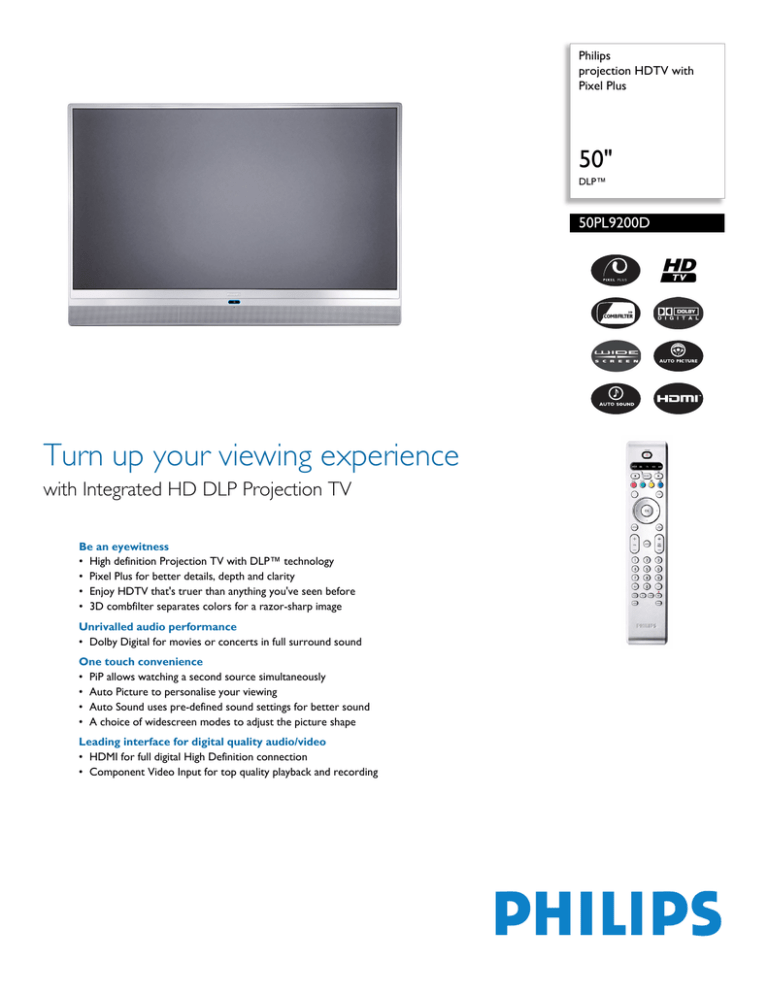

50PL9200D
For preview purpose only
Philips
projection HDTV with
Pixel Plus
50"
DLP™
50PL9200D
Turn up your viewing experience
with Integrated HD DLP Projection TV
Be an eyewitness
• High definition Projection TV with DLP™ technology
• Pixel Plus for better details, depth and clarity
• Enjoy HDTV that's truer than anything you've seen before
• 3D combfilter separates colors for a razor-sharp image
Unrivalled audio performance
• Dolby Digital for movies or concerts in full surround sound
One touch convenience
• PiP allows watching a second source simultaneously
• Auto Picture to personalise your viewing
• Auto Sound uses pre-defined sound settings for better sound
• A choice of widescreen modes to adjust the picture shape
Leading interface for digital quality audio/video
• HDMI for full digital High Definition connection
• Component Video Input for top quality playback and recording
For preview purpose only
50PL9200D/37
projection HDTV with Pixel Plus
50" DLP™
Technical specifications
Picture/Display
• Aspect ratio: 16:9
• Visible screen diagonal (inch): 50 inch
• Display technology: Digital Light Processing,
DLP HD5
• Panel resolution: 1280x720 (720p)
• Picture enhancement: 3D Combfilter, Active
Control, AutoPicture (5 modes), Color,
Contrast Plus, Digital Noise Reduction, Pixel
Plus, Tint, Black stretch, Color Transient
Improvement, Luminance Transient
Improver, Sharpness Adjustment
Supported Display Resolution
• Video formats
Resolution
720p
Refresh rate
60Hz
Sound
• Output power (RMS): 2 x 10W
• Sound Enhancement: Auto Volume Leveller,
AutoSound (4 modes), Balance, Treble and
Bass Control
• Sound System: Virtual Dolby Surround,
Stereo
Convenience
•
•
•
•
•
•
Ease of Installation: Autostore
Ease of Use: Channel list
Remote control type: RCLU026
Remote Control: TV
Teletext: Closed Captioning Full Text
Picture in Picture: 1 tuner PIP
Product highlights
• Screen Format Adjustments: Super Zoom,
4:3, 4:3 expand, Auto Format, Subtitle
Zoom, Widescreen, Zoom 14:9, Zoom 16:9
• Clock: Sleep Timer
• On-Screen Display languages: French,
Spanish, English
Tuner/Reception/Transmission
•
•
•
•
TV system: NTSC, ATSC
Video Playback: NTSC
Aerial Input: 75 ohm F-type
Cable: Unscrambled Digital Cable -QAM
Connectivity
•
•
•
•
AV 1: HDMI, CVBS in, Component Video in
AV 2: Component Video in, CVBS in
AV 3: S-Video Y/C, CVBS in
Front / Side connections: S-video in, CVBS
in, Headphone out
• Output rear: Audio L/R out
• Audio Output - Digital: AC3 over S/PDIF
(Optical)
Power
• Standby power consumption: < 1 W
• Mains power: AC 108 - 132 V, 60 Hz
Dimensions
• Box dimensions in inch (W x H x D):
51.57 x 37.05 x 21.26 inch
• Weight incl. Packaging (lb): 90.39
• Set dimensions in inch (W x H x D):
45.79 x 31.46 x 15.94 inch
• Product weight (lb): 70.55
Pixel Plus
This set uses the power of the Pixel Plus processor to
increase the number of lines and the number of pixels.
The result is razor sharp pictures with incredible detail
and dept, every time from any source.
HDTV
HDTV delivers exceptional picture quality and real movieviewing experience that makes television more dynamic,
truer than anything you've seen before. It is the latest and
best television signal available. It features picture quality
more than twice that of traditional analog broadcasts. In
order to effectively maximize the HDTV signal, a
television must incorporate advanced signal input
connectivity and circuitry design. To use HDTV the TV
must be connected via its Component Video, DVI or
HDMI inputs to a DTV set-top box and set to operate in
the DTV mode.
3D Combfilter
The 3D comb filter separates brightness and color signals
better in 3D domain to eliminate cross-color, crossluminance and dot-crawl distortion - all of which detract
from your viewing pleasure. The 3D digital comb filter
performs field-by-field comparisons of the television
image to accurately separate the color from the blackand-white information and remove both horizontally and
vertically hanging dots, as well as dot crawl. The result is
a razor sharp image.
Dolby Digital
Because Dolby Digital and DTS, the world's leading digital
multi-channel audio standards, make use of the way the
human ear naturally processes sound, you experience
superb quality surround sound audio with realistic spatial
cues.
•
Picture In Picture (PIP)
Provides the ability to watch simultaneously two different
sources, either two video sources or a combination with
data/graphics
Widescreen movie modes
Enhance your viewing experience with Widescreen movie
modes, which lets you choose the screen format from
various options. View your movie the way it is meant to be.
HDMI input
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion
to an analog signal, it delivers an unblemished image. The
non-degraded signal reduces flicker and leads to a clearer
picture. HDMI intelligently communicates the highest
output resolution with the source device. The HDMI input
is fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy protection.
Component Video Input (YPbPr)
Component Video is the highest quality interconnection
standard for analog video. It is sharper than S-video and
composite video. Philips DVD recorders can record
directly from component video (such as YPbPr) sources
including satellite receivers
Date of issue 2006-08-17
Version: 3.0
12 NC: 8670 000 23691
UPC: 6 09585 11373 2
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
