Digital Acoustics EDBx-110 Specifications

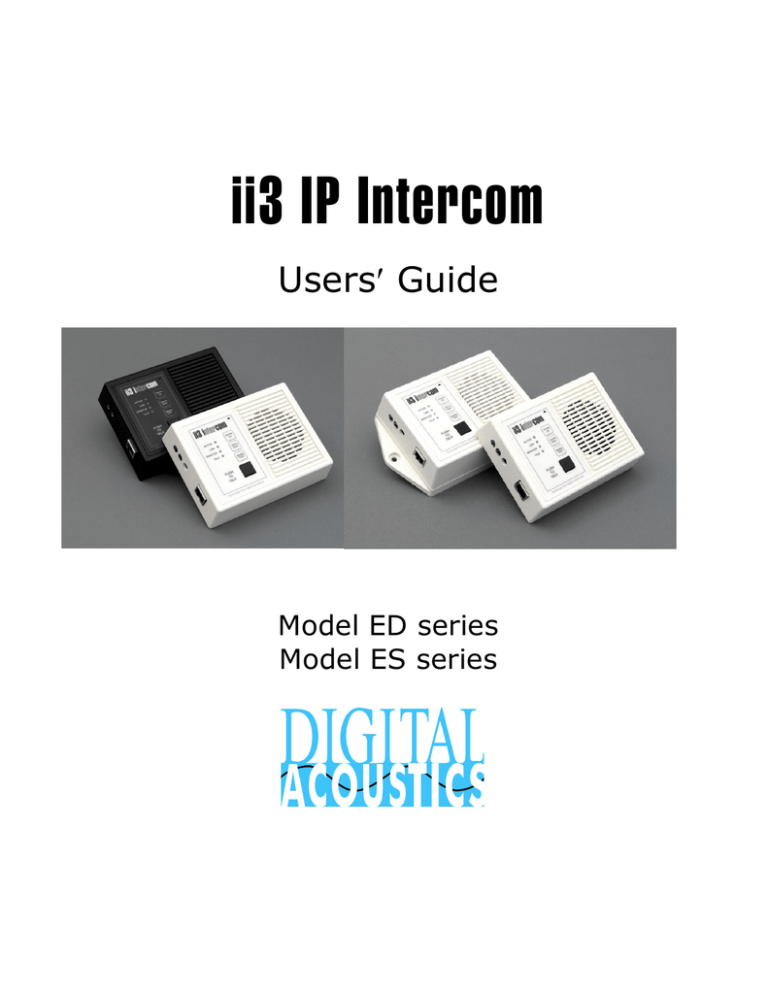

ii3 IP Intercom
Users′ Guide
Model ED series
Model ES series
This page intentionally left blank
TABLE OF CONTENTS
OVERVIEW ................................................................................4
SPECIFICATIONS......................................................................5
INTERFACE CONNECTIONS ....................................................6
INTERFACE CONNECTION DETAIL .........................................6
CONFIGURATION AND IP ADDRESSES ..................................7
TYPICAL SYSTEM CONFIGURATIONS ....................................8
INTEGRATED SWITCHES.........................................................9
LED INDICATORS....................................................................10
EXTERNAL MICROPHONE SELECTION ................................11
EXTERNAL SPEAKER CONNECTIONS.................................11
NETWORK WIRING USING CAT5...........................................11
SOFTWARE SUPPORT ...........................................................12
FIRMWARE OS UPGRADES ...................................................15
TROUBLESHOOTING..............................................................14
INTEGRATED 2-PORT SWITCH OPTION ...............................13
POE OPTION ...........................................................................14
TECHNICAL SUPPORT ...........................................................14
-3-
O VERVIEW
Digital Acoustics IP (Internet Protocol) Intercom modules provide
a functional audio equivalent to the basic "push to talk" (PTT)
intercom. Features include:
Talk to/from any station to host PC server
High quality, clear transmit and playback audio
Simple operation utilizes push buttons for commands
Fixed and automatic and DHCP compliant IP assignment
Integrated 2-port switch option available
PoE (802.3af) option available
Hands-free listen mode at stations
Highly scaleable and seamless expansion
Field upgradeable OS using internal Flash memory
TalkMaster™ host software access and controls ii3 clients
The ED desktop series includes the following models:
• EDB-110/220 - Externally powered black PVC desktop
• EDBx-110/220 - Externally powered w/2-Port switch black
PVC desktop
• EDB-PoE - PoE powered black PVC desktop
• EDBx-PoE - PoE powered w/2-port switch black PVC
desktop
• EDW-110/220 - Externally powered white PVC desktop
• EDWx-110/220 - Externally powered w/2-Port switch
white PVC desktop
• EDW-PoE - PoE powered white PVC desktop
• EDWx-PoE- PoE powered w/2-port switch white PVC
desktop
The ES surface mount series includes the following models:
• ESB-110/220 - Externally powered black PVC wall mount
• ESBx-110/220 - Externally powered w/2-Port switch black
PVC wall mount
• ESB-PoE - PoE powered black PVC wall mount
• ESBx-PoE - PoE powered w/2-port switch black PVC wall
mount
• ESW-110/220 - Externally powered white PVC wall mount
• ESWx-110/220 - Externally powered w/2-Port switch
white PVC wall mount
• ESW-PoE - PoE powered white PVC wall mount
• ESWx-PoE- PoE powered w/2-port switch white PVC wall
mount
-4-
S PECIFICATIONS
Items
Hardware Protocols
Network Interface
Specification
TCP, UDP, IP, ARP, ICMP, Ethernet
MAC
10/100 Base-T Ethernet (Auto
detection)
Command protocols
Proprietary
Audio Rate
64kbs
Audio Resolution
PCM-8bit and uLAW-16 bit 8bit
Audio Sample Rate
8 kHz (Voice band)
Audio Buffers
4KB TX and RX
Internal Amplifier
2w Max @ 4 ohms
Microphone sensitivity
-42db integrated electret
Microphone AGC
PHY Interface
Temperature
Humidity
Power
Connector types
37db with limiting and automatic
leveling
RealTek RTL8201BL single-port
PHYceiver
0'C ~ 70'C (Operating)
-40~85'C (Storage)
10~90%
Without integrated 2-port
switch: 7.5-9 VDC external power
supply or 5 VDC through header
pins (500MA min)
Optional integrated 2-port
switch: 5VDC (750mA min)
Optional PoE (Power over
Ethernet 802.3af standard) 7watts
Power 2.1 mm (positive center)
Audio 3.5 mm
Size
135mm x 102mm x 37mm
Weight
7.5oz (213 grams)
-5-
I NTERFACE
CONNECTIONS
Internal
Microphone
Internal
Speaker
External
Microphone
Input
Audio Out
Power
LAN 10/100
RJ-45
Talk Button
Version shown
Ii3-EDW
I NTERFACE C ONNECTION D ETAIL
EXTERNAL CONNECTIONS
LAN
10/100
MIC
INPUT
JACK
AUDIO
OUT
JACK
POWER
JACK
RJ-45
3.5MM
TCP, UDP, IP, ARP, ICMP, 10/100 Base-T Ethernet
(Auto detection) MAC
External Microphone Input. Use of this jack automatically
disconnects the onboard electret microphone. See
following section for recommended microphone
specifications
3.5MM
External audio out jack. Capable of driving headphones
or external amplifier. Use of this jack interrupts connection
to onboard speaker.
2.1 MM
Models without integrated 2-port switch use unregulated
DC input 7.5VDC to 9VC 500ma. POSITIVE TIP polarity
Models with integrated 2-port switch use regulated DC
5.0VDC 750ma. . POSITIVE TIP polarity
Do not use concurrently with optional PoE supply
-6-
C ONFIGURATION
AND
IP A DDRESSES
TalkMaster™ LE software is included with the
purchase of any ii3 IP Intercom.
Access www.digitalacoustics.com/ii3 for
downloads and more information.
Quick reference:
1. Install and start TalkMaster™ software
2. To configure your intercoms, select
menu option Admin Enable Admin
(default password is: admin)
3. Select menu option Admin Configure
Intercoms
4. Select and assign intercom’s IP address,
Subnet and Gateway
5. Assign a Location Name to the
Intercom
6. Assign the Server IP address the
Intercom will connect to
7. Click Apply
8. Click Exit
Refer to the TalkMaster User Guide for more information on setup and
configuration options!
-7-
T YPICAL
SYSTEM CONFIGURATIONS
PC-SERVER
MODE
Server PC with
TalkMaster™ software
connected to Intercom
Client array
DIRECT
MODE
One ii3 Intercom
configured as 'Server' ,
connected to a another
as 'Client'
-8-
I NTEGRATED
Talk
Push to Talk. Turns on local microphone.
•
•
Monitor/Open
•
Volume Up
Volume Down
SWITCHES
In 'Client' mode, Monitor sets 'Talk' ON, as if the Talk
button is being held down for hands free speaking.
In 'Server' mode quickly pressing Monitor turns on listen
mode on by turning the Client Intercom’s microphone on.
Press Talk to talk to the Client Intercom. Quickly
pressing Monitor a second time turns off remote
listening
In ‘Server’ mode (Direct Mode), pressing and holding
this button activates the GPIO4 or the relay (dry contact)
on the “Client Intercom”
Sets volume locally (also set via TalkMaster). There
are 7 (seven) volume level settings.
-9-
LED INDICATORS
The four LEDs marked Active, Link, Monitor/Open and Talk can provide the
following diagnostic information:
Active
Link
Monitor/
Open
Talk
ON
ON
-
-
FLASH
OFF
-
-
FLASH
ON
-
ON
FLASH
ON
-
-
FAST
FLASH
ON
-
-
ON
ON
-
FLASH
Sending audio. Talk button is pressed
or server has engaged "listen" mode.
ON
ON
-
ON
Intercom is in "Server" mode, waiting
for a client to request connection
DUAL
FLASH
-
-
-
ON
ON
ON
ON
Operational Mode
Normal operational mode. TalkMaster
is active. Intercom can communicate.
LAN connection is inactive. The RJ45
may be unplugged, or the cable may
be defective.
Intercom has not been configured yet
or has been configured for DHCP, but
no DHCP Server is available. To turn
off DHCP, power cycle the Intercom
while holding down the + and - buttons
(Volume up and Volume down)
TalkMaster™ Server software is not
running or not set to communicate.
TalkMaster software at the server has
"Searched" for intercoms in the
Configuration Mode utility setup
Receiving audio. The server software
(TalkMaster™) / PC microphone is on.
(Active LED flash alternates 1sec fast - 1sec slow)
Local "Monitor" button has been
depressed. Microphone is set to
constant "Talk" mode for monitoring
- 10 -
E XTERNAL
MICROPHONE SELECTION
ii3 supports high quality voiceband audio. Integrated AGC amplifiers
support a wide range of microphone inputs and low cost electret
microphones ($3usd) will have similar intelligibility as expensive
"professional" microphones ($10-$50usd). Microphones mounted
externally should be in a vibration and moisture free environment.
E XTERNAL
SPEAKER CONNECTIONS
A 3.5mm Audio Out jack is provided for headphones, external
speaker or an amplifier. When connecting speakers to the Audio
Out jack, user an external amplifier or powered speakers
N ETWORK
WIRING USING
CAT5
Ii3 series products connect to network hubs and switches using
standard Straight Through wiring, similar to PC connections and
do not support mdi auto-detection. No special connections or
cabling changes are needed under normal operating
environments.
Crossover Cable Connections
Use a Crossover cable ONLY when using 2 ii3 intercoms in DIRECT
CONNECTION (Server/Client) or when using a PC to single ii3
intercom WITHOUT a hub/switch interconnect.
Cat-5 Wiring reference
- 11 -
S OFTWARE
SUPPORT
ii3-TalkMaster™ software
•
•
•
•
•
•
•
•
Control and detection for intercom stations
Audio access for all ii3 intercoms with Master
call to page all stations
Program ii3 intercom internal OS/Flash memory
Pop-up screens for identifying incoming station ID
and audio
Utilizes PC Multimedia microphone/speaker for
access to intercoms
Integrated UDP polling on to automatically
detects all stations
ActiveX control available for easy custom GUIs
with sample program (C++)
Windows® 98, Me, 2000, XP, Server 2003
TalkMaster™ software manuals and downloads are available at
www.digitalacoustics.com/ii3
If you require multiple concurrent consoles managing ii3 IP Intercoms, refer
to www.digitalacoustics.com for information on TalkMaster Enterprise
Edition software.
iTalk/XActiveX
iTalk/X SDK development software
iTalk/X provides complete access to the functions used
in TalkMaster™, making it easy to write TCP/IP server
software for Digital Acoustics' ii3 Intercom Series. iTalk/X is
available as an ActiveX control for Visual Basic and Visual C++
applications, or and other GUIs that support ActiveX.
- 12 -
I NTEGRATED 2- PORT
SWITCH OPTION
An integrated 2-port switch is an option available on all models of
the ED and ES series. The 2-port switch allows connection of an
additional IP device from a single network drop.
Important - ii3 intercoms with the integrated 2 port switch are
supplied with a regulated 5vdc (750mA) power supply. Other
intercoms in the ii3 series use 7.5vdc or 9vdc power supplies.
Using the wrong power supply could damage the unit.
Connecting ii3 Intercoms
With integrated 2 port switch
1
•
Connect a regulated 5vdc power
supply with 2.1mm plug, center
tip positive, min 750mA
•
Connect an Ethernet cable from
a hub/switch into the RJ45
connector closest to the edge of
the intercom.
•
Connect an Ethernet cable to
any other IP device using the
RJ45 connector that is next to
the power jack.1
If the upstream device is another hub/switch that does not have mdix
capabilities, use a crossover cable
- 13 -
P O E O PTION
A PoE (Power over Ethernet - 802.3af compatible) option is available on all
models in the ED and ES lines.
• Each ED or ES intercom will draw 7 Watts from your network switch
or injector
• On models with the PoE and integrated 2-port switch options, PoE
does not pass through to other devices connected to the 2nd port
• Do not plug power into the external power jack and connect the
Intercom to a PoE power source at the same time
T ROUBLESHOOTING
Verify power connections. The "Active" or LD10 LED on should be on or
flashing.
Verify that the “Link” or LED is on solid. If not, a valid network
connection is not present.
ii3 Intercoms may operate across some firewalls or VPN's. They will
need to be configured locally (for setup) and will need to be assigned to
the STATIC IP addresses of the TalkMaster PC.
If the intercoms have been configured for DHCP and no DHCP server is
available, re-power the intercom while holding down the Volume Up and
Volume Down buttons. Wait 15 seconds, then Search for the Intercoms
again and assign a static IP address.
If you cannot detect any intercoms using the TalkMaster Intercom
Configuration Utility screen try directly connecting the PC (running
TalkMaster) to the ii3 intercom using a crossover cable (disconnected
from the network).
PC running
TalkMaster
Crossover Cable
ii3
intercom
To reset the Intercom’s configuration back to factory defaults, re-power
the intercom while holding down the TALK and Volume Up buttons.
This will erase the Intercom’s IP Address settings, Intercom Name and
all options. Wait 15 seconds, then Search for the Intercoms again and
re-configure the Intercom.
- 14 -
F IRMWARE OS
UPGRADES
All ii3™ intercoms use internal Flash memory. Operating system
(OS) and firmware may be upgraded to include new revisions or
custom options. TalkMaster™ software is required to enable and
program the Flash memory upgrade feature.
T ECHNICAL
Information online
Email
Telephone
SUPPORT
www.digitalacoustics.com/ii3
esupport@digitalacoustics.com
+1 (847) 604-9256 M-F 8-5 (Central Time Zone)
- 15 -
This document may contain advance information. Contact factory for technical specification before
product design and/or use. Design and specifications are subject to change without notice.
Digital Acoustics® and TalkMaster™ are trademarks of Digital Acoustics Corporation, all other marks
used are properties of their respective owners. Digital Acoustics' product designs are packaged by
leading manufacturers around the world.
i3-m-1216D
Rev 2007-01-10-9
Digital Acoustics, LLC
263 Market Square • Lake Forest, IL 60045 U.S.A.
Office +1 847-604-9256 • Fax +1 847-604-9346
- 16 -
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
