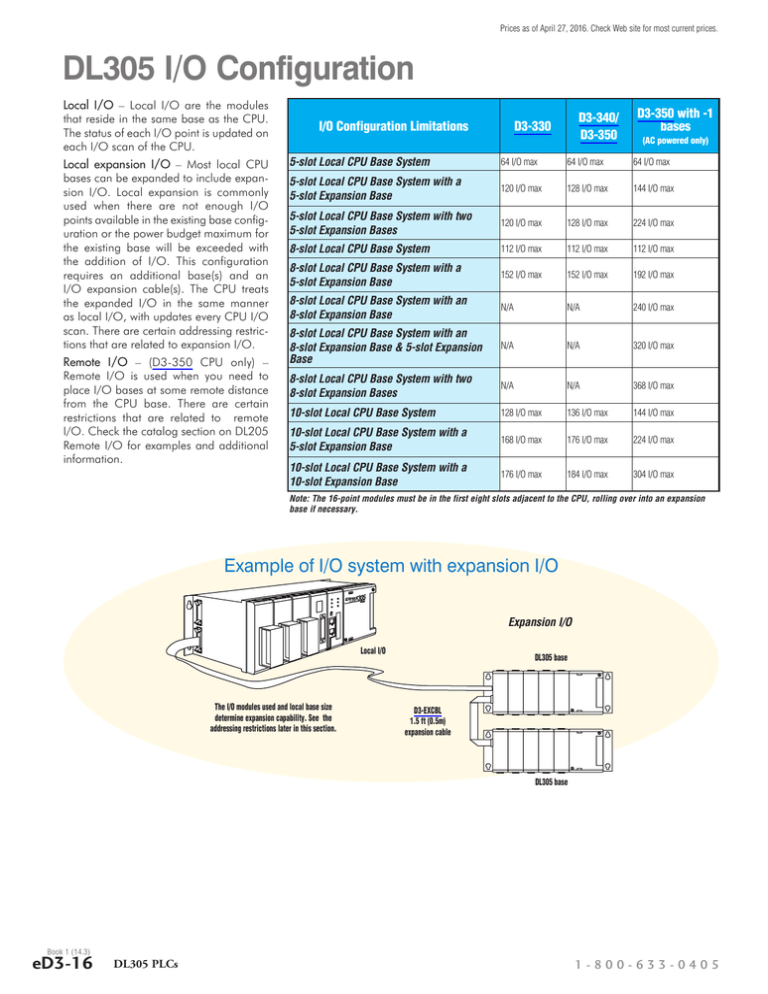

DL305 I/O Configuration

DL305 I/O Configuration
Prices as of April 27, 2016. Check Web site for most current prices.
DL305 I/O Configuration
Local I/O – Local I/O are the modules
that reside in the same base as the CPU.
The status of each I/O point is updated on
each I/O scan of the CPU.
Local expansion I/O – Most local CPU
bases can be expanded to include expansion I/O. Local expansion is commonly
used when there are not enough I/O
points available in the existing base configuration or the power budget maximum for
the existing base will be exceeded with
the addition of I/O. This configuration
requires an additional base(s) and an
I/O expansion cable(s). The CPU treats
the expanded I/O in the same manner
as local I/O, with updates every CPU I/O
scan. There are certain addressing restrictions that are related to expansion I/O.
Remote I/O – (D3-350 CPU only) –
Remote I/O is used when you need to
place I/O bases at some remote distance
from the CPU base. There are certain
restrictions that are related to remote
I/O. Check the catalog section on DL205
Remote I/O for examples and additional
information.
I/O Configuration Limitations
D3-340/
D3-350
D3-330
D3-350 with -1
bases
(AC powered only)
5-slot Local CPU Base System
64 I/O max
64 I/O max
64 I/O max
5-slot Local CPU Base System with a
5-slot Expansion Base
120 I/O max
128 I/O max
144 I/O max
5-slot Local CPU Base System with two
5-slot Expansion Bases
120 I/O max
128 I/O max
224 I/O max
8-slot Local CPU Base System
112 I/O max
112 I/O max
112 I/O max
8-slot Local CPU Base System with a
5-slot Expansion Base
152 I/O max
152 I/O max
192 I/O max
8-slot Local CPU Base System with an
8-slot Expansion Base
N/A
N/A
240 I/O max
8-slot Local CPU Base System with an
8-slot Expansion Base & 5-slot Expansion
Base
N/A
N/A
320 I/O max
8-slot Local CPU Base System with two
8-slot Expansion Bases
N/A
N/A
368 I/O max
10-slot Local CPU Base System
128 I/O max
136 I/O max
144 I/O max
10-slot Local CPU Base System with a
5-slot Expansion Base
168 I/O max
176 I/O max
224 I/O max
10-slot Local CPU Base System with a
10-slot Expansion Base
176 I/O max
184 I/O max
304 I/O max
Note: The 16-point modules must be in the first eight slots adjacent to the CPU, rolling over into an expansion
